EefaCo.Store AD Series User manual

READ AND SAVE THESE INSTRUCTIONS
READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT
YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH
INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!
RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.
GENERAL SAFETY INFORMATION
When using electrical appliances, basic precautions
should always be followed to reduce the risk of fire,
electric shock and injury to person, including the following:
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK
AND INJURY TO PERSON, OBSERVE THE FOLLOWING:
1. Read all instructions before installing or using range hood.
2. Use this unit only in the manner intended by the manufacturer. If
you have questions, contact the manufacturer.
3. Before servicing or cleaning the unit, switch power off at service
panel and lock the service disconnecting means to prevent power
from being switched on accidentally. When the service
disconnecting means cannot be locked, securely fasten a prominent
warning device, such as a tag, to the service panel.
4. Installation work and electrical wiring must be done by qualified
person(s) in accordance with all applicable codes and standards,
including fire-related construction.
5. Sufficient air is needed for proper combustion and exhausting of
gases through the flue (chimney) of fuel burning equipment to
prevent back drafting. Follow the heating equipment manufacturer’s
guideline and safety standards such as those published by the
National Fire Protection Association (NFPA) and the American
Society for Heating, Refrigeration, and Air Conditioning Engineers
(ASHRAE), and the local code authorities.
CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT USE
TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.
6. When cutting or drilling into wall or ceiling, do not damage electrical
wiring and other hidden utilities.
CAUTION: TO REDUCE THE RISK OF FIRE AND TO PROPERLY
EXHAUST AIR, BE SURE TO DUCT AIR OUTSIDE - DO NOT VENT
EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS OR INTO
ATTICS, CRAWL SPACES, OR GARAGES.
7. This unit must be grounded.
8. To avoid motor bearing damage and noisy and/or unbalanced
impellers, keep drywall spray, construction dust, etc. off power unit.
WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, DO
NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.
WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:
a) Never leave surface units unattended at high settings. Boilovers
cause smoking and greasy spillovers that may ignite. Heat oils
slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when
flambéing food (ie. Crepes Suzette, Cherries Jubilee, Peppercorn
Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed
to accumulate on fan filter.
d) Use proper pan size. Always use cookware appropriate for the
size of the surface element.
WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN
THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:
a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or
metal tray, then turn off burner. BE CAREFUL TO PREVENT
BURNS. If the flames do not go out immediately, EVACUATE
AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a
violent steam explosion will result.
d) Use an extinguisher ONLY if:
I. You know you have a Class ABC extinguisher, and you already
know how to operate it.
II. The fire is small and contained in the area where it started.
III. The fire department is being called.
IV. You can fight the fire with your back to an exit.
WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL
DUCTWORK.
1
AD Series Range Hood
IMPORTANT INSTRUCTIONS -
OPERATING MANUAL

Tabs
Screw
Figure 1
INSTALLATION INSTRUCTIONS
1. Unpack hood from the carton and confirm that all pieces are present.
In addition to the range hood you should have:
1 - Aluminum Grease/Charcoal Filter
4 - #8 Mounting Screws
1 - Instruction/Safety Sheet
2. Lay the hood flat on a table so the underside is facing you. Use a
piece of cardboard to avoid damaging the table or the hood.
3. Remove wire compartment cover screw and then lamp cover by
squeezing the two tabs together (Figure 1).
4. Install a 60 watt maximum type A19 bulb and reinstall the lamp cover.
Prepare the location for Hood Support
1. If the hood will be installed under cabinets that have a recessed
bottom, it will be necessary to install wood mounting strips (not
included) so the hood will mount properly (Figure 2).
2. The thickness of the strips should be the same as the recess of the
cabinet and they should be approximately 2" wide.
3. Install the strips using appropriate length wood screws (not included).
Make sure the strips line up to the keyhole slots of the range hood.
Prepare the Hood for Installation
1. Determine where the electrical service will enter the hood and
remove the appropriate electrical knockout by inserting a screw
driver into the slot and rocking back and forth until the knockout
comes loose (Figure 3).
CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE
PANEL BEFORE STARTING INSTALLATION.
Installing the Range Hood
1. Once the proper knockout(s) have been removed, either hold the
hood up to the installation location and mark the locations of the
ducting (if applicable), electrical, and mounting holes or mark the
locations by measurement.
2. Cut appropriate holes for ducting connection (if applicable) and
electrical connection in the wall/cabinet.
3. Install an approved wire connector to the electrical knockout of
the hood and guide the electrical cable through the hood, allowing
at least 6" of wire for connections and tighten.
4. Install the 4 mounting screw at the previously marked locations.
Leave approximately 1/8" clearance. Slide the hood in place through
the keyhole slots and align the front of the hood so that it is flush with
the front of the cabinets. Tighten all screws securely (Figure 4).
Wiring
CAUTION: ALL ELECTRICAL CONNECTIONS MUST BE MADE
IN ACCORDANCE WITH LOCAL CODES, ORDINANCES, OR NATIONAL
ELECTRICAL CODE. IF YOU ARE UNFAMILIAR WITH METHODS OF
INSTALLING ELECTRICAL WIRING, SECURE THE SERVICES OF A
QUALIFIED ELECTRICIAN.

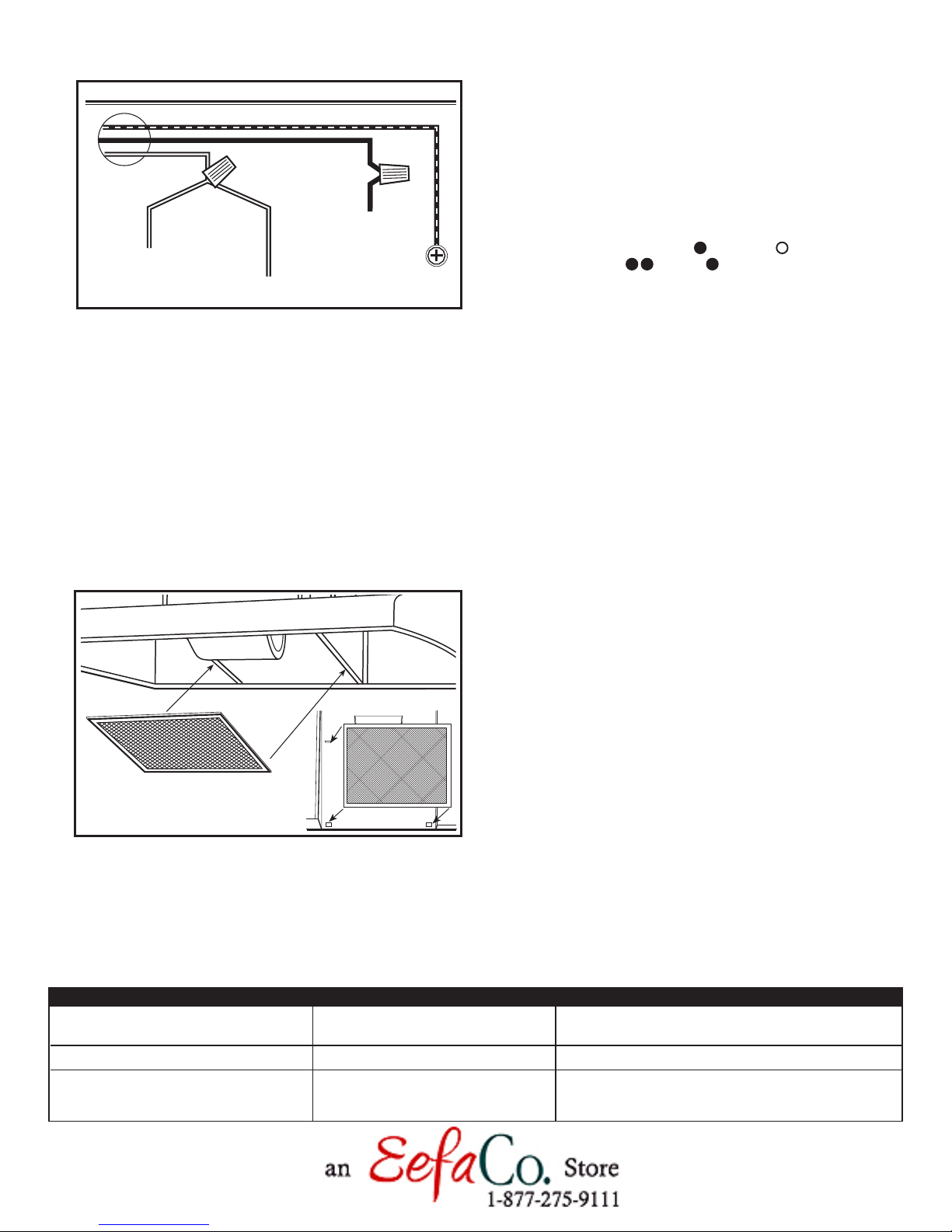

1. Connect the 2 loose White wires from the range hood to the White
wire from the supply, and the loose Black wire from the range hood
to the Black wire of the supply. Connect the ground wire (green or
bare) from the supply to the green ground screw of the hood. Use
approved methods for all connections (Figure 5).
1/8"
Keyhole
Wood Strip
Figure 2
Figure 4
2
Figure 3

Troubleshooting Guide
Trouble Probable Cause Suggested Remedy
1. Hood does not operate when the switch is on. 1a. A fuse may be blown or a circuit tripped. 1a. Replace fuse or reset circuit breaker.
1b. Wiring is not connected properly. 1b. Turn off power to unit. Check that all wires are connected
2. Hood is operating, but air moves slower than normal. 2. Filter needs replacing. 2. Check filter for build up and replace if necessary.
3. Hood is making a rattling noise. 3a. Motor is loose. 3a. Turn off power to unit. Remove filter, check that all screws are
fully tightened.
3b. Filter is loose. 3b. Turn off power to unit. Check that filter is tight.
Ground
Hot (Black)
White from Motor
White from Lamp
NOTE: DO NOT disconnect any wiring that has already been crimped
with a wire connector from the factory.
2. Replace the wire compartment cover and tighten screw. Make sure
all wiring is securely contained within the wire compartment.
Ducting (if applicable)
CAUTION: ALL DUCTING MUST COMPLY WITH LOCAL AND
NATIONAL BUILDING CODES.
1. Your range hood comes ready for ductless operation, and no
additional ducting is required.
Finishing the Installation
1. Install the appropriate filter sliding the back side of the filter into
the tab and pressing the front of the filter into place (Figure 6).
2. Turn switches to the “OFF” position and restore power. Test that
the light and the fan are operating properly.
3. If there is any vibration noise, check for the source and try to
tighten fasteners.
Operation
Controls
Your Range Hood is equipped with two rocker style switches with one
controlling the lighting and the other controlling the exhaust fan. The
light switch has two positions, ON ( ) and OFF ( ). The fan is a three
position switch, HIGH ( ), LOW ( ), and OFF. OFF is the middle
position of the switch.
Maintenance
CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE
PANEL BEFORE SERVICING THE UNIT.
Filters
Grease/Charcoal Filter - Your range hood is equipped with a combination
grease/charcoal filter. This filter cannot be washed and must be discarded
and replaced when it has become noticeably dirty, has stopped filtering
the odors, or at least once per year. Replace with Air King Model RF55
Combination Odor/Grease Filter.
Cleaning
CAUTION: DO NOT USE GASOLINE, BENZINE, THINNER, HARSH
CLEANSERS, ETC., AS THEY MAY DAMAGE THE RANGE HOOD.
1. Clean your range hood with a mild detergent, such as dishwashing
liquid, and dry with a soft cloth. NEVER USE ANY ABRASIVE PADS
OR SCOURING POWDERS. Completely dry before restoring power.
NEVER IMMERSE ELECTRICAL PARTS IN WATER.
2. The fan assembly can be vacuumed when build up (dirt, lint, etc.)
accumulates over time. The fan is permanently lubricated and does
not require oiling.
Figure 5
3
Figure 6

LIMITED WARRANTY
All products manufactured by Air King Limited are warranted for one year from the date of purchase against defects in workmanship
and/or material. In addition, all ventilating/exhaust fans, heaters, combination fan lights and/or heaters, and range hoods are
guaranteed for five years from the date of purchase against defects in workmanship and/or material.
This warranty does not cover any labor or shipping costs or the cost of replacement components as part of routine maintenance
such as: range hood grease filters, charcoal filters or combination charcoal/grease filters; replacement light bulbs in range hoods
or bathroom fan/light/bulb heater combinations. As well, any damage or failure caused by abuse, misuse, abnormal usage, faulty
installation, or improper maintenance will not be covered by this warranty.
In order to make a claim on this warranty, you must be the original consumer of the product. You will be required to present to
Air King the original bill of sale showing: date of purchase, place of purchase and model purchased. Failure to meet these
requirements will void your warranty.
Air King will not be held responsible for any bodily injury or damages to personal property or real estate whether caused directly
or indirectly by the product. Some states and provinces do not allow the exclusion or limitation of incidental or consequential
damages and some states do not allow limitations on how long an implied warranty lasts, so these exclusions or limitations may
not apply to you. This warranty gives you specific legal rights and you may have other rights which vary from state to state and
province to province.
4

17
19
16
15
14
13
10
9
12
81
7
11
5
3
2
6
18
4
# Description Replacement Part #
15 Motor Switch - White 5S1418003
Biscuit 5S1418004
Almond 5S1418005
Black 5S1418006
16 Light Switch - White 5S1419003
Biscuit 5S1419004
Almond 5S1419005
Black 5S1419006
17 Wrapper -21" 5S1425010
24" 5S1425020
30" 5S1425030
36" 5S1425040
18 Motor 5S2199001
19 #8 Screw 5S1999017
REPLACEMENT PARTS DIAGRAM
# Description Replacement Part #
1 Filter RF55 5S4108001
2 Push Nut 5S4199001
3 Fan Blade 5S4199002
4 #8 B Screw 5S1999015
5 Hex Nut 5S1999006
6 Motor Bracket 5S4199003
7 Light Lens 5S4199004
8 #6 AB Screw 5S1999004
9 Wire Compartment Cover 5S4199005
10 Lamp Holder 5S4199006
11 Bushing 5S1999016
12 #10 Ground Screw 5S1999002
13 Jumper Wire 5S4199007
14 Switch Plate - White 5S1421003
Biscuit 5S1421004
Almond 5S1421005
Black 5S1421006
5
