EF EFDW 9242-M W User manual

EFDW 9242-M W
Italian
Inspiration

To review the section on Troubleshooting Tips
will help you to solve some common problems
by yourself and not need to ask for the help of
professional technicians.
Dear Costumer,
Please read this User Information carefully and keep it
to refer to at a later date.
Pass it on to any subsequent owner of the appliance.
This manual contains sections of Safety Instructions,
Operating Instructions,
Installation Instructions and Troubleshooting Tips etc.
Carefully reading it before using the dishwasher will help
youtouseandmaintainthe dishwasher properly.
The manufacturer, following a policy of constant
development and up-dating of the product, may
make modifications without giving prior notice.
Control Panel......................................... ..........3
Dishwasher Features..................................... ...3
A、 Water Softener............................................4

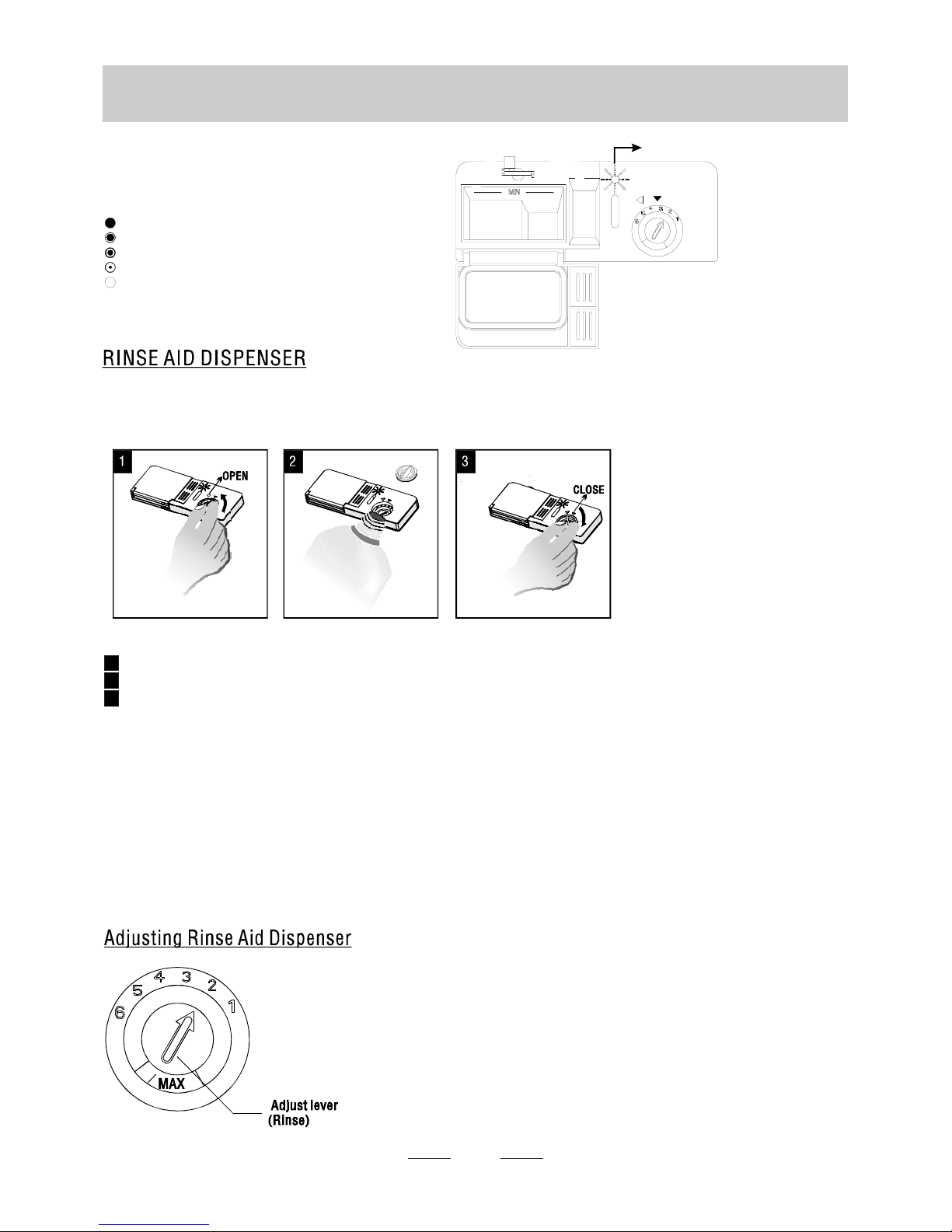

RINSE AID DISPENSER..................................... 6
Detergent........................................................ 8
Attention before or after loading the Dishwasher
Rack............................................................10
Removing the Dishes.......................................10
Wash Cycle Table.............................................14
Turning on the Appliance..................................15
Change the Programme.............. ................15.....
Filtering System..............................................16

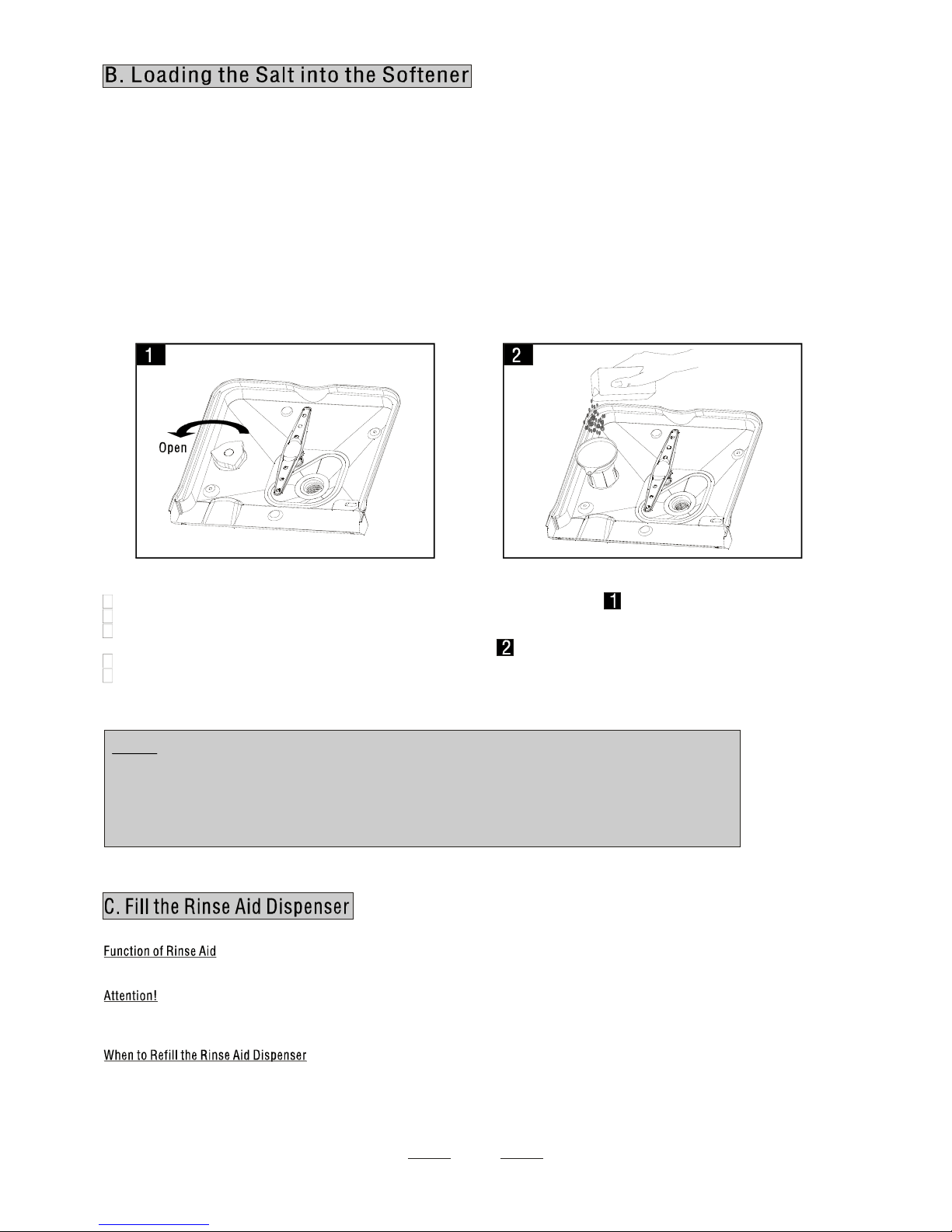

B Loading the salt into the softener 、....................5
C Fill the Rinse Aid Dispenser 、 ...........................5
Adjusting Rinse Aid Dispenser......... ............... 6

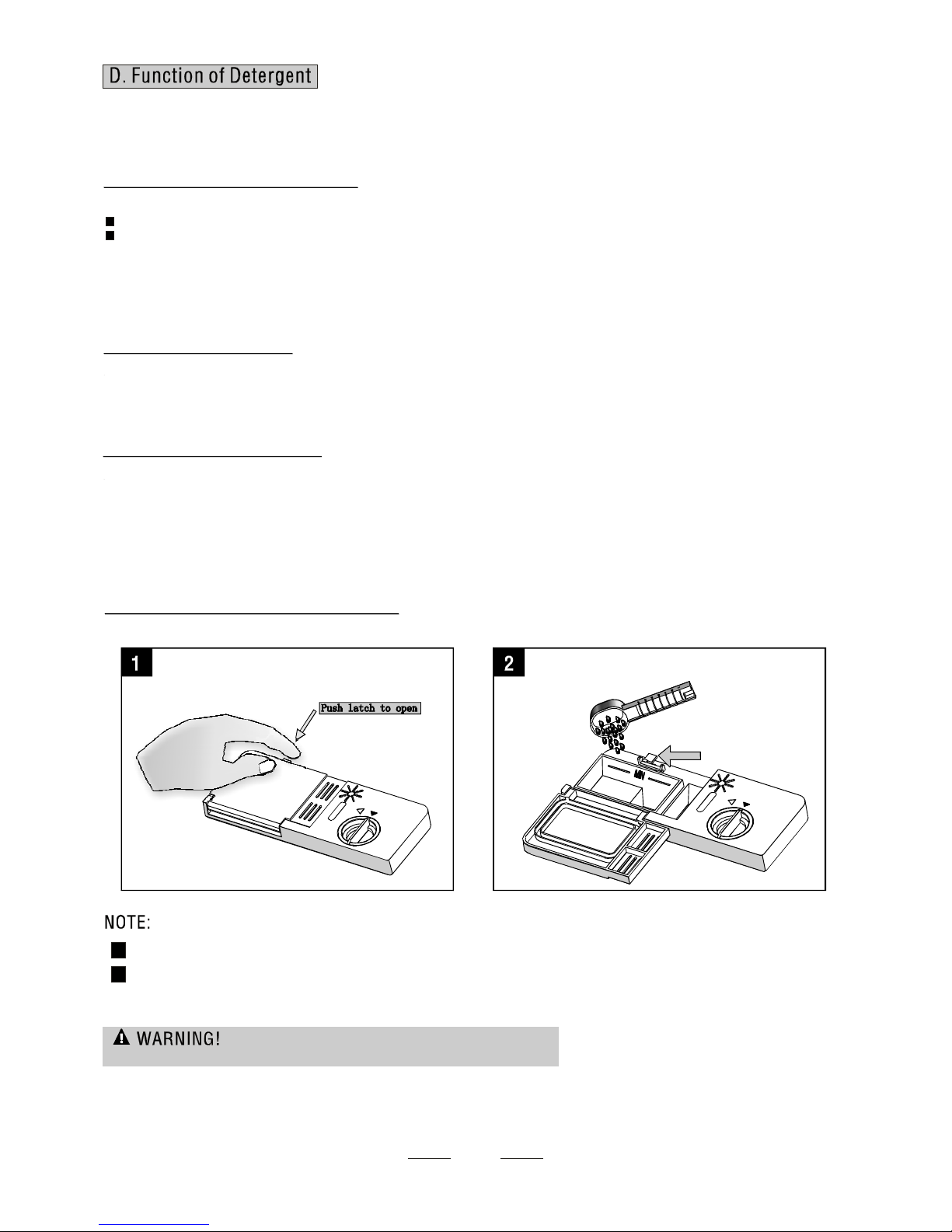

D Function of Detergent .......、 ...........................7
Concentrated Detergent.................................... 7
Detergent Tablets................................. ........... 7
Detergent Dispenser......................................... 7
Amount of Detergent to Use.............................. 7
Fill in Detergent................................................ 8

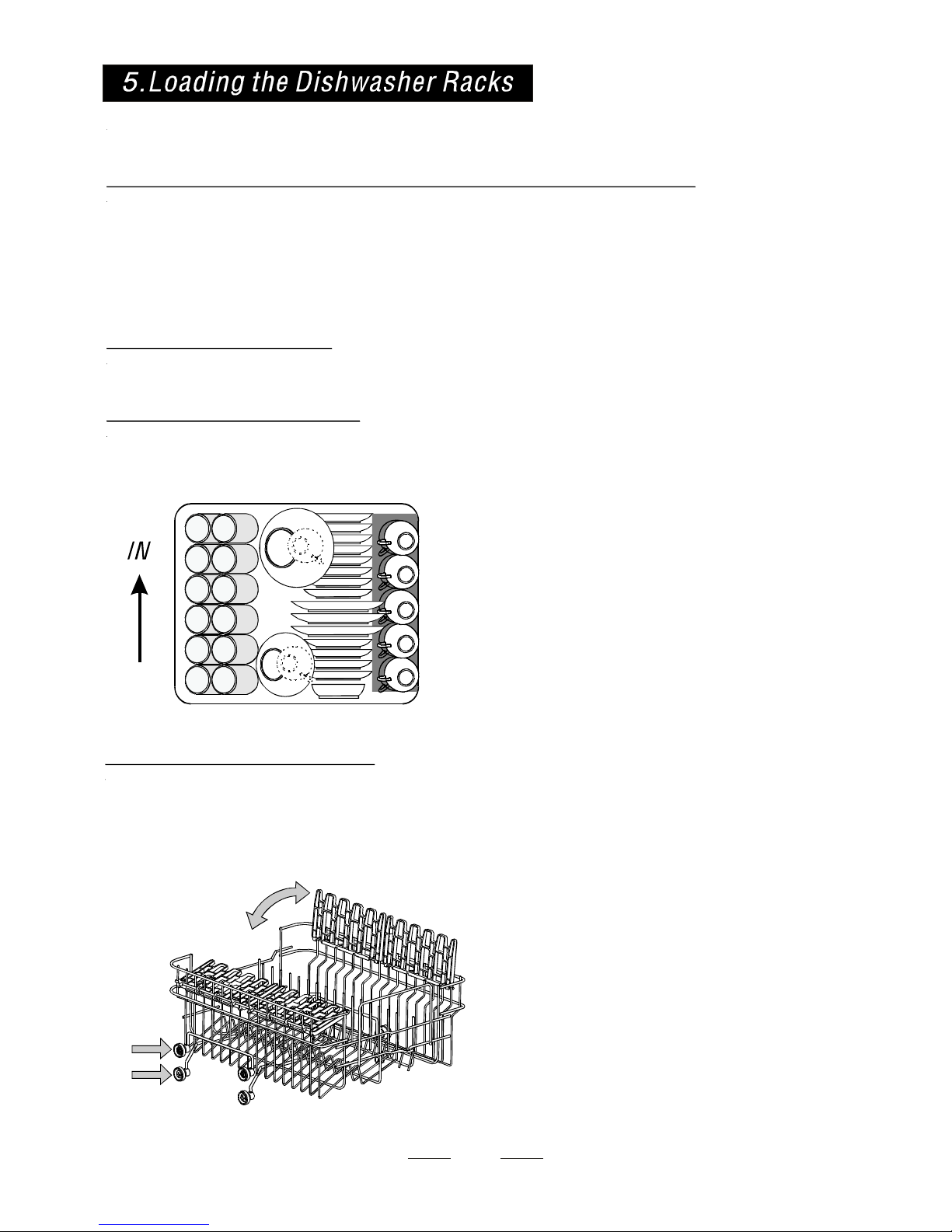

Loading the upper Rack...................................10
Adjusting the upper Rack.................................10
Loading the Lower Rack...................................11
Folding spikes................................................11
Silverware Basket........................................ ...12
Attention .......................................................13
Suggested remedy...........................................13
At the Ene of the Wash Cycle..............................13
Cleaning Filters...............................................17
Filter assembly...............................................17
Cleaning the Spray Arms..................................17

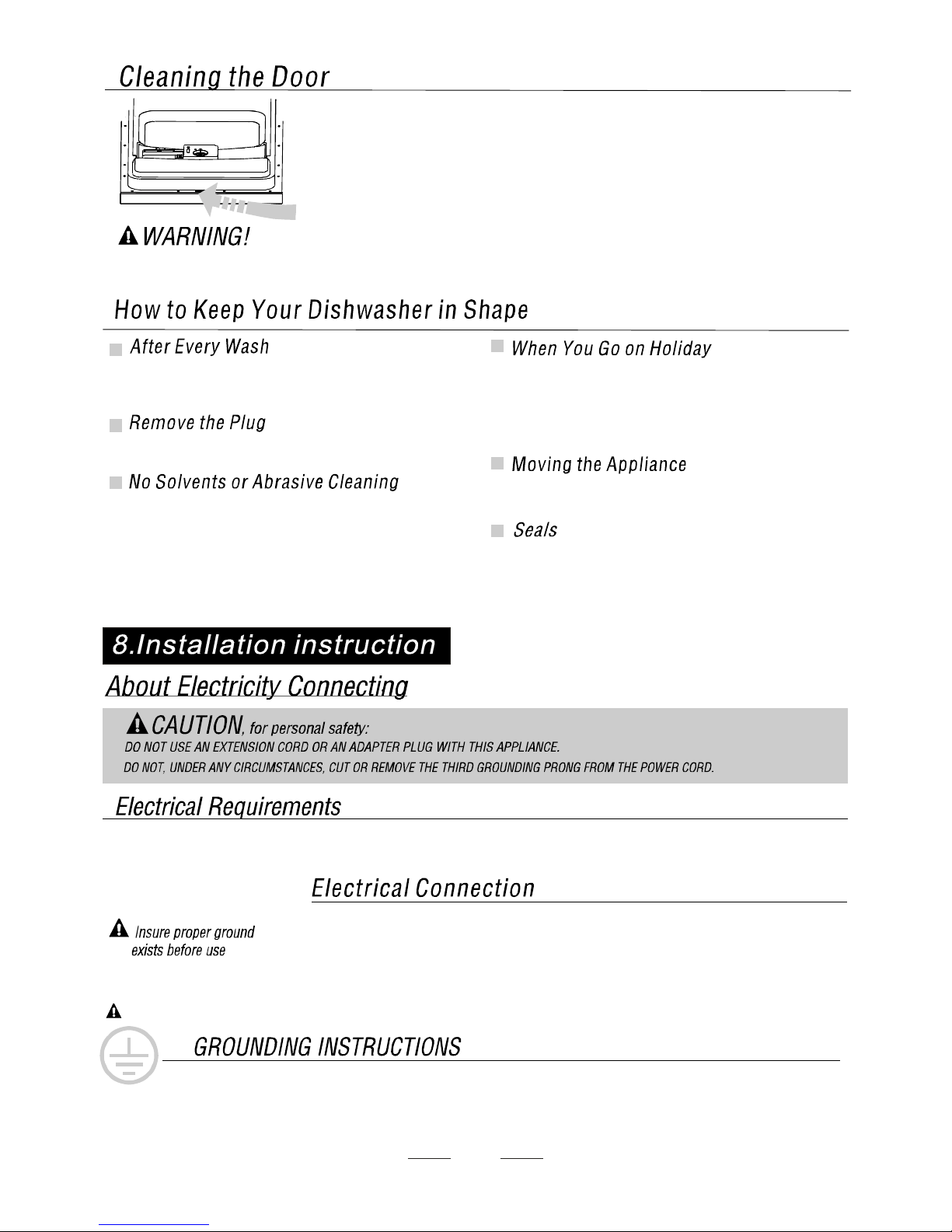

Cleaning the Door...........................................18
.............18How to Keep Your Dishwasher in Shape
Water Connection...........................................19
Before calling for service.................................21
Error codes....................................................22
Technical information.....................................23
How to use the 3IN1 program............. ......... 9.......

1
Under certain conditions, Hydrogen gas may be produced in a hot-water system that has not been used for two
weeks or more. HYDROGEN GAS IS EXPLOSIVE.If the hot-water system has not been used for such a period,
before using the dishwasher turn on all hot-water faucets and let the water flow from each for several minutes.
This will release any accumulated hydrogen gas. As the gas is flammable, do not smoke or use an open flame
during this time.
•
•
•
•
•
•
•
•
•
•
•
•
•
•
Do not abuse, sit on, or stand on the door or dish rack of the dishwasher
Do not touch the heating element during or immediately after use
Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very
carefully if the dishwasher is operating. There is a risk of water squirtingout.
Do not place any heavy objects on the door when it is open, or the appliance could tip forward.
When loading items to be washed:
Locate sharp items so that they are not likely to damage the door seal;
Load sharp knives with the handles up to reduce the risk of cut-type injuries;
Warning: knives and other utensils with sharp points must be loaded in the basket with their points down
or placed in a horizontal position.
When using your dishwasher, you should prevent plastic items from contacting with heating element.
Check that the detergent receptacle is empty after completion of the wash cycle.
Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic items not
so marked, check the manufacturer's recommendations.
Use only detergent and rinse additives designed for an automatic dishwasher. Never use soap, laundry
detergent, or hand washing detergent in your dishwasher.
Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher,
there could still be some detergent left inside.
Young children should be supervised to ensure that they do not play with the appliance.
The appliance is not intended for use by young children or infirm persons without supervision.
Dishwasher detergents are strongly alkaline. They can be extremely dangerous if swallowed. Avoid contact
with skin and eyes and keep children away from the dishwasher when the door isopen.
The door should not be left in the open position since this could present a tripping hazard.
This dishwasher is designed for normal household and indoor use.
o
o
o
•
•
•
•
•
•
•
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid a hazard.
Please dispose of packing materials properly.
Use the dishwasher only for its intended function.
During installation, the power supply must not be excessively or dangerously bent or flattened.
Do not tamper with controls.
The appliance is to be connected to the water mains using new hose sets and the old hose-sets should not
be reused.
This appliance is not intend for use by persons(include children) with reduced physical , sensory or mental
capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction
concerning use of the appliance by a person responsible for their safety
Please unplug before cleaning the appliance.
•
•

2
Dispose of the dishwasher packaging material correctly.
All packaging materials can be recycled.
Plastic parts are marked with the standard international abbreviations:
PE for polyethylene, e.g. sheet wrapping material
PS forpolystyrene,e.g.paddingmaterial
POM polyoxymethylene, e.g.
Packaging material could be dangerous for children!
For disposing of package and the appliance please go to a recycling centre. Therefore cut
off the power supply cable and make the door closing device unusable.
Cardboard packaging is manufactured from recycled paper and should be disposed in the
waste paper collection for recycling.
By ensuring this product is disposed of correctly, you will help prevent potential negative
consequences for the environment and human health, which could otherwise be caused
by inappropriate waste handling of this product.
For more detailed information about recycling of this product, please contact your local
city office and your household waste disposal service.
¾
¾
¾
plastic clips
PP polypropylene, e.g. Salt filler
ABS Acrylonitrile Butadiene Styrene, e.g. Control Panel .
¾
¾
Warning!
Do not dispose this product as unsorted municipal waste. Collection
of such waste separately for special treatment is necessary.

To get the best performance from your dishwasher,read all operating instructions before using it for the
first time.
3
11 12
Back View
13
Main Filter
5
Detergent Dispenser
6
Cup Shelf
7
Silverware Basket
8
Coarse Filter
9
Rinse Aid Dispenser
10
Inlet pipe connector
12
Drain pipe connector
11
Lower Basket
3
Spray Arms
2
Upper Basket
1
Water Softener
4
13
Tray ass
Front view
1
2
3
4
5
6
7
8
9
10
2
3
4
ON/OFFButton:Toturnon/offthepowersupply.
Program button : To select washing program
when press the button.
Delayed Start Button: Press this button to set the
delayed hours for washing. You can delay the start
of washing up to 24 hours. One press on this
button delays the start of washing by one hour.
Display Window: Program remaining time, delay time,
fault codes and etc.
2
34

Before using your dishwasher for the first time:
A. Set the water softener
B. Pour 1／2 litre of water inside the salt container and then fill with dishwasher salt
C. Fill the rinse aid dispenser
D. Function of detergent
The water softener must be set manually, using the water hardness dial.
The water softener is designed to remove minerals and salts from the water, whichwouldhave
a detrimental or adverse effect on the operation of the appliance. The higher the
content of these minerals and salts, the harder your water is. The softener should be
adjusted according to the hardness of the water in your area. Your local Water Authority
can advise you on the hardness of the water in your area.
Adjusting Salt Consumption
The dishwasher is designed to allow for adjusting the amount of salt consumed based on
the hardness of the water used. This is intended to optimize and customize the level of
salt consumption so that the salt consumption could be set proceed as follows:
1. Unscrew the cap from the salt container
2. There is a ring on the container with an arrow on it (see
figure to the side), if necessary, rotate the ring in the
anticlockwise direction from the “-”Setting toward the
“ ”sign, based on the hardness of the water being used.
It is recommended that adjustments should be made in
accordance with the following schema:
+
4
Contact your local water board for information on the hardness of your water supply.
dH mmol/l
0~140~8 0~1.4 /0/
14~398~22 1.4~3.9 - 20 60
39~8022~45 3.9~8 Mid 40 30
>80>45 >8 +60 20
fH
0~10
10~28
28~56
>56
Clark
°Clark: British degree
°fH : French degree
°dH : German degree
Note:1 °dH=1.25 °Clark=1.78 °fH=0.178mmol/l
°Clark: British degree
°fH : French degree
°dH : German degree
Note:1 °dH=1.25 °Clark=1.78 °fH=0.178mmol/l
WATER HARDNESS
Selector Position Salt consumption
(gram/cycle)
Auto nomy
(cycles/1.2kgs)

Always use salt intended for use with dishwasher.
The salt container is located beneath the lower rack and should be filled as follows:
Attention!
Only use salt specifically designed for use in dishwashers! All other typesof
salt not specifically designed for use in a dishwasher,especially table salt, will
damage the water softener. In case of damages caused by the use of unsuitable
salt the manufacturer does not give any warranty nor is liable for any caused
damages.
Only fill with salt just before starting one of the complete washing programmes.
This will prevent any grains of salt or salty water, which may have been split,
remaining of the bottom of the machine for any period of time, which may cause
corrosion.
After the first wash cycle the control panel light expires.
A Remove the lower basket and then unscrew and remove the cap from the salt container.
B If you are filling the container for the first time, fill 2/3 of its volume with water (around 500ml).
C Place the end of the funnel (supplied) into the hole and introduce about 1,2kg of salt. It is
Normal for a small amount of water to come out of the salt container.
D Carefully screw the cap back on.
E Usually, the salt warning light will be off in 2-6 days after the salt container be filled with salt.
NOTE:
Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot
andstreakfreedrying.
Only use branded rinse aid for dishwasher. Never fill the rinse aid dispenser with any
other substances (e.g. dishwasher cleaning agent, liquid detergent). This would damage
the appliance.
5
The salt container must be refilled when the salt warning light in the control panel comes on.1.
Though the salt container is filled enough, the indicator light may not black out
before the salt fully dissolve.
If there is no salt warning light in the control panel (for some models) , you can judge when to load
the salt into the softener by the cycles that the dishwasher had run (see the foregoing schema ).
2. Iftherearespillsofthesalt,asoakprogramcouldberuntowipethemout.

To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.
Pour the rinse aid into the dispenser, being careful not to overfill.
Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.
The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes
that can leave spots and streaks. It also improves drying by allowing water to sheet off the dishes.
Your dishwashers are designed to use liquid rinse aids. The rinse aid dispenser is located inside the
door next to the detergent dispenser. To fill the dispenser, open the cap and pour the rinse aid into
the dispenser until the level indicator turns completely black. The volumeoftherinseaidcontainer
is about 140ml.
Be careful not to overfill the dispenser, because this could cause over sudsing. Wipe away any spills
with a damp cloth. Don't forget to replace the cap before you close dishwasher door.
Attention!
Clean up any rinse aid split during filling with an absorbent cloth to avoid excess foaming
during the next wash.
The rinse aid dispenser has six or four settings. Always start with the dispenser set on
“2”. If spots and poor drying are problems, increase the amount of rinse aid dispensed
by removing the dispenser lid and rotating the dial to “3”. If the dishes still are not
drying properly or are spotted, adjust the dial to the next higher number until your dishes
are spot-free. We suggest you to set on “4”(Factory value is “4”)
NOTE:
Increase the dose if there are drops of water or lime spots on the dishes after washing.
Reduce it if there are sticky whitish streaks on the dishes or a bluish film onglasswareor
knife blades.
6
1
2
3
As the rinse aid diminishes, the size of the black dot
on the rinse aid level indicator changes, as illustrated below.
Full
3/4full
1/2full
1 / 4 full - Should refill to eliminate spotting
Empty
If there is no rinse-aid warning light in the control panel, you can judge the amount of rinse-aid by the color of the optical level
indicator "D" located next to the cap. When the rinse-aid container is full, the whole indicator will be dark .As the rinse-aid
diminishes, the size of the dark dot decreases. You should never let the rinse aid get below 1 / 4 full.
D (Rinse-Aid indicator)

Based on their chemical composition, dishwasher can be split in two basic types:
conventional, alkaline detergents with caustic components
low alkaline concentrated detergents with natural enzymes
The use of “normal” washing programmes in conjunction with concentrated detergents
reduces pollution and is good for your dishes; these wash programmes are specially matched
to the dirt-dissolving properties of the enzymes of the concentrated detergent. For this reason
“normal”wash programmes in which concentrated detergents are used can achieve the
same results that can otherwise only be achieved using “intensive” programmes.
Detergent tablets of different brands dissolve at different speeds. For this reason some
detergent tablets cannot dissolve and develop their full cleaning power during short
programmes. Therefore please use long programmes when using detergent tablets, to
unsure the complete removal of detergent residuals.
The dispenser must be refilled before the start of each wash cycle following the instructions
provided in the Wash Cycle Table? Your dishwashers use less detergent and rinse aid
then conventional dishwashers. Generally, only one tablespoonof detergent is needed for
a normal wash load. Also, more heavily soiled items need more detergent. Always add the
detergent just before starting dishwasher, otherwise it could get damp and will not dissolve
properly.
Amount of Detergent to Use
Always add the detergent just before starting each wash cycle.
Only use branded detergent aid for dishwasher.
If the lid is closed: press release button. The lid springs open.
Dishwasher detergent is corrosive! Take care to keep it out of reach of children.
Proper Use of Detergent
Use only detergent specifically made for use in dishwashers. Keep your detergent fresh
and dry. Don't put powder detergent into the dispenser until you're ready to wash dishes.
7
Concentrated Detergent
Detergent Tablets
Detergent Dispenser
Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and
transport it out of the dishwasher. Most of commercial quality detergents are suitable
for this purpose.
1
2

Fill the detergent dispenser with detergent.
The marking indicates the dosing levels , as
illustrated on right:
The place of main wash cycle detergent placed ,
“MIN”means approximately 20g of detergen.
The place of pre-washcycle detergent placed,
approximately 5g of detergent
Please observe the manufacturers dosing and storage
recommendations as stated on the detergent packaging.
Close the lid and press until it locks in place.
If the dishes are heavily soiled, place an additional detergent dose in the pre-wash detergent
chamber. This detergent will take effect during the pre-wash phase.
You find information about the amount of detergent for thesingle programmes on the
last page. Please aware, that according to the level soiling and the specific hardness of
water differences are possible.
Please observe the manufacturer's recommendations on the detergent packaging.
Detergents
There are 3 sorts of detergents
1.With phosphate and with chlorine
2.With phosphate and without chlorine
3.Without phosphate and without chloride
Normally new pulverised detergent is without phosphate. The water softener function of
phosphate is not given. In this case we recommend to fill salt in the salt container even when
the hardness of water is only 6 dH. If detergents without phosphate were used in case of hard
water often white spots appear at dishes and glasses. In this case please add more detergent
to reach better results. Detergents without chlorine do only bleach a little. Strong and coloured
spots will not removed completely. In this case please choose a programme with higher
temperature.
NOTE:
1
2
Fill in detergent
8

1、Referringtothebelowsketchmap,hangthe3in1tabletcontainerontheupper basket.
2 Referring to the below sketch map, r change the location of the container if need、 otate the upper sprayer and to make
sure the upper sprayer does not be cumbered by the 3 in 1 tablet container.
Your dishwasher has a 3 in 1 program which needs not salt and rinse aid but a 3 In1
tablet. And this dishwasher comes with a 3 in 1 tablet container as an accessory.
NOTE: Only 3 in 1 program uses 3 in 1 tablet. If using 3 in 1 tablet in other programs, the
appliance will not get a best performance.
3、Put the 3 in 1 tablet into the container then start the 3 in 1 program.
9
When use 3 in 1 Combination / Compact Deter- “
Gents ,please pay attention to make sure that the size of the Combination Detergents
is fitted to the dispenser so that Combination Detergents can be ease to put in the
，
dispenser ,and dispenser would not be broken.
Attention
Keep all detergents in a safe place out of children's reach.
Always add the detergent in the dispenser just before starting the dishwasher.
NOTE:

For best performance of the dishwasher, follow these loading guidelines. Features and
appearance of racks and silverware baskets may vary from your model.
Scrape off any large amounts of leftover food. It is not necessary to rinse the dishes under
running water. Place objects in the dishwasher in following way:
1.Items such as cups, glasses, pots/pans, etc. are stood upside down.
2.Curve items, or those with recesses, should be at a slant so that water can run off.
3.They are stacked securely and can not tip over.
4.They do not prevent the spray arms from rotating while washing takes place.
Very small items should not be washed in the dishwasher as they could easily fall out of the racks.
To prevent water dripping from the upper back into the lower back, we recommend that you
empty the lower basket first and then the upper back.
The upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cup and saucers, as well as plates, small bowls and shallow pans (as longastheyare
not too dirty).
Position the dishes and cookware so that they do not get moved by the spray of water.
Attention before or after Loading the Dishwasher Racks
Removing the Dishes
Loading the Upper Rack
Adjusting the Upper Rack
If required, the height of the upper rack can be adjusted in order to create more space for large
utensils either in the upper rack or lower rack. The upper rack can be adjusted for height by
putting wheels of different height into the rails. Long items, serving cutlery, salad servers or
knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms.
The shelf can be folded back or removed when not required for use.
10
6
5
5
1
Cups
2
Small serving bowl
3
Large serving bowl
4
Glasses
Saucers
5
6
Dish
Dessert dishes
3
4
1
7
7
4
2
1
1

We recommend that you place large items which are most difficult to clean into the lower rack:
pots, pans, lids, serving dishes and bowls, as shown in the figure to the right.
It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking
the rotation of the top spray arm.
Pots, serving bowls, etc. must always be placed top down.
Deep pots should be slanted to allow water to flow out.
The bottom rack feature fold down tine rows so that larger or more pots and pans can be loaded.
To improve stacking of pots and pans, the spikes can be folded down
11
8
Oval platter
10
Soup plates
Dessert dishes
7
9
Dinner plates
11 Silverware basket
7
8
9
10
10
11
4

Silverware Basket
Silverware shouldbe placed in the silverware basket with handles at the bottom: If the rack
has side baskets, the spoon should be loaded individually into the appropriate slots,
especially long utensils should be placed in the horizontal position at the front of the
upper rack.
For washing in the dishwasher the following cutlery/dishes
Cutlery with wooden, horn china or
mother-of-pearl handles
Plastic items that are not heat resistant
Older cutlery with glued parts that is not
temperature resistant
Bonded cutlery items or dishes
Pewter or cooper items
Lead crystal glass
Steel items subject to rusting
Wooden platters
Items made from synthetic fibres
Do not put in items that are dirty of
cigarette ash, candle wax, lacquer or
paint. If you buy new dishes please make
sure that they are suitable for dishwashers.
Some types of glasses can become
dull after a large number of washes
Silver and aluminium parts have a
tendency to discolour during washing
Glazed patterns may fade if machine
washed frequently
Please do not overload your dishwasher. There is only space for 12 standard dishes. Do not
use dish that is not suitable for dishwashers. This is important for good results and for
reasonable energy consume.
Before loading the dishes, you should:
Remove large left-over
Soften remnants of burnt food in pans
Dishes and cutlery must not impede the rotation of the spray arms
Load hollow items such as cups, glasses, pans etc. with the opening downwards so that
water cannot collect in the container or a deep base
12
NOTE:
NOTE:
Are not suitable Are of limited suitability
Loading cutlery and dishes
When loading the dishes and cutlery, please note:
Do not let any item extend through bottom.
Teaspoons
4
Soup spoons
2
Forks
1
Serving fork
8
Serving spoon
6
Knife
5
3
Dessert spoons
7
Gravy ladle
4
4
3
8
2
6
7
4
4
4
5
4
4
4
4
1
1
1
1
1
1
1
1
1
4
4
4
1
1
1
5
5
5
5
5
5
5
5
5
5
5
2
2
2
2
2
2
2
2
2
2
2
3
3
3
3
3
3
3
3
3
3
3
6
4

13
Di
To
T
shes and items of cutlery must not lie inside one another, or cover each other
avoid damage to glasses, they must not touch
Load large items which are most difficult to clean into the lower rack
he upper rack is designed to hold more delicate and lighter dishware such as glasses, coffee
and tea cups
Attention!
Possible causes:
Suggested remedy:
Long bladed knives stored in an upright position are a potential hazard!
Long and/or sharp items of cutlery such as carving knives must be positioned
horizontally in the upper basket.
Damage to glassware and other dishes
Type of glass or manufacturing process. Chemical composition of detergent.
Water temperature and duration of dishwasher programme.
Use glassware or porcelain dishes that have been markeddishwasher-proof by the
manufacturer
Use a mild detergent that is described as kind of dishes If necessary, seek further
information from detergent manufacturers.
Select a programme with as low a temperature.
To prevent damage, take glass and cutlery out of the dishwasher as soon as possible
afterthe programme has ended.
At the End of the Wash Cycle
When the working cycle has finished, the buzzer of dishwasher will mooing 8 seconds,
then stop. Turn of the appliance using the ON/OFF button, shut off the water supply and
open the door of the dishwasher. Wait a few minutes before unloading the dishwasher to
avoid handling the dishes and utensils while they are still hot and more susceptible to
breakage. They will also dry better.

14
For normally soiled loads,
such as pots, plates,glasses
and lightly soiled pans.
standard daily cycle.
For lightly soiled loads,such
as plates,glasses,bowls and
lightly soiled pans.
For the heaviest soiled loads,
such as pots,pans,casserole
dishes and dishes that have
been sitting with dried food
on them for a while.
A shorter wash for lightly
soiled loads that do not
need drying.
For dishes that need to be
rinsed and dried only.
Normal
Eco
Intensive
Rapid
Rinse
For lightly soiled loads, such
as glasses, crystal and fine
china.
155
102
161
30
85
108
170
1.15 17.2
Pre-wash
Wash 45
Rinse
Rinse 70
Drying
（℃）
（℃）
3in1
Pre-wash（50 ）
-wash
Wash (60 ℃)
Rinse (70 ℃)
Drying
℃
Pre
5/25 g. 1.70
17
Pre-wash
Pre-wash
Wash (50 ℃)
Rinse (70 ℃)
Drying
5/25 g. 1.05
17
Pre-wash
Wash (45 ℃)
Rinse (60 ℃)
Drying
25 g. 0.85
13.4
Wash(45 ) ℃
Rinse (70 ℃)
Drying
1.00
9.9
Pre-wash
Wash (40 ℃)
Rinse (70 ℃)
Drying
Wash (40 ℃)
Rinse (45 ℃)
20 g.
20 g.
0.95
13.4
0.45 8.9
For normally soiled loads,
such as , plates,glasses
and lightly soiled pans.
standard daily cycle.
pots

15
TurningontheAppliance
PREMISE:
1.
Otherwise, the detergent may have already been released,
and the appliance may have already drained the wash water. If this is the case,
the detergent dispenser must be refilled (see the section entitled " Loading the
Detergent " ).
2. Press current prog. Button more than 3 seconds to cancel the program ,
then you can change the program to the desired cycle setting (see the section
entitled " Starting a wash cycle. . . " ).
3. Press one of others prog. Button more than 3 seconds to cancel the runing program ,
translase the program which you press.
4. Press the delay button more than 3 seconds to re-edit delay time .
NOTE:
If you open the door when washing, the machine will pause. When you
close the door , the machine will keep on working after 10 seconds.
The Display window shows the state of the dishwasher:
a) Display window shows "--:--" --> stand by;
b) Display window shows "H:MM" and not blinking --> pause;
c) Display window shows "H:MM" and blinking --> run.
If display window shows error codes(page 21th), that indicates the machineisoutoforder,
please turn off the main power and water supply before calling a service.
NOTE:
1 Draw out the lower and upper basket, load the dishes and push them back.
It is commended That loading the lower basket first, than the upper one (see
the section entitled "Loading the Dishwasher
2 Pour in the detergent (see the section e`ntitled Salt, Detergent and RinseAid ).
3 Insert the plug into the socket. The power supply is 220-240 VAC /50 HZ,
the specification of the socket is 12 A 250 VAC. Make sure that the water supply is
turned on to full pressure.
“”
”
).
4 Close the door, press the ON/OFF button, and the ON/OFF light will turn on.
Press the Progragram Button to select a desired Wash cycle,After 3 seconds,the machine will work.
Starting a cycle wash

A forgotten dish can be added any time before the detergent cup opens.
Open the door a little to stop the washing.
After the spray arms stop working, you can open the door
completely.
Add forgotten dishes.
Close the door, the dishwasher will work after ten seconds.
4
3
2
1
It is dangerous to open the door when washing, because the hot water may scaldyou.
1.Switch off the dishwasher by pressing the ON/OFF button.
2.Turn off the water tap!
Open the door carefully. Hot steam may escape when the door is opened!
Hot dishes are sensitive to knocks. The dishes should be allowed to cool down around
15 minutes before removing from the appliance.
Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes.
In this way they will be cooler and the drying will be improved.
Unloading the dishwasher
It is normal that the dishwasher is wet inside.
Empty the lower basket first and then the upper one. This will avoid water dripping from the
upper basket onto the dishes in the lower one.
Filtering System
For your convenience, we have placed the drain pump and filtering system within easy reach inside the tub. There are three
components of the filtering system: the main filter, the coarse filter, and the fine filter.
The program light is on but isn't blinking, only in this case the program is ended.
16
The filter system consists of a coarse filter,a flat (Main filter)
And a microfilter(Fine filter).
Main filter
Food and soil particles trapped by this filter are pulverized by a
special jet on the lower spray arm and washed down the
drain.
Coarse filter
Larger items, such as pieces of bone or glass, that could clog
the drain are trapped in the coarse filter. To remove an item
caught in this filter, gently squeeze the taps on the top of this
filter and lift it out.
Fine filter
This filter holds soil and food residue in the sump area and
prevents it from being redeposit on the dishes during a cycle.
- Inspect the filters for obstructions every time the dishwasher has been used.
- By unscrewing the coarse filter.you can remove the filter system.Remove any food remnants and clean the
filters under running water.
2
3
1
2
3
1

It is necessary to clean the spray arms regularly for hard water chemicals will clog the spray
arm jets and bearings. To remove the spray arms, screw off the nut clockwise to take out the
washer on top of the spray arm and remove the arm. Wash the arms in soapy and warm water
and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.
For best performance and results, the filter assembly must be cleaned. The filter efficiently
removes food particles from the wash water, allowing it to be recirculated during the cycle. For
this reason, it is a good idea to remove the larger food particles trapped in the filter after each
wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter
assembly, pull on the cup handle in the upward direction. The entire filter assembly should be
cleaned once a week.
To clean the coarse filter and the fine filter, use a cleaning brush. Then, reassemble the filter
parts as shown in the figures left and reinsert the entire assembly in the dishwasher, positioning
in its seat and pressing downward.
The dishwasher must never be used without the filters. Improper replacement of the filter may
reduce the performance level of the appliance and damage dishes and utensils.
Never run the dishwasher without the filters in place. When cleaning the filters, don't knock on
them. Otherwise, the filters could be contorted and the performance of dishwasher could be
debased.
Cleaning the Filters
-Inspect the filters for obstructions every time the dishwasher has been used.
-By unscrewing the filter cylinder.you can remove the filter system.Remove any food
remnants and cleanthe filters underrunning water.
Filter assembly
17
1
2
3
step１：contrarotate the C ,
and then lift it up;
oarse filter
step２：lift the Main filter up
step 3： lift the Fine filter up
If do it from step1 to step 3, the filter system will be removed; while if do it from step3 to step 1, the filter system
will be installed.
NOTE：

18
Never use a spray cleaner to clean the door panel for it could damage the door lock and electrical components. It is not allowed
to use the abrasive agent or some paper towel becauseof the risk of scratching or leaving spots on the stainless steel surface.
After every wash, turn off the water supply to the
appliance and leave the door slightly ajar so that
moisture and odors are not trapped inside.
Before cleaning or performing maintenance, always
remove the plug from the socket. Do not run risks.
To clean the exterior and rubber parts of the dishwasher,
do not use solvents or abrasive cleaning products.
Rather, use only a cloth and warm soapy water.
To remove spots or stains from the surface of the
interior, use a cloth dampened with water and a little
white vinegar, or a cleaning product made specifically
for dishwashers.
When you go on holiday, it is recommened that you run a
wash cycle with the dishwasher empty and then remove
the plug from the socket, turn off the water supply and
leave the door of the appliance slightly ajar. This will help
the seals last longer and prevent odors from forming
within the appliance.
If the appliance must be moved, try to keep it in the vertical
position.If absolutely necessary, it can be positioned on
its back.
One of the factors that cause odors to form in the
dishwasher is food that remains trapped in the seals.
Periodic cleaning with a damp sponge will prevent this
from occurring.
To clean the edge around the door, you should use only a soft warm, damp rag. To prevent
penetration of water into the door lock and electrical components, do not use a spray cleaner
of any kind.
Also, never use abrasive cleaners or scouring pads on the outer surfaces because they will
scratch the finish. Some papers towels can also scratch or leave marks on thesurface.
After making sure that the voltage and the frequency values for the current in the home
correspond to those on the rating plate and that the electrical system is sized for the
maximum voltage on the rating plate, insert the plug into an electrical socket which is
earthed properly. If the electrical socket to which the appliance must be connected is not
appropriate for the , replace the socket,rather than using a adaptors or thelikeas
they could cause overheating and burns.
plug
Insure proper ground exists before use
This appliance must be grounded. In the event of a malfunction or breakdown, grounding will
reduce the risk of electric shock by providing a path of least resistance of electric current. This
appliance is equipped with a cord having an equipment-grounding conductor and a grounding
plug. The plug must be plugged into an appropriateoutlet that is installed and grounded in accordance
with all local codes and ordinances.

Please see the rating label to know the rating voltage and connect the dishwasher to appropriate power supply, which has a
required fuse 16 amp. Time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.
