ELAC ProteK PB-62S User manual

PB62-S 6 Outlet Surge Protector with USB Setup Guide
①Dual USB Charging Ports: 5V 2.4 Amp Total USB-A ports for charging compatible devices
②PROTECTED LED—If illuminated, the unit is working properly. If not illuminated your connected
equipment is not being protected. Contact ELAC Customer Support
③AC Outlets—Plug Equipment directly into these outlets. Do not use an extension cord, UPS, or
power strip.
①
③
②
PRODUCT FEATURES
USING YOUR SURGE PROTECTOR
1. Ensure the power is o on the devices you will connecting to the AC outlets on the surge protector.
2. Plug the surge protector into a properly grounded AC wall outlet.
3. Check that the PROTECTED blue LED light is illuminated. (If not the surge protector is not operating properly and will not
protect your connected devices).
4. Plug your equipment into the outlets on the surge protector and power on your devices as usual.
5. USB devices can be charged/powered by simply connecting the USB power cord to USB ports on the surge protector. The
USB ports deliver 5V and up to 2.4amps of power.
• RISK OF ELECTRIC SHOCK – Use only in dry locations and only
indoors.
• DO NOT plug into another relocatable power tap.
• DO NOT “daisy chain” surge protectors.
• DO NOT plug into 220V outlet or power source
• DO NOT use with any aquarium equipment.
• DO NOT connect to an ungrounded outlet
• DO NOT install this device if there is not at least 30 feet (10 meters),
or more of wire between the electrical outlet and electrical service
panel.
• This device features internal protection that will disconnect the
surge protective component at the end of its useful life
(PROTECTED LED WILL TURN OFF) , but will maintain power to
outlet – WHICH WILL BE UNPROTECTED. If you don’t want your
equipment at risk, the surge protector will need to be replaced.
• DO NOT use in any circumstance that would aect the operation or
reliability of life support equipment, any medical applications, or
patient care.
SAFETY INFORMATION TECHNICAL SPECIFICATIONS
Number of Outlets 6
Number of USB Ports 2—5V total 2.4A
AC Outlets All 6 filtered with surge protection
Protection Modes L-N, L-G, N-G
Thermal Fuse Yes
Maximum Current 15 Amps
Line Voltage 120V @ 60Hz
Certification UL 1449, UL 498A, FCC, ICES
Max Energy Dissipation 540 Joules
Max Spike Voltage / Current 6,000V / 36,000A
Response Time 1 Nanosecond
Filtration EMI / RFI 40dB
ELAC AMERICAS INC.
1938 N. BATAVIA ST. SUITEK
ORANGE, CA 92865
Copyright 2021 ELAC Americas Inc.

LIMITED LIFETIME WARRANTY
ELAC Americas Inc. warrants to the original purchaser that this product be free from defects and or workmanship for lifetime of this product from
the original date of purchase. During this time period, repair or replacement will be free of charge to the original owner (See below limitations).
Shipping to and return from the repair center will be the responsibility of the original purchaser.
Limitations
• Warranty begins on the date of original purchase from an authorized ELAC Americas Inc. dealer. Products purchased from an unauthorized
reseller will not be honored.
• Product is warranted only if used in home applications within the rated specifications of this product. Commercial use of this product is not
warranted.
• Product that has been modified or altered in anyway will not be warranted.
• Product that has been abused or subjected to faulty equipment will not be warranted.
• Products with defaced or removed serial numbers will not be warranted.
If service is required
In the event that service is required, please contact ELAC America at 714-252-8843 or at [email protected] to request a return
authorization and to arrange for service or replacement. Whether the product will be serviced or replaced is at ELAC’s discretion. You will be
responsible to provide proof of purchase (Copy or original sales receipt). Shipping to and from our repair center will be the responsibility of the
original purchaser.
CAUTIONS!
This surge protector is designed to protect your electronic equipment from AC power surges up to its rated specifications only. If an electrical
surge above the rated specifications of this surge protector enter this device, connected devices may not be protected. Please understand that
electrical surges can enter electronics devices through any interconnected conductive connections. These interconnections can include coax
lines, phone lines, ethernet lines, AV connections and any other conductive material.
ELAC AMERICAS INC.
1938 N. BATAVIA ST. SUITEK
ORANGE, CA 92865
Copyright 2021 ELAC Americas Inc.
FEDERAL COMMUNICATIONS COMMISSION
INTERFERENCE STATEMENT
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
To assure continued FCC compliance:
Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.
FCC ID & IC Statements
To assure continued FCC compliance:
1. Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the equipment.
2. This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause
interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator and your body.

ProteK Surge Protection
Advanced power protection and filtration
ELAC’s ProteK line of surge protectors oer advanced power management including surge
protection, filtration, and USB charging.

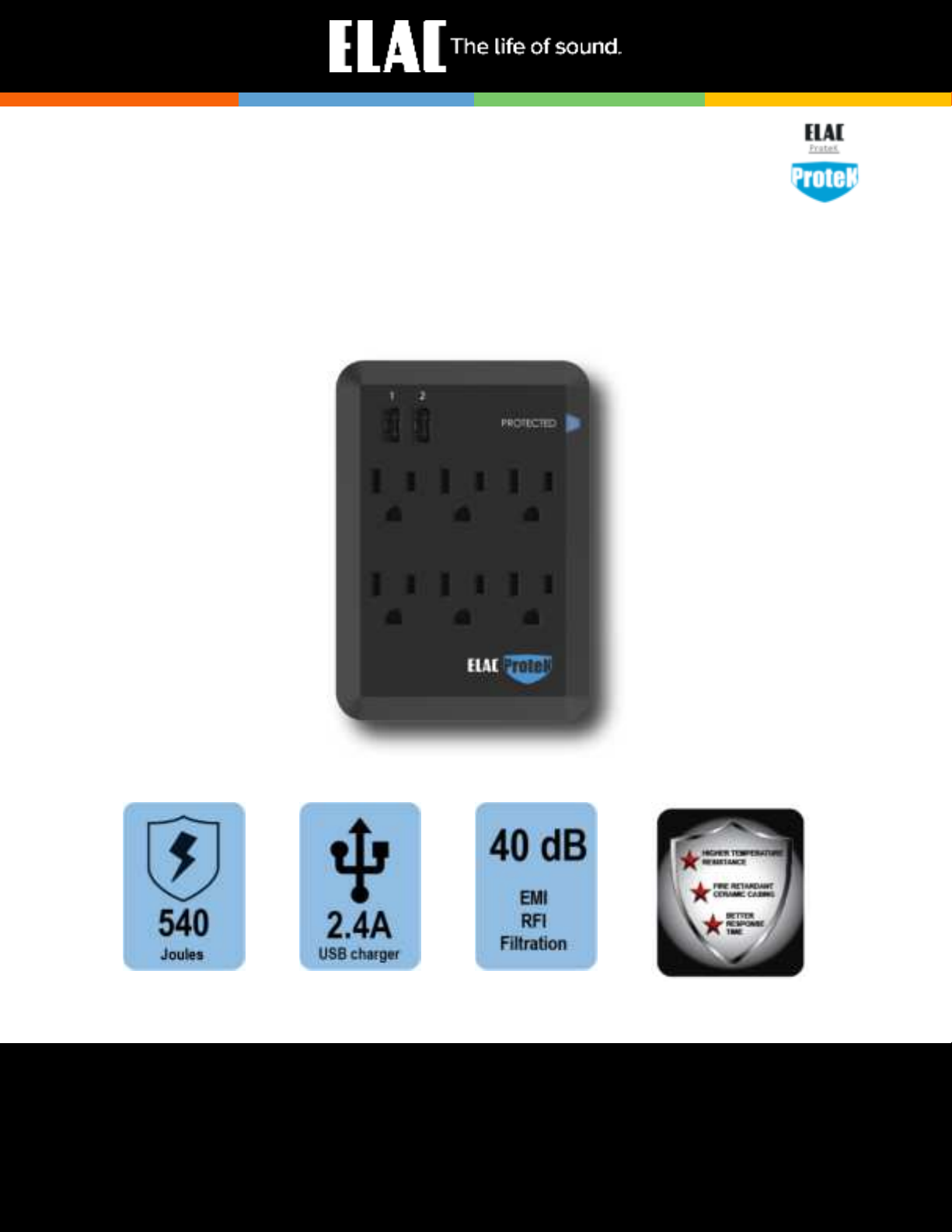

ProteK PB-62S 6 Outlet
Surge Protector with Dual
USB
Protection and Flexibility
The new Protek series of surge protectors
from ELAC provides sophisticated protection
for your sensitive electronics.

Protek PB-62S 6-Outlet Surge Protector with USB
EMI / RFI Noise Filtration
AC power from your power company can become noisy
on its way to your
home and
ultimately to your
equipment. Static
electricity, certain
appliances in
your home can all introduce noise into you homes
electricity. All 6 outlets of the PB-62S oer 40db of
noise reduction providing your sensitive electronics
with clean power.
Dual USB Charging Ports
Delivering up to 2.4 amps, the PB-62S
not only protects your sensitive
electronics from AC surges but also
oers the convenience of USB
charging. Simply connect your USB
devices to the USB ports on the front of
the PB-62S.
Surge Protection
Power surges can originate both inside and outside the
home. When
your home
loses power or
the power
company
performs a
grid switch a
surge of power can enter your home. When higher
power devices, such as an air conditioner, hair dryer, or
electric oven are turned on and o can also cause a
spike of voltage throughout your homes electrical
system. The PB-62S oers up to 540 Joules of surge
protection and reacts to surges in 1 nanosecond.
Protection LED
The protection LED on the front of
the PB-62S lets you know your
electronics are protected.
LINE VOLTAGE 120 Volts
MAX CURRENT RATING 15 Amps
NUMBER OF AC OUTLETS 6 Total
NUMBER OF USB PORTS 2 (2.4 amps total)
INDICATOR LEDS Protected
SURGE ENERGY JOULE
RATING
540J
RESPONSE TIME 1 Nanosecond
MAX SPIKE CURRENT 36,000 Amps
MAX SPIKE VOLTAGE 6,000 Volts
L-N, L-G, N-G PROTECTION Yes
THERMAL FUSING Yes
NOISE FILTER EMI /RFI 40 dB
COMPLIANCE IL 1449, UL 498A, FCC, IEC
PB-62S SPECIFICATIONS
ELAC.com
©2021 ELAC Americas, Inc. All rights reserved. Specifications and design subject to change without notice.
This surge protector is designed to protect your electronic equipment from AC power surges up to its rated specificaons only. If an electrical surge above the
rated specificaons of this surge protector enter this device, connected devices may not be protected. Please understand that electrical surges can enter elec-
tronics devices through any interconnected conducve connecons. These interconnecons can include coax lines, phone lines, ethernet lines, AV connecons
and any other conducve material.
* For full details regarding the Connected Equipment Guarantee please visit www.elac.com
$50,000 Connected
Equipment Guarantee*

ELAC PROTEK CONNECTED EQUIPMENT GUARANTEE
ELAC Americas Inc.
1938 N. Batavia Street, Suite K, Orange, California 92865 USA
Connected Products Guarantee for Protek Surge Suppressors
In addition to the applicable Limited Warranty, ELAC Americas Inc. (“ELAC”) provides this
Connected Products Guarantee in the event that damage is caused to equipment while it is
plugged into the covered Protek Surge Suppressor (“Suppressor”), and the damage is
determined to have been caused by a Suppressor defect in materials or workmanship.
You are agreeing to all of the terms and conditions of this Guarantee when you purchase a
Suppressor, and if you do not agree to these terms and conditions you should return the
Suppressor for a refund.
Conditions to Guarantee
•This Guarantee is only available to Suppressor customers in the United States.
•All Claims must be made within fifteen (15) days after the date of the incident when the
damage was caused, even if the damage was discovered at a later date.
•Suppressor’s serial number must not have been removed or defaced.
•Suppressor must not have been modified or altered, or been subject to abuse or faulty
equipment.
•Customer’s use of Suppressor must have been in compliance with all instructions,
conditions, and warnings provided or published by ELAC, including without limitation
the Suppressor user manual.
•Suppressor must have been undamaged and in its original condition at the time of the
incident when the damage was caused.
•Suppressor must be determined by ELAC to be defective in materials or workmanship,
and the damage to connected products must have been proximately caused by the
defect(s).
•Damage to connected products must have been caused while plugged into a
Suppressor, when there was a spike or surge on a connected properly-installed 120V AC
power line.
•Damage to connected products that is caused by an AC power surge above rated
specifications for the Suppressor is not covered.
•The Suppressor must have been directly (e.g. not through a plug or extension cord)
plugged into a properly-wired and grounded outlet at the time of the incident, and all
connected products must have been directly plugged into such Suppressor (e.g. not
through a plug, extension cord, or daisy-chain of suppressors) .
•The environmental conditions for use of the Suppressor and connected products must
be suitable for normal use and operation.
•This Guarantee only covers connected products for personal, home applications and not
commercial use.

•Damage to Suppressor and/or connected products that is caused by environmental
conditions such as flood, fire, rain, extreme temperatures, or pests will not be covered.
•Suppressor must not have been repaired by a non-authorized repair facility prior to the
incident when damage was caused.
Claim Limitations
•This Guarantee does not cover, and ELAC will not be responsible for, liability or damages
related to personal injury or death.
•This Guarantee does not cover, and ELAC will not be responsible for, liability or damage
to software, data, or electronic records.
•This Guarantee does not cover, and ELAC will not be responsible for, lost profits or
business interruption.
How to Make a Claim
Contact ELAC at 714-252-8843 or at customerserv[email protected] to make a claim under this
Guarantee (“Claim”).
Customer is required to provide ELAC with reasonably requested information or items
necessary to validate the Claim. Please have the following information ready when you contact
ELAC:
•Proof of purchase of Suppressor (Copy or original sales receipt).
•Model number of the Suppressor.
•Manufacturer and Model number(s) of damaged equipment.
•Specifics regarding the date, time, location, power supplier, and other conditions
relating to the incident when the equipment was damaged.
•Any other guarantees, insurance policies, or sources of reimbursement available to
customer.
•Estimate of loss or damage to connected products.
Customer will be required to return the Suppressor for inspection before a Claim is approved,
and may be required to return connected products and/or make the incident site available for
inspection. Shipping costs shall be borne by Customer and will be in accordance with ELAC’s
instructions.
Valuation of Claim
•ELAC’s entire liability, and Customer’s sole recovery, under this Guarantee, shall be
limited to the recovery as set forth in this Valuation of Claim section.
•If the Customer’s Claim is accepted, at ELAC’s discretion, ELAC will either (a) repair, (b)
replace, or (c) reimburse Customer for the Value of connected products in accordance
with the following formula. Once ELAC has satisfied the Claim, at ELAC’s request,
Customer agrees to transfer all connected products to ELAC.
•The value of the Claim for connected products (“Value”) shall be calculated as follows:

oThe lower of (i) the Maximum Claim Value amount set forth in Exhibit A (for the
particular model Suppressor); (ii) the lowest price that the same or similar items
can be purchased new in the United States; (iii) the average price that the same
or similar items can be purchased used in the United States; or (iii) the price of
the item in the Orion Blue Book (or a similar used price list selected at ELAC’s
discretion); where such amount determined by (i) – (iii) shall be decreased by all
amounts Customer has or is entitled to receive from other sources of coverage,
such as insurance or extended warranties.
•This Guarantee is not “first dollar” coverage, and therefore ELAC’s responsibility and
liability is reduced by amounts Customer is entitled to recover from other sources.
Disclaimers
OTHER THAN THIS GUARANTEE AND THE APPLICABLE LIMITED WARRANTY, ELAC MAKES NO
OTHER WARRANTIES, AND HEREBY DISCLAIMS ALL EXPRESS AND IMPLIED WARRANTIES,
INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY AND
FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT OF THIRD PARTY RIGHTS. ANY
IMPLIED WARRANTIES THAT ARE IMPOSED BY LAW ARE LIMITED TO THE DURATION OF THE
EXPRESS LIMITED WARRANTY.
Some jurisdictions do not allow the exclusion of implied warranties, so this disclaimer may not
apply to you.
IN NO EVENT WILL ELAC, NOR ITS PARENTS, SUBSIDIARIES, OR AFFILIATES OR SUPPLIERS BE
LIABLE TO CUSTOMER OR ANY THIRD PARTY FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL,
INDIRECT, PUNITIVE, LOST PROFIT, BUSINESS INTERRUPTION OR EXEMPLARY DAMAGES,
WHETHER FOR CONTRACT, TORT OR OTHERWISE, EVEN IF ELAC HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES.
Binding Arbitration
Customer and ELAC acknowledge and agree that any claim, dispute or controversy arising out
of or relating to this Guarantee or the applicable Limited Warranty shall be resolved
EXCLUSIVELY and FINALLY by binding arbitration administered by the American Arbitration
Association’s Consumer Arbitration Rules.
The application of the United Nations Convention of Contracts for the International Sale of
Goods is excluded.

EXHIBIT A
MAXIMUM CLAIM VALUE AMOUNTS
Model
Maximum Claim Value
PB-62S
$50,000
PB-30S
$50,000
PB-82S
$100,000
PB-62W
$100,000
PB-12W
$100,000
PR-71S
$500,000
PR-81B
$500,000
PR-91W
$500,000
