ElectrIQ eiq-43UHDT2SMH User manual

eiq-43UHDT2SMH
43 inch UHD TV

CONTENTS
1
WHAT’S INCLUDED---------------------------------------------------------------------------------------------------
TV STAND INSTALLATION/REMOVAL--------------------------------------------------------------------------
GETTING STARTED---------------------------------------------------------------------------------------------------
CONNECTING TO EXTERNAL DEVICES-----------------------------------------------------------------------
REMOTE CONTROL---------------------------------------------------------------------------------------------------
BATTERY INSTALLATION-------------------------------------------------------------------------------------------
SETTINGS----------------------------------------------------------------------------------------------------------------
BASIC OPERATION---------------------------------------------------------------------------------------------------
SYSTEM SETTINGS MENU-----------------------------------------------------------------------------------------
IMAGE SETTINGS MENU-------------------------------------------------------------------------------------------
------------------------------------------------------------------------------------------SOUND SETTINGS MENU
---------------------------------------------------------------------------------------CHANNEL SETTINGS MENU
--------------------------------------------------------------------------------------FUNCTION SETTINGS MENU
----------------------------------------------------------------------------------------------------------------------TIMER
PVR-------------------------------------------------------------------------------------------------------------------------
DTV-------------------------------------------------------------------------------------------------------------------------
TROUBLESHOTING---------------------------------------------------------------------------------------------------
SPECIFICATIONS------------------------------------------------------------------------------------------------------
SUPPORING SIGNALS-----------------------------------------------------------------------------------------------
4
5
6
7
8
10
11
12
17
20
21
23
28
33
36
38
39
41
42

SAFETY INFORMATION
2
l Read these instructions – All the safety and operating instructions should be read before this
product is operated.
l Keep these instructions – The safety and operating instructions should be retained for future
reference.
l Heed all warnings – All warnings on the appliance and in the operating instructions should be
adhered to.
l Follow all instructions – All operating and usage instructions should be followed.
l Do not use this equipment near water – The appliance should not be used near water or
moisture e.g. in a wet basement or near a swimming pool.
l Clean only with a dry cloth. Do not use solvents or petroleum based fluids.
l Do not block any ventilation openings.
l Do not install near any heat sources such as radiators, stoves or other apparatus (including
amplifiers) that produce heat.
l Do not tamper with the supplied plug. This plug is a BS1363 standard plug.
l Protect the power cord from being walked on or pinched, particularly at the plug and at the
point where they exit from the appliance.
l Only use attachments/accessories specified by the manufacturer.
l Use only with a cart, stand, tripod, bracket or table specified by the manufacturer or sold with
the apparatus. When a cart or stand is used, use caution when moving it to avoid any injuries
or damage from it tipping over.
l Unplug the apparatus during lightning storms or when unused for long periods of time.
l Refer all servicing to qualified personnel. Servicing is required when the apparatus has been
damaged in any way, such as power supply cord or plug is damaged, liquid has been spilled or
objects have fallen into the apparatus or it has been exposed to rain or moisture, it does not
operate normally or has been dropped.
l Please keep the unit in a well-ventilated environment.
l The TV set should only be connected to a mains power supply with 100-240V~ 50/60Hz
l To prevent overload, do not share the same power supply socket with too many other electronic
components.
l Do not place any connecting wires where they may be stepped on or tripped over.
l Do not place heavy items on the cable as this may cause damage.
l Hold the main plug, not the wires, when removing from a socket.
l Pull the plug out immediately and seek professional help if the main plug or cable is damaged,
liquid has spilt onto the set, if accidentally exposed to water or moisture, if anything accidentally
penetrates the ventilation slots or if the set does not work normally.
l Do not remove the safety covers. There are no user serviceable parts inside.
Trying to service the unit yourself is dangerous and may invalidate the product’s warranty.
Only qualified personnel should service this apparatus.
l
for a long period.
l Do not block ventilation slots on the back cover. The TV can be placed in a cabinet but ensure
at least 5cm (2”) clearance all around.

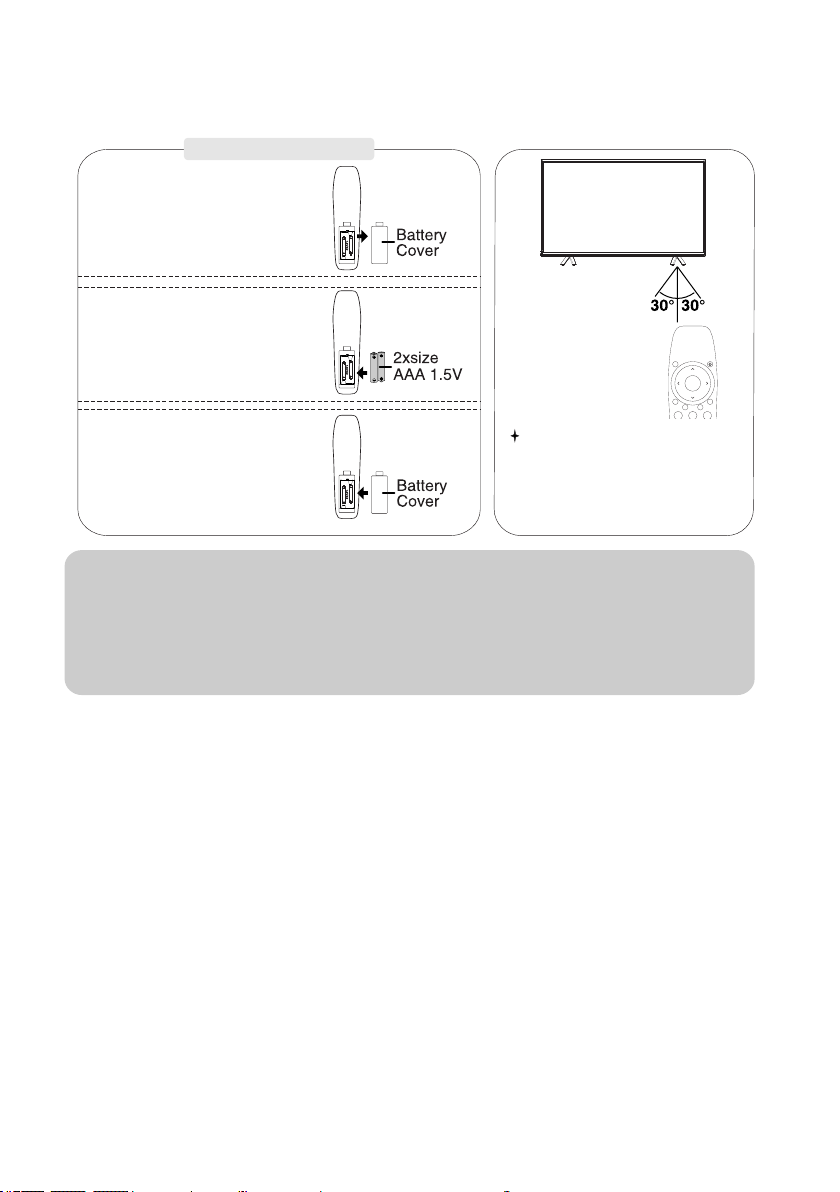

To avoid battery leakage, remove exhausted batteries from the remote control when not in use

3
SAFETY INFORMATION
l Do not tap or shake the TV screen, this may damage internal components.
l WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or
moisture. The apparatus shall not be exposed to dripping or splashing and objects filled with
liquids, such as vases, shall not be placed on the apparatus.
l WARNING: The wall plug socket is used as a disconnection device and should remain readily
accessible.
l WARNING: The batteries shall not be exposed to excessive heat such as direct sunlight or fire.
This warning sign is
to warn of dangerous
voltage inside the
product.
This warning sign is to
alert you of important
instructions
accompanying the
product.
CAUTION: To reduce the risk of electric
shock, DO NOT remove the cover
(or back). No user serviceable parts
inside. Refer servicing to qualified
service personnel.
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
This equipment is a Class II or double insulated electrical appliance.
It does not require a grounded connection.
AT FULL VOLUME, PROLONGED LISTENING MAY DAMAGE THE USER’S HEARING.

eiq-43UHDT2SMH
43 inch UHD TV
WHAT’S INCLUDED
4

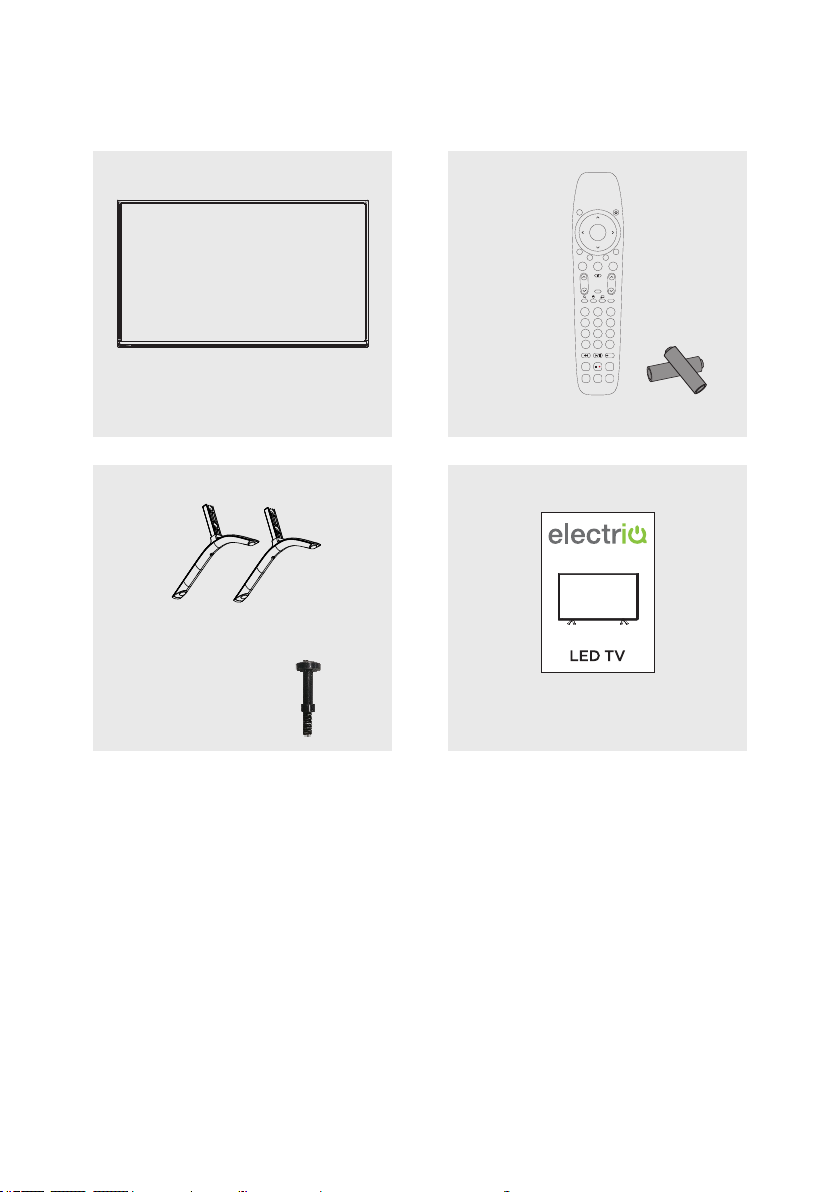

Please make sure the following items are included with your LED TV. If any items are missing,
contact your dealer.
Remote Control (2xAAA batteries)
TV Set
User Manual
Base Stand
SMART
HOME
BackMenu
Sleep
Subtitle
Aspect
Sound
Input
Guide
VOL CH
Recall
Info
More
TV
/ TEXT
REC
List
RED GREEN YELLOW BLUE
OK
List
Mute
Audio Lang
I/II
1 2 3
456
7 8 9
0
/
4 Screws

TV STAND INSTALLATION/REMOVAL
5
Wall mounting instructions (optional)
Your LED TV is able to accommodate wall mounting with the use of a wall mount bracket
(not supplied with LED TV, please contact your local hardware store) and the mounting
holes on the back of the unit. We recommend removing the TV stand prior to wall mounting
the TV. Please see previous page for instructions on removing the stand.

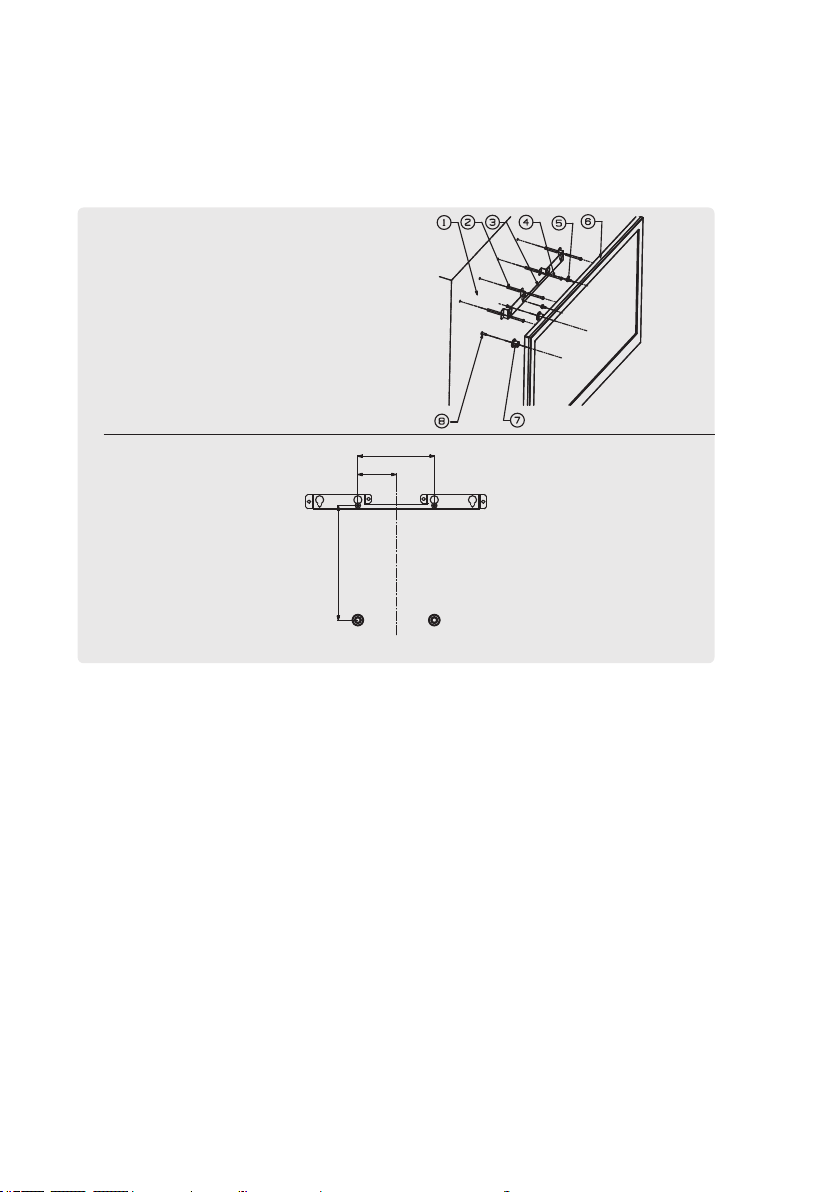

Wall-mounting instruction:
1. Please ensure the distance of wall-mounting holes on the back cabinet before you
mounting your TV on the wall.
2. Mark the horizontal distance screw holes A and B with pencil on the wall by using long
wall-mounting bracket as ruler (There are “0” engraved in the middle of long
wall-mounting and “200” engraved at the end of the long wall-mounting bracket, as
figure 1 shown)
3. Align the upper holes on the short wall-mounting bracket (5) to A and B, then mark the
vertical distance screw holes C and D with pencil on the wall, as figure 2 shown.
4. Drill the holes at A, B, C and D position on the wall.
5. Drive Nylon sleeves(6) into the screw holes on the wall.
6. Fasten short wall-mounting bracket (5) on the Nylon sleeves with self-tapping screws (4)
on the wall.
7. Fasten long wall-mounting bracket (2) with screws (3) into the two screw holes on the
rear cabinet (Place the long wall-mounting end with hook upper as figure 3 shown);
8. Left the TV and hang it on the wall by two people.
NOTES:
1. Please mount your TV on the strength of the wall for withstanding the TV’s weight.
2. Be careful not to scratch panel and TV cabinet when your fasten the screws on the
TV.
1. Wall
2. Nylon sleeve
3. Wall-mounting bracket
4. Self-tapping screw
5. Wall-mounting screw
6. Rear cabinet
7. Wall-mounting Bolt
8. Screw
200mm
100mm
300mm
Only for 43" model

GETTING STARTED
6
The joystick on the lower-left panel behind the TV will control the basic features, including the on-screen
menu. To use the more advanced features, you must use the remote control.
Joystick
2
3
1
Directly in front the TV operation
schematic diagram：
4 5
6
The control panel on the back shell
↓
→
←
Centre
1
2
3
4
5
6
↑
Up
Down
Left Push one time: Within the menu, use this to move to the item to the left. Use to
decrease volume when watching TV.
Right Push one time: Within the menu, use this to move to the item to the right. Use to
increase volume when watching TV.
POWER INDICATOR
Press this button on the control panel one time as CONFIRM at within menu.
Press and hold this button to display FUNCTION menu.
Push this button one time to turn on the TV when it is in standby mode.
Push one time: Within a menu, use this to move to the item above.
Use to go to next channel when watching TV.
Push one time: Within the menu, use this to move to the item below. Use to move
back a channel when watching TV. Push and hold this button to return to the
previous menu.
Green: In power on mode
Red: In standby mode
JOYSTICK FUNCTIONS

7
CONNECTING TO EXTERNAL DEVICES
You can connect the TV with video devices such as a DVD player, VCR or a video camera to enjoy
a high quality picture.
VGAUSB 1 HDMI 3 HDMI 2 HDMI 1
(ARC) LR
AUDIO COMPONENT/AV IN
Pb
Pr Y/V
5V 500mA
PC
Blu-ray disc player
PC (HDMI-output)
DVD player
Camcorder
TF card
Headphone
CI card
USB
USB
USB 2
DVB-S2
RF
CI
TF
5V 500mA
Cable TV
OR
VHF/UHF
Antenna
RF Coaxial
Cable
DVD player
VCR
Video game equipment

8
REMOTE CONTROL
SMART
HOME
BackMenu
Sleep
Subtitle
Aspect
Sound
Input
Guide
VOL CH
Recall
Info
More
TV
/ TEXT
REC
List
RED GREEN YELLOW BLUE
OK
List
Mute
Audio Lang
I/II
1 2 3
456
7 8 9
0
/

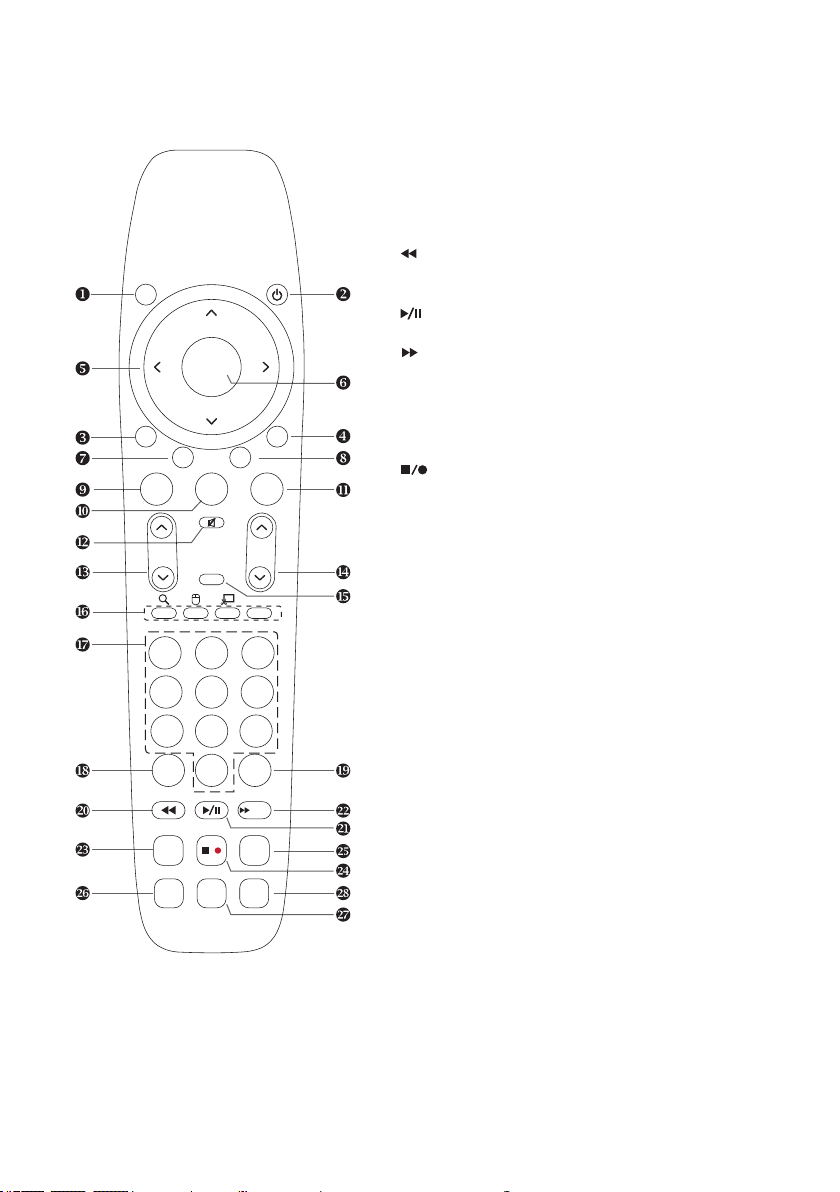

1. INPUT: This button is used to switch among different
sources: ATV, AV, YPbPr , HDMI1, HDMI2, DTV, , VGA
HDMI3. Select a source and press OK button to confirm.
2. POWER: Press this button to switch to standby
mode, and press it again to turn TV on.
3. REC LIST: Press this button to display a list of recorded
programs in DTV.
4. TV: Press this button to enter TV source.
5. Arrow buttons: Press these buttons to move cursor
up / down / left / right for menu.
6. OK LIST: Press this button to display a channel list,
or confirm your selection.
7. GUIDE: In DTV source, this button is used to start the
EPG application.
8. MORE: Press this button to display "MORE" menu.
You can use virtual buttons in "more" menu to control
TV functions as remote.
9. MENU: Press this button to display the quick menu or
exit the menu.
10. SMART: Press this button to enter the main SMART
interface directly.
11. BACK: Return to previous page.
12. MUTE: Press this button to shut off of the sound TV,
press again to restore TV sound.
13. VOL+ and VOL-: Press these buttons to adjust
TV volume.
14. CHr and CHs: Press these buttons to change
channel upward or downward. Within teletext, these
buttons are used to display the next page and previous
page.
15. I/II button/AUDIO LANG: In ATV source, the button
is used to set NICAM sound system. In DTV source,
the button is used to set the audio language.
16. Red/Green/Yellow/Blue Command: These four
buttons are used to request linked buttons with
the current menu/page. Press the Green button
can make the TV RC(TV remote controller ) as
mouse, and long press the YELLOW button can
capture screen image. Press Red button can switch
AD(Audio Discription) Function On/Off.When in
Home/Smart UI, Press Red button to open Google
search.

9
REMOTE CONTROL
17. Digital buttons(0~9): To select channel with digital
buttons.
18.INFO: This button is used to display source information
or current program information.
19. RECALL: Switch to the previous program.
20. : Use as rewind function in USB Video/Audio
playing Mode. Use as reveal function in ATV Text
Mode.
21. : Use as Play/Pause function in USB Video/Audio
playing Mode. Use as TimeShift function in DTV.
22. /TEXT: Use as fast forward function in USB Video
/Audio playing Mode. In ATV Mode, press this button
to Enter Text Mode. Use as cancel function in ATV
Text Mode.
23. ASPECT: Press this button to switch the aspect ratio
or scale mode.
24. : Use as Stop function in USB Video/Audio
playing Mode. Use as Recording function in DTV.
25. SLEEP: TV will be switched off automatically at
preset sleep time if you have set sleep timer.
Use your remote control to set the sleep timer.
Press SLEEP button on the remote control, then
press this button again to set sleep time: off, 10,
20, 30, 60, 90, 120, 180, 240 min.
Notes: The sleep timer you have set will be
cancelled when the TV turns off or if a power
failure occurs.
26. SOUND: This button is used to select the sound
mode.
27. PICTURE: This button is used to adjust the picture
mode.
28. SUBTITLE: Turning the subtitles on or off in DTV
or ATV Teletext mode.
SMART
HOME
BackMenu
Sleep
Subtitle
Aspect
Sound
Input
Guide
VOL CH
Recall
Info
More
TV
/ TEXT
REC
List
RED GREEN YELLOW BLUE
OK
List
Mute
Audio Lang
I/II
1 2 3
456
7 8 9
0
/

10
BATTERY INSTALLATION
Installing Batteries
NOTES:
• Once installed, of batteries will last for 1 year under normal use.
• If you do not intend to use the remote control for a long period of time, remove them
to avoid damage due to leakage.
• Do not use old and new batteries together.
• The batteries shall not exposed to excessive heat such as sunshine, fire or the like.
1Open the battery compartment
cover on the back side.
2Insert two 1.5V AAA size batteries
in correct polarity. Don´t mix old or
used batteries with new ones.
3Replace the cover. Point the remote towards the remote control
sensor of the TV and use it
within 8 meters.
SMART
HOME
Back
Menu
Input
Guide More
TV
REC
List
OK
List

11
SETTINGS
INITIAL SETUP
How to turn the TV on or off
1. Insert the power cord plug into an AC socket..
2. If TV is in standby mode, press POWER button on
the remote control or press the joystick on the rear of the TV.
3. The picture will be displayed on the screen after 15
seconds. If no signal input, "No Signal" will be displayed on the screen.
4. If temporary POWER off is required, press POWER button on the remote control or press the
joystick on the rear of the TV.
5. If you want to completely switch off the power for this unit, unplug the power cord plug for this
unit, after putting the TV into standby using the remote or joystick on the rear of the TV.
6. After switching off the unit, you should wait at least 5 seconds before switching on again.
Status indication lamp
Green: In power on mode
Red: In standby mode
Auto power-off
1. If there is no signal, the TV will automatically enter standby mode after 10 minutes of inactivity..
2. In VGA mode, if there is no input for 15 seconds, the TV will enter standby mode.
Memory before turning TV off
The picture and sound settings and preset channels will be memorized at the point when the TV is
turned off. When the TV is started up again it will work according to the previous settings.

12
BASIC OPERATION
Setup Wizard
When the TV is started for the first time, it will automatically enter the TV guide system.
OSD Language Setting
Setup your country
Algeria
Austria
NEXT STEP
1. Press ▲/▼ key to select your country (Algeria/Australia/Austria).
2. Press ► key then press the “NEXT STEP” button to go to the next step.
1. Press ▲/▼ key to select the language.
2. Press ► key then press the “START” button to continue to setup.
Country Setting
Australia
English
START

13
Network Settings
1. Press ▲/▼ key to select the method of connection to your network(Skip/wired/wireless).
2. Press ► key then press “NEXT STEP” button to enter the next step.
Wireless Connection (WiFi)
1. Wait around 5 - 10 seconds for the list of available networks to be displayed.
2. Press ▲/▼ key to select the network to connect to.
3. Select WIFI
4. Enter password and click “Connect”.
Setup your network
Wireless
Wired
NEXT STEP
Skip

14
Wired Connection
1. Press ▲/▼ key to select the wired connection type ( DHCP/STATIC).
2. Press ► key then press “NEXT STEP” button to enter the next step.
If "DHCP" is selected, click "NEXT STEP", The connection is set-up automatically, then click Finish.

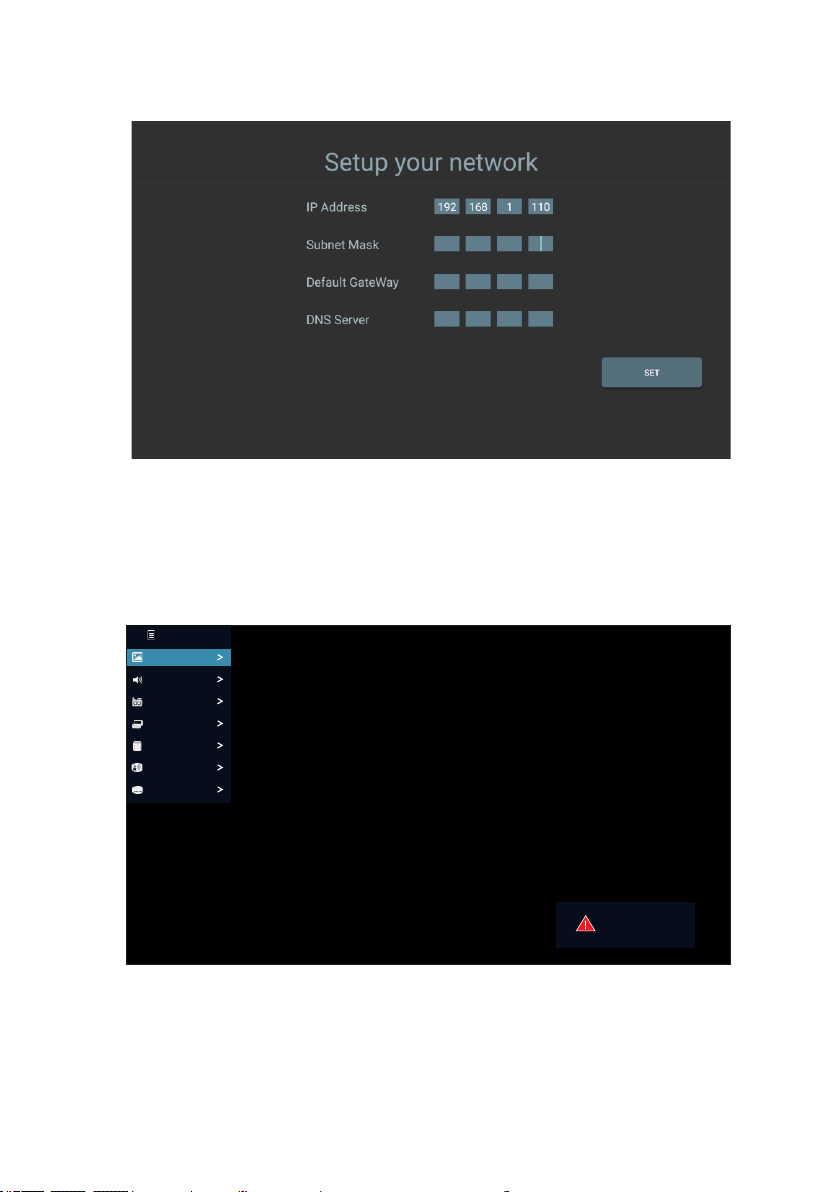

Selecting "STATIC" allows the user to manually enter the IP address and default gateway.
Once this has been entered click on "Set".
Setup wired network
DHCP
STATIC
NEXT STEP

Explanation of Network types:
DHCP: The connection information is automatically assigned by your router, enabling a quick
connection.
STATIC: Allows manual entry of IP address and other network settings if known.
In the majority of circumstances we would advise for the DHCP option to be selected.
15
QUICK MENU
When viewing live TV, there is a Quick Menu to allow alteration of the most commonly changed
settings.
MENU button: Opens the Quick menu or Exits the menu.
BACK button: To Exit the menu.
Arrow buttons: To select the required option.
OK button: Enter the option you have selected.
CEC
Program Edit
Audio Language
Subtitle Language
Quick Menu
Sound
PVR Option
No Signal

16
SMART MENU OPERATION
Arrow buttons: Select an item on the menu.
OK button: Enter the options which you've selected.
1. Google Search
2. Current Time
3. What's hot: Popular videos from the Internet.
4. Featured app: Featured apps on Internet for TV.
5. Inputs: Input sources on TV(DTV, ATV, AV, YPbPr, VGA, HDMI1, HDMI2, HDMI3).
6. Apps: All applications installed on the TV.
7. System Settings: All Setting Options on the TV.
8. Network Status: Display your network status. Enter this option to set your network.
9. RAM: Percentage of system memory that has been used.
10. Message Center.
11. Help.
Accessible by pressing the SMART button on the remote

17
SYSTEM SETTINGS MENU
Main Menu
TV
Device
Network System sounds Manage apps Display Storage & reset
Image Sound Channel Function
This is accessible through the settings cog on the SMART MENU. This gives access to change the settings
for all the TV's functions

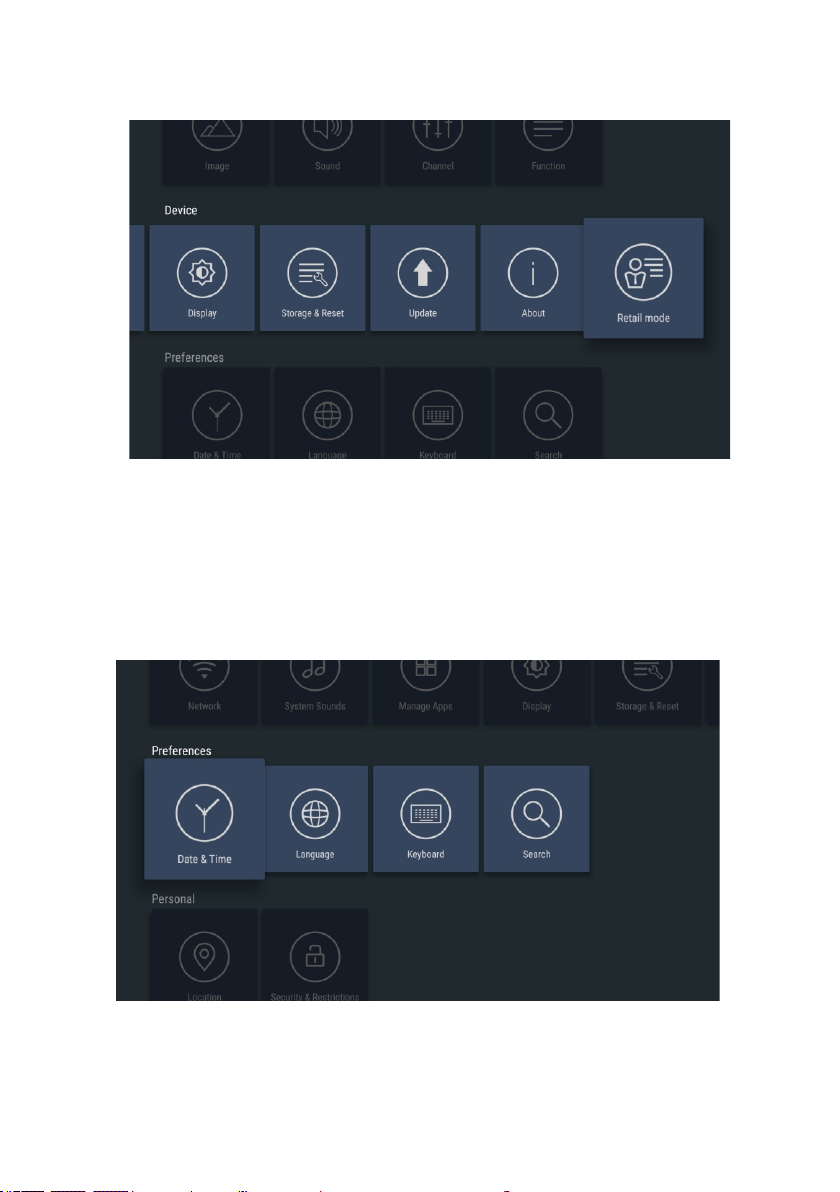

DEVICE
TV
Image: Allows the screen settings for the TV to be changed. More in depth information can be found
in the "IMAGE SETTINGS MENU" Section
Sound: Allows the sound settings for the TV to be changed. More in depth information can be found
in the "SOUND SETTINGS MENU" Section
Channel: Allows the TV to be re tuned. More in depth information can be found in the "CHANNEL
SETTINGS MENU" Section
Function: Gives access to extra features within the TV. More in depth information can be found in
the "FUNCTION SETTINGS MENU" Section

18
Network:Configure Network Settings;
System sounds: Configure sound settings for SMART mode;
Manager Apps:Management;
Display:Configure display settings for SMART mode;
Storage&Reset:Gives storage information and option to reset SMART features to factory defaults;
Update:System Upgrade;
About: System info;
Retail mode:Retail mode (Use for retail store);
Date & time: You can make the adjustment to the date and time;
Language: You can change the language that is displayed;
Keyboard: Configure the keyboard;
Search: Google search;
PREFERENCES

19

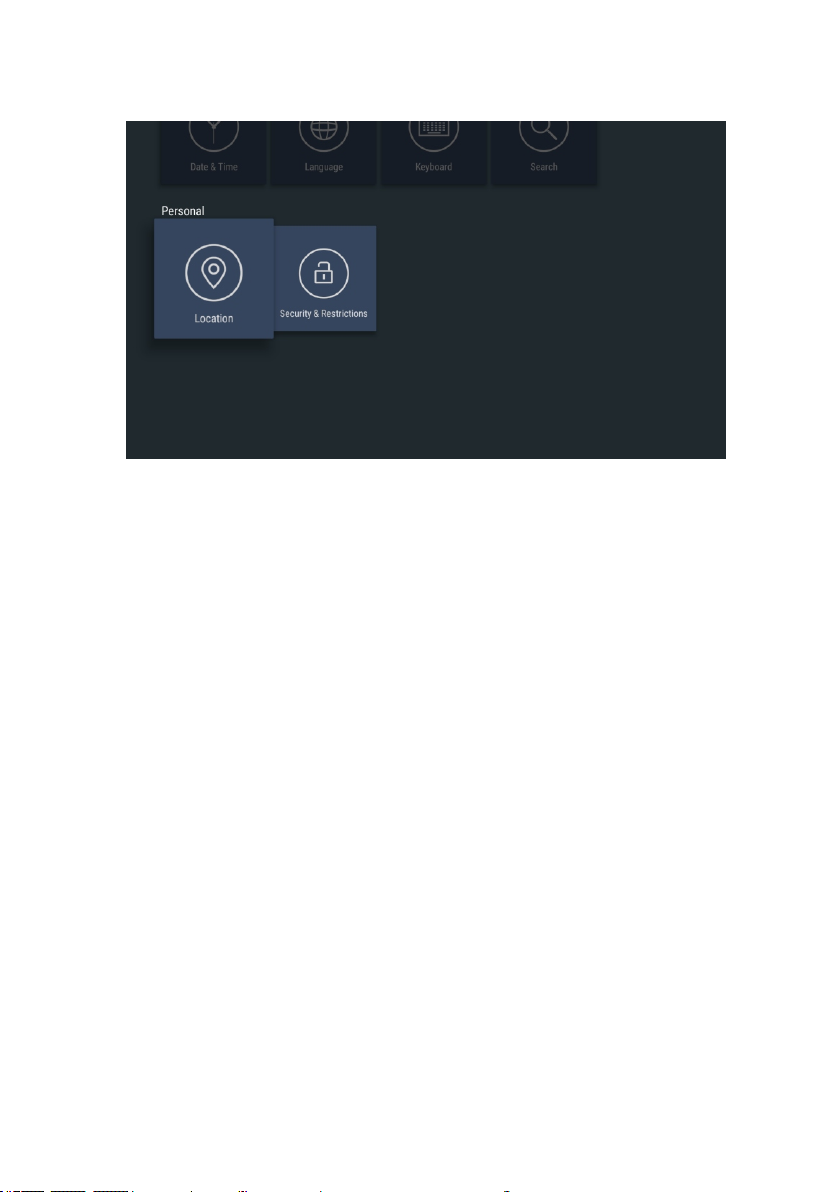

PERSONAL
Location: Use network to provide location information;
Security & Restrictions: Security settings for SMART feature;
