Electrodyne Audio 2511 EQ User manual

2511 EQ™
Owner’s Manual

WARRANTY:
One Year Internal Parts Warranty and a 3 -Day Limited Labor Warranty.
Your Warranty begins on the date of purchase. To activate your Warranty, please fill out and mail the Warranty Card to:
Pete’s Place Audio
P. . Box 4255
West Hills, CA 91304
U.S.A.
Also, your name may be placed on our mailing list for future updates and new product announcements (unless otherwise
requested).
Pete’s Place Audio reserves the right to make improvements and/or changes to this product at any time.
Your Warranty Is Void If:
1. This product has been opened by unauthorized personnel.
2. The product serial numbers have been removed or tampered.
3. The product has been damaged by misuse or abuse.
4. Modified and/or repaired by unauthorized personnel.
There Are No User Serviceable Parts Inside.
Pete’s Place Audio warrants that our hardware conforms substantially to the specifications contained in this manual. When used in
accordance these specifications, Pete’s Place Audio warrants for a period of one year from the date of purchase to the original
purchaser if purchased from Pete’s Place or its authorized dealers. In the case of a valid warranty claim, your sole and exclusive
remedy is Pete’s Place. Pete’s Place Audio entire liability under any theory of liability will be, at its option, to repair or replace the
product without charge or, if not possible, to refund the purchase price to you. This warranty is not transferable and applies only to the
original purchaser of this product.
For warranty service contact Pete’s Place Audio at 818-716-4153 to obtain a Return Merchandise Authorization (RMA) number. After
obtaining the RMA number, ship defective product to Pete’s Place Audio, P. . Box 4255, West Hills, CA 91304. Write the RMA number
on the outside of the shipping box. Be sure to include your name, address and phone number with a copy of original sales invoice and
detailed description of the problem. Pete’s Place Audio will not accept responsibility for loss or damage in shipping.
Pete’s Place, Pete’s Place Audio and ELECTR DYNE 2511 EQ are trademarks of Pete’s Place Audio and Electrodyne,
respectively. All other trademarks are the property of their respective owners.
Published by: Pete’s Place Audio
P. . Box 4255
West Hills, CA 91304
U.S.A.
Edition 1.0 2005
Copyright 2013 Pete’s Place Audio
All Rights Reserved.
LEGAL NOTICE
THIS WARRANTY IS IN LIEU F ALL THER WARRANTIES WHETHER RAL R WRITTEN, EXPRESSED R IMPLIED.
PETE’S PLACE AUDI MAKES N THER WARRANTY EITHER EXPRESSED R IMPLIED, INCLUDING, WITH UT
LIMITATI N, ANY IMPLIED WARRANTIES F MERCHANTABILITY, UNLESS F R A PARTICULAR PURP SE R
N NINFRINGEMENT. PURCHASERS S LE AND EXCLUSIVE REMEDY UNDER THIS WARRANTY SHALL BE REPAIR R
REPLACEMENT AS SPECIFIED HEREIN.
UNDER N CIRCUMSTANCE WILL PETE’S PLACE AUDI BE LIABLE F R ANY DIRECT, INDIRECT, SPECIAL, INCREMENTAL
R C NSEQUENTIAL DAMAGES RESULTING FR M ANY DEFECT IN THIS PR DUCT. TH SE DAMAGES INCLUDE BUT N T
LIMITED T L ST PR FITS, DAMAGE T PR PERTY AND, T THE EXTENT PERMITTED BY LAW, DAMAGE F R PERS NAL
INJURY; EVEN IF PETE’S PLACE AUDI HAS BEEN ADVISED F THE P SSIBILITIES F SUCH DAMAGES.

Introduction
wner’s Manual | 3Electrodyne 2511 EQ
™
Pete’s Place Audio
Introduces the Electrodyne 2511 Dual Mono 2 Band Equalizer
Electrodyne 2511 two-band inductor EQ:
The Electrodyne 2511 is a classic two-band discrete transistor reciprocal active inductor equalizer,
which was first introduced in 1970. Smooth performance and eq response from full-cut to full-boost on
all frequencies, providing unusually broad sonic and tonal options not experienced in a console quality
eq in decades. The sonically critical custom inductors and output transformers are still made by
Electrodyne’s original US parts manufacturer to strict tolerances as small as 2%. This allows consistent
eq response and repeatable tone from channel-to-channel, with variations of less than 1/4db over full
bandwidth. A nearly impossible feat when these eq's were first built.
You will have the peace of mind knowing that the 2511 eq is N T a recreation and N T a clone.
Electrodyne Audio is still the same company that produced groundbreaking audio consoles and
recording equipment in the 1960's and 1970's. We are 100% back in operation and here to stay. We
build with the same quality and attention to detail that developed our reputation, and continue to
manufacture, right here, in California.
All current designs are built following actual original Electrodyne proprietary factory lab and engineering
notes. And we have even gone to the trouble to have the designs reviewed and approved by original
Electrodyne engineering staff for accuracy and adherence to company design criteria.
The Electrodyne Audio engineering staff is always striving to improve performance and design new and
unique products for the industry. Thank you for your purchase. Your comments are always appreciated.

Features
4 | Electrodyne 2511 EQ
™
wner’s Manual
All discrete transistor design
Custom wound utput Transformers (original manufacturer)
Custom wound eq Inductors (original manufacturer)
Custom concentric gain/frequency switches (mil-spec quality)
riginal design knobs and control levers (original manufacturer)
Rugged powder coated steel chassis
Heavy-gauge Anodized Aluminum Face Plate
All XLR I/
Active balanced discrete transistor input
Transformer balanced output
Individual Low and High Shelving Switches per band for each channel
Each eq band network is completely bypassed when its gain control is placed at the “0” mark
n/ ff Power Switch
Red LED Power Indicator

Specifications
wner’s Manual | 5Electrodyne 2511 EQ
™
TECHNICAL DATA
Input: Active balanced discrete transistor impedance converter.
utput: Custom wound large format multifilar transformer
utput impedance: 600 ohms
+/-12 db gain range: Equalize or Attenuate
4 frequencies selectable per band. LF: 40, 100, 250, 500hz. HF: 1.5k, 3k, 5k, 10k.
Peak/Shelf sw each band: Shelving at all frequencies, Peaking: 250, 500 (LF), 1.5k, 3k and 5k (HF).
Distortion: 0.03%typical.
The Peaking and Shelving filters on the Electrodyne 511 and dual channel rackmount 2511 eq are
active inductor/capacitor (L/C), reciprocal, fixed-Q type. We made Q calculations based on the actual
Audio Precision sweeps of our production reference units and the results are as follows:
Peaking:
HF peaking Q = .35
LF peaking Q = .7
Q values are averaged across all peaking frequencies for each band.
Shelving:
HF slope approx. 3dB/ oct
LF slope approx. 4dB/ oct
HF characteristics: Flat shelf to over 200 khz at all frequencies (see frequency graphs –
Appendices A-D).
LF Characteristics: Shelf rolls back 3dB at 9hz, at all frequencies to avoid sub-sonic overload
issues with downstream recording equipment (see frequency graphs – Appendices A-D).
Maximum output: +30dbu at less than 0.8%thd, +29.5dbu at 0.06%thd. (measured with +/-16v power
rails).
Frequency response: +/- 0.25db, <10hz to >70khz typical (no filters engaged).
Signal to noise: -85db typ.
In line with our company policy of continuous development, the above specifications are subject to change without notice.

Functions
6 | Electrodyne 2511 EQ
™
wner’s Manual
Front Panel
1Shelving Low Freq
2Cut and Boost Lows
3Shelving High Freq
4Cut and Boost Highs
5Hard By-pass
6Shelving Low Freq
7Cut and Boost Lows
8Shelving High Freq
9Cut and Boost Highs
1 Hard By-pass
11 Power Switch and Red LED Power Indicator
12 Frequency Selectors

Functions (continued)
wner’s Manual | 7Electrodyne 2511 EQ
™

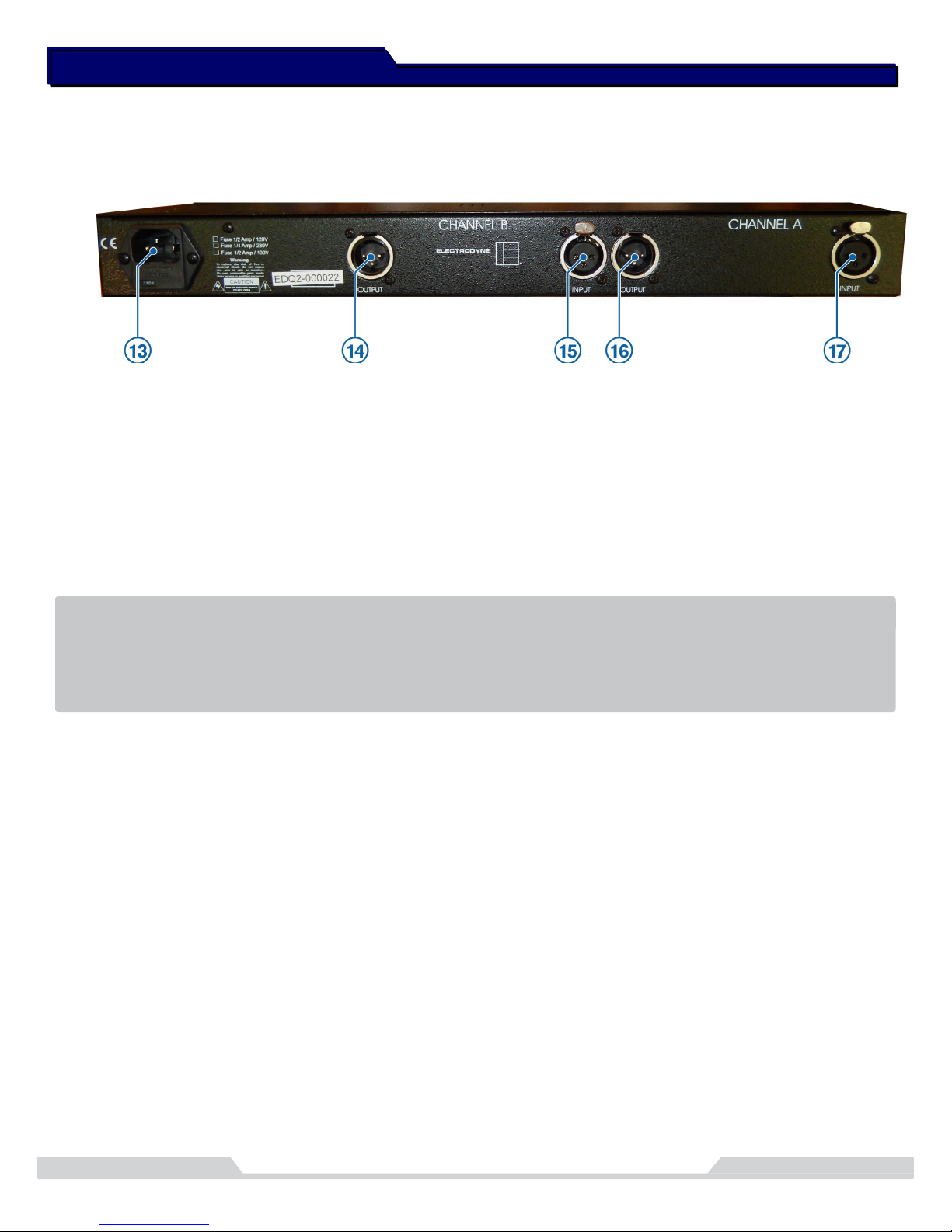

Rear Panel
13 Power Supply Connector
14 Balanced XLR Output, Channel B
15 Balanced XLR Input, Channel B
16 Balanced XLR Output, Channel A
17 Balanced XLR Input, Channel A
ALWAYS USE GOOD COMMON SENSE WHEN OPERATING ANY ELECTRONIC EQUIPMENT.
I YOU HAVE QUESTIONS, PLEASE CONTACT YOUR DEALER OR THE MANU ACTURER BE ORE DOING
ANYTHING!!!!!

Appendix A
8 | Electrodyne 2511 EQ
™
wner’s Manual
High Frequency Peak

Appendix B
wner’s Manual | 9Electrodyne 2511 EQ
™

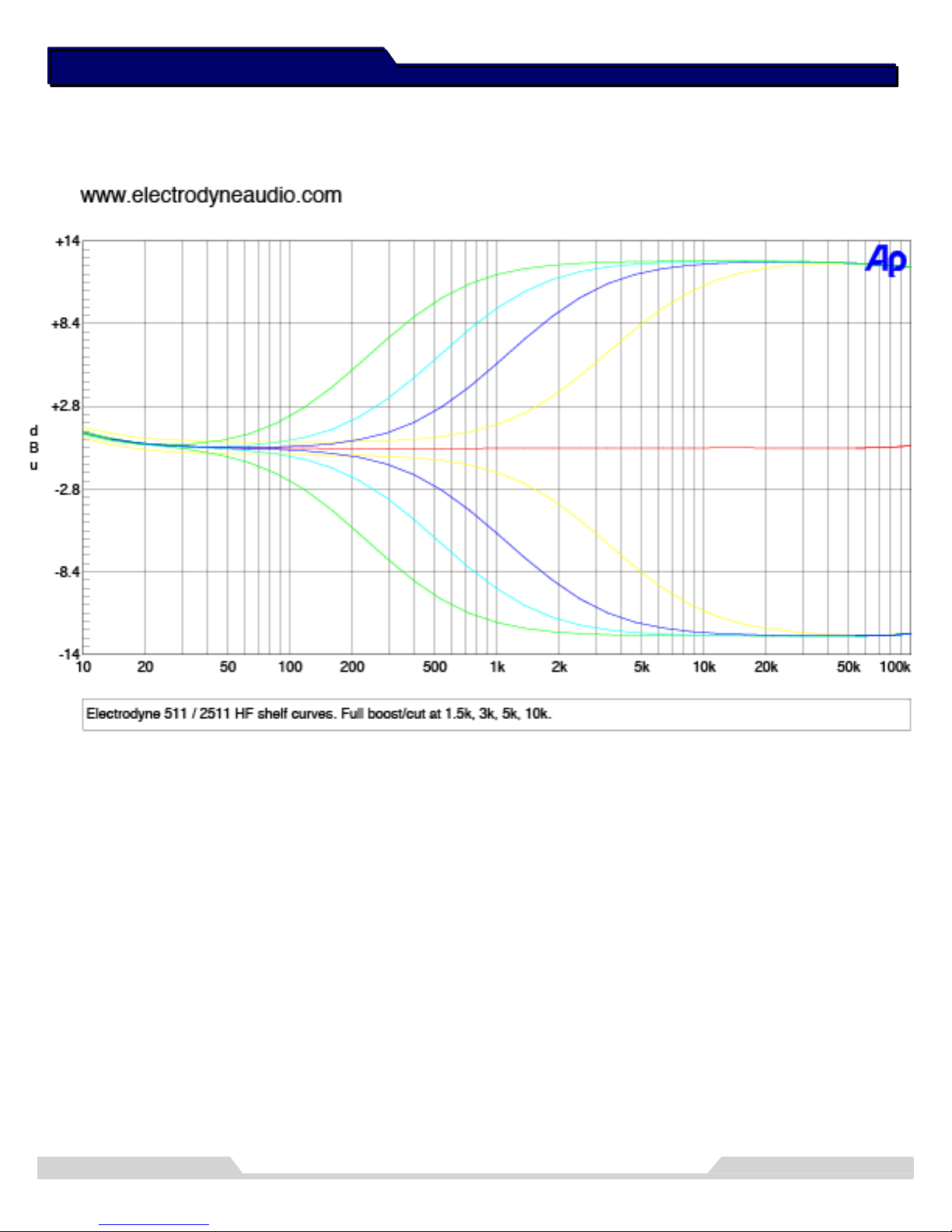

High Frequency Shelf

Appendix C
10 | Electrodyne 2511
EQ
™
wner’s Manual

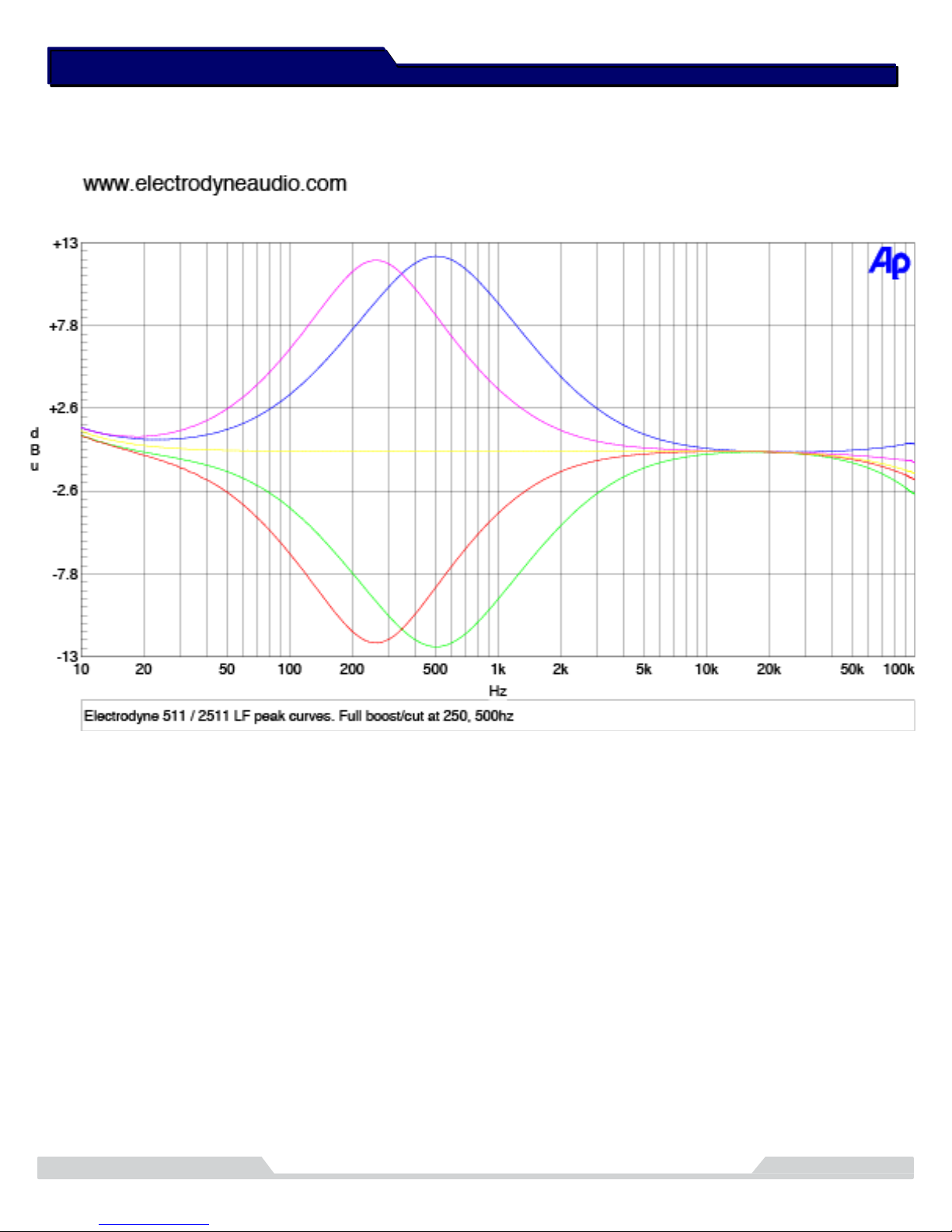

Low Frequency Peak

Appendix D
wner’s Manual | 11Electrodyne 2511 EQ
™
Low Frequency Shelf
