Electrolux ICON Professional E30DF74GPS Instruction sheet

30" DUAL-FUEL FREESTANDING RANGE
CONTROL PANEL FEATURES
Electronic Oven Control
Professional-Style Stainless Steel Console
Large Professional Skirted Knobs with Bezel
RANGETOP FEATURES
Min-2-Max Burners®(BTU)
Sealed Power Burner™(BTU)
Sealed Precision Burner™(BTU)
Continuous Grates
Electronic Ignition
OVEN CAVITY FEATURES
Capacity
Bake Element (Watts)
Broil Element (Watts)
Convection Element (Watts)
Signature Cobalt Blue Oven Interior
CustomConvect3™Convection System
Self-Clean with Door Lock
Extra-Wide Oven Window
Halogen Oven Light
Eight-Pass Bake & Broil
Smooth-Glide®Oven Racks
Conventional Rack
Convection Roasting Rack
Hidden Bake Element
ADDITIONAL FEATURES
Stainless Steel Backsplash
Full Stainless Steel Side Panels
Professional Handle
Fully Adjustable, Heavy-Duty Legs
ACCESSORIES
Broil Pan and Insert
Stainless Steel Cleaner
Griddle
Wok Ring
Simmer Plate
9" Stainless Steel Backsplash – PN# 903104-9010
12" Stainless Steel Backsplash – PN# 903105-9010
4" Stainless Steel Kick Plate – PN# 318352601
Stainless Steel Island Trim Kit – PN # 903106-9010
Black Knobs Kit – PN# 903108-9010
SPECIFICATIONS
Oven Cavity Dimensions –
Height
Width
Depth
Product Dimensions –
Height (Including Adjustable Legs)
Width
Depth (Including Handle)
(with 90° Door Open)
Gas Supply Connection Location
Power Supply Connection Location
Amps@ 240/208 Volts
Minimum Circuit Required (Amps)
Connected Load (kW Rating) @ 240/208 Volts
LP Gas Conversion Kit
Shipping Weight (Approx.)
NOTE: Always consult local and national electric and gas codes. Refer to Product Installation
Guide for detailed installation instructions on the web at electroluxicon.com.
Specifications subject to change.
Yes
Yes
6
2 (18,000 – 450)
1 (14,000)
1 (5,000)
2
Yes
4.2 Cu. Ft.
2500
4000
2500
Yes
Yes
Yes
Yes
2
Yes
3
1
1
Yes
6"
Yes
Yes
Yes
Included
Included
Included
Included
Included
Optional
Optional
Optional
Optional
Optional
16-1/2"
24-1/8"
18-1/32"
41-5/8 – 42-5/8"
29-7/8"
28-5/8"
45-1/2"
Center Bottom Rear
Left Bottom Rear
27/23
30
6.5/4.8
Included
280 Lbs
electroluxicon.com

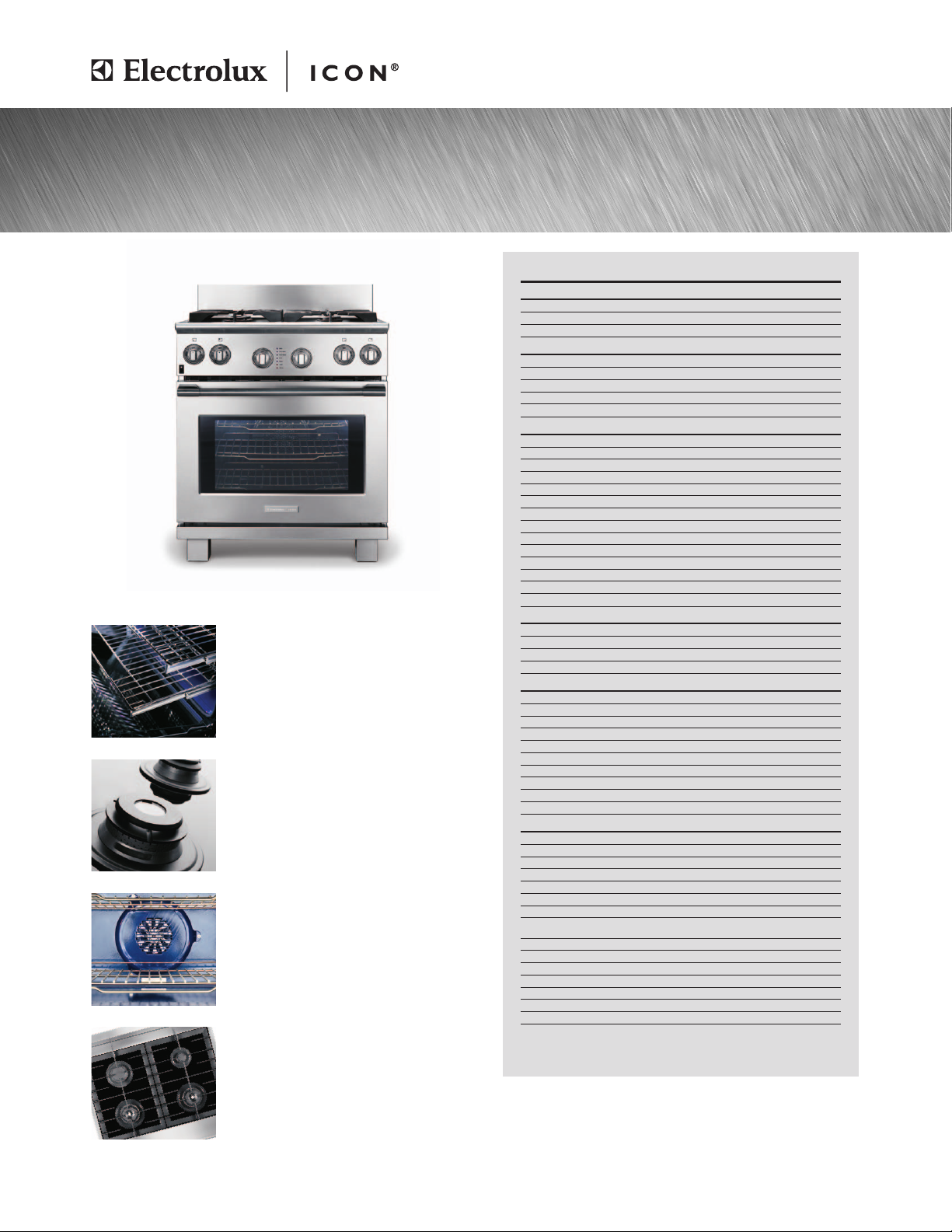

Dual-Fuel Freestanding Range
E30DF74GPS professional series
Smooth-Glide®Oven Racks
Ball bearing oven racks glide with unparalled
ease and extend fully for effortless access.
Min-2-Max Burners®
With the widest range of BTU performance in the
industry, these best-in-class dual-flame sealed
burners offer unrivaled versatility—from a roaring
18,000-BTU boil to a gentle 450-BTU simmer.
CustomConvect3™Convection
Technology
Distributes heat evenly throughout the oven by
adding a third cooking element plus a variable
speed fan.
Flexible Cooktop Configuration
The cooktop offers a wide range of burner sizes,
giving you more flexibility so you can create a
multi-course meal at once.

Dual-Fuel Freestanding Range
E30DF74GPS professional series
High standards of quality at Electrolux Home Products, Inc. mean we are
constantly working to improve our products. We reserve the right to change
specifications or discontinue models without notice.
Electrolux Major Appliances, N.A.
USA
•
10200 David Taylor Drive
•
Charlotte, NC 28262
•
1-877-4electrolux (1-877-435-3287)
•
electroluxicon.com
CANADA
•
5855 Terry Fox Way
•
Mississauga, ON L5V 3E4
•
1-800-265-8352
•
electroluxicon.ca
E30DF74GPS 04/11 © 2011 Electrolux Home Products, Inc. Printed in the U.S.A.
30" Dual-Fuel Freestanding Range Specifications
•
Product Weight – 250 Lbs.
•
Single phase 3- or 4-wire cable, 120/240 or 120/208 Volt,
60 Hertz AC only electrical supply with ground required on separate
circuit fused on both sides of line.
•
Connected Load (kW Rating) @ 240/208 Volts = 6.5/4.8kW
•
Amps @ 240/208 Volts =27/23 Amps
•
Recommended Circuit Breaker – 30 Amps
•
Always consult local and national electric and gas codes.
•
Range ships with 3/4" factory regulator.
•
LP Gas conversion kit supplied.
•
Overhead cabinetry should not exceed a 13" maximum depth.
•
Allow 30" minimum clearance between top of rangetop and bottom of
unprotected wood or metal overhead cabinetry.
•
Absolute minimum horizontal distance between overhead cabinets
installed to either side of appliance must be no less than maximum width
of appliance.
•
Allow 7" minimum clearance from edge of rangetop to nearest
combustible wall on either side of unit.
•
Allow 24" minimum clearance when bottom of wood or metal overhead
cabinet is protected by not less than 1/8" flame-retardant millboard
covered with not less than No.28 MGS sheet steel, 0.015" stainless
steel, 0.024" aluminum or 0.020" copper.
•
To reduce risk of fire when using overhead cabinetry, install
vent hood that projects horizontally a recommended minimum
of 5" beyond bottom of cabinets.
Note: For planning purposes only. Refer to Product Installation Guide
on the web at electroluxicon.com for detailed instructions.
Optional Accessories
•
9" Stainless Steel Backsplash – (PN# 903104-9010).
•
12" Stainless Steel Backsplash – (PN# 903105-9010).
•
Stainless Steel Island Trim Kit (for use in place
of backsplash) – (PN# 903106-9010).
•
4" Stainless Steel Kick Plate – (PN# 318352601).
•
Black Knobs Kit – (PN# 903108-9010).

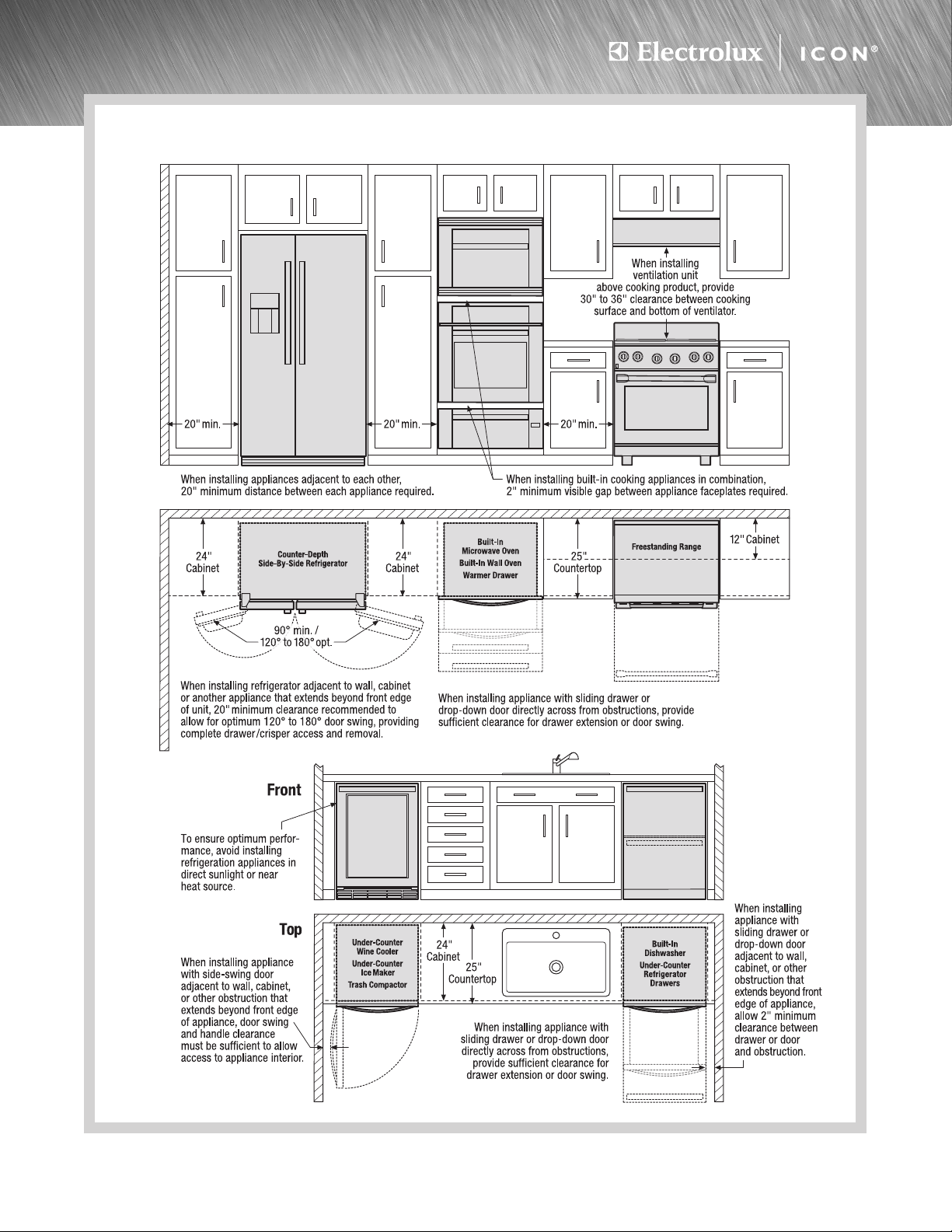

Use these dimensions and clearance instructions for planning purposes only. For detailed installation
