Electrolux U25041 DDO61GA User manual

Model DDO61GA

Introduction
This gas appliance has been designed and manufactured to all the
necessary British Standards. It also carries the C.E. mark. The
appliance complies with European Council Directive 90/396/EEC.
It is important that you understand how to use and care for the appliance
properly before you use it for the first time.
We have written this booklet with your safety in mind. Read the booklet
thoroughly before you use the appliance. Keep the booklet in a safe
place so that anyone who uses the appliance can read it. Pass the
booklet on with the appliance if you sell it to someone else.
We have included several drawings to show the right and wrong way
of doing things.
The right way will have a smiling face by it.
A sad face shows something is wrong.
RATING PLATE
This is situated on the lower front frame of the appliance and can be
seen upon opening the door. Alternatively the rating plate may also be
found on the back or top of some models (Where applicable). Do not
remove the rating plate from the appliance as this may invalidate
the guarantee.
2
DDO61GA
I
n
t
ro
d
uc
ti
on
For your safety
This appliance is not intended to be operated by means of an
external timer or separate remote control system.
The appliance is designed to cook food and you must not use it
for any other purpose.
Keep children, babies and toddlers away from the appliance at all
times.
The installation instructions that came with the appliance tell you
how and where it can be fitted. If the appliance is already
installed you must make sure that all instructions have been
followed. If you are in any doubt ask a competent person.

Lighting the appliance 4
The grill 7
The hotplate 10
The ovens 13
Oven cooking chart - main oven 16
- second oven 19
The electronic minute minder 22
Slow cooking 24
Care and cleaning 26
Installing the appliance 32
General information 34
What is wrong and why? 36
Servicing 38
Installation Instructions 40
Technical Data 41
Safety requirements/ventilation 42
Location of appliance 43
Installation 44
Testing 46
Guarantee Conditions 49
3
D D O 6 1 G A
Contents
Contents Page

Lighting the appliance
The system works by means of an electric spark system. Details about
the plug are given in 'General Information'.
Hotplate
To light
1. Lift up the lid. You cannot use the hotplate when the lid is down.
2. Push in the control knob and turn it to the large flame symbol
(highest setting), and press the ignition button immediately. When
the burner has lit release the button.
Warning: If the ignition button is not pressed a build up of gas may
cause the flame to spread.
Please note: If you have any trouble lighting a hotplate burner turn all
the hotplate control knobs off and make sure the hotplate burner parts
have been replaced correctly.
4
D D O 6 1 G A
For your safety
If you close the lid of the appliance while any of the hotplate
burners are lit the gas will go out. This is because it would be
dangerous if the burners stayed on when the lid was closed.
Always use the control knob to turn off a burner. Do not use
the lid as a cut-off device. This will only cut off the gas when
the lid is closed. The gas will flow again when the lid is
opened.
Lighting the appliance
For your safety
In the event of the burner flames being accidentally extinguished,
turn off the burner control and do not attempt to re-ignite the burner
for at least 1 min.

Grill/second oven
The grill and the second oven are operated by the same control so you
cannot use them both at the same time.
Grill
To light:
1 Open the door.
2 Push in the control knob and turn it to the right to the highest setting.
This is shown by a large flame symbol. Press the ignition button.
When the burner has lit release the button.
3 Leave the grill door open when you are using the grill.
Warning : If the ignition button is not pressed immediately a build up of
gas may cause the flame to spread.
Second oven
To light:
1 Open the oven door.
2 Push in the control knob and turn it to the left to gas mark 1. Press
the ignition button. When the burner has lit release the button. There
will only be small flames at first.
3 Now turn the control knob to the gas mark
you want.
4 Wait until the burner is showing large
flames.
5 Close the oven door.
Important: Remember to remove the grill pan handle before you use the
second oven.
5
D D O 6 1 G A
For your safety
Never cover the grill pan or grid with foil as this can lead to grill
fires
Lighting the appliance

Main oven
To light:
1 Set the time of day on the clock.
2 Open the oven door.
3 Push in the control knob and turn it to gas mark 9. After a few
seconds the oven will light automatically and the oven light will
illuminate.
4 Now turn the control knob back to the gas
mark you want.
5 Wait until the burner is showing large
flames
6 Close the oven door.
If there is an electrical power failure (such as
a power cut) you cannot use the main oven.
You can use the second oven.
To turn off any burner
1 Push in the control knob and turn it to the off position. This is shown
by a large dot.
Oven light
The main oven light will come on when the oven burner is alight. If you
need to replace the oven light bulb, follow the instructions in 'General
Information'.
6
D D O 6 1 G A
For your safety
When you are lighting any burner check that it has lit before you
leave the appliance.
When you are turning off a burner, do not leave the appliance until
the flame has gone out.
Lighting the appliance

The grill
The grill is a high-speed grill. The instructions below tell you how to vary
the heat setting and how to change the height of the grid to suit the food
you are cooking. You should remember to turn the food regularly.
You should not use the grill to keep food warm as it will continue to
cook the food.
Prior to using the grill
We suggest that you operate the grill for approximately 5 - 10 mins to
burn off any residue from the surface. During this period a slight odour
may be emitted, it is therefore advisable to open a window for ventilation.
When you first operate the grill you may hear some sounds as the
burner heats up, this is quite normal and is not a fault on the appliance.
Heat control
The grill control has two heat settings.
The control knob turns to the right
from 'OFF' to 'LOW' and then to
'HIGH'. Use the high setting for fast
cooking such as toast. Use the low
setting to cook thicker food such as
chicken after you have browned it on
the high setting.
7
D D O 6 1 G A
The grill
For your safety
The grill pan and handle must be in place before igniting the grill.
You must keep the grill door open when the grill burner is lit.
Accessible parts may be hot when the grill is used. Young
children should be kept away.
Never cover the grill pan or grid with foil as this can lead to grill
fires.

Cooking positions
There is only one position for the grill shelf
(Position 2). Positions are counted from the top
downwards.
Most food should be cooked on the grid in
the grill pan. You can turn the grid over to suit
different thicknesses of food.
You can place some dishes straight on to
the grill shelf. This is useful when you are
browning the top of food such as cauliflower
cheese.
General
The shelf in the grill/second oven is different from the shelves in the main
oven. It is important that you do not swap them over. Only use the shelf
with the solid metal plate underneath it in the grill/second oven.
When you are not using the grill you should remove the handle and store
the pan on the shelf in the grill. Turn the grill burner off before you store
the pan. Remember that the pan will get hot when you are using the
main oven.
You can use the grill compartment to warm plates when you are
using the main oven.
Preheating
You don't usually need to preheat the grill. You may wish to preheat it for
a couple of minutes when you are cooking steak or browning food.
Positioning food on the grid
Place food such as toast, tea-cakes and
muffins towards the centre of the grid.
Place food which needs a gentle heat,
such as tomatoes and mushrooms towards
the edge of the grid.
Arrange meat, meat products and fish to
suit their thickness and how you like them
cooked.
8
D D O 6 1 G A
The grill

The grill pan and handle
The grill pan is supplied with a removable handle.
To attach the handle, place the wirework under the cut out in the pan so
that the metal plate hooks over the top of the grill pan.
Slide the handle to the left and over the central bump on the grill pan.
Ensure the handle is correctly located. It is not necessary to
remove the grill pan handle during grilling.
Place the grill pan on the shelf so that the pan is positioned centrally
beneath the grill.
To remove the handle, slide the handle to the right and lift the handle
away from the cut out on the grill pan.
Note
If you require an additional handle for your grill pan, this can be ordered
from your local Service Force Centre by quoting part number
311479800\6.
9
D D O 6 1 G A
The grill

The hotplate
You can only use the hotplate when the lid is open. If you have any
trouble lighting a hotplate burner turn all hotplate control knobs off and
make sure the hotplate burner parts have been replaced correctly.
Heat control
The hotplate control knobs turn
anticlockwise from 'OFF' to 'HIGH'
and then to 'LOW'. You can adjust
the heat by turning the control
between the highest and lowest
settings. These are shown as a
large and a small flame symbol.
Burner sizes
The hotplate has three burner sizes
to suit different types of cooking:
Largest burner (Rapid) - use a large
pan for food such as chips.
Medium burners (Normal) - use for
everyday cooking.
Small burner (Simmer) - use for
simmering food such as soups and
stews.
The largest pan which you should use on any burner is 230mm (9").
The base of the smallest pan should not measure less than 100mm (4").
10
D D O 6 1 G A
The hotplate

11
D D O 6 1 G A
The hotplate
For your safety
Take care to avoid burns and scalds when you
are reaching across the hotplate.
Use pans with flat bases. They are more stable
than pans which are warped.
Do not use pans with very heavy handles which
cause the pan to tip.
Put pans on the centre of the burners.
Position pan handles so they cannot be
accidentally knocked.
Take extra care when you are deep fat frying. Do
not cover the pan with a lid.
Do not leave a pan unattended. If the pan
catches fire, leave it where it is and turn off all
controls.
Place a damp cloth or a fitting lid over the pan to
smother the flames.
Never put water on the fire.
Leave the pan to cool for 30 minutes.
If you are using a Wok we recommend it has a flat
base as it will stand stable on the pan supports. If
you use a round based Wok with a collar support,
the collar must be of the open wire work type. A
closed collar will affect the performance of the
burner. Before you use the Wok make sure that
the collar is stable on the pan supports. Always
follow the instructions that come with the Wok.
Do not use the lid as a work surface or chopping
board. This could damage the glass and reduce
its strength.
7
1
8

Helpful hints
1 Keep flames under the base of pans. If
the flames lick round the sides of the
pans you are wasting gas.
2 Only heat the amount of liquid you
need. Do not overfill pans.
3 Cover pans with a lid whenever
possible. The food will heat up more
quickly and there will be less steam in
the kitchen.
4 Try cooking more than one vegetable in
the same pan, for example potatoes
and carrots.
5 Cut vegetables into smaller pieces.
This way they will cook more quickly.
6 A pressure cooker will save time and
energy.
12
D D O 6 1 G A
The hotplate

The ovens
Before you use the ovens you should wipe them out with a damp cloth to
remove any dust.
Heat zones

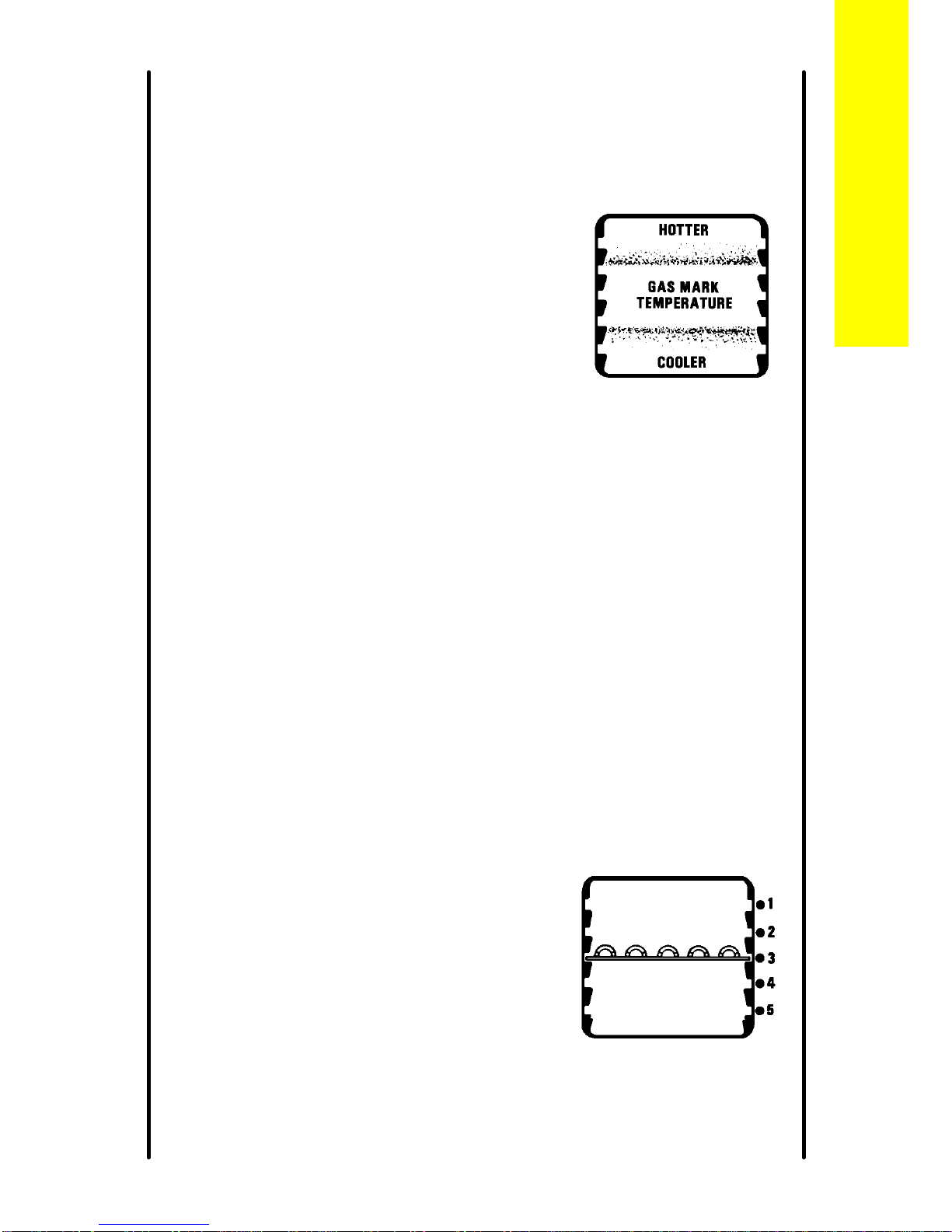

Main oven - There are zones of heat within the
oven. The temperature in the middle is the gas
mark you have chosen. The top of the oven is
slightly hotter and the lower shelf slightly cooler.
The base of the oven is quite a lot cooler. You
can make use of these heat zones when you
are cooking foods that need different
temperatures all at the same time.
If you are cooking more than one tray of similar items, for example
cakes or biscuits, swap the trays around during cooking. Or you can
remove the top tray when the food is cooked and move the lower tray to
the higher shelf to finish cooking.
Second oven -You should turn food round during the cooking time.
Preheating
You do not need to preheat the main or second oven for casseroling and
so on.
Preheat the ovens for baking or when you are cooking sensitive food
such as Yorkshire puddings, soufflés and yeast mixtures.
When you are cooking or reheating frozen or chilled food read the
instructions on the packaging. When you are using the second oven to
reheat food you should preheat the oven to gas mark 8. When you need
to preheat the oven, we recommend you do so for 20 minutes.
Oven shelves
You can slot the oven shelves into any of five
positions in the main oven and any of the two
positions in the second oven. Positions are
counted from the top downwards.
The shelf in the grill/second oven is
different from the shelves in the main oven.
Only use the shelf with the solid metal plate
underneath it in the grill/second oven. The
plate may glow red when you are using the
oven. This will not affect the cooking
performance.
13
D D O 6 1 G A
The ovens

Most second oven cooking should be
carried out using the shelf provided in shelf
position 2. However when cooking a small
joint or a deep cake you can use the shelf on
the base of the second oven to allow enough
air to circulate around the food.
For safety the shelves will only pull out so far. If you want to remove
a shelf completely, pull it forward as far as it will go, raise the front edge
and lift it out. To put the shelf into a different position, keep the front edge
raised, slot the shelf on to the runner, lower the front edge and slide the
shelf in.
Baking trays and dishes
For the best results from the main oven we recommend that you use a
baking tray which is 310mm (12") square. If you use a tray or tin which is
larger than this, you may need to turn it around during cooking.
The size of tray which should be used in the second oven should not
be bigger than 310mm x 230mm (12" x 9"). Place the longest side
parallel with the door.
Place single dishes on the centre of the shelf. You may need to turn
large items around during cooking. Turn all food round in the second
oven.
14
D D O 6 1 G A
The ovens
Shelf on base
For your safety
Never place cooking dishes, trays and so
on over the oven burners. This will
damage the appliance as well as the
cookware and possibly the floor covering
underneath the appliance.
Leave a gap of 13mm (½") between all
dishes and the sides of the oven so the
heat can circulate properly.
Do not push dishes too far back as food
will burn if it overhangs the burner flames.

Roasting
For best results we recommend open roasting using minimal fat or oil to
prevent splashing.
It is not necessary to cover meat or poultry or wrap food in foil when
roasting as this restricts the circulation of heat and will lead to extended
cooktimes.
If you are using a roasting bag or cover chicken breast with foil, be
prepared to allow an extra 10 - 15 minutes for each 1/2kg (1lb).
When cooking large items such as turkeys, the use of foil may be
required to prevent the breast becoming dry before the rest of the bird is
fully cooked.
Condensation
Condensation may form on the appliance. This is quite normal and
nothing to worry about. The condensation forms when heat and moisture
are present, for example during cooking. Whenever possible try to make
sure that food which contains a lot of moisture, for example casseroles,
are covered. If you do notice any condensation, wipe it up straight away.
15
D D O 6 1 G A
The ovens

Oven cooking chart -Main oven
These instructions are for cooking in the oven after it has been pre-heated for 20 minutes.
If you are cooking more than one tray of similar items, for example cakes or biscuits, swap the trays around during cooking or you
can take the top tray out of the oven when the food is cooked and move the lower tray to the higher shelf to finish cooking.
Always leave at least one shelf position between shelves to allow heat to circulate.
The recommended shelf positions give the best results.
Put the dishes in the centre of the shelf.
You can change the gas marks and cooking times to suit your own tastes.
It is important to check that food is piping hot before serving.
If you are using both ovens at the same time you may need to adjust the cooking times.
Food Gas mark Shelf position Approximate cooking time
Roasting meat: Beef 5 4 Rare:
Medium:
Well Done:
20 mins. per ½ kg (1lb) and 20 mins.
25 mins. per ½ kg (1lb) and 25 mins.
30 mins. per ½ kg (1lb) and 30 mins.
Lamb 5 4 Medium:
Well Done: 25 mins. per ½ kg (1lb) and 25 mins. 30 mins. per ½ kg (1lb) and 30 mins.
Pork and Veal 5 4 Medium:
Well Done: 30 mins. per ½ kg (1lb) and 30 mins. 35 mins. per ½ kg (1lb) and 35 mins.
Thaw frozen joints thoroughly before cooking them.
D D O 6 1 G A
Oven cooking chart
16

Food Gas mark Shelf position Approximate cooking time
Poultry: Chicken
Turkey below 4.5kg (10lbs)
over 4.5kg (10lbs)
Duck and duckling
Stuffed poultry
5 4 20 mins. per ½kg (1lb) and 20 mins.
4 4 25 mins. per ½kg (1lb) and 25 mins.
4 4 or 5 15 mins. per ½kg (1lb) and 15 mins.
5 4 25 mins. per ½kg (1lb)
Cook as above but calculate weight including stuffing.
Thoroughly thaw frozen joints before cooking them.
The times given above are for open roasting in a preheated oven. If you cover the food with foil or a lid allow an extra 10 - 15
minutes for each ½kg (1lb).
Yorkshire pudding - large
- individual 7 72 225 - 30 mins. 15 - 25 mins.
Cakes: Christmas Cake (8") 2 4 4 - 5 hours.
Rich fruit, 180mm (7")
205 mm (8")
Madeira, 180 mm (7")
Small cakes
Scones
Victoria Sandwich
180mm (7")
205 mm (8")
2
2
4
5
7
4
4
4
4
4
2 & 4
2 & 4
2 & 4
2 & 4
2¼ - 2¾ hours.
2½ - 2¾ hours.
1 hour.
15 - 25 mins.
10 - 20 mins.
20 - 30 mins.
20 - 35 mins.
D D O 6 1 G A
17
Oven cooking chart

Food Gas mark Shelf position Approximate cooking time
Pastries: Plate tart (shortcrust)
Fruit pie (shortcrust)
Mince pies (flan pastry)
6
6
5
2
2
2 & 4
25 - 35 mins.
25 - 35 mins.
15 - 25 mins.
To help pastry brown on the underside cook on a metal plate,or if plates are flat and have no rim underneath, place on baking tray.
Puddings: Milk pudding
Baked sponge pudding
Baked custard
2
4
3
3
4
4
2 hrs. approx.
45 - 60 mins.
50 - 60 mins.
Yeast mixtures: Bread 0.45 kg (1lb loaves)
0.90 kg (2 lb loaves)
Rolls and buns
8*
8*
8*
3
3
2
30 - 40 mins.
30 - 40 mins.
10 - 20 mins.
* Note: When baking bread, cook for 10 minutes at Gas mark 8 then reduce to mark 6 for the remaining cook time.
Note: You must soak dried beans then boil them in an open pan for 15 minutes before you add them to any dish.
D D O 6 1 G A
Oven cooking chart
18

Oven cooking chart -Second oven
These instructions are for cooking in the oven after it has been pre-heated for 20 minutes.
The recommended shelf positions give the best results.
Put the dishes centrally on the shelf and turn food round during the cooking time.
You can change the gas marks and cooking times to suit your own tastes.
It is important to check that food is piping hot before serving.
If you are using both ovens at the same time you may need to adjust the cooking times.
Food Gas mark Shelf position Approximate cooking time
Roasting meat: Beef 5 Shelf on
base
Rare:
Medium:
Well Done:
20 mins. per ½ kg (1lb) and 20 mins.
25 mins. per ½ kg (1lb) and 25 mins.
30 mins. per ½ kg (1lb) and 30 mins.
Lamb 5 Shelf on
base Medium: Well Done: 25 mins. per ½ kg (1lb) and 25 mins. 30 mins. per ½ kg (1lb) and 30 mins.
Pork and Veal 5 Shelf on
base Medium: Well Done: 30 mins. per ½ kg (1lb) and 30 mins. 35 mins. per ½ kg (1lb) and 35 mins.
Thaw frozen joints thoroughly before cooking them.
D D O 6 1 G A
Oven cooking chart
19

Food Gas mark Shelf position Approximate cooking time
Poultry: Chicken
Duck and duckling 5 5Shelf on base 20 mins. per ½kg (1lb) and 20 mins. 25 mins. per ½kg (1lb).
Stuffed poultry Cook as above but calculate weight including stuffing.
Thaw frozen joints thoroughly before cooking them.
The times given above are for open roasting in a preheated oven. If you cover the food with foil or a lid allow an extra 10 - 15
minutes for each ½kg (1lb).
Yorkshire pudding - individual 7 2 20 - 30 mins.
Cakes: Christmas Cake (7") 2 Shelf 3½ - 4½ hours.
Rich fruit, 180mm (7")
Madeira, 180mm (7")
Small cakes
Scones
Victoria Sandwich
180mm (7")
2
4
5
7
4
on
base
2
2
2
2 - 2½ hours.
1 hour.
15 - 25 mins.
8 - 12 mins.
20 - 30 mins.
D D O 6 1 G A
Oven cooking chart
20
