Electrolux EFLS210TIW User manual

EN FRONT LOAD WASHER
FR LAVEUSE Á CHARGEMENT FRONTAL
ES LAVADORA DE CARGA FRONTAL
INSTALLATION INSTRUCTIONS
INSTRUCTIONS D’INSTALLATION
INSTRUCCIONES DE INSTALACIÓN
157012090 April 2017

2Important Safety Instructions
Shipping Hardware
qFoam shipping support (in door gasket) removed and
stored
qShipping bolts and spacers removed from rear of
appliance and stored
qHole plugs (shipped in bag in drum) installed in holes
in backsheet
Leveling
qWasher is level, side-to-side and front-to-back
qCabinet is setting solid on all corners
Water Supply
qUse only new hoses and verify rubber sealing
washers are installed
qHOT supply is connected to HOT inlet and COLD
supply is connected to COLD inlet
qHOT and COLD water supply turned on
qNo leaks present at water supply connections or
appliance inlet connections -
recheck in 24 hours
Drain
qStand pipe or wall drain height minimum 24”
qDrain hose snapped in “U” channel (shipped in drum)
qDrain hose secured in place with cable tie (shipped in
drum)
Electrical Power
qHouse power turned on
qWasher plugged in
Final Checks
qInstallation Instructions and Use and Care Guide read
thoroughly
qDoor locks and water enters drum when cycle starts
qRegistration card sent in
Installation Checklist
Definitions
This is the safety alert symbol. It is used to alert you to
potential personal injury hazards. Obey all safety messages that
follow this symbol to avoid possible injury or death.
Recognize safety symbols, words and labels
Safety items throughout this manual are labeled with a
WARNING or CAUTION based on the risk type as described
below:
IMPORTANT
IMPORTANT indicates installation, operation or maintenance
information which is important but not hazard-related.
WARNING
WARNING indicates a potentially hazardous situation which,
if not avoided, could result in death or serious injury.
WARNING
Please read all instructions before using this washer.
CAUTION
CAUTION indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
DANGER
DANGER indicates an imminently hazardous situation which,
if not avoided, will result in death or serious injury.
Important Safety Instructions ...............................................2-3
Installation Requirements.....................................................4-5
Installation Instructions ........................................................6-9

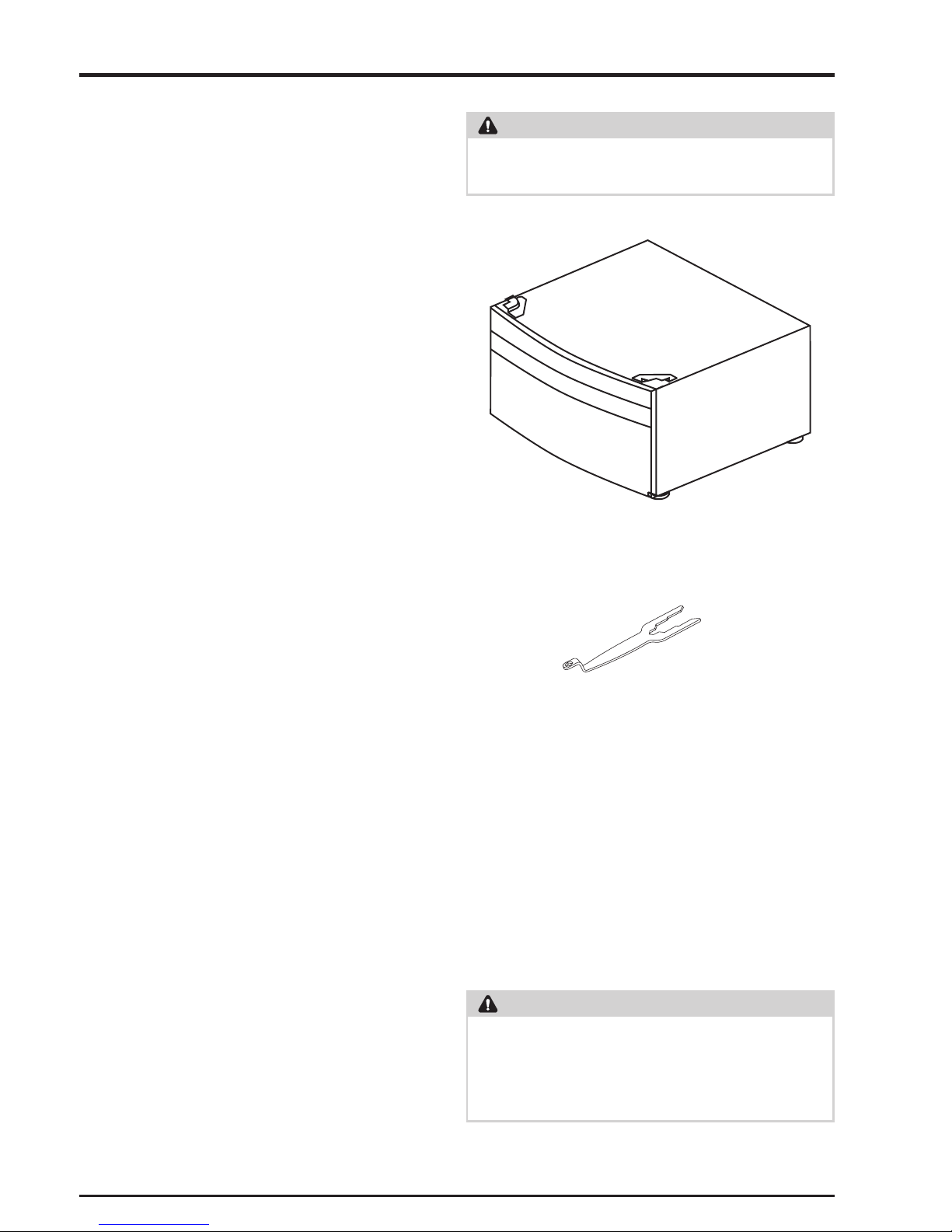

Accessories..........................................................................10
Notes ...................................................................................11
Français................................................................................12
Español ................................................................................22
TABLE OF CONTENTS

3
Important Safety Instructions
NOTE
The electrical service to the washer must conform with local
codes and ordinances and the latest edition of the National
Electrical Code, ANSI/NFPA 70, or in Canada, the Canadian
Electrical Code C22.1 part 1.
WARNING
FIRE HAZARD
For your safety the information in this manual must be
followed to minimize the risk of fire or explosion or to prevent
property damage, personal injury or loss of life. Do not store
or use gasoline or other flammable vapors and liquids in the
vicinity of this or any other appliance.
WARNING
SUFFOCATION HAZARD
Destroy the carton and plastic bags after the washer is
unpacked. Children might use them for play. Cartons covered
with rugs, bedspreads, or plastic sheets can become airtight
chambers causing suffocation. Place all materials in a
garbage container or make materials inaccessible to children.
IMPORTANT
The instructions in this manual and all other literature included
with this washer are not meant to cover every possible
condition and situation that may occur. Good safe practice
and caution MUST be applied when installing, operating and
maintaining any appliance.
Maximum benefits and enjoyment are achieved when all
the Safety and Operating Instructions are understood and
practiced as a routine with your laundering tasks.
CAUTION
EXCESSIVE WEIGHT HAZARD
To avoid back or other injury, have more than one person
move or lift the washer.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.
Inlet hose (x2)
NOTE
Hoses are not included with washer purchase.
See “Accessories” section for various inlet hose
kits to fit your specific installation.

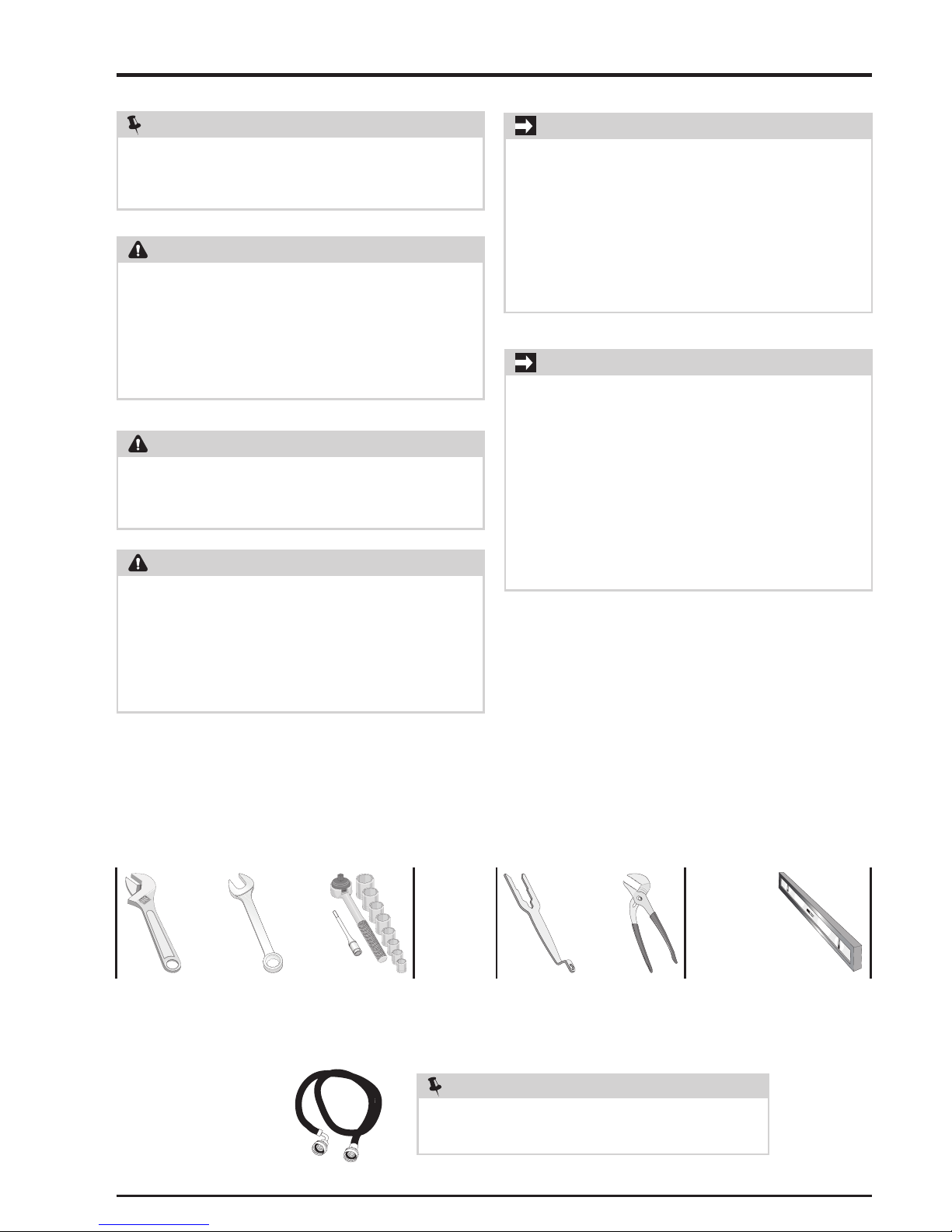

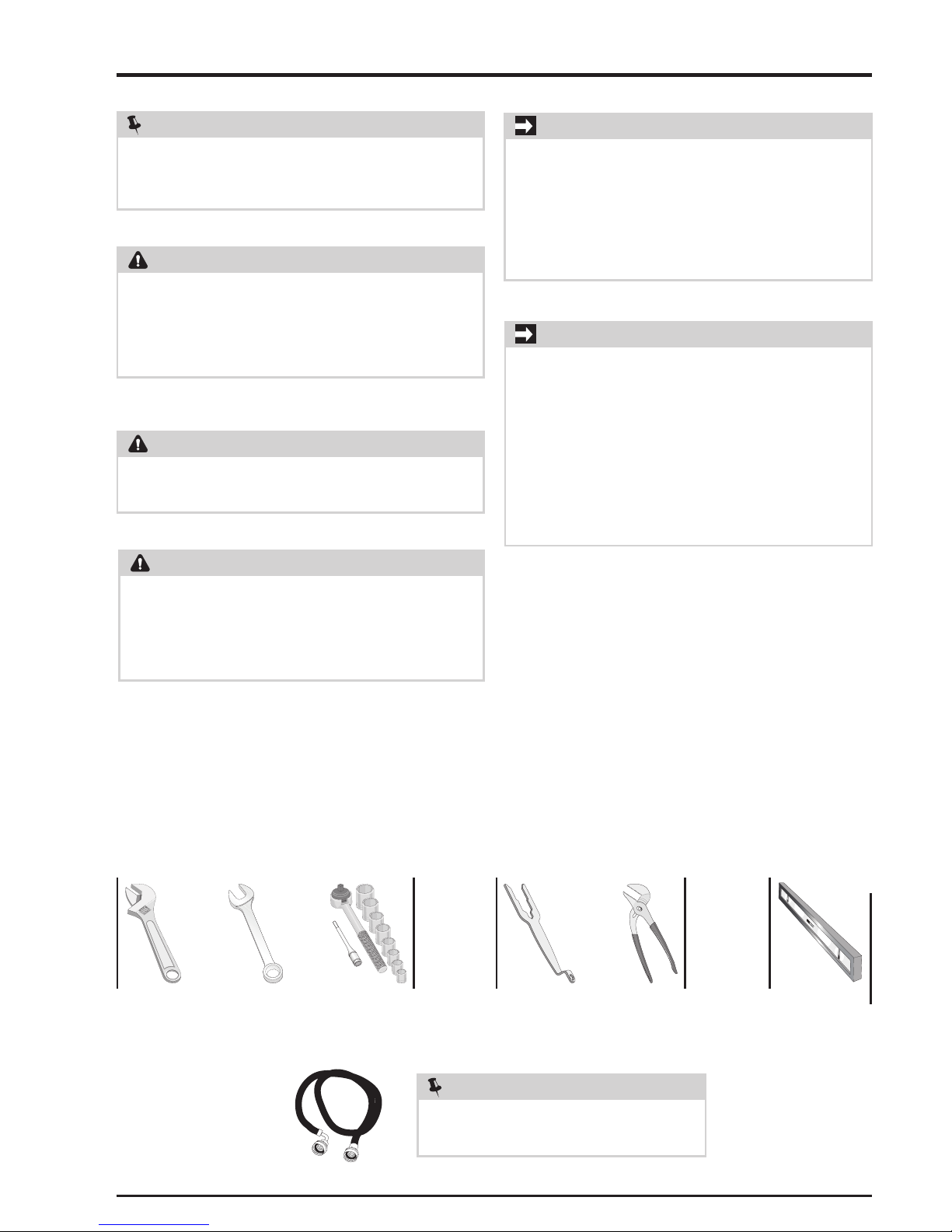

Tools and materials needed for installation:
Adjustable
pliers
AND ANDOROR OR
Optional uni-
versal wrench
available from
dealer
Adjustable
wrench
3/8” or
10 mm
box wrench
Ratchet and
socket set
Carpenter’s level
IMPORTANT
DO NOT INSTALL YOUR WASHER:
1 ... in an area exposed to dripping water or outside
weather conditions. The ambient temperature should
never be below 60° F (15.6° C) to maximize detergent
effectiveness.
2 ... in an area (garage or garage-type building) where
gasoline or other flammables (including automobiles) are
kept or stored.
3 ... on carpet. Floor MUST be solid with a maximum slope
of 1 inch (2.5 cm). To minimize vibration or movement,
reinforcement of the floor may be necessary.

4Installation Requirements
NOTE
GFI (Ground Fault Interrupter) receptacle is not required.
NOTE
Because of potentially inconsistent voltage capabilities, the
use of this washer with power created by gas powered
generators, solar powered generators, wind powered
generators or any other generator other than the local utility
company is not recommended.
CIRCUIT - Individual, properly polarized and grounded 15 amp.
branch circuit fused with 15 amp. time delay fuse or circuit
breaker.
POWER SUPPLY - 2 wire, with ground, 120 volt single phase,
60 Hz, Alternating Current.
OUTLET RECEPTACLE - Properly grounded 3-prong receptacle
to be located so the power supply cord is accessible when
the washer is in an installed position.
Grounding type
wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
56.5”
(144cm)
max.
24”
(61cm)
min.
Drain system requirements
1Drain capable of eliminating 6 gals (22.5 L) per minute.
2A standpipe diameter of 1-1/4 in. (3.18 cm) minimum.
3The standpipe height above the floor should be:
Minimum height: 24 in. (61 cm)
Maximum height: 56.5 in. (144 cm)
Water supply requirements
Hot and cold water faucets MUST be installed within hose
length of your washer’s water inlet. The faucets MUST be
3/4 inch (1.9 cm) with threading for laundry hose connection.
Water pressure MUST be between 10 and 110 psi. Pressure
difference between hot and cold cannot be more than 10 psi.
Your water department can advise you of your water pressure.
1 The washer MUST be grounded. In the event of
malfunction or breakdown, grounding will reduce the
risk of electrical shock by a path of least resistance for
electrical current.
2 Since your washer is equipped with a power supply
cord having an equipment-grounding conductor and
a grounding plug, the plug MUST be plugged into an
appropriate, copper wired receptacle that is properly
installed and grounded in accordance with all local codes
and ordinances or in the absence of local codes, with the
National Electrical Codes, ANSI/NFPA 70 (latest edition).
If in doubt, call a licensed electrician. DO NOT cut off or
alter the grounding prong on the power supply cord. In
situations where a two-slot receptacle is present, it is
the owner’s responsibility to have a licensed electrician
replace it with a properly grounded three prong
grounding type receptacle.
Ground requirements
Electrical system requirements
MINIMUM INSTALLATION CLEARANCES - Inches (cm)
SIDES REAR TOP FRONT
Alcove 0” (0 cm) 0” (0 cm)* 0” (0 cm) n/a
Under Counter 0” (0 cm) 0” (0 cm)* 0” (0 cm) n/a
0”
(0cm)
0”
(0cm)
0”
(0cm)
Clearance requirements
WARNING
ELECTRICAL SHOCK HAZARD
Improper connection of the equipment grounding conductor
can result in a risk of electrical shock. Check with a licensed
electrician if you are in doubt as to whether the appliance is
properly grounded.

5
Installation Requirements

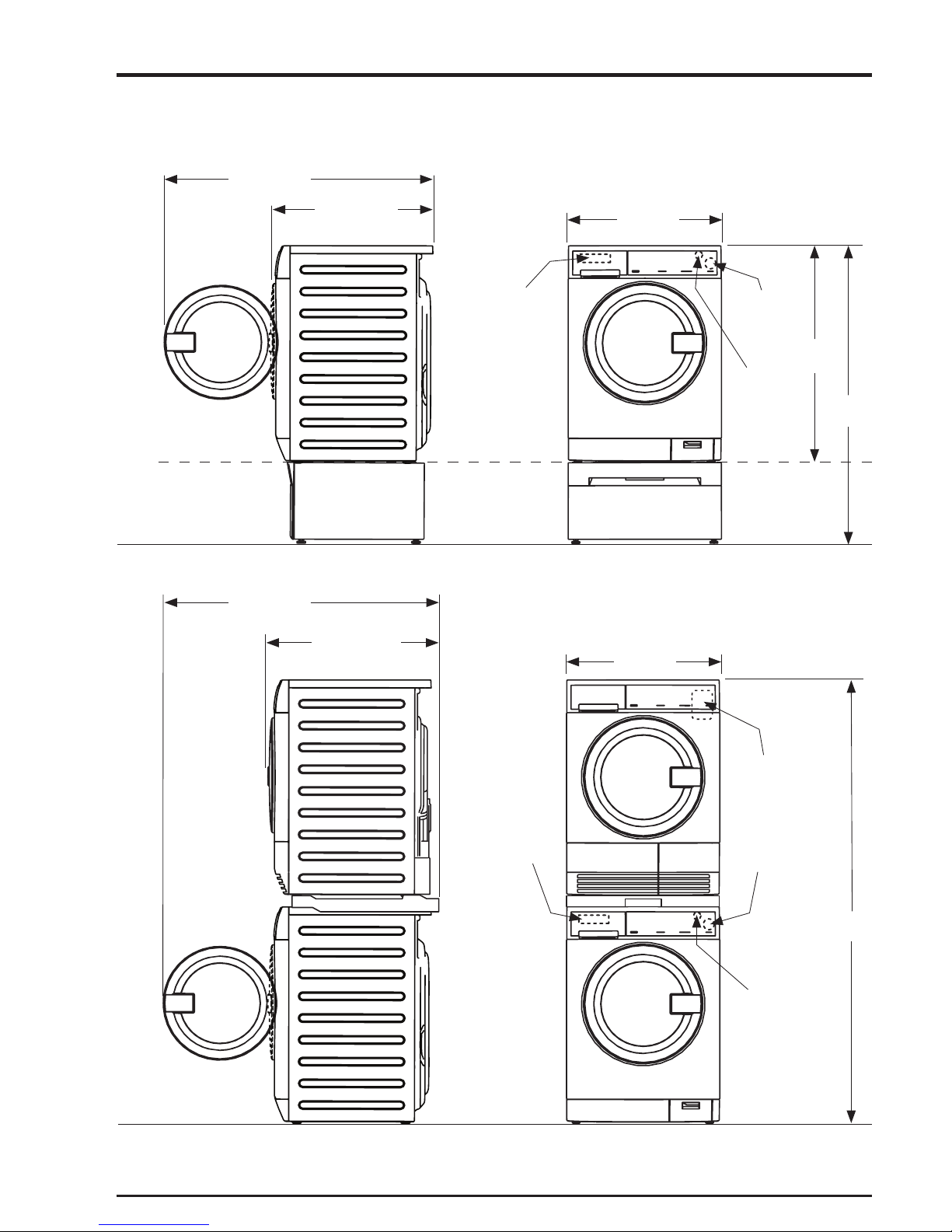

Washer Dimensions
1Drain hose length on washer approximately 55 inches (140 cm).
2Power supply cord length on washer approximately 59 inches (150 cm).
3Power supply cord length on Canadian dryer approximately 59 inches (150 cm).
water supply
connection on
rear of unit drain hose on
rear of unit1
floor line
68.5”
(174 cm)
24”
(60.5 cm)
electrical
supply on
rear of unit3
power cord on
rear of unit2
26” (66 cm)
to front of closed door
floor line
floor line
25” (64 cm)
to front of closed door
freestand washer
on floor
washer mounted on
optional pedestal
42” (107 cm)
to clear open door
43” (109 cm)
to clear open door
33.5”
(85 cm)
46”
(116.5 cm)
power cord on
rear of unit2
drain hose on
rear of unit1
water supply
connection on
rear of unit
24”
(60.5 cm)

6Installation Instructions

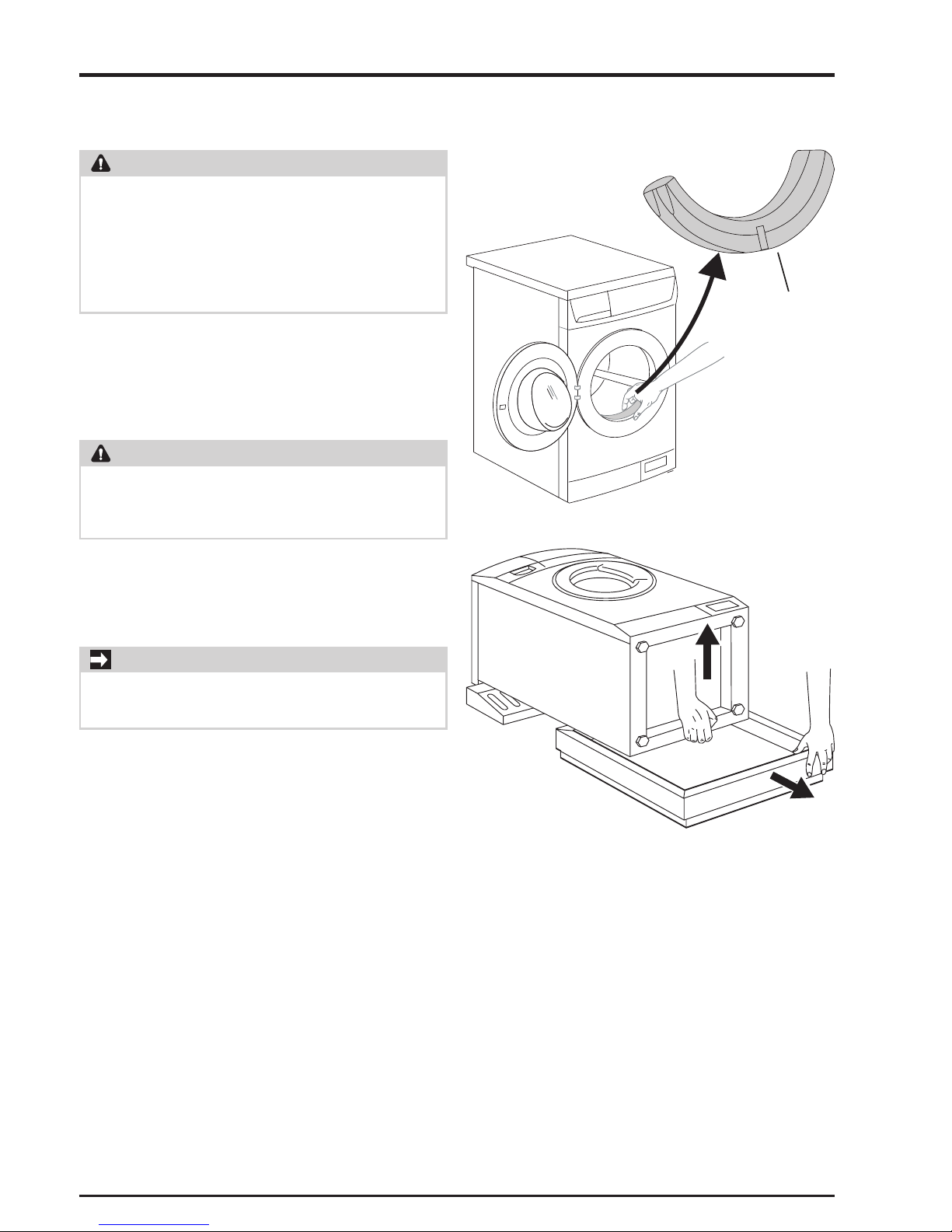

1 Remove door tape and empty drum contents, including
foam shipping brace inside rubber gasket of door.
2 Using a foam corner post from the packaging to protect
the floor, carefully lay the washer on its back.
Removing foam packaging
3 Remove styrofoam base and set it aside.
4 Carefully return the washer to an upright position.
5 Carefully move the washer to within 4 feet (1 m) of its final
location.
WARNING
SUFFOCATION HAZARD
Destroy the carton and plastic bags after the washer is
unpacked. Children might use them for play. Cartons covered
with rugs, bedspreads, or plastic sheets can become airtight
chambers causing suffocation. Place all materials in a
garbage container or make materials inaccessible to children.
CAUTION
EXCESSIVE WEIGHT HAZARD
To avoid back or other injury, have more than one person
move or lift the washer.
IMPORTANT
Save styrofoam base and shipping braces for use to help
prevent washer damage during any future moves.
x 2

7
Installation Instructions

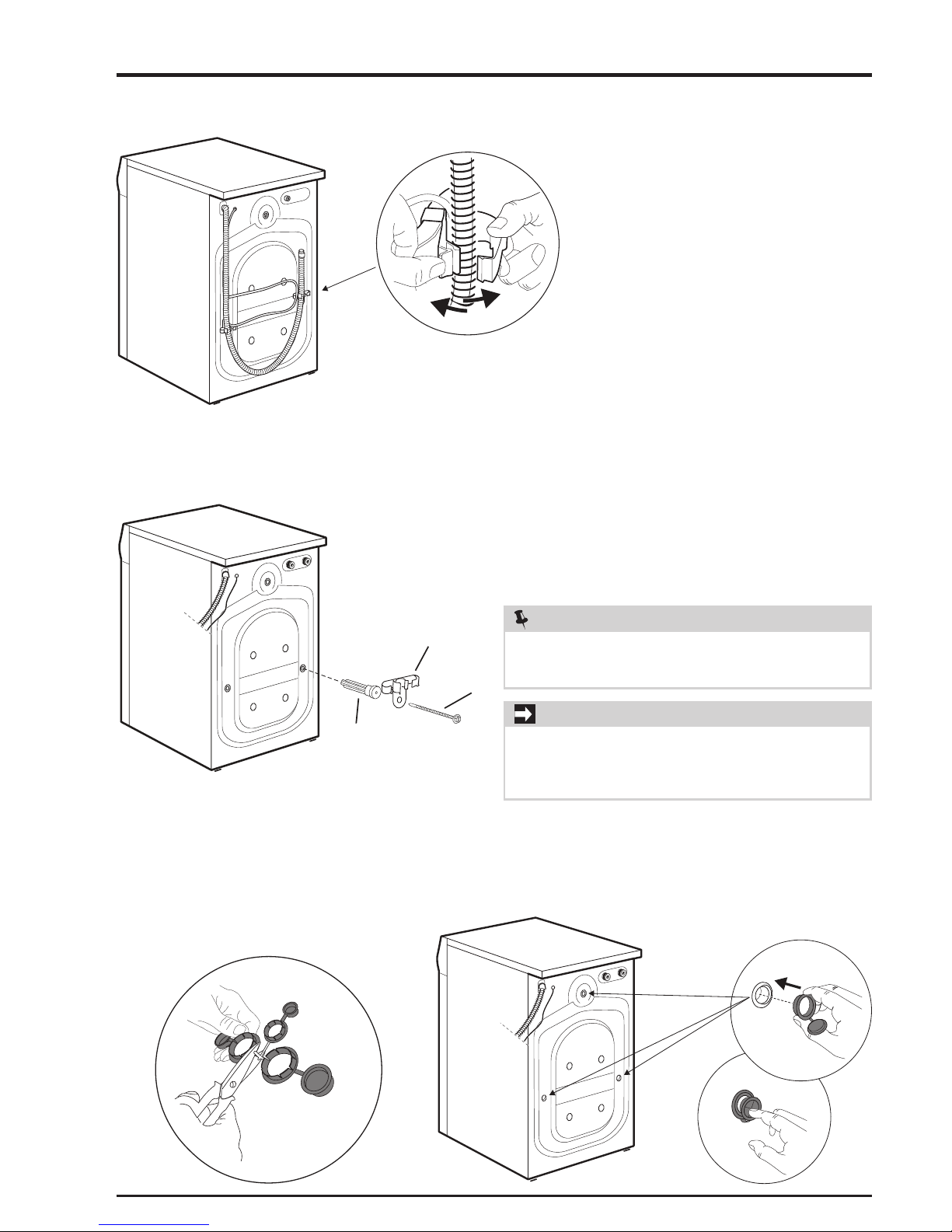

Locate hole plugs in the small bag supplied with washer
instruction guides. Cut them apart from each other and
insert them in the holes in washer back panel.
The drain hose is secured in place with two plastic
latching clamps. Press the locking tab and release the
drain hose.
Releasing Drain Hose
Installing hole plugs
x
3
x 3
x 2
IMPORTANT
Save all shipping bolts and spacers for future use. If the washer is
to be transported at a later date, the shipping hardware must be
reinstalled to help prevent shipping damage.
NOTE
Rubber expansion material on spacers may need time to
relax before they can be easily pulled through shipping hole.
Removing shipping hardware
Remove all of the following from the back of the washer:
• 3 shipping bolts
• 2 plastic clamps
• 3 shipping spacers

8Installation Instructions
ab
cd
raise lower
a
e
f
g
b
cd

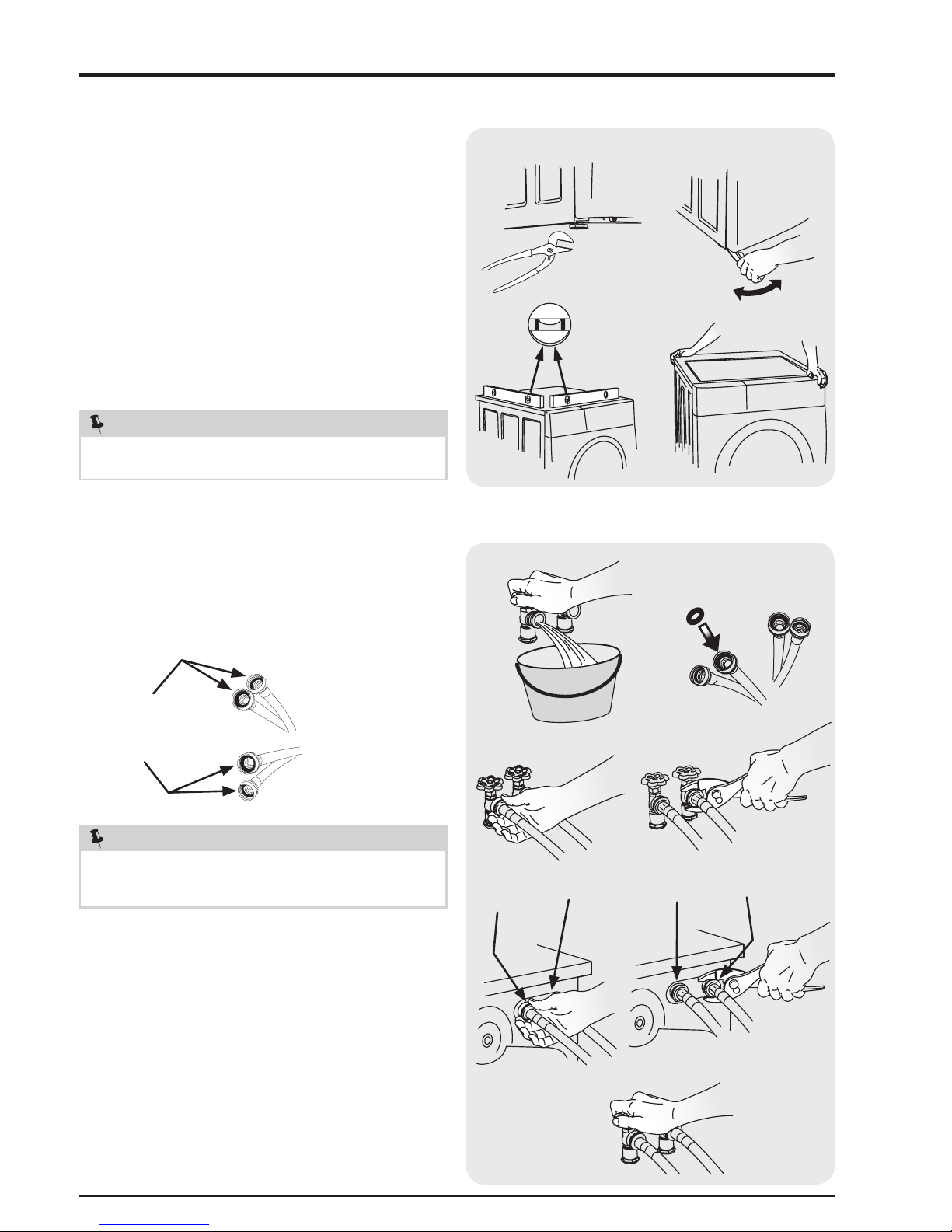

Leveling your washer
Excessive noise and vibration can be prevented by properly
leveling the washer.
1 For free standing installation and with the washer within
4 feet (1 m) of its final location, place a level on top of the
washer.
2 Use adjustable pliers to adjust the leveling legs so the
washer is level front-to-rear and side-to-side, and stable
corner-to-corner.
3 Press down on alternate corners and sides and feel for
the slightest movement. Adjust the appropriate leg(s)
so the washer sits solidly on the floor on ALL four legs.
Keep the leveling leg extension at a minimum for best
performance of the washer.
Connecting inlet water
HOT HOT
COLD COLD
NOTE
For pedestal installations, see additional installation
instructions included with the pedestal.
NOTE
Hoses are not included with washer purchase. See
“Accessories” section for various inlet hose kits to fit your
specific installation.
1 Run some water from the hot and cold faucets to flush
the water lines and remove particles that might clog the
water valve screens and to determine which faucet is hot
and which is cold supply.
2 Connect the HOT inlet hose to the HOT inlet connection
on the washer and the COLD inlet hose to the COLD inlet
connection on the washer. Tighten by hand until snug.
Then tighten each supply connection another 2/3 turn
with pliers. Do not cross thread or over-tighten these
connections.
3 Connect the HOT inlet hose to the HOT water supply and
the COLD inlet hose to the COLD water supply. Tighten
by hand until snug. Then tighten each supply connection
another 2/3 turn with pliers. Do not bend, kink or pinch
water inlet hoses.
4 Turn on the water and check for leaks.
RUBBER WASHERS
MUST BE PRESENT
USE ONLY
NEW HOSES

9
Installation Instructions
CABLE TIE
IMPORTANT
Check to ensure the power is off at a circuit breaker/fuse box
before plugging the power cord into an outlet.
NOTE
A wiring diagram and technical data sheet are located under
the washer top panel, on top of the detergent dispenser
housing.
Grounding type
wall receptacle
Power cord with
3-prong grounded plug
Do not, under
any circumstances,
cut, remove,
or bypass the
grounding prong.
Connecting drain and electrical
1 Snap one end of the drain hose hanger (shipped in
washer drum) onto the drain hose. Continue wrapping it
around the hanger and snap it in place.
2 Place the hook end of the drain hose in the drain
opening. Secure the drain hose with the cable tie
(provided in the enclosure package) to the standpipe,
inlet hose, laundry tub, etc. so the hose does not pull out
from the force of the water.
3 Plug the power cord into a grounded outlet.
4 Turn on the power at a circuit breaker/fuse box.
5 Carefully slide the washer to its final position. Recheck
for level and rock corners for stability. Remove and
discard door tape.
6 Read the Use & Care Guide provided with the washer. It
contains valuable and helpful information that will save
you time and money.
7 If you have any questions during initial operation, please
review the “Service Prevention Checklist” in your Use &
Care Guide before calling for service.
8 Place these instructions in a location near the washer for
future reference.

10 Accessories
Replacement parts:
If replacements parts are needed for your washer, contact the
source where you purchased your washer or refer to your Use
and Care Guide for more information.
MATCHING STORAGE PEDESTAL*
White Pedestal - P/N EPWD200QSW
A storage pedestal accessory, specifically designed for this
washer may be used to elevate the washer for ease of use.
*Other colors may be available. Contact the source where you purchased
your washer.
DRYER STACKING KIT
P/N STA9
Depending on the model you purchased, a kit for stacking a
matching dryer on top of this washer may have been included
in the initial purchase of your dryer. If your model did not include
a stacking kit or you desire another stacking kit, you may order
one.
INLET HOSE KITS
Please call 866-233-8353 (in Canada, 800-265-8352) to explore
hose kit options that will meet your specific installation needs.
UNIVERSAL APPLIANCE WRENCH
P/N 137019200
A UNIVERSAL APPLIANCE WRENCH is available to aid in
dryer/washer/pedestal feet adjustment.
CAUTION
Failure to use accessories manufactured by (or approved
by) the manufacturer could result in personal injury, property
damage or damage to the washer.
WARNING
ELECTRICAL SHOCK HAZARD
Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
