Electrolux EWT 0862 EOW User manual

EWT 0862 EOW
................................................ .............................................
EN WASHING MACHINE USER MANUAL

CONTENTS
1. SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2. PRODUCT DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3. CONTROL PANEL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
4. WASHING PROGRAMMES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
5. CONSUMPTION VALUES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
6. OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
7. BEFORE FIRST USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8. DAILY USE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
9. HELPFUL HINTS AND TIPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
10. CARE AND CLEANING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
11. TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
12. TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
13. ENVIRONMENT CONCERNS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
WE’RE THINKING OF YOU
Thank you for purchasing an Electrolux appliance. You’ve chosen a product that brings with it
decades of professional experience and innovation. Ingenious and stylish, it has been designed
with you in mind. So whenever you use it, you can be safe in the knowledge that you’ll get great
results every time.
Welcome to Electrolux.
Visit our website for:
Get usage advice, brochures, trouble shooter, service information:
www.electrolux.com
Register your product for better service:
www.electrolux.com/productregistration
Buy Accessories, Consumables and Original spare parts for your appliance:
www.electrolux.com/shop
CUSTOMER CARE AND SERVICE
We recommend the use of original spare parts.
When contacting Service, ensure that you have the following data available.
The information can be found on the rating plate. Model, PNC, Serial Number.
Warning / Caution-Safety information
General information and tips
Environmental information
Subject to change without notice.
2www.electrolux.com

1. SAFETY INSTRUCTIONS
Before the installation and use of the ap-
pliance, carefully read the supplied in-
structions. The manufacturer is not re-
sponsible if an incorrect installation and
use causes injuries and damages. Always
keep the instructions with the appliance
for future reference.
1.1 Children and vulnerable
people safety
WARNING!
Risk of suffocation, injury or per-
manent disability.
• Do not let persons, children included,
with reduced physical sensory, reduced
mental functions or lack of experience
and knowledge use the appliance. They
must have supervision or instruction for
the operation of the appliance by a per-
son who is responsible for their safety.
• Do not let children play with the appli-
ance.
• Keep all packaging away from children.
• Keep all detergents away from children.
• Keep children and pets away from the
appliance door when it is open.
• If the appliance has a child safety de-
vice, we recommend you activate it.
1.2 Installation
• Remove all the packaging and the
transit bolts.
• Keep the transit bolts. When you move
the appliance again you must block the
drum.
• Do not install or use a damaged appli-
ance.
• Do not install or use the appliance
where the temperature is less than 0 °C
or where it is exposed to the weather.
• Obey the installation instruction sup-
plied with the appliance.
• Make sure that the floor where you in-
stall the appliance is flat, stable, heat
resistant and clean.
• Do not install the appliance where the
appliance door can not be fully opened.
• Always be careful when you move the
appliance because it is heavy. Always
wear safety gloves.
• Make sure that there is air circulation
between the appliance and the floor.
• Adjust the feet to have the necessary
space between the appliance and the
carpet.
Electrical connection
WARNING!
Risk of fire and electrical shock.
• The appliance must be earthed.
• Make sure that the electrical information
on the rating plate agrees with the pow-
er supply. If not, contact an electrician.
• Always use a correctly installed shock-
proof socket.
• Do not use multi-plug adapters and ex-
tension cables.
• Make sure not to cause damage to the
mains plug and to the mains cable.
Should the appliance power supply ca-
ble need to be replaced, this must be
carried out by our Service Centre.
• Connect the mains plug to the mains
socket only at the end of the installa-
tion. Make sure that there is access to
the mains plug after the installation.
• Do not pull the mains cable to discon-
nect the appliance. Always pull the
mains plug.
• Do not touch the mains cable or the
mains plug with wet hands.
• This appliance complies with the E.E.C.
Directives.
Water connection
• Make sure not to cause damage to the
water hoses.
• The appliance is to be connected to the
water mains using the new supplied
hose-sets. Old hose sets must not be
reused.
• Before you connect the appliance to
new pipes or pipes not used for a long
time, let the water flow until it is clean.
ENGLISH 3

• The first time you use the appliance,
make sure that there is no leakage.
1.3 Use
WARNING!
Risk of injury, electrical shock, fire,
burns or damage to the appliance.
• Use this appliance in a household envi-
ronment.
• Do not change the specification of this
appliance.
• Obey the safety instructions on the de-
tergent packaging.
• Do not put flammable products or items
that are wet with flammable products
in, near or on the appliance.
• Do not touch the glass of the door
while a programme operates. The glass
can be hot.
• Make sure that you remove all metal
objects from the laundry.
• Do not put a container to collect possi-
ble water leakage under the appliance.
Contact the Service to ensure which
accessories can be used.
1.4 Care and Cleaning
WARNING!
Risk of injury or damage to the
appliance.
• Before maintenance, deactivate the ap-
pliance and disconnect the mains plug
from the mains socket.
• Do not use water spray and steam to
clean the appliance.
• Clean the appliance with a moist soft
cloth. Only use neutral detergents. Do
not use abrasive products, abrasive
cleaning pads, solvents or metal ob-
jects.
1.5 Disposal
WARNING!
Risk of injury or suffocation.
• Disconnect the appliance from the
mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent chil-
dren and pets to get closed in the ap-
pliance.
4www.electrolux.com

2. PRODUCT DESCRIPTION
2
3
1
5
4
6
7
1Control panel
2Lid
3Lid handle
4Filter access door
5Lever to move the appliance
6Feet for the appliance level
7Rating plate
3. CONTROL PANEL
3h 6h 9h
90° 60° 40°
30° 20°
800 600 400
0
1 2 3
89
6
5
7
4
1Programme knob
2Spin reduction touchpad and
functions indicators:
Rinse hold indicator
Night cycle indicator
3Temperature touchpad
4Prewash touchpad
5Delay start touchpad
6Extra rinse touchpad
7Quick touchpad
8Start/Pause touchpad
9Programme status indicators:
Door locked indicator
End cycle indicator
Child lock indicator
ENGLISH 5

4. WASHING PROGRAMMES
Programme
Temperature range
Type of load and soil
Maximum load, Maximum spin
Cottons
90°C — Cold ( )
White cotton and coloured cotton. Normal soil
and light soil.
6 kg, 800 rpm
Cottons Eco
1)
60 °C – 40 °C
White cotton and colour-fast cotton. Normal soil.
6 kg, 800 rpm
Synthetics
60 °C— Cold ( )
Synthetic items or mixed fabric items. Normal
soil.
2.5 kg, 800 rpm
Delicates
40 °C - Cold ( )
Delicate fabrics as acrylics, viscose, polyester
items. Normal soil.
2.5 kg, 800 rpm
Wool/Handwash
40 °C – Cold ( )
Machine washable wool, hand washable wool
and delicate fabrics with «hand washing» care
symbol.
1 kg, 800 rpm
Silk
30 °C
Special programme for silk and mixed synthetic
items.
1 kg, 800 rpm
Duvet
60 °C – 30 °C
Special programme for one synthetic blanket, du-
vet, bedspread and so on.
2,5 kg, 800 rpm
Rinse To rinse and spin the laundry. All fabrics.
6 kg, 800 rpm
Drain To drain the water in the drum. All fabrics.
6 kg
Spin To spin the laundry and to drain the water in the
drum. All fabrics.
6 kg, 800 rpm
Jeans
60 °C - Cold ( )
Items in denim and jersey. Also for items in dark
colors.
3 kg, 800 rpm
Curtains
40 °C - Cold ( )
Special programme for curtains. The prewash
phase activates automatically.
2)
2.5 kg, 800 rpm
Sports
30 °C
Synthetic and delicate items. Light soil or items or
items to refresh.
2.5 kg, 800 rpm
5 shirts
30 °C
Synthetic and mixed fabric items. Light soil and
items to freshen up.
For 5 - 6 shirts.
800 rpm
1) Standard programmes for the Energy Label consumption values
6www.electrolux.com

According to regulation 1061/2010, the “Cottons Eco 60 °C” and “Cottons Eco 40 °C” are
respectively the “standard 60 °C cotton programme” and the “standard 40 °C cotton
programme”. They are the most efficient programmes in terms of combined energy and
water consumptions for washing normally soiled cotton laundry.
The water temperature of the washing phase may differ from the temperature de-
clared for the selected programme.
2) Do not use any detergent for prewash phase to rinse only with water.
Programme options compatibility
Programme 1)
∎ ∎ ∎ ∎ ∎ ∎ ∎
Eco ∎ ∎ ∎ ∎ ∎ ∎
∎ ∎ ∎ ∎ ∎ ∎ ∎
∎ ∎ ∎ ∎ ∎ ∎ ∎
∎ ∎ ∎ ∎
∎∎
∎∎
∎ ∎ ∎∎
∎
∎∎
∎ ∎ ∎ ∎ ∎ ∎
∎ ∎ ∎ ∎ ∎
∎∎
∎∎
1) When you set the Quick option, we recommend that you decrease the quantity of the
laundry. It is possible to keep the full load but the washing results can be unsatisfactory.
Recommended load: cotton: 3 kg, synthetics and delicates: 1,5 kg.
5. CONSUMPTION VALUES
The data of this table are approximate. Different causes can change the data:
the quantity and type of laundry, the water and ambient temperature.
ENGLISH 7

Pro-
grammes
Load
(Kg)
Energy
consump-
tion (kWh)
Water con-
sumption
(litre)
Approxi-
mate pro-
gramme
duration
(minutes)
Remain-
ing mois-
ture (%)
1)
Cottons 60
°C 61.20 56 180 66
Cottons 40
°C 60.70 54 150 66
Synthetics 40
°C 2.5 0.55 46 105 37
Delicates 40
°C 2.5 0.50 46 90 37
Wool 30 °C 10.35 50 70 32
Standard cotton programmes
Standard 60
°C cotton 61.09 45 240 66
Standard 60
°C cotton 30.80 37 149 66
Standard 40
°C cotton 30.65 37 136 66
Off Mode (W) Left On Mode (W)
0.50 0.50
The information given in the chart above are in compliance with the EU Commis-
sion regulation 2015/2010 implementing directive 2009/125/EC.
1) At the end of spin phase.
6. OPTIONS
6.1 Temperature
Set this option to change the default tem-
perature.
Indicator = cold water.
The indicator of the set temperature
comes on.
6.2 Spin
With this option you can change the de-
fault spin speed.
The indicator of the set speed comes on.
Additional spin options:
Rinse Hold
• Set this option to prevent the laundry
creases.
• The related indicator comes on.
• There is a water in the drum when the
programme is completed.
• The drum turns regularly to prevent the
laundry creases.
• The door stays locked.
• You must drain the water to unlock the
door.
8www.electrolux.com

To drain the water refer to ‘At the
end of the programme’.
Night Cycle
• Set this option to remove all spin pha-
ses and to perform a silent washing.
• The rinse phase uses more water for
some washing programmes.
• The related indicator comes on.
• The washing programme stops with the
water in the drum. The drum turns reg-
ularly to prevent the laundry creases.
• The door stays locked. You must drain
the water to unlock the door.
To drain the water refer to ‘At the
end of the programme’.
6.3 Prewash
With this option you can add a prewash
phase to a washing programme.
Use this option for heavy soil.
When you set this option the programme
duration increases.
The related indicator comes on.
6.4 Delay Start
With this option you can delay the start of
a programme by 9, 6 or 3 hours.
The indicator of the option and the indica-
tor of the set value are on.
6.5 Extra Rinse
With this option you can add some rinses
to a washing programme.
Use this option for persons allergic to de-
tergents and in areas where the water is
soft.
The related indicator comes on.
6.6 Quick
With this option you can decrease the
programme duration.
Use this option for items with light soil or
items to refresh.
The related indicator comes on.
6.7 Child Lock
With this option you can prevent that the
children play with the control panel.
• To activate/deactivate the option,
press and at the same time
until the indicator comes on/goes
off.
You can activate this option:
• After you press , the options and
the programme knob are locked.
• Before you press : the appliance
cannot start.
6.8 Permanent extra rinse
With this option you can permanently
have an extra rinse when you set a new
programme.
• To activate/deactivate this option
press and at the same time until
the indicator comes on/goes off.
6.9 Acoustic signals
The acoustic signals operate when:
• The programme is completed.
• The appliance has a malfunction.
To deactivate/activate the acoustic sig-
nals, press and at the same time
for 6 seconds.
If you deactivate the acoustic sig-
nals, they continue operate when
the appliance has a malfunction.
7. BEFORE FIRST USE
1. Put a small quantity of detergent in
the compartment for washing phase.
2. Set and start a programme for cotton
at the highest temperature without
ENGLISH 9

laundry. This removes all possible dirt
from the drum and the tub.
8. DAILY USE
8.1 Loading the laundry
A
1. Open the appliance lid.
2. Push the button A. The drum opens
automatically.
3. Put the laundry in the drum, one item
at a time. Shake the items before you
put them in the appliance. Make sure
not to put too much laundry in the
drum.
4. Close the drum and the lid.
CAUTION!
Before you close the lid of your
appliance, make sure that you
close the drum correctly.
8.2 Using detergent and additives
• Measure out the detergent and the fabric conditioner.
The detergent compartment for the
prewash phase.
The detergent compartment for the
washing phase.
Liquid additives compartment (fabric
conditioner, starch).
The mark
M
is the maximum level for the
quantity liquid additives.
8.3 Setting a programme
1. Turn the programme knob and set
the programme:
–The indicator of the flashes.
2. If necessary, change the temperature
and the spin speed or add available
options. When you activate an option,
the indicator of the set option comes
on.
If you set something incorrect, the
indicator flashes red.
8.4 Starting a programme
without the delay start
Press the :
• The indicator of the stops to flash
and stays on.
• The programme starts, the door locks,
the indicator is on
• The drain pump can operate for a short
time when the appliance fills water.
10 www.electrolux.com

8.5 Starting a programme with
the delay start
•Press to set the delay you want to
set. The indicator of the set delay is on.
The indicator is on.
• Press :
– The appliance starts the countdown.
– When the countdown is completed,
the programme starts automatically.
You can cancel or change the set
of the delay start before you press
the .
To cancel the delay start:
1. Press to set the appliance to
pause.
2. Press until the indicator of the set
delay goes off.
Press again to start the pro-
gramme immediately.
8.6 Interrupting a programme
and changing the options
You can change only some options be-
fore they operate.
1. Press . The indicator flashes.
2. Change the options.
3. Press again. The programme con-
tinues.
8.7 Cancelling a programme
1. Turn the programme knob to to
cancel the programme and to deacti-
vate the appliance.
2. Turn the programme knob again to
activate the appliance. Now, you can
set a new washing programme.
The appliance does not drain the
water.
8.8 Opening the lid
While a programme or the delay start op-
erates, the appliance lid is locked. The in-
dicator is on.
CAUTION!
If the temperature and level of the
water in the drum are too high,
you cannot open the lid.
Open the lid and when the delay start
operates:
1. Press the to pause the appliance.
2. Wait until the lid lock indicator
goes off.
3. You can open the lid.
4. Close the lid and press the again.
The programme (or the delay start)
continues.
Open the lid when the programme
operates:
1. Turn the programme knob to to
deactivate the appliance.
2. Wait for some minutes and then open
the appliance lid.
3. Close the lid and set the programme
again.
8.9 At the end of the
programme
• The appliance stops automatically.
• The acoustic signal operates (if it is acti-
vated).
• The indicator of the goes off.
•The lid lock indicator goes off.
•The indicator is on.
• You can open the lid.
• Remove the laundry from the appliance.
Make sure that the drum is empty.
• Close the water tap.
•Turn the programme knob to to de-
activate the appliance.
• Keep the lid ajar, to prevent the mildew
and odours.
The washing programme is
completed, but there is water in the
drum:
– The drum turns regularly to prevent the
creases in the laundry.
–The lid lock indicator is on. The in-
dicator flashes. The lid stays locked.
– You must drain the water to open the
lid.
To drain the water:
1. Set the drain or spin programme.
2. If necessary, decrease the spin
speed.
3. Press the . The appliance drains
the water and spins.
ENGLISH 11

4. When the programme is completed
and the lid lock indicator goes
off, you can open the lid.
5. Turn the programme knob to to
deactivate the appliance.
The appliance drains and spins
automatically after approximately
18 hours (except for Wool pro-
gramme).
8.10 Stand-by
Some minutes after the end of the wash-
ing programme, if you do not deactivate
the appliance, the energy saving status
activates.
The energy saving status decreases the
energy consumption when the appliance
is on the stand by.
• All indicators go off.
•The indicator of the flashes slowly
• Press one of the options to deactivate
the energy saving status.
9. HELPFUL HINTS AND TIPS
9.1 The laundry load
• Divide the laundry in: white, coloured,
synthetics, delicates and wool.
• Obey the washing instructions that are
on the laundry care labels.
• Do not wash together white and col-
oured items.
• Some coloured items can discolour
with the first wash. We recommend that
you wash them separately for the first
times.
• Button up pillowcases, close zippers,
hooks and poppers. Tie up belts.
• Empty the pockets and unfold the
items.
• Turn inside out multilayered fabrics,
wool and items with painted illustra-
tions.
• Remove hard stains.
• Wash with a special detergent heavy
soil stains.
• Be careful with the curtains. Remove
the hooks or put the curtains in a wash-
ing bag or pillowcase.
• Do not wash in the appliance :
– Laundry without hems or with cuts
– Underwired bras.
– Use a washing bag to wash small
items.
• A very small load can cause balance
problems with the spin phase. If this
occurs, adjust manually the items in the
tub and start the spin phase again.
9.2 Stubborn stains
For some stains, water and detergent is
not sufficient.
We recommend that you remove these
stains before you put the items in the ap-
pliance.
Special stain removers are available. Use
the special stain remover that is applica-
ble to the type of stain and fabric.
9.3 Detergents and additives
• Only use detergents and additives spe-
cially made for washing machines.
• Do not mix different types of deter-
gents.
• To help the environment, do not use
more than the correct quantity of deter-
gent.
• Obey the instructions that you find on
the on packaging of these products.
• Use the correct products for the type
and colour of the fabric, the programme
temperature and the level of soil.
• If your appliance has not the detergent
dispenser with the flap device, add the
liquid detergents with a dosing ball.
• If you use liquid detergents, do not set
a prewash or a delay start.
12 www.electrolux.com

9.4 Ecological hints
• Set a programme without the prewash
phase to wash laundry with normal soil.
• Always start a washing programme with
the maximum load of laundry.
• If necessary, use a stain remover when
you set a programme with a low tem-
perature.
• To use the correct quantity of the deter-
gent, check the water hardness of your
domestic system
9.5 Water hardness
If the water hardness in your area is high
or moderate, we recommend that you use
a water softener for washing machines. In
areas where the water hardness is soft it
is not necessary to use a water softener.
To know the water hardness in your area,
contact your local water authority.
Use the correct quantity of the water soft-
ener. Obey the instructions that you find
on the packaging of the product.
10. CARE AND CLEANING
WARNING!
Before maintenance, disconnect the ap-
pliance from the mains supply.
10.1 External cleaning
Clean the appliance only with soap and
warm water. Fully dry all the surfaces.
CAUTION!
Do not use alcohol, solvents or
chemical products.
10.2 Descaling
If the water hardness in your area is high
or moderate, we recommend that you use
a water softener for washing machines.
Regularly examine the drum to prevent
limescale and rust particles.
To remove rust particles use only special
products for washing machine. Do this
separately from the laundry wash.
Always obey the instructions that
you find on the packaging of the
product.
10.3 Maintenance wash
With the low temperature programmes it
is possible that some detergent stays in
the drum. Make regularly a maintenance
wash. To do this:
• Remove the laundry from the drum.
• Set the cotton programme with the
highest temperature with a small quan-
tity of detergent.
ENGLISH 13

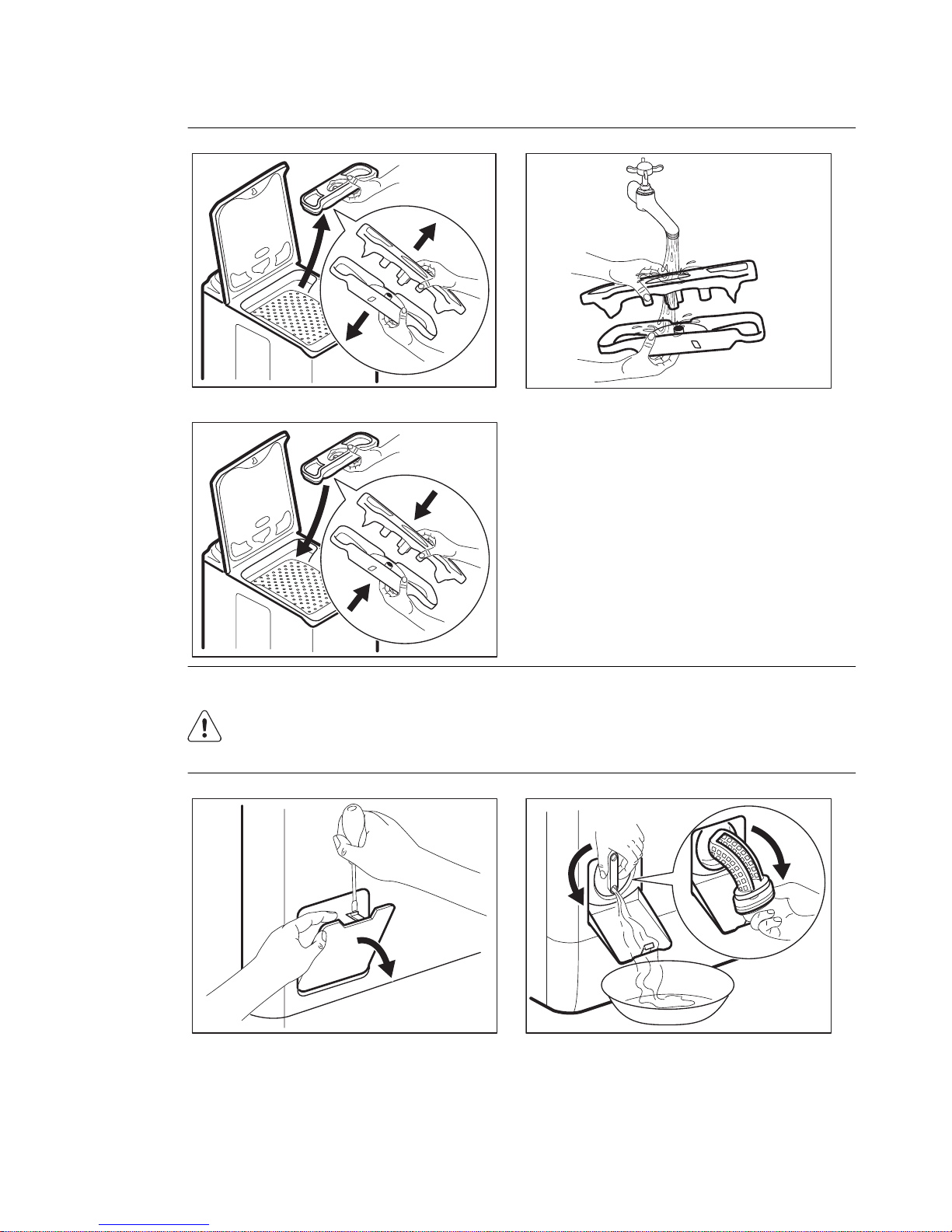

10.4 Cleaning the detergent dispenser
1. 2.
3.

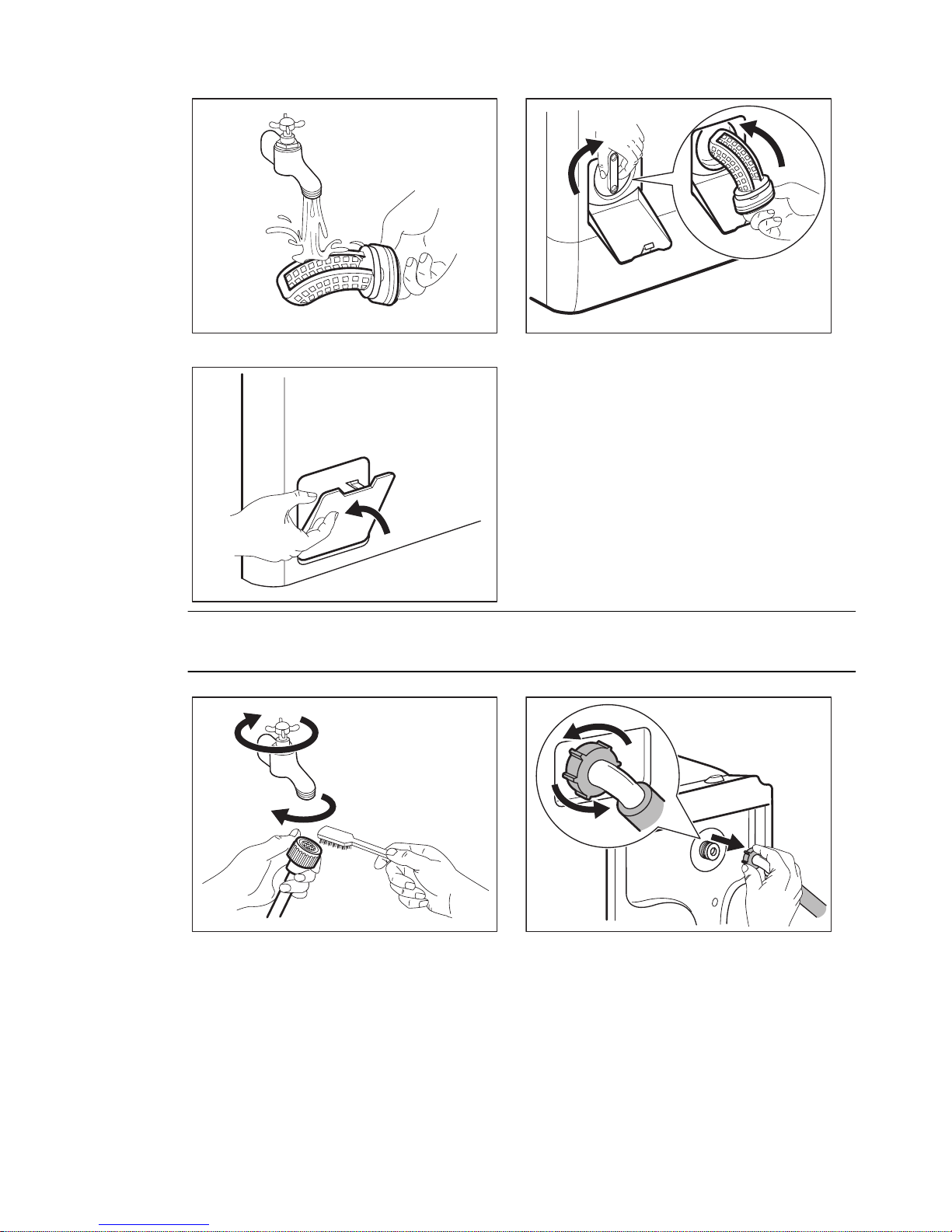

10.5 Cleaning the drain filter
WARNING!
Do not clean the drain filter if there
is water in the drum.
1. 2.
14 www.electrolux.com

3. 4.
5.
10.6 Cleaning the inlet hose and the valve filter
1.
1
2
3
2.
ENGLISH 15

3. 4.
90˚
10.7 Emergency drain
Because of a malfunction, the appliance
cannot drain the water.
If this occurs, do steps (1) through (5) of
'Cleaning the drain filter'.
If necessary, clean the pump.
10.8 Frost precautions
If the appliance is installed in an area
where the temperature can be less than
0° C, remove the remaining water from
the inlet hose and the drain pump.
1. Disconnect the mains plug from the
mains socket.
2. Close the water tap.
3. Remove the water inlet hose.
4. Put the two ends of the inlet hose in a
container and let the water flow out of
the hose.
5. Empty the drain pump. Refer to the
emergency drain procedure.
6. When the drain pump is empty, install
the inlet hose again.
WARNING!
Make sure that the temperature is
more than 0 °C before you use
the appliance again.
The manufacturer is not responsi-
ble for damages caused by low
temperatures.
11. TROUBLESHOOTING
The start of the appliance does not occur
or it stops during operation.
First try to find a solution to the problem
(refer to the table). If not, contact the
Service.
With some problems, the acoustic signals
operate. The red indicator flashes
and one of the indicators comes on, to
show an alarm code:
•- The appliance does not fill with
water.
•- The appliance does not drain the
water.
•- The appliance door is open or
not closed correctly. Check the door!
WARNING!
Deactivate the appliance before
you do the checks.
Problem Possible solution
The programme does
not start.
Make sure that the mains plug is connected to the mains
socket.
Make sure that the appliance lid is closed.
16 www.electrolux.com

Problem Possible solution
Make sure that there is not a damaged fuse in the fuse
box.
Make sure that the Start/Pause has been pressed.
If the delay start is set, cancel the setting or wait for the
end of countdown.
Deactivate the Child Lock function if it is on.
The appliance does
not fill with water.
Make sure that the water tap is open.
Make sure that the pressure of the water supply is not
too low. For this information, contact your local water
authority.
Make sure that the water tap is not clogged.
Make sure that the filter of the inlet hose and the filter of
the valve are not clogged. Refer to “Care and cleaning”.
Make sure that the inlet hose has no kinks or bends.
Make sure that the connection of the water inlet hose is
correct.
The appliance does
not drain the water.
Make sure that the sink spigot is not clogged.
Make sure that the drain hose has no kinks or bends.
Make sure that the drain filter is not clogged. Clean the
filter, if necessary. Refer to 'Care and cleaning'.
Make sure that the connection of the drain hose is cor-
rect.
Set the drain programme if you set a programme without
drain phase.
Set the drain programme if you set an option which ends
with water in the tub.
The spin phase does
not operate or the
washing cycle lasts
longer than usually.
Set the spin programme.
Make sure that the drain filter is not clogged. Clean the
filter, if necessary. Refer to 'Care and cleaning'.
Adjust manually the items in the tub and start the spin
phase again. This problem may be caused by balance
problems.
There is water on the
floor.
Make sure that the couplings of the water hoses are tight
and there is not water leakages.
Make sure that the drain hose have no damages.
Make sure you use the correct detergent and the correct
quantity of it.
ENGLISH 17

Problem Possible solution
You cannot open the
appliance lid.
Make sure that the washing programme is finished.
Set the drain or the spin programme if there is water in
the drum.
The appliance makes
an unusual noise.
Make sure the levelling of the appliance is incorrect. Re-
fer to 'Installation Instruction'.
Make sure that the packaging and/or the transit bolts are
removed. Refer to 'Installation Instruction'.
Add more laundry in the drum. The load may be too
small.
The appliance fills with
water and drain imme-
diately.
Make sure that the drain hose is in the correct position.
The hose may be too low.
The washing results
are not satisfactory.
Increase the detergent quantity or use a different deter-
gent.
Use special products to remove the stubborn stains be-
fore you wash the laundry.
Make sure that you set the correct temperature.
Decrease the laundry load.
You cannot set an op-
tion.
Make sure that you press only the wanted touchbut-
ton(s).
After the check, activate the appliance.
The programme continues from the point
of interruption.
If the problem occurs again, contact the
Service.
12. TECHNICAL DATA
Dimensions Width / Height / Depth 400 / 850 / 600 mm
Total depth 600 mm
Electrical connection: Voltage
Overall power
Fuse
Frequency
230 V
2200 W
10 A
50 Hz
Level of protection against ingress of solid particles
and moisture ensured by the protective cover, except
where the low voltage equipment has no protection
against moisture
IPX4
Water supply pressure Minimum 0,5 bar (0,05 MPa)
Maximum 8 bar (0,8 MPa)
Water supply
1)
Cold water
18 www.electrolux.com

Maximum load Cotton 6 kg
Spin speed Maximum 800 rpm
1) Connect the water inlet hose to a water tap with a 3/4'' thread.
13. ENVIRONMENT CONCERNS
Recycle the materials with the symbol
. Put the packaging in applicable
containers to recycle it.
Help protect the environment and human
health and to recycle waste of electrical
and electronic appliances. Do not dispose
appliances marked with the symbol
with the household waste. Return the
product to your local recycling facility or
contact your municipal office.
ENGLISH 19

www.electrolux.com/shop
108771900-A-272012
