Elenberg D29 User manual

Description:
Job No.
Model:
Unit:
Engineering Dept:
Artwork By:
Checked By:
Approved By:
Brand Name:
P/No.
Scale:
Date:
Date:
Date:
Manual
1C034
D29
22 - 02- 2002
5N11
29D77
MANUAL
SKYWORTH MULTIMEDIA INTERNATIONAL LTD.
29" COLOUR TELEVISION
ON SCREEN DISPLAY
REMOTE CONTROL
HYPERBAND TUNER
S-VIDEO IN
SIDE AV IN
ELENBERG

SPECIFICATIONS
Design and specifications are subject to change without prior notice.
Receiving System : B/G , DK , M
Colour System : PAL / SECAM / NTSC
Picture Tube : 74cm (29") diagonal
Ext. Antenna : 75 Ohm Coaxial Cable
Ext. In/Out : Peritelevision(Scart Jack), Side AV-in, S-Video
Speaker : 16 Ohm (6W ) x 4 , 8 Ohm (10W) x 2 TWEETER,
Woofer:4Ohm(20W) x 1
Audio Output : 8W x 2 MAX;10W (Woofer)
Power Consumption : AC 90-260V 50/60Hz, 150W
Dimension : 770(W) x 478(D) x 593(H)mm
Net Weight : 44 kg
REMOTE CONTROL
Transmitting System : Infrared
Power Supply : DC 3V (1.5 x 2)
Dimension : 60(W) x 200(L) x 24(D)mm
Net Weight : 100 g

SPECIFICATIONS
INSTALLATION
CAUTION
Thank you very much for your purchase of this product-the most natural Colour Television Receiver.
To enjoy your set to the full from the very beginning, read this manual carefully and keep it handy for ready
reference.
Locate the receiver in the room where direct light does not strike the screen.
Total darkness or a reflection on the picture screen can cause eyestrain. Soft and indirect lighting is
recommended for comfortable viewing.
Allow enough space between the receiver and the wall to permit ventilation.
Avoid excessively warm locations to prevent possible damage to the cabinet or premature component
failure.
This TV receiver can be connected to AC 90-260 Volts. 50/60 Hz. Never connect to DC supply or any other
power supply.
Do not install the receiver in a location near heat sources such as radiator, air ducts, direct sunlight, or in
a place somewhere like close compartment and close area.
Do not cover the ventilation openings when using the set.
Never tamper with any components inside your set, or any other adjustment controls not mentioned in
this manual. All television receivers are high voltage instruments. Your PICTURE TUBE is highly evacuation.
If broken, glass fragments will be violently expelled. Scratching, chipping or undue pressure is dangerous
and should be avoided. When you clean up dust or stick of a water drop on the PICTURE TUBE FACE or
CABINET, the power cord should be pulled out from the plug receptacle, then wipe the receiver with dried
soft cloth. During thunder and lighting, unplug the power cord and antenna cord to prevent your TV set
from damage. All "inside work" on your receiver should be performed only by the TV service personnel.
-1-

-2-
CONTROL LOCATION
42 53 6 7 8 9
1. Main Switch
2.
5.
6.
7.
8.
9.
10. Speakers
Power Indicator
3. Remote Sensor
4. AV/TV Button
Sound Mode Button
Program Down/Up Button
Volume Down / Up Button
Picture Mode Button
Menu Button
11. Side AV In(Option)
12. S-Video In
13. Peritelevision(Scart Jack)
14. AV In 2
15. Antenna Input Socket (75 Ohm)
16. AC Power Cord
17. WOOFER OUT
11110 10
13
14 15 16
12 17

INPUT AND OUTPUT TERMINALS (PERITELEVISION)
-3-
1. Audio Out
Right channel "Stereo"
2. Audio In
Right channel "Stereo"
3. Audio Out
Left channel "Stereo"
4. Ground "Audio"
5. Ground of luminance signal "Blue"
6. Audio In
Left channel "Stereo" or Monophonograph
7. Luminance signal input "Blue"
8. Video switching voltage
9. Ground of luminance signal "Green"
10. No Connection
11. Luminance signal input "Green"
12. No Connection
13. Ground of luminance signal "Red"
14. Ground
15. Luminance signal input "Red
16. R.G.B. switching voltage
17. Ground "Video"
18. Ground of switching input
19. Video Out
20. Video In
21. Ground chassis
20
21 19 17 15 13 11 9 7 5 3 1
18 16 14 12 10 8 6 4 2
The TV set can be connected to the following appliances: video-tape recorder, video camera, tape
recorder and audio amplifier, etc......
*Please keep AC cord unplugged when connecting TV system.
75 ANT
AV IN 2
LEFT RIGHT
S.VIDEO IN
PERITELEVISION
VIDEO
WOOFER

OPERATION INSTRUCTIONS
-4-
TUNING PROCEDURE
STEP 1
Push the Power "ON/OFF" Switch to the ON Position, the "POWER" Indicator will light up. A few seconds
later the picture(or blue screen) will appear The program number is display on the top right-hand corner of
the screen.
STEP 2
FULL AUTO SEARCHING
1. Press the MENU key on your TV set (or remote handset) .If it is in AV state, it will not display "TUNING" .
2.You can select "TUNING" by pressing PROG.+/-buttons .Then press VOL.+/-buttons to enter into
TUNING submenu .
3.Press PROG.+/- Buttons to select "AUTO TUNING " then press VOL. +/- Button to automatically search
and memory all the broadcasting TV stations in your area. When presetting is complete, the initial position
number will reappear.
4. Press the MENU key twice to go back to the normal TV mode.
TUNING
POSITION 3
AUTO TUNING
MANUAL TUNING
SKIP ON
BAND VHF-H
FINE TUNING
Press PROG.+/-
Buttons
Press PROG.+/-
Buttons
Press MENU key twice
Press VOL.+/-
Buttons
Press VOL.+/-
Buttons
Begin auto tuning
TO SKIP A PROGRAM
You may skip any program number by following the steps below:
1.Select the program number to be skipped by pressing PROG+/- button or direct select buttons .
2.According to above mentioned steps, open the TUNING menu.
3.Press PROG+/- Buttons to select "SKIP", then select "ON" with VOL.+/- Buttons.
4.Press the MENU key twice to go back to the normal TV mode.
Remark: You 'd better select correct color and sound system for the first channel before searching.
3
£-
+
TUNING
POSITION 3
AUTO TUNING
MANUAL TUNING
SKIP ON
BAND VHF-H
FINE TUNING
3
£-
+
1
Press MENU
Buttons
MENU
SOUND
TUNING
SELECT: ENTER:- +
EXIT : MENU
COLOR SYSTEM
SOUND SYSTEM
MENU
SOUND
TUNING
SELECT: ENTER:- +
EXIT : MENU
COLOR SYSTEM
SOUND SYSTEM

OPERATION INSTRUCTIONS
-5-
STEP 3

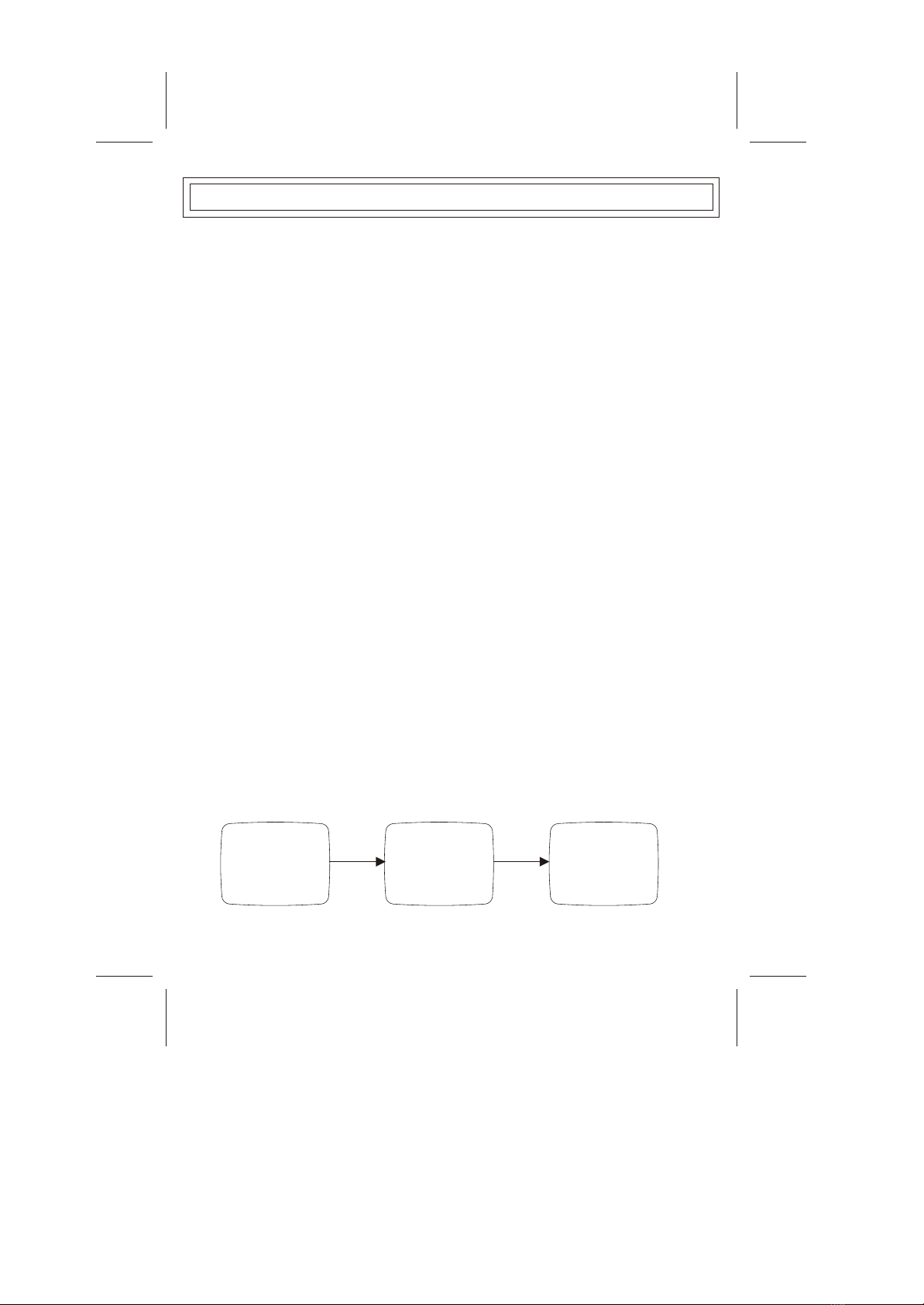

MANUAL TUNING
1.According to above mentioned steps, open the TUNING menu.
2.Move to "MANUAL TUNING"with PROG+/- buttons.
3.Press VOL.+/-buttons , the search is being carried out. When a TV station signal is received , the
character stops flicker and the current item moves to program number item.
4. Enter new program number with direct select buttons. Press VOL.+/-to store the program , then the
current menu item jumps to "MANUAL TUNING" automatically .
5.Then press VOL. +/- button to continue search.
TUNING
POSITION 3
AUTO TUNING
MANUAL TUNING
SKIP ON
BAND VHF-L
FINE TUNING
Press PROG..+/-
Buttons
Press PROG.+/-
Buttons
Press direct select
Buttons
Press MENU key twice
Press VOL.+/-
Buttons
Press VOL.+/-
Buttons
Begin auto tuning
STEP 4
FINE TUNING
To tune in to weak stations manual tuning must be used.
1. Select the program number you want to fine-tune with the PROG +/- buttons or direct select buttons.
2. According to above mentioned steps, open the TUNING menu.
3. Select "FINE TUNE" with PROG+/- button.
4. Press VOL. +/- buttons until the best possible picture and sound are obtained, while "FINE TUNE"
flickers.
5. Move to program number item with PROG+/- buttons.
6. Enter new program number with direct select buttons. Store the program with VOL.+/-buttons .
TO SELECT BAND
1.According to above mentioned steps, open the TUNING menu.
2.Select " BAND" submenu with PROG.+/-buttons .
3. Press VOL. +/- buttons , you can select VHF-L, VHF-H and UHF band.
TUNING
POSITION 3
AUTO TUNING
MANUAL TUNING
SKIP ON
BAND VHF-L
FINE TUNING
TUNING
POSITION 12
AUTO TUNING
MANUAL TUNING
SKIP ON
BAND VHF-L
FINE TUNING
3
£-
+
3
£-
+
12
£-
+
12
Press MENU
Buttons
MENU
SOUND
TUNING
SELECT: ENTER:- +
EXIT : MENU
COLOR SYSTEM
SOUND SYSTEM
MENU
SOUND
TUNING
SELECT: ENTER:- +
EXIT : MENU
COLOR SYSTEM
SOUND SYSTEM
Press VOL.+/-
Buttons

-6-
TO SELECT COLOR SYSTEM
If the color system setting is incorrect, the color of the channel will be abnormal.
1.According to above mentioned steps, open the COLOR SYSTEM menu.
2.Select the correct color system with PROG.+/- buttons ,press VOL+/- to choose .
TO SELECT SOUND SYSTEM
If the sound system setting is incorrect, the sound and colour of the channel will be abnormal.
1.According to above mentioned steps, open the SOUND SYSTEM menu.
2.Select the correct sound system with PROG+/- buttons.
3. Move green symbol " " to the sound system which you just select by pressing VOL. +/- buttons.

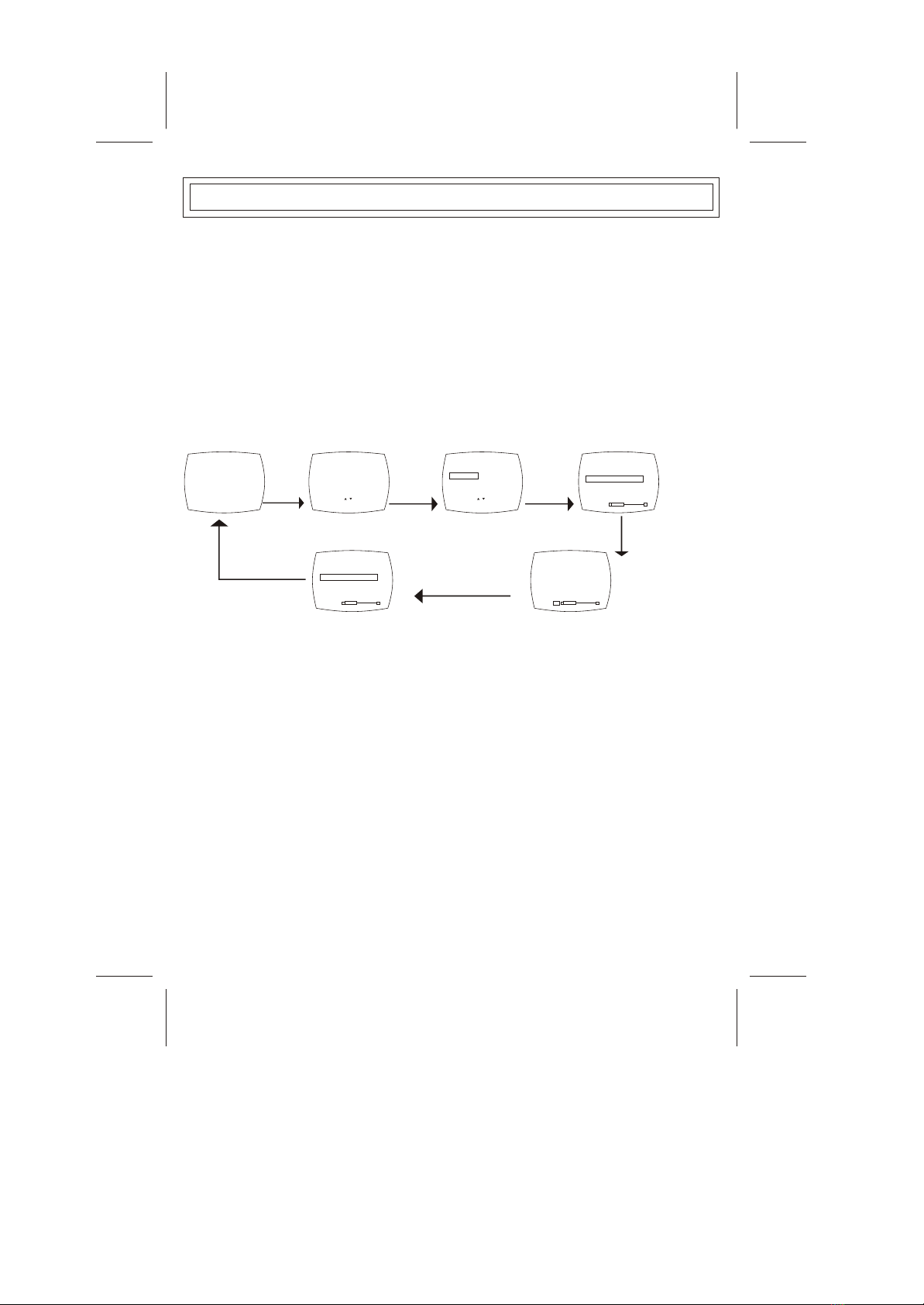

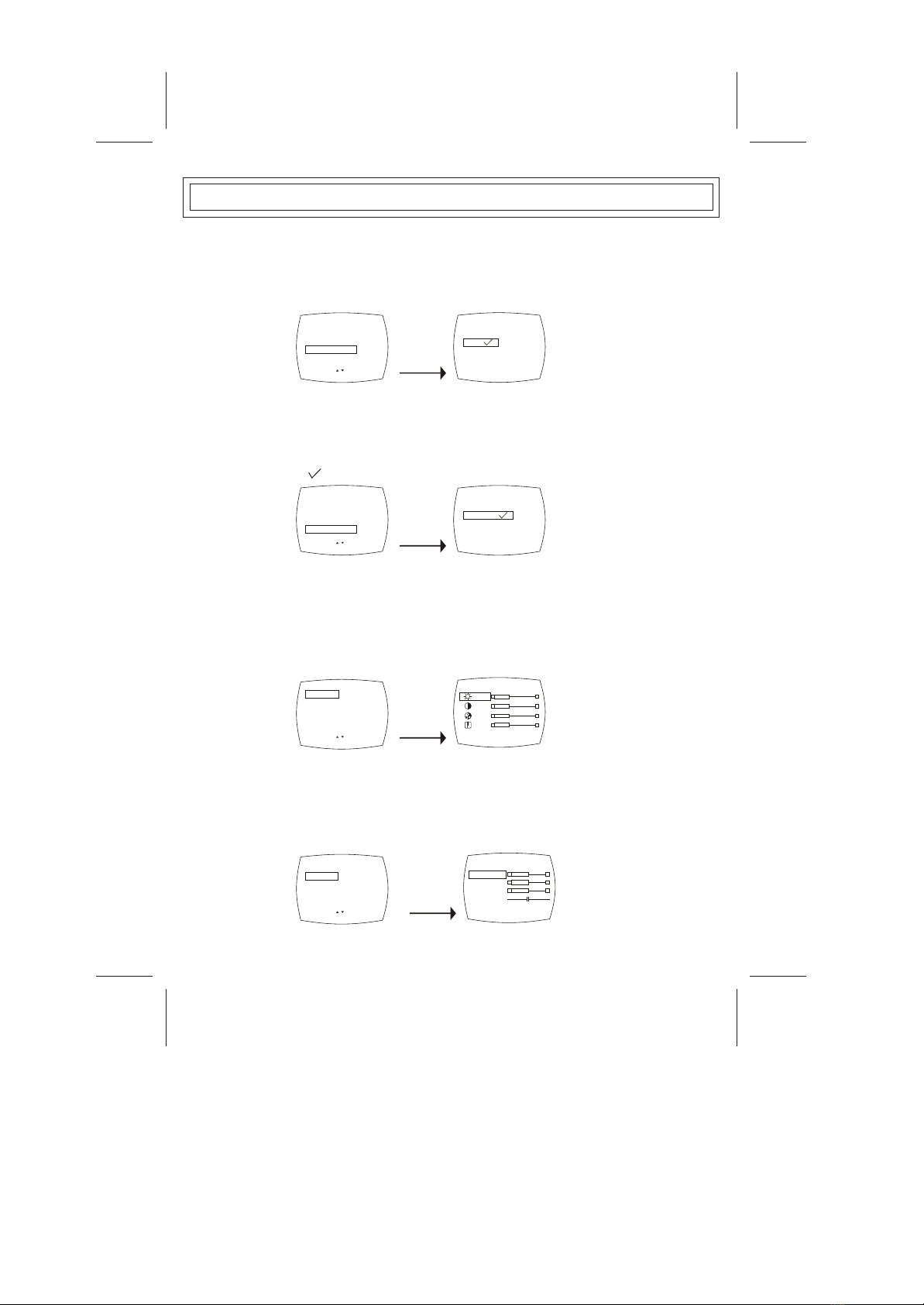

TO ADJUST THE PICTURE
1.According to above mentioned steps, open the PICTURE menu.
2.Choose the item to be adjusted with PROG+/- buttons.
3.Adjust the image quality with VOL.+/- Buttons.
4.Press the MENU key twice to go back to the normal TV mode. Meanwhile, the picture mode has been
stored.It is stored in picture mode " PERSONAL ".
MENU
SOUND
TUNING
SELECT: ENTER:- +
EXIT : MENU
COLOR SYSTEM
SOUND SYSTEM
COLOR SYSTEM
SOUND SYSTEM
AUTO
PAL
SECAM
NTSC 3.58
NTSC 4.43
BG
DK
M

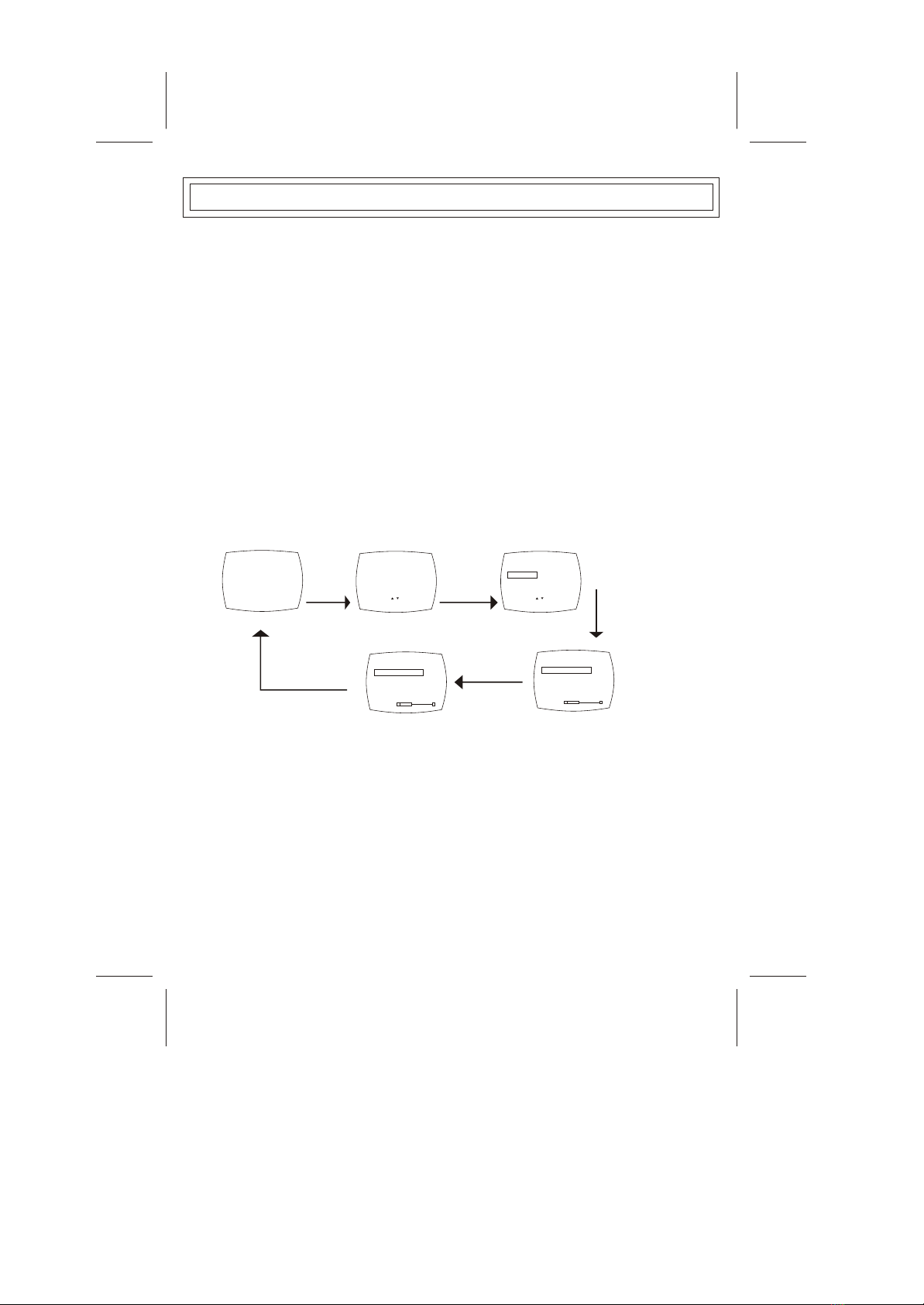

TO ADJUST THE SOUND(OPTION)
1.According to above mentioned steps, open the SOUND menu.
2.Choose the item to be adjusted with PROG+/- buttons.
3.Adjust the sound quality with VOL.+/- Buttons.
4.Press the MENU key twice to go back to the normal TV mode. Meanwhile, the sound mode has been
stored. It is stored in sound mode "DEFINE".
SOUND
VOLUME
TREBLE
BASS
BALANCE
OPERATION INSTRUCTIONS
£-
+
32
£-
+
32
£-
+
32
£-
+
32
32
£-
+
£-
+
£-
+
32
32
32
MENU
SOUND
TUNING
SELECT: ENTER:- +
EXIT : MENU
COLOR SYSTEM
SOUND SYSTEM
MENU
SOUND
TUNING
SELECT: ENTER:- +
EXIT : MENU
COLOR SYSTEM
SOUND SYSTEM
MENU
SOUND
TUNING
SELECT: ENTER:- +
EXIT : MENU
COLOR SYSTEM
SOUND SYSTEM
BRIGHT NESS

LOCATION OF CONTROL (REMOTE HANDSET UNIT)
-7-
POWER (STAND BY) BUTTON ( )
Press this button to turn the TV set (Standby mode). Press Program Up/Down Button, picture and sound will
appear on within a few seconds.
off
PROGRAM SELECTION BUTTONS (0-9, -/--)
Push the number for your desired program and the program indicator will be displayed on the screen.
Press the number keys to select teletext pages in teletext mode.(Option)
To select a one-digit position number: press the -/-- button to display ¡° - ¡± and press 0-9 to select a
number 0-9.
To select a two-digit position number: press the -/-- button to display ¡° -- ¡± and press 0-9 to select a
number 10-99.
If you set provides up to 256 channels, press the -/-- button to display ¡°--- ¡±and press 0-9 to select a
number 100-256.(Option)
VOLUME UP/DOWN BUTTONS (VOL+/-)
Press Volume Up/Down Buttons to adjust sound level.
MENU BUTTON
To use"MENU" button for the tuning procedure, please refer to page 4-6 for the details.
PROGRAM UP/DOWN BUTTON (PROG +/-)
Press the Program Up Button to select the program forwards.
Press the Program Down Button to select the program backwards.
(Use this button for Page Up/Down to increase/decrease page number in TELETEXT mode.)
SLEEP BUTTON ( )
This key is used to set the sleep timer from in 10 minutes step up to two hours. When the preset time runs to 0.
TV set will go into stand by mode. To switch off this function, press this key step by step until '0' is displayed on
screen.
1
4
7
-/--
Q.
VIEW
GAME
P.M. S.M.
2
5
8
0
3MENU
6
9
A.V.
CANCEL
HOLD
REVEAL ON/OFF
LARGE
MIX SUB.PAGE INDEX
V
OL
G
O
R
P
+
+
-
-
//
CLOCK C.LOCK T.SET
P.VIEW

RECALL BUTTON( )
Press this button sequential to recall for the program number, system etc on the screen.
LOCATION OF CONTROL (REMOTE HANDSET UNIT)
AV MODE BUTTON (A.V.)
Press this button to display external video signal such as VCR or CD video player.
If external video signal is from SCART,the AV mode will be AV 1 compulsively.
MUTE BUTTON( )
Press once to mute the sound, press again to return to previously set sound level.
PICTURE MODE BUTTON (P.M. )
Press this button to select the desired picture mode. RICH, PERSONAL, SOFT and STANDARD can be
selected cyclically.
-8-
QUICK VIEW BUTTON (Q. VIEW)
Press this button to return to the previously viewed program.
*Remark: AV 1 AV 2(option) S-Video(option)
SOUND MODE BUTTON(S.M. )
Press this button to select the desired sound mode. DEFINE, SPEECH, MUSIC and THEATER can be
selected cyclically.
GAME BUTTON (OPTION)
You can play the game on the TV set using these buttons .
STEREO/MONO DUALI/II BUTTON ( ) (OPTION)
As stereo program is received. You can select "STEREO" y pressing the ST/MO/I/II
button.
As bilingual program is received. You can select y pressing the
Remark: FM :Standard mode STEREO :Stereo mode MONO : Mono mode
DUAL-1 :multi soundchannel forlanguage 1 DUAL- 2 :multi soundchannel forlanguage 2
The third line on the top right corner of the screen automatically changes to green when a NICAM
broadcast is received.
, "MONO" or "FM" b
"DUAL- 1", "DUAL- 2" or "FM' b ST/MO/I/II
button.
/
TVAV 3(option)
SURROUND MODE BUTTON ( )
The surround has OFF and ON modes . You can press the button to select the mode.
(OPTION)

LOCATION OF CONTROL (REMOTE HANDSET UNIT)
-9-
MIX BUTTON (Mix) (OPTION)
This button permits mixing teletext page with TV signal. Press TV or Teletext Button to return to TV or
Teletext Mode.
Note: To avoid mixing of External R.G.B. while viewing Teletext. Disconnect scart plug or switch off
External R.G.B. Source.
BROADCASTING TELETEXT CONTROLLED BY THE FINAL EIGHT KEYS ON THE
LOWER PLACE OF REMOTE CONTROL UNIT.(This function is optional .)
ON/OFF BUTTON (OPTION)
Press this button to display TELETEXT signal.
HOLD BUTTON (HOLD) / STORE (OPTION)
Sub-pages will scroll automatically. Press "HOLD" button to hold a sub-page. To release the page, press
"HOLD" again.
SUBPAGE BUTTON (SUBPAGE) (OPTION)
Some pages attach sub-page, press "SUB-PAGE" button to view the sub-pages.
INDEX BUTTON (INDEX)
Press "INDEX" button to obtain the index page.
(OPTION)
REVEL BUTTON (REVEAL) (OPTION)
Sometimes the answers of quizes, jokes etc are hidden. Press "REVEAL" button to reveal the hidden
information.
CANCEL BUTTON (CANCEL) (OPTION)
If you want to watch TV but not cancel the TELETEXT mode completely. Press the "CANCEL" button. When the
last selected page is updated, the page number will be appeared at the top of the TV screen. Press the "TEXT"
button to reveal the page.
Single height
full page
Press
Button
Press
Button
double height
bottom of page
double height
top of page
LARGE BUTTON (LARGE) (OPTION)
The top or bottom half of any page can be enlarged by pressing this button.

LOCATION OF CONTROL (REMOTE HANDSET UNIT)
WHEN THE TELETEXT SIGNAL IS OFF, THE MIX BUTTON HAVE THE FUNCTION OF
CLOCK, THE SUB.PAGE BUTTON HAVE THE FUNCTION OF CHILD LOCK , THE INDEX
BUTTON HAVE THE FUNCTION OF TIME SET £¬ AND THE CANCEL BUTTON HAVE THE
FUNCTION OF PROGRAM VIEW.
-10-
CHILD LOCK BUTTON (C.LOCK)
This key functions as childlock.
Press the key once, you only watch the currently channel (
Press it again, you will lock all the channels ,you only see the blue screen ,and all the buttons be used
Press the key third time , all the channels will be unlocked .
the currently channel can not be changed), and all
the buttons can not be used excepting the STAND BY Button and the SUB.PAGE Button .
can not
excepting the STAND BY button and the SUB.PAGE Button .
TIME SET BUT TON (T.SET)
Entering the time menu by pressing the button .
THE SETTING OF CLOCK
You can adjust the currently time by this item. Press the VOL.-button set
hour , and the VOL.+button set minute .
THE SETTING OF THE TV ON/OFF
1. TIMING
Press the PROG+/-buttons to select the TIME item ,and set "TIMING ON"
by the VOL+/- buttons. Then you can set the time of TV ON and TV OFF .
2.TV ON
Set the time when the TV set turn on .
3.TV OFF
Set the time when the TV set turn off .
Set " ALARM ON" by the VOL+/-bottons .
Select "ALARM 00:00" item by the PROG+/-buttons. Set the awake time
that you want .For example, you set the time is 15:00, then " ALARM
15:00:00" will be display on the screen at 15:00 for awaking you.
The time will disappear from the screen in a minute.
THE ALARM SETTING
CLOCK 00:00
TIMING OFF
TV ON 00:00
TV OFF 00:00
ALARM OFF
ALARM 00:00
PROGRAM VIEW BUTTON (P.VIEW)
Press the Button once, all the channels will be automatically switched through over. When the TV set switches
to the channel you want, you can press the button again to exit this mode.
CLOCK BUTTON (CLOCK)
Press the button once, t displayed on the top left corner of the screen. Then you can
press the VOL-button to set hour ,and the VOL+button to set minute. Press this button again , the time
disappears.
he currently time is

-11-
BATTERY INSTALLATION (REMOTE CONTROL UNIT)
THE CAUSES OF INTERFERENCE
Incorporated in your TV receiver are the most up-
to-date devices to eliminate interference. Local
radiation however, can create disturbances which
visibly affect your picture. Proper installation, a
good aerial are your best safe-guards against
these disturbances.
RF INTERFERENCE
Moving ripples across the screen are caused by
nearby transmitting or receiving-short-wave radio
equipment.
DIATHERMY
Herringbone pattern and partial picture loss can
result from the operation of diathermy equipment
from a nearby doctor's surgery or hospital.
SNOW
Weak TV signals from long distant stations result
in an instead picture and give the effect of falling
snow. An antenna adjustment or antenna
amplifier may be needed.
GHOST
Multiple image caused by TV signals reflected
back from surrounding buildings, hills, aircraft, etc.
is minimized by correct aerial positioning.
CAR IGNITION
Nearby cars and electrical motors can cause small
streaks across the picture or make the picture roll.

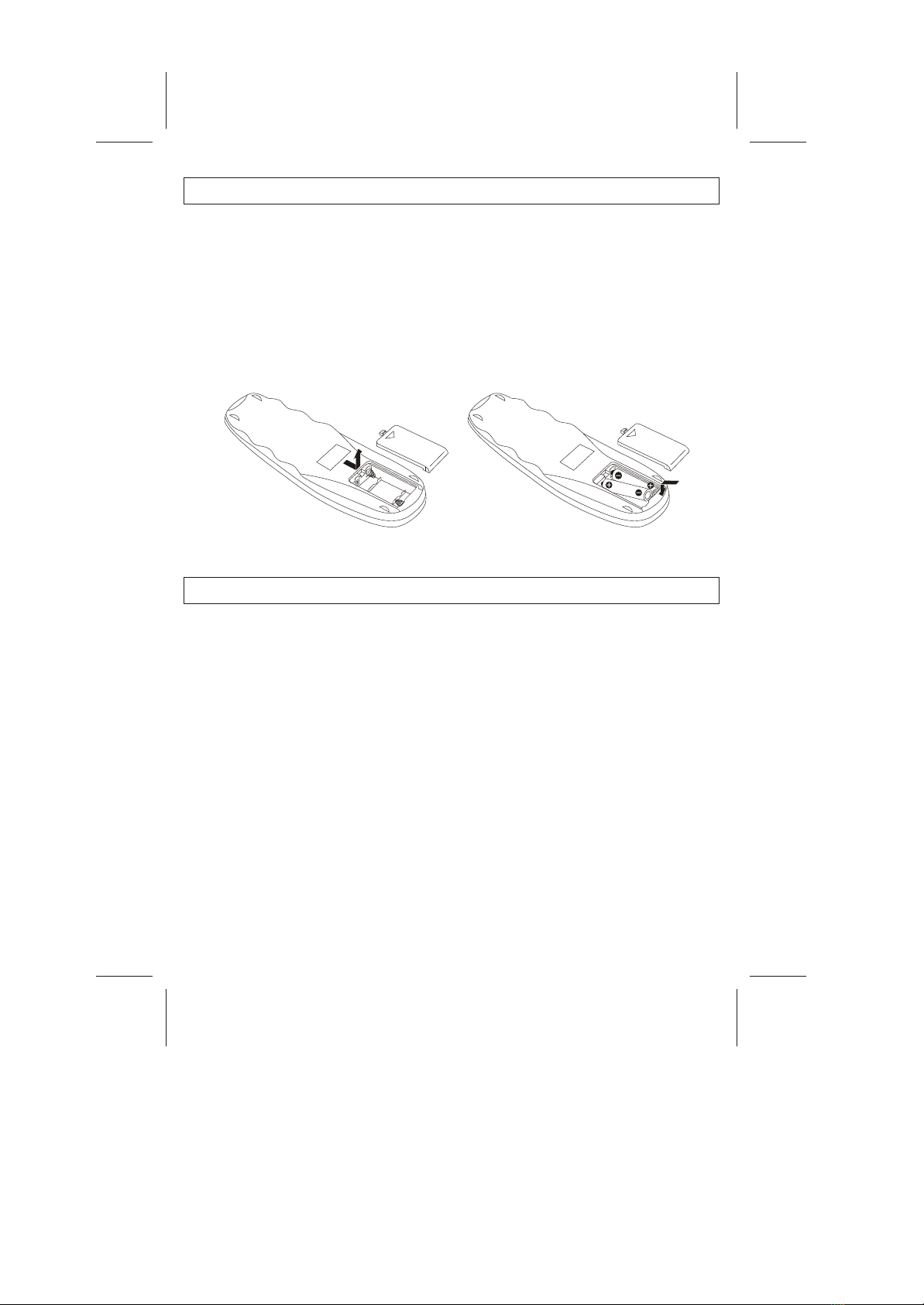

1. Remove the battery cover.
2. Insert the 2 UM3-AA 1.5V batteries making sure the polarity (+ or -) of the batteries matches the polarity
marks inside the unit.
3. Replace the battery cover.
Replace with new batteries when the TV set begins to show the following symptoms:
Operation is unsteady or erratic. Sometimes the TV set does not function with Remote Control
Unit.
Remark:
1) Alkaline Batterie Recommended
2) Remove batteries when they are exhausted or if the remote control is not to be used for a long time.

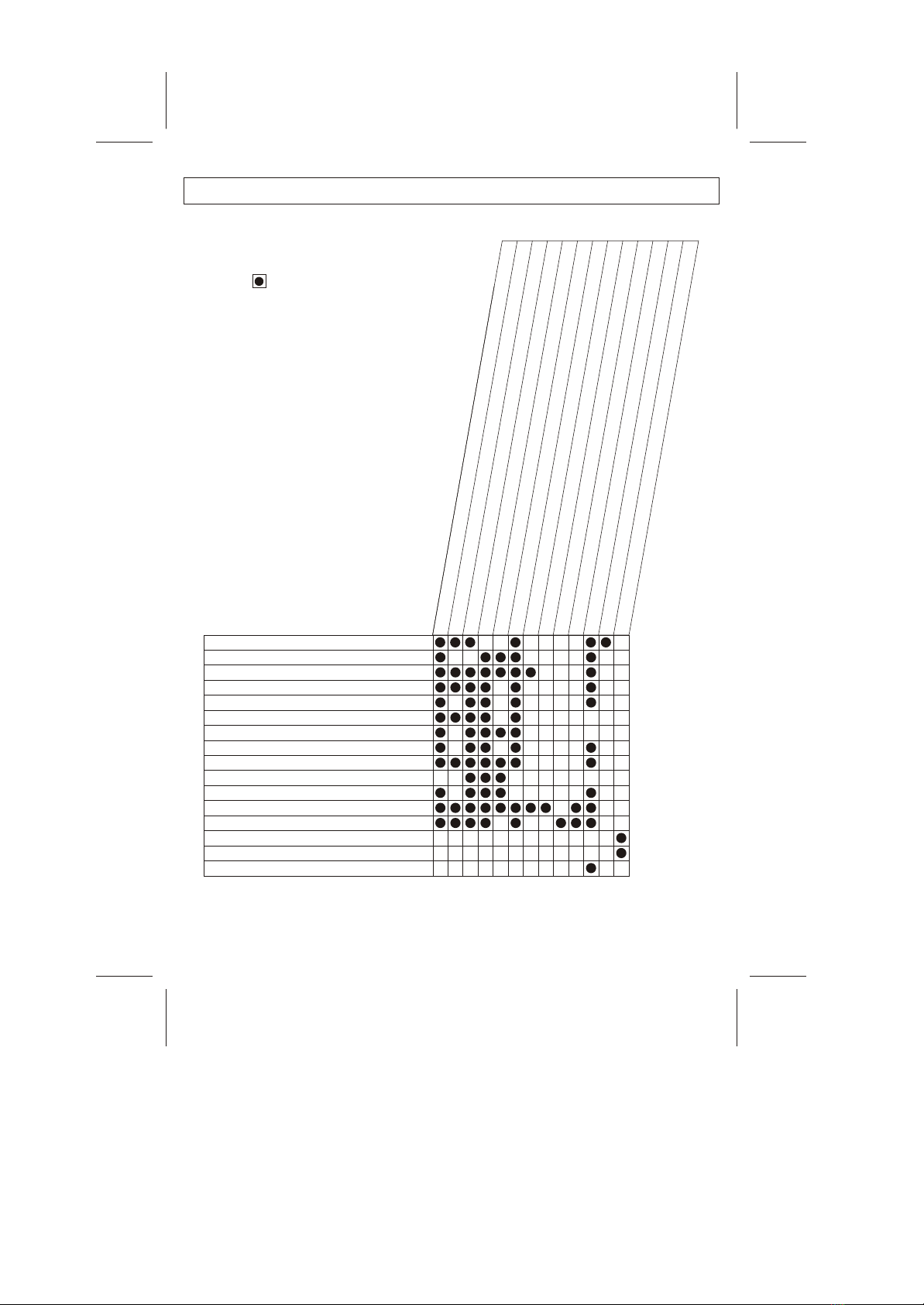

SERVICE TIPS
BEFORE CALLING FOR SERVICE, HAVE YOU
CHECKED ( ) THE FOLLOWING CHART
ON SYMPTOMS AND SOLUTIONS?
No picture, no sound
Poor sound, picture OK
Poor picture, sound OK
Weak picture
Blurred picture
Double image
Lines in picture
Distorted picture
Weak reception on some channels
Horizontal bars
Picture rolls vertically
Poor colour
No colour
Misoperation of Remote control
No Remote control
On Screen Display Control outside the screen
Try different channel,if OK, probably stationtrouble
Check aerialconnections on back ofset
Check aerialfor broken wires
Re-orient aerial (ifindoor type)
Probably localinterference,suchas an appliance
Adjust fine tuning control
Adjust brightness control
Adjust contrastcontrol
Check ifstation is broadcasting colour
Adjust colour control
Check ifsystemswitchis correct
Checkifon/offswitchis "on"
CheckBatteriesinRemote control
Solution
Symptoms
-12-
