Eli Ezer CHG-2600 User manual

CHG-2600 Desk Charger with
Power Adapter

1
Charger
User’s Guide
Thank you for purchasing this changer. To prevent damage to
your changer or injury to yourself or to others, read the
following safety precaution in their entirety before using this
equipment. Keep these safety instructions where all those who
use the device will read them.
Symbols:
Class Ⅱ
Attention：Read user’s guide for warnings
and cautions and instructions for operating.
Warnings and Cautions
Attention. Read user’s guide for cautions and
instructions for operating.
Warning: This device must not be used in the
presence of flammable gases.
Warning: This device should not be immersed
in fluids.
Warning: Please use special certificated power
adapter.
Warning: Federal law restricts this device to
sale or order of a physician.
1. Purpose and features of the device
1.1 Purpose
The charger is only intended to charge the rechargeable
Li-ion battery handle.
1.2 Features
Power-on indicator. Charging state indicator.
Automatic charging when inserting the handles to
charging port.
When take the handle away, the charging state
indicator automatically turns off.
3.7V Li-ion battery .
Pre−charge −CC −CV Operation model.
Circuit short, reverse-voltage ,over-voltage
protection.
Low battery indicator.
2. Operating Instructions

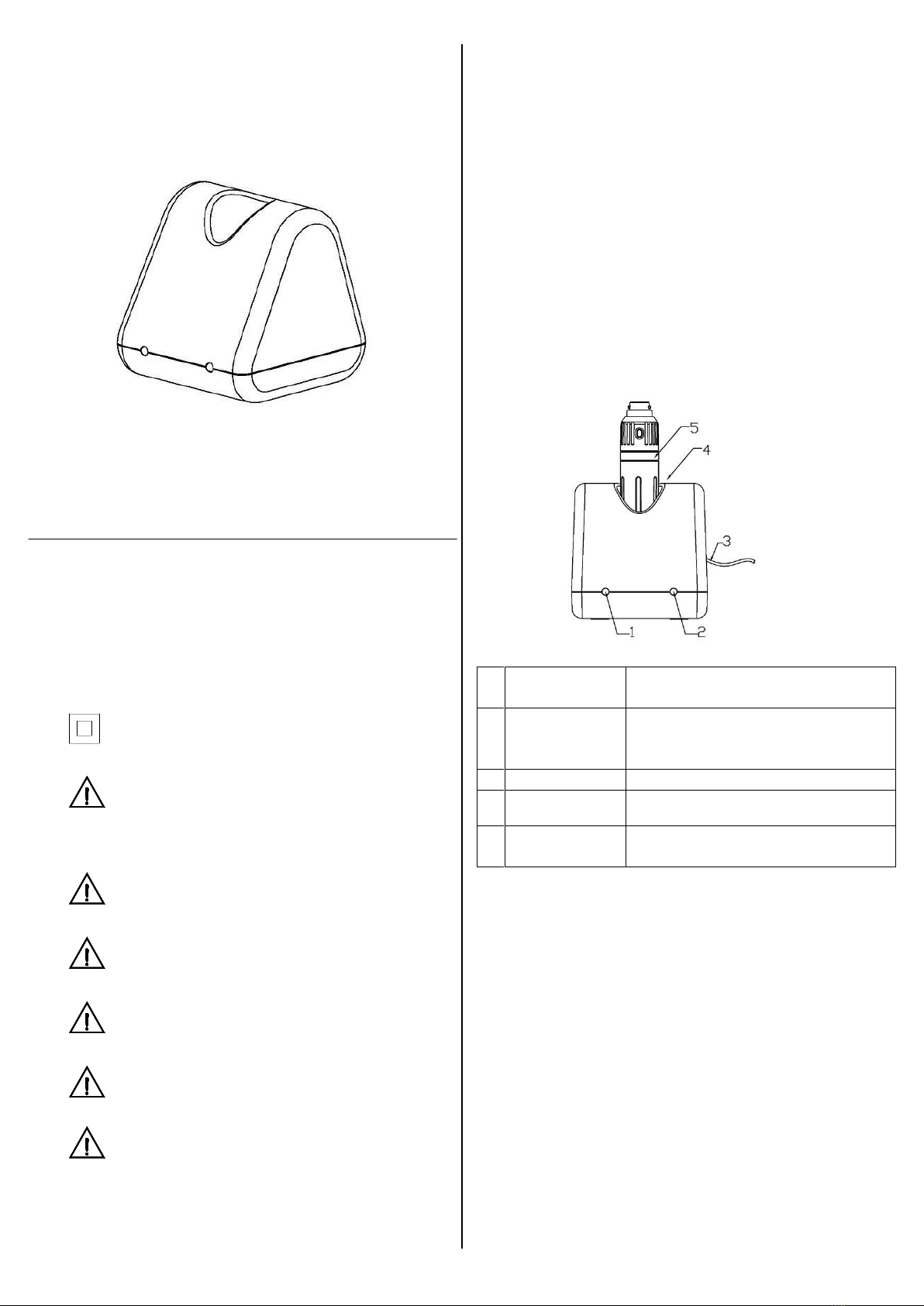

2.1 The lithium battery charger external diagram is as follow:
1
Power indicator
The green led lit indicate that the charger is
powered
2
Charge indicator
The yellow led lit indicate the charging
The green led lit indicate charging is
completed
3
Power line
Connect the power adapter
4
Charging port
Insert the rechargeable Li-ion battery handle
5
Rechargeable
lithium battery
Pay attention to the direction of the handle
inserted.
2.2 Connecting power adapter to mains and the charger,
When the green Power led is lit that indicates that the
charger is powered and ready to charge the battery.
2.3 Place the rechargeable lithium battery handle into the
charging port of the charger. When the charging
indicator shows yellow that indicate charging is carry on,
the charge indicator shows green that indicates charging
is complete.
2.4 Take the handle from the charging port.The lithium
battery charger will stop charging, charging indicator
light turn off.
2.5 Power adapter output: 9 −12 VDC, 800 −1250 mA.
3. Maintenance
3.1 Cleaning Recommendations
Wipe all external surfaces with cloth dampened with a
mild detergent and water solution, a mild detergent and
water solution, a solution of 70% isopropyl alcohol and
water solution, or a solution of 10% Clorox and water.

2
DO NOT immerse. Wring out the cloth to prevent excess
moisture from entering the assembly.
Clean instrument windows with a cotton swab dipped in
alcohol.
Caution: Be careful to prevent the
solvent into the instrument.
4. Technical Specifications
Electrical Specifications
Input voltage
9 VDC −12 VDC
Input power
≤5 VA
Li-ion battery specifications
3.7 V
Charging port
1
maximum charge time
≤3.5 h
Power adapter specifications
Input
100 VAC −240 VAC 50 Hz / 60 Hz ≤14 VA
Output
9 VDC −12 VDC 800 mA −1250 mA
Electrical Safety
Complying with EN60601-1,
EN60601-1-2
Protection ：ClassⅡ
Environment requirements
Operation
Environment
Temperature
+10 ℃−+35 ℃
Relative Humidity
30% −75%
Atmospheric Pressure
700 hPa −1060 hPa
Shipping
Common Conveyance
Storage
Environment
Temperature
-40 ℃−+55 ℃
Relative Humidity
10% −90%
Atmospheric Pressure
500 hPa −1060 hPa
48792.000.00. N0
