Hi-Tec X1 Touch User manual

Version 1.0C Hitec RCD
INSTRUCTION MANUAL

- 01 -
TABLE OF CONTENTS
Introduction
Special Features
Lithium Polymer Balance Charge Program Connection Diagram
Warning and Safety Notes

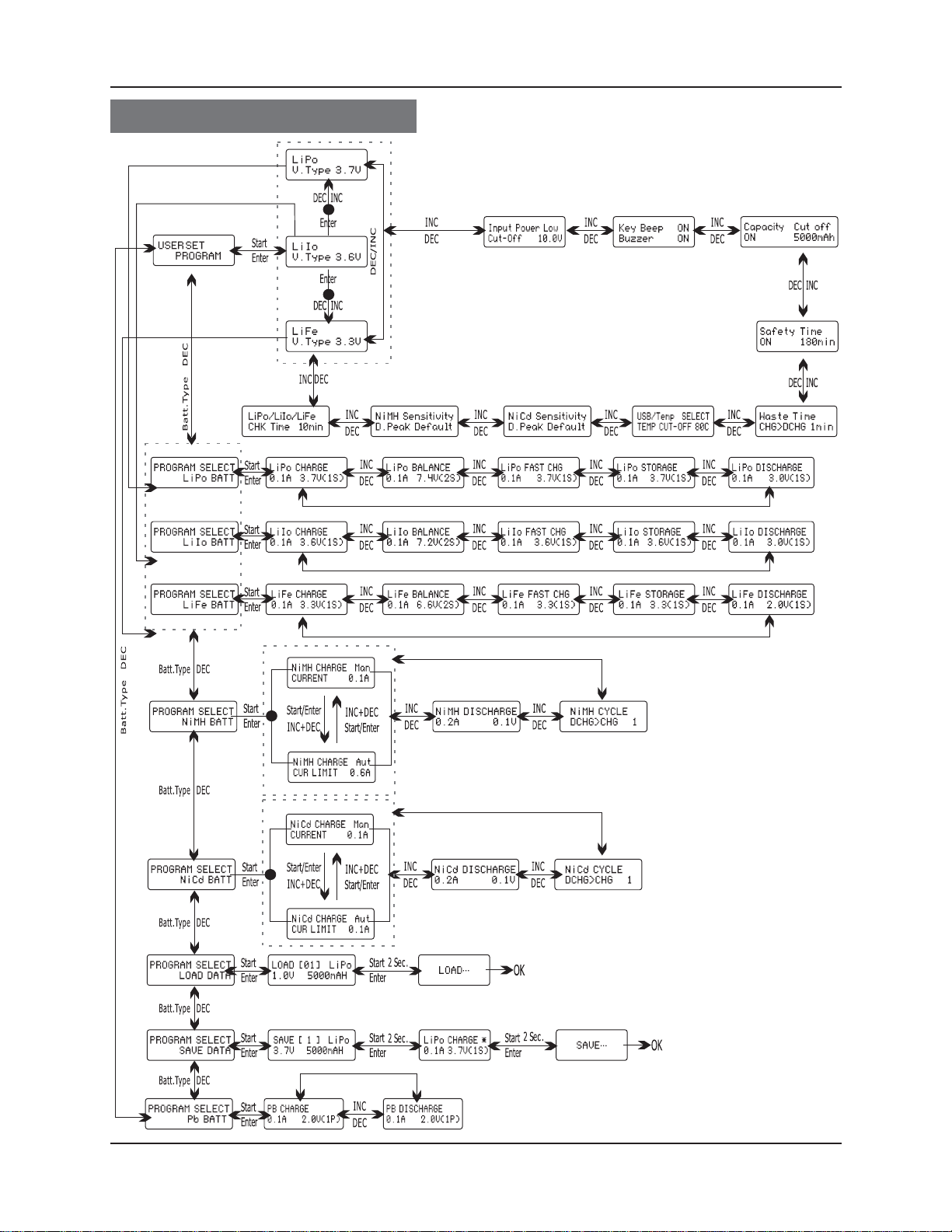

Program Flow Chart
Initial Parameter Set-up (User’s Set-up)
Lithium (LiPo/Lilon/LiFe) program
Charging Lithium Battery in Charge Mode
Charging Lithium Battery in Balance Mode
Fast Charging of Lithium Battery
Charging Lithium Battery in the Fast Charge Mode
Storage Control of Lithium Battery
Charging Lithium Battery in the Storage Mode
Discharging of Lithium Battery
Voltage Balancing and Monitoring in the Discharge Process
Charging of NiCd/NiMH Battery
Charging NiCd/NiMH Battery in the Charge Mode
Discharge of NiCd/NiMH Battery
Charge/Discharge and Discharge/Charge Cycle of NiCd/NiMH Battery
Charging of the Pb Battery
Charging Pb (lead-acid) Battery in the Charge Mode
Discharging of the Pb Battery
Data Storage Program
Load Data Program
Various Information in the Program
Warning and Error Message
Specifications
Warranty and Service
TABLE OF CONTENTS
02
03
05
06
11
12
15
16
16
17
17
18
18
19
19
20
20
20
21
21
22
22
23
24
25
26
27
27

- 02 -
INTRODUCTION
Thank you for purchasing Hitec’s X1 LiPo Balance Charger.
This product is a rapid charger with a high performance
microprocessor and specialized operating software. Before
using the product, please read the entire manual completely
and attentively as it covers a wide range of information on
operation and safety.
INTRODUCTION
AC Input
(AC 100-240V, 50/60HZ)
DC Input
11-18V DC
LCD Display
(16 char. 1 line)
Balance
Socket
Charging
Output
Scroll Through
the Main Menu of
Stop any Charge
Processes
Alter Cells
in Balance Charge Mode
See the Status of Individual
Resume or Start Charge Processes
Confirm an Action
Temperature
Sensor Port
Temperature
Controlled Fan

- 03 -
SPECIAL FEATURES
Optimized operating software
The X1 "auto" feature sets the charge and discharge current for you
automatically, preventing overcharging which can damage your
battery. In the event of an error, the X1 instantly disconnects the
circuit and sounds an alarm once. This feature can be set by the
user and controlled through the two-way link for maximum safety
and minimizes these type of problems.
SPECIAL FEATURES
Internal independent lithium battery balancer
The X1 features a built-in a cell voltage balancer so you don’t
need to fuss with external balancers while charging.
Balancing individual cells during discharging
The X1 also monitors and balances each cell in the pack
individually while discharging. If the voltage of any single cell is
abnormal, the X1 will display an error message and the process
will end automatically.
Adaptable to various types of lithium batteries
The X1 will charge and discharge a variety of Lithium batteries,
such as Li-ion, LiPo and the new LiFe series of batteries.
Fast and storage mode of lithium batteries
The X1 features two styles of charging. "Fast" charge reduces the
charge duration while "Store" controls the final voltage of your
battery, to optimize your packs for long term storage and maximum
lifespan.
Maximum safety
Our delta-peak voltage detection program ends the charge cycle
whenever a battery's voltage exceeds the set threshold.

- 04 -
SPECIAL FEATURES
Automatic charging current limit
Charging current can set by the user when charging NiCd or
NiMH batteries. The 'AUTO' charging mode, however, is
recommended when charging NiMH batteries with low
impedance and capacity.
Capacity and Temperature Limits
The charge process will terminate if either the charging capacity
or battery temperature exceeds the limit set by the user.
Temperature function requires an optional temperature probe,
which is not included with the X1.
Processing time limit
Protect your battery by setting a maximum time limit for charging
and discharging.
Input power monitoring
The X1's input voltage is monitored to protect the battery from
becoming damaged. The process ends automatically if it drops below
the limit.
Data store/load
A maximum of five setting profiles can be stored for your
convenience. The X1 will store the data pertaining to a program's
settings and you can call up data at anytime.
Cyclic charging/discharging
A battery can be cycled 1 to 5 times. This process is good for
refreshing and balancing your battery.

- 05 -
LITHIUM POLYMER BALANCE CHARGE PROGRAM
CONNECTION DIAGRAM
This diagram shows the correct way to connect your battery to
the charger while charging in the balance charge program
mode only.
LITHIUM POLYMER BALANCE CHARGE PROGRAM
CONNECTION DIAGRAM
WARNING:
Failure to connect as shown in this diagram will damage this
charger.
The main battery leads must be connected along with the balance
lead connector before charging your battery (see image above).

- 06 -
WARNING AND SAFETY NOTES
These warning and safety notes are particularly important.
Please follow the instructions for maximum safety; otherwise the
charger and the battery can be damaged or even worse, cause
a fire.
WARNING AND SAFETY NOTES
Never leave the charger unattended when it is connected to its
power supply. If any malfunction is found, TERMINATE THE
PROCESS AT ONCE and refer to the operation manual.
Keep the charger well away from dust, damp, rain, heat, direct
sunshine and vibration. Never drop it.
The allowable input voltage is 11-18V DC/110-240V AC.
This charger and the battery should be put on a heat-resistant,
non-flammable and non-conductive surface. Never place them
on a car seat, carpet or similar surface. Keep all flammable,
volatile materials away from the operating area.
Make sure you know the specifications of the battery to be
charged or discharged to ensure it meets the requirements of
this charger. If the program is set up incorrectly, the battery and
charger may be damaged. It can cause a fire or an explosion
due to overcharging. This warranty is not valid for any damage
or subsequent damage arising as a result of misuse or failure
to observe the procedures outlined in this manual.

- 07 -
WARNING AND SAFETY NOTES
NiCd/NiMH
- Voltage level: 1.2V/cell
- Allowable fast charge current: 1C-2C (depends on the
performance of the cell)
- Discharge voltage cut-off level: 0.85V/cell (NiCd),
1.0V/cell(NiMH)
Li-ion
- Voltage level: 3.6V/cell
- Max. charge voltage: 4.1V/cell
- Allowable fast charge current: 1C or less
- Min. discharge voltage cut-off level: 2.5V/cell or higher
LiPo
- Voltage level: 3.7V/cell
- Max. charge voltage: 4.2V/cell
- Allowable fast charge current: 1C or less
- Discharge voltage cut-off level: 3.0V/cell or higher
LiFe
- Voltage level: 3.3V/cell
- Max. charge voltage: 3.6V/cell
- Allowable fast charge current: 4C or less
- Discharge voltage cut-off level: 2.0V/cell or higher
Pb
- Voltage level: 2.0V/cell
- (Lead-acid) Max. charge voltage: 2.46V/cell
- Allowable fast charge current: 0.4C or less
- Discharge voltage cut-off level: 1.75V/cell or higher

- 08 -
WARNING AND SAFETY NOTES
To avoid a short circuit between the charge leads, always
connect the charge cable to the charger first, then connect the
battery. Reverse the sequence when disconnecting.
Do not connect more than one battery pack to this charger at
any one time.
Never attempt to charge or discharge the following types of
batteries:
A battery pack which consists of different types of cells
(including different manufacturers).
Batteries that are not expressly stated by the manufacturer to
be suitable for the currents the charger carries during the
charge process.
Batteries installed in a device or those which are electrically
linked to other components.
A battery fitted with an integral charge circuit or a protection
circuit.
A faulty or damaged battery.
Batteries that require a different charge technique from NiCd,
NiMh, LiPo or a Gel cell (Pb, Lead acid).
Non-rechargeable batteries (may pose an explosion hazard).
A battery that is already fully charged or just slightly discharged.
Please bear in mind the following points before commencing
charging:
Did you select the appropriate program suitable for the type of
battery you are charging?
Have you checked the battery voltage? Lithium battery packs
can be wired in parallel and in series, i.e. a 2-cell pack can be
3.7V (in parallel) or 7.4V (in series).
Did you set up adequate current for charging or discharging?

- 09 -
WARNING AND SAFETY NOTES
Have you checked that all connections are firm and secure?
Make sure there are no intermittent contacts at any point in the
circuit.
Charging
During the charging process, a specific quantity of electrical
energy is fed into the battery. The charge quantity is calculated
by multiplying charge current by charge time. The maximum
permissible charge current varies depending on the battery type
or its performance, and can be found in the information provided
by the battery manufacturer. Only batteries that are expressly
stated to be capable of quick-charge are allowed to be charged
at rates higher than the standard charge current.
Connect the battery to the terminal of the charger: red is positive
and black is negative. Due to the resistance difference between
the cable and the connector, the charger can not detect the
resistance of the battery pack. In order for the charger to work
properly, the charge leads should be of adequate cross-section
with high quality (normally gold-plated) connectors fitted to
both ends.
Always refer to the manual provided by the battery manufacturer
pertaining to charging methods, recommended charging current
and charging time. Lithium batteries, in particular,should be
charged strictly according to the charging instructions provided
by the manufacturer.
Special attention should be paid to the connection of the Lithium
battery.
Do not attempt to disassemble the battery pack arbitrarily.

- 10 -
WARNING AND SAFETY NOTES
Please note that Lithium battery packs can be wired in parallel
and in series. In the parallel connection, the battery’s capacity is
calculated by multiplying the single battery’s capacity by the
number of cells with total voltage remaining the same. The
voltage’s imbalance may cause a fire or explosion. A Lithium
battery is recommended to charge in series.
Discharging
The main purpose of discharging is to clean the residual capacity
of the battery, or to reduce the battery voltage to a defined level.
The same attention should be paid to the discharging process as
charging. The final discharge voltage should be set up correctly
to avoid deep-discharging. A Lithium battery can not be discharged
to lower than the minimum voltage, or it will cause a rapid loss of
capacity or a total failure. Generally, a Lithium battery doesn’t need
to be discharged. Please pay attention to the minimum voltage of
a Lithium battery to protect the battery.
Some rechargeable batteries have a memory effect. If they are
partly used and recharged before the whole charge is
accomplished, they remember this and will only use that part of
their capacity next time. It is said that NiCd and NiMH batteries
suffer from this memory effect and NiCd has more memory effect
than NiMH.
Lithium batteries are recommended to be discharged partially
rather than fully discharged. Frequent full discharging should be
avoided if possible. Instead, charge the battery more often or use
a battery of larger capacity.Full capacity cannot be used until it
has been subjected to 10 or more charge cycles. The cyclic
process of charge and discharge will optimize the capacity of
the battery pack.

- 11 -
PROGRAM FLOW CHART
PROGRAM FLOW CHART

- 12 -
INITIAL PARAMETER SET-UP (USER’S)
INITIAL PARAMETER SET-UP (USER’S SET-UP)
As a default, this charger will be set to default user settings when it is
connected to AC 110-240V or DC 11-18V for the first time. The screen
displays the following information in sequence and the user can
change the parameters on each screen.
The X1 recognizes the cell count of the Lithium
battery automatically at the beginning of the charge
or discharge process to avoid an erroneous setting
by the user. To prevent a deeply discharged battery,
which can be perceived incorrectly, from causing an
error, you can set the timer to verify the cell count
by the processor. Normally, 10 minutes is enough
to perceive the cell count correctly. For a battery of
larger capacity, you may extend the time term.
However, if you set the it too long for a battery of
smaller capacity, the charge or discharge process
can be finished within the time term with an
erroneous cell count. This may cause a fatal result.
If the processor
USER SET
PROGRAM->
LiFe
V.Type 3.3V
LiPo/LiIo/LiFe
CHK Time 10min
INC
INCDEC
INCDEC
This is the set-up starting screen.
The screen displays the nominal voltage of a
Lithium battery. There are three kinds of Lithium
batteries: LiFe(3.3V), Lilo(3.6V) or LiPo(3.7V).
This is very important so you have to check the
battery carefully and set it up correctly. If it is
different from the correct setting, the battery
may explode during charge process.
If you need to alter the setting in the program, press the “Start/Enter”
key to make it blink then change the setting with the “INC” or “DEC”
key. The setting will be stored by pressing the “Start/Enter” key once.
-+

- 13 -
INITIAL PARAMETER SETUP (USER’S SET-UP)
NIMH Sensitivity
D.Peak Default
NICD Sensitivity
D.Peak Default
Temp. Cut-off
ON 80C
INCDEC
INCDEC
-+
INCDEC
-+
INCDEC
INCDEC
-+
INCDEC
INCDEC
-+
INCDEC
INCDEC
INCDEC
-+
INCDEC
-+
recognizes the cell count incorrectly at the
beginning of the charge or discharge process,
you may extend the time. Otherwise, you should
use the default value.
This shows the cutoff voltage for the automatic
charge termination of a NiMH and NiCd battery.
The effective setting ranges from 5 to 20mV per
cell. If the trigger voltage is set higher, there is a
danger of overcharging the battery; if it is set
lower, there is a possibility of premature
termination. Please refer to the technical
specification of the battery.
(NiCd default: 12mV, NiMH default: 7mV)
The temperature cutoff will be turned on or off
with the use of the optional temperature probe
by contacting the surface of the battery. If it is
on, set the maximum temperature at which the
charger should allow the battery to reach during
charging. Once a battery reaches this
temperature, the process will be terminated to
protect the battery.
Waste time
CHG/DCHG 5min
The battery becomes warm after cycles of the
charge/discharge process. The program will
insert a time delay after each charge/discharge
process to allow the battery enough time to cool
down before beginning the next cycle of charge/
discharge. The setting ranges from 0 to 60 minutes

- 14 -
INITIAL PARAMETER SET-UP (USER'S SET-UP)
Safety time
ON 120min
Key Beep ON
Buzzer ON
Input Power Low
Cut-Off 10.0V
When the charge process starts, the integrated
safety timer starts to run simultaneously. If an
error occurs or the termination circuit cannot
detect whether the battery is fully charged or not,
the unit is programmed to prevent overcharging
and will terminate the charge process. Please refer
to the statement below to calculate the timer you set.
Safety Timer Calculation
When charging NiCd or NiMH batteries, divide the capacity by the
current, then divide the result by 11.9. Set this number of minutes as
the setting for the safety timer setting. If the charger stops at this time
threshold, about 140% of the capacity will have been fed into the battery.
For example:
Capacity Current Safety Time
2000mAh 2.0A (2000/2.0=1000)/11.9=84 minutes
3300mAh 3.0A (3300/3.0=1100)/11.9=92 minutes
1000mAh 1.2A (1000/1.2=833)/11.9=70 minutes
INCDEC
INCDEC
-+
INCDEC
-+
Capacity Cut-Off
ON 5000mAh
INCDEC
INCDEC
INCDEC
INCDEC
-+
INCDEC
-+
INCDEC
-+
This program provides a maximum capacity
protection function. If the Delta-peak voltage
can not be detected or the safety timer times
out, the charge process will stop automatically
when the battery reaches the user-set maximum
charge capacity,
A beep sounds to confirm the user's operation
every time a button is pressed. The buzzer or
melody sounds at various times during an
operation to confirm a different mode change.
These functions can be switched on or off.
This function monitors the voltage of the input
source used to power the charger. If the voltage
is lower than the user setting, the program will
end forcibly to protect the input source.

- 15 -
LITHIUM (LIPO/LILON/LIFE) PROGRAM
LITHIUM (LIPO/LILON/LIFE) PROGRAM
This program is only suitable for charging/discharging Lithium
(LiPo/LiIon/LiFe) batteries with a nominal voltage of 3.3/3.6/3.7V/cell.
The final voltage is very important; it should precisely match the
voltage of the battery: LiPo is 4.2V, LiIon is 4.1V and LiFe is 3.6V.
The current and voltage of the battery should be correctly set. When
you want to change the settings, please press the START/ENTER key
to make it blink and then use the DEC or INC to change the setting.
Then press the START/ENTER key again to store the setting.
The left side of the first line shows the type of
battery chosen. The setting on the left of the
second line is the current set by the user.
After setting the current and voltage, press
the START/ENTER key for more than 3
seconds to start the process
(charge current: 0.1-5.0A, voltage: 3.7-22.2V).
CHARGING LITHIUM BATTERY IN THE CHARGE MODE
LiPo CHARGE
2.0A 11.1V(3S)
INCDEC
-+
INCDEC
-+
Batt type
Stop Start Enter
Start
Enter
‘>3 seconds’
This displays the number of cells you set up
as ”S” and the processor detects as “R”. If
both numbers are identical, you can start
charging by pressing the START/ENTER
button. If not, press the BATT TYPE/STOP
button to go back to the previous screen to
carefully check the number of cells of the
battery pack before proceeding.
R:3SER S:3SER
CONFIRM(ENTER)
This screen shows the real-time status
during the charge process. Press the BATT
TYPE/STOP key once to stop the charge
process.
Li3s 1.2A 12.59V
CHG 022:43 00682
Number
of cells Charging time
Charging
current
Battery
voltage
Charged
capacity

- 16 -
CHARGING LITHIUM BATTERY IN THE CHARGE MODE
CHARGING LITHIUM BATTERY IN THE CHARGE MODE
This charging mode is for charging Li-Po/Ion/Fe batteries without a
balance lead.
The left side of the first line shows the type of
battery chosen. The setting on the left of the
second line is the current set by the user.After
setting the current and voltage, press the
START/ENTER key for more than 3 seconds
to start the process
(charge current: 0.1-5.0A, voltage: 3.7-22.2V).
BALANCE CHARGING OF LITHIUM BATTERY
LiPo BALANCE
2.0A 11.1V(3S)
INCDEC
-+
INCDEC
-+
Batt type
Stop Start Enter
Start
Enter
‘>3 seconds’
This displays the number of cells you set up as
”R” and the processor detects as “S”. If both
numbers are identical, you can start charging
by pressing the START/ENTER button. If not,
press the BATT TYPE/STOP button to go back
to the previous screen to carefully check the
number of cells of the battery pack before
proceeding.
R:3SER S:3SER
CONFIRM(ENTER)
This screen shows the real-time status
during the charge process. Press the
BATT TYPE/STOP key once to stop the
charge process.
Li3s 1.2A 12.59V
BAL 022:43 00682
Number
of cells Charging time
Charging
current
Battery
voltage
Charged
capacity
This function is for balancing the voltage of Lithium-polymer battery cells
individually while charging. In the balance mode, the battery needs to
have a balance lead to connect to the balance port at the right side of
the charger and the battery's power leads to the output of the charger.
Charging in this mode is different from the normal modes because the
built-in processor monitors the voltage of each individual cell and controls
the input current fed into each cell in order to equalize the voltage.
CHARGING LITHIUM BATTERY IN THE BALANCE MODE

- 17 -
FAST CHARGING OF LITHIUM BATTERY
LiPo FAST CHG
2.0A 11.1V(3S)
INCDEC
-+
INCDEC
-+
Batt type
Stop Start Enter
Start
Enter
‘>3 seconds’
R:3SER S:3SER
CONFIRM(ENTER)
Li3s 2.0A 12.59V
FAS 022:43 00682
Number
of cells Charging time
Charging
current
Current
voltage
battery
Supplied
capacity
In this mode, the charging current will lower toward the end of the
charge process. Toward the end of the charging process the constant
current (CV) will be reduced to 1/5 of the currant when the pack is
90% charged. The charging capacity will be slightly lower than normal
charging, but charging time will be reduced.
CHARGING LITHIUM BATTERY IN THE FAST CHARGE MODE
FAST CHARGING OF LITHIUM BATTERY
The left side of the first line shows the type of
battery chosen. The setting on the left of the
second line is the current set by the user. After
setting the current and voltage, press the
START/ENTER key for more than 3 seconds
to start the process
(charge current: 0.1-5.0A, voltage: 3.7-22.2V).
This displays the number of cells you set up
as ”R” and the processor detects as “S”. If
both numbers are identical, you can start
charging by pressing the START/ENTER
button. If not, press the BATT TYPE/STOP
button to go back to the previous screen to
carefully check the number of cells of the
battery pack before proceeding.
This screen shows the real-time status during
the charge process. Press the
BATT TYPE/STOP key once to stop the
charge process.

- 18 -
STORAGE CONTROL OF LITHIUM BATTERY
STORAGE CONTROL OF LITHIUM BATTERY
At this screen, you can set up the current
and voltage of the battery pack. Charging
and discharging will bring the batteries to the
voltage level of for storage.
LiPo STORAGE
1.0A 11.1V(3S)
INCDEC
-+
INCDEC
-+
Batt type
Stop Start Enter‘>3 seconds’
This screen shows the real-time status
during the charge process. Press the
BATT TYPE/STOP key once to stop the
charge process.
Li3s 1.0A 12.59V
STO 022:43 00682
Number
of cells Elapsed time
Charge or
discharge
current
Current
voltage
battery
Supplied
capacity
This function is for charging/discharging batteries that will not be used
immediately. The program is designed for charging or discharging
batteries of a specific original state as classified by type: 3.75V Li-ion,
3.85V LiPo and 3.3V LiFe. The program will begin to discharge if the
original state of the battery exceeds the voltage level for storage.
CHARGING LITHIUM BATTERY IN THE STORAGE MODE

- 19 -
DISCHARGING OF LITHIUM BATTERY
DISCHARGING OF LITHIUM BATTERY
The setting of the discharge current on the
left cannot exceed 1C, and the setting on
the right cannot be under the voltage
recommended by the manufacturer to avoid
deep discharging. Press the START/ENTER
key for more than 3 seconds to start
discharging.
LiPo DISCHARGE
1.0A 11.1V(3S)
INC
INC
DEC
-+
INCDEC
-+
Batt type
Stop Start Enter‘>3 seconds’
This shows the real-time status of discharging;
you can press the BATT TYPE/STOP key to
stop discharging.
Li3s 0.4A 12.59V
DSC 022:43 00682
BATTERY VOL ERR
CELL LOW VOL
4.14 4.16 4.09
2.18 0.00 0.00
Number
of cells Elapsed time
Discharge
current
Battery
voltage
Discharged
capacity
The processor monitors the voltage of each cell when the battery packs
are in the “storage” and “discharging” process. If the voltage of any cell
is abnormal, the X1 will show an error message and forcibly terminate
the program. So if there is battery damage or a disconnection, you can
see the error message and press INC to know which cell is damaged.
VOLTAGE BALANCING AND MONITORING IN THE
DISCHARGE PROCESS
This screen shows that the processor
detects that the voltage of one cell is
too low.
This screen shows the 4th cell was damaged.
If disconnection occurs, the setting of the
voltage may be zero.
