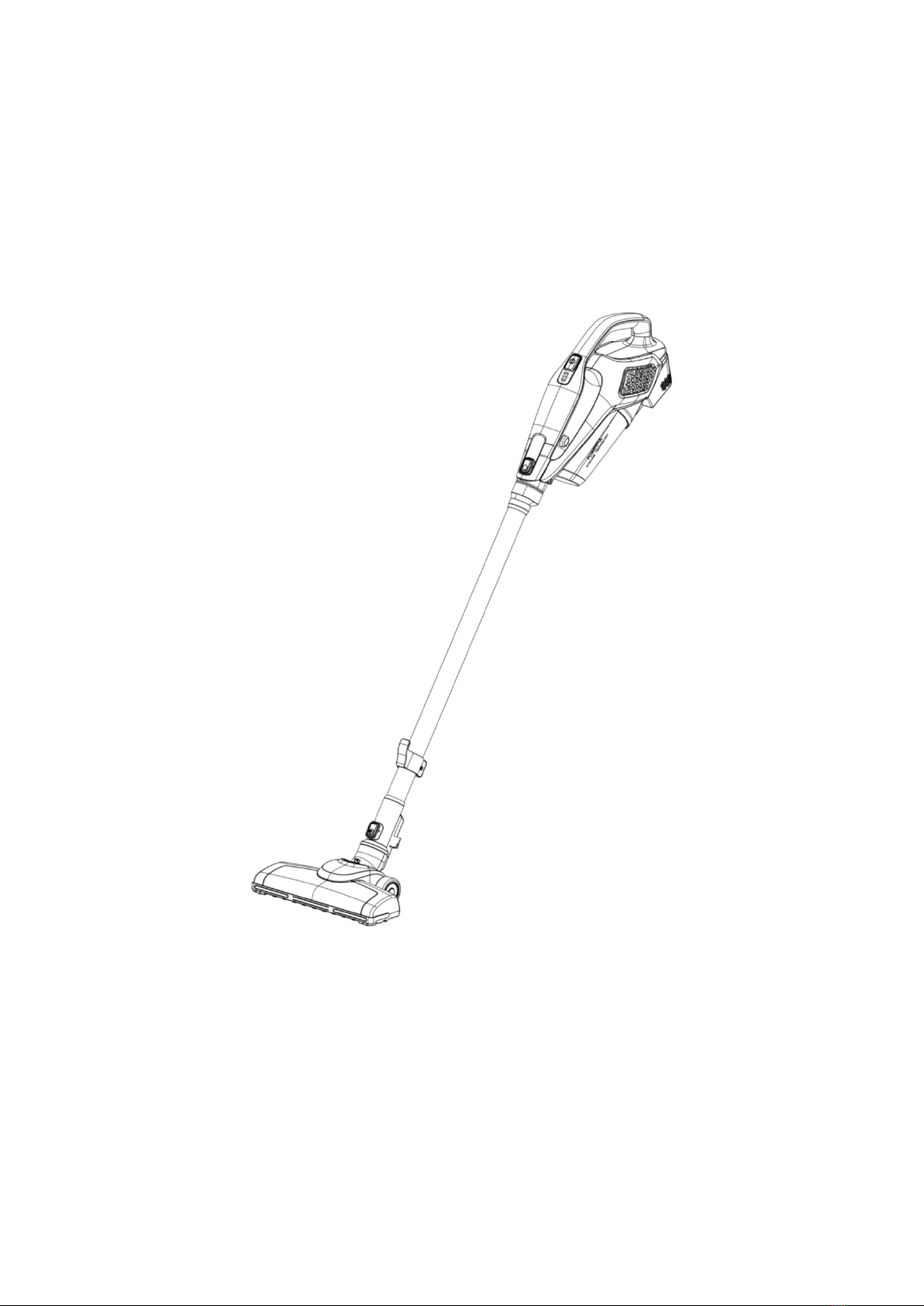

emartus SP-VA-H618L Operating and maintenance manual
SP-VA-H618L
INSTRUCATION MANUAL
HANDHELD & CORDLESS VACUUM CLEANER
Description Of Parts:
1.Cordless vacuum cleaner main unit
2.Aluminum tube
3.Electrical floor brush
4.on/off button
5.dust bin release knob
6.removeable dust bin
7. battery Indicator display
8.aluminum tube release knob
9.floor brush release knob
10.charge port
11.battery pack
12. flat brush
13.2 in 1 brush
14. adopter
15.motorize mini turbo brush
SAFETY INSTRUCTION:
1. Read this instruction booklet carefully.
2. This appliance is for domestic use only. Use as described in this instruction
booklet.
3. Before using this appliance, check that the mains power voltage
corresponds to the voltage shown on the rating plate.
4. Do not use the appliance to vacuum all the latter things:
water and other liquids
lighted stub, hot ashes and other combustible things
sharp matter
wood pieces, gesso, cement, calcimine and other tiny granules
5. Keep the vacuum cleaner away from stoves and heat-emitting appliance.
Heat can deform and discolor the plastic parts of unit.
6. Always remove the plug from the power socket when the appliance is not
in charging.
7. Never use spirits or other solvents to clean the appliance.
8. Never leave the appliance unattended when it is switched on. Keep the
appliance out of the reach of children or the infirm.
9. Do not switch the appliance on if it appears to be faulty in any way.
10. The battery must be removed from the appliance before it is scrapped.
11. The battery is to be disposed of safely.
12. The appliance must be disconnected from the supply when removing the
battery.
13. Only the adapter provided by the manufacturer can be used.
14. This appliance can be used by children aged from 8 years and above the
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
INSTRUCTION OF USE
Note:
Before using the Cordless Vacuum cleaner for the first time, clean it with a
soft, damp cloth and dry thoroughly.
Do not immerse the Cordless Vacuum cleaner in water or any other liquid.
Assembling the Cordless Vacuum cleaner
1. Assembling the battery pack
Fit the battery pack onto the main body base until it clicks into the position.
If need to remove the battery pack, hold the main body, press the release
knob and remove the battery pack.
2. Assembling the aluminum tube
Fit the tube onto the main body’s air inlet until it clicks into the position.
If need to remove the tube, hold the main body, press the release knob and
remove the tube
3. Assembling the electrical floor brush
Fit the electrical floor brush on the tube until it click into the position.
If need to remove the electrical floor brush, hold the aluminum tube, press
the floor brush release knob and remove the brush from the tube.
4. Assembling the 2 in 1 brush & flat brush
Fit the accessory on the main body’s air inlet and/or on the tube until it clicks
into the position.
The 2 in 1 brush & flat brush are good for cleaning stairs, in corners and
awkward crevices.
Operating the Cordless Vacuum cleaner
Before first time use, ensure the vacuum cleaner has been charged 4hours.
Turn on the Cordless vacuum cleaner by pressing the ON/OFF button.
1 time pressing the on/off button, operating in normal speed.
2 times pressing the on/off button, operating in high speed.
3 times pressing the on/off button, turn off the vacuum cleaner.
Note: Battery indicator light represents battery capacity and will illuminate
during use. The indicator light will extinguish one at a time as the battery
runs out.
Warning: Do not use the Cordless Vacuum cleaner without the removable
filter or dust bin not in position.
Charging the battery
Turn off the Cordless vacuum cleaner.
Connect the adapter to the charging port on the main unit.
Plug the adapter into the main power supply
The battery indicator display will flash and illuminate one by one. Once the
battery fully charged, the battery indicator display will extinguish
Warning: Do not use any mains power adaptor other than that supplied, as
using an alternative will increase the risk of injury and/or damage to main
product.
CARE AND MAINTENANCE
Filter replacement and cleaning
1. Turn off the Cordless vacuum cleaner
2. Press the dust bin release knob, remove the dust bin.
3. Come up with the filter, empty the dirt inside.
4. Cleaning the filter in water, wait for it to dry completely.
5. Put the filter back into the dust bin carefully.
6. Put the dust bin back into the main body
Rotating brush cleaning
1. Turn the brush bottom screw to unlock position (pictured)
2. Open the brush bottom fixed device.
3. Show brush, clean the rotating brush on the twisting thing.
4. Put the rotating brush back.
5. Turn the brush bottom screw to lock position.
BATTERY REMOVAL AND DISPOSAL
Take your cordless vacuum cleaner at the end of the long lifetime is not easy
in the garbage as it fitted with a Li-ion battery, but disposed of it in an
environmentally friendly way.
Discarded batteries are environmentally friendly and disposed of it in
accordance with applicable regulations.
Discharge the battery by running the appliance to stop the engine at idle.
Remove the battery from the appliance.
Dispose of the battery to a collection of chemical waste from.
PRODUCT SPECIFICATIONS
Product: VACUUM CLEANER
SP-VA-H618L
Battery type: Lithium-ion BATTERY
Capacity: 0.5L
Rated Voltage: 21.6V DC
Battery capacity: 2200mAh
Adopter:26V 500mA
Rated power: 110W
Operate time: 20-35minutes
Charge time:5H
N.W.:2.6KGS
SIZE:114*20*26cm
WARRANTY PERIOD AND CONDITIONS
At SPECILITE, we devote special attention to selecting high-quality materials
and use manufacturing techniques that enable us to create designer and
durable product ranges.
That is why we offer a two-years warranty against product manufacturing
defects. This product is under warranty for lifelong as from the date of
purchase, for normal, non-professional household use. The warranty shall
only apply upon presentation of the till receipt or the invoice on Amazon.
The warranty covers product breakdowns and malfunctions under the
condition that the product is used in accordance with its intended use and
subject to installation and maintenance in accordance with good practice and
the information contained in the user's manual.
This product must be installed so that it may be later removed without
damaging it.
This contractual warranty does not cover defects and damaged caused by the
natural wear of parts, bad weather, flooding, heat releases, freezing, damage
caused by water quality (hardness, aggressiveness, corrosion, etc.), by the
presence of foreign bodies transported by water or otherwise (sand, fillings,
etc.) or the lack of room ventilation, and damages that could be the
consequence of improper use, misuse, negligence, accident or maintenance
that is defective or does not comply with good practice or the information in
the user' s manual.
The following are also excluded from the warranty: harmful consequences
due to the use of accessories and/or non-original equipment manufacturer or
improper replacement parts, disassembly or product modification.
If you have any issues with your purchase, please contact us first to resolve
If you think we did our job as expected, we would be extremely grateful if
you could leave us feedback.
Thanks again for shopping with us!
