Empire eOne Series Manual

Page 1 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
Product & Chemical Disclaimer
The user must take responsibility in the selection of the products materials of construction. Empire
Pumps Ltd will act in an advisory role and offer recommendations; however, the user is liable for the
product selection in line with solutions and temperatures in which the equipment is operated.
Safety Precautions
WARNING: Prior to operating the pump read and understand the operating and maintenance
instructions.
WARNING: Ensure the pump is compatible with the fluids and temperatures being transferred. Always
consult Empire Pumps Ltd if there is any change in chemical concentrations or solution temperatures.
WARNING: Wear protective eye and personal equipment at all times when operating the pump. Follow
standard safety procedures when handling corrosive or harmful solutions.
WARNING: Ensure all operators of this equipment have been trained for safe working practices,
understand its limitations and wear safety goggles and equipment at all times.
WARNING: Correct procedures must be followed to drain the pump of all chemistries prior to physical
inspection of the pump.
WARNING: Excessive Pressure. Can result in serious injury or equipment damage. Do not service or
clean the pump whilst the system is pressurised. Relieve pressure from the system prior to
disassembly.
WARNING: Never operate the pump above the specified maximum operating pressure of the pump.
WARNING: Suction and discharge connections must be compatible with the solutions being pumped
and the maximum pressure capability of the pump.
WARNING: Maximum temperatures are based on mechanical stress only. Certain chemicals will
significantly reduce the maximum operating temperature of the pump materials. Consult with the
chemical manufacturer and Empire Pumps Ltd for solution compatibility and temperature limitations.
WARNING: The pump must not be used as structural support to the piping system. Ensure suction and
discharge pipe-work are independently supported to avoid stress on the pump parts.
WARNING: Use only Empire Pumps Ltd genuine spare parts to assure compatible pressure rating and
longest service life.
WARNING: Re-torque all fasteners before operation. Excessive torque is unnecessary and may cause
damage to the pump.
WARNING: Upon receipt of the pump, inspect for any signs of shipping damage. If damage has
occurred contact Empire Pumps Ltd.

Page 2 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
Important Checks
WARNING: Magnetic field hazard. The pump contains powerful magnets. It’s forbidden for individuals
who have cardiac pacemakers, defibrillators, other electronic devices, metallic heart valves, internal
wound clips, metallic prosthetic devices or sickle cell anaemia must not handle or be in proximity of the
magnets contained inside the pumps.
WARNING: Magnetic field. The pump should be assembled and dissembled in accordance with the
recommended procedures. The magnetic field is strong and will rapidly pull the impeller magnet
assembly into the drive magnet. Do not place fingers between the connecting surfaces to avoid injuries.
WARNING: Magnetic field. Keep the magnets away from metal chips and items such as credit cards,
discs and magnetic tapes inside computers and mobile phones.
WARNING: Flammable or Combustible Liquids: Please immediately consult Empire Pumps Ltd if the
solutions being transferred are flammable. The pumps detailed in this operating and maintenance
instructions cannot be used in explosive atmospheres. We have available specially manufactured
pumps for use in zoned areas.
WARNING: Hot Surfaces. Please note the maximum temperature capabilities of the pump materials. It
may be hot solutions are transferred and this can cause the outside areas of the pump to become hot
and cause burns.
WARNING: Rotating Parts. The pump has rotating components, follow local safety standards for locking
out the electrical drive motor from the power supply during maintenance and service.
WARNING: Please ensure suction and discharge valves are always open when operating the pump.
WARNING: DO NOT ALLOW THE PUMP TO RUN DRY. The pump must never be started without
solution inside the pump. If the pump is operated without solution a catastrophic pump failure will occur.
WARNING: Please follow standard lifting procedures when installing and maintaining pumps.
WARNING: Fill the pump with water or the liquid to be transferred before starting the pump unit. Always
ensure the pump is primed with solution prior to start up.
WARNING: Direction of rotation. Standing behind the pump and looking at the motor fan end, the
direction of rotation should be clockwise.
WARNING: Cold Environments. The pump must be drained of solution when installed outside or in an
environment where temperatures will drop below freezing point.
Warnings and Risks
Carefully read the warnings listed below as they provide important information regarding safe
installation, use and maintenance. Store this manual carefully for future reference.

Page 3 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
Once the packaging has been removed, check the pump, and if in doubt do not use the pump and
consult with qualified personnel. The packaging materials (such as plastic bags, polystyrene, etc..) must
not be left within reach of children as they are potential sources of danger.
Before connecting the pump, make sure that the data on the plate corresponds to that of the power
distribution network.
The nameplate data is shown on the adhesive label attached to the pump.
PLEASE NOTE:
•The equipment is made to perfection. Its durability, electrical and mechanical reliability will be
enhanced if it is correctly used and undergoes regular maintenance.
•The equipment is supplied with the earth on the power cable. It is recommended to always connect it
to an earthing system that is up to standard and equipped with a circuit breaker.
The electrical installation must comply with the rules in force in the country where it is installed. The use
of any electrical device requires compliance with some basic rules. In particular:
- do not touch the equipment with wet or damp hands or feet;;
- do not handle the pump with bare feet (typical situation: units used in swimming pools)
- do not leave the unit exposed to the elements (rain, sun, etc.) ;
- do not allow the pump to be used, serviced or cleaned by children or by people without adequate
training and without supervision.
WARNING:
•Any intervention or repair within the equipment must be carried out by qualified and authorised
personnel. We disclaim all responsibility as a result of non-observance of this rule.
•This equipment must NOT be used by: children, people with impaired physical, sensory or mental
capabilities, inexperienced personnel, unless they are supervised or instructed on the appropriate use
of the unit by a person responsible for their safety.
•In case of failure and / or malfunction of the pump, turn it off and do not tamper with it. For any
repairs please contact our service centres and request the use of original spare parts. Failure to comply
with the above may compromise the safety of the pump.
•If you decide to no longer use an installed pump it is recommended to make it inoperative by
disconnecting it from the power supply and emptying the pump body.
•If there are leaks from the hydraulic part of the pump (breakage of seals, valves, pipes), you must
stop the operation of the pump, depressurise the discharge pipe and proceed with maintenance using
appropriate safety measures (gloves, goggles, overalls, etc.).
•In case of failure and/or malfunction of the pump, turn it off and do not attempt to repair it. For any
repairs please contact our after-sales service centres and request the use of original spare parts.

Page 4 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
Failure to comply with these conditions may compromise the proper operation of the pump. The
nameplate data is shown on the adhesive label attached to the pump.
•In the event of damage to the pump power cable, ask for it to be replaced by our service centres or
qualified personnel to prevent risks for the people who use it;
•If you decide to no longer use an installed pump, it is recommended to disconnect it from the mains
EXPLOSION HAZARD:
•This equipment is not explosion-proof. Do NOT install and do NOT use in an explosive or potentially
explosive environment.
Dosage of hazardous and/or toxic liquids
To avoid damage to persons or property arising from contact with hazardous liquids or toxic fumes, in
addition to compliance with the instructions contained in this booklet, the following standards should be
made well aware of:
•Always wear protective clothing, including gloves and safety goggles, operating as recommended by
the manufacturer of the liquid (additive) to be used. (Risk of potential explosions, burns, fire, personal
injury or damage)
•Check that the hydraulic part of the pump is not damaged or broken and use the pump only when in
perfect condition.
•Use tubes suitable for the liquid and the operating conditions of the plant, inserting them possibly
inside PVC protection tubes.
•Before you turn off the metering pump you must depressurise the system and neutralise the
hydraulic part with a suitable reagent.
•When you connect a metering pump either to the public water supply or to your own water source,
you must comply with the protection regulations in force or dictated specifically by the network provider.
In both cases always provide safety devices that prevent the return of flows towards the source, like for
example check valves etc.
•WARNING: Protect the pump and chemicals from the elements (frost, rain, sun etc.).
•It is recommended to install the pump in areas where leakage of liquid product (additive) cannot
cause personal injury or property damage.
Intended use of the pump
The pump is designed exclusively for the purpose for which it was expressly built, i.e. for metering
liquids. Any other use must be considered dangerous. Using the pump for applications other than those
for which it was designed is prohibited. For further details, customers may contact our offices to receive
information about the type of pump purchased and its proper use. The manufacturer cannot be held
responsible for any damage caused by improper, erroneous or irrational use.
Shipping to the factory for repairs and/or maintenance

Page 5 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
The material to be sent to the factory for maintenance should be disassembled and packed carefully; all
the parts in contact with the chemical must be emptied and rinsed to ensure the safety of the operators
while transporting and handling the material in the laboratory. In the event of failure to comply with the
instructions given, we reserve the right to reject the equipment and to return it at your expense; damage
caused by the chemical to the material will be included in the repair estimate.
Assembly and Disassembly
The dosing pumps are usually supplied already assembled. For greater clarity, you can consult the
attachment at the bottom of the manual which illustrates an enlarged view of the pump, and all the
details with its nomenclature, so that you can have a complete picture of the pump components. These
drawings are however indispensable if you have to identify malfunctioning or defective parts. Other
designs, related to the hydraulic parts (pump head and valves) are shown for the same purpose, in the
appendix.
For the eventual dismantling of the pump or before starting work on it:
•Make sure that it is turned off electrically (both polarities) by disconnecting the connection cables
from the contact points of the network through the opening of a phase switch with a minimum contact
gap of 3 mm (Fig. 6).
•In an appropriate manner, carefully dispose of any remaining pressure from the pump body and from
the injection tube.
•Remove all liquid present from the pump body, then proceed by disassembling and reassembling the
pump body, by unscrewing and screwing the four screws (tightening torque: 180 to 200 N * cm).
This last point requires special attention, so please refer to the drawings in Annex 1 and the chapter
"RISKS" before starting any operation.
Operating principle
The operation of the dosing pump is provided by a membrane in PTFE (Teflon ®) mounted on the piston
of an electromagnet. When the piston of the electromagnet is attracted, a pressure is produced in the
pump body with an ejection of liquid from the discharge valve. Once the electric impulse is over a spring
returns the piston to its initial position with a recall of liquid through the suction valve. Given the
simplicity of operation the pump does not need lubrication and requires very little maintenance. The
materials used for the construction of the pump make it suitable for the dosage of chemically aggressive
liquids. The dosing pump is designed for capacities ranging from 1 to 30 l / h and pressures of 4 to 20
bar depending on the model.
Technical Specifications
•Equipment manufactured in accordance with EC standards.
•External casing made out of plastic material resistant to acid and temperature.
•Control panel protected with serigraphic film.
•Multi voltage power supply 100-250 V 50-60 Hz
•Degree of protection: IP65

Page 6 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
•Environmental conditions: indoors, maximum altitude 2000 m, room temperature from 5 ° C to 40 °
C, maximum relative humidity 80% up to a maximum of 31 ° C (decreasing linearly until it is reduced to
50% at 40°C)
•Classification with respect to protection against direct contacts: CLASS I, the equipment is supplied
with a protective conductor
Reference Standards
The dosing pump complies with the following directives:
•2006/95/EC: "Low tension"
•2004/108/EC: "Electromagnetic compatibility"
Operating functions:
When first turned on the user can choose between different operation modes as best illustrated in the
following chapters.
In general, the pump can operate in the modes specified in the following table.
Modes
Description
MANUAL
The pump doses in a continuous manner up to a maximum of 300 injections
per minute (the number of injections / minute changes as a function of the
maximum capacity). The flow rate is adjustable by the user in the
programming phase.
PROPORTIONAL
Meter
In this mode the pump receives impulses from an external meter, the pulses
are managed in one of the following operational functions:
• 1 x N: each impulse of the meter corresponds to the N injections of the
pump.
• 1 x N(M): each meter impulse corresponds N of the pump, with storage
for up to 4 * N impulses from the meter during dosing
• 1 / N: each N impulses of the meter corresponds to a single pump
impulse.
• ml x imp: at each meter impulse the pump dispenses a pre-determined
amount of additive in millilitres.
• l x imp: at each meter impulse the pump dispenses a pre-determined
amount of additive in litres.
PROPORTIONAL
ppm - ml x m3 from
the meter
The pump doses directly in ppm (Parts Per Million) or else in ml x m3
(millilitres per cubic metre).
The device automatically carries out all calculations necessary to
provide the required concentration.

Page 7 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
PROPORTIONAL
from mA input
The pump doses in proportion to a 4-20 mA current signal coming from an
external transducer. The setting of maximum and minimum values can be set
in the respective set-up menu.
Additional functional principles
Function
Description
FLOW SWITCH
ALARM
The pump controls by means of the flow-status (available on request and
inserted on the pump delivery), the actual injections delivered, signalling any
anomaly, by means of the LED alarm and the switching the relevant relay (if
enabled).
LEVEL ALARM
Operational if enabled in all functional modes, the opening or closing of the
contact on the level probe, indicates the end of the additive in the tank, the
pump stops and the relay switches (if enabled).
UNDERLOAD
ALARM
Operational if enabled in all functional modes, the system controls the intake
and in the absence of liquid in the tank, of an inoperative valve, of the air inlet
of the suction tube being disconnected etc., the pump will stop and the relay
switches (if enabled).
OVERLOAD
ALARM
Operational if enabled in all functional modes, the system checks the flow
and in the event of overpressure in the pump body, caused by an obstruction
in the discharge line or by a high operating pressure which exceeds the pump
features, the pump will stop and the relay switches (if enabled).
TOO MANY
IMPULSES
ALARM
The pump, in 1xN (M) and PPM ml x m 3 mode, controls at all times the
number of injections that have yet to be carried out. If they are greater than
an amount equal to 4 × N, where N is the impulses to be delivered for each
contact, the pump will go into alarm resulting in LED lights and the
intervention of the relevant relay.
RELAY
SERVICES
OUTPUT
Activated by the menu of all the above alarms, allows for remote signalling of
alarms.
Features: 1 changeover - 250V a.c. 5 Amp (resistive load).
CLOCK
Possibility to set the date and time, parameters necessary if the mode with
timer (TIMER) is activated.
LEVEL REMOTE
CONTROL
Remote monitoring of the state of activation of the pump (Start / Stop).
Possibility of choosing between a contact normally open or closed. (NORMAL
or REVERSE polarity).
TIMER
Weekly and daily timer. 16 cycles ON / OFF daily. Settable per minute
LANGUAGE
Language Selection menu. Italian / English
RESET
Ability to perform two types of reset: "soft" to reset the settings of all the
functions, "hard" to reconfigure the mode of use of the device (proportional or
instrument) and to restore the factory settings.

Page 8 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
The pump is equipped with a power supply board that regulates the power absorbed as a function of the
operating pressure (excluding the BASIC series). The following table shows the technical features of the
eOne series and the corresponding flow curves:
Type
Flow at Max Pressure
Pressure
Setting
Electric
Power
Current
Weight
L/h
mL/min
mL/
stroke
Max [bar]
[imp/1’]
Power supply
[W]
MAX [A]
[kg]
0110
1 (0.26)
16,66
0,09
10
(145)
0–180
100 -250 V
50-60 Hz
19
1.4
3.0
0216
2 (0.53)
50,00
0,11
16
(232)
0–300
21
1.4
3.5
0420
4 (1.06)
83,33
0,22
20
(290)
0–300
21
1.4
3.0
0607
6 (1.59)
83,33
0,33
7 (101)
0–300
28
2.0
4.5
0710
7 (1.84)
133,33
0,39
10
(145)
0–300
26
1.8
3.5
1012
10 (2.64)
166,66
0,56
12
(174)
0–300
36
1.8
4.5
1505
15 (3.96)
250,00
0,83
5
(72)
0–300
26
1.8
3.5
2007
20 (5.26)
333,33
1,11
7 (101)
0–300
32
1.9
4.7
3005
30 (7.92)
500,00
1,66
5
(72)
0–300
32
1.9
4.7
0210(*)
2 (0.53)
33,33
0,18
10
(145)
0–180
36
1.6
3.0
0507(*)
5 (1.32)
83,33
0,46
7 (101)
0-180
36
1.6
3.0
(*) BASIC model only
The values shown are with a tolerance of + / - 5%, and relate to a series of tests carried out on similar
equipment with water at a temperature of 20 ° C.
Pump
Head
Membrane
Seals
Valves
Connections
Pipes
Pump
Casing
PVDF
PTFE
TFE/P
CERAMIC
TFE/P
PVDF
PE / PVC
PP

Page 9 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
Installation
Introduction
This section describes the steps for installing the pump, the pipes, and the electrical wiring. Read these
instructions carefully before beginning any activity.
Follow these guidelines when installing the pump.
•Ensure that the pump and all related equipment is turned off before starting work.
•If you encounter abnormalities or warning signals, stop immediately. Only start work again when you are
absolutely sure that you have removed the cause of the problem.
•Do not install the pump in hazardous locations or in areas at risk of fire or explosion.
•Avoid electrical hazards and fluid leakage. Never use a damaged or defective pump.
Pump installation
Install the pump away from heat sources and in a dry place at a maximum ambient temperature of 40 ° C.
The minimum temperature, not lower however than 0 ° C, depends on the type of liquid to be metered, which
must always remain in a liquid state. To fasten the pump use the supplied screw anchors, or those most
suited to the support type chosen.

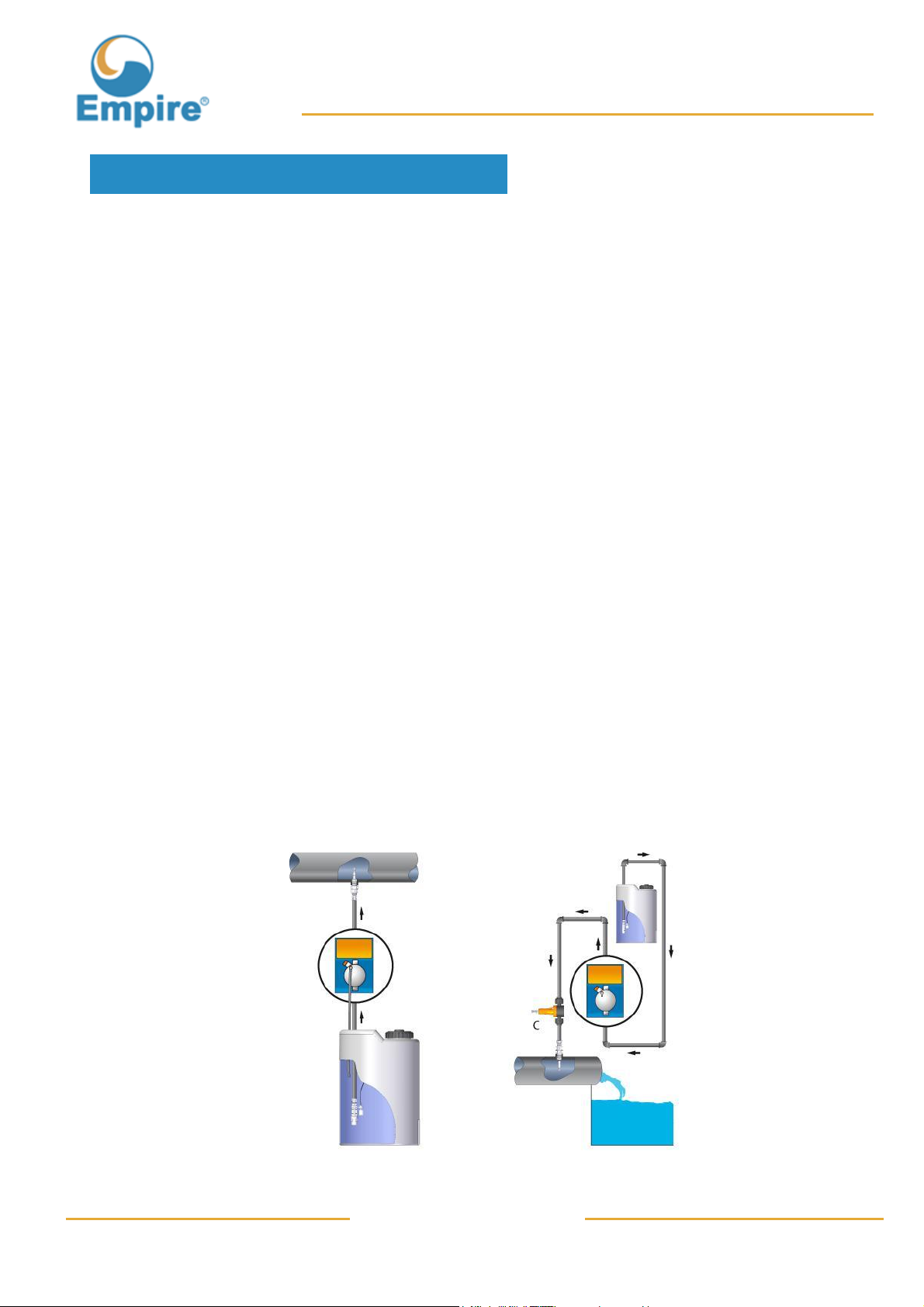

The pump can be installed either above or below the liquid level in the tank. Usually in the case of
installation above the tank, limit the suction height to within 1.5 metres of the liquid level. (see fig. 2a). For
liquids that generate aggressive vapours, do not install the pump into direct contact with the fumes and
adopt the necessary precautions to prevent early deterioration of the equipment.
In the case of installation below, i.e. with the pump positioned below the liquid level of the tank (Fig. 2b),
siphoning may occur. Periodically check the functionality of the injection valve, as excessive wear may lead
to the additive falling into the plant even with the pump turned off. If the problem persists, fit a back pressure
valve C suitably calibrated between the metering pump and the injection point as shown in Fig. 2b
Fig 2a. Fig 2b.

Page 10 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
Electrical connection
Comply with the rules in force in the various countries with respect to the electrical installation. If the power
cable is devoid of a plug, the equipment must be connected to the mains supply via a double pole isolator
switch with a minimum distance between contacts of 3 mm. Before accessing any of the connection devices,
all supply circuits must be interrupted (Fig. 6).
Fig 3. - Electrical Connection
Hydraulic Connection
The flow connection will always remain in the upper part of the pump from where the tube goes to the
system to be treated. The suction fitting therefore will always be in the lower part of the pump, where the
tube with the filter will be mounted that goes to the container of the liquid to be metered.
1. Remove the seal on the nut (2)
2. Insert the pipe through nut (2) and the bushing (3)
3. Push the end of the tube (1) on the conical spout
of the nozzle (4)
4. Pull the nozzle (4) on the connector (5)
5. Tighten the nut (2) on the connector (5)
Fig.4 –Hydraulic Connection

Page 11 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
To prime the pump, connect the discharge tubing and follow the sequence shown in Figure 5.
•unscrew the bleeding knob, with the pump running,
•keep the bleed valve B open until all the air contained in the tube and in the pump body comes out,
•close the bleed valve.
If you are experiencing difficulty in priming the pump, then with a syringe withdraw the additive from the
bleed nipple reducing the number of impulses delivered by the device.
Fig.5 –Bleed operation for priming
Diagram of typical system
A Injection fitting
B Injection valve
C Back pressure valve
D Pressure Gauge
E Relief valve
F Electrical power socket
G Additive tank
H Bottom filter
I Level probe
Fig. 6 –Typical Plant
Both on the flow pipe and the suction pipe avoid excessive curves in order to prevent bottlenecks in the pipe
itself. In the point most suitable for the injection of the product to be dispensed, apply a 3/8" fitting or a ½"
female gas thread on the conduct of the plant to be treated. This fitting is not supplied. Screw the injection
valve to the "gasket fitting" using PTFE tape, see Fig 7. Connect the tube to the conical injection valve and
secure it with the locking ring (4). The injection valve is also a non-return valve.

Page 12 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com

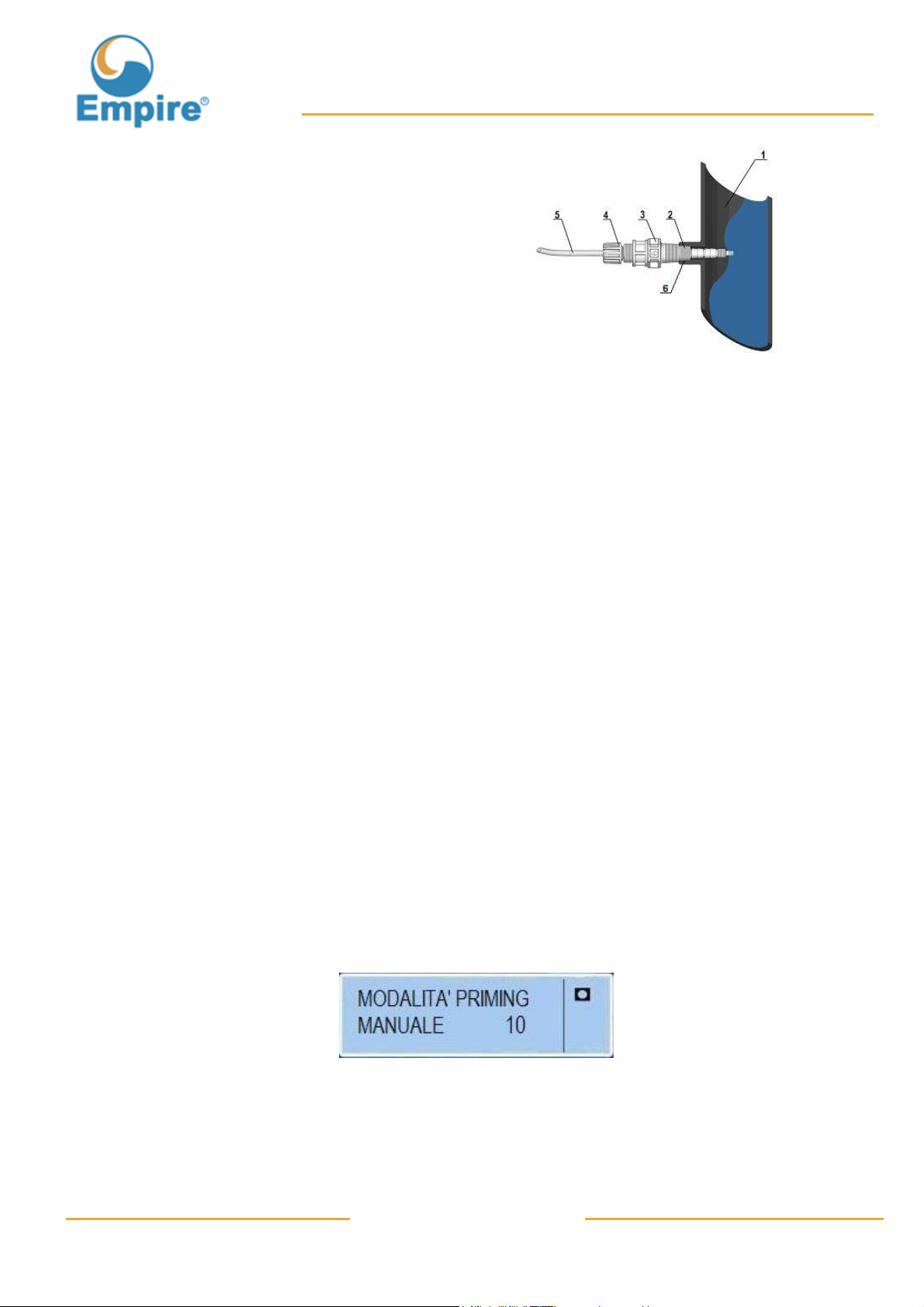

1. plant to be treated
2. 3/8 "- ½" conical connection
3. injection valve
4. locking ring for pipe connection
5. pump flow tube
6. PTFE tape
Fig. 7 - Connection assembly
Installation Kit
The following is supplied with the pump:
•4 m of PVC flexible transparent suction tube
•2 m semi-rigid polyethylene opaque delivery hose
•n. 1 3/8 "- ½" BSP injection valve
•n. 1 bottom filter
•n. 1 set of instructions
Priming Function
In order to facilitate the priming the pump is equipped with PRIMING function. It’s recommended to open the
bleed air by-pass on pump head (for pumps with it) during priming. The air bleed nipple must always be
connected with the return hose to the suction tank.
The activation of this function can occur at any operating menu in the following way:
•Press and hold START/STOP button
•After about 3 seconds the pump starts delivering injections at the priming frequency of 150 imp/min, as
long as the operator does not release the START / STOP button. When you press the button the following
screen appears on the display:
•Once you release the button, the pump stops 10 sec. countdown starts. At the end the pump switches
back to the previous operating mode, in stand-by condition. Pressing the START / STOP button the pump
goes in running mode.

Page 13 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
•During the countdown pressing and holding down START/STOP the pump starts to give injections to
reach the right dosing condition to existing system pressure. We recommend that you use this procedure to
return the pump in optimal working condition especially if it operates at any proportional mode. During this
phase, you should close of the bleed valve on the pump body. Once you release the button, the pump will
return to stand-by mode.
•The PRIMING function can be utilized when the pump PASSCODE is activated. To do this press and
hold the START/STOP button, after 3 seconds the pump starts injecting at the priming frequency (150
strokes/min) until you release the START/STOP button. At the end of the sequence the pump will go back to
the previous mode. You will need to enter the password that you have previously used to get access the
different menus.
Special Warnings for the Metering of Sulphuric Acid (max. 50%)
In this case it is essential to bear in mind the following:
•replace the transparent PVC suction hose with a semi-rigid polyethylene delivery tube.
•remove in advance all the water present in the pump body, in fact if this is mixed with the sulphuric acid it
generates a strong concentration of gas resulting in the overheating of the area causing damage to the
valves and the pump body.
If the equipment is not attached to the system you can carry out this operation, by activating the pump for a
few seconds (15 -30) holding it upside down with no tubes connected to the fittings, if that is not possible
then disassemble and reassemble the pump body (Fig .10), via the four fixing screws.
Operational Instructions (Commissioning)
Control Panel

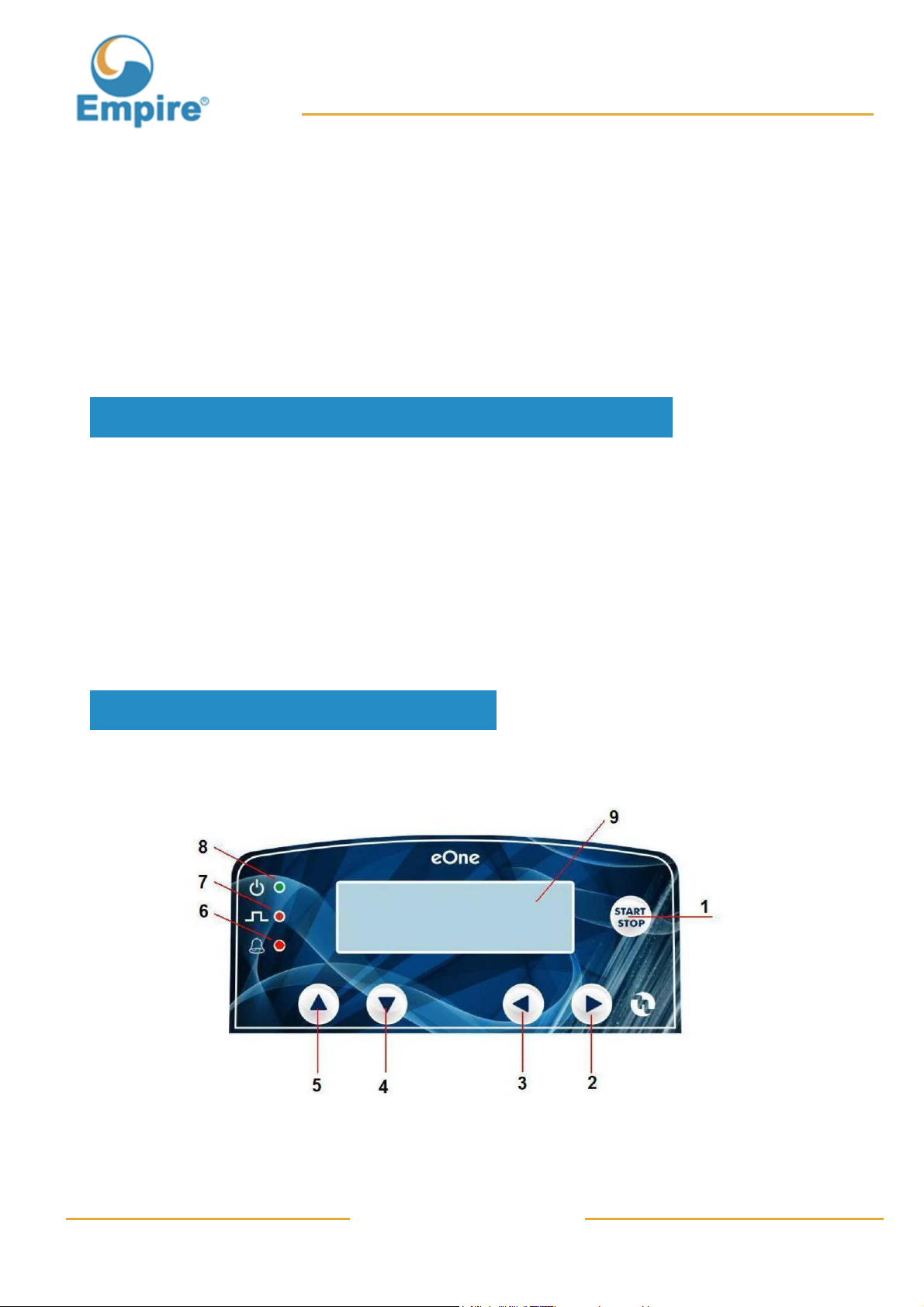

Fig. 8 –Control and Display Panel

Page 14 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
1
Start and Stop Button
2
Button to scroll the menu to the right, increase values
3
Button to scroll through the menus to the left, decrease values
4
Button access to submenus, scroll down the menu below, to CONFIRM your choice
5
Button to scroll up the submenu
6
Yellow LED flow status alarm / power failure alarm / maximum acceptable impulse
difference alarm
7
Injections signalling red LED
8
Bi-colour LED pump powered / Stand by
9
Graphic Display
Multifunction pump
The metering pump can operate in either Proportional or manual mode. At the first power on you can choose
the operating configuration of the equipment. With reference to the following table, the operator can select
the mode that best suits his metering needs: only some of the many programming menus will be made
available, so you get a simplification and speeding up of the device commissioning.
Operating functions:
Configuration
Type
MANUAL
1x N
1xN (m)
1/ N
mL/imp.
L/imp.
mL/m3
PPM
mA
Timer
VFT
FW01
✓
✓
✓
✓
VFT-S
FW02
✓
✓
✓
✓
✓
✓
MF
FW03
✓
✓
✓
✓
✓
✓
✓
✓
✓
VFT-T
FW05
✓
✓
✓
✓
✓
VFT-S-T
FW06
✓
✓
✓
✓
✓
✓
✓
MF-T
FW07
✓
✓
✓
✓
✓
✓
✓
✓
✓
✓
Once the configuration is set, scrolling the menu with the RIGHT () and LEFT () arrow keys, confirm the
choice with the START / STOP button. For an eventual reconfiguration it is necessary to do a TOTAL
RESET.

Page 15 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
For accurate metering, in the eOne and MF Plus models we have implemented the option to automatically or
manually set the actual flow rate for each injection. The following describes the practices that must be
observed for "AUTOMATIC" calibration:
Injection Calibration Procedure
•Fill a graduated cylinder with the additive to be dosed by the pump and immerse the suction tube in it.
•Connect the delivery pipe of the metering pump to the plant to be treated.
•From the "SETTINGS" menu select the function "FLOW CAPACITY" and select the "AUTOMATIC" mode
•Press the DOWN ARROW button to proceed to the priming of the metering pump which will begin to emit
injections, until the pump body and the two suction and discharge pipes are full.
•Once finished priming press the DOWN ARROW button.
•Select the frequency of calibration procedure by press RIGHT AND LEFT ARROW buttons (standard
value is 150 imp/min.).
•Press DOWN ARROW button. The pump will run for one minute.
•Once the injections are finished the metering pump will have suctioned a certain amount of additive
whose quantity can be calculated by means of the scale on the cylinder.
•The amount of suctioned fluid, for example: 110 ml, should be set on the display and via the ARROW
DOWN button the selected value will be confirmed.
•The logic of the pump will run the following operation:
value of additive suctioned / number of impulses delivered = flow rate of each injection (110 / 150 = 0.73)
•the factory-set value of 0.45 ml will become 0.73 ml.
Operational Functions of the Multifunction Pump
In order to facilitate the consultation of this manual, the configuration with the function described is shown in
the subsection titles.
Manual
This configuration is present in all versions. The metering pump operates at a frequency predetermined by
the user within the following range:
•0 to 300 impulses / minute (depending on the maximum flow)
•0 to 900 impulses / hour
•0 to 900 impulses / day
During the operational phase of the manual mode, you can view the impulses / minute, the rate of dosage or
the actual litres / hour delivered by the pump; use the left or right arrow keys to select the desired display.

Page 16 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
Proportional 1XN (VFT, MF, VFT- T, MF -T)
The pump is provided with a connector for connection to an external water meter which can provide a series
of contacts proportional to the amount of liquid that must be treated. A flashing dot on the display shows the
input impulse from the meter. For each contact received, the pump delivers a series of injections equal to the
N value set by the operator. Any contacts that come from the meter to the pump, while it is already delivering
the N series of injections, are ignored.
Proportional 1XN (M) (VFT, MF, VFT -T, MF -T)
Unlike the previous mode, in this one the pump stores any received impulses in the memory while it is
delivering injections. Depending on the time interval between impulses coming from the meter, the pump
automatically adjusts the frequency of the injections. If the injections accumulated and still to be dispensed,
exceed the value "4 × N", the pump will go into alarm (if this alarm has been enabled) and stop the metering.
The display shows dynamically the number of injections that must be provided.
Proportional 1:N (VFT, MF, VFT-T, MF- T)
The pump is provided with a connector for connection to an external water meter which can provide a series
of contacts proportional to the amount of liquid that must be treated. Every N contacts received by the meter,
the pump delivers an injection. The display shows the number of contacts received up to the set value. At
the delivery of the impulse the display resets and begins the next count.
Proportional ml x imp (VFT- S, MF, VFT- S-T, MF-T)
The pump is provided with a connector for connection to an external water meter which can provide a series
of contacts proportional to the amount of liquid that must be treated. For each contact, received from the
meter, the pump delivers a number of injections directly proportional to the set value in "ml" (millilitres)
requested by the user. The display shows in a dynamic manner the amount dosed in "ml".
Proportional l x imp (VFT-S, MF, VFT-S -T, MF- T)
As for the previous mode with the difference being that displayed in litres.
Proportional ml x m3 (VFT- S, MF, VFT- S-T, MF-T)
For those who need a ml x m3 metering a specific function has been provided: by setting the required
parameters in the programming menu, the electronic system performs the necessary calculations and
determines the type of intervention required to effect the pump. The parameters that must be defined are the
following:
L / I METER Sets the litres per impulse that are delivered by the meter used in the system, the
expected types are as follows:
0.1 –0.15 –0.20 –0.25 –0.30 –0.35 –0.40 –0.45 –0.50 –0.55 –0.60 –0.65 –0.70 –0.75
–0.80–0.85–0.90–0.95–1–1.5–2–2.5–3–3.5–4–4.5–5–5.5–6–6.5–7–7.5
–8–8.5–9–9.5–10–15–20–25–30–35–40–45–50–55–60–65–70–75–80
–85–90–95–100–150–200–250–300–350–400–450–500–550–600–650–700 –750 –800 –
850 –900 –950 –1000

Page 17 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
% SOLUTION Generally the additive to be dosed by the pump is part of an aqueous solution in a
specified percentage. Set this value using the special arrow keys of the keyboard:1–100%
ml x m SET3 set the value in ml x m3 which must be guaranteed in the plant. The permissible range is
as follows: 0.1 –50.000 ml x m3
Proportional ppm (VFT - S, MF, VFT-S-T, MF-T)
For those who need a Parts per Million metering the PPM function has been provided: by setting the
required parameters in the programming menu, the electronic system performs the necessary calculations
and determines the type of intervention required to effect the pump. The parameters that must be defined
are the following:
L / I METER Sets the litres per impulse that are delivered by the meter used in the system, the
expected types are as follows:
0.1 –0.15 –0.20 –0.25 –0.30 –0.35 –0.40 –0.45 –0.50 –0.55 –0.60 –0.65 –0.70 –0.75
–0.80–0.85–0.90–0.95–1–1.5–2–2.5–3–3.5–4–4.5–5–5.5–6–6.5–7–7.5
–8–8.5–9–9.5–10–15–20–25–30–35–40–45–50–55–60–65–70–75–80
–85–90–95–100–150–200–250–300–350–400–450–500–550–600–650–
700 –750 –800 –850 –900 –950 –1000
% SOLUTION In many cases the additive to be dosed by the pump is part of an aqueous solution in a
specified percentage. Set this value using the special arrow keys of the keyboard: 1-100%
PPM SET Set the value in p.p.m. (Parts Per Million) that the plant must guarantee. The permissible
range is as follows: 0.1 –50.000 ppm
Proportional mA (VFT- S, MF, VFT-S-T, MF-T)
The pump is equipped with a current input. It receives a signal that is between 0 and 20 mA and delivers a
series of injections proportional to the signal received.
The parameters to set are the following:
Setting mA (1) SET 1:
mA value at the set point 1, through the definition of SET 1 we establish the value
in mA from which we want to start the metering. Default Value - 4.0 mA.
Setting mA (2) SET 2:
mA value at the set point 2, through the definition of SET 2 we establish the value
in mA from which we want to start the metering. Default Value - 20.00 mA.
Impulses/minute (1) SET 1:
The pump automatically changes the frequency of injections between the two set
points previously set (SET1 - SET2). The user has the option to define the number
of impulses per minute, corresponding to the value in mA set in SET1: Default
Value 0 imp/min.
Impulses/minute (2) SET 2:
The user can define the number of impulses per minute corresponding to
the maximum metering peak: the largest selectable value must be greater than
that set on the SET1 but may not go beyond the maximum frequency of impulses
per minute that can be delivered by the pump.

Page 18 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
Under mA (1) SET 1:
In relation to the system requirements, the pump allows you to determine whether
to continue or terminate the metering when the measurement takes on a current
value below the set point 1 (SET1).
Above mA (2) SET 2:
In relation to the system requirements, you can define whether to continue
or terminate the metering when the measurement has a current value above the
set point 2 (SET2).
Operational Functions Diagrams of the Multifunction Pump
Flow Diagram main menu (at first power tool)
Flow Diagram main menu (depending on the choice made)

Page 19 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
Flow Diagram Settings Menu
Some menu items are only present in the proportional or control versions, as shown in the box next to the
blocks. To access the items of the Setting Sub-menus press the button 

Page 20 of 35
Metering Pumps
Operating and Maintenance Instructions
www.empirepumps.com
Flow Diagram MODE: REMOTE/LEVEL, RELAY ACTIVATION, FLOW RATE PER IMPULSE, MAX
FREQUENCY, ALARMS SETTINGS
