Enclume BC2A User manual

BC2A-Bakers Cart
Enclosed you will find everything needed for the assembly
and use of your Baker's cart. Two people make assembly
and installation easier. The parts and hardware included are:
Hardware included:
8 -3/8' x ½" Button Head Screws
4 -3/8" x ¾"
4 -3/8"Hex Nuts
4 -1/4" x 7/8" Button Head Screws
4 -Acorn Nuts
2 -Hex Keys - 7/32" and 5/32"
12- Roundhead Rivets
12- Push nuts
Components included:
1 -Butcher Block Top
2 -Upright Legs
2 -Rack Body
2 -Top Supports
2 -2" Grids
4 -Casters
ASSEMBLY INSTRUCTIONS ON REVERSE SIDE
Thank you for choosing Enclume!
Enclume racks are the ultimate quality,
design, strength and function.
WARNING: READ ALL OF THE
INSTRUCTIONS BEFORE
ASSEMBLING AND USING YOUR
RACK
If you need help, please call 1-877-ENCLUME
Enclume Design Products
24 Colwell Street, Port Hadlock, WA 98339
Phone [phone] Fax [phone]
www.enclume.com

ASSEMBLY INSTRUCTIONS
Hardware included:
8 -3/8' x ½" Button Head Screws
4 -3/8" x ¾"
4 -3/8"Hex Nuts
4 - 1/4" x 7/8" Button Head Screws
4 - Acorn Nuts
2 - Hex Keys - 7/32" and 5/32"
12- Roundhead Rivets
12- Push Nuts
Components included:
1 -Butcher Block Top
2 -Upright Legs
2 -Rack Body
2 -Top Supports
2 -2" Grids
4 -Casters

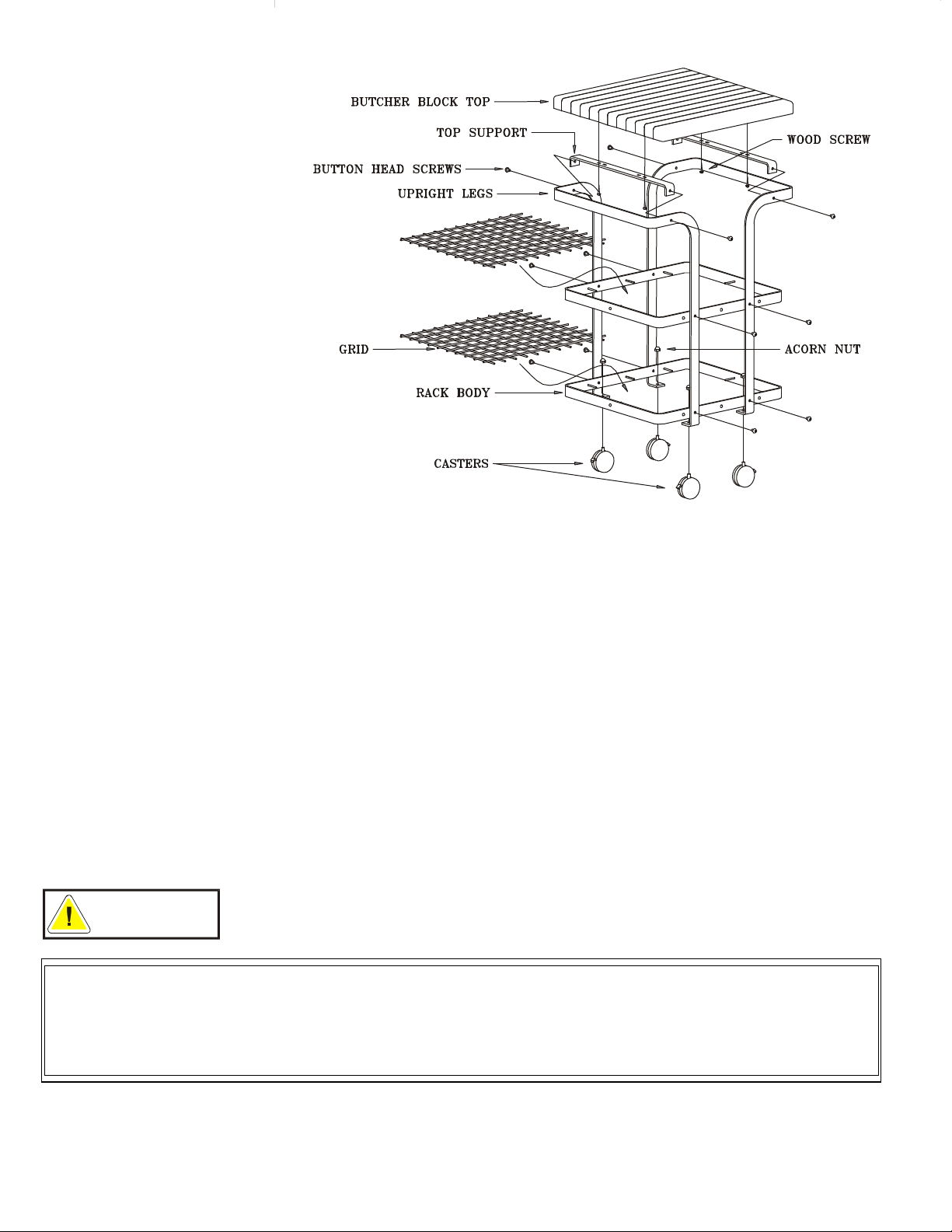

Cart Assembly
1) Insert Roundhead Rivets into the small holes on the outside of the rack body so they protrude into the rack body. Slide a
push nut onto each rivet and push toward the rack body so the rivets are held tightly.
2) Lay upright legs on the floor in the horizontal position with handles pointing away from each other. Set the rack body inside
the upright leg and align the mounting holes.
3) Attach the rack body using the eight 3/8" x ½” Button head screws. The buttonhead screws should be inserted through the
upright leg into the threaded hole of the rack body. Repeat for the second rack body.
4) Lift the unit into the upright position and install the Top Support Brackets by setting them into position with the tab facing
downward and securing with the four 3/8" x ½” button head screws and hex nuts.
5) Square up entire unit and Tighten down all button head screws and hex nuts.
6) Gently tilt unit backwards until it is lying flat on the floor again. Attach the four caster wheels to the bottom of the threaded
upright leg tabs by screwing them in until they are tight. Next screw the acorn nuts onto the caster stem and tighten. Lock
the caster wheels by flipping the tab on each wheel into the down position.
7) Carefully place the unit back into the upright position.
8) Place the butcher block work surface on top of the assembled unit with the rough surface facing down. Line up the mounting
holes in the butcher block with the slots in the support brackets, (if holes do not line up you may need to loosen the four top
supports (fasteners and nuts to re-align). Proceed to secure the butcher block in place once the holes in the top support line up
with the holes in the board with the four 5/32” button head screws and using the smaller allen wrench by inserting the screws
through the support bracket and into the insert on the bottom of the board.
9) Now place the grid pieces into the rack body so they rest on the rivets. Your Baker's cart in now fully assembled. Release
the locks on the wheels to move.
It is important that your rack is assembled correctly. If the unit is assembled or used incorrectly, it could
become unstable and collapse, possibly causing injury.
WARNING
Limited Warranty: This product is warranted to be free of material defects for a period of five years from the date of purchase. Customer's exclusive remedy shall
be the repair or replacement of the defective product and shall be subject to the following conditions: (1) notice of any defect is received by Enclume within the
warranty period and (2) customer returns the defective product to Enclume Design Products, 24 Colwell St., Port Hadlock, WA 98339, postage prepaid within 20
days following a return authorization number (which may be obtained by telephoning the number at the top of this instructions) being provided to the customer by
Enclume. There are no other warranties, expressed or implied. THERE ARE NO WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR PURPOSE. ENCLUME SPECIFICALLY DISCLAIMS ANY AND ALL INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING
OUT OF THE PURCHASE OR USE OF ENCLUME'S PRODUCTS.
