ASSEMBLY INSTRUCTIONS
Case Cart
EG10018 Revised 04/05
Eagle Foodservice Equipment, Eagle MHC, SpecFAB, and Retail Display are divisions of Eagle Group.©2005 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com
• Phone: [phone] • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: [phone] or 302/653-3036
Before assembly:
Remove all protective plastic covering from the stainless steel parts prior to installation of accessories.

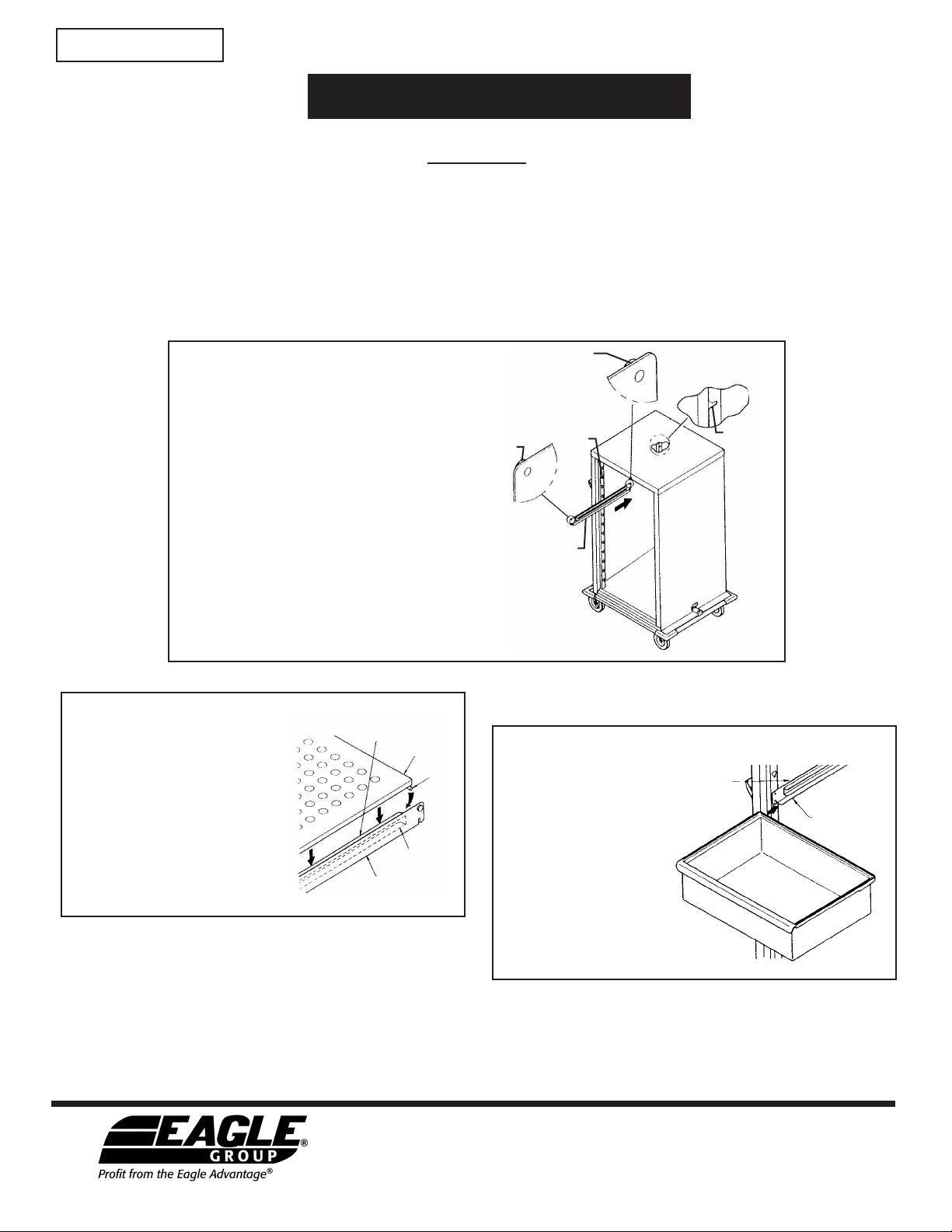

Step 1 - Install drawer/shelf supports.
• Install drawer/shelf supports by
engaging rear mounting boss into
slot at rear of cart and engage front
mounting boss into keyhole slot at
front of cart.
• Repeat for all remaining drawer/shelf
supports.
Step 2 - Install shelves.
• Install either wire framed or
sheet metal shelf onto top lip of
drawer/shelf support and slide
shelf toward rear wall of cart.
• Allow shelf stop to drop down
and align with center channel
of support.
• Repeat for all remaining shelves.
CAUTION
INSPECT CONTENTS IMMEDIATELY AND FILE CLAIM WITH DELIVERING CARRIER FOR ANY DAMAGE.
SAVE YOUR BOX AND ALL PACKING MATERIALS.
YOU ARE RESPONSIBLE FOR DAMAGE TO YOUR UNIT IF RETURNED IMPROPERLY PACKED.
rear
mounting
boss
front
mounting
boss rear slot
keyhole
slot
drawer/shelf
support
drawer/shelf
support
lower lip
PART #348352
shelf
top
shelf
top lip of
drawer/shelf
support
drawer/shelf
support
center
channel
Step 3 - Install drawers.
Assembly is complete.
See reverse side for information on casters.
• Install drawer
onto lower lip of
drawer/shelf
supports, and slide
drawer toward rear
wall of cart.
• Repeat for any
remaining drawers.

Eagle Foodservice Equipment, Eagle MHC, SpecFAB, and Retail Display are divisions of Eagle Group. ©2005 by the Eagle Group
• 100 Industrial Boulevard, Clayton, Delaware 19938-8903 U.S.A. • www.eaglegrp.com
• Phone: [phone] • (Foodservice) 800/441-8440 • (MHC/Retail) 800/637-5100
• Fax: [phone] or 302/653-3036
ASSEMBLY INSTRUCTIONS
Case Cart
Caster Maintenance
• Establish a regular schedule to inspect all cart casters after cart washings and lubricate casters, as needed.
• Caster lubrication may be required after each cart washing.
• Stainless steel casters will require less maintenance in frequent cart washings.
Caster Lubrication
• Lubricate cart casters with special high temperature, water resistant lubricants only.
• Use standard lubrication practices and tools.
breaking
lever
locked
position
unlocked
position
break release pad caster wheel locking arm
locked
position
unlocked position
(top view of caster)
Special Caster Information
Note: Chrome and stainless steel casters are
equipped with grease seals and lubricating zerks to
improve operation and increase life of caster.
To operate casters with brakes:
Press braking lever down to lock caster. Press brake pad down
to unlock caster.
To operate swivel lock casters:
Rotate locking arm clockwise 90˚ to align caster wheel to lock
caster swivel.
