ENFORCER EV-5105-N1SQ User manual

Manual
Wall-Plate Camera
EV-5105-N1SQ (NTSC)
Includes 1 single-gang
and 1 slimline plate
EV-5105-P1SQ (PAL)
EV-5145-N1SQ (NTSC)
Includes 1 European plate
EV-5145-P1SQ (PAL)
Note: Each set includes only 1 camera.

ENFORCER Wall-Plate Camera
2SECO-LARM U.S.A., Inc.
EV-5105-N1SQ
EV-5105-P1SQ
EV-5145-N1SQ
EV-5145-P1SQ

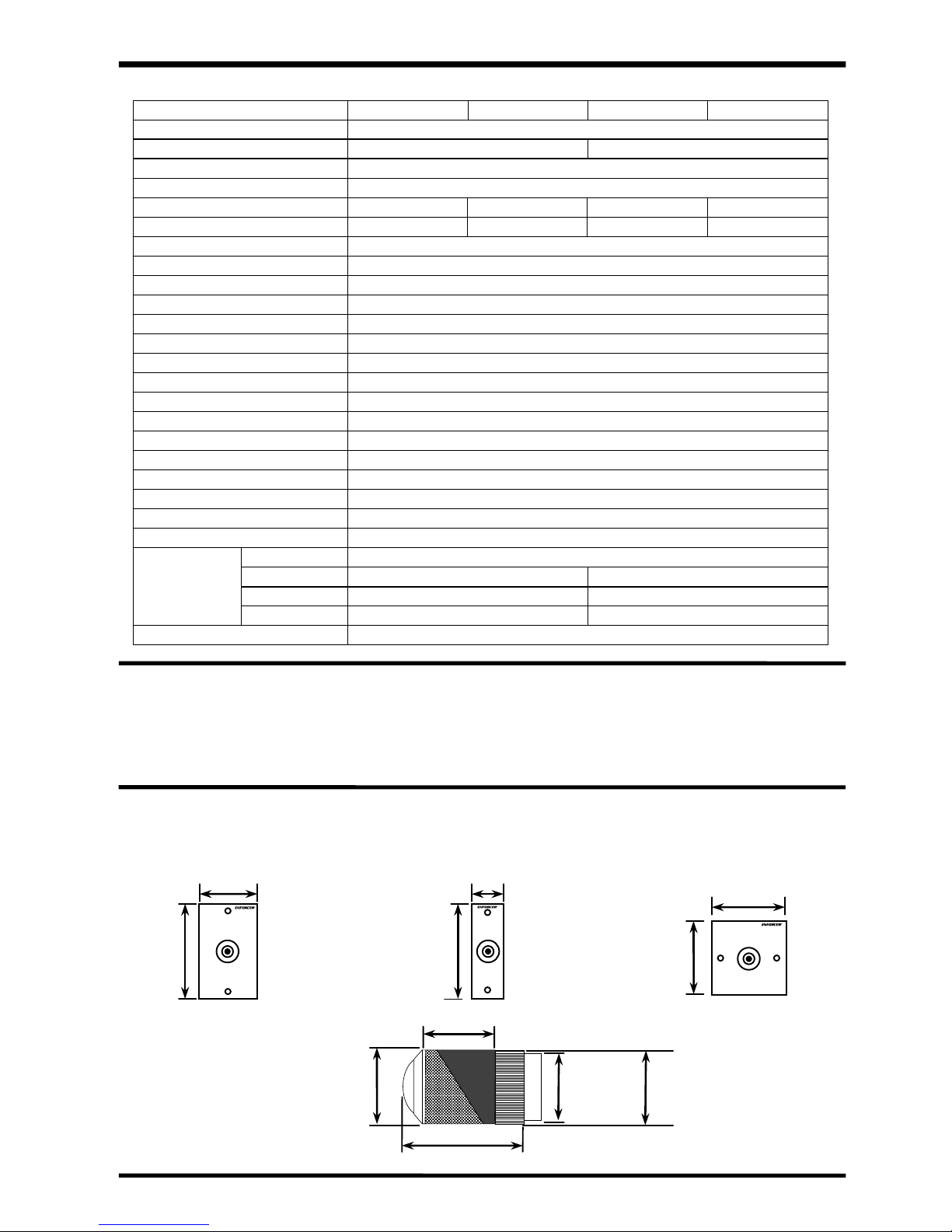

Type
Wall Plate Camera
Plate type
1 Single-gang, 1 slimline
1 European
CCD
1/3” Interline Color CCD
Resolution
700 TV Lines
Video output format
NTSC
PAL
NTSC
PAL
Effective pixels
976x494 pixels
976x582 pixels
976x494 pixels
976x582 pixels
DNR (2D-NR)
Yes
DWDR
Yes
960H*
Yes
Scanning system
2:1 Interlace
Sync
Internal
Video output
1.0Vp-p Composite video, 75Ω
Lens
2.3mm
Viewing Angle
165° (Diagonal)
Minimum illumination
0.1 Lux
Gamma correction
0.45
S/N Ratio
>52dB
Gain control
Auto
Operating voltage
12VDC
Current draw
74mA
IP Rating
IP67
Operating temperature
14°~122° F (-10°~50° C)
Dimensions
Camera
11/8”x11/8”x11/4” (28x28x31 mm)
Single-Gang
23/4”x41/2” (70x114 mm)
N/A
Slimline
11/2”x41/2” (38x114 mm)
N/A
European
N/A
37/16”x37/16” (86x86 mm)
Weight (Camera only)
2.8-oz (80g)
Dimensions:
Parts List:
Specifications:
All models include:
1 x Manual
1 x Camera
1 x Angled plastic ring
EV-5105 models only:
1 x Single-gang plate
1 x Slimline plate
EV-5145 models only:
1 x European plate
41/
2
”
(114mm)
Slimline plate
(EV-5105 models only)
37/16” (86mm)
37/
16
”
(86mm)
European plate
(EV-5145 models only)
1 x Angled rubber ring
1 x Threaded ring
2 x Stainless-steel screws
23/
4
” (70mm)
41/
2
”
(114mm)
Single-gang plate
(EV-5105 models only)
11/
2
” (38mm)
9/
16
” (14mm)
11/
8
”
(28mm)
11/
4
” (31mm)
13/
16
”
(21mm)
11/
16
”
(27mm)
Camera
*In order to take full advantage of 960H resolution, the camera must be used with a 960H DVR

ENFORCER Wall-Plate Camera
SECO-LARM U.S.A., Inc. 3
1. Please read this manual carefully and keep it for
future reference.
2. Use the camera within given temperature and
electrical limits.
3. Do not point the camera at the sun. Heat could
damage the camera, even when not in use.
4. Do not mount the camera in areas exposed to radiation,
strong magnetic fields, or strong electrical signals.
5. Do not open or disassemble the camera. There are no
user-serviceable parts inside.
6. Do not drop the camera or subject it to extreme shock.
Before Starting:

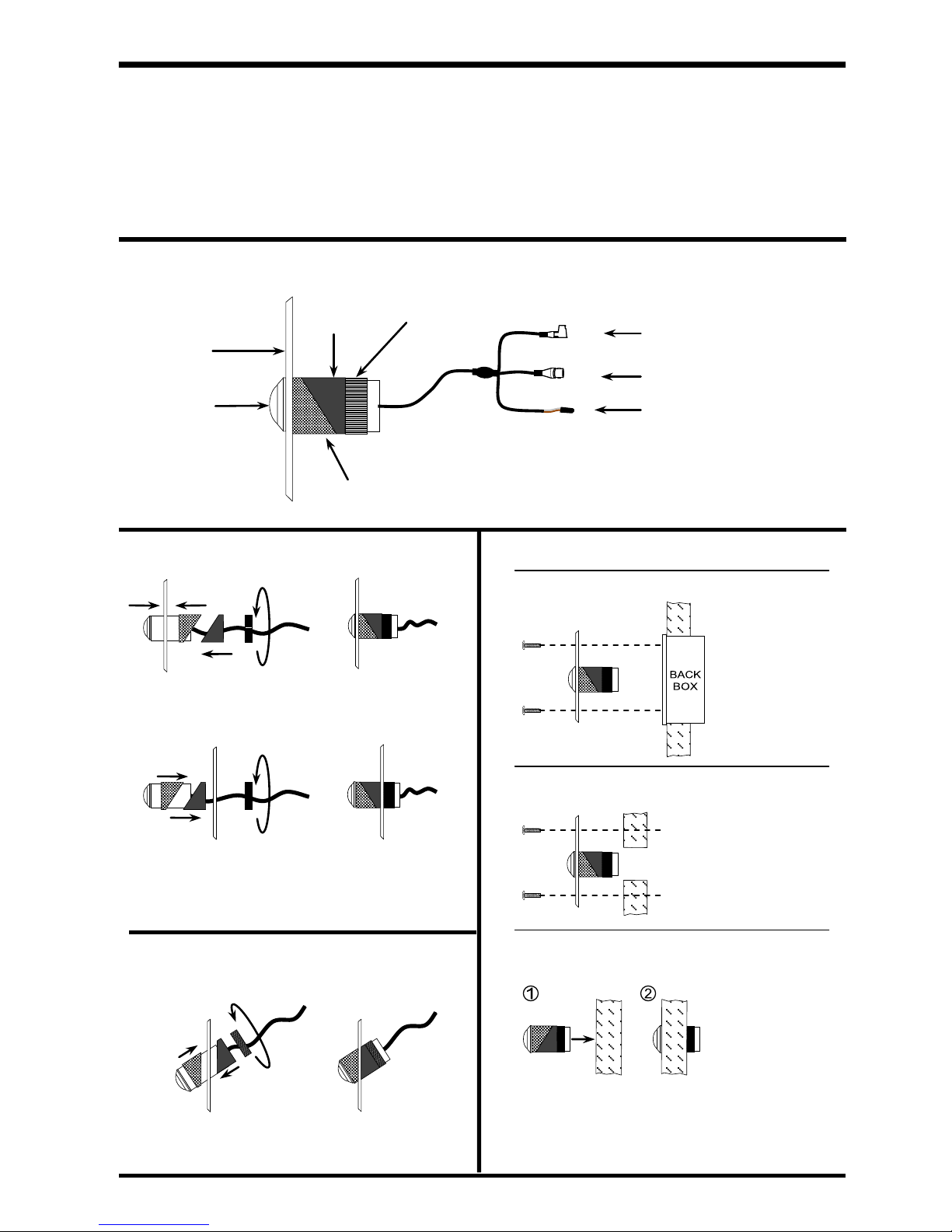

Mounting the Camera to the Plate:
Changing the Mounting Angle:
Install the angled rubber ring on the front of the plate so
that the camera is tilted. (Approximately 20°)
With a plate and back box (suggested):
With a plate, but no back box:
With no plate and no back box:
Drill a hole in the
wall big enough to
fit the camera.
Mount the plate
directly to the wall.
(See Dimensions.)
Drill a hole in the
wall big enough to
fit the camera. If
mounting to a thick
surface, it may not
be necessary to
use the angled
rings.
(See Dimensions.)
Back box not included.
Mounting Options:
Max. wall thickness:
3/4” (20mm)
BNC connector
Reverse image wire loop*
Plate
Angled rubber ring
12VDC
Note polarity when connecting power
Angled
plastic ring
Camera
IMPORTANT
Do not cut the video or power wires as warranty will be voided.
*To reverse the camera’s image, cut the reverse image
wire loop. To restore the image to default, reattach the
reverse image wire loop. Make sure bare wires are
protected by electrical tape or a similar coating.
Threaded ring
Overview:
If an object installed next to the camera on the wall is
blocking the field of vision, the angled rings may be
installed in front of the wall plate to move the field of
vision forward.
To mount the camera to the plate, position the angled
rings behind the plate, and twist the threaded ring on
to secure the plate to the camera.
Min. wall thickness:
5/16” (8mm)

ENFORCER Wall-Plate Camera
4SECO-LARM U.S.A., Inc.
MiEV-51x5-x1SQ_141002.docx
PIKSR1
IMPORTANT
Users and installers of this product are responsible for ensuring this product complies with all national, state, and local laws and
statutes related to monitoring and recor
ding audio and video signals. SECO-LARM
will not be held responsible for the use of this
product in violation of any current laws
or statutes.
WARNING
Stop using th
e camera if you see a malfunction such as
smoke or unusual heat, as it could cause fire or electric shock. Do not open
the case of thi
s device, as there are no user-serviceable components inside.
FCC COMPLIANCE STATEMENT
Information to the user: This equipment has been tested and found to comp
ly with the limits for a class B digital device, pursuan
t to
part 15 of the FCC rules.
These limits are designed to provide reasonable
protection against harmful interference when the equipment
is operate
d in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause
harmful interference to radio communications.
Operation of
this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the
interference at his
or her own expense.
WARRANTY: This SECO-LARM product is warranted against defects in material and workmanship while used in normal service for
a period of three (3) years from the date of sale to the original consumer customer. SECO-
LARM’s obligation is limited to the repair or
replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is
caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect, repair
or alteration, improper or abnormal
usage, or faulty installation, or if for any other reason SECO-
LARM determines that such equipment is not operating properly as a
result of causes other than defects in material and workmanship. The sole obligation of SECO-
LARM, and the purchaser’s exclusive
remedy, shall be limited to replacement or repair only, at SECO-LARM’s option. In no event shall SECO-
LARM be liable for any
special, collateral, incidental, or consequential personal or property damages of any kind to the purchaser or anyone else.
NOTICE
The information and specifications
printed in this manual are current at the time of publication. However, the SECO-
LARM policy is
one of continu
al development and improvement. For this reason, SECO-LARM reserves the right to change
specifications without
notice.
SECO-LARM is also not responsible for misprints or typographical errors. Trademarks are the property of SECO-
LARM
U.S.A., Inc. or their respective owners.
Copyright © 20
14 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in whole or in
part,
without the written permission of SECO
-LARM.
U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Tel: 800
-662-0800 / 949-261-2999
Website: www.seco-larm.com
E
mail: [e-mail]
The screen is blank.
The screen image is dim
The screen image has poor contrast.
The screen image flickers.
The screen image is distorted.
The camera case is hot.
•Check that the camera is powered up.
•
Check that the power supply’s polarity is correct.
•
Check that the monitor is powered up.
•
Check that the video cable connecting the camera to the
monitor is connected properly.
•Clean the lens using a soft, clean cloth.
•
Check that the light source is adequate.
•Adjust the monitor’s contrast knob.
•
Change the position of the camera.
•Change the position of the camera.
•Change the position of the camera.
•Check that the correct power supply is in use.
Troubleshooting:
