Entes DTR-25 User manual

A5107 / Rev.4
www.entes.com.tr
DTR-25 User Manual and
Menu Map
Dudullu OSB; 1. Cadde; No: 23 34776 Umraniye - ISTANBUL / TURKIYE
Tel : 0 216 313 01 10 Fax : 0 216 314 16 15

12
ESC SET
Day
dd.mm.yy
Hour
Relay on/off status
ESC Button
SET Button
UP Button
DOWN Button
Date
HH:mm:ss
Relay AUTO/MANUAL
status
Battery Status
Used Summer/Winter
Time status
Selected days for the
shown program while in
Program Menu
1 2 3 4 5 6 7
C1: C2:
AUTO
MANUAL
DTR-25, which has a real time clock, is an electronic timer that calculates the Fajr, Dhuhr, Asr, Maghrib
and Isha’a Salah times additional to the sunset and sunrise periods automatically. It is designed for
controlling the devices which are connected to its contacts according to Salah times, sunset, sunrise and
the time periods which are programmed by the user.
ESC Button :
SET Button :
UP
DOWN Buttons:
It is used to switch between monitoring menus. In the programming mode, it is used to
cancel a parameter change or to return to the previous menu.
It is used to switch between monitoring menus. When it is pressed for 3 seconds,
programming mode is entered. In the programming mode, it is used to apply a parameter
change or to enter to a menu.
In the monitoring menu, it is used to switch between programs to show their activity in a
day. When the DOWN button is pressed for 3 seconds, C1 relay goes into manual mode
and when the UP button is pressed for 3 seconds, C2 relay goes into manual mode. In
the programming menu; it is used to browse between menus, to select parameters and
to adjust values with digits.
Precautions for Installation and Safe Use
If below precautions are not properly observed and carried out, it may result in cases with injury or death.
- Disconnect power before working on the device.
-When device is connected to the network, do not remove the front panel.
-Do not clean the device with solvent or similar items. Only clean with dry cloth.
-Verify correct terminal connections before energizing the device.
-Install the device on the electrical panel.
-Contact your authorized reseller in case problems occur with your device.
No responsibility is assured by the manufacturer or any of its subsidiaries for any consequences
rising out of the use of this material.
- The output loads connected to the relays do not function if auxiliary supply is absent. Even if the
relay status is monitored as “on”( and/or ), auxiliary supply is a must for the operation.
Salah Times are based on the calendars which are prepared by the Turkish Presidency of Religious
Affairs and the calculation settings are controlled in referrance with the Calendars of the Turkish
Presidency of Religious Affairs.
The device shouldn’t be used for anything other than controlling relays before or after the Salah Times.
The Salah Times may differ +/- 2 minutes from the times which are listed in the calendar. For a more precise
time calculation, the coordinates of the device should be entered manually from the REGIONAL SETTING
menu.
- There are two reserves in the device. Programmed data is protected by these reserves against power
outages.
- Battery shelf life is 5 years.
- Reserve battery should only be changed by the authorized service.

MANUAL MODE :
In order to use the relay outputs manually, DTR-25 has to be in the monitoring mode. The DOWN button
is used to switch the C1 relay to manual mode and the UP button is used to switch the C2 relay to manual
mode. When the UP or DOWN button is pressed for 3 seconds, “MANUAL” indication appears on the
screen. If this is done while the relay C1 or C2 is activated, that relay will be deactivated. If it is done while
the relay C1 or C2 is deactivated, no switching will occur. After the relay C1 or C2 is in the manual mode;
when the DOWN button is pressed again for 3 seconds, C1 relay will exit the manual mode and when the
UP button is pressed again for 3 seconds, C2 relay will exit the manual mode. The relay will stay activated
or deactivated according to the program flow. When both of the the relays are in manual mode, “AUTO”
indication will dissappear from the screen.
3 4
MONITORING MENU :
SET and ESC buttons are used to switch between menus in the monitoring mode. If the device is left
unattended for 60 seconds in any menu other than the real time and date, it returns to the real time and
date screen.
Program activity time menu shows the programs, which are stored on the device, in order according to
program activity time. The active or finished programs can be shown with UP or DOWN buttons. The
programs with a sign next to them are the programs which are still active.
Salah Time for
Isha’a Sunrise Time
Menu Sunset Time
Menu Program
Activity Time
Menu
Activation
Time for C1
Relay(Hours)
Operation
Count for C1
Relay
Activation
Time for C2
Relay(Hours)
Operation
Count for C2
Relay
Salah Time for
Fajr
Real Time
and Date
Menu
16:12:10
MO
18:45:52
C1: C2:
FAJR
MO
05:42:00
C1: C2:
DHUHR
MO
12:06:00
C1: C2:
ASR
MO
14:22:00
C1: C2:
ISHA
MO
18:12:00
C1: C2:
SUNRISE
MO
07:22:00
C1: C2:
SUNSET
MO
16:36:00
C1: C2:
PO1-C1
MO
05:44:00
C1: C2:
C2-SHOT
MO
000000
C1: C2:
C2-TIME
MO
000000
C1: C2:
C1-SHOT
MO
000000
C1: C2:
C1-TIME
MO
000000
C1: C2:
Salah Time for
Dhuhr Salah Time for
Asr Salah Time for
Maghrib
MAGHRIB
MO
16:47:00
C1: C2:

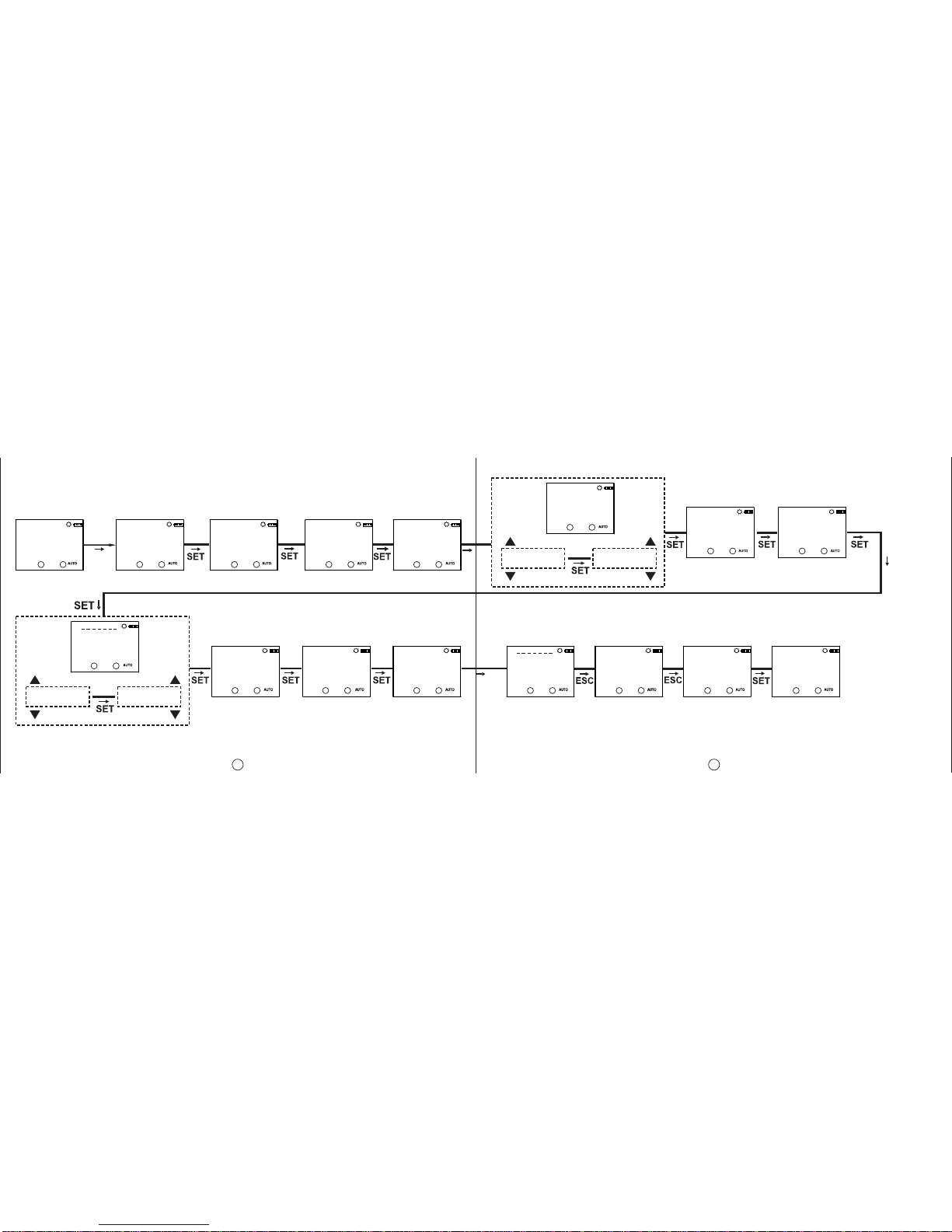

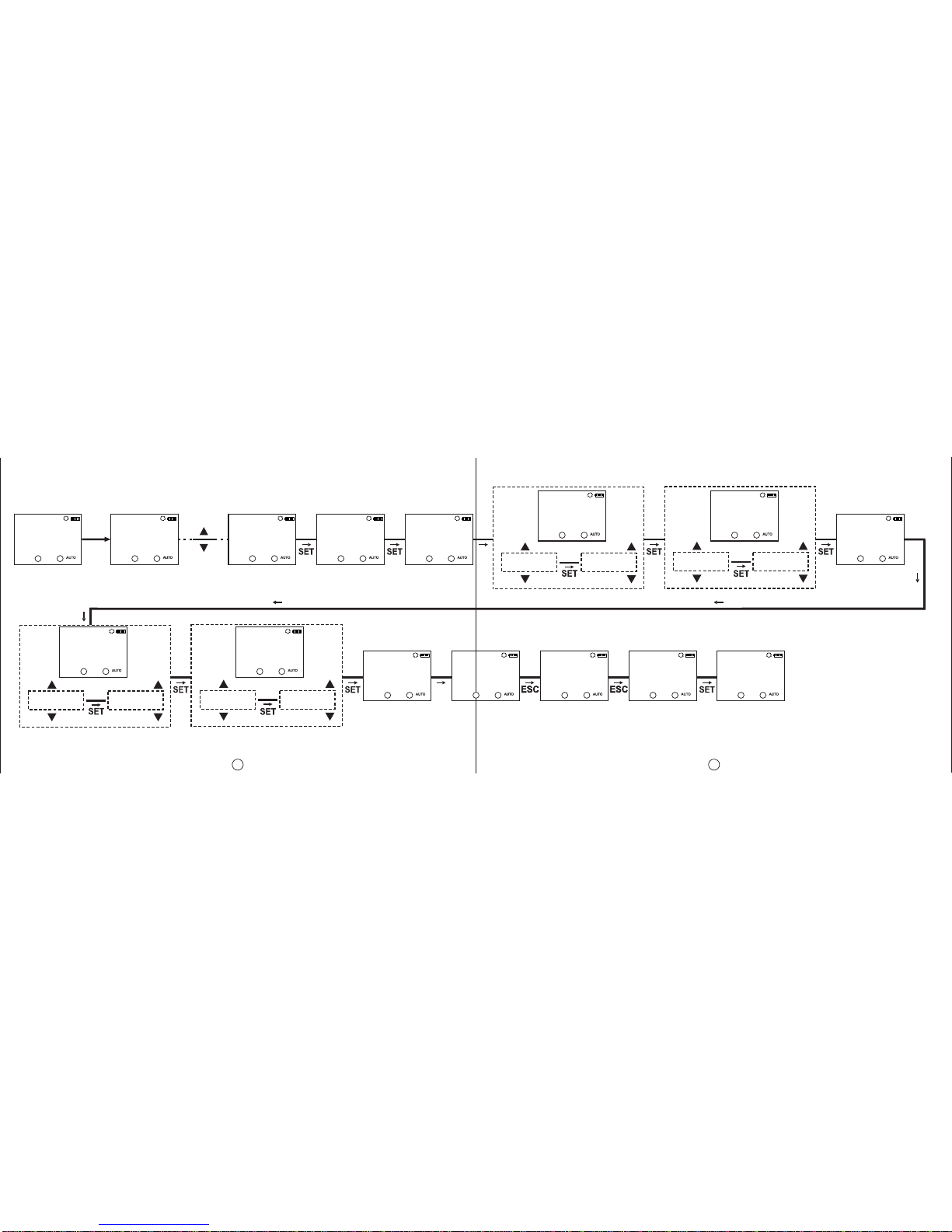

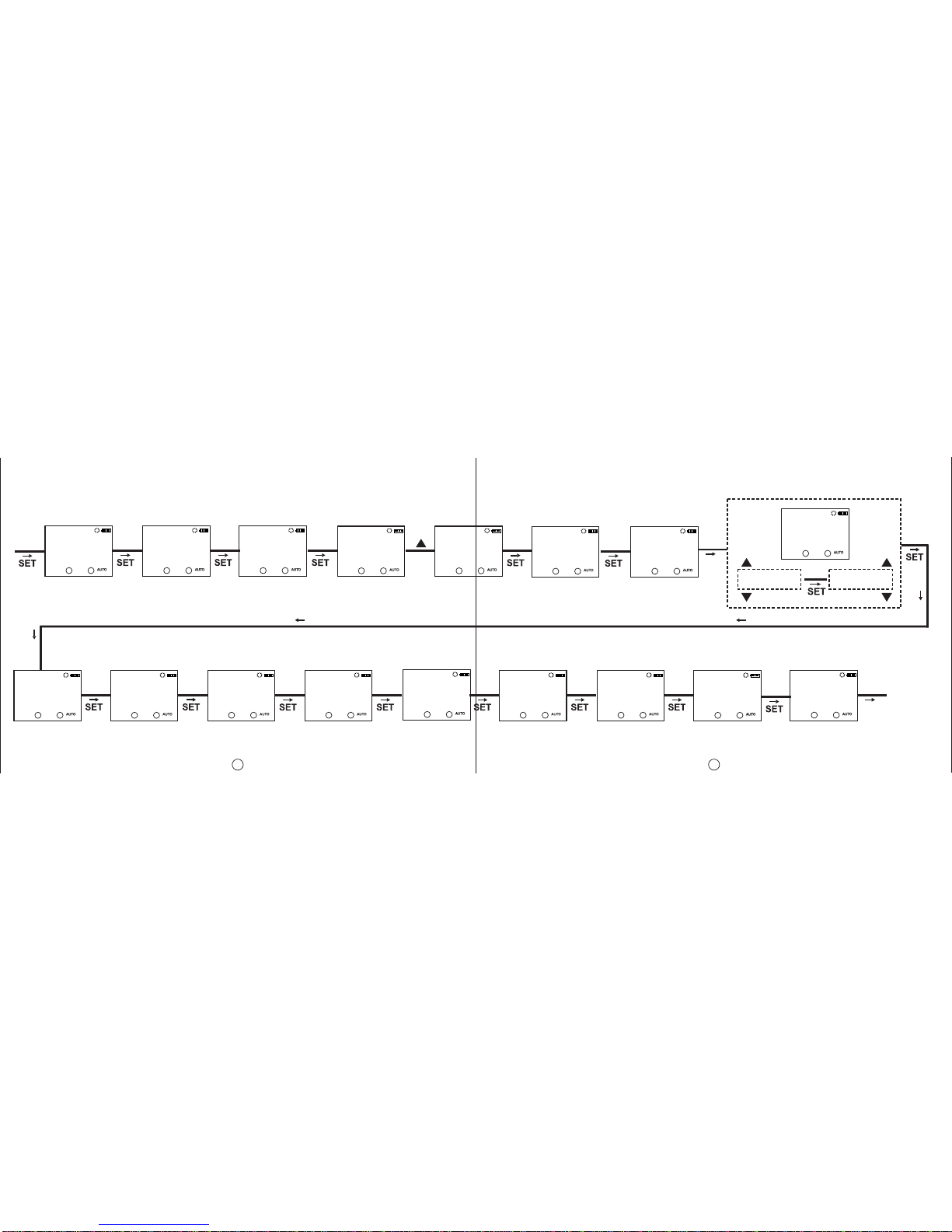

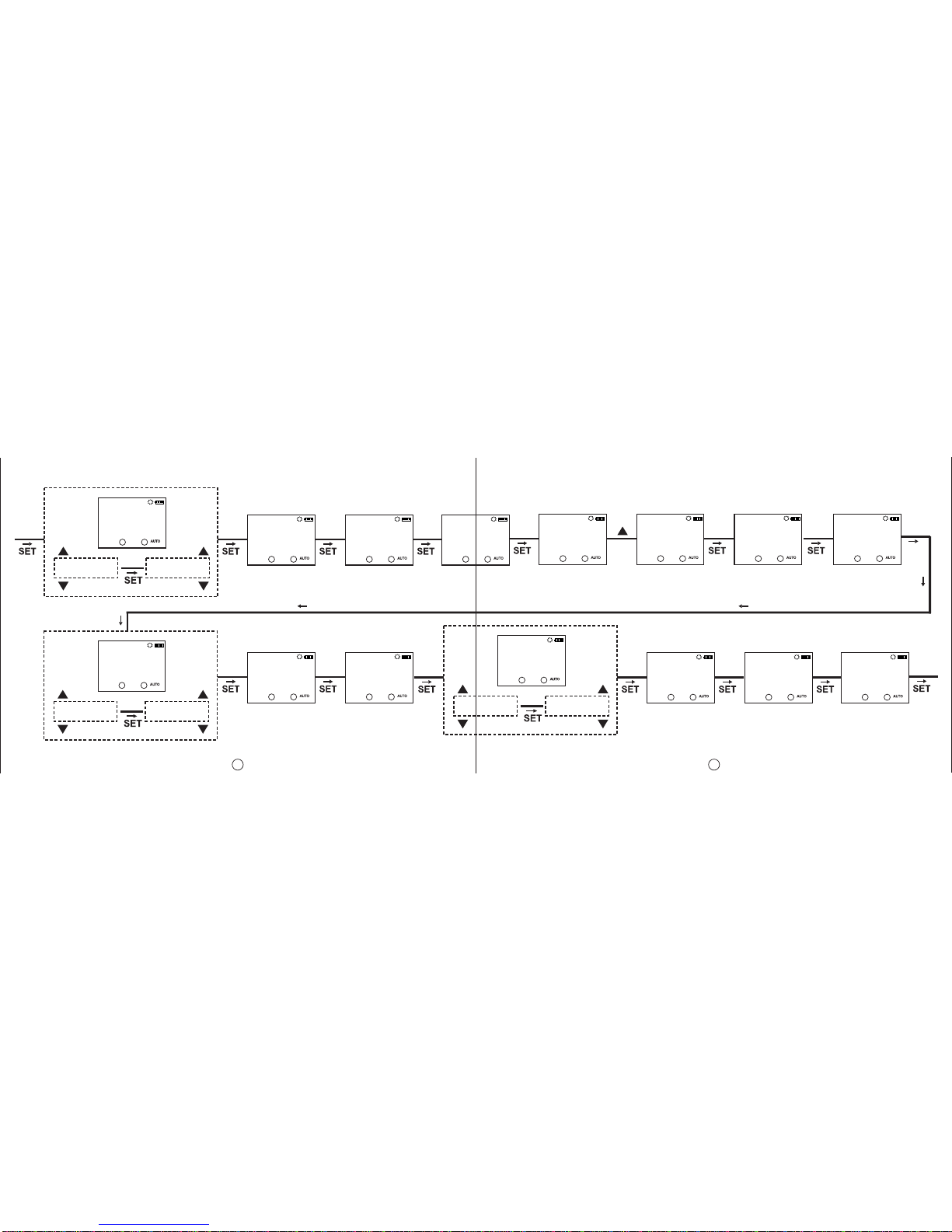

DTR-25 Menu Settings
If the “SAVE” option doesn’t get accepted when returning to the monitoring menu, the changes
which are made in the DTR-25 menus will be discarded. This isn’t the case for “TIME SETING”
menu. The changes which are done in “TIME SETING” menu are applied immediately.
When none of the keys are pressed in the programming menu, the device returns to monitoring menu and
any changes which were made will be discarded. Refer to the menu map when configuring the DTR-25
menus.
Program Menu:
There are 32 programs available to program between P01 and P32. The available settings for programs
are relay selection, activation time, activation day, deactivation time, time conflict query and save. In
addition to these, an appointed program has two additional settings as “EDIT” and “DELETE”. If “EDIT” is
selected for an appointed program, the existing settings of that program is shown and can be reconfigured.
If “DELETE” is selected for an appointed program, that program will be deleted permanently.
Output Selection ( PXX-OUT ):
DTR-25 has 2 relay outputs as C1 and C2. The user must choose between C1 and C2 as the relay output
to control.
Activation Time Setting ( PXX-ON ):
There are 3 parameters: Time, sunrise and sunset. The user can select and set any of the 3 parameters
which suits the application best.
Time Parameter ( TIME ):
This parameter is the adjustment of the relay according to the real time clock. If this parameter is selected,
the user can enter an activation time between 00:00:00 (HH:mm:ss) and 23:59:59.
Fajr Salah Time Parameter (FAJR) :
This parameter is calculated according to the Fajr Time of the adjusted local coordinates and date. If this
parameter is selected, the user can adjust a new Fajr Salah Time with a difference of ±9:59:59 (HH:mm:ss).
If the adjusted time corresponds to the day before, it becomes (00:00:00) for the current day.
56
Dhuhr Salah Time Parameter ( DHUHR ) :
This parameter is calculated according to the Dhuhr Time of the adjusted local coordinates and date.
If this parameter is selected, the user can adjust a new Dhuhr Salah Time with a difference of ±9:59:59
(HH:mm:ss). If the adjusted time corresponds to the day before, it becomes (00:00:00) for the current
day.
Asr Salah Time Parameter ( ASR ) :
This parameter is calculated according to the Asr Time of the adjusted local coordinates and date. If
this parameter is selected, the user can adjust a new Asr Salah Time with a difference of ±9:59:59
(HH:mm:ss). If the adjusted time corresponds to the day before, it becomes (00:00:00) for the current
day.
Maghrib Salah Time Parameter ( MAGHRIB ) :
This parameter is calculated according to the Maghrib Time of the adjusted local coordinates and date.
If this parameter is selected, the user can adjust a new Maghrib Salah Time with a difference of ±9:59:59
(HH:mm:ss). If the adjusted time corresponds to the day before, it becomes (00:00:00) for the current
day.
Isha’a Salah Time Parameter ( ISHA T ) :
This parameter is calculated according to the Isha’a Time of the adjusted local coordinates and date.
If this parameter is selected, the user can adjust a new Isha’a Salah Time with a difference of ±9:59:59
(HH:mm:ss). If the adjusted time corresponds to the day before, it becomes (00:00:00) for the current
day.
Sunrise Parameter ( SUNRISE ):
This parameter is the adjustment of the relay according to sunrise time which is calculated in reference
to the local coordinates and date. If this parameter is selected, the user can enter an activation time
adding or substracting 9:59:59(HH:mm:ss) to the local sunrise time. If the time after the substraction
corresponds to the day before, this parameter is adjusted as 00:00:00 for the current day.

78
Save: In this menu, the user is asked to approve the changed program or not. If the program is not
confirmed by the user, it stays unchanged. If the program is confirmed by the user, the changes are kept
on the memory but are not in effect. When the “SAVE” query is confirmed by the user while returning to
the monitoring menu, the changes are saved to the memory. See application example 1 and 2
Merge Function:
The merge function does a logical AND operation. In the common timeframe of the merged programs, the
corresponding relay becomes active. This function can be used if at least two programs are assigned for
the same relay output. There are 2 sub-menus as “AND-1” and “AND-2”. There is a “DISABL” parameter in
these menus. When the user selects at least 2 programs, “FINISH” parameter becomes accessible in this
menu instead of this parameter. The user browses between the parameters with UP or DOWN buttons and
selects the programs which he wants to merge with SET button. According to the selection of the output
of the first selected program, the programs for the other ouput are excluded from the selectable programs
for the users convenience to easily select the programs with the same output. To finish the selection,
“FINISH” parameter has to be selected. After this process, “AND-X” sub-menu will be set and shown as
occupied. To disable the merge function, the user must select the “DISABL” parameter. After this process,
“AND-X” sub-menu will be set and shown as unoccupied. When the “SAVE” query is confirmed by the user
while returning to the monitoring menu, the changes are saved to the memory.
Relay Time Menu:
The operation counts and activation times of the C1 and C2 relays are reset in this menu. The user can
reset any of the parameter/parameters of the C1 relay. There are 4 sub-menus as “C1-TIME”, “C1- SHOT”,
“C2-TIME” and “C2-TIME”. When the “SAVE” query is confirmed by the user while returning to the monitoring
menu, the changes are saved to the memory.
Settings Observation Menu:
The user can observe the sub-menu settings with 3 second intervals in this menu. The activation/deactivation
time settings, merge function settings, holiday lock settings, time zone, summer/winter time setting,
geographical coordinates and the parameter to which the exit from the manual mode is set can be
displayed. UP, DOWN and ESC buttons enables the interval between screens to extend. The SET button
provides a faster browsing between the sub-menus.
Sunset Parameter ( SUNSET ):
This parameter is the adjustment of the relay according to sunset time which is calculated in reference
to the local coordinates and date. If this parameter is selected, the user can enter an activation time adding
or substracting 9:59:59(HH:mm:ss) to the local sunset time. If the time after the addition corresponds to
the day after, this parameter is adjusted as 23:59:59 for the current day.
Selection of Activation Days:
The day/days in which the program will be activated is adjusted in this menu. If “ALL DAYS” “YES” is selected,
the program will be activated for all days of the week. If “NO” is selected, the user will be asked to select
“YES” or “NO” for the all of the days starting from Doshanbeh in which the program will be active. There
are numbers 1 to 7 on the top section of the screen.These numbers stand for the days of the week. “1”
indicates shanbeh. These numbers also help to indicate the days in which a program will be active without
entering that appointed programs menu.
Deactivation Time Setting ( PXX-OFF ):
There are 3 parameters: Time, sunrise and sunset. The user can select and set any of the 3 parameters
which suits the application best. These parameters are the same as in the relay activation setting. In this
menu, the user can select a different option than in the relay activation setting but the activation and
deactivation times must be set differently. If the activation setting is selected as sunrise/sunset and the
deactivation setting is selected as time, the deactivation time shouldn’t be earlier than the activation setting.
For the cases other than this one in which the deactivation time is set earlier than the activation time, the
deactivation time is set for the next day.
Time Conflict Query:
The device checks for any time conflicts between the existing programs and the newly entered program.
If there is a time conflict, it warns the user with the “CROSS PXX” warning. If there isn’t a time conflict,
“PROGRAM VALID” is shown on the screen. These warnings will be shown for 3 seconds. If a button is
pressed before 3 seconds run out while a warning is displayed, the save menu is entered.

Regional Settings Menu:
Geographical settings are done in this menu. The changes which are made in this menu are saved to the
memory when the “SAVE” query is confirmed by the user while returning to the monitoring menu.
Language Menu:
There are English and Turkish parameters. The user enters the language menu with SET button, chooses
a language with UP or DOWN buttons and confirms this language with the SET button. If Turkish is selected,
the change is applied immediately. But if the “SAVE” query isn’t confimed by the user while returning to
the monitoring menu, the language doesn’t change.
Location Menu: The sunrise and sunset times are automatically calculated according to the set coordinates.
The user can choose to select the MANUAL parameter and enter latitude and longitude of the coordinate
which he is in manually or to use the coordinates which are already saved on the devices memory. If the
language is set as Turkish, the selectable options are 81 Turkish cities and the districts of Alanya and
Bodrum. If the language is set as English, the selectable options are 68 world clocks. When any parameter
other than MANUAL is selected, the time zone is adjusted automatically.
Time Zone Menu: The time zone for the geographical location in which the user resides is set in this menu.
This parameter affects only the sunrise and sunset times according to the set location.
Daylight Savings Time(DST) Menu: DST usage is set in this menu. There are 4 parameters.
Disable Parameter(DISABL): This parameter turns the DST off. The snow icon(DST activate) or the sun
icon(DST inactivate) disappears from the screen. If this process is done while the DST is activated, the
sunrise and sunset times are turned 1 hour backward.
Europe Parameter:
According to the European DST settings; the DST starts when the local time is about to reach 03:00:00
and the clocks are turned 1 hour forward to 04:00:00 on the last Sunday of March. The DST ends when
the local time is about to reach 02:00:00 and the clocks are turned 1 hour backward to 01:00:00 on the
last Sunday of October.
USA Parameter:
According to the European DST settings; the DST starts when the local time is about to reach 02:00:00
and the clocks are turned 1 hour forward to 03:00:00 on the second Sunday of March. The DST ends when
the local time is about to reach 02:00:00 and the clocks are turned 1 hour backward to 01:00:00 on the
first Sunday of October.
Custom Parameter(CUSTOM):
By choosing this parameter, the user first selects the month, the place of the day in that selected month(Ex.:
The selection of the “second” parameter in the “second Shanbeh of the Favardin month”. It is selected
as the week of the month.), the day, the time on which it will be turned forward for DST start. The user then
selects the month, the place of the day in that selected month(Ex.: The selection of the “second” parameter
in the “second Shanbeh of the Mehr month”. It is selected as the week of the month.), the day, the time
on which it will be turned backward for DST finish.
9 10
xxxx is a symbolic representation. The set parameters are shown here.
DEMO
MODE
RECOVRY POSITIO DAYLIGH TIMEZON
PO1-C1 P31-C1 AND-1 AND-2
XXXXXXXXXXXXXXXX
XXXX XXXX XXXX XXXX
MO
HOLDY-X
XXXX
C1: C2:

11 12
Time Settings Menu:
The time settings are done in this menu. There are 3 sub-menus. The changes which are meade in this
menu are immediately applied.
Date Menu(DATE): It is displayed as dd.mm.yy.
Clock Menu(CLOCK): It is displayed as HH.mm.ss.
Century Menu(CENTURY): The first two digits of the year which you’re in is set in this menu. It is displayed
as yyyy. The last two digits come from the date setting. When the user wishes to set this value it
changes to yy--. It can be set between 19 and 25.
Salah Time Calculation Method Selection Menu
For the calculation of the Salah Times, the latitude and longitude information of the location is needed. For
In addition, angle information is needed for the calculation of Fajr and Isha’a Salah times. There are 6
globally approved references for the angle information.
1) University of Islamic Science (UIS)
2) Islamic Society of North America (ISNA)
3) World Islamic League (WIL)
4) Um Ul-Qura, Makkah(UMQ)
5) Egyptian General Organisation of Surveying (EGOS)
6) Shia Ithna Ashari (SIA)
In Turkey, WIL method is used for the angles. For the other countries, the device finds the calculation
method automatically. A different calculation method can be set on this screen if wanted.
The user also has the option to set the Fajr and Isha’a time angles manually between 14 and 20 degrees.
DATE
16.08.10
MO DATE
16.08.10
dd.mm.yy dd.mm.yy
HH.mm.ss HH.mm.ss
DATE
23.08.10CHANGED
DATE DATE
23.08.10
MO
CLOCK
20:43:50CHANGED
CLOCK CLOCK
20:43:50
MO
CLOCK
20:53:40
CLOCK
20:53:40
MO
CENTURY
1910
MO 19Can be set
between
19~25 CHANGED
CENTRY CENTRY
2010
MO
CENTURY
C1: C2:
C1: C2:
C1: C2:
C1: C2:
C1: C2:
C1: C2:

13 14
Display Settings Menu:
The contrast is adjusted between 00 an 15 in this menu.
Holiday Lock Menu:
In this menu, the set programs are deactivated for a time period which is entered by the user. 4 different
holiday times can be entered by the user. The user must enter and approve the start date(as dd:mm), the
start time(as HH:mm), the finish date(as dd:mm) and the finish time(as HH:mm) of a holiday. After the
approval, “HOLDAY X-FULL” will appear on the screen. For an occupied holiday setting, “EDIT” ve “DELETE”
options are available. If “EDIT” is selected for a holiday lock, the existing settings for that holiday lock can
be observed and edited. If “DELETE” is selected for a holiday lock, the settings for that holiday lock is
deleted.
The changes are saved to the memory when the “SAVE” query is confirmed by the user while returning to
the monitoring menu. See Program Example 3.
Manual Mode Menu: The setting for leaving the manual mode after the device is set in manual mode
is done in this menu. There are 3 parameters. The user can leave the manual mode with the DOWN button
regardless of what parameter he chooses in this menu.
Disabled Parameter(DISABL):
When this parameter is selected; after the manual mode is enabled with the UP/DOWN buttons for any
of the outputs, it must be disabled again with the UP/DOWN buttons.
Program Parameter(NEXT-P):
When this parameter is selected; after the relay/relays is/are activated or deactivated by a program in the
program flow, the manual mode for the relay/relays will be disabled.
Timer Parameter(TIMER):
When this parameter is selected; the user will be prompted to enter the time as HH:mm. The device will
start to count back from the entered time when the manual mode is enabled for the relay/relays. If the time
is entered as 23:59, the manual mode will be disabled after 23 hours and 59 minutes.If the time is entered
as 00:01, the manual mode will be disabled after 1 minute. There is a special case if the time is entered
as 00:00. With this entered time, the manual mode will be disabled after 1 minute too.
Password Settings Menu:
The activation and changing of a password is done in this menu. The factory default value for the password
is “0000”. The 4 digit password is prompted before entering this menu. If the password is activated, it isn’t
prompted again before entering this menu since the password was entered before entering the main
programming menu.
CONTRAS
08
MO CONTRAS
08 CONTRAS
05 CONTRAS
05
MO
Can be set
between
00~15
C1: C2:

Password Change Menu: The password is changed in this menu. It is done as following:
15 16
Password Activation Menu: The password is activated or deactivated in this menu. It is activated as
following:
PASWORD
SETING
MO PASWORD
0000 PASWORD
0000PASWORD
DISABL
PASWORD
DISABL
ACTIVE
PASWORD
ACTIVE
PASWORD
SETING
MO
SAVE
yes
no
16.08.10
16:40:51
MO
Selected
parameter is
shown
Selected
parameter is
shown
Changes are saved
Changes are
discarded
PASWORD
SETING
MO PASWORD
ACTIVE PASWORD
CHANGE 0000 0001
NEWPASS NEWPASS
PASWORD
CHANGD
PASWORD
CHANGE
PASWORD
SETING
MO
SAVE
yes
no
16.08.10
16:40:51
MO
0000
0001
REENTER REENTER
Selected
parameter is
shown
Changes are saved
Changes are
discarded
C1: C2:
C1: C2: C1: C2:
C1: C2:
C1: C2:
C1: C2:

17 18
Factory Setting Menu:
The device is returned to its factory settings in this menu. The 4 digit password is prompted before entering
this menu. If the password is activated, it isn’t prompted again before entering this menu since the password
was entered before entering the main programming menu. The device returns to its factory settings when
the “SAVE” query is confirmed by the user while returning to the monitoring menu. Time settings, relay
operation count and relay operation time doesn’t change.
Version Information Menu:
The software and hardware versions of the device is shown in this menu.
Exit from Main Programming Menu:
This menu is used to exit from the main programming menu. The ESC button can be used for this, too. If
any changes are committed in the menus while in the main programming menu, an approval promt is
shown. If there aren’t any changes, the monitoring menu is shown directly.
Factory Settings:
Program

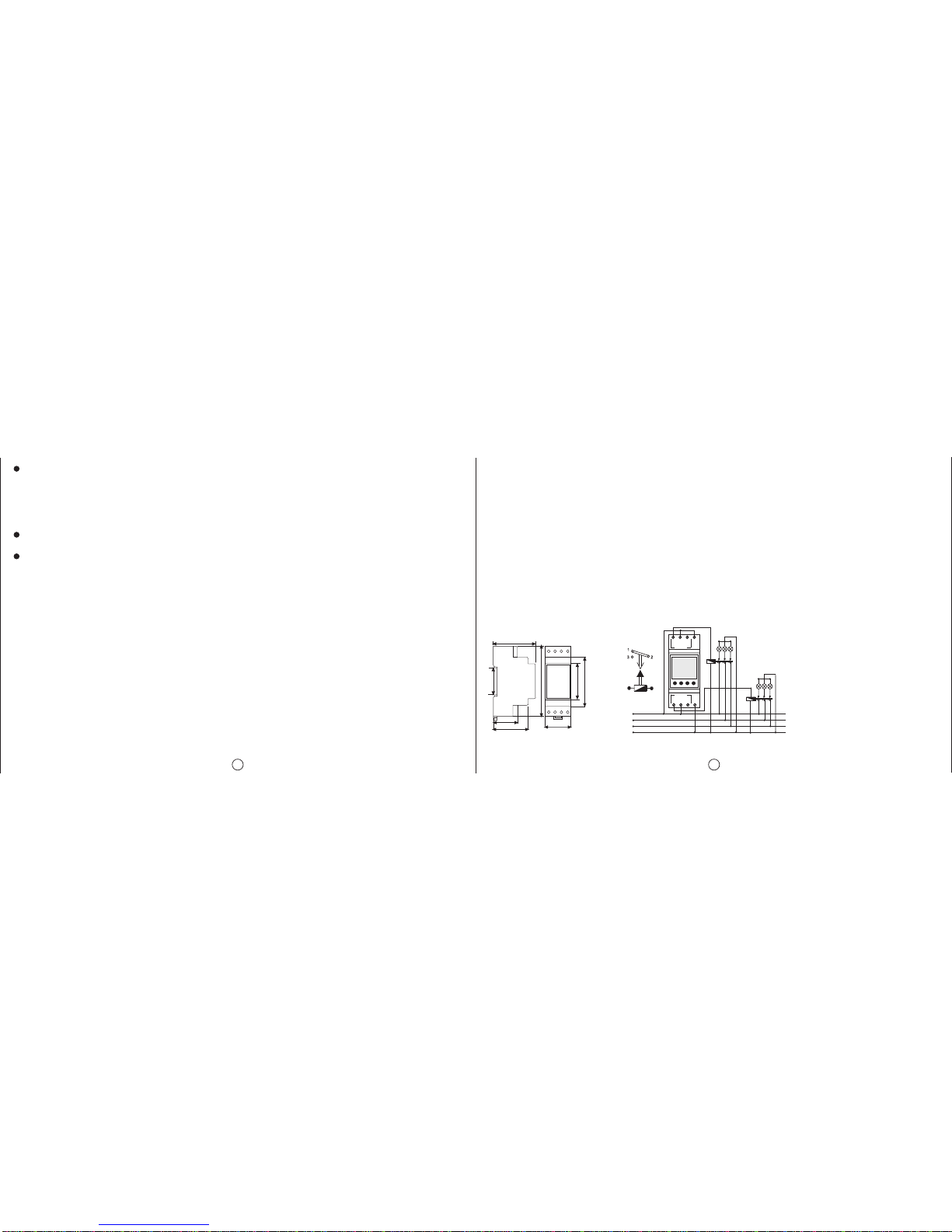

DIMENSIONS
CONNECTION DIAGRAM
TYP PK25
35 mm
90 mm
45 mm
62 mm
58 mm
32 mm
48 mm
35 mm
L1
N
L2
L3
Un
C1
C2
1A1
32
1A2
32
P11: C2 relay will be activated everyday 20 minutes after Maghrib Salah Time and be deactivated 20
minutes before the sunrise time.
P12: C2 relay will be activated 20 minutes before Isha’a Salah Time and be deactivated 30 minutes after
Isha’a Salah Time.
P13...P32: Empty
Merge Function
AND-1: FREE
AND-2: FREE
Regional Settings
LANGUAGE: ENGLISH
POSITION: MECCA
TIME ZONE: 3.00
DAYLIGHT SAVING: -
H METHOD: UQM
Display Settings
CONTRAST:08
Holiday Lock
HOLIDAY-1: FREE
HOLIDAY-2: FREE
HOLIDAY-3: FREE
HOLIDAY-4: FREE
Manual Mode
RECOVRY : DISABLE
Activation Time
C1 TIME : 0
C1 SHOT : 0
C2 TIME : 0
C2 SHOT : 0
Password
PASSWORD:0000
PASSWORD STATUS:INACTIVE
P01: C1 relay will be activated everyday 50 minutes
before Fajr Salah Time and be deactivated 10 minutes
before the sunrise time.
P02: C1 relay will be activated 20 minutes before
every Dhuhr Salah Time except Yaumul Jumuah and
be deactivated 30 minutes after.
P03: C1 relay will be activated 60 minutes before
every Yaumul Jumuah Salah Time and be deactivated
50 minutes after.
P04: C1 relay will be activated everyday 20 minutes
after Asr Salah Time and be deactivated 20 minutes
before the sunrise.
P05: C1 relay will be activated everyday 20 minutes
after Maghrib Salah Time and be deactivated 20
minutes before the sunrise time.
P06: C1 relay will be activated everyday 20 minutes
before Isha’a Salah Time and be deactivated 30
minutes after Isha’a Salah Time.
P07: C2 relay will be activated everyday 50 minutes
before Fajr Salah Time and be deactivated 10 minutes
before the sunrise time.
P08: C2 relay will be activated 20 minutes before
every Dhuhr Salah Time except Yaumul Jumuah and
be deactivated 30 minutes after.
P09: C2 relay will be activated 60 minutes before
every Yaumul Jumuah Salah Time and be deactivated
50 minutes after.
P10: C2 relay will be activated everyday 20 minutes
after Asr Salah Time and be deactivated 20 minutes
before the sunrise.
Note: The contact resistance at
ohmic load ( eg: Incandescent
bulb,Resistance devices ) is 16A.
It is recommended to use a
contactor if the inductive load
(eg: AC motor, fluorescent,etc.)
or capacitive load (eg: Led
Drivers,UPS, Fluorescent
( Electronic Ballast), etc.) switch.
Otherwise adhesion may
occur in relay contacts.

19 20
TECHNICAL FEATURES
City Names and Their Screen Displays for
the Language set in the Regional Settings
Parametersfor the Turkish Language Selection
ADANA
Adana +2:00
ADIYAM
Adýyaman +2:00
AFYONK
Afyon +2:00
AGRI
Aðrý +2:00
AKSARA
Aksaray +2:00
AMASYA
Amasya +2:00
ANKARA
Ankara +2:00
ANTALY
Antalya +2:00
ARDAHA
Ardahan +2:00
ARTVIN
Artvin +2:00
AYDIN
Aydýn +2:00
BALIKS
Balýkesir +2:00
BARTIN
Bartýn +2:00
BATMAN
Batman +2:00
BAYBUR
Bayburt +2:00
BILECI
Bilecik +2:00
BINGOL
Bingöl +2:00
BITLIS
Bitlis +2:00
BOLU
Bolu +2:00
BURDUR
Burdur +2:00
BURSA
Bursa +2:00
CANAKK
Çanakkale +2:00
CANKIR
Çankýrý +2:00
CORUM
Çorum +2:00
DENIZL
Denizli +2:00
DIYRBK
Diyarbakýr +2:00
DUZCE
Düzce +2:00
EDIRNE
Edirne +2:00
ELAZIG
Elazýð +2:00
ERZINC
Erzincan +2:00
ERZURU
Erzurum +2:00
ESKISE
Eskiþehir +2:00
GANTEP
Gaziantep +2:00
GIRESU
Giresun +2:00
GUMUSH
Gümüþhane +2:00
HAKKAR
Hakkari +2:00
HATAY
Hatay +2:00
IGDIR
Iðdýr +2:00
ISPART
Isparta +2:00
ISTANB
Ýstanbul +2:00
IZMIR
Ýzmir +2:00
KMARAS
Kahramanmaraþ +2:00
KARABU
Karabük +2:00
KARAMA
Karaman +2:00
KARS
Kars +2:00
KASTAM
Kastamonu +2:00
KAYSER
Kayseri +2:00
KIRIKK
Kýrýkkale +2:00
KIKLA
Kýrklareli +2:00
KIRSEH
Kýrþehir +2:00
KILIS
Kilis +2:00
KOCAEL
Kocaeli +2:00
KONYA
Konya +2:00
KUTAHY
Kütahya +2:00
MALATY
Malatya +2:00
MANISA
Manisa +2:00
MARDIN
Mardin +2:00
MERSIN
Mersin +2:00
MUGLA
Muðla +2:00
MUS
Muþ +2:00
NEVSEH
Nevþehir +2:00
NIGDE
Niðde +2:00
ORDU
Ordu +2:00
OSMANI
Osmaniye +2:00
RIZE
Rize +2:00
SAKARY
Sakarya +2:00
Program Number 5 Years
Battery Shelf Life 32
Screen Size
Accuracy
Power Consumption
Mechanical Features
Equipment Protection Class
Ambient Temperature
Protection Class
Installation
Dimensions
Package Weight
Quantity in 1 Package
Refresh Time
Output Contact
Operating Voltage (Un)
Electrical Features
1,3” LCD
1 sec. /day
< 5 VA
1 sec.
2 C/O , 16 A / 4000 VA
Class II ( )
-10°C, +55°C
IP20
Rail Mount
PK25
0,2 kg
5 pcs.
Please look at the side label
Displayed
Name
Cities Time
Zone Displayed
Name
Cities Time
Zone Displayed
Name
Cities Time
Zone
Due to the structure of LCD screens, the liquid inside them starts
to freeze below its operating temperature. This causes the screen
to respond slower or not respond at all. Device's other functions
are not affected from this and it opens/closes its relays as
programmed. After the device temperature rises back to the
operating range, LCD screen starts to work normally.
Note: The contact resistance at
ohmic load ( eg: Incandescent
bulb,Resistance devices ) is 16A.
It is recommended to use a
contactor if the inductive load
(eg: AC motor, fluorescent,etc.)
or capacitive load (eg: Led
Drivers,UPS, Fluorescent
( Electronic Ballast), etc.) switch.
Otherwise adhesion may
occur in relay contacts.

21
Parametersfor the English Language Selection
22
Parametersfor the Turkish Language Selection
SAMSUN
Samsun +2:00
SIIRT
Siirt +2:00
SINOP
Sinop +2:00
SIVAS
Sivas +2:00
SURFA
Þanlýurfa +2:00
SIRNAK
Þýrnak +2:00
TEKIRD
Tekirdað +2:00
TOKAT +2:00
TRABZO +2:00
TUNCEL +2:00
USAK +2:00
VAN +2:00
YALOVA +2:00
YOZGAT +2:00
ZONGUL +2:00
ISTANB
Alanya +2:00
IZMIR
Bodrum +2:00
Tokat
Trabzon
Tunceli
Uþak
Van
Yalova
Yozgat
Zonguldak
ABUDHA
Abu Dhabi, U.A.E. + 3
AHMEDA
Ahmedabad, India + 5:30
ALEXAN
Alexandria, Egypt + 2
ALMATY
Almaty, Kazakhstan + 6
ALORST
Alorstar, Malesia + 8
AMMAN
Amman, Jordan + 2
ASHGAB
Ashgabat, Turkmenistan + 5
ASTANA
Astana, Kazakhstan + 6
BAGHDA
Baghdad, Iraq + 3
BANDA
Banda Aceh, Indonesia + 7
BASRA
Basra, Iraq + 3
BEIRU
Beirut, Lebanon + 2
BISHKE
Bishkek, Kyrgyzstan + 6
CAIRO
Cairo, Egypt + 2
DAMASC
Damascus, Syria + 2
DAMMAM
Dammam, Saudi Arabia + 3
DHAKA
Dhaka, Bangladesh + 6
DOHA
Doha, Quatar + 3
DUBAI
Dubai, U.A.E. + 3
DUSHAN
Dushanbe, Tajikistan + 5
FAISAL
Faisalabad, Pakistan + 5
G_TOWN
Georgetown, Malaysia + 8
HYDERA
Hyderabad, Pakistan + 5
IPOH
Ipoh, Malaysia + 8
ISLAMA
Islamabad, Pakistan + 5
ISTANB
ISTANBUL, TURKEY + 2
JEDDAH
Jeddah, Saudi Arabia + 3
KABUL
Kabul, Afghanistan + 4:30
KANDAH
Kandahar, Afghanistan + 4:30
KARACH
Karachi, Pakistan + 5
KASHMI
Kashmir, India + 5:30
KHARTO
Khartoum, Sudan + 3
KUWAIT
Kuwaitcity, Kuwait + 3
LAHORE
Lahore, Pakistan + 5
MANAMA
Manama, Bahrain + 3
MASHDA
Mashdad, Iran + 3:30
MECCA
Mecca, Saudi Arabia + 3
MEDINA
Medina, Saudi Arabia + 3
NAMANG
Namangan, Uzbekistan + 5
NUKUS
Nukus, Uzbekistan + 5
OMDURM
Omdurman, Sudan + 3
PESHAW
Peshawar, Pakistan + 5
PORT_S
Port Said, Egypt + 2
PUNE
Pune, India + 5:30
PUNJAB
Punjab, Pakistan + 5
RAWALP
Rawalpindi, Pakistan + 5
RIYADH
Riyadh, Saudi Arabia + 3
SABHA
Sabha, Libya + 2
SANAA
Sana'a, Yemen + 3
TABRIZ
Tabriz, Iran + 3:30
TASHKE
Tashkent, Uzbekistan + 5
TEHRAN
Tehran, Iran + 3:30
TRIPOL
Tripoli, Libya + 2
Displayed
Name
Cities Time
Zone Displayed
Name
Cities Time
Zone Displayed
Name
Cities Time
Zone Displayed
Name
Cities Time
Zone

APPLICATION EXAMPLE 1: On every weekday, the C1 relay will be activated 1 hour 35 minutes 51
seconds before the sunrise and be deactivated at 9 o’clock.
Note: The parameter selection in the example program diagrams must be done with the UP or DOWN
buttons. This isn’t described in the diagrams. The SET button is used for approval and the ESC button is
used for returning to the previous selection. The diagrams are for P01 and the programming is done the
same way for the other programs.
23 24
PROGRAM
MO P01
MO
FREE
SUNRISE
MO
+0:00:00
+0:00:00 -1:35:51
ALLDAYS
MO
YES P01-OFF
MO
TIME
TIME
MO
00:00:00
00:00:00 09:00:00
PR0GRAM
MO
VALID CONFIRM
MO
YES ADJSTED
MO
PO1 PO1
MO
FULL
1234567
1234567
PROGRAM
MO SAVE
MO
YES 16.08.10
MO
16:41:21
P01-ON
MO
SUNRSE
3 sec.
SET
P01-OUT
MO
C1
C1: C2:C1: C2:C1: C2: C1: C2:
C1: C2:
C1: C2: C1: C2:
C1: C2:C1: C2:C1: C2:C1: C2:C1: C2:C1: C2:C1: C2:
C1: C2:
16.08.10
MO
16:40:51
C1: C2:

APPLICATION EXAMPLE 2: The C2 relay will be activated everyday 10 minutes before Salah Times and
deactivated 20 minutes after.
25 26
P01
MO
FREE
C1: C2:
PROGRAM
MO
C1: C2:
P01-0UT
MO
C2
C1: C2:
FAJRT
MO
-0:10:00
C1: C2:
+0:00:00 -0:10:00
P01-ON
MO
FAJR
C1: C2:
ALLDAYS
MO
YES
C1: C2:
P01-OFF
MO
FAJR
C1: C2:
FAJRT
MO
+0:20:00
C1: C2:
+0:00:00 +0:20:00
PROGRAM
MO
VALID
C1: C2:
CONFIRM
MO
YES
C1: C2:
ADJSTED
MO
PO1
C1: C2:
P01
MO
FULL
C1: C2:
P02
MO
FREE
C1: C2:
P02-OUT
MO
C2
C1: C2:
P02-ON
MO
DHUHR
C1: C2:
3 sec.
SET
16.08.10
MO
16:40:51
C1: C2:

CONTINUED FROM PAGE 26
27 28
ALLDAYS
MO
YES
C1: C2:
DHUHRT
MO
+0:20:00
C1: C2:
+0:00:00 +0:20:00
P02-OFF
MO
DHUHR
C1: C2:
PROGRAM
MO
VALID
C1: C2:
CONFIRM
MO
YES
C1: C2:
DHUHR
MO
-0:10:00
C1: C2:
+0:00:00 -0:10:00
P02
MO
FULL
C1: C2:
P03
MO
FREE
C1: C2:
P03-OUT
MO
C2
C1: C2:
P03-ON
MO
ASR
C1: C2:
ADJSTED
MO
PO2
C1: C2:
+0:00:00 -0:10:00
ALLDAYS
MO
YES
C1: C2:
P03-OFF
MO
ASR
C1: C2:
ASRT
MO
-0:10:00
C1: C2:

CONTINUED FROM PAGE 28
29 30
PROGRAM
MO
VALID
C1: C2:
CONFIRM
MO
YES
C1: C2:
ASRT
MO
+0:20:00
C1: C2:
+0:00:00 +0:20:00
P03
MO
FULL
C1: C2:
P04
MO
FREE
C1: C2:
P04-OUT
MO
C2
C1: C2:
P04-ON
MO
MAGHRI
C1: C2:
ADJSTED
MO
PO3
C1: C2:
MAGHRIB
MO
-0:10:00
C1: C2:
+0:00:00 -0:10:00
ALLDAYS
MO
YES
C1: C2:
P04-OFF
MO
MAGHRI
C1: C2:
PROGRAM
MO
VALID
C1: C2:
CONFIRM
MO
YES
C1: C2:
ADJSTED
MO
PO4
C1: C2:
MAGHRIB
MO
+0:20:00
C1: C2:
+0:00:00 +0:20:00

CONTINUED FROM PAGE 30
31 32
P04
MO
FULL
C1: C2:
P05
MO
FREE
C1: C2:
P05-OUT
MO
C2
C1: C2:
P05-ON
MO
ISHA
C1: C2:
ISHAT
MO
-0:10:00
C1: C2:
+0:00:00 -0:10:00
ALLDAYS
MO
YES
C1: C2:
P05-OFF
MO
ISHA
C1: C2:
PROGRAM
MO
VALID
C1: C2:
CONFIRM
MO
YES
C1: C2:
ISHAT
MO
+0:20:00
C1: C2:
+0:00:00 +0:20:00
P05
MO
FULL
C1: C2:
PROGRAM
MO
C1: C2:
SAVE
MO
YES
C1: C2:
16:12:10
MO
18:45:52
C1: C2:

33 34
APPLICATION EXAMPLE 3: Deactivate all of the programs starting at 18:30 on 1 Shawwal 1432(31.08.2011)
and ending at 00:00 on 3 Shawwal 1432(02.09.2010).
LOCK 01.01 31.08 00:00 18:30
01.01 02.09 00:00 00:00
PROGRAM
MO
C1: C2:
HOLIDAY
MO
C1: C2:
1-FREE
HOLIDAY
MO
C1: C2:
DATE
START
MO
C1: C2:
01.01
S-DATE
MO
C1: C2:
00:00
S-CLOCK
MO
C1: C2:
DATE
END
MO
C1: C2:
E-DATE
MO
01.01
C1: C2:
E-CLOCK
MO
00:00
C1: C2:
HOLIDAY
MO
SAVED
C1: C2:
HOLIDAY
MO
1-FULL
C1: C2:
HOLIDAY
MO
LOCK
C1: C2:
SAVE
MO
YES
C1: C2:
3 sec.
SET
16:12:10
MO
18:45:52
C1: C2:
16:12:10
MO
18:45:52
C1: C2:

APPLICATION EXAMPLE 4:
C1 relay will be activated 10 minutes before every Dhuhr Salah Time except
Yaumul Jumuah and be deactivated 20 minutes after. C1 relay will be activated 30 minutes only before
every Yaumul Jumuah Salah Time and be deactivated 60 minutes after.
35 36
P01
MO
FREE
C1: C2:
PROGRAM
MO
C1: C2:
P01-0UT
MO
C1
C1: C2:
P01-ON
MO
DHUHR
C1: C2:
DHUHRT
MO
+0:20:00
C1: C2:
+0:00:00 +0:20:00
P01-OFF
MO
DHUHR
C1: C2:
DHUHRT
MO
-0:10:00
C1: C2:
+0:00:00 -0:10:00
MONDAY
MO
YES
C1: C2:
WEDNESDY
MO
YES
C1: C2:
SATURDY
MO
YES
C1: C2:
THURSDY
MO
YES
C1: C2:
ALLDAYS
MO
NO
C1: C2:
3 sec.
SET
16:12:10
MO
18:45:52
C1: C2:
TUESDAY
MO
YES
C1: C2:
SUNDAY
MO
YES
C1: C2:
FRIDAY
MO
NO
C1: C2:

CONTINUED FROM PAGE 36
37 38
PROGRAM
MO
VALID
C1: C2:
CONFIRM
MO
YES
C1: C2:
P01
MO
FULL
C1: C2:
P02
MO
FREE
C1: C2:
P02-OUT
MO
C1
C1: C2:
P02-ON
MO
DHUHR
C1: C2:
ADJSTED
MO
PO1
C1: C2:
+0:00:00 -1:00:00
ALLDAYS
MO
NO
C1: C2:
P03-OFF
MO
DHUHR
C1: C2:
MONDAY
MO
NO
C1: C2:
TUESDAY
MO
NO
C1: C2:
WEDNESDY
MO
NO
C1: C2:
SATURDY
MO
NO
C1: C2:
THURSDY
MO
NO
C1: C2:
FRIDAY
MO
YES
C1: C2:
SUNDAY
MO
NO
C1: C2:
DHUHRT
MO
-1:00:00
C1: C2:
Table of contents
