R37-HW - 3 Zone Programmer Installation Instructions
Page 1 of 2
20170313_AW1077_R37-HW_InsIns_JW

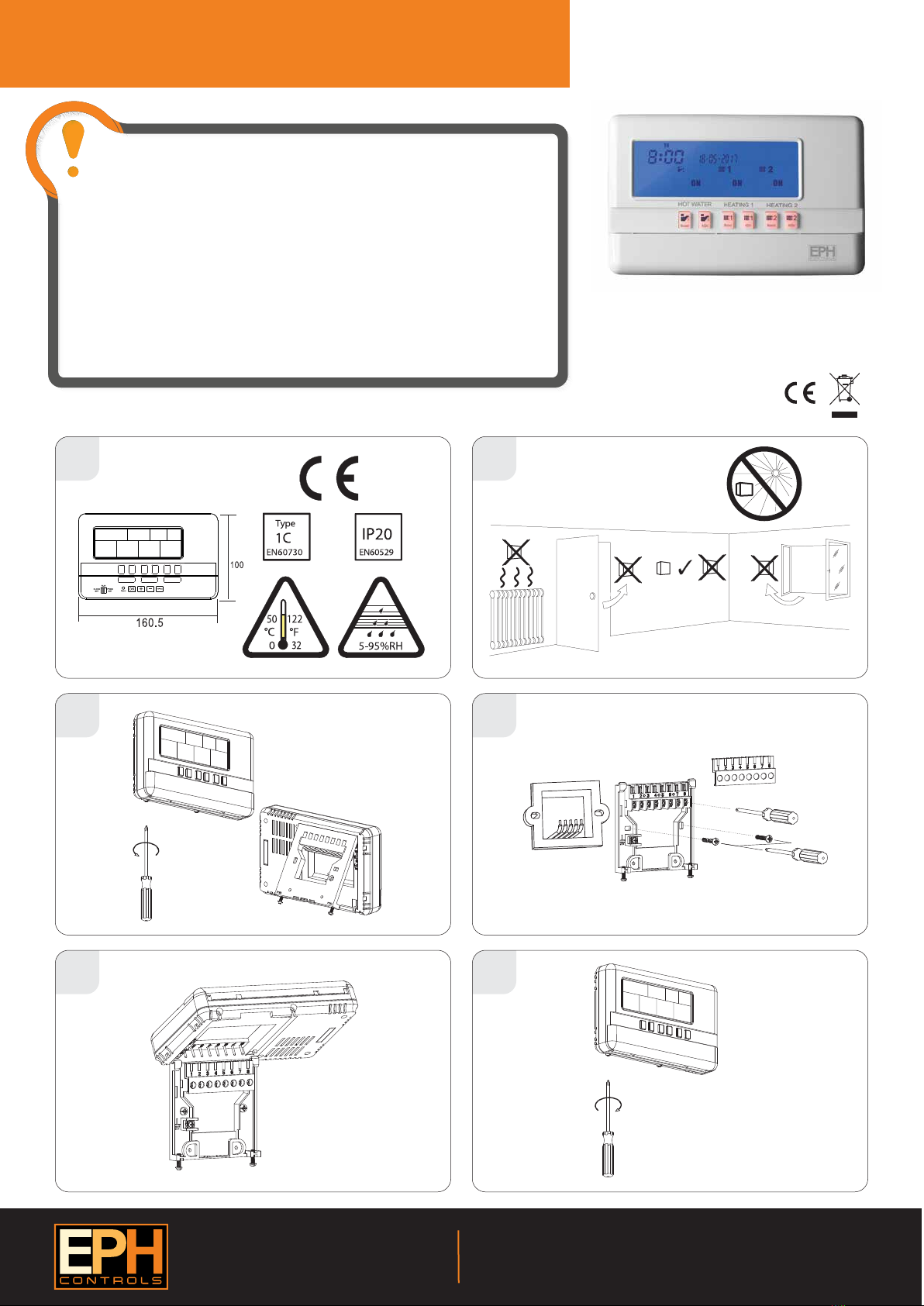

This programmer can be mounted in the following ways: 1. Directly wall mounted 2. Mounted to a recessed conduit box
This 3 zone programmer is designed to provide
ON/OFF control for one hot water and two heating
zones, with the value added application of in built frost
protection and keypad lock.
Important: Keep this document
1
34
5 6
2
CAUTION! Installation and connection should only be carried out by a qualied
person and in accordance with national wiring regulations.
 Before commencing any work on the electrical connections, you must rst disconnect the programmer
from the mains. None of the 230V connections must be live until the installation has been completed
and the housing is closed. Only qualied electricians or authorised service sta are permitted to open
the programmer. Disconnect from mains supply in the event of any damage to any buttons.
 There are parts that carry mains voltage behind the cover. The programmer must not be left
unsupervised when open. (Prevent non specialists and especially children from gaining access to it.)
 If the programmer is used in a way not specied by the manufacturer, its safety may be impaired.
 Prior to setting the timeswitch, it is neccessary to complete all required settings described in this section.
 Never remove this product from the electrical baseplate. Do not use sharp tools to push any button.

For use in normal environments.
R37-HW - 3 Zone Programmer Installation Instructions
Page 2 of 2
20170313_AW1077_R37-HW_InsIns_JW
EPH Controls Ireland
Sitecast Industrial Estate, Pouladu,
Cork, T12 W665, Ireland
[e-mail] www.ephcontrols.com
EPH Controls UK
Unit E4, Welland Business Park, Valley Way, Market Harborough,
Leicestershire, LE16 7PS, United Kingdom
[e-mail] www.ephcontrols.co.uk
1. Factory default settings
Contacts: 230 Volt
Program: 5/2D
Backlight: On
Keypad: Unlocked
Frost Protection: O
Clock type: 24 Hr Clock
Day-Light Saving
Power Supply: 230 Vac
Ambient Temp: 0~35°C
Contact Rating: 250 Vac 3A(1A)
Program Memory
backup: 1 year
Battery: 3Vdc Lithium LIR 2032
Backlight: Blue
IP rating: IP20
Backplate: British System Standard
Pollution degree 2: Resistance to voltage surge 2000V
as per EN 60730
2. Specications & wiring
Lower the cover on the front of the programmer. There are four hinges
holding the cover in place.
Between the 3rd and 4th hinges there is a circular hole. Insert a ball point
pen or similar object to master reset the programmer.
After pressing the master reset button, the date and time will now need to
be reprogrammed.
3. Master reset
Contents
1. Factory default settings
2. Specications & wiring
3. Master reset
200-240Vac
50Hz-60Hz CONTACT RATING: 250Vac~/3(1)A
OFF
ON OFF ON OFF ON
5 6 7 8
HOT WATER HEATING 1 HEATING 2
