EQD Auria EQ2488F User manual

24" LCD HDTV
User Guide
MODEL EQ2488F

Explanation of WARNING Symbols
The lightning flash with arrowhead symbol, within an equilateral triangle, is
intended to alert the user to the presence dangerous voltage within the
inside of the product that may be sufficient level to constitute a risk of electric
shock.
The exclamation point within an equilateral triangle is intended to alert the
user to the presence of important operating and servicing instructions.
Safety instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this LCD TV near water.
6) Clean only with dry cloth. Do not use liquid, alcohol, or aerosol cleaners.
7) Do not block any ventilation openings. Install your LCD TV in a well ventilated
area.
8) Keep your LCD TV away from moisture, excessive dust and any heat sources,
such as radiators, heat registers, stoves, or any other apparatus (including
amplifiers) that produce heat.
9) Do not remove the back cover. There are no user-serviceable parts inside.
10) Do not defeat the safety purpose of the polarized or grounding-type plug. A
polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The third prong is provided for your
safety. If the provided plug does not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
11) Protect the power cord from being walked on or pinched particularly at plugs,
receptacles, and the point where they exit from the LCD TV.
12) Never rest objects on the power cord or place it in high traffic areas.
13) Only use attachments/accessories specified by the
manufacturer.
14) Use only with stand, tripod, bracket, or table specified by
the manufacturer, or sold with the LCD TV. When a cart is
used, use caution to avoid injury from tip-over.
15) Unplug this LCD TV during lightening storms or when
unused for long periods of time.
16) Refer all servicing to qualified service personnel--
Servicing may be required if the LCD TV has been damaged in any way, such as
power-supply cord or plug damage, liquid has been spilled or objects have fallen
into the LCD TV, the LCD TV has been exposed to rain or moisture, does not
operate normally, or has been dropped.
English

17) Do not expose your LCD TV to dripping or splashing, and do not place objects
filled with liquids on it.
18) The Shock Hazard Marking and Associated Graphical Symbol are provided on the
back panel of unit.
19) This product is only to perform the useful function of entertainment and visual
display tasks are excluded.
20) Wall or ceiling mounting: When mounting the product on a wall or ceiling, be sure
to install the product according to the method recommended by the manufacturer.
Use only the mounting hardware recommended by the manufacturer. This is a
safety feature.
21) The readily operable appliance coupler will serve as the disconnect device of this
apparatus.
22) The apparatus must be connected to a mains socket outlet with a protected
earthling connection.
23) Due to safety concerns, if the VESA mounting kit is purchased separately please
make sure the mounting kit is UL-Listed, and replaceable only by service
personnel.
WARNING: To reduce the risk of fire or electric shock, do not expose this
LCD TV to rain or moisture.
CAUTION: Any damage caused by incorrectly attempting to mount this
LCD TV is not covered under the terms of the manufacturers warranty.
English

Content
ACCESSORIES.................................................................................................................1
WALL-MOUNT INSTRUCTION .........................................................................................2
FRONT PANEL BUTTONS ................................................................................................4
BACK PANEL BUTTONS...................................................................................................5
REMOTE CONTROL.........................................................................................................6
INSTALLATION..................................................................................................................8

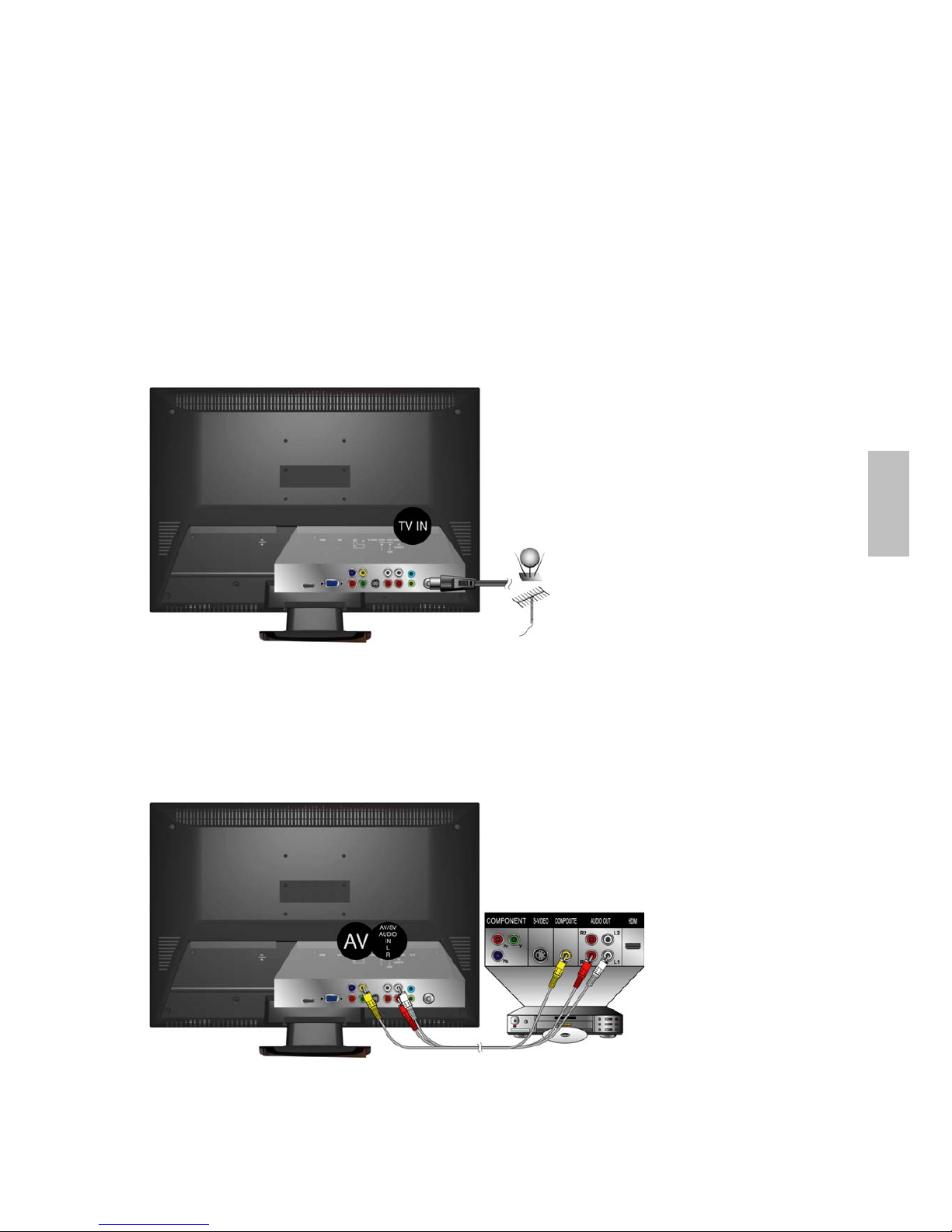

Connecting RF antenna and Cable TV .......................................................................8

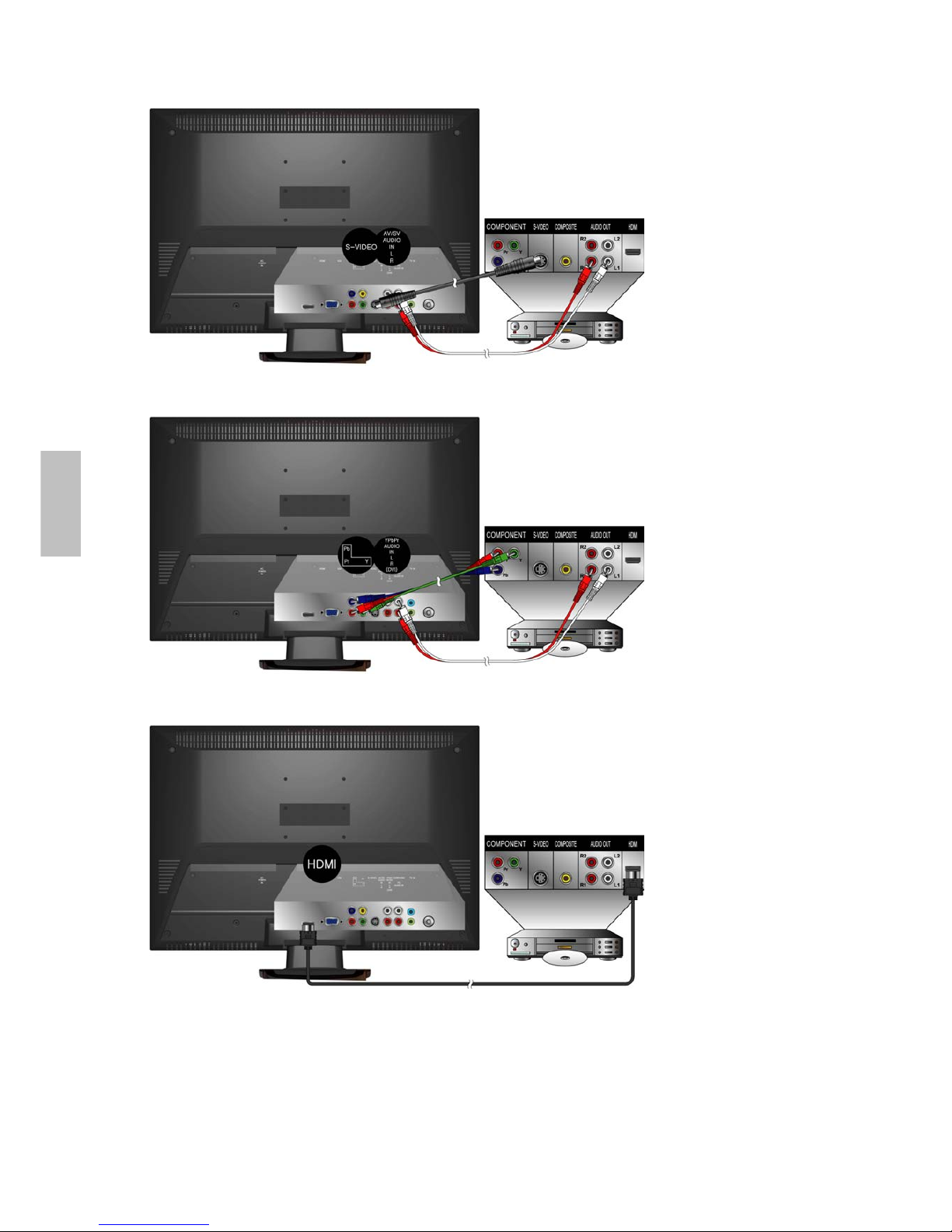

Connecting to DVD / Set Top Box...............................................................................8
Connecting to the Headphone ..................................................................................10
Connecting to a Computer........................................................................................10
Connecting with the power cord ............................................................................... 11
BASIC OPERATION ........................................................................................................12
Turning on the LCD TV .............................................................................................12
Power On/Off............................................................................................................12
Select input source ...................................................................................................12
Volume Adjusting ......................................................................................................12
INFO.........................................................................................................................12
Electronic Program Guide (EPG)..............................................................................13
Channel Select .........................................................................................................13
List............................................................................................................................13

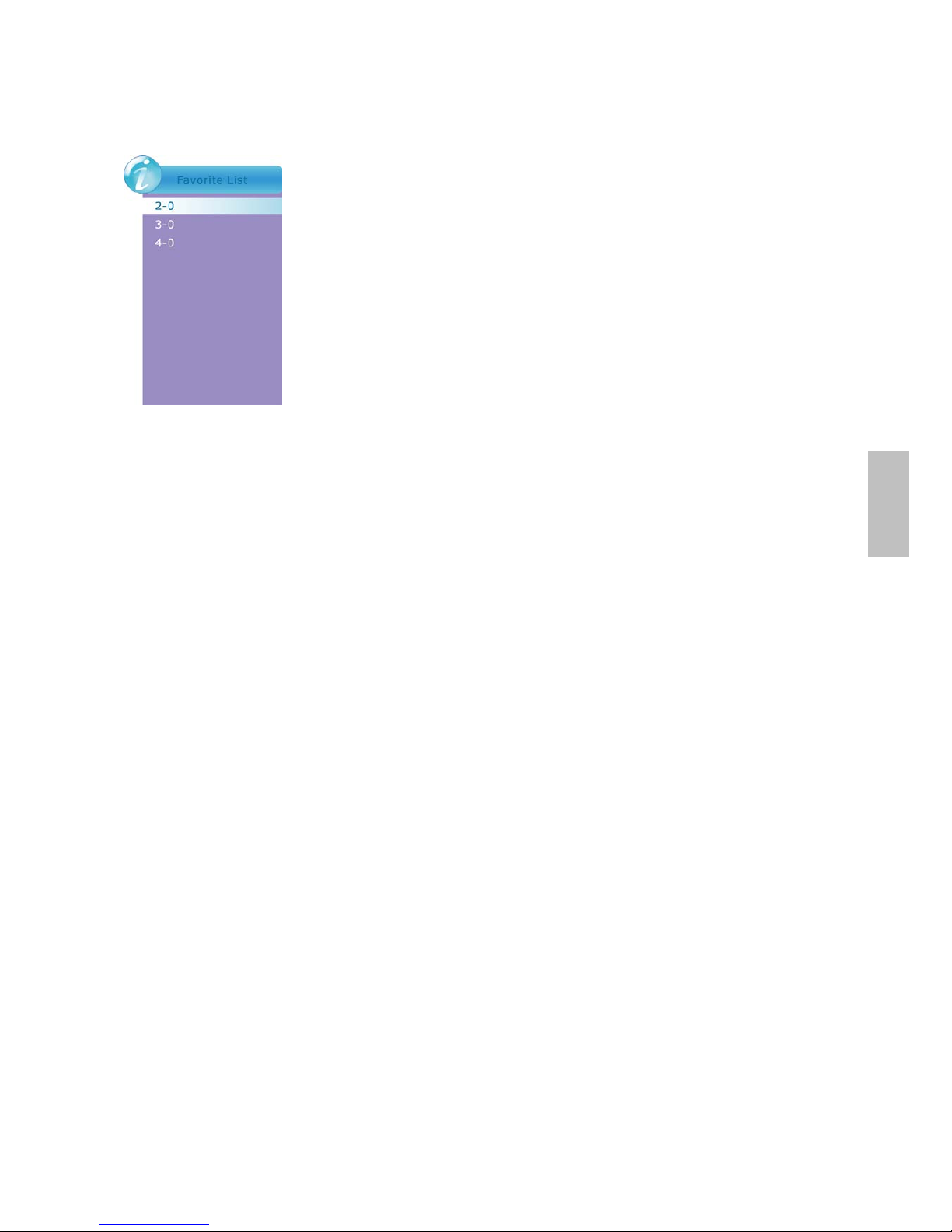

Favorite Channels.....................................................................................................14
Sleep Time Setting....................................................................................................14
Zoom ........................................................................................................................14
MTS Selecting ..........................................................................................................14
C.C Mode .................................................................................................................14
Using the OSD function ............................................................................................14
ADVANCED OPERATION—OSD MENU ........................................................................15

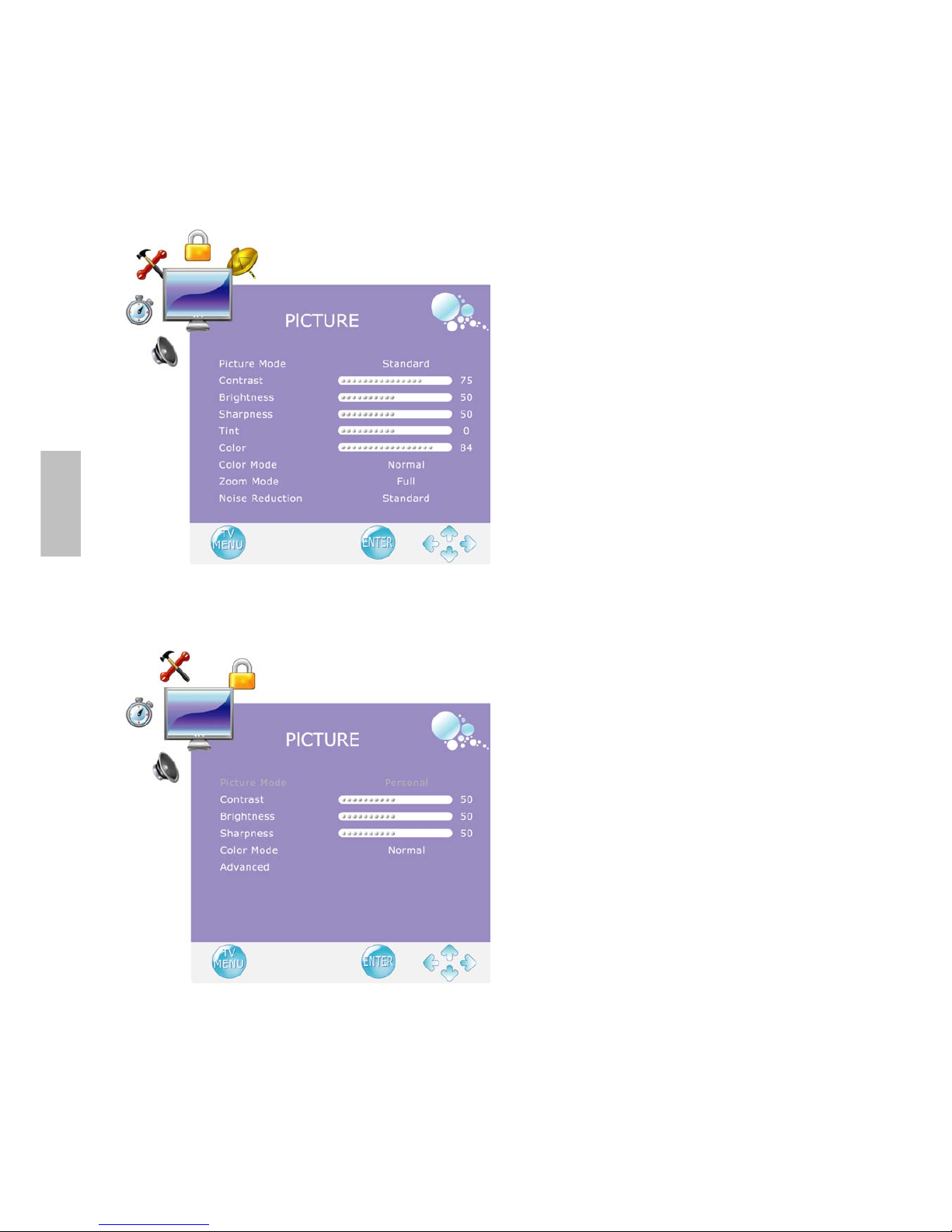

PICTURE Menu........................................................................................................15
AUDIO Menu ............................................................................................................16
TIME Menu ...............................................................................................................17
OPTION Menu..........................................................................................................18
LOCK Menu..............................................................................................................20
CHANNEL Menu.......................................................................................................24
TECHNICAL SPECIFICATION ........................................................................................27
SAFETY PRECAUTIONS ................................................................................................28
CARE AND MAINTENANCE ...........................................................................................29
TROUBLESHOOTING.....................................................................................................29
English

1
ACCESSORIES
Thank you for purchasing this LCD-TV.
This LCD-TV package comes with:
 LCD TV
 User’s Guide book
 Remote control
 Battery AA x 2
 Power Cord
 RCA A/V Cable
English

2
WALL-MOUNT INSTRUCTION
Preparing To Install The Optional Wall Mount Arm (not included)
This TV can be attached to a wall mounting arm you can purchase separately.
Turn the power OFF then disconnect the cables from the TV before performing the procedure
below.
1. Place the TV face down on a soft cloth or cushion on a table.
2. Remove the hinge cover.
3. Remove the 4 screws holding the stand to the hinge.
4. Remove the stand.
Attaching The Optional Wall Mount Arm (not supplied)
Follow these steps to finish installing the wall mounting arm:
1. Place the wall mounting arm onto the back of the TV. Line up the holes of the arm with the
holes in the back of the monitor.
English

3
2. Insert the 4 screws into the holes and tighten.
3. Reconnect the cables. Refer to the user’s manual that came with the optional wall mounting
arm for instructions on attaching it to the wall.
NOTE
 100 x 100mm VESA high hole (n=4), M4, pitch =0.7 mm screw mounting kit not included.
 Due to safety concerns, if the VESA mounting kit is purchased separately please make sure the
mounting kit is UL-Listed, and replaceable only by service personnel.
English

4

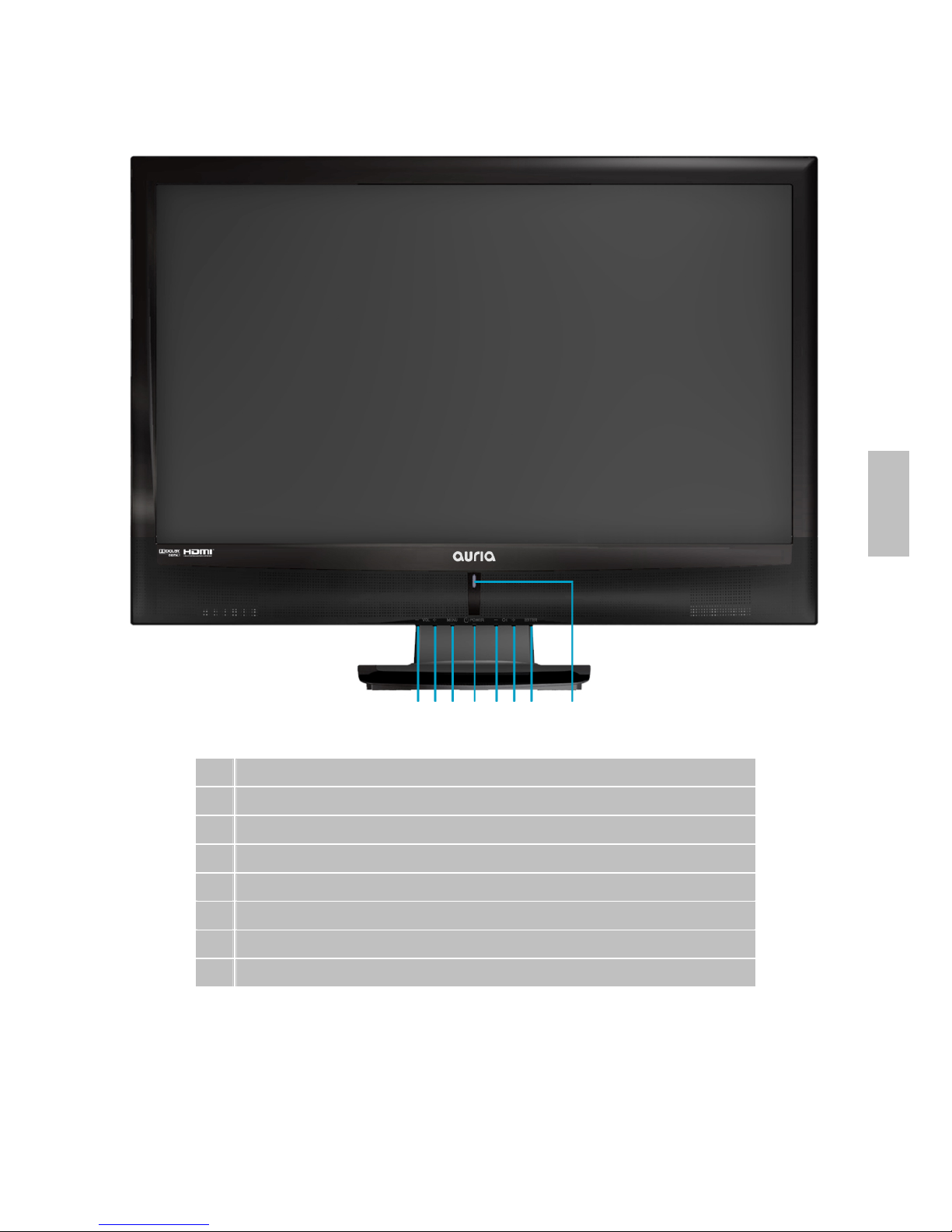

FRONT PANEL BUTTONS
Volume Down
Volume Up
On Screen Display Menu On/Off
Power ON/OFF button
CH Down
CH Up
Input Source Selection (Enter)
 Power LED Indicator/ Remote Control Receiver
  
English

5
BACK PANEL BUTTONS
A B
C D EF GH I J K
A Power (AC input)
B Composite Video input
C HDMI Input Terminal
D VGA signal input
E YPbPr signal input
F S-Video input
G AV/ S-Video signal Audio input (left/right)
H YPbPr/DVI signal Audio input (left/right)
I PC Audio input
J Cable/ Air TV input
K Headphone Jack
English

6

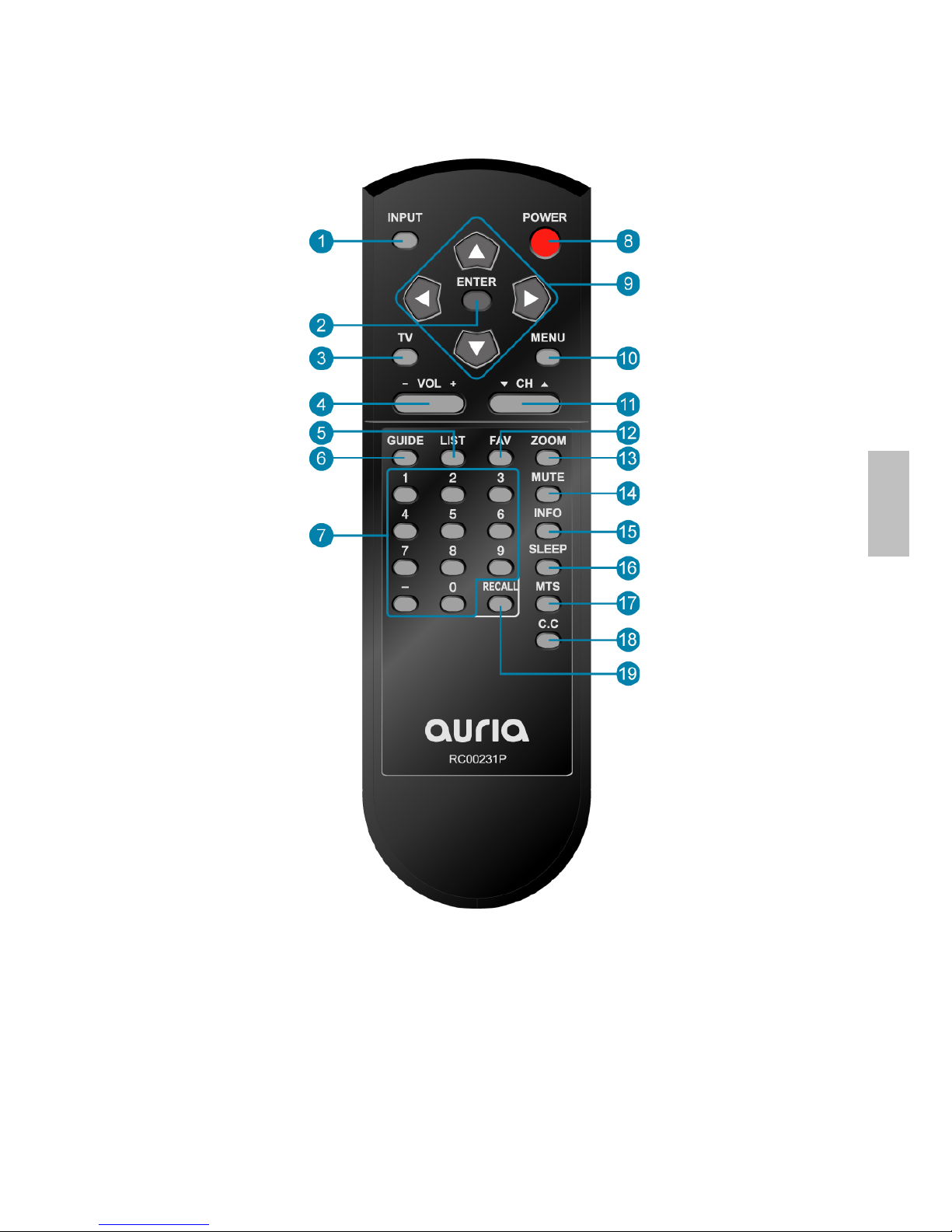

REMOTE CONTROL
English
