Equalizer HP350SD Assembly instructions

HP350SD, HP550SD
HP1000SD
DOUBLE ACTING
HYDRAULIC SEALED
HAND PUMPS
Operator Instruction Manual
[email protected]
www.equalizerinternational.com
INNOVATION IN ITS MOST FUNCTIONAL FORM

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 1
SECTION CONTENTS PAGE NO.
1 INTRODUCTION 1
2 SAFETY INFORMATION 2-3
3 KIT COMPONENTS 4
4 TECHNICAL DATA 5
5 HOW THE HAND PUMPS WORK 6
6 INSTALLATION AND OPERATION 7-9
6.1 HP350SD, HP550SD, HP1000SD 7-9
7 EXAMINATION, MAINTENANCE AND STORAGE 10
8 PARTS LISTS 11-13
9 WEIGHTS AND DIMENSIONS 14
10 TROUBLESHOOTING 15-16
The HP350SD, HP550SD and HP1000SD Hydraulic Hand Pumps output is regulated to 700
bar (10,000 psi) and is delivered from an output port threaded ⅜” NPT. The HP350SD,
HP550SD and HP1000SD can be used with any double acting 700 bar (10,000 psi) rated
hydraulic equipment.
The diaphragm oil reservoir means that, unlike conventional hand pump units, the HP350SD,
HP550SD and HP1000SD are operable at all angles and are highly resistant to accidental
spillage of hydraulic uid.
Pressure rating:
●1st stage: 13.8 bar (197 psi)
●2nd stage: 700 bar (10,000 psi)
INDEX
1. INTRODUCTION
HPSD_IM_REV_04
06/06/14

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 2
2. SAFETY INFORMATION
The operator MUST read this manual prior to using the tools.
Failure to comply with the following cautions and warnings could cause equipment
damage and personal injury; read the manual fully!
Read all the following instructions, warnings and cautions carefully. Follow all safety
precautions to avoid personal injury or property damage during system operation.
Equalizer International Ltd cannot be responsible for damage or injury resulting from unsafe
product use, lack of maintenance or incorrect product and/or system operation. Contact
Equalizer International Ltd when in doubt as to the safety precautions and applications. To
protect your warranty, use only good quality hydraulic oil of the grade 15cSt.
Only people competent in the use of hydraulic equipment should use these tools.
In all installations the site safety requirements must be adhered to. ALSO the safety of the
operator, and when present, any assisting personnel, is of paramount importance along with
the safety of others including, when present, the general public.
These instructions are only to cover the safe operation of THE EQUALIZER HP350SD, HP550SD
AND HP1000SD HYDRAULIC SEALED HAND PUMPS during normal maintenance/installation
operations. All other safety aspects must be controlled by the operation supervisor.

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 3
A CAUTION is used to indicate correct operating or maintenance procedures and practices to
prevent damage to, or destruction of equipment or other property.
A WARNING indicates a potential danger that requires correct procedures or practices to avoid
personal injury.
A DANGER is only used when your action or lack of action may cause serious injury or even
death.
IMPORTANT: Operator must be competent in
the use of hydraulic equipment. The operator
must have read and understood all instructions,
safety issues, cautions and warnings before
starting to operate the Equalizer equipment.
WARNING: To avoid personal injury and
possible equipment damage, make sure all
hydraulic components are rated to a safe
working pressure of 700 bar (10,000 psi)
WARNING: Do not overload equipment. Over-
loading causes equipment failure and possible
personal injury.
CAUTION: Make sure that all system compo-
nents are protected from external sources of
damage, such as excessive heat, ame, mov-
ing machine parts, sharp edges and corrosive
chemicals.
CAUTION: Avoid sharp bends and kinks that
will cause severe back-up pressure in hoses.
Bends and kinks lead to premature hose failure.
Do not drop heavy objects onto hoses. A sharp
impact may cause internal damage to hose wire
strands; applying pressure to a damaged hose
may cause it to rupture. Do not place heavy
weights on the hoses, or allow vehicles to roll
over the hoses; crush damage will lead to pre-
mature hose failure.
WARNING: Immediately replace worn
or damaged parts with genuine Equalizer
parts. Equalizer parts are designed to t
properly and withstand rated loads. For
repair or maintenance service contact your
Equalizer distributor or service centre.
DANGER: To avoid personal injury keep
hands and feet away from the tool and
workpiece during operation.
WARNING: Always wear suitable clothing
and Personal Protective Equipment (PPE).
DANGER: Do not handle pressurised hos-
es. Escaping oil under pressure can pen-
etrate the skin, causing serious injury. If
oil is injected under the skin, seek medical
attention immediately.
WARNING: Never pressurize unconnected
couplers. Only use hydraulic equipment in
a connected system.
IMPORTANT: Do not lift hydraulic equip-
ment by the hoses or couplers. Use the car-
rying handle or other means of safe trans-
port.
CAUTION: Do not operate the equipment
without lubricating all moving parts. Use
only high pressure molybdenum disulphide
grease.

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 4
3. KIT COMPONENTS
HP350SD KIT COMPONENTS
1 x HP350SD Pump Unit
1 x Pressure Gauge
1 x ⅜” Port Gauge Adaptor
1 x Instruction Manual
1 x Cardboard Packaging
Product Code: HP350SDMIN
HP550SD KIT COMPONENTS
1 x HP550SD Pump Unit
1 x Pressure Gauge
1 x ⅜” Port Gauge Adaptor
1 x Instruction Manual
1 x Cardboard Packaging
Product Code: HP550SDMIN
HP1000SD KIT COMPONENTS
1 x HP1000SD Pump Unit
1 x Pressure Gauge
1 x ⅜” Port Gauge Adaptor
1 x Instruction Manual
1 x Cardboard Packaging
Product Code: HP1000SDMIN

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 5
4. TECHNICAL DATA
STAGE HP350SD HP550SD HP1000SD
PUMP TYPE TWO SPEED TWO SPEED TWO SPEED
PRESSURE RATING 1st 13.8bar (197psi) 13.8bar (197psi) 13.8bar (197psi)
2nd 700bar (10,000psi) 700bar (10,000psi) 700bar (10,000psi)
NOMINAL OIL CAPACITY 350cc (21.4in3) 550cc (33.6in3) 1000cc (61.0in3)
USABLE OIL CAPACITY 300.0cc (18.3in3) 580.0cc (35.4in3) 1110.0cc (67.7in3)
OIL VOLUME PER
STROKE
1st 3.62cc (0.221in3) 3.62cc (0.221in3) 3.62cc (0.221in3)
2nd 0.77cc (0.046in3) 0.77cc (0.046in3) 0.77cc (0.046in3)
MAX HANDLE EFFORT 33kgf (72.75lbf) 25kgf (55.12lbf) 21kgf (46.30lbf)
PISTON STROKE 18.0mm (0.71”) 18.0mm (0.71”) 18.0mm (0.71”)

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 6
5. HOW THE HAND PUMPS WORK
1. The control lever is moved to the
advance position to pressurise the
lower/advance port or to the retract
position to pressurise the upper/
retract port.
2. The pump handle is raised, which
creates a vacuum in the piston
chamber which sucks oil from the
reservoir into the chamber.
3. The pump handle is depressed,
which pumps the oil from the
chamber through the outlet port
and into the system to which the
pump is connected.
4. Steps 2 & 3 are repeated, which will
pump oil into the system until the
maximum pressure of
10,000 psi (700 bar) is achieved, at
which point the safety release valve
will open and the oil will cycle back
to the reservoir.
Control lever
Advance
Retract
Advance
Retract

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 7
6. INSTALLATION AND OPERATION
WARNING:
Never attempt to pressurise the pump when the pressure gauge is not
connected or the pump is not connected to a system!
DANGER:
Always check the hydraulic system in which the pump is to be used is rated
for 10,000 psi (700 bar). Over pressurising a hydraulic system will result in
component failure and personal injury!
2. Ensure the hydraulic system you
wish to pressurise has been bled
and is free from air and leaks.
Connect the pump into the system
using the screw connector supplied
with the pump, push the male and
female connectors together fully and
rotate the locking ring clockwise
until fully tight.
WARNING:
Never disconnect the pump
or other components when
the system is pressurised
6.1 HP350SD, HP550SD & HP1000SD
MALE AND FEMALE
CONNECTORS
LOCKING
RING
LOCKING
RING
1. Prior to using the pump the hydraulic
gauge must be tted.
push the male connector on the gauge
and female connector on the gauge
adaptor together fully and rotate the
locking ring counterclockwise until fully
tight.

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 8

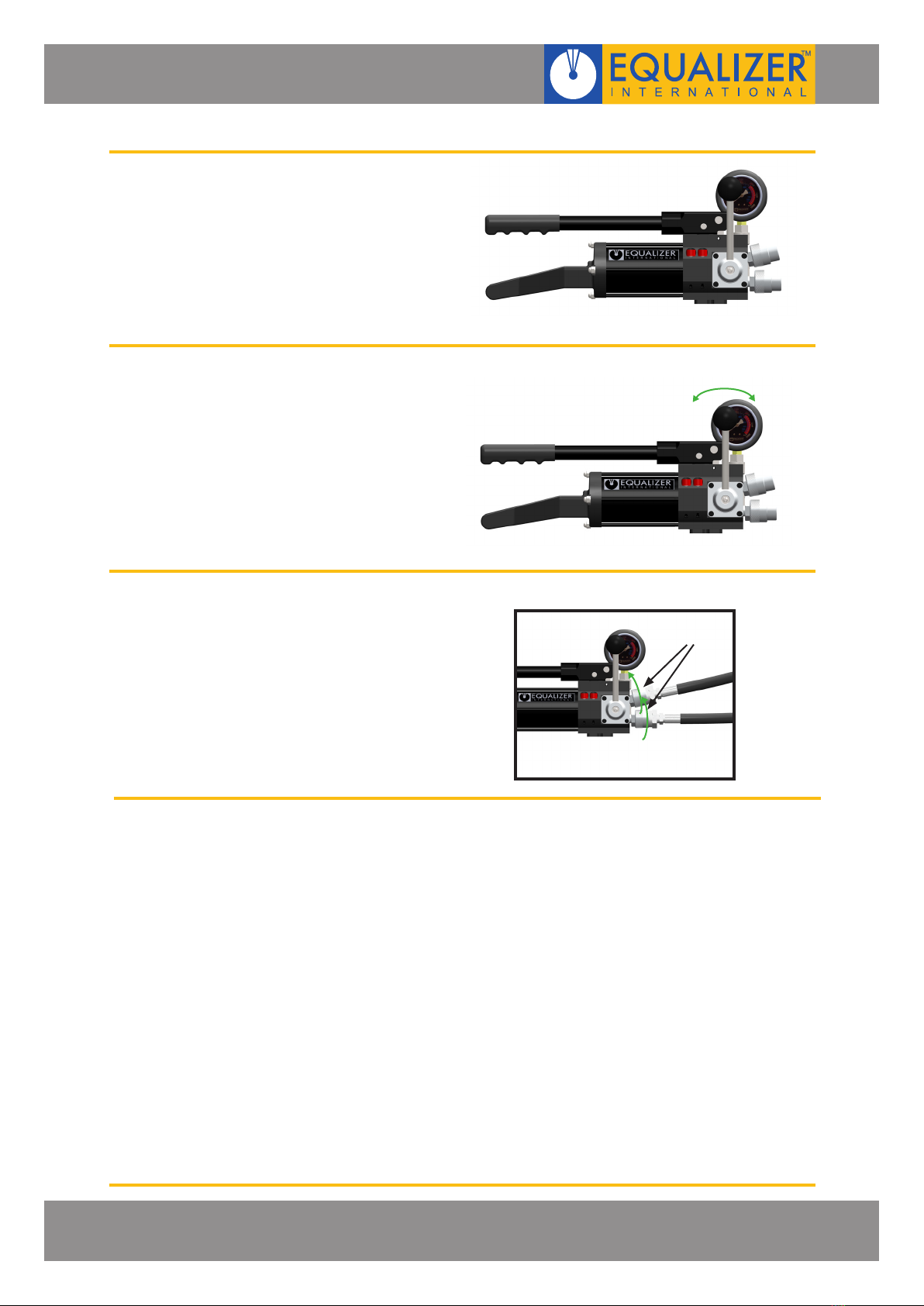

3. The HP350SD, HP550SD &
HP1000SD is tted with a control
lever. This enables the operator to
pressurise the advance or retract
hoses.
Pushing the control lever forward
to activate the advance port.
4. Pressurise the advance hose by
raising and depressing the pump
handle until the desired pressure is
indicated on the pressure gauge
N.B. max. pressure 10,000 psi (700
bar)
5. To depressurise the advance hose
move the control lever to the retract
position this will redirect the ow
to the retract hose.
6. Pressurise the retract hose by raising
and depressing the pump handle
with the control lever in the retract
position until the desired pressure is
indicated on the pressure gauge
N.B. max. pressure 10,000 psi (700
bar)
Control lever
Advance
Retract
Advance
Retract

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 9
7. To keep pressure in both hoses, set
the control lever in the central
vertical position.
8. To depressurise both hoses, set
the control lever in the advanced
position untill the gauge indicates
zero pressure and then set the
control lever in the retract position
untill the gauge indicates zero
pressure.
9. Once both systems have been fully
depressurised the pump can be
disconnected by unscrewing the
couplers
LOCKING
RING

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 10
7. EXAMINATION, MAINTENANCE AND STORAGE
• On return from each job and before allocation against subsequent work the
HP350SD / HP550SD /HP1000SD should be examined to ensure that they are service
able.
• Any missing or damaged items are to be replaced as soon as possible and prior to the
pump being used again.
• Store the pump in a cool dry place and ensure all machined surfaces are greased.
• Grease all moving parts each and every time the pump is used.

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 11

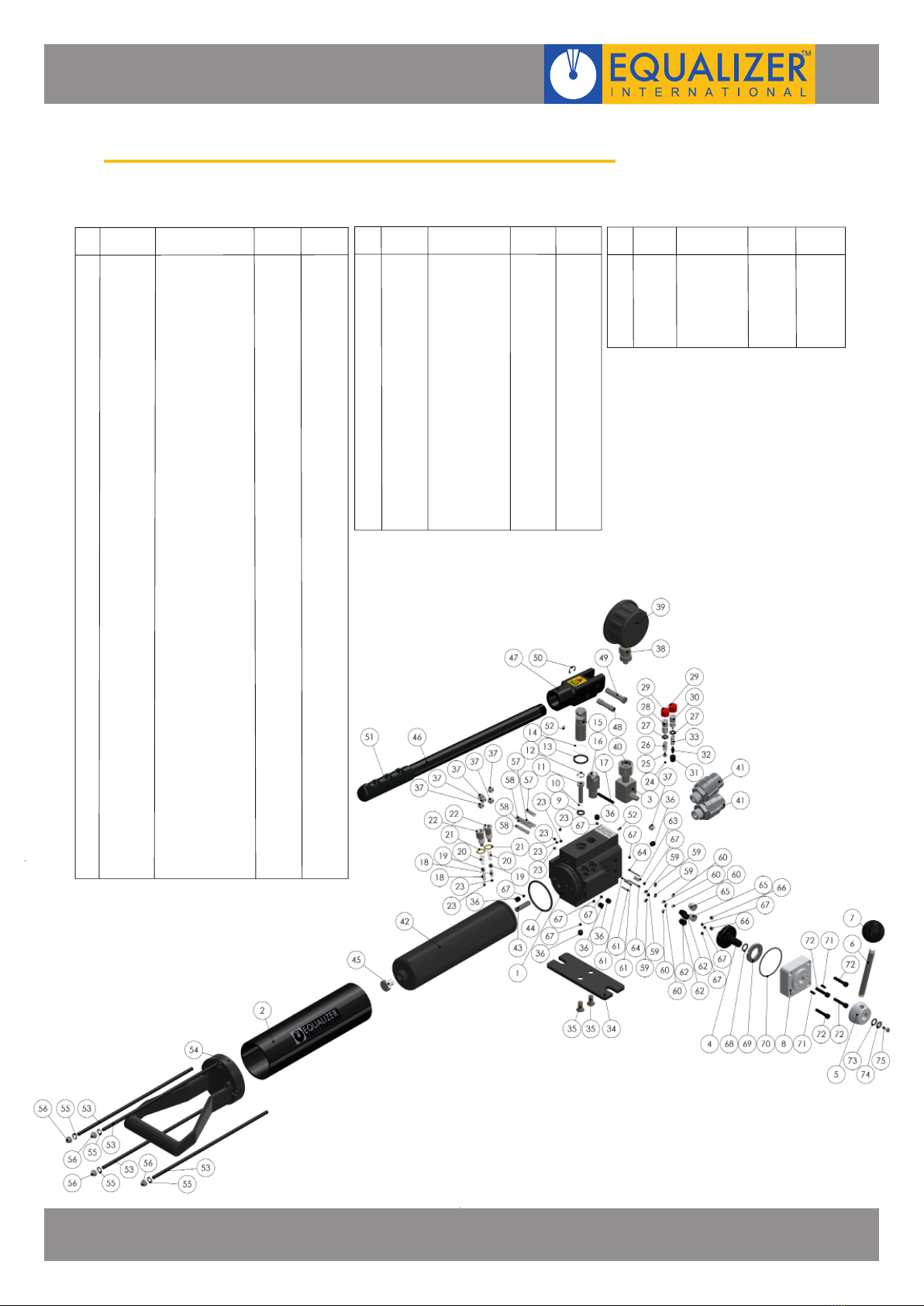

DESCRIPTION
PUMP HOUSING
SERVICE KIT A:
- RESERVOIR BLADDER
- OIL FILTER
- O-RING
- REFILLING PLUG
SERVICE KIT B:
- SCREW
- TAIL BASE
- SPRING WASHER
SERVICE KIT C:
- O-RING
- BACK-UP RING
- PUMP PISTON
- SNAP RING
- O-RING
- BACK-UP RING
- PUMP PISTON
SERVICE KIT D:
- HANDLE
- YOKE
- PISTON PIN
- YOKE PIN
- RETAINING RING
SERVICE KIT E:
- YOKE BASE
- SPRING PIN
SERVICE KIT G:
- SPRING
- STEEL BALL
- OUTLET BALL SPRING
- COPPER WASHER
- VALVE COVER SCREW
- STEEL BALL
PART No.
707001-01
715100-01
725200-01
715300-01
715400-01
715500-01
715700-01
KIT
QUANTITY
01
01
01
01
04
01
04
01
01
01
01
01
01
01
01
01
01
01
01
01
01
02
02
02
02
02
02
ITEM
01
09
10
11
12
13
14
15
17
18
19
20
21
22
23
24
25
26
27
28
31
32
33
34
35
36
37
38
DESCRIPTION
SERVICE KIT H:
- STEEL BALL
- SPRING END CAP
- L.P. SPRING
- O-RING
- OVERLOAD COVER
SCREW
- CAP
- OVERLOAD COVER
SCREW
SERVICE KIT I:
- BASE PLATE
- SCREW
PART No.
715800-01
715900-01
KIT
QUANTITY
01
01
01
02
01
02
01
01
02
ITEM
39
40
41
42
43
44
45
49
50
- NUT 04 16
- HANDLE GRIP 01
29
- SCREW 01
30
- CONE SEAT 01 46
- CONE 01 47
- LONG SEPARATOR
SPRING
01
48
SERVICE KIT K:
- SCREW
- SCREW
716100-01
04
01
51
59
SERVICE KIT L:
- GAUGE COUPLER
MALE
- GAUGE
716200-01
01
01
53
54
SERVICE KIT M:
- GAUGE COUPLER
FEMALE
- COUPLER
716300-01
01
01
55
56
RESERVOIR710601-0102
ELBOW707071-0103
TOP PLATE707052-0104
CONTROL SWITCH707048-0105
SWITCH BASE707055-0106
HANDLE707056-0107
HANDLE BALL707057-0108
- CHECK BALL 04
52
SERVICE KIT Q:
- SPRING
- SPRING
707100-01
02
03
57
58
- SCREW
- STEEL BALL
05
05
59
38
SERVICE KIT R:
- O-RING
- O-RING END CAP
707200-01
05
05
60
61
- PIN
- BALL SEAT
03
02
62
63
- SPRING
- PIN
01
02
64
65
- BALL SEAT
- STEEL BALL
02
02
66
67
- CHECK BALL 04
52
DESCRIPTIONPART No. KIT
QUANTITY
ITEM
SERVICE KIT S:
- O-RING
- BEARING
707300-01
01
01
68
69
- O-RING
- SPRING PIN
01
02
70
71
- SCREW
- O-RING
04
01
72
73
- WASHER
- SCREW
01
01
74
75
PUMP
QUANTITY
01
01
01
01
01
04
01
04
01
01
01
01
01
01
01
01
01
01
01
01
01
01
02
02
02
02
02
02
01
01
01
02
01
02
01
04
01
01
01
01
01
01
01
01
01
01
01
01
PUMP
QUANTITY
01
02
06
01
02
01
01
01
06
02
03
05
05
05
05
03
02
01
02
02
02
04
PUMP
QUANTITY
01
01
01
02
04
01
01
01
- SCREW 01
30 01
- PORT GAUGE
ADAPTOR
01
-- 00
8. PARTS LISTS
HP350SD DOUBLE ACTING HYDRAULIC SEALED HAND PUMP

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 12
HP550SD DOUBLE ACTING HYDRAULIC SEALED HAND PUMP
[email protected]
www.equalizerinternational.com
DESCRIPTION
PUMP HOUSING
SERVICE KIT C:
- O-RING
- BACK-UP RING
- PUMP PISTON
- SNAP RING
- O-RING
- BACK-UP RING
- PUMP PISTON
SERVICE KIT E:
- YOKE BASE
- SPRING PIN
SERVICE KIT G:
- SPRING
- STEEL BALL
- OUTLET BALL SPRING
- COPPER WASHER
- VALVE COVER SCREW
- STEEL BALL
PART No.
707001-01
715300-01
715500-01
715700-01
KIT
QUANTITY
01
01
01
01
01
01
01
01
01
02
02
02
02
02
02
ITEM
01
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
DESCRIPTION
SERVICE KIT H:
- STEEL BALL
- SPRING END CAP
- L.P. SPRING
- O-RING
- OVERLOAD COVER
SCREW
- CAP
- OVERLOAD COVER
SCREW
SERVICE KIT I:
- BASE PLATE
- SCREW
PART No.
715800-01
715900-01
KIT
QUANTITY
01
01
01
02
01
02
01
01
02
ITEM
24
25
26
27
28
29
30
34
35
- CONE SEAT 01 31
- CONE 01 32
- LONG SEPARATOR
SPRING
01
33
SERVICE KIT K:
- SCREW
- SCREW
716100-01
04
01
36
37
SERVICE KIT L:
- GAUGE COUPLER
MALE
- GAUGE
716200-01
01
01
38
39
SERVICE KIT M:
- GAUGE COUPLER
FEMALE
- COUPLER
716300-01
01
01
40
41
RESERVOIR
710601-01
02
ELBOW
707071-01
03
TOP PLATE
707052-01
04 CONTROL SWITCH
707048-01
05 SWITCH BASE
707055-01
06 HANDLE 707056-01
07 HANDLE BALL
707057-01
08
- CHECK BALL 04 67
SERVICE KIT Q:
- SPRING
- SPRING
707100-01
02
03
57
58
- SCREW
- STEEL BALL
05
05
37
23
SERVICE KIT R:
- O-RING
- O-RING END CAP
707200-01
05
05
59
60
- PIN
- BALL SEAT
03
03
61
62
- SPRING
- PIN
01
02
63
64
- BALL SEAT
- STELL BALL
02
02
65
66
- CHECK BALL 04
67
DESCRIPTION
PART No. KIT
QUANTITY
ITEM
SERVICE KIT S:
- O-RING
- BEARING
707300-01
01
01
68
69
- O-RING
- SPRING PIN
01
02
70
71
- SCREW
- O-RING
04
01
72
73
- WASHER
- SCREW
01
01
74
75
SERVICE KIT N:
- RESERVOIR BLADDER
- OIL FILTER
735100-01
01
01
42
43
- O-RING
- REFILLING PLUG
01
01
44
45
SERVICE KIT O:
- HANDLE
- YOKE
735300-01
01
01
46
47
- PISTON PIN
- YOKE PIN
01
01
48
49
- RETAINING RING
- HANDLE GRIP
01
01
50
51
- SCREW 0152
- SCREW 01 52
SERVICE KIT P:
- SCREW
- TAIL BASE
735200-01
04
01
53
54
- SPRING WASHER
- NUT
04
04
55
56
PUMP
QUANTITY
01
01
01
01
01
01
01
01
01
01
02
02
02
02
02
02
01
01
01
02
01
02
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
02
06
01
06
01
- PORT GAUGE
ADAPTOR
01
--
PUMP
QUANTITY
02
03
05
05
05
05
03
03
01
02
02
02
04
01
01
01
01
01
01
01
04
01
04
04
PUMP
QUANTITY
01
01
01
02
04
01
01
01

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 13
HP1000SD DOUBLE ACTING HYDRAULIC SEALED HAND PUMP
[email protected]
www.equalizerinternational.com
DESCRIPTION
PUMP HOUSING
SERVICE KIT C:
- O-RING
- BACK-UP RING
- PUMP PISTON
- SNAP RING
- O-RING
- BACK-UP RING
- PUMP PISTON
SERVICE KIT E:
- YOKE BASE
- SPRING PIN
SERVICE KIT G:
- SPRING
- STEEL BALL
- OUTLET BALL SPRING
- COPPER WASHER
- VALVE COVER SCREW
- STEEL BALL
PART No.
707001-01
715300-01
715500-01
715700-01
KIT
QUANTITY
01
01
01
01
01
01
01
01
01
02
02
02
02
02
02
ITEM
01
09
10
11
12
13
14
15
16
17
18
19
20
21
22
23
DESCRIPTION
SERVICE KIT H:
- STEEL BALL
- SPRING END CAP
- L.P. SPRING
- O-RING
- OVERLOAD COVER
SCREW
- CAP
- OVERLOAD COVER
SCREW
SERVICE KIT I:
- BASE PLATE
- SCREW
PART No.
715800-01
715900-01
KIT
QUANTITY
01
01
01
02
01
02
01
01
02
ITEM
24
25
26
27
28
29
30
34
35
- CONE SEAT 01 31
- CONE 01 32
- LONG SEPARATOR
SPRING
01
33
SERVICE KIT K:
- SCREW
- SCREW
716100-01
04
01
36
37
SERVICE KIT L:
- GAUGE COUPLER
MALE
- GAUGE
716200-01
01
01
38
39
SERVICE KIT M:
- GAUGE COUPLER
FEMALE
- COUPLER
716300-01
01
01
40
41
RESERVOIR02
ELBOW
707071-01
03
TOP PLATE
707052-01
04 CONTROL SWITCH
707048-01
05 SWITCH BASE
707055-01
06 HANDLE 707056-01
07 HANDLE BALL
707057-01
08
- CHECK BALL 04 67
SERVICE KIT Q:
- SPRING
- SPRING
707100-01
02
03
57
58
- SCREW
- STEEL BALL
05
05
37
23
SERVICE KIT R:
- O-RING
- O-RING END CAP
707200-01
05
05
59
60
- PIN
- BALL SEAT
03
03
61
62
- SPRING
- PIN
01
02
63
64
- BALL SEAT
- STELL BALL
02
02
65
66
- CHECK BALL 04
67
DESCRIPTION
PART No. KIT
QUANTITY
ITEM
SERVICE KIT S:
- O-RING
- BEARING
707300-01
01
01
68
69
- O-RING
- SPRING PIN
01
02
70
71
- SCREW
- O-RING
04
01
72
73
- WASHER
- SCREW
01
01
74
75
SERVICE KIT N:
- RESERVOIR BLADDER
- OIL FILTER
735100-01
01
01
42
43
- O-RING
- REFILLING PLUG
01
01
44
45
SERVICE KIT O:
- HANDLE
- YOKE
735300-01
01
01
46
47
- PISTON PIN
- YOKE PIN
01
01
48
49
- RETAINING RING
- HANDLE GRIP
01
01
50
51
- SCREW 0152
- SCREW 01 52
SERVICE KIT P:
- SCREW
- TAIL BASE
735200-01
04
01
53
54
- SPRING WASHER
- NUT
04
04
55
56
PUMP
QUANTITY
01
01
01
01
01
01
01
01
01
01
02
02
02
02
02
02
01
01
01
02
01
02
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
01
02
06
01
06
01
- PORT GAUGE
ADAPTOR
01
--
PUMP
QUANTITY
02
03
05
05
05
05
03
03
01
02
02
02
04
01
01
01
01
01
01
01
04
01
04
04
PUMP
QUANTITY
01
01
01
02
04
01
01
01
520002-01
520001-01
520003-01

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 14

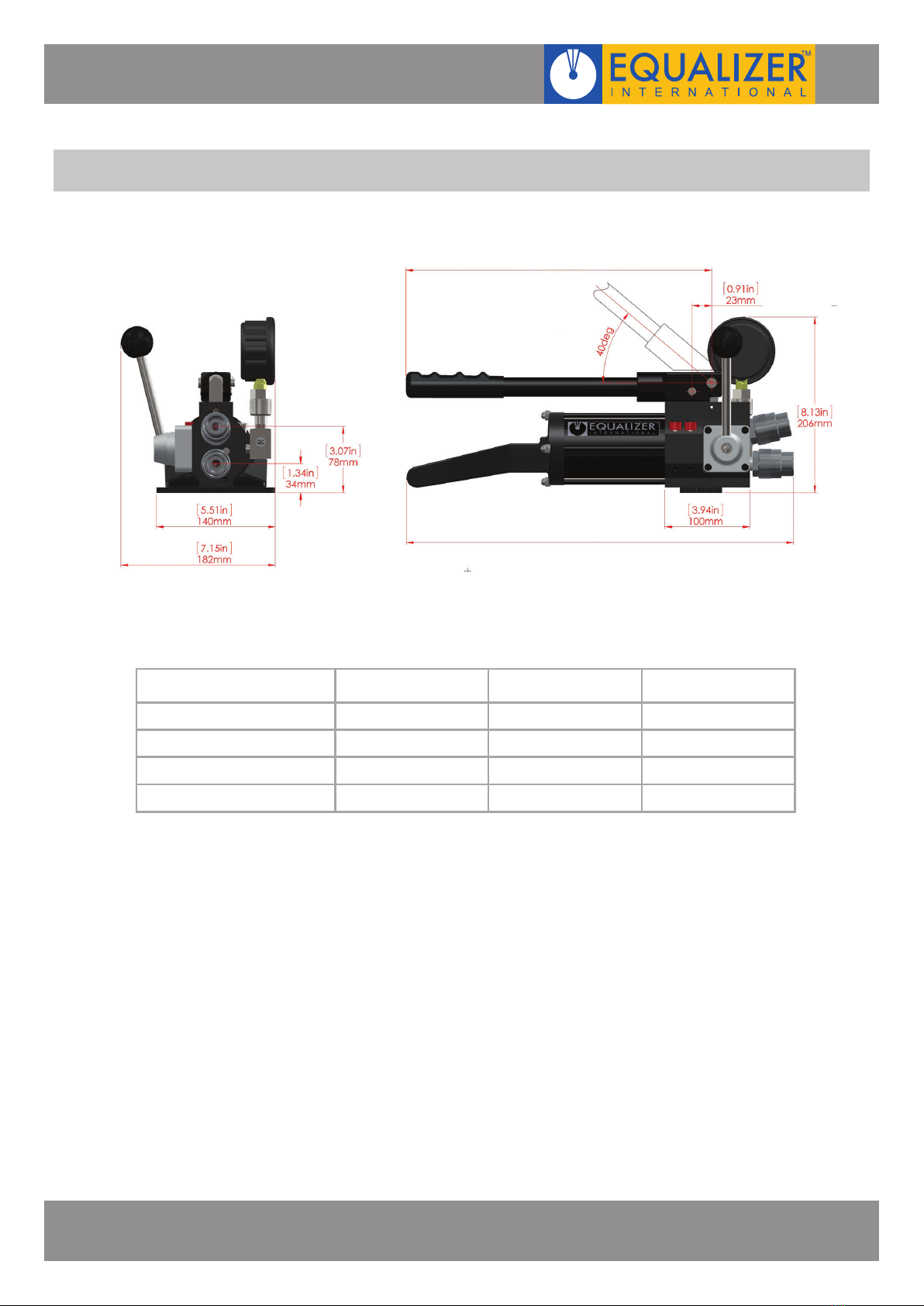

9. WEIGHTS AND DIMENSIONS
HP350SD HP550SD HP1000SD
OVERALL LENGTH (A) 456.0mm (17.95”) 454.0mm (17.87”) 769.0mm (30.28”)
HANDLE LENGTH (B) 360.0mm (14.17”) 490.0mm (19.29”) 537.0mm (21.14”)
PUMP WEIGHT 5.0kg (11.0lb) 5.6kg (12.3lb) 6.7kg (14.8lb)
GROSS KIT WEIGHT 5.5kg (12.1lb) 6.1kg (13.4lb) 7.2kg (15.9lb)
B
A

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 15
Problem: Hoses are connected and the pump quickly reaches maximum pressure but the tool has not advanced
One or more of the connectors are
not fully tightened and the
hydraulic oil cannot pass through
from the pump to the cylinder
Check all connectors are fully tightened and the release valve is in the
fully closed position
Problem: Hoses are connected and the tool advances but there is minimal pressure on the pump handle and the
xxxxxxxxxhandle is rising back of its own accord
There is dirt or a damaged valve
seat within the pump unit
The pump should be sent to an authorised Equalizer distributor for repair
10. TROUBLESHOOTING

HYDRAULIC SEALED HAND PUMPS
OPERATOR INSTRUCTION MANUAL PAGE 16
Problem: The tool the hand pump is driving is advancing but does not reach full pressure
Air could be present in
the hydraulic system
Use the airlock removal
procedure as follows:
1. Connect the hand pump to the
Actuator with the hydraulic
hoses
2. Set the control lever to the
advance position, and prime
the pump until the hydraulic
cylinder is fully extended and a
small pressure is achieved
3. With the hand pump held
above the actuator and the
actuator in an upright position,
set the control valve to the
retract position and prime the
pump until the actuator is fully
retracted and a small pressure
is achieved. this will cause
air that is within the system
to be forced up through the
pump and vented into the oil
reservoir
4. Repeat steps 1 - 3 three or
four times to ensure that all air
is removed from the system
and the tool will reach full
working pressure
5. Release all pressure from the
system then disconnect the
hand pump from the hydraulic
hose, grip the baseplate of the
hand pump body in a vice with
the pump body vertical and the
main handle at the top
6. Remove the four nuts holding
the main handle and lift off
7. Grip the relling plug with
pliers and extract it by pulling
and twisting simultaneously.
Ensure the reservoir body is
held down when removing the
relling plug as pulling up on
the reservoir body will release
the bladder within, and oil will
spill out.
8. Fill the reservoir to the top with
a good quality hydraulic oil of
the grade 15 cSt
9. Reinsert the relling plug, wipe
away any oil, and reassemble
by reversing the disassembly
process
control lever
NUTS
MAIN
HANDLE
OIL
RESERVOIR
ACTUATOR
COUPLER
