SmartMirror2™
—User’sManual—
Register@www.escortinc.com
1

TABLEOFCONTENTS
1.ChapterOne:Productintroduction4
1.1Introduction4
1.2What’sIncluded4
2.ChapterTwo:Features&Specifications5
2.1MainFeatures5
2.2Specifications6
3.ChapterThree:Installation7
3.1DeviceControls&Features7
3.2.1HowtoInstall8
3.2.2UseBrackettoFixNavigator9
3.3SD/MMCCard12
4.ChapterFour:Features&Functions13
4.1MainMenu13
4.2Navigation16
4.3VideoPlayer17
4.3.1Features17
4.3.2Operation17
4.4AudioPlayer20
4.4.1Features20
4.4.2Operation20
4.5Photoviewer23
4.5.1Features23
4.5.2Operation23
4.6E‐bookReader26
4.6.1Features26
4.6.2Operation26
4.7Games30
4.8UnitConversion31
4.9Calculator32
4.10Volume33
4.11Backlight34
4.12Date&Time35
4.13ScreenCalibration36
4.14FMTransmitter38
4.15SystemInformation39
4.16Language40
4.17NavigationPath41
4.18SystemRestore42
4.19GPSInformation43
4.20Bluetooth44
2

WelcometoSmartMirrorGPS.Pleasereadthisuser’smanualcarefullytobecomefamiliar
withalltheoperationdetailsandtoensureyouuseyourdeviceasitwasdesigned.Before
gettingstarted,pleasenotethefollowing:

•Specificationsaresubjecttochangewithoutnotice.
•Pleasemakeacopyoftheimportantdata.
•Pleasereadtheoperatinginstructioncarefullyanduseonlyaccessoriesprovidedby
theoriginalmanufacturertoavoidanyunexpecteddamage.Nowarrantywillbe
executedifyouarenotfollowingtheinstructionsorareconnectingwith
incompatibleaccessories.Weassumenoresponsibilityforanylossordamage
causedhereby.
•Theelectronicnavigationdatamaybenotinconformitywiththeactualroad
markingsduetotrafficconstructiondevelopment.Pleasebesuretocomplywith
actualroadconditionsandfollowthetrafficrules.
•OperatingandviewingtheGPSwhiledrivingmaycauseaseveretrafficaccident.
ESCORTisnotresponsibleforanylosscausedbyanunexpectedaccident.
•Userscanupdateandupgradesoftwarebyvisitingwww.escortinc.com.
•Thescreensshowninthisguidemaybedifferentthantheonesyouseeonyour
device,dependingonthefirmwareversion.
3

CHAPTER1:PRODUCTINTRODUCTION

1.1Introduction
CongratulationsonyourSmartMirrorGPSpurchase.Designedfornavigation,SmartMirror
alsooffersfunctionslikevideoandaudioplay,Bluetoothhandsfree,FMtransmission,photo
viewing,andE‐Bookreading.

•Highperformance,low‐powerconsumptionMediaTekMT3351CPU
•Comfortableuserinterfaceissimpleandeasytooperate
•Powermanagementoffersoperatingconsistencyyoucanrelyon
•Excellentreceivingsignaloffersanexceptionalnavigationexperience
•CompatiblewithBluetoothmobileforhands‐freecalling
•AudioandVideofunctionscanhelprelievefatigue
•Youcanuseitwhendriving,walking,ridingorwaitingforameeting.Theperfect
“GPS+entertainment”device,SmartMirrorcanmakeyourlifeandworkmore
enjoyable.

1.2What’sIncluded

•RearviewmirrorGPSnavigator
•Wirerode
•User’smanual
•Carbracket(option)
•Amplifierbox(option)

PleaseconfirmtheaboveitemsareincludedinyourSmartMirrorbox.Ifanythingismissing
oranyitemsaredamaged,pleasecontactESCORTtoll‐freeat800.543.1608.
4

CHAPTER2:FEATURES&SPECIFICATIONS

2.1MainFeatures
•Operatingsystem:MicrosoftWindowsCE5.0
•4.3”TFTLCDdisplaywithresolutionof480x272pixels
•Built‐inspeaker,volumeadjustable
•Buttonandtouch‐screenoperation
•Built‐insensitiveGPSantenna
•NavigationsoftwarerunsdirectlyfromSDcard
•Videoformatssupported:ASF,AVI,WMV,3GP,MP4,FLV
•Audioformatssupported:MP3,WAV
•Photoformatssupported:BMP,JPG,PNG
•E‐bookformatssupported:TXT
5

2.2Specifications

CPUArm11484Mhz
Flash4GB
Memory128MB
LCDdisplay4.3”TFTLCDdisplay
Resolution:480RGB(H)x272(V)
TouchscreenHigh‐accuracy,endurabletouch‐screen
SDSD/MMCslot
SupportsSDcardsupto8GB
Audio
A:Built‐inhighfidelityspeaker
B:Built‐outhighfidelitystereoamplifierbox
(option)
GPS
Coldstart:<42s
Hotstart:<3s(inopenarea)
Warmstart:<36s
OperatingSystemMicrosoftWindowsCE5.0
NavigationSoftwareSDcard
VideoPlayerASF,AVI,WMV,3GP,MP4,FLV
AudioPlayerMP3andWMA
PhotoViewerE‐album;JPG,BMP,PNG
E‐BookReaderTXT
SystemSettings
Flash,Games,Favorites,Calculator,Unit
Conversion,FMTransmitter,Language,Volume,
Backlight,SettingsRestore,Calibration,Navi
Path,GPSInfo,Date/Time,SystemInfo,USB
TemperatureOperatingTemperature:0°Cto60°C
StorageTemperature:‐20°Cto60°C
WorkingHumidity
Range45%to80%RH
StorageHumidity
range30%to90%RH
Atmosphericpressure86KPato106KPa

6

CHAPTER3:INSTALLATION

3.1DeviceControls&Features
7


Note:Thereisnoneedtoconnectthebrakecabletoenableswitchingthemirrorinto
cameramode.


8







9




10


After‐MarketMountInstall

Wehavevariousmountstochoosefrom.Ifthereisnonetomatchyourcar,pleasecontactus
toll‐freeat800.543.1608.




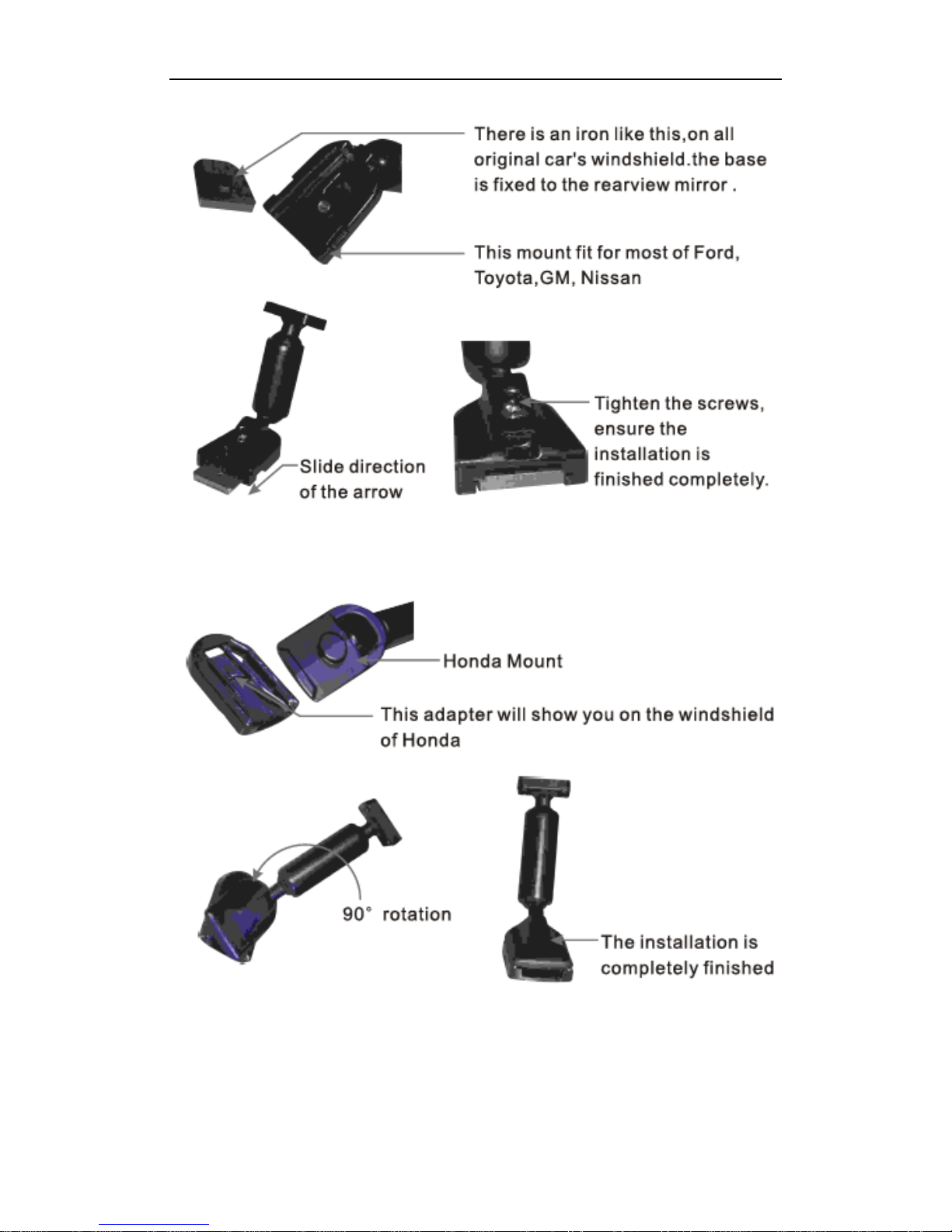

OriginalEquipmentManufacturerMarketMountInstall



Theinformationisforreferenceonly.Thisproductisupdatedregularlywithoutpriornotice.

11

3.3SD/MMCcard

TheenclosedSD/MMCcardcontainsthenavigationsoftware,mapdataandmediafile.
Pleaseinsertthecardcorrectly.Ifyouinsertthecardimproperly,youcandamagethecard.


DonottakeouttheSD/MMCcardwhenthesystemisnavigatingorplaying.Toremove,press
thecardinwardslightly.Thecardwillpopoutenoughforyoutoremoveitfromtheslot.
Pleasekeepcardawayfromchildren,soitisnotswallowed.

NOTE:
1. Don’tstressorbendtheSD/MMCcard.
2. Avoidhightemperatureorhighhumiditywhenusingandstoringthecard.
3. Don’texposecardtodirectsunlight.
4. Keepcardfarawayfromliquidandcorrosivematerial.

12

CHAPTER4:FEATURES&FUNCTIONS

4.1MainMenu

Tapto
scrolldown
Tapto
scrollup
Fig.4‐1


Tapinthetopleftcornerofthemainmenutodisplaythedate(Figure4‐2).
13


Fig.4‐2

Taptoenterthecalendarinterface(Figure4‐3).

Fig.4‐3

Tapinthetopleftcornerofthemainmenutochangethedisplaybackground(Figure
4‐4).
14


Fig.4‐4

Tapintheleftsidebarforashortcuttothenavigationinterface.

Tapintheleftsidebarforashortcuttotheaudioplayer.

Tap  intheleftsidebarforashortcuttothedesktopapplication.

15

4.2Navigation
Thischapterintroducesthenavigationfunction.

Thesystemoffersseveraloptionstocustomizethenavigationexperiencetoyourpreferences,
includingmapwithvividanimation,voiceindicationandtextindication.TheGPSnavigator
candetermineyourposition,calculatethebestroutetoyourdestination,andhelpyouarrive
safelyandrapidly.

Beforeusingthenavigationfunction,ensureyouhaveinsertedtheSDcardwiththe
navigationsoftwareandsettheNaviPath.

TosettheNaviPath,firsttap,thentap.Navigatethroughthefilefolders,
tappingeach,untilyoufindyourGPSsoftwarefile:SDMMC\COPILOT\COPILOT.EXE.Tapthe
filetoselectit,thentapOK.TaptoexittheNaviPathinterface.

OncetheNaviPathisset,youcanbeginusingthenavigationsoftware.

Taptoopenthenavigationinterface.Specificnavigationfunctionsdependupon
yourchoiceofnavigationsoftware.Pleaserefertoyournavigationsoftwareinstructionsfor
details.






16

4.3VideoPlayer
Thischapterintroduceshowtousethevideoplayer.

4.3.1Features
•SupportsASF,AVI,WMV,3GP,MP4andFLVfileformats.
•Supportsfull‐screenplayingandplayprogressselection.
•Beforeusingthevideoplayer,pleasecopyyourvideofilestoafolderonthedevice.

4.3.2Operation
Tap  inthemainmenuorpresstheVIDEObuttononSmartMirrortoopenthevideo
filelist(Figure4‐5).

Fig.4‐5

Tapafoldertoopenandviewitscontents(Figure4‐6).

17

Fig.4‐6

Taptoreturntopreviousscreen

Taptoscrollup

Taptoscrolldown

Taptoopenfolderandviewcontents

Taptoplayvideo

Tapavideofiletoopenthevideoplayerinterface.


Fig.4‐7

Taptoreturntopreviousscreen
Taptopauseplay;tapagaintoresumeplaying
Taptogotothenextvideo
Taptodisplaythevideofilelist
18


Tapthecircleonthevolumebaranddragleftor
righttoadjustvolume

Tapthecircleontheplayprogressbaranddrag
leftorrighttogobackwardorforwardwithin
thevideo

Tapthecircleonthebrightnessbaranddragleft
orrighttoadjustbrightness

Tapthevideoscreentoswitchtofull‐screen
play;double‐tapinfull‐screenmodetoreturnto
normalplay
Nameofthevideocurrentlyplaying
Timeconsumed/Totallengthofthevideo

19

4.4AudioPlayer
Thischapterintroduceshowtousetheaudioplayerasyourpersonalmp3player.

4.4.1Features
•SupportsbothMP3andWAVfileformats.
•Supportsvariousplayselectionmodes.
•Beforeusingtheaudioplayer,pleasecopyyouraudiofilestoafolderonthedevice.

4.4.2Operation
Tapinthemainmenutoenterthemusicfilelist(Figure4‐8).

Fig.4‐8

Tapafoldertoopenandviewitscontents(Figure4‐9).

Fig.4‐9

Taptoreturntopreviousscreen

Taptoscrollup
20
