Instruction Manual
Freezer
MODEL:ES 2086 F

1
Dear customer:
Thank you for buying this upright freezer. To ensure that you get
the best results from your new freezer, please take time to read
through the simple instructions in this booklet.
Please ensure that the packing material is disposed of in
accordance with the current environmental requirements.
When disposing of any Freezer equipment please contact your
local waste disposal department for advice on safe disposal.
This appliance must be only used for its intended purpose.
This appliance is intended to be used in household and similar
applications such as
–staff kitchen areas in shops, offices and other working
environments;
–farm houses and by clients in hotels, motels and other
residential type environments;
–bed and breakfast type environments;
–catering and similar non-retail applications.

2
CAUTION :
For EN standard: This appliance can be used by children aged
from 8 years and above and persons with reduce physical
sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the
hazards involved. Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by children
without supervision.
For IEC standard: This appliance is not intended for use by
persons (including children) with reduced physical, sensory or
mental capabilities, or lack of experience and knowledge, unless
they have been given supervision or instruction concerning use of
the appliance by a person responsible for their safety.
Warnning:
Children should be supervised to ensure that they do not play
with the appliance.
If the supply cord is damaged, it must be replaced by the
manufacturer, its service agent or similarly qualified persons in
order to avoid a hazard.
–WARNING: Keep ventilation openings, in the appliance
enclosure or in the built-in structure, clear of obstruction.
–WARNING: Do not use mechanical devices or other means to

3
accelerate the defrosting process, other than those
recommended by the manufacturer.
–WARNING: Do not damage the refrigerant circuit.
–WARNING: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are of the
type recommended by the manufacturer.
Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.

4
General
This type of refrigerator is widely used in places such as
hotels ,offices, student dormitories and houses. It is mostly suitable
for refrigerating and preserving foods such as fruits and beverage.
It enjoys the advantages of small size, Lightweight, Low electric
consumption and easy use.
Main configuration：(optional)
1、Thermostat
1
2
3

5
2、Drawer
3、Leveler leg
UNPACKING YOUR FREEZER
WARNING: Use two or more people to move Freezer.
Failure to do so can result in back or other injury.
·Remove tape and any labels from your Freezer before using(except
the rating label).
·To remove any remaining tape or glue, rub the area briskly with your
thumb.
·Tape or glue residue can also be easily removed by rubbing a small
amount of liquid dish soap over the adhesive with your fingers.
Wipe with warm water and dry.
·Do not use sharp instruments, rubbing alcohol, flammable fluids, or
abrasive cleaners to remove tape or glue. These products can
damage the surface of your Freezer.
·When moving the Freezer, do not tilt the Freezer beyond 45°from
upright position.
CLEANING BEFORE USE：
After you remove all of the packaging materials, （especially the
foam between outside condenser and cabinet should be removed）
clean the inside of your Freezer before using it.
SPACE REQUIREMENTS
WARNING: Keep flammable materials and vapors, such as
gasoline, away form Freezer.

6
Failure to do so can result in death, explosion, fine or burns.
·To ensure proper ventilation for your Freezer, allow for 200mm
space on each side between walls, 200mm space between back of
your Freezer and the wall, and 300mm space between counter top
and the roof or ceiling.
·If you are installing your Freezer next to a fixed wall, leave sufficient
space on the hinge side to allow for the door to swing open.
·Never install your Freezer near heat source and direct sun shins.
ELECTRICAL REQUIREMENT
WARNING: DO NOT REMOVE GROUND PRONG.
DO NOT USE AN ADAPTOR.
DO NOT USE EXTENSION CORD.
Failure to follow these instructions can result in death, fire or
electrical shock.
Before you move your Freezer into its final location, it is important
to make sure you have the proper electrical connection.
Recommended Earthing Method
A 220～240 Volt /50 Hz AC only 10 ampere fused and properly
earthed electrical supply is required. It is recommended that a
separate circuit serving only this appliance be provided. Use a
receptacle which cannot be turned off with a switch or pull chain. Do
not use an extension cord.
NOTE: Before performing any type of installation, disconnect the
Freezer from the electrical source. When you are finished, connect
the Freezer to the electrical source and reset the control to the
desired setting.

7
LEVELING
If the Freezer is not leveled during installation. The doors may not
close or seal properly, causing cooling, frost, or moisture problems. It
is very important of the Freezer to be level in order to function
properly.
To level your Freezer you may either turn the level leg clockwise to
raise that side to the Freezer or turn counter –clockwise to lower that
side.
NOTE: Having someone push against the top of the Freezer take
some weight off the leveling leg. This makes it easier to adjust the
leveling leg.
USE OF THE APPLIANCE
To obtain the best possible results form your Freezer, it is important
that you operate it properly.
Temperature Control(optional)
The temperature in the freezer is controlled by the thermostat control
knob.It is loaded in the top-front of the freezer. Turn the thermostat
control knob up or down to regulate the temperature inside the
freezer. The markings on control knob indicated the “1~4” for the
different temperature grades. The temperature decreases with
position “1”being the warmest and position “4”being the coldest.
Set the control to position between “1” and “4”for normal use, the
exact position is beyond the temperature in the freezer, generally ,
choose the number“2”。
The temperature in the freezer is controlled by the thermostat control
knob.It is loaded in the top-front of the freezer. Turn the thermostat

8
control knob up or down to regulate the temperature inside the
freezer. The markings on control knob indicated the “cold~colder” for
the different temperature grades. The temperature decreases with
position “cold” being the warmest and position “colder” being the
coldest.
Set the control to position between “cold” and “colder” for normal use,
the exact position is beyond the temperature in the freezer,
generally , choose the “.”。
Store Frozen Food(optional)
When using the freezer for the first time or after defrosting, turn the
temperature control to set “4”for at least two hours before
introducing the food to be stored.
All frozen food products you purchase should be placed in the
freezer as soon as possible to avoid the frozen food from defrosting.
Storage recommendation printed on the packaging of frozen food by
the manufacturers should be always be followed.
Be careful that the drawer mustn’t mangle the refrigeration pipeline
When using the freezer for the first time or after defrosting, turn the
temperature control to set “colder” for at least two hours before
introducing the food to be stored.
All frozen food products you purchase should be placed in the
freezer as soon as possible to avoid the frozen food from defrosting.
Storage recommendation printed on the packaging of frozen food by
the manufacturers should be always be followed.
Be careful that the drawer mustn’t mangle the refrigeration pipeline

9
Freezing Fresh Food
Ensure that your freezing operations are carried out under the most
hygienic conditions as freezing alone does not sterilize the food. It is
advisable to freeze the food by packing it into separate meal portions
and not in bulk form. Never put hot or even warm foodstuffs into the
freezer. Prior to storing the frozen food, pack it in plastic bags,
aluminum sheets or freezing containers and place into the freezer.
See the data sheet at the rear of this booklet for the maximum
permissible amount in kilograms of fresh food that can be frozen in
any 24 hour period with a room temperature of 25℃. Never freeze
more than the maximum permissible.
Note: Never put bottled food or drinks in the freezer compartment.
.For best performance, leave enough space in the Freezer
compartment for air to circulate around the packages.
Notice：You can use it without drawer under some conditions.
Defrosting
Remove the mains plug from the wall socket, open the door and
remove all the food to a cool place. Defrost using a plastic scraper, or
let the temperature rise naturally until the frost melts. Then wipe
away the remaining ice and water, after this plug the freezer back
into the mains supply.
Note: To avoid damaging the freezing compartment wall, do not use
any sharp objects to remove the frost or separate the frozen
food.
Cleaning your freezer
Before you start to clean your freezer remove the mains plug from
the power supply.
Use a clean sponge or soft and a mild detergent in warm water. Do
not use abrasive or harsh cleaners.

10
Hand wash, rinse and dry all surfaces thoroughly.
Do not use cleaning waxes, concentrated detergents, bleaches or
cleaners containing petroleum on plastics and rubber parts.
Never use paper towels, window sprays, scouring cleansers or
flammable fluids on plastic parts as these can scratch or damage
material.
Clean with a cloth soaked in this solution and then dry with a soft
cloth.
PROLONGED OFF PERIODS
If the freezer is not in use for a long period of time, proceed as
follows:
Disconnect the freezer from the main supply by removing the plug
from the wall socket.
Clean and dry the inside as instructed under the heading of cleaning
the Freezer.
Leave the door open to prevent any unpleasant smells from building
up while the freezer is not in use.
TROUBLESHOOTING
In case of malfunction, you can solve many common problems
easily.
Your Freezer will not operate…Check if
-- The power supply cord is unplugged.
The doors will not close completely…Check if
-- The drawers are out of position.
-- The gaskets are dirty.
-- The Freezer is not level.
The freezer is noisy when running…Check if

11
-- Check the freezer is level and it is not in contact with another
appliance or kitchen furniture.
The freezer does not cool sufficiently…Check if
-- If the door has been opened too often, or it has been left open
for a while it will take time for the freezer to reach its set
temperature.
-- Check the airflow the rear of the freezer has not been reduced
due to insufficient clearance.
The following characteristics should not be looked upon as a
problem.
-- Agentle tricking sound caused by coolant flowing the pipe.
-- Compressor operating at high temperature.
REQUESTING ASSISTANCE OR SERVICE
If the problem is not due to one of the items listed in Troubleshooting,
Contact the dealer or authorized Service Company.
Correct Disposal of this product
This marking indicates that this product should not be disposed with
other household wastes throughout the EU. To prevent possible harm to

12
the environment or human health from uncontrolled waste disposal,
recycle it responsibly to promote the sustainable reuse of material
resources. To return your used device, please use the return and
collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
Refrigerator door install guidelines about swapping
left&right(optional)

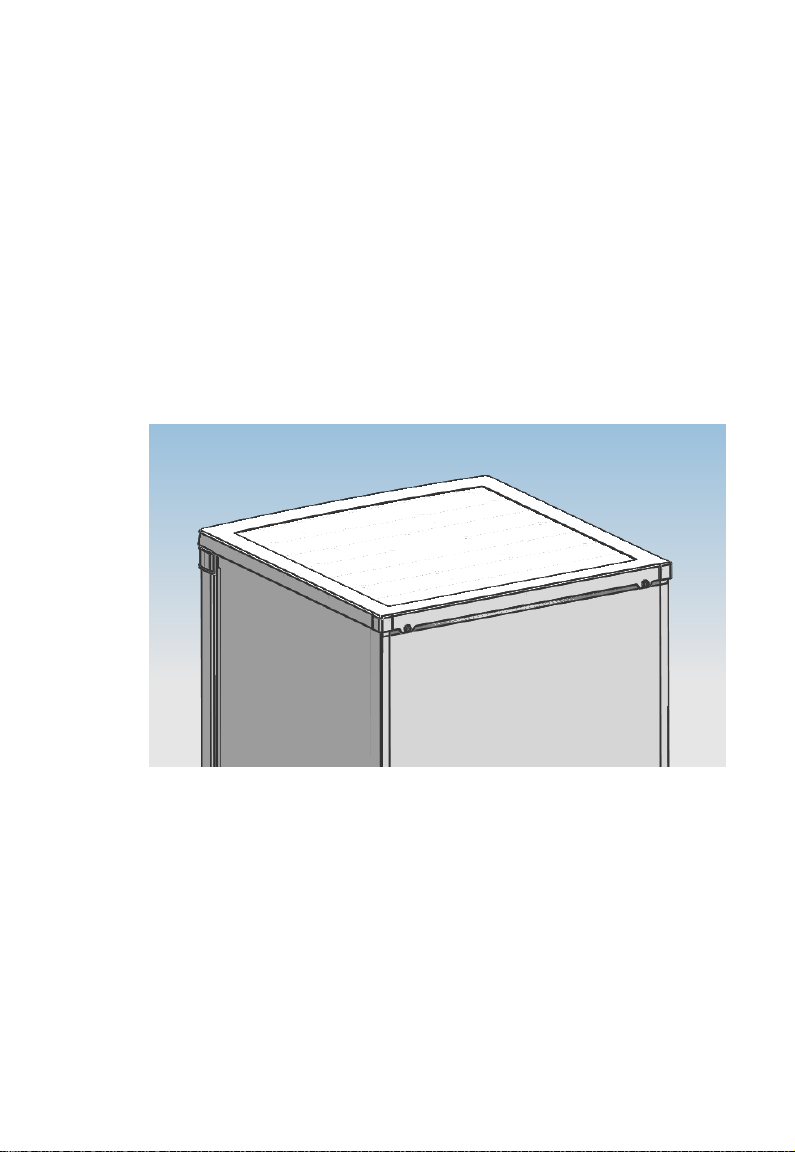

1、Disassemeble the screws behind the fixed roof with cross-slot
screwdriver and remove the cover from the
refrigerator.
2、Remove the screws fixed the top-hinge with cross-slot screwdriver.
The two
screws fixed
the cover.

13
3、Replace the top-hinge and the door limit block and the door bearing
bush to the other side
A、replace the top-hinge.
The screws fixed
the top-hinge

14
B、replace the door bearing bush and the limit block.

15
4、Disassemble the screws fixed the bottom-hinge with cross-slot
screwdriver and replace the hinge to the other side then fix it with
screws。
note：the refrigerator incline angle less 45°.

16

17
6、Set the door right position,fix the top-hinge and then the roof cover.
Ensure theAppliance is unplugged and empty。
Adjust the two leveling feet to their highest position。
We recommend you have someone to assist you。
