1. Introduction
1. Introduction
1.1. Overview
The ESP32, as a single 2.4 GHz Wi-Fi and Bluetooth combo chip, supports Wi-Fi setups
via both SmartConfig and Bluetooth. Users can use ESP32 for secure configuration of Wi-
Fi networking for IoT devices.
Using Bluetooth for configuring Wi-Fi network presents the following advantages:
•The Bluetooth protocol is open and scalable.
•By using Bluetooth protocol, users can easily discover nearby devices via Bluetooth
beacons.
•The Bluetooth protocol is secure, because the authentication of the device is done
over a secure Bluetooth connection before the password is sent to the device.
•Users can also transmit data over Bluetooth to a smartphone, even when the router
is not working. The phone can then uploads the data to the Internet.
•The phone can now also connect to the Bluetooth device and send commands
directly to control the device if the Wi-Fi network is down.
1.2. EspBlufi
ESP32 is compliant with Bluetooth v4.2 BR/EDR and BLE specifications. Espressif has
developed the app EspBlufi specifically for Bluetooth networking of IoT devices. The app is
supported on Android 4.3 and above. For smartphones of Android 6.0 or above, because
of Google’s modification to the Android API, users must give their permission for access to
their current location and enable the location information module to start the Bluetooth
scanning.
•EspBlufi can be downloaded via: https://github.com/EspressifApp/EspRelease/tree/
master/EspBlufi

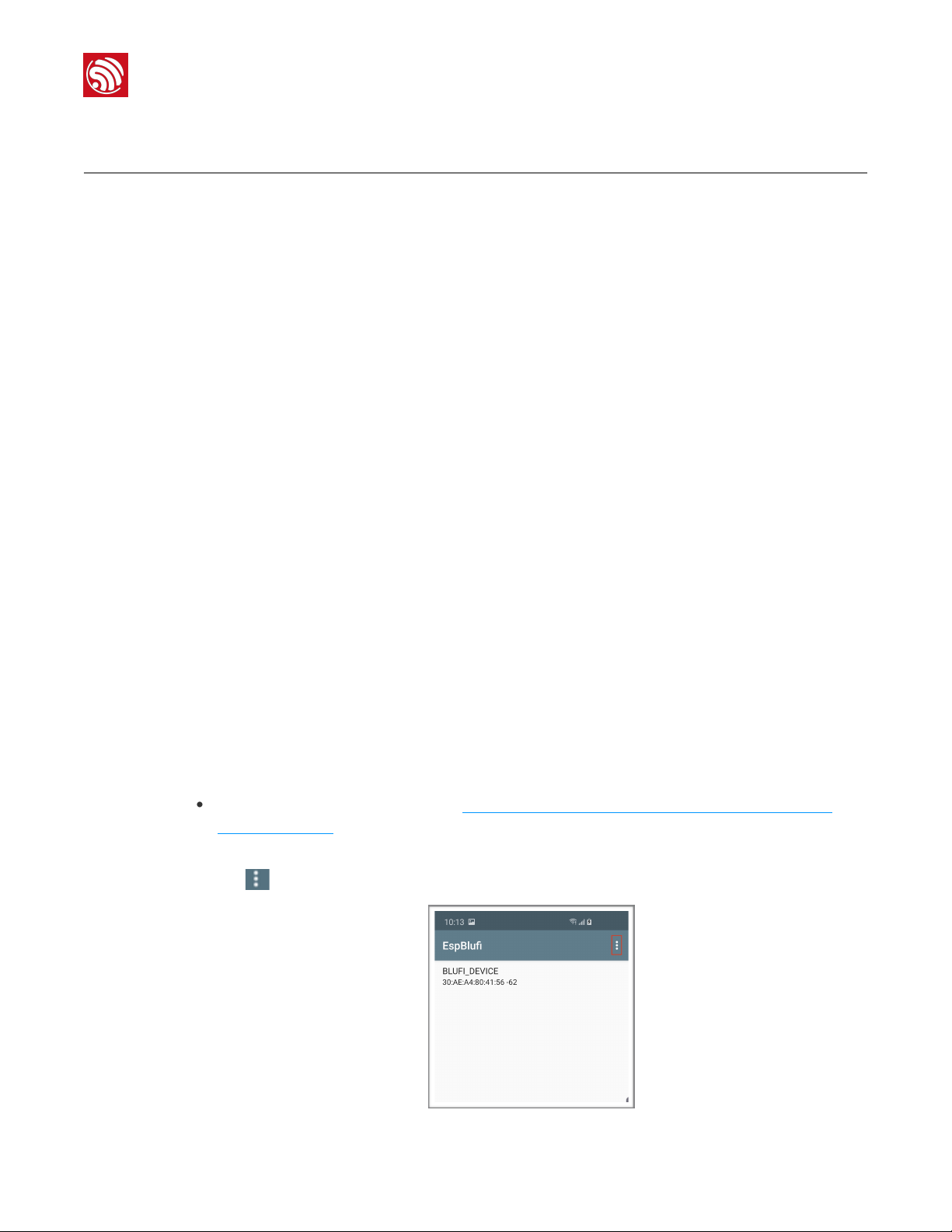

•Open EspBlufi after downloading it. In the user interface as shown in Figure 1-1, click on
the !icon in the upper right corner.
!
Figure 1-1. EspBlufi User Interface
Espressif
!/!1 13
2019.05

!
1. Introduction
•The Configure button will be shown in the interface and click this button.
!
Figure 1-2. CONFIGURE Button
•Configure the length of BLE mtu, BLE device filtering, and check the version of the app
and Blufi repository.
!
Figure 1-3. CONFIGURE Interface!
Espressif
!/!2 13
2019.05

!
2. APIs for Networking Development
2. APIs for Networking
Development
2.1. BluFi Protocol
Protocol documentation: https://docs.espressif.com/projects/esp-idf/en/latest/api-guides/
blufi.html
2.2. APIs on ESP32 End
In the program of ESP32, security-related processes such as key establishment are
determined and developed by the users. The app sends the “negotiate data” to ESP32 and
the data packets will be sent to the application layer. If the data is not handled by the
application layer, DH algorithm provided by BluFi can be used to exchange the key. The
application layer needs to register relevant callback functions to BluFi. Table 2-1 provides
description of those functions.
Table 2-1. Security-Related Functions
Function
Description
typedef void
(*esp_blufi_negotiate_data_handler_t)
(uint8_t *data, int len, uint8_t
**output_data, int *output_len, bool
*need_free);
•This function is used to receive the “negotiate
data” during key exchange. The data to be sent
should be output by passing the parameters
output_data and output_len to BluFi.
•After BluFi calls negotiate_data_handler,
output_data output by
negotiate_data_handler is sent.
•Since the length of data to be sent is not definite,
**output_data has to malloc a part of
memory or use global variables to release memory
via need_free.
typedef int (*
esp_blufi_encrypt_func_t)(uint8_t iv8,
uint8_t *crypt_data, int cyprt_len);
The length of the encoded and decoded data must
be the same. iv8 in this function means the 8-bit
sequence of the packets. It can be used for eight bits
of the initialization vector.
typedef int (*
esp_blufi_decrypt_func_t)(uint8_t iv8,
uint8_t *crypt_data, int crypt_len);
The length of the encoded and decoded data must
be the same. iv8 in this function means the 8-bit
sequence of the packets. It can be used for eight bits
of the initialization vector.
typedef uint16_t
(*esp_blufi_checksum_func_t)(uint8_t
iv8, uint8_t *data, int len);
The function is used to calculate the checksum.
Calling this function returns the value of checksum.
The returned value will be compared with the
checksum at the end of the packet by BluFi.
Espressif
!/!3 13
2019.05

!
2. APIs for Networking Development
2.3. APIs on the EspBlufi APK End
• Source code of EspBlufi for Android: https://github.com/EspressifApp/
EspBlufiForAndroid
• Documentation of EspBlufi for Android: https://github.com/EspressifApp/
EspBlufiForAndroid/blob/master/doc/
Introduction_to_the_EspBlufi_API_Interface_for_Android__cn.md
• Source code of EspBlufi for iOS: https://github.com/EspressifApp/EspBlufiForiOS
• Documentation of EspBlufi for iOS: https://github.com/EspressifApp/EspBlufiForiOS/
blob/master/doc/Blufi_APP_API_for_iOS_CN.md
Espressif
!/!4 13
2019.05

!
3. ESP32 Bluetooth Networking Examples
3. ESP32 Bluetooth Networking
Examples
3.1. Hardware and Software Preparation
•1 ×ESP32 module
•1 ×PC, connected to the module to supply power and print log for ESP32.
•1 ×smartphone (Android 4.3 or above)
•Download and install EspBlufi on the smartphone. Turn on the Wi-Fi and Bluetooth
capabilities on the phone. The link for downloading EspBlufi is!
https://github.com/EspressifApp/EspRelease/tree/master/EspBlufi
3.2. Setting ESP32 to Station Mode
1. Power on the module. The following log will be output to the serial port tool:
!
2. Open the EspBlufi app, and refresh the interface by swiping down from the top of the
screen. The nearby Bluetooth-enabled devices will be shown on the screen.
!
Figure 3-1. EspBlufi Interface
Espressif
!/!5 13
2019.05

!
3. ESP32 Bluetooth Networking Examples

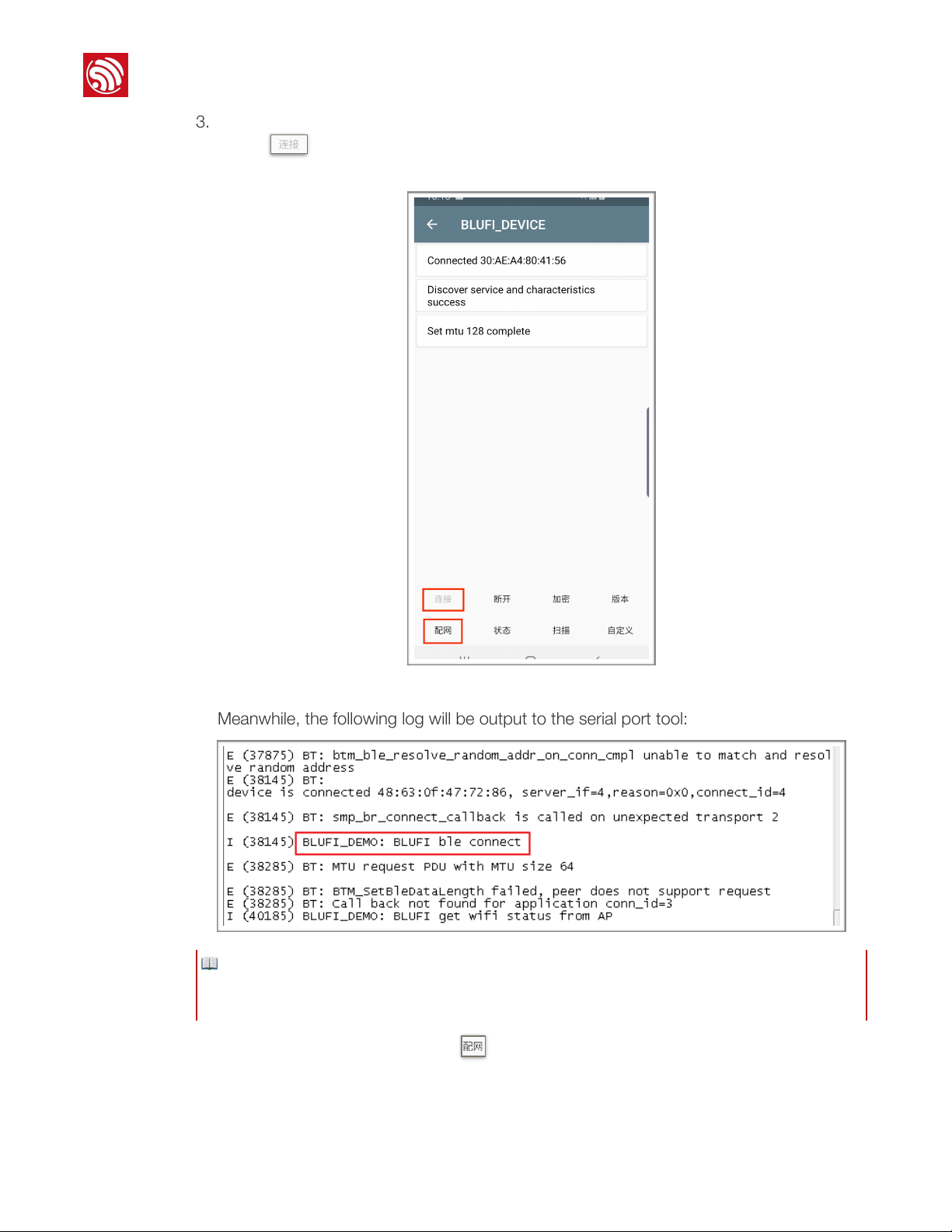

3. Click on the ESP32 device in the interface as Figure 3-1 shows, and click Connect
button !to establish Bluetooth connection to it. Successful connection will yield the
interface shown in Figure 3-2.
!
Figure 3-2. Interface Showing Successful Connection
Meanwhile, the following log will be output to the serial port tool:
!
4. Click on the Networking button !to configure the network, get the dropdown menu
for network configuration, as Figure 3-3 shows:
📖Note:
If the Networking button is not shown or can not be clicked in the interface of Figure 3-2, it means that
Bluetooth connection has failed.
Espressif
!/!6 13
2019.05

!
3. ESP32 Bluetooth Networking Examples
!
Figure 3-3. Network Configuration Interface
5. Select the device mode from the dropdown menu, as Figure 3-4 shows. (BluFi
networking supports the following three modes: Station, SoftAP, and Station+SoftAP.)
!
Figure 3-4. Selecting Device Mode
Espressif
!/!7 13
2019.05

!
3. ESP32 Bluetooth Networking Examples

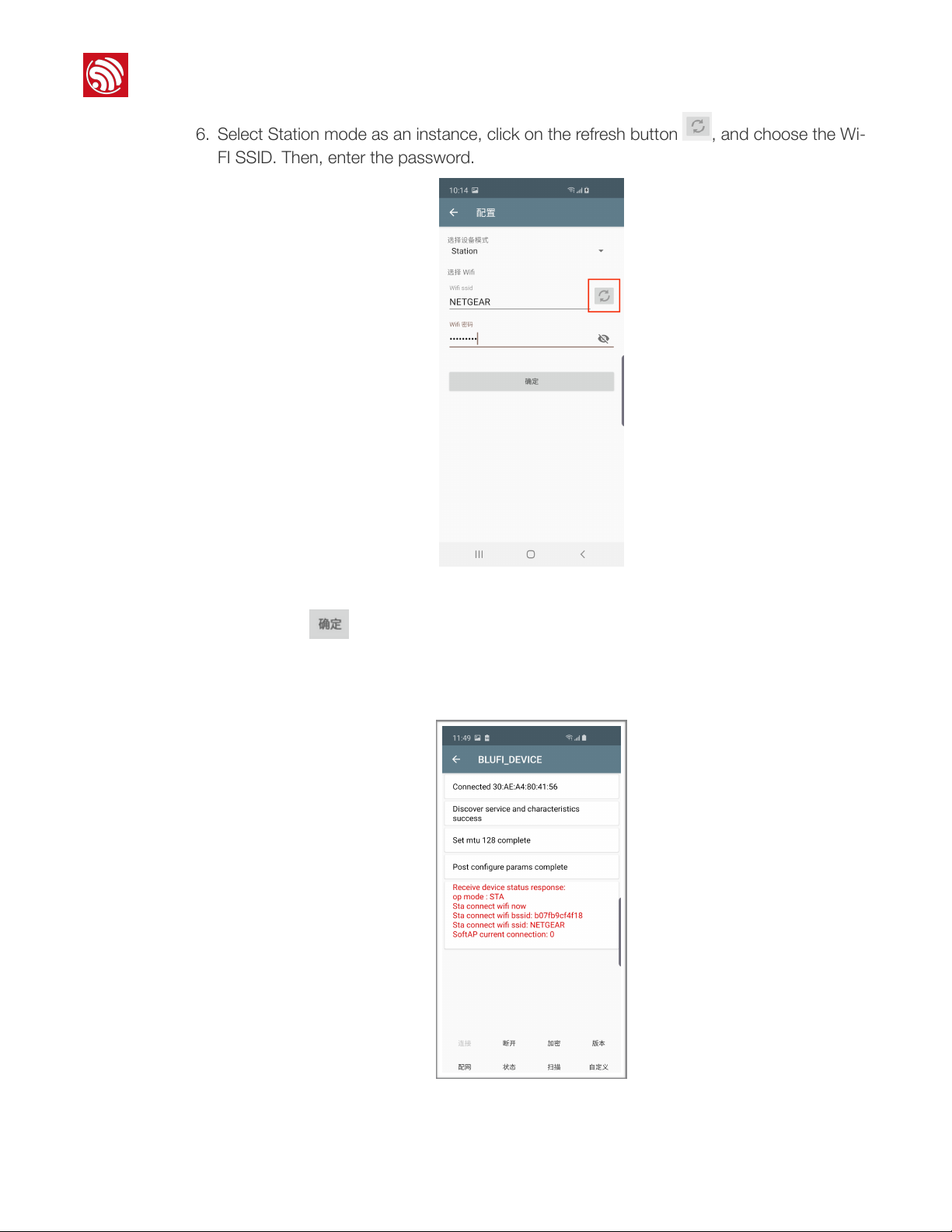

6. Select Station mode as an instance, click on the refresh button !, and choose the Wi-
FI SSID. Then, enter the password.
!
Figure 3-5. Configuring the Station Mode
7. Click on the !button to complete the configuration. Successful configuration will
lead to the interface as Figure 3-6 shows. The information marked in red in Figure 3-6
shows the Wi-Fi mode (which is Station mode in this example) and the connection
information (such as the AP’s BSSID and SSID, as well as the connection status).
!
Figure 3-6. Station Connection Information
Espressif
!/!8 13
2019.05

!
3. ESP32 Bluetooth Networking Examples
Meanwhile, the following log will be output to the serial port tool:
!
3.3. Setting ESP32 as a SoftAP
1. Power up the module. Connect the EspBlufi app to ESP32 via Bluetooth. Set the device
mode as SoftAP in the network configuration interface, as Figure 3-7 shows. For details
of doing so, please refer to Steps 1 to 4 in Section 3.2.
!
Figure 3-7. Selecting SoftAP Mode

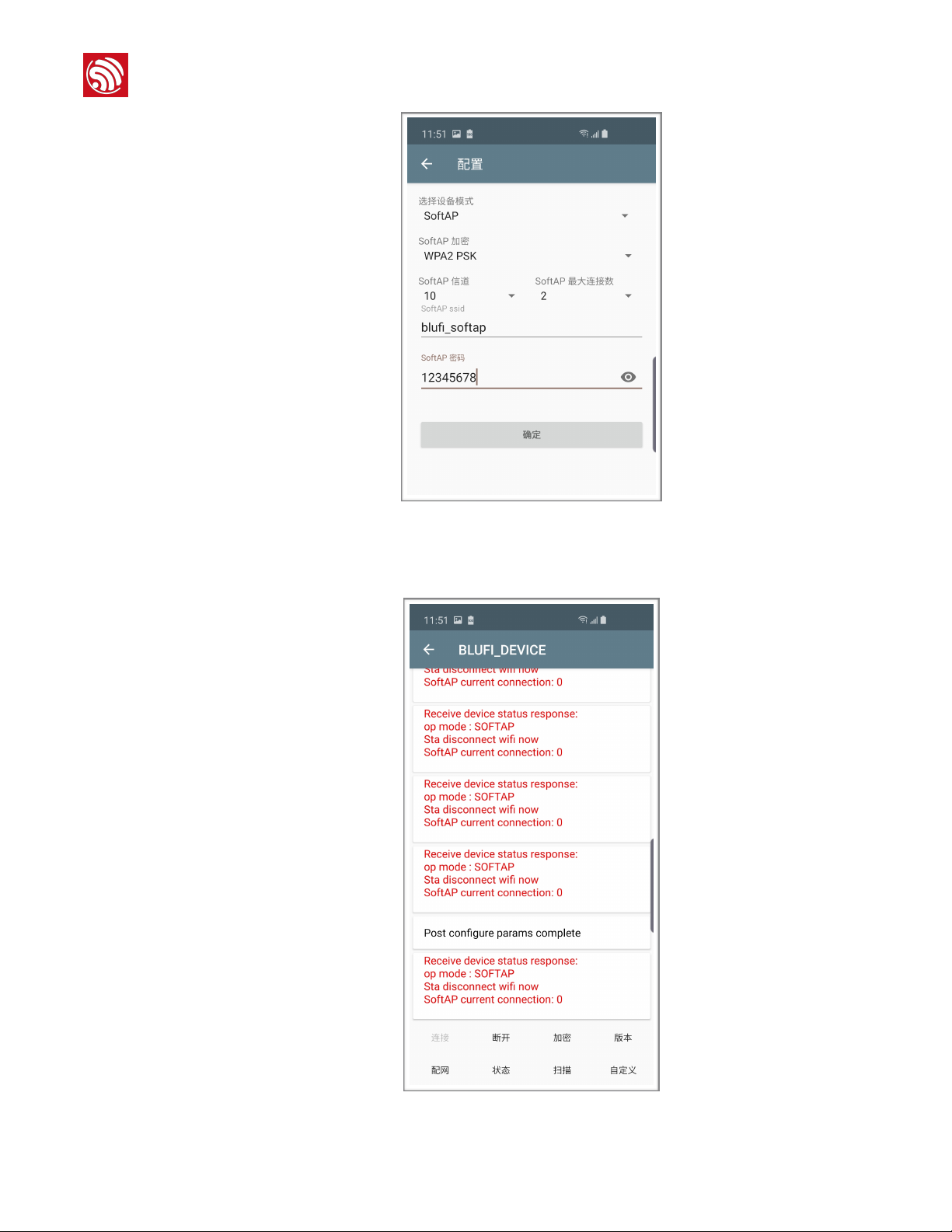

2. Configure the SoftAP mode, as Figure 3-8 shows. Select the security encryption mode,
channel, and maximum number of Stations to be connected. Enter the SoftAP’s SSID
and password. Click on the !button to complete the configuration.
Espressif
!/!9 13
2019.05

!
3. ESP32 Bluetooth Networking Examples
!
Figure 3-8. Configuring the SoftAP Mode
3. Success of the SoftAP configuration will lead to the interface as Figure 3-9 shows. The
current Wi-Fi mode and the connection status are shown in the interface.
!
Figure 3-9. SoftAP Connection Information
Espressif
!/!10 13
2019.05

!
3. ESP32 Bluetooth Networking Examples

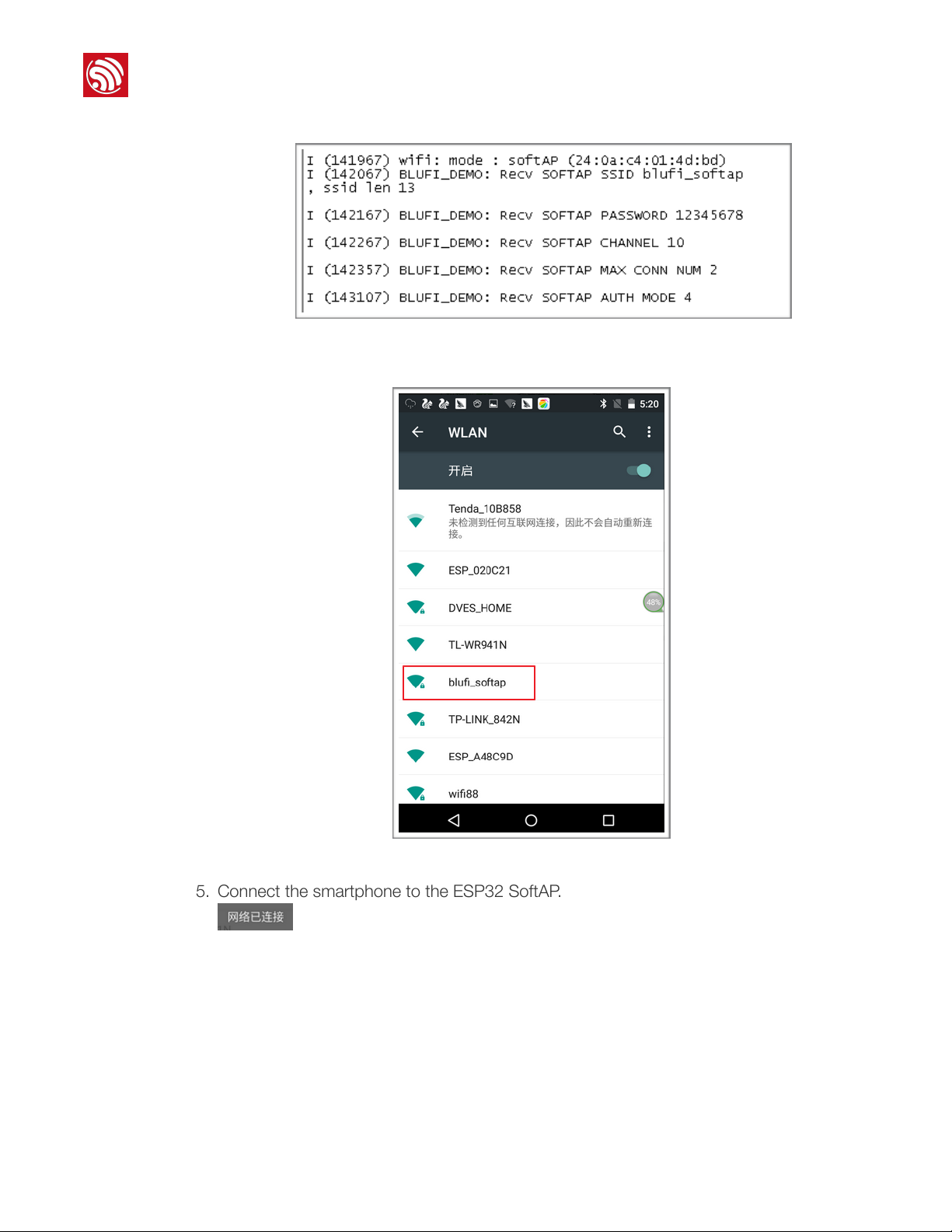

Meanwhile, the following log will be output to the serial port tool:
!

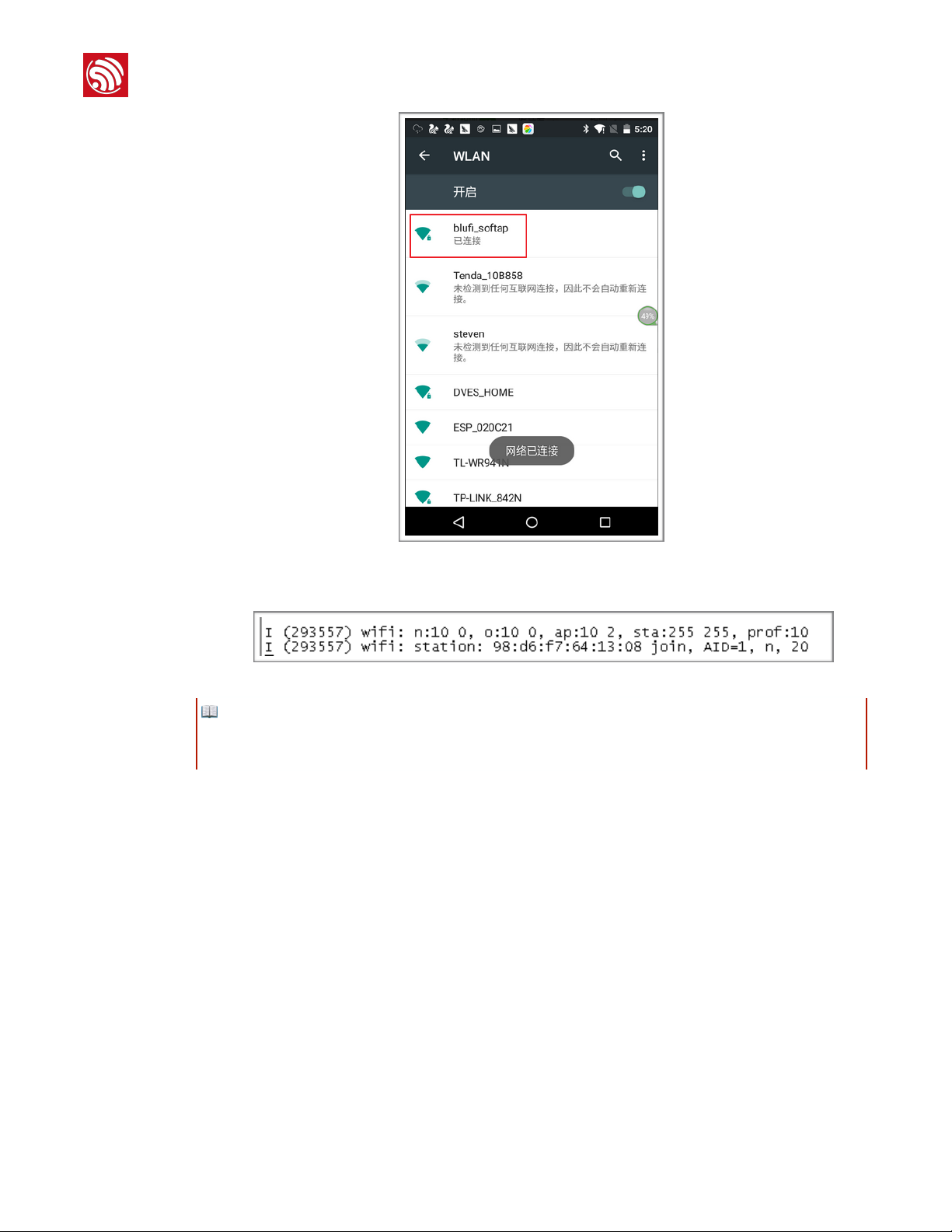

4. Turn on the smartphone’s Wi-Fi capability. The SoftAP connected can be found in the
WLAN interface, as Figure 3-10 shows.
!
Figure 3-10. The Configured ESP32 SoftAP
5. Connect the smartphone to the ESP32 SoftAP. As shown in Figure 3-11, the prompt
!will appear, indicating that the Wi-Fi is connected.
Espressif
!/!11 13
2019.05

!
3. ESP32 Bluetooth Networking Examples
!
Figure 3-11. Wi Fi Connection Prompt
Meanwhile, the following log will be output to the serial port tool:
!
The ESP32 device is successfully connected to Wi-Fi via Bluetooth networking.
📖Note:
All values of connection time shown on the EspBlufi app screenshots in this document are provided only as
examples. Connection time is subject to the actual situations.
