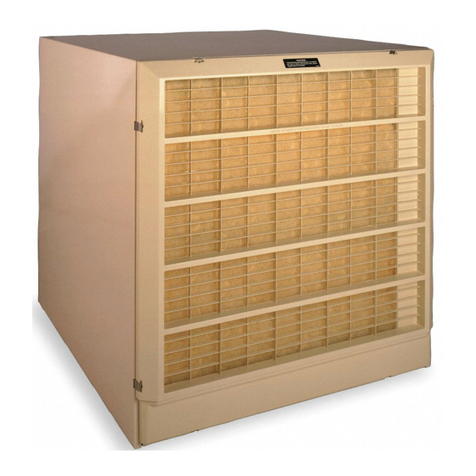

ESSICK CONVERTIBLE DOWN/FRONT OUTLET EVAPORATIVE AIR COOLER
MODEL NOS. ECR 3301, ECR 4000, ECR 4500, ECR 5200, ECR 6600, ECR 7200
REPAIR PARTS
15
ESSICK CONVERTIBLE DOWN/FRONT OUTLET EVAPORATIVE AIR COOLER
MODEL NOS. ECR 3301, ECR 4000, ECR 4500, ECR 5200, ECR 6600, ECR 7200
NOTICE: Order by PART NUMBER, not by Key Number. Refer to the back cover of this manual for parts ordering information.
REBMUNTRAPYEK
NO. ECR 3301 ECR 4000/4500 ECR 5200 ECR 6600/7200 PART NAME
1 30439 30439 30439 30439 Motor Plug
2 50255 50255 50255 50255 Motor Tail Mount
3 05466-04 05466-04 05466-04 05466-04 Machine Screw 5/16 - 18 x 3/4
4 581188 581188/50310 50310 30491/581191 Motor
5 30315 30315 30315 30315/583054 Pulley - includes Key 6
6 586071 586026 586026 586026 Set Screw 5/16 - 18 x .25 Hex. Socket
7 582004 582010/582030 31720 582088 V-Belt
8 30306 30305-00 30304-00 30304-00 Motor Mount
9 05507 05507 05507 05507 Lock Washer 5/16 Helical Spring
10 05480 05480 05480 05480 Hex Nub 5/16 - 18
11 30105 30105 30105 30105 Clip
12 30311 30311 30311 30311 Receptacle Mount
13 50294 50294 50294 50294 Lock Washer - 5/16 internal tooth
13A 30550 30550 30550 30550 Lock Washer
14 30347 30347 30347 30347 Screw #8 - 18 x 3/8 Phillips, Type AB
15 30432 30432 30432 30432 Pad Motor Connector
16 30551 30551 30551 30551 Machine Screw 5/16 - 18 x 3/8
17 08133 08133 08133 08133 Screw 1/4 - 14 x 3/8 Type B
18 30287 30289 30288 30288 Bearing Mount (includes #21, 22)
19 14864 14864 14864 14864 Bushing
20 501244 501241 501241 501241 Thrust Washer
23 30347 30347 30347 30347 Screw #8 - 18 x 1/2, Type B
24 586071 586071 586071 586071 Set Screw 5/16 - 18 Socket
25 31086 31086 31086 31086 Overflow Drain Kit
26 left 32013-10 32019-10 302025-10 32031-10 Reservoir
27 31984 31984 31984 31984 Grommet
28 583009 30314/583013 30314 30314 Pulley - includes Key 24
29 30241 30238-02 30238-01 30238-01 Shaft
30 502389 502389 502389 502389 Float Valve Assembly
31 30418 30418 30418 30418 Water Shield
32 30318 30322 30323 30323 Blower Wheel
33 30208 30177 30148 30167 Baffle
34 30205 30205 30205 30205 Junction Box Cover
35 30202 30202 30202 30202 Junction Box
36 27835 27835 27835 27835 Cupped Washer
37 14982 14982 14982 14982 Lock Washer #8 Star
38 29816 29816 29816 29816 Bushing
39 30585 30585 30585 30585 Screw #8 - 32 x 7/16, Type T, Green
40 right 32013-20 32019-20 32025-20 32031-20 Reservoir
41 30552 30552 30552 30552 Bushing
42 29996 29996 29996 29996 Plug
43 31985-01 31985-03 31985-02 31985-02 Tube
44 524330524331 524331524331Collar
45 30432 30432 30432 30432 Pad Motor Connector
47 30441 30441 30441 30441 Motor Connector
48 29931 30214 30254 29738 Louver
49 31047 31047 31047 31047 Bearing
50 30296 30206 30250 29817 Side Support
51 30248 30224 30244 29861 Top Roller
52 30234 30211 30235 30119 Roller
53 30236 30212 30237 30127 Bottom Roller
54 EP-30 EP-40 EP-50 EP-60 Evaporator Pad (2 Req.)
55 30465 30465 30465 30465 Screw #10 - 16 x 7/8
56 30297 30233 30256 29815 Motor Side Support
57 30336 30336 30336 30336/00061 Pad Motor
58 29862 29862 29862 29862 Roller Drive
59 586023 586023 586023 586023 Screw #10 - 32 x 3/8
* 50209-3 50209-3 50209-3 50209-3 Owners Manual
60 30339 30338 30337 30332 Louver Assembly includes Keys 48-59
* ECK-30 ECK-40 ECK-50 ECK-60 Roof Stand Kit - Optional
* ECR-5 ECR-5 ECR-5 ECR-5 5 Position Switch (Not Supplied)
* ECR-7 ECR-7 ECR-7 ECR-7 7 Position Switch (Not Supplied)
61 523122 523122 523122 523122 Splash Guard Cover
*Unillustrated items
REPAIR PARTS
