Shinco SPF1-10C User manual

OWNER’S MANUAL
Read and save these instructions.
Model No. SPF1-10C
c�us
lntertek

2
TABLE OF CONTENTS
Safety Information & Warnings ........................................................................... 3
Setting up your portable conditioner................................................................... 6
Product features....................................................................................................7
Installing y our air conditioner ...............................................................................8
Cleaning & Maintenance..................................................................................... .14

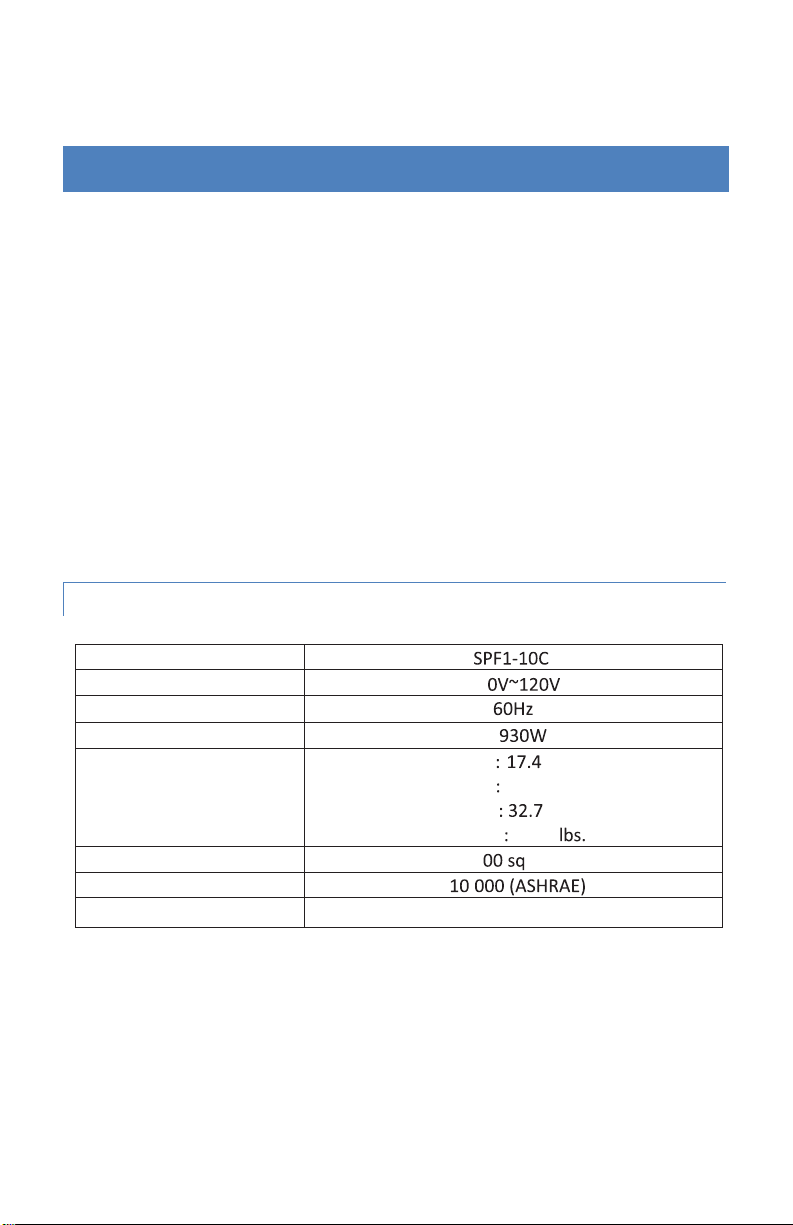

SPECIFICATIONS
Model No .
Voltage 11
Frequency
Power 2
Widthin
Dimensions Depth13.4 in
Height in
Weight 55.12
Cooling Area 3 . .
BTU Rating ,
Power Cord Length 4.9 
IMPORTANT
The air conditioner unit must always be stored and
transported upright, otherwise you may cause irreparable
damage to the compressor. In case of doubt, we suggest that
you wait for at least 24 hours before you start the air-
conditioning unit.
Using your air conditioner............. ..................................................................... 12
Trouble shooting............................ ..................................................................... 16
Limited Manufacturer’s Warranty .......................................................................17

3
SAFETY INFORMATION & WARNINGS
SAFETY PRECAUTIONS
Please read the Manual carefully before operating the machine:
1. Read and keep these instructions.
2. Heed all warnings.
3. Follow all instructions.
4. Do not use this machine near water.
5. Clean it only with a damp cloth.
6. Do not block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
7. Do not install near any heat sources such as radiators, heat registers,
stoves, or other apparatus (including amplifiers) that produce heat.
8. Do not defeat the safety purpose of the polarized or grounding-type
plug. A polarized plug has two blades with one wider than the other. A
grounding-type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug
does not fit into your outlet, consult an electrician for replacement of the
obsolete outlet.
9. Protect the power cord from being walked on or pinched
particularly at plugs, convenience receptacles, and the
point where they exit from the machine.
10. Do not attempt to modify or extend the power cord of this machine.
11. Unplug this machine during lightning storms or when it will not be used
for long periods of time.
12. Make sure that the available AC power matches the voltage
requirements of this machine.
13. Do not handle the plug with wet hands. This could result in an electric
shock.
14. Unplug the power cord by holding the plug, never by pulling the cord.
15. Do not turn the machine on or off by plugging or unplugging the power
cord.

16.Turn off the machine before unplugging it.
17.Refer all servicing to qualified service personnel. Servicing is required when
the machine has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the machine, the
machine has been exposed to rain or moisture, does not operate normally, or
has been dropped.
18.To reduce the risk of fire or electric shock, do not expose this machine to rain,
moisture, dripping, or splashing, and no objects filled with liquids should be
placed on top of it.
19.Batteries of the control remote should not be exposed to excessive heat such
as sunshine, fire, or the like.
CAUTION: Danger of explosion if batteries are incorrectly replaced. Replace only
with the same or equivalent type.
WARNING:
ELECTRIC SHOCK HAZARD
Failure to follow these instructions can result in electric shock, fire, or death.
• This unit must be properly grounded.
• Do not, under any circumstances, cut or remove the grounding plug.
• If you do not have a properly grounded AC outlet, or if there is any
doubt that the outlet is not properly grounded, a qualified electrician
should check the outlet and circuit and, if necessary, install a properly
grounded outlet.
• This air conditioner must be plugged into a grounded 115V, 60 Hz AC
outlet, protected by a 15 amp time-delay fuse or circuit breaker.
• This air conditioner must be installed in accordance with national
wiring codes.
• Do not alter or modify the plug or cord of this air conditioner. If the
power cord becomes worn or damaged, the cord should only be
replaced by a qualified service technician using genuine replacement
parts.
• Do not use an extension cord.
4

ELECTRICAL SAFETY
Integrated circuit breaker
For additional safety, the power cord on this air
conditioner features an integrated circuit breaker.
You can test and reset the circuit breaker using
the buttons provided on the plug case. Consult a
qualified electrician or service person if the
grounding instructions are not completely
understood, or if doubt exists as to whether the
air conditioner is properly grounded.
The circuit breaker should be tested periodically
by pressing the TEST button, then pressing the
RESET button. If the TEST button does not cause
the circuit breaker to trip, or if the RESET button
does not stay engaged, unplug the air
conditioner immediately .
Temporary grounding
Due to potential safety hazards,
we strongly discourage the use
of an adapter plug. If an adapter
plug must be used for a
temporary connection, use only a
UL-listed adapter with a minimum
capacity of 120V~60Hz, 13A, and
1560W. Make sure that the large
slot of the adapter is aligned with
the large slot in the outlet.
TEST button
RESET button
Preferred grounding method
Make sure that a proper
ground exists before use.
Make sure that a proper
ground exists before use.
5

6
SETTING UP YOUR PORTABLE AIR CONDITIONER
Before using your portable air conditioner
• Remove and store (optional) packing materials for reuse.
• Remove any shipping tape before using the air conditioner.
• Remove tape residue with liquid dish soap and a damp cloth. Do not use
sharp tools, alcohol, thinners, or abrasive cleaners to remove adhesive,
which could damage the finish.
Placing your air conditioner
Place the unit on a flat, dry area near a window, so you can use the hose and
diffuser to connect the air conditioner to the window installation kit in order to
vent the exhaust air outside. To maintain good air circulation and optimum
machine performance, leave a 20 in. (50 cm) space around it.
20 in. (50 cm)
20 in. (50 cm)

7
1. Carrying Handle
2. Control Panel
3. Adjustable Front Grille
4. Casters
5. Exhaust Output
6. Air Intake
7. Moisture Drain Plug
8. Remote Control
9. Exhaust Duct
10. Window Sealing Plate
PRODUCT FEATURES
5
6
7
1
8
10
9
3
2
4

2.Measure the window size.
3.Install the window sealing plate in the window opening,adjusting the
length to fit the window opening and securing it with "Clip" (provided).
Note: The window sealing kit works with sliding windows.
OR
INSTALLING YOUR AIR CONDITIONER
1 Screw the exhaust hose to the exhaust outlet on the back ofyour air
conditioner, then screw the hose adapter to the other end of the hose.
INSTALLING YOUR AIR CONDITIONER
1.Screw the exhaust hose to the exhaust outlet on the back of your air
conditioner, then screw the hose adapter to the other end of the hose.
Clip
8

霆
Usually Portable air conditioner needs to be equipped with sliding
windows. We put two sealing plates in the packaging box of the machine,
and the size range after connection is 94cm-127.5cm (37in-50.20in). We
also have two spare parts, one short (40cm=15.75in) and one long
(67.5cm=26.57in) with "Clip".
9
15.75in
26.57in
If your window size is small, just between 67.5cm-98cm
(26.57in-38.58in), you can buy a piece of short board (40cm=15.75in) and
then assemble it with the one piece board with clip;
If your window size is large and there is still a gap on the side of the
window where the two sealing panels are installed, you can buy another long
panel (67.5cm=26.57in), the size range after connection is
135cm-187cm(53.15in-73.62in).
If your room has a casement window, you can also buy our sealing cloth
to use.
And in the packaging bag, we also prepared 4 piece of sealing plate
sponges. Just adjust the sealing plate to the size of the window, then tear off
the spacer paper of the sponge, and stick the sponges along the circumference
of the sealing plate. It can well prevent hot air from entering room from
outside, and keeping the indoor temperature cool.

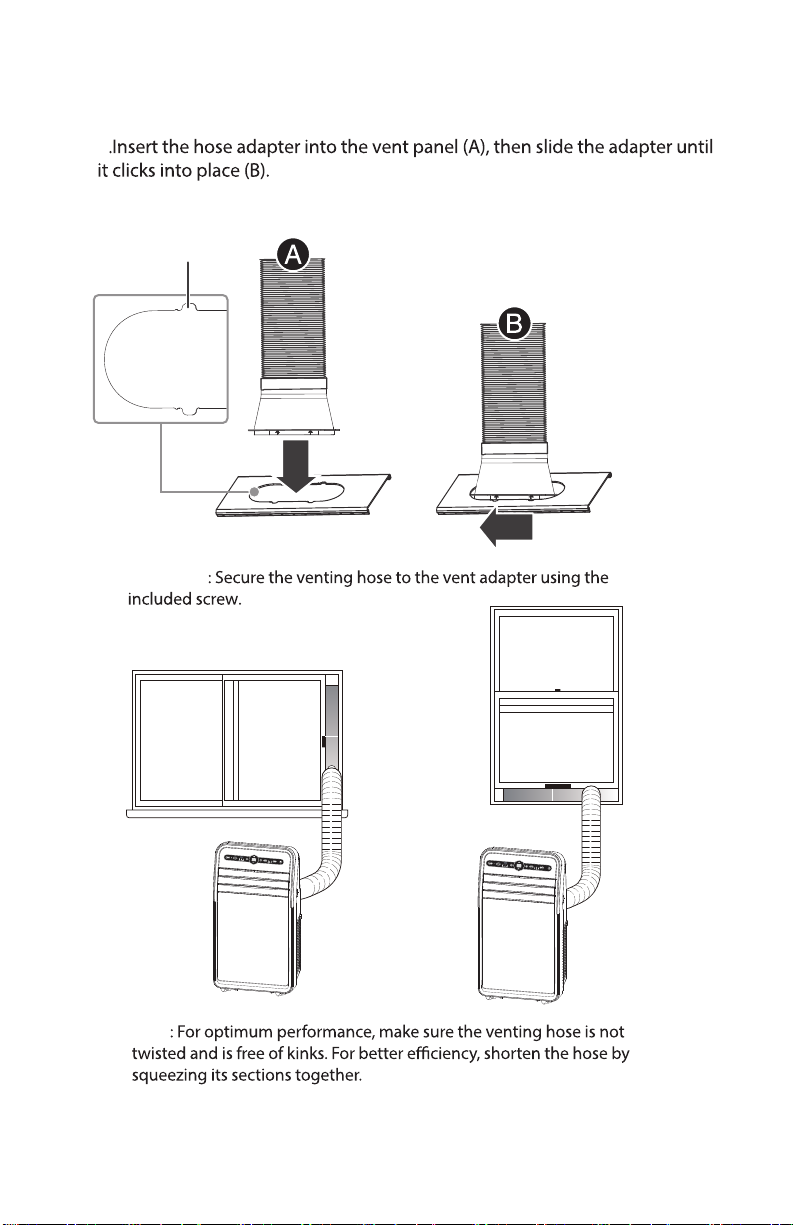

4
Slide
(Optional)
Insert
Small gap
Note
10

Caution: The exhaust duct is designed especially for this air
conditioner. Replacing or lengthening the duct could result in
damage to your unit.
11

USING YOUR AIR CONDITIONER

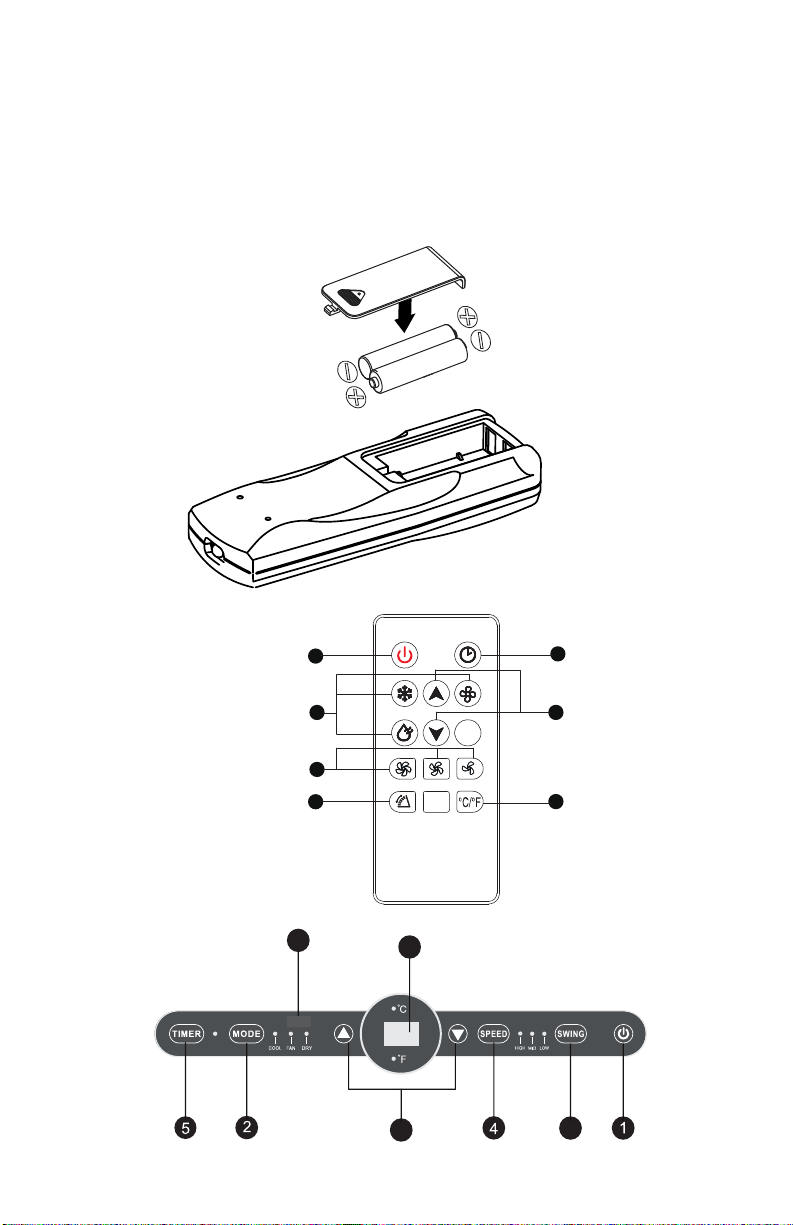

Inserting the batteries in the remote control
• Insert two AAA batteries (provided) into the remote control.
Make sure that you orient the
batteries correctly (+ and –)
when you install them.
12
39
76
15
23
4
98

13
1. Power button
Press this button to turn the unit on and off.
2. Mode button
Press this button to cycle between the 3 modes: cool (full A\C cooling
with temperature setting), fan (just fan operation without any
temperature setting) and dry (fan operation plus dehumidification). In
dry mode, water will collect inside the unit, and must be drained by
removing the plug from the middle of the back of the unit. If the tank is
full, “FL” will appear on the display to indicate that it needs to be
drained. In dry mode, the unit will stay on low fan speed, and maintain
a temperature of 62 degrees.
3. Temperature buttons
Press these buttons to increase and decrease the set temperature.
Press these buttons simultaneously to switch the temperature setting
between Fahrenheit and Celsius. This can also be switched by pressing
the C/F button on the remote control.
4. Speed button
Press this button to switch between the three fan speeds, high,middle
and low.
5. Timer Button
Press this button to set the unit to turn off after a specified amount of
time. Pressing this button while the unit is turned off will allow you to
set the unit to turn on after a specified amount of time. The timer can
be set anywhere between 1 and 24 hours.
6. Time/Temperature Display
This window displays the set temperature, or the set time while using
the timer function.
7. Remote control sensor
Point the remote control toward this sensor when using it.
8. Temperature mode button
Press this button on the remote to switch between Fahrenheit and
Celsius on the temperature display window. This can also be switched
by pressing the temperature control buttons on the main control panel
simultaneously.
9. Swing button
In cooling mode, Press the swing button, the blade will swing up and
down to change the direction of the wind.

14
DRAINING THE WATER TANK
This unit is equipped with an automatic water vaporization system. The
condenser is cooled through the circulation of condensing water to improve
cooling efficiency and energy conservation.
If the tank is full, “FL” will appear on the display to indicate that it needs to
be drained. Turn off the unit, remove the drain plug on the middle of the
back of the unit, and drain the tank until empty. Replace the plug and turn
the unit back on to resume use.
MAINTENANCE
Notice: To avoid electric shock, please turn off and unplug the unit before
maintenance or repair.
CLEANING
•Unplug before cleaning.
•Clean the outside of the unit with a soft, damp cloth. Do not use
chemical agents such as benzene, alcohol, gasoline, etc.which can
damage the unit and void your warranty.
•Prevent any water or other liquids from getting inside the unit.
CLEANING & MAINTENANCE

15
DUST FILTER

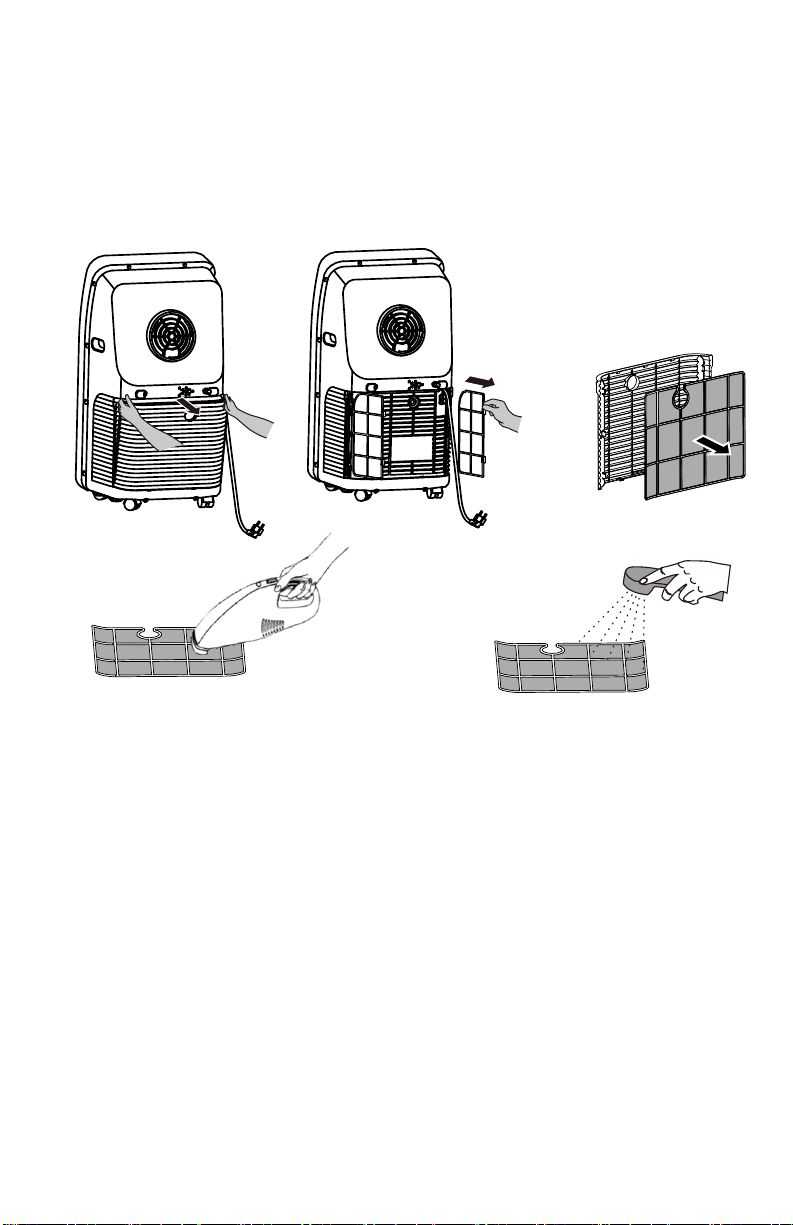

•Once every two weeks, remove the dust filter from the back of the unit
and wash it. Neglecting to clean the dust filter may cause the unit to run
poorly over time.
SEASONAL CLEANING
If you are planning on putting the unit away long-term:
•Pull the drain plug to drain any water left in the tank.
•Run fan mode for 2 hours to help dry any collected moisture within the
unit.
•Turn off the unit and unplug it.
•Wash and replace the dust filter.
•Take apart the exhaust duct.
•Cover the unit and the exhaust duct pieces with something to keep dust
out.

16
.
.
.
.
. .
.
.
. .
. .
Notice: For any issues not listed here that arise while using the A/C, turn the
unit off and unplug it, wait a few minutes, and try again. If problems persist,
contact customer service.
CODE
FL
E1
E2
E4
DESCRIPTION
The internal water tank is full and needs to be emptied.
Coil temperature sensor error. Turn o your air conditioner and
call a professional maintenance technician or service center.
Indoor temperature sensor error. Turn o your air conditioner and
call a professional maintenance technician or service center.
Anti-freezing protection. The air conditioner coil temperature is
too low and the unit has turned o automatically. The unit resets
itself when the temperature reaches 46.4°F (8°C).

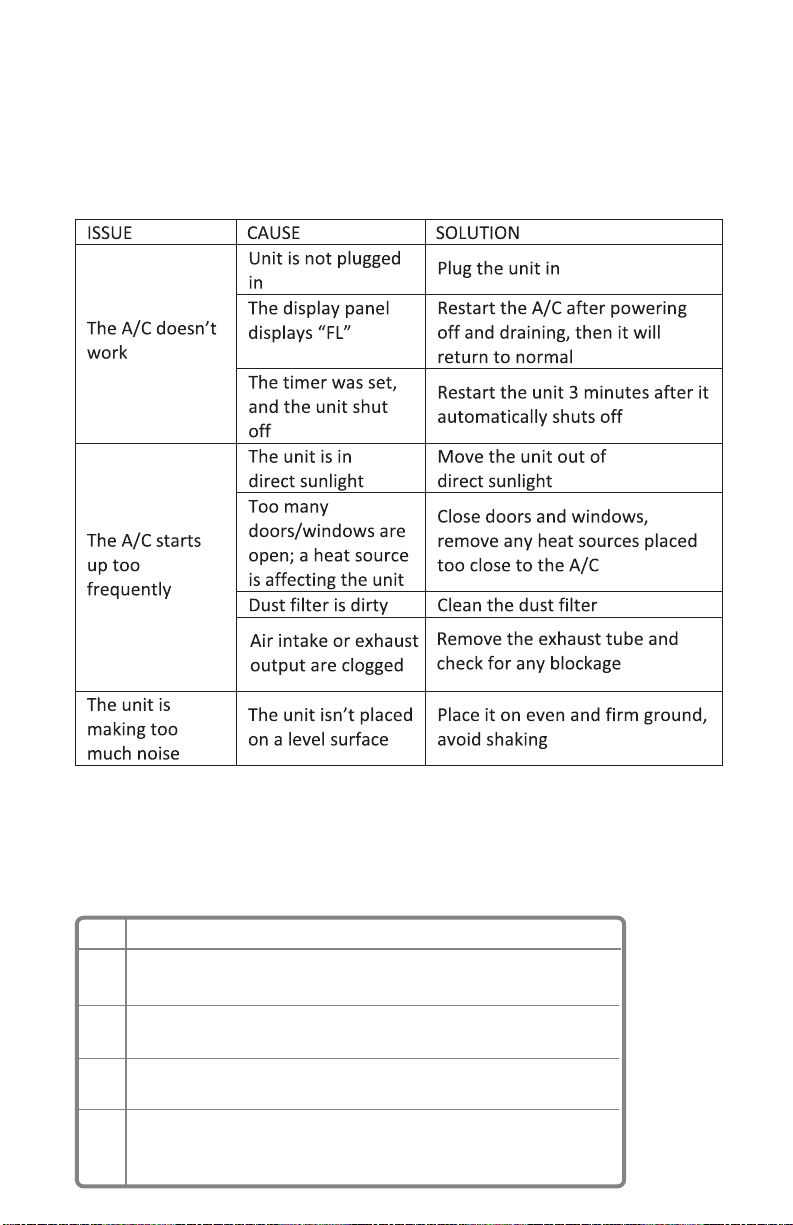

TROUBLE SHOOTING
In case of any of the following problems, please contact our customer
ERROR CODE

17
LIMITED MANUFACTURER’S WARRANTY
Warranty :
We provide one-year warranty.
For technical support and warranty service, please email [email protected].
Warranty Exclusions:
The warranty will not apply if the damage is caused by any of the following:
•Power failure.
•Damage when moving the appliance.
•Improper power supply such as low voltage, defective household
wiring or inadequate fuses.
•Accident, alteration, misuse, or abuse of the appliance such as using
non-approved accessories, inadequate air circulation in the room or
abnormal operating conditions (extreme temperatures).
•Use in commercial or industrial applications.
•Fire, water damage, theft, war, riot, hostility or acts of God such as
hurricanes, floods, etc.
•Use of force or damage caused by external influences.
•Partially or completely dismantled appliances.
•Excess wear and tear by the user.
