ETAS ETAM3 User manual

ETAS ETAM3
XETK/FETK ECU Adapter, SAMTEC
FFSD - SAMTEC SFM (10fc - 10fc),
0m11
User Guide

2
Copyright
The data in this document may not be altered or amended without special notification
from ETAS GmbH. ETAS GmbH undertakes no further obligation in relation to this
document. The software described in it can only be used if the customer is in
possession of a general license agreement or single license. Using and copying is
only allowed in concurrence with the specifications stipulated in the contract.
Under no circumstances may any part of this document be copied, reproduced,
transmitted, stored in a retrieval system or translated into another language without
the express written permission of ETAS GmbH.
© Copyright 2022 ETAS GmbH, Stuttgart
The names and designations used in this document are trademarks or brands
belonging to the respective owners.
Document ETAM3 R03_EN – 02.2022

ETAS Contents
3
Contents
1About this Document..........................................................................................4
1.1 Classification of Safety Messages............................................................................... 4
1.2 Scope of Supply ....................................................................................................... 4
2Safety Information..............................................................................................5
2.1 General Safety Information ....................................................................................... 5
2.2 Requirements for Users and Duties for Operators ....................................................... 5
2.3 Intended Use ........................................................................................................... 5
2.4 Identifications on the Product.................................................................................... 8
2.5 Taking the Product Back and Recycling ...................................................................... 9
2.6 CE marking .............................................................................................................. 9
2.7 UKCA Declaration of Conformity (Great Britain) .......................................................... 9
2.8 RoHS Conformity ...................................................................................................... 9
2.8.1 European Union ......................................................................................... 9
2.8.2 China......................................................................................................... 9
3Introduction ......................................................................................................10

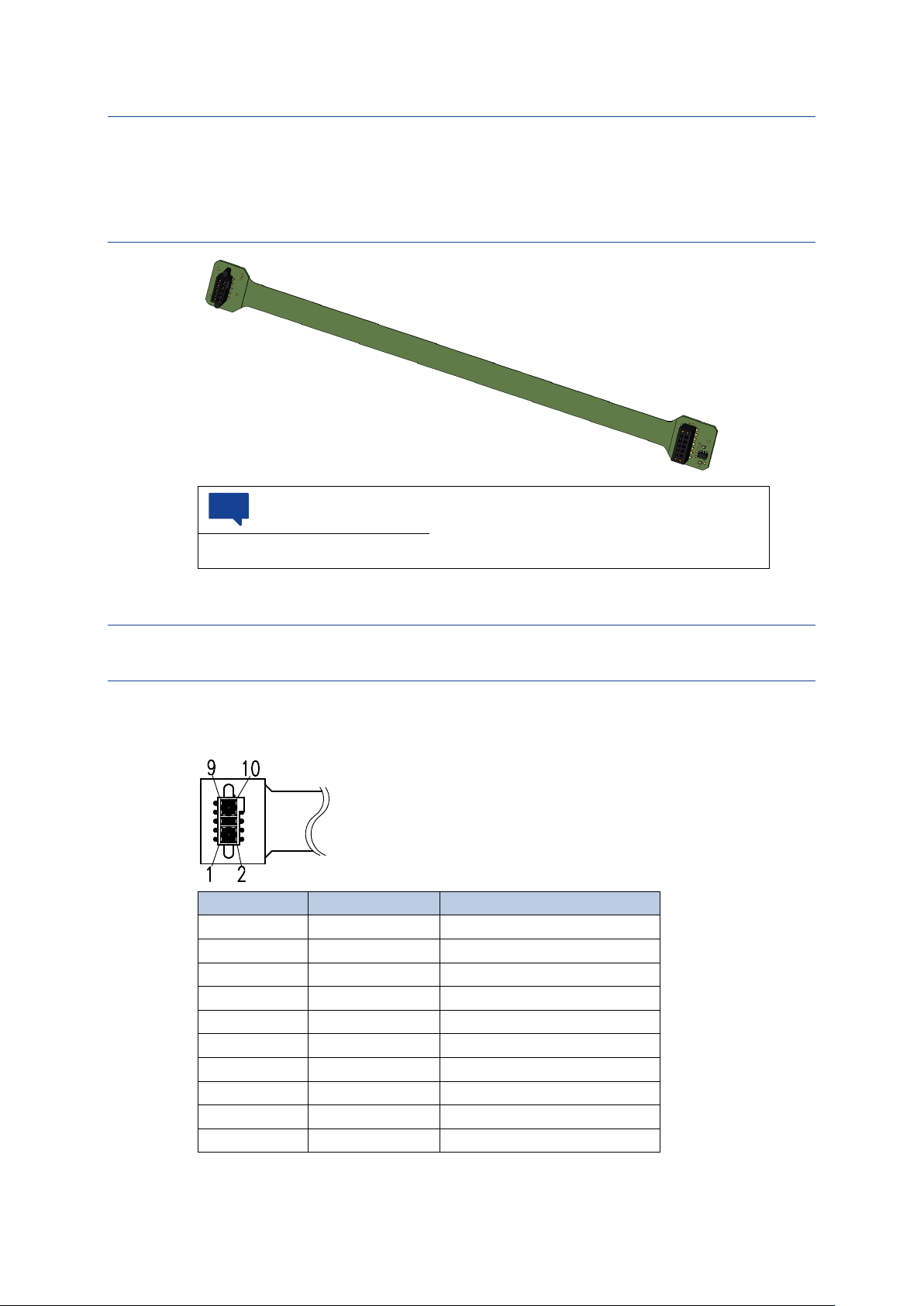

3.1 View ...................................................................................................................... 10
4Technical Data.................................................................................................10
4.1 ECU Connector ....................................................................................................... 10
4.2 Electrical Characteristics for /TRST Signal................................................................. 11
4.3 Measurement Drawings .......................................................................................... 11
4.4 Temperature Range................................................................................................ 11
5Ordering Information ........................................................................................11
6ETAS Contact Addresses ................................................................................12

ETAS About this Document
4
1 About this Document
1.1 Classification of Safety Messages
The safety messages used here warn of dangers that can lead to personal injury or
damage to property:
DANGER
indicates a hazardous situation with a high risk of death or serious injury if not
avoided.
WARNING
indicates a hazardous situation of medium risk, which could result in death or
serious injury if not avoided.
CAUTION
indicates a hazardous situation of low risk, which may result in minor or
moderate injury if not avoided.
NOTICE
indicates a situation, which may result in damage to property if not avoided.
1.2 Scope of Supply
Prior to the initial commissioning of the module, please check whether the product was
delivered with all required components and cables (see chapter "Ordering Information").
Additional cables and adapters can be obtained separately from ETAS. A list of
accessories and their order designation is available in this manual and at the ETAS
Home Page.

ETAS Safety Information
5
2 Safety Information
2.1 General Safety Information
Please observe the Product Safety Notices ("ETAS Safety Notice") and the following
safety notices to avoid health issues or damage to the device.
NOTE
Carefully read the documentation (Product Safety Advice and this User's Guide)
that belongs to the product prior to the startup.
ETAS GmbH does not assume any liability for damages resulting from improper handling,
unintended use or non-observance of the safety precautions.
2.2 Requirements for Users and Duties for Operators
The product may be assembled, operated and maintained only if you have the necessary
qualification and experience for this product. Incorrect operation or operation by users
without sufficient qualification may lead to injuries or death or property damages.
General Safety at Work
The existing regulations for safety at work and accident prevention must be followed. All
applicable regulations and statutes regarding operation must be strictly followed when
using this product.
2.3 Intended Use
An ETK is an electronic component that is installed in a vehicle control unit (ECU) to read
data from the ECU or write data to the ECU.
Application Area of the Product
This product was developed and approved for automotive applications. For use in other
application areas, please contact your ETAS contact partner.
Requirements for Operation
The following requirements are necessary for safe operation of the product:
•Use the product only according to the specifications in the corresponding User's
Guide. With any deviating operation, the product safety is longer ensured.
•Observe the regulations applicable at the operating location concerning electrical
safety as well as the laws and regulations concerning work safety!
•Do not apply any voltages to the connections of the product that do not correspond
to the specifications of the respective connection.
•Connect only current circuits with safety extra-low voltage in accordance with EN
61140 (degree of protection III) to the connections of the product.
•The power supply for the product must be safely disconnected from the supply
voltage. For example, use a car battery or a suitable lab power supply.
•Use only lab power supplies with double protection to the supply system.
i

ETAS Safety Information
6
•Ensure that the connections of the power supply are easily accessible.
•The module does not have an operating voltage switch.
−Switch on the product by connecting the power supply cable with the power
supply or by switching on the power supply.
−Switch off the product by disconnecting it from the power supply or by switching
off the power supply.
DANGER
Connect the power cord only with a vehicle battery or with a lab power
supply! A connection to power outlets is prohibited.
Route the power cord in such a way that it is protected against abrasion,
damages, deformation and kinking. Do not place any objects on the power
cord.
Never apply force to insert a plug into a socket. Ensure that there is no
contamination in and on the connection, that the plug fits the socket, and that
you correctly aligned the plugs with the connection.
Do not use the product in a wet or damp environment.
Do not use the product in potentially explosive atmospheres.
Keep the surfaces of the product clean and dry.
Potential Equalization
CAUTION
Danger from inadvertent current flow!
Depending on the design, the shield of the Ethernet cables can be connected
with the housing of the module. Install the products only on components with the
same electrical potential or isolate the products from the components.
Requirements for the technical State of the Product
The product is designed in accordance with state-of-the-art technology and recognized
safety rules. The product may be operated only in a technically flawless condition and
according to the intended purpose and with regard to safety and dangers as stated in the
respective product documentation. If the product is not used according to its intended
purpose, the protection of the product may be impaired.
Maintenance and Cleaning
The product is maintenance-free. Use a lightly moistened, soft, lint-free cloth for cleaning
the product. Ensure that no moisture can enter. Never spray cleaning agents directly onto
the product. Do not user any sprays, solvents or abrasive cleaners which could damage
the product.

ETAS Safety Information
7
Transport and Installation
CAUTION
The Product can be damaged or destroyed!
Some components of the ETK board may be damaged or destroyed by
electrostatic discharges. Please keep the ETK in its storage package until it is
installed. The board should only be taken from its package, configured, and
installed at a workplace that is protected against static discharge.
CAUTION
During installation and removal, ECU and ETK must be in a de-energized state!
CAUTION
Risk of short circuiting the internal signals of the Product!
When you mount the Product, you must ensure that the screws and washers
used will not penetrate the Product printed circuit board.
CAUTION
Differences in case ground potentials can cause high currents to flow
through the shields of the cables that connect various system modules.
Ensure that the module mounting surfaces are at the same electrical potential or
insulate the modules from their mounting surfaces.
Cabling
Use exclusively ETAS cables at the connections of the product! Adhere to the maximum
permissible cable lengths! Observe the assignment of the cables to the connectors!
Detailed information about cabling is located in the ETK User's Guides.

ETAS Safety Information
8
2.4 Identifications on the Product
Fig 1 Adhesive Label (Example: Label for XETK-S14.0A)
The following symbols are used for identifications of the product:
Symbol
Description
The User's Guide must be read prior to the startup of the product!
Symbol for WEEE, see chapter 0 on page 9
Symbol for CE conformity, see chapter 2.6 on page 9
Symbol for CE conformity, see chapter 2.7 on page 9
Symbol for China RoHS, see chapter 2.8.1on page 9
Symbol for China RoHS, see chapter 2.8.2 on page 9
Symbol for electrostatic sensitive components
XETK-S14.0A
Product designation (example)
F 00K 110 722
Order number of the product (example)
SN: yyxxxxx
Serial number (7-digit), depending on product Serial Number is not
available.
XXXX/YY
Product version
ZZZZ
Year of manufacture
ETAS GmbH,
PO Box 300220,
70442 Stuttgart,
Germany
Manufacturer's address
NOTE
For symbols and product information one or several adhesive labels can be
used.
i

ETAS Safety Information
9
2.5 Taking the Product Back and Recycling
The European Union has passed a directive called Waste Electrical and Electronic
Equipment, or WEEE for short, to ensure that systems are setup throughout the EU for
the collection, treating and recycling of electronic waste. This ensures that the devices
are recycled in a resource-saving way representing no danger to health or the
environment.
Fig 2 WEEE symbol
The WEEE symbol (see Fig 2) on the product or its packaging shows that the product
must not be disposed of as residual garbage. The user is obliged to collect the old
devices separately and return them to the WEEE take-back system for recycling. The
WEEE directive concerns all ETAS devices but not external cables or batteries. For more
information on the ETAS GmbH Recycling software, contact the ETAS sales and service
locations.
2.6 CE marking
With the CE mark attached to the product or its packaging, ETAS confirms that the
product corresponds to the applicable product-specific European Directives. The CE
Declaration of Conformity for the product is available upon request.
2.7 UKCA Declaration of Conformity (Great Britain)
With the UKCA mark attached to the product or its packaging, ETAS confirms that the
product corresponds to the product-specific, applicable standards and directives of Great
Britain. The UKCA declaration of conformity for the product is available on request.
2.8 RoHS Conformity
2.8.1 European Union
The EU Directive 2011/65/EU limits the use of certain dangerous materials for electrical
and electronic devices (RoHS conformity). ETAS confirms that the product corresponds
to this directive which is applicable in the European Union.
2.8.2 China
ETAS confirms that the product meets the product-specific applicable guidelines of the
China RoHS (Management Methods for Controlling Pollution Caused by Electronic
Information Products Regulation) applicable in China with the China RoHS marking
affixed to the product or its packaging.

ETAS Introduction
10
3 Introduction
ETAM3 adapts ECU a 10 pin SAMTEC TFM-105 connector to an XETK. To increase to
signal-noise ratio there is a buffer in the /TRST line supplied by the VDD(Sense) Voltage.
L-FAST Mode is not possible with the ETAM3 adapter.
3.1 View
NOTE
Minimum bending radius for the flex foil is 3mm.
4 Technical Data
4.1 ECU Connector
In order to be able to use the ETK adapter ETAM3 in the ECU, a 10 pin SAMTEC
connector (e. g. TFM-105-02-S-D-P) must be available on the ECU. JTAG or DAP mode
depends on the used FETK or XETK.
Pin Number
JTAG Mode
DAP Mode
1
GND
GND
2
TCK
DAP0
3
/TRST
/TRST
4
TDO
DAP2
5
TMS
DAP1
6
TDI
-
7
WDGDIS
WDGDIS
8
VDD (Sense)
VDD (Sense)
9
/RESETOUT
/RESETOUT
10
/PORESET
/PORESET
i

ETAS Ordering Information
11
4.2 Electrical Characteristics for /TRST Signal
Supply /TRST Buffer
Signal
Condition
VIHmin
VIHmax
VDD(Sense)
ECU on
3.0V
5.5V
/TRST Output Signal
Signal
Condition
VOHmin
VOHmax
VOLmax
/TRST
VDD(Sense)=3V
IOH = 4mA
2.34V
VDD(Sense)
0.52V
/TRST
VDD(Sense)=4.5V
IOH = 8mA
3.66V
VDD(Sense)
0.52V
4.3 Measurement Drawings
Measured in mm
4.4 Temperature Range
Condition
Temperature
Operating Temperature
-40 °C - +110 °C
5 Ordering Information
Short Name
Order Number
ETAM3
F 00K 109 673

ETAS ETAS Contact Addresses
12
6 ETAS Contact Addresses
ETAS HQ
ETAS GmbH
Borsigstraße 24
Phone:
[phone]
70469 Stuttgart
Fax:
[phone]
Germany
WWW:
www.etas.com
ETAS Subsidiaries and Technical Support
For details of your local sales office as well as your local technical support team and
product hotlines, take a look at the ETAS website:
ETAS subsidiaries
WWW:
www.etas.com/en/contact.php
ETAS technical support
WWW:
www.etas.com/en/hotlines.php
