MODELS G26 Pure 6
INSTRUCTIONS
INSTALLATION AND OPERATING
EXTERNAL GAS HOT WATER UNIT
20637894 (K)

INDEX
INSTALLATION INSTRUCTIONS PAGE NO.
Introduction
Dimensions Connections
Exploded Diagram
Te c hnical Data
Gas Connection
Cold Water Connection
Hot Water Connection
Electrical Requirements
Wiring Diagram and Remote Controls Installation Schematic
Remote Controls
Mounting Remote Controls
User Instructions
Care of THE ETERNITY Hot Water Unit
Hints for Using THE ETERNITY Unit
Fault Monitor
Warranty Conditions
1
2
3
4-6
7
8
9
9
10
11-12
13-15
16-17
18
19-23
24
25

1
INTRODUCTION
ETERNITY G26 Pure 6
INSTALLATION INSTRUCTIONS
INTRODUCTION
The ETERNITY G26 Pure 6 is an external electronic gas hot water heater.
The ETERNITY G26 Pure 6 is supplied set at a constant 60℃outlet temperature
depending on the model purchased.

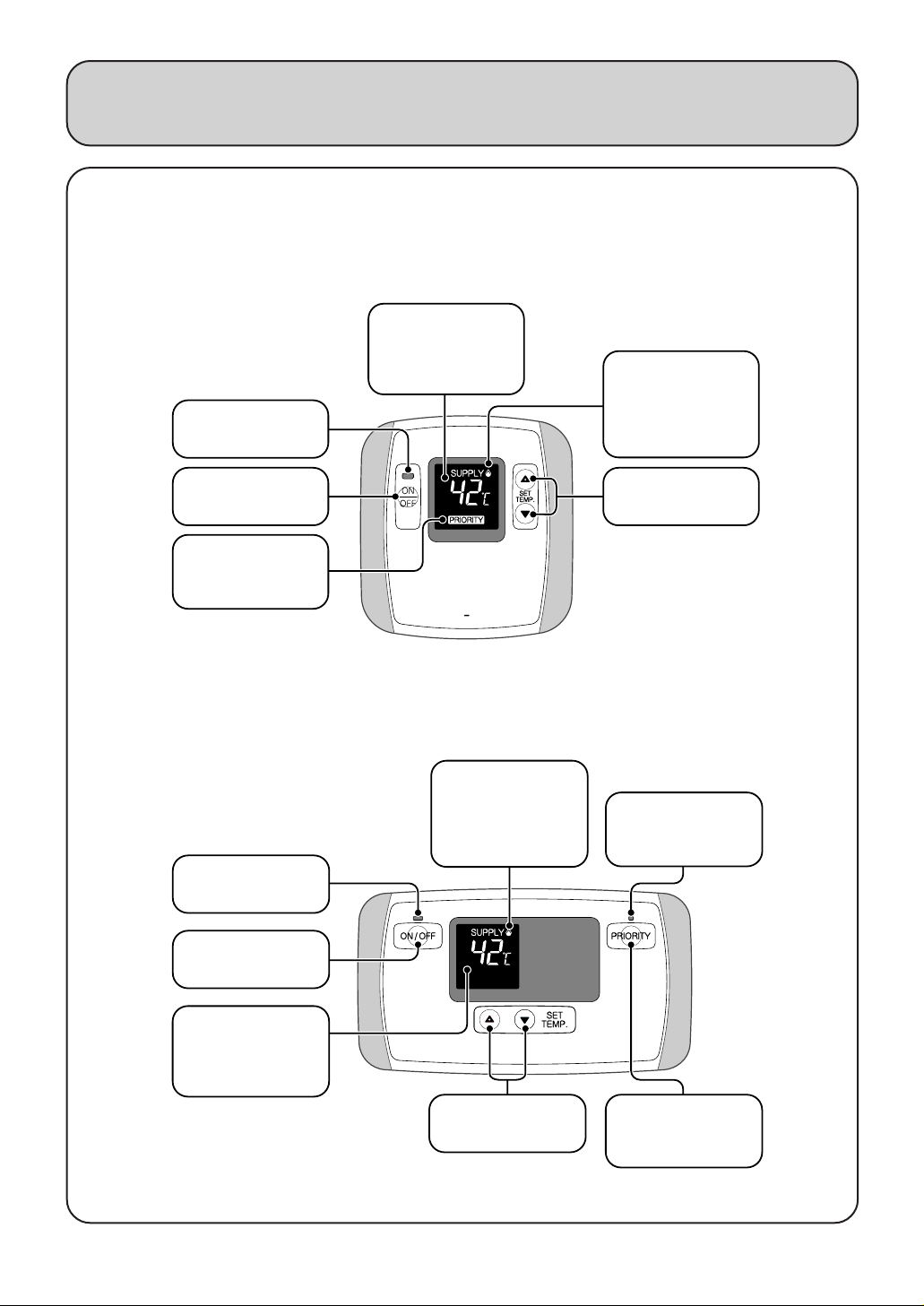

Three optional remote controls can be provided for complete hot water temperature
selection and if this option is used an approved temperature limiting device must be
installed.
THIS HOT WATER UNIT IS NOT FOR
POOL OR SPA HEATING
GENERAL
1.0.1 The ETERNITY G26 Pure 6 must be installed in accordance with
INSTALLATION MUST BE CARRIED OUT ONLY BY
AN AUTHORISED AND APPROPRIATELY LICENSED PERSON.
(1) These instructions;
(2) Uniform Building Regulations Local authority regulations;
(3) AS / NZS 3500.4 "Plumbing and Drainage Heated Water Systems"
(4) The Gas Installations Standard AS 5601 for gas burning appliances and
equipment;
(5) Any other statutory regulation that may apply;
(6) A notice of intention to install shall be lodged with the relevant Municipal
Authority and local Gas Authority prior to installation.
1.0.2
DELIVERY INSPECTION
The ETERNITY HOT WATER unit is supplied fully assembled for installation.
The customer or installer upon delivery of the unit should immediately remove all
packing materials and inspect the unit for damage and ensure that the unit supplied
is correct for the gas supply to which it is to be connected, report any damage or
discrepancies quoting to the supplier the serial number and model number, which
can be found on the outside of the cabinet.

2

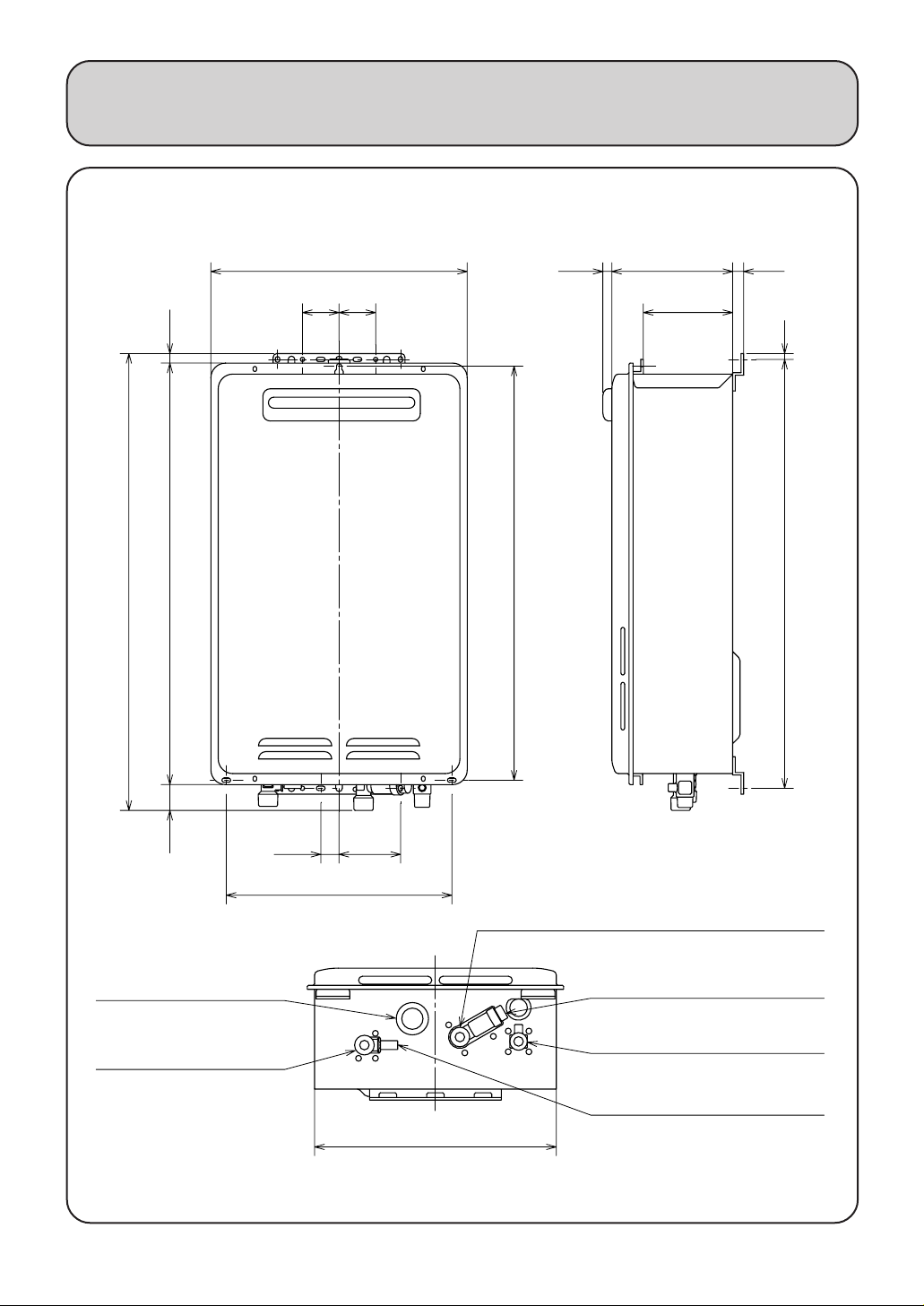

DIMENSIONS CONNECTIONS
12
8
122
165
15
623
569
13575
350
50 50
585
330
308
COLD WATER INLET
R3/4 /20
WATER INLET FILTER
PRESSURE RELIEF VALVE
GAS SUPPLY INLET
R3/4 /20
HOT WATER OUTLET
R3/4 /20
CABLE ENTRY POINT
8425
35

3

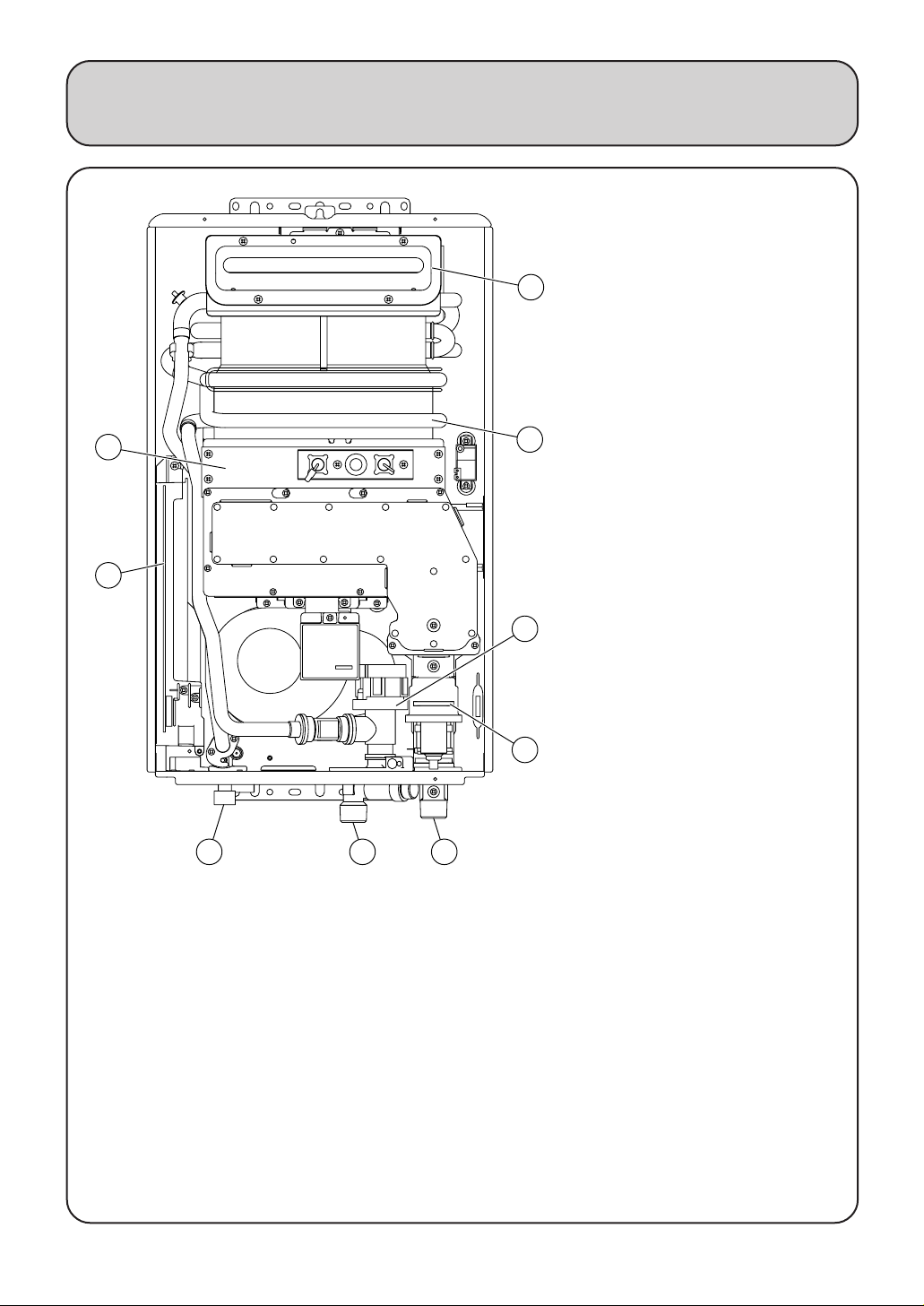

EXPLODED DIAGRAM
FLUE OUTLET
GAS VALVE
CIRCUIT BOARD
BURNER CASE
HOT WATER OUTLET
COLD WATER INLET
GAS SUPPLY INLET
HEAT EXCHANGER
WATER VOLUME
PROPORTIONAL VALVE
NOS. PARTS DESCRIPTION
1
2
3
4
5
6
7
8
9
1
3
48
9
2
765

4
TECHNICAL DATA
1.1 TECHNICAL DATA AND DIMENSIONS ETERNITY G26 Pure 6
Nominal hourly gas consumption MJ/h
by proportional electronic gas control
Test point pressure
Water heating capacity raised 40℃
Working pressure
Gas injectors of the following size in mm
are fitted for the approved gas types
Input voltage single phase 50Hz
Maximum output current
SAIG Approval no.
Inlet gas connection male thread
Cold water connection male thread
Hot water connection male thread
Relief valve pressure setting
Weight dry
1.2 DATA PLATE
Left outside of cabinet
1.3 GAS TYPE
The temporary gas label is located on the cabinet top.
The label is the gas that this appliance is designed to operate with.
DO NOT OPERATE WITH ANY OTHER GAS TYPE.
MODEL G26 Pure 6
MJ/H 200
MODEL NG LP
G26 Pure 6 .65 .67
MODEL G26 Pure 6
L/M 16.25
Max 1200kPa
NG LPG
1.34 1.0mm
1.65 1.2mm
240V
0.47Amp
GSCS20021
R3/4 /20
R3/4 /20
R3/4 /20
1400kPa
18kg

5
TECHNICAL DATA
1.4 HEATER DIMENSIONS: DEPTH
WIDTH
HEIGHT
1.5 WARNING LABELS
Located on the side of the cabinet.
PLEASE READ THESE LABELS CAREFULLY.
1.7 POSITION FOR INSTALLATION
The heater must be installed by using a fixing method sufficient to hold the 18kg
weight of the unit (see the technical sheet for dimensions of mounting brackets and
positions).
1.6 INSTALLATION POSITION
THIS HEATER IS APPROVED FOR OUTDOOR INSTALLATION
ONLY-IT IS NOT SUITABLE FOR INDOOR USE.
Refer AS 5601 for clearance details for flue terminal.
In addition, ensure that the appliance installation position permits easy access for
maintenance and operation.
For further information, please refer to the Gas Fitting Regulations.
165mm
350mm
575mm

6
TECHNICAL DATA

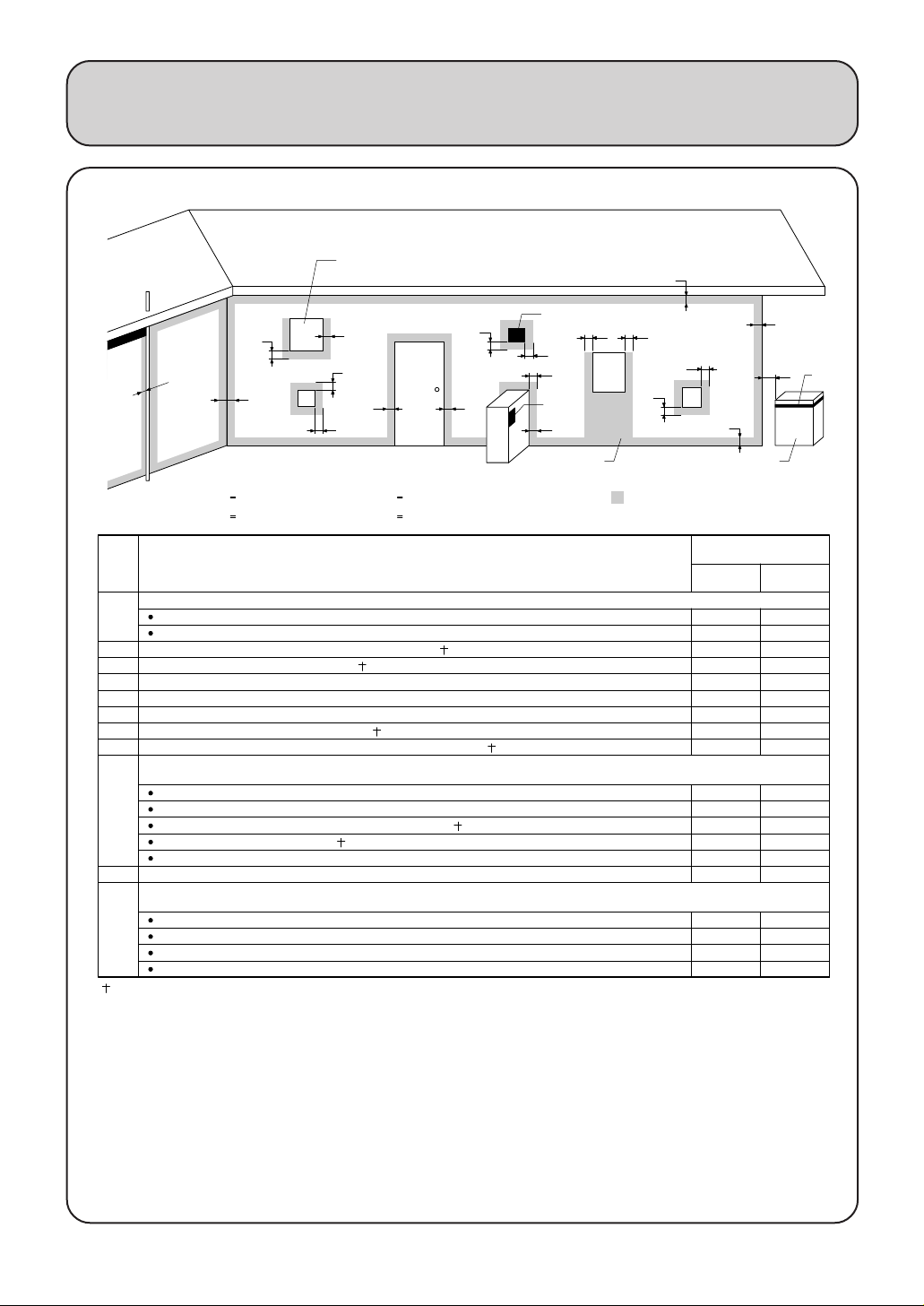

AS 5601 CLEARANCE REQUIREMENTS.
NOTES:
1 All distances are measured to the nearest part of the terminal.
2 Prohibited area below electricity meter or fuse box extends to ground level.
3 See Clause 5.13.6.6 for restrictions on a flue terminal under a covered area.
4 See Appendix J, Figures J2(a) and J3(a), for clearances required from a flue terminal to an LP Gas cylinder, A flue
terminal is considered to be a source of ignition.
5 For appliances not addressed above acceptance should be obtained from the technical regulator
FIGURE 5.3(in part) MINIMUM CLEARANCES REQUIRED FOR BALANCED FLUE TERMINALS, FAN-ASSISTED
FLUE TERMINALS, ROOM-SEALED
APPLIANCE TERMINALS OR THE TERMINALS OF OUTDOOR APPLIANCES
Ref.
Below eaves, balconies and other projections:a
f
Appliances up to 50MJ/h input 300 200
Appliances over 50MJ/h input 500 300
From the ground, above a balcony or other surfaceb 300 300
From a return wall or external cornerc
c
500 300
From a gas meter(M) (see 4.7.11 for vent terminal location of regulator)d 1000 1000
From an electricity meter or fuse box (P)e 500 500
From a drain pipe or soil pipef 150 75
Horizontally from any building structure or obstruction facing a terminal
g500 500
From any other flue terminal, cowl, or combustion air intakeh 500 300
Appliances up to 150MJ/h input 500 300
Appliances over 150MJ/h input up to 200MJ/h input 1500 300
Appliances over 200MJ/h input up to 250MJ/h input 1500 500
Appliances over 250MJ/h input 1500 1500
All fan-assisted flue appliances, in the direction of discharge - 1500
From a mechanical air inlet, including a spa blowerk 1500 1000
Horizontally from an openable window, door, non-mechanical air inlet, or any other opening into a building with the
exception of sub-floor ventilation:
j
Space heaters up to 50MJ/h input 150 150
Other appliances up to 50MJ/h input 500 500
Appliances over 50MJ/h input and up to 150MJ/h input 1000 1000
Appliances over 150MJ/h input 1500 1500
Vertically below an openable window, non-mechanical air inlet, or any other opening into a building with the exception
of sub-floor ventilation:
n
Item
Minimum clearances
(mm)
Fan
assisted
Natural
draft
Unless appliance is certified for closer installation
j
j
Door
g
h
j
I
T Flue terminal
M
P
Openable
window
n
k
k
h
a
See note3See note2
T
T
T
e
e
d
c
g
h
d
b
I
LEGEND:
Mechanical air inlet
M Gas meter Shading indicates prohibited
areas for flue terminals
P Electricity meter or fuse box

7
GAS CONNECTION
SERVICE CALLS ARE CHARGEABLE FOR
UNITS WITH INCORRECT GAS PIPE SIZES.
1.8 GAS CONNECTION
(1) Fit a union to the water heater gas inlet for easy connection and removal. The thread
diameter is R3/4 /20
THIS DOES NOT INDICATE THE SIZE OF THE GAS SUPPLY refer to AS 5601
for guidance on pipe sizing.
(2) Fit an AGA approved isolating gas cock in the supply line adjacent to the water heater
gas connection.
(3) Ensure that the supply pipe and the gas pressure regulator (LPG or Natural Gas) has
sufficient flow capacity for this and other appliances connected to the fitting line.
(4) For LPG appliances ensure that gas cylinders are of sufficient size. The water heater
alone will require a regulator of 4KG per hour capacity.
(5) Before connecting the appliance to the gas service purge any debris or air from the gas
service. Venting of purged gas shall be an area free of sources of ignition.
Close the isolating gas cock prior to connection of the appliance.
(6) After connection check all joints for leaks with an approved leak tester.
Refer to AS 5601 Installations Standard for pipe sizing details. For your assistance we
have included the following pipe sizing from AS 5601 for copper tube using Natural Gas.
THE ETERNITY G26 Pure 6 REQUIRES A MINIMUM OF 200 MJ/h FOR
THE CUSTOMER TO GET THE FULL PERFORMANCE BENEFIT.
NOMINAL PIPE
SIZE IN mm
STRAIGHT LENGTH
OF PIPE METRES
HOURLY RATE
IN MJ/h
13
18
20
25
4
4
4
4
43.0
82.2
142.0
313.0

8
COLD WATER CONNECTION
STOP TAPS OR COMBINATION STOP TAPS AND
NON-RETURN VALVES ARE NOT TO BE USED!
1.9 COLD WATER SUPPLY TO WATER HEATER
Refer to the Technical Sheet for the position of connections. Minimum of R3/4 /20
copper tube should be connected to the appliance. The WATER INLET connection
is R3/4 /20 BSP and requires a union to allow for removal of the water heater. Pipe
sizing from the cold water supply should be sized according to local BY LAWS for
water supply.
ISOLATING GATE VALVE or BALL VALVE
A GATE VALVE or BALL VALVE must be used on the cold water inlet to the water
heater.
THIS REQUIREMENT IS AN AUSTRALIA WIDE REQUIREMENT UNDER THE
NATIONAL PLUMBING CODE.
IF THE ABOVE INSTRUCTION IS NOT CARRIED OUT ALL WARRANTIES ON
THE UNIT WILL BE INVOIDED.
N.B. NO PRESSURE REDUCTION VALVE IS
REQUIRED UNLESS THE INLET WATER
PRESSURE EXCEEDS 1400kPa AT ANY
TIME OF THE DAY. EG EARLY HOURS
OF THE MORNING.

9
HOT WATER CONNECTION
3.0 The appliance is equipped with a three pinned earthed plug to be connected to a 220-
240V 50Hz power supply. The electrical rating of the appliance is 0.47Amp.
3.1 The appliance requires a 240V 50Hz weatherproof power outlet installed in a protected
position adjacent to the appliance.
3.3 IMPORTANT: The appliance should always be disconnected from the power supply
before any maintenance is carried out.
ELECTRICAL REQUIREMENTS
2.0 Refer to Technical sheet for position of connection. The outlet connection is R3/4 /20
male thread and requires an isolating union to allow for removal of the unit.
2.1 Install the hot water supply line to the unit in a minimum of R3/4 /20 copper tube.
For units set at 50℃this must be a minimum of Four(4) Metres to the first outlet.
Refer to the instructions supplied with these models for full details.
2.2 Keep the pipe lengths to a minimum and make sure that the pipework is well insulated,
as correct performance of the appliance is dependent on properly insulated pipework.
2.3 DO NOT FIT ANY VALVES OR RESTRICTORS TO THE OUTLET OF THE WATER
HEATER.
2.4 DO NOT FIT ANY OBSTRUCTION TO THE PRESSURE RELIEF LOCATED ON THE
HOT WATER OUTLET CONNECTION.
BEFORE TURNING ON THE POWER SUPPLY TO THE WATER HEATER.
2.5 After purging the air from the system using the hot water supply taps, remove the water
inlet strainer located on the cold water supply inlet connection.
Remove any debris from the filter and replace. When replacing the filter do not over
tighten the "O"ring seal.
TESTING THE WATER HEATER AFTER INSTALLATION IS COMPLETED.
Tu rn on power supply to the heater and allow approximately 30 seconds for the computer
to perform a safety check on the CHOFU GK2621K.
Open a hot water tap and check the temperature of the hot water supplied.
IF THE UNIT FAILS TO OPERATE, CONSULT THE FAULT MONITOR ON PAGE 24.

10

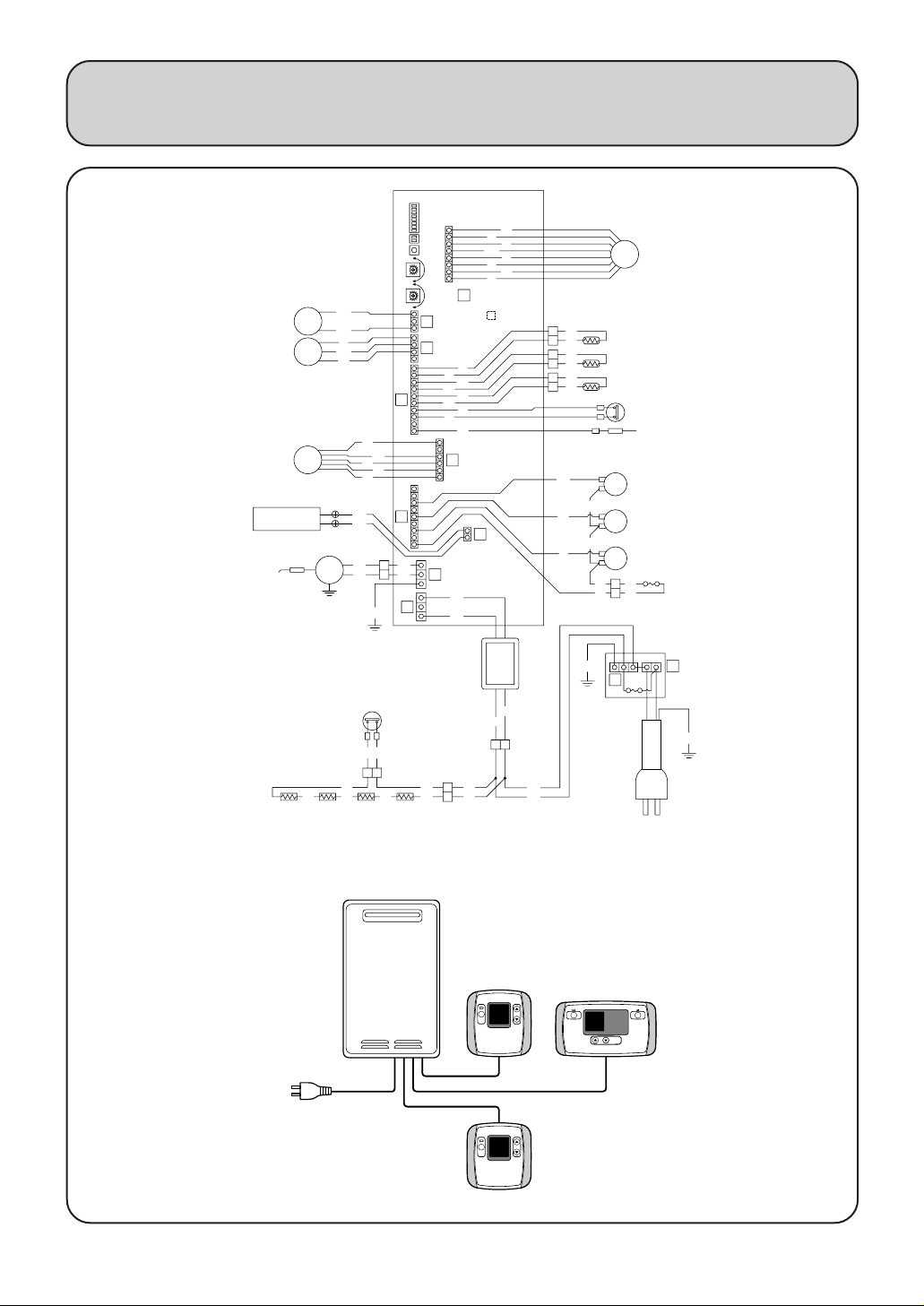

WIRING DIAGRAM AND REMOTE CONTROLS INSTALLATION SCHEMATIC
P
Y
BK
G
BL
O
R
GY
BR
W
W
W
W
W
WW
WWW BR
BL
G
G
PROTECTOR
(5A)
SURGE
12
FUSE
11
AC240V
W
: Purple
: Yellow
: Black
: Green
: Blue
: Orange
: Red
: Grey
: Brown
: White
IGNITOR

SPARK
ELECTRODE
6
BK
BK
GY
GY
BK
BK
8
G
W
YBL
R
O

COMBUSTION FAN
REMOTE
CONTROLLER
2
1
R
W
4
3
5
9
YY
WW
RBL
BL
WATER FLOW SENSOR
BK
GY
GY


R
W
GAS PROPORTIONAL 
VALVE 10
DIP SWITCH
OW
P
BK G
Y
ON
MIN.
GC-140
GC-140
MIN.
MIN MAX
BL
R
5
7
6
1
4
2
1
2
8
3
OFF
W
W
W
W
FLAME SENSOR
CUTOUT
TEMPERATURE SENSOR
(OUTGOING TEMP.)
TEMPERATURE
WATER VOLUME
PROPORTIONAL VALVE

TEMPERATURE SENSOR
(INCOMING TEMP.)
W
WTEMPERATURE SENSOR
(HEAT EXCHANGER TEMP.)

Y
Y
HI-TEMP FUSE
GAS VALVE 2
BL
O
Y
GAS VALVE 1
Y
MAIN GAS VALVE
Y
Y
Y

BK
W

BL
BK
AUTO
TRANSFORMER
THERMOSTAT FOR FREEZE
PROTECTION HEATERS
FREEZE PROTECTION HEATERS
MAIN CONTROL
240volt POWER SUPPLY
SUB CONTROL
(ENSUITE)
SHOWER CONTROL
WIRING FROM MAIN UNIT TO MAIN & SHOWER/SUB REMOTE
CONTROLS

11
REMOTE CONTROLS
Refer to Technical Sheets
4.0 The ETERNITY G26 Pure 6 comes complete, with one, two or three remote control
panels, as optional extras.
4.1 These controls are to be fitted in the following locations:
*MAIN CONTROLS - kitchen or laundry
*SHOWER CONTROLS - main bathroom
IMPORTANT
DO NOT locate the remote controls where they may come into contact with water.
DO NOT position the remote controls in the vicinity of chemicals.
DO NOT position the remote controls over a cooker, grill oven or toaster.
DO NOT position the remote controls where materials may spill onto them.
4.2 MAIN REMOTE CONTROLS CMR-2251
The main remote controls is fitted using the mounting holes in the rear of the casing.
Wiring is from the rear using the wiring hole provided in the casing.
4.3 SHOWER REMOTE CONTROLS YST-2251 & ENSUITE REMOTE CONTROL YST-2251S
These controls must be wired from the rear, leave sufficient wire for disconnection and
removal.
4.4 CONNECTION OF WIRING TO THE ETERNITY
Remove the front cover from the unit.
Install the wiring to the ETERNITY G26 Pure 6 by concealing the wiring in the wall cavity.
Install the wiring into the cabinet through the wiring access adjacent to the power cable,
see the Technical Sheet.
4.5 Using the cable clamps provided on the plate adjacent to the terminal block attach the
wiring to the plate. Then attach the wires to the terminals for the remote controls. See
wiring diagram previous page. Replace the front cover and connect the power plug.
4.6 COMMISSIONING AND TESTING
After completing the installation of the unit, turn the water, power and gas supplies on to
the unit.
CONTROLS OPERATION
Turn the main remote controls ON by pressing the ON/OFF switch on the controls to the
ON position.
The MAIN REMOTE CONTROLS will indicate the 42℃and the MAIN CONTROLS light
will be alight.
Using the UP/DOWN buttons select the hot water temperature required. Turn on the hot
water supply tap. The burner light glowing will indicate that hot water is being supplied.
Move to the shower controls (if fitted). Press the TRANSFER BUTTON and repeat the
procedure.
Move to the Ensuite controls (if fitted). Press the TRANSFER BUTTON and repeat the
procedure.
THERE ARE NO MINOR ADJUSTMENTS THAT CAN BE MADE TO THE UNIT.
MODEL CMR-2251
MODEL CMR-2251
MODEL YST-2251
MODEL YST-2251S
ONE REMOTE CONTROLS SYSTEM
TWO OR THREE REMOTE
CONTROLS SYSTEM
MAIN CONTROLS
MAIN CONTROLS
SHOWER CONTROLS
ENSUITE CONTROLS

12
REMOTE CONTROLS
CMR-2251
(Main remote Controller)
This remote controller is intended to be used in the kitchen, laundry room or utility area.
YST-2251/S
(Bath remote controller / Ensuite)
This remote controller is intended for installation in the bathroom.
ON/OFF Button
Power switch to operate
this control.
Digital Monitor
Indicates the selected
water temperature.
Error messages flash in
the event of a failure.
Flame Logo Indicator
Indicates that a hot water
faucet is open and that
control of the temperature
is taken at another
controller.
UP/DOWN Button
Increase or decrease the
desired water temperature.
PRIORITY Indicator
Indicates this controller
has priority control over
the other controller.
ON Indicator
Indicates power is on to
the system.
Flame Logo Indicator
Indicates that a hot water
faucet is open and that
control of the temperature
is taken at another
controller.
UP/DOWN Button
Increase or decrease the
desired water temperature.
PRIORITY Button
Priority button to set the
water temperature on
Bath remote controller.
Indicates this controller
has priority control over
the other controller.
PRIORITY Indicator
ON Indicator
Indicates power is on to
the system.
ON/OFF Button
Power switch to operate
this control.
Digital Monitor
Indicates the selected
water temperature.
Error messages flash in
the event of a failure.

13
MOUNTING ROMOTE CONTROLS
MOUNTING AND WIRING OF REMOTE CONTROLS
4.7 REMOTE CONTROLS

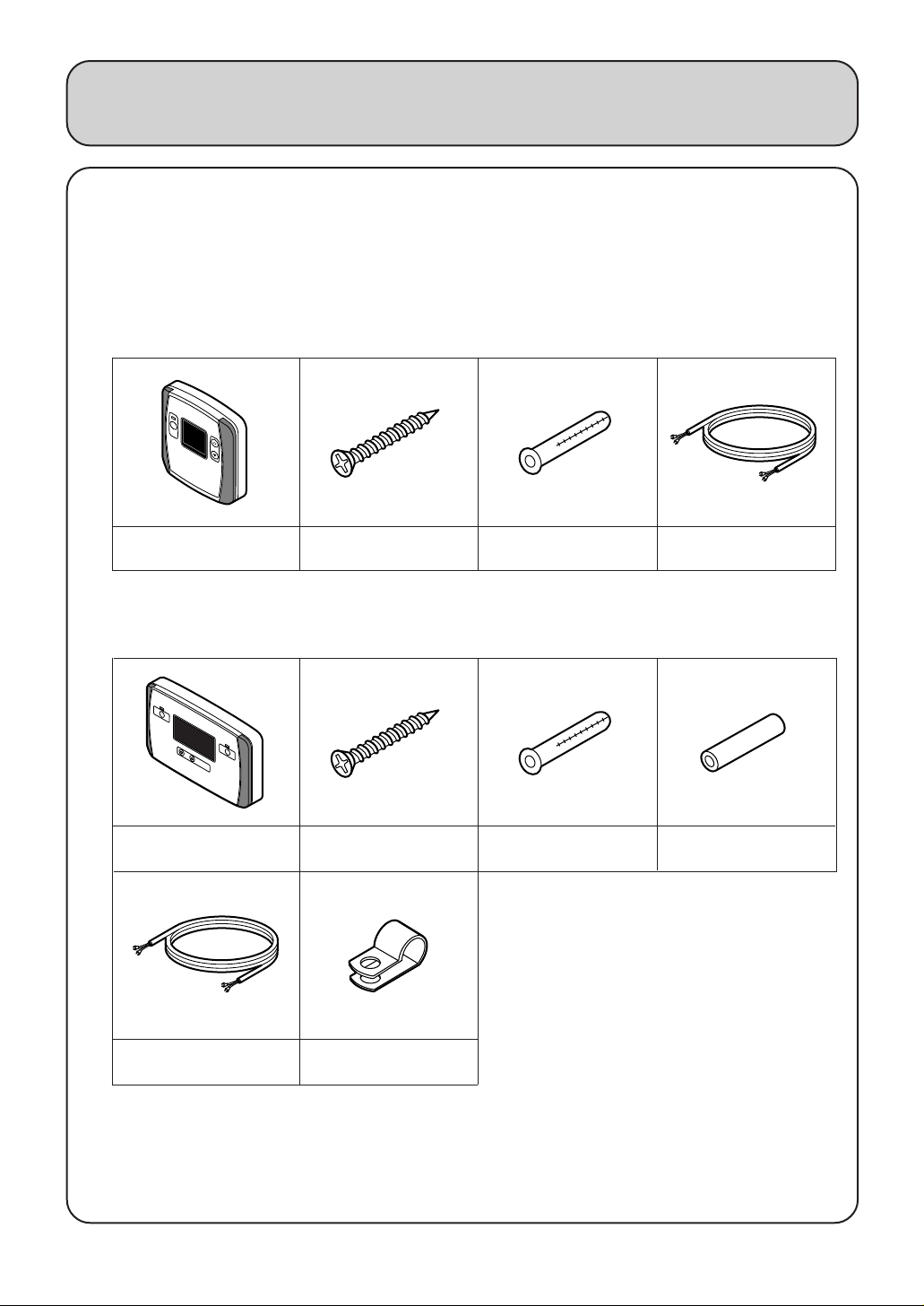

OPEN THE CARTON BOX AND MAKE SURE TO CHECK FOLLOWING PARTS
PROVIDED.
●MAIN CONTROLS MODEL CMR 2251
●SHOWER / SUB CONTROLS MODEL YST-2251 / YST-2251S
REMOTE CONTROLS WOOD SCREW CURL PLUG WIRING
REMOTE CONTROLS
WOOD SCREW CURL PLUG CONNECTOR
WIRING CABLE CLAMP
2PCS 2PCS
2PCS
2PCS 2PCS

14
MOUNTING REMOTE CONTROLS
1) Safety precautions on Main remote controller installation.
• Connect remote controller cable after heater is unplugged.
• Never install Main remote controller above a combustion
appliance like hot plate or a kitchen range.
• The heat will cause electrical component problems, or
deform the exterior.
• Install Main remote controller out of the reach of
steam, water drop, spray of water from tea kettle,
or electrical pot.
• Do not put Main remote controller in direct sunshine.
• It is convenient to install it where it will be used most
frequently.
• Do not install Main remote controller at the place
where any commercial chemicals like ammonia, sulfur,
chlorine, ethylenic compound and acids etc are used.
• The remote controller cables carry low voltage, 12VDC
digital.

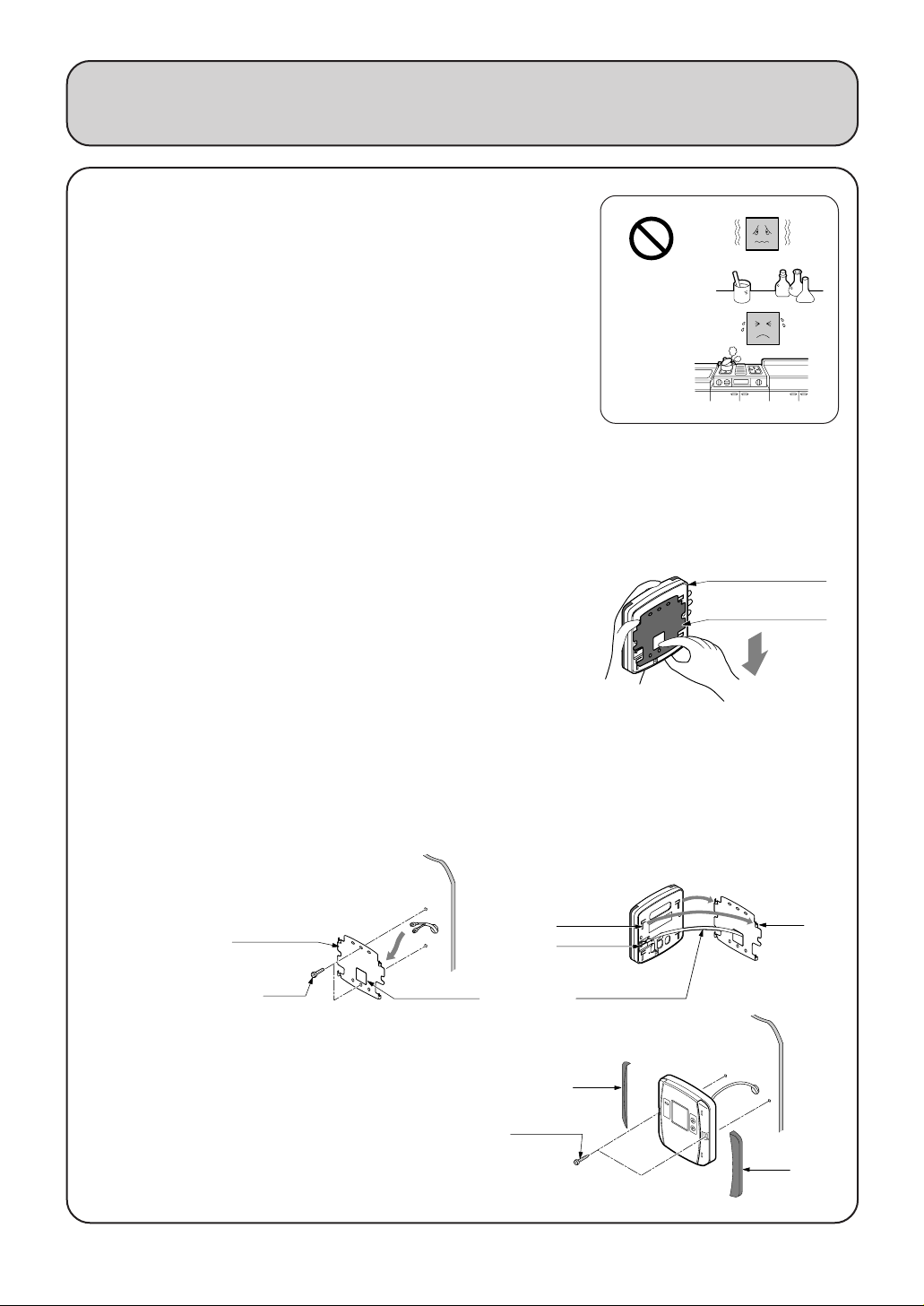

In case of installing of the fitting bracket for remote controller.
Align the slots of Main remote controller's back to 4 hooks on the fitting bracket.
Then slide them on from the top.
In case you are not using the fitting bracket of
the remote controller.
Detach right-and-left covers of the remote
controller and fix them to the wall directly with
wood screws. Then attach the covers again.
Do Not
Chemicals
Remote controller
fitting bracket
Remote controller
2) Installation of Main remote controller.
• Detach the fitting bracket from Main remote controller by
sliding it down.
• Attach the fitting plate to wall.
• Install conduit inside of wall in advance and secure the
wiring box.
• Pass remote controller cables through conduit.
Then pass the cables through the hole of the fitting bracket
and pull them out.
• Attach the fitting bracket with screws adjusting the screw
hole to the wiring box.
• Connect the remote controller cables to the terminal for the
remote controller of PCB.
Cover
Cover
Wood screw
Screw
Remote controller
fitting bracket
Hole for wiring
Hook
Remote controller
cables
Slot
Terminal

15
MOUNTING REMOTE CONTROLS
1) Safety precautions on Bath remote controller / Ensuite installation.
• Before remote controller installation, check the hole position considering wall stud location.
• Note : Do not dismantle the remote controller due to water-proof design.
• Do not install remote controller where water will contact the remote controller directly.
• The remote controller cables carry low voltage, 12VDC digital.
2) Installation of Bath remote controller / Ensuite.
• Drill a hole (more than dia about 12mm) in a wall for the remote controller cables.
• After passing the remote controller cables through the hole, remove the packing's back
paper of remote controller. Then attach the remote controller to the wall.
• Detach both end covers of remote controller and fix the remote controller to the wall with
wood screws(2pcs) in the screw holes provided. Do not tighten the screws excessively,
as the screw hole may be damaged. In case of mounting the remote controller on tile,
cement or mortar, use an expansion bolt.
Wood screw
Cover
Cover
Expansion bolt
Remote controller cables
Remote controller
packing
Remote controller
cables

16
USER INSTRUCTIONS

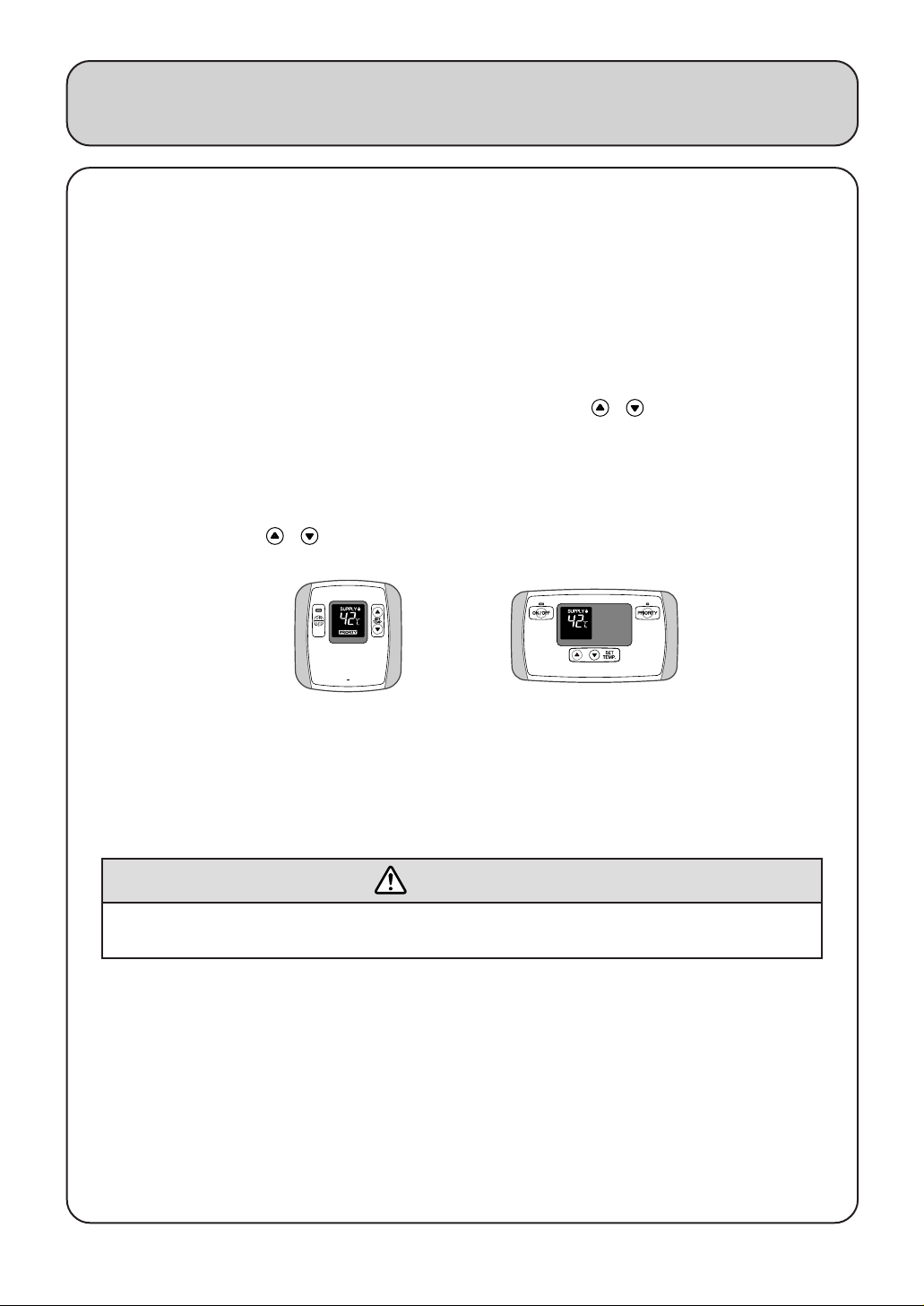

Operation of Main / Bath remote controller / Ensuite.
Please read these instructions carefully before using this appliance.
1. Turn on the ON/OFF button. (refer to page 12.)
2. The temperature display will illuminate at 42℃.
3. The priority indicator will illuminate.
4. Select hot water temperature by pushing UP/DOWN button ( ) on the controller.
5. Turn on the hot water faucet. Flame logo indicator will illuminate after a short delay.
This indicator will remain illuminated until the hot water faucet is turned off.
6. The hot water temperature can be altered at any time during the operation by pushing
UP/DOWN button ( ) located on the controller.
Warning
Do not turn off the water heater or change the water temperature while someone is
bathing or washing. That may result in scalds or burns.
PRIORITY control. (change)
The temperature can only be controlled by the remote controller which has the priority indication.
Priority button is only located on the Bath remote controller / Ensuite.
When the priority switch is turned on, priority control over the water temperature is changed
voluntarily.
• In case of installation of both a Main remote controller and a Bath remote controller / Ensuite
with priority button ON, when pushing priority button on Bath remote controller / Ensuite, the
hot water temperature will read 42℃.
• In case of installation for Bath remote controller only, when pushing priority button on it, hot
water temperature will read 42℃.
• The priority mode of YST-2251/YST-2251S can't accept ON/OFF during the operation.
It doesn't matter whether the operation is working or not.
Please operate it after closing the tap.
or
or
or

17
1. Set the MAIN CONTROL to 42℃for normal household use and to prevent small children
from scalding.
2. For the dishwasher set the MAIN CONTROL to 60℃or the temperature in the manufacturer's
instructions.
3. For showering use settings between 37℃-39℃and no cold water will be needed to be mixed,
and if other hot or cold water taps are used the temperature will be maintained.
HINTS FOR USING REMOTE CONTROLS
FOR SAFETY AND ENERGY SAVINGS
THE TEMPERATURE WILL INCREASE BY 1℃WITH EACH PRESS OF
THE UP/DOWN BUTTONS. THE TEMPERATURE CAN BE ADJUSTED
CONTINUOUSLY BY KEEPING THE BUTTON PRESSED. OVER 50℃
UP TO 60℃, THE TEMPERATURE IS CONTROLLED BY 5℃NOTCH.
4. The MAIN REMOTE CONTROL is left switched on at all times for operation.
5. The MAIN REMOTE CONTROL is left switched on at all times and then change can be
made to the operation temperature at any time during operation of hot water taps.
PLEASE NOTE ABOVE 50℃SCALDING CAN OCCUR WITHIN SECONDS

18
CARE OF THE ETERNITY HOT WATER UNIT
6. IF A POWER FAILURE OCCURS THE REMOTE CONTROLS WILL NOT FUNCTION AND
THE ETERNITY UNIT WILL NOT SUPPLY HOT WATER UNTIL POWER IS RESTORED.
5. TURN OFF THE GAS SUPPLY AND POWER AND CONTACT YOUR GAS
SUPPLY COMPANY.
1. DO NOT HANG WASHING OR OTHER MATERIALS ADJACENT TO THE UNIT.
2. DO NOT STORE INFLAMMABLE MATERIALS WITHIN 2 METERS OF THE UNIT.
3. DO NOT TOUCH THE FLUE OUTLET OF THE UNIT DURING OR IMMEDIATELY AFTER
OPERATION.
4. IF ANY GAS SMELL COMES FROM THE UNIT, DO NOT USE NAKED FLAMES
TO TEST FOR GAS LEAKS.
WHEN POWER IS RESTORED THE REMOTE CONTROLS WILL
RESET AT 42℃AS A SAFE TEMPERATURE.
PLEASE NOTE
CLOSE
