EverRide Hornet EZYN2048S Programming manual

®
EZYN2048S
EZYN2052S
OPERATOR’S & PARTS MANUAL

TO OUR CUSTOMER:
Thank you for purchasing an EverRide® Hornet Zero Turn Mower. We believe
that you have exercised excellent judgment in your selection. The Hornet mower has
been designed to give you many years of satisfactory service. Successful operation and
long life depends on proper maintenance and correct operatingtechniques.
Before you received your unit,the dealerhas performed a pre-deliveryinspection.
The dealer will discuss with you the features, operation and maintenance requirements.
Your dealer will always be there to help you any time you need assistance or need
equipment related to the use of your EverRide mower.
We recommend thatyou carefully readthis entiremanual beforeoperating theunit.
This operator’s manual has been printed to provide you with safe operating techniques,
proper maintenance procedures, correct assembly, and parts identification on your
EverRide Zero Turn Mower. Keep this manual handy for future reference.
Should any assistance be needed in understanding any section of this manual,
contact your EverRide products dealer.
This equipment is covered by a written warranty which will be provided to you in
the pages following.
EverRide reserves the right to make changes or add improvements to its products without incurring
any obligation to make such changes to products manufactured previously. EverRide, or its dealers,
accept no responsibility for variations which may be evident in the actual specifications of its products
and the statements and descriptions contained in the publication.
© 2006
Auburn Consolidated
Industries, Inc.
®

®
OWNER’S WARRANTY INFORMATION
This warranty applies to the original retail purchaser of the
EverRide® products only. The warranty period starts upon the
date of the original purchase reflected on the sales invoice.
As a condition to this warranty, the owner/operator shall
have read, understood and followed the operator’s manual
guidelines for operations and maintenance supplied with this
product, and that the product registration shall have been
mailed to EverRide. Any lack of good maintenance, such as
maintaining proper belt tension, tire pressures and lubrica-
tion shall be reason for rejection of a warranty claim.
In the judgment of EverRide, any original part found to be
defective in material, workmanship or performance, will be
repaired or replaced with a new part only by an EverRide Au-
thorized Servicing Dealer without charge for parts and labor
based on the following terms and conditions:
Warranty Coverage:
This warranty is limited to two years from the date of pur-
chase for parts and one year for labor for any EverRide
product used for commercial purposes, income producing
purposes or residential use. EverRide products used for
rental purposes are limited to 90 days of warranty. Engine
and battery warranties are provided separately by the manu-
facturer of those components.
Belts, cutting blades, grass collection bags and tires are
guaranteed to be free from manufacturer’s defects for the
first 90 days.
The mower deck shell will be warranted from cracking as
a result of defects in material or workmanship for the life of
the unit.
Service parts are warranted for 90 days from the date of
purchase.
What this warranty does not cover:
The expense incurred for delivering this product to the dealer
and returning it after repair. The responsibility of EverRide
and its servicing dealers is limited to making the required
repairs. Further, no breach of warranty shall be cause for
cancellation of the contract of sale.
Subsequent purchasers of the mower other than the original
purchaser. This warranty is not transferable.
Product(s) that has (have) been subject to improper mainte-
nance, neglect, misuse, accident, alteration, modified or op-
erated in any way contrary to the instructions specified in the
Operator’s Manual. Repairs made by unauthorized persons
will not be covered under warranty. Damages caused by use
of EverRide equipment other than for what it was designed.
Damages that are caused by unauthorized attachments, a-l
terations or modifications will not be covered under warranty.
Any piece of equipment where the serial number has been
removed or is made illegible will not be covered under wa-r
ranty.
Wear or maintenance items (unless defective) including, but
not limited to: Clutch and brake linings, light bulbs, grass
bags, filters (air, fuel, oil), lubricants & coolants (unless used
during an authorized repair), spark plugs, injector nozzles.
As the manufacturer of this product, EverRide reserves the
right to change, modify or improve the design of any of its
products without assuming any obligation to modify or up-
grade any mower, previously sold or manufactured.
As stated above, all other implied warranties are limited in
duration. Any such implied warranties including merchan-t
ability, fitness for a particular purpose, or otherwise, are dis-
claimed in their entirety after the expiration of the warranty
period. EverRide’s obligation to the original owner is strictly
and exclusively limited to the repair or replacement of de-
fective parts, and EverRide does not assume nor authorize
anyone to assume for them any other obligation.
EverRide assumes no responsibility for incidental, con-
sequential or other damages including, but not limited to:
Transportation of the mower to an Authorized Dealer and
returning it back, rental of truck or trailer for transportation,
expense for gasoline, injury to property, mechanic’s travel
time and mileage to perform repair(s), rental of a like prod-
uct, loss of use of the EverRide product, loss of savings or
revenue, loss or damage to personal property, and/or tele-
phone charges.
Exclusions or limitations as stated above may not be allowed
in some states. This warranty allows you specific legal rights
and you may have other rights in your state.
Warranty Registration
The warranty registration form must be completed and
signed by the authorized dealer and the original purchaser
and returned to EverRide within ten days of the date of pu-r
chase. The date of purchase is considered the day the unit
is delivered.
Dealer or Distributor Warranties
The selling dealer and distributor makes no warranty of their
own and neither the dealer nor the distributor has any au-
thority to make any representation or promise on behalf of
EverRide, or to modify the terms or limitations of this wa-r
ranty in any way.

CONTENTS - i
EverRide Mower Operator’s & Parts Manual
CONTENTS
SAFETY 1
PERSONAL SAFETY INSTRUCTIONS 1
SAFE OPERATING PRACTICES 1
TRAINING 1
PREPARATION 1
OPERATION 2
MAINTENANCE AND STORAGE 3
EVERRIDE MOWER SAFETY 3
GENERAL SAFETY RULES 3
KEEP PASSENGERS OFF 4
BEFORE OPERATION 4
DURING OPERATION 5
OPERATING ON SLOPES 6
ROLL OVER PROTECTIVE STRUCTURE 6
SEAT BELT USAGE 7
MAINTENANCE 7
FUEL SYSTEM 7
HYDRAULIC SYSTEM 8
BATTERY MAINTENANCE 8
TIRE MAINTENANCE 9
REPLACEMENT PARTS 9
TRANSPORTING 9
SLOPE GUIDE 10
SAFETY & INSTRUCTION DECALS 12
INTRODUCTION 14
IDENTIFICATION 15
MODEL/SERIAL NUMBERS 15
INSTRUMENTS & CONTROLS 16
INSTRUMENT PANEL 16
ELECTRIC FUEL SHUT OFF 17
IGNITION SWITCH 17
TEMPERATURE LIGHT 17
ENGINE THROTTLE 17
PTO ENGAGEMENT 17
HOUR METER 17
OPERATING THE POWER UNIT 18
BREAK –IN PERIOD 18
MOUNTING AND DISMOUNTING SAFELY 18
FUEL 18
STARTING THE EVERRIDE MOWER 18
Pre Start Inspection 18
Normal Starting 18
Jump Starting the Power Unit 20
WARMING THE ZERO TURN MOWER 21
INCREASING ACCELERATION 21
OPERATING THE EVERRIDE MOWER 21
STEERING CONTROLS 21
STOPPING THE ENGINE 22
MOVING A STALLEDEVERRIDE MOWER 22
PARKING THE POWER UNIT 22

ii - CONTENTS
LOADING THE MOWER 22
TRANSPORTING THE MOWER 23
OPERATING THE MOWER 24
GENERAL INFORMATION 24
TIPS FOR EFFICIENT MOWING 24
CUTTING HEIGHTS 25
ADJUSTING THE MOWER HEIGHT OF CUT 25
ANTI-SCALP WHEELADJUSTMENT 25
UNEVEN TERRAIN 25
GRASS DISCHARGE 26
PARTS 27
LUBRICATION AND MAINTENANCE 28
SPECIFICATIONSAND CAPACITIES 29
LUBRICATION/FILL POINTS 30
PERIODIC MAINTENANCE SCHEDULE 31
AVOID FUMES 31
SERVICE ACCESS 31
ENGINE OIL LEVEL 31
CHANGING THE ENGINE OIL 31
OIL FILTER CHANGE 32
HYDROSTATIC MAINTENANCE 32
CHANGING THE HYDRAULIC FLUID 33
BLEEDING THE HYDRAULICS 33
CHECKING THE HYDRAULIC HOSES 34
BATTERY MAINTENANCE 34
INSTALLING THE BATTERY 34
REMOVING THE BATTERY 34
CHARGING THE BATTERY 35
CLEANING THE BATTERYAND TERMINALS 35
REPLACING THE FUSES 35
SAFETY CHECKS 35
CHECKING THE KILL CIRCUITS 36
ELECTRIC CLUTCH STOP CHECK 36
NEUTRALADJUSTMENT 36
SERVICING THE CASTER WHEEL ROLLER BEARINGS 37
SERVICING THE CASTER PIVOT BEARINGS 37
LEVELING THE DECK 38
SYNCHRONIZING HEIGHT OF CUT 38
DRIVE ADJUSTMENTS 39
ENGINE AIR CLEANER SERVICE 39
FUEL SYSTEM SERVICE 40
FUEL/WATER SEPARATOR 40
FLUSH & FILL COOLANT 41
COOLING SYSTEM CLEANING 42
SEASONAL STORAGE 42
PRIMING THE FUEL SYSTEM 42
TIRE AND WHEEL MAINTENANCE 43
BLADE MAINTENANCE 43
CLEANING GRASS BUILDUP FROM DECK 44
BELT REPLACEMENT 45
DRIVE BELT REPLACEMENT 45
PUMP BELT REPLACEMENT 46

CONTENTS - iii
BOLT TORQUE CHART 47
HYDRAULIC SCHEMATIC 48
ELECTRICAL SCHEMATIC - LOGIC 49
ELECTRICAL SCHEMATIC - ACTUAL 50
TROUBLESHOOTING 51
MOWER TROUBLESHOOTING GUIDE 51
POWER UNIT TROUBLESHOOTING GUIDE 53
MOWER ASSEMBLY INSTRUCTIONS 55
SETUP INSTRUCTIONS 55
RADIATOR ASSEMBLYAND INSTALLATION 56
BATTERY INSTALLATION 57
HYDRAULIC OIL SERVICE 57
ATTACHING ROPS TO MOWER 57
ATTACHING THE LATCH & SEAT BELT 58
SPECIFICATIONS 58
EVERRIDE MOWER 58
ENGINE 58
FUEL 58
HYDROSTATIC DRIVE SYSTEM 58
ELECTRICAL SYSTEM 58
PARKING BRAKE 58
MOWER DECK 58
ROPS 59
WEIGHTS/MEASUREMENTS 59
PARTS PAGES
60
EVERRIDE MOWER SAFETY DECALS
12
MOWER DECK GROUP
61
HANDLE & HOCASSEMBLY
63
HANDLE CONTROLS/PUMP TENSIONER
65
LINKAGE COMPONENTS
67
CLUTCH & HANDLEASSEMBLY
69
BATTERY COMPONENTS
71
SEAT & ENGINE GUARD PLATEASSEMBLY
73
ELECTRIC COMPONENTS
75
FUEL COMPONENTS
77
HYDRAULIC COMPONENTS
79
RADIATOR COMPONENTS
81
FRONT WHEELASSEMBLY
83
REAR BRAKE COMPONENTS
83
SPINDLEASSEMBLY
85
AIR FILTERASSEMBLY
85
CONTROL PANELASSEMBLY
87
ROPS
87
ENGINE COMPONENTS
89
MAINTENANCE RECORDS
99

1 - SAFETY
This machine meets or exceeds the B71.4 1999
specifications oftheAmericanNationalStandards
Institute, in effect at the time of production.
Note: The addition of attachmentsmade
by other manufacturers that do not
meet the American National Standards
Institute certification will cause
noncompliance of this machine.
SAFE OPERATING PRACTICES
Thefollowing instructionsarefromANSI standard
B71.4 - 1999.
TRAINING
Read the Operator’s Manual and other training
material. If the operator(s) or mechanic(s) cannot
read English, it is the owner’s responsibility to
explain this material to them.
Become familiar with the safe operation of the
equipment, operator controls, and safety signs.
All operators and mechanics should be trained.
The owner is responsible for training the users.
Never let children or untrained people operate
or service the equipment. Local regulations may
restrict the age of the operator.
The owner/user can prevent and is responsible
for accidents or injuries occurring to themselves,
other people or property.
PREPARATION
Evaluatethe terrain to determine what accessories
and attachments are needed to properly and
safely perform the job. Only use accessories and
attachments approved by the manufacturer.
Wear appropriate clothing including hard hat,
safety glasses and ear protection. Long hair,
looseclothingorjewelrymaybetangledinmoving
parts.
Inspecttheareawherethe equipment istobeused
and remove all objects such as rocks, toys and
wire, which can be thrown by the machine.
Use extra care when handling gasoline and
SAFETY FIRST
This
symbol, the industry’s “Safety Alert Symbol”, is used throughout this
manual
and
on labels on the machine itself to warn of the possibility of personal
injury.
Read
these instructions carefully. It is essential that you read the
instructions
and safety regulations before you attempt to assemble or use this unit.
DANGER:
Indicates an immediately hazardous situation which, if not
avoided, will result in death or serious injury.
WARNING:
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION:
Indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury.
IMPORTANT:
Indicates that equipment or property damage could result if
instructions are not followed.
NOTE:
Gives helpful information.

SAFETY - 2
other fuels. They are flammable and vapors are
explosive.
a. Use only an approved container
b. Never remove gas cap or add fuelwith
engine running. Allow engine to cool
before refueling. Do not smoke.
c. Never refuel or drain the machine
indoors.
Check that operator’s presence controls, safety
switchesand shieldsareattachedandfunctioning
properly. Do not operate unless they are
functioningproperly.
OPERATION
Never run an engine in an enclosed area.
Only operate in good light, keeping away from
holes and hidden hazards.
Be sure all drives are in neutral and parking brake
is engaged before starting the engine. Only start
enginefromtheoperator’sposition.Useseatbelts
if provided and the ROPS is installed.
Slowdownanduseextracareonhillsides.Besure
totravelintherecommendeddirectiononhillsides.
Turf conditions can affect the machine’s stability.
Use caution while operating near drop-offs.
Slow down and use caution when making turns
and when changing directions on slopes.
Never raise deck with the blades running.
Never operate with the PTO shield, or other guards
not securely in place. Be sure all interlocks are
attached, adjusted properly, and functioning
properly.
Never operate with the discharge shield raised,
removed or altered, unless using a grass
catcher.
Donotchangetheenginegovernorsetting orover
speed the engine.
Stop on level ground, lower implements, disengage
drives,engageparkingbrake(if provided),shutoff
engine before leaving the operator’s position for
any reason including emptying the catchers or
unclogging the chute.
Stop equipment and inspect blades after striking
objects or if an abnormal vibration occurs. Make
necessary repairs before resuming operations.
Keep hands and feet away from the cutting
units.
Look behind and down before backing up to be
sure of a clear path.
Never carry passengers and keep pets and
bystanders away.
Slow down and use caution when crossing roads
and sidewalks.
Stop blades if not mowing.
Be aware of the mower discharge direction and
do not point it at anyone.
Do not operate the mower under the influence of
alcohol or drugs.
Use care when loading or unloading themachine
into a trailer or truck.
Usecarewhenapproachingblindcorners,shrubs,
trees, or other objects that may obscure vision.
MAINTENANCE AND STORAGE
Disengage drives, lower implement, set parking
brake, stop engine and remove key or disconnect
spark plug wires. Wait for all movement to stop
before adjusting, cleaning or repairing.
Clean grass and debris from cutting units, drives,
mufflers, and engine to help prevent fires. Clean
up oil or fuel spillage.

3 - SAFETY
Let engine cool before storing and do not store
near flame.
Shut off fuel while storing or transporting. Do not
store fuel near flames or drain indoors.
Park the machine on level ground. Never allow
untrained personnel to service machine.
Use jack stands to support components when
required.
Carefully release pressure from components with
stored energy.
Disconnect battery or remove spark plug wires
before making any repairs. Disconnect the
negative terminal first and the positive last.
Reconnect positive first and negative last.
Use care when checking blades. Wrap the blade
(s) orweargloves,andusecautionwhenservicing
them. Only replace blades. Never straighten or
weld them.
Keep hands and feet away from moving parts. If
possible,donotmakeadjustmentswiththeengine
running.
Charge batteries in an open well ventilated area,
away from spark and flames. Unplug charger
before connecting or disconnecting from battery.
Wear protective clothing and use insulated tools.
Keep all parts in good working condition and all
hardwaretightened.Replaceallwornordamaged
decals.
The discharge shield is subject to wear and
deterioration. Inspectitregularly. Ifreplacementis
required, always replace it with genuine EverRide
products.
EVERRIDE MOWER SAFETY
Thefollowinglistof safetywarningsarespecific to
EverRideproducts. Thislistwill containadditional
safety informationthat isimportant, butnot covered
by the ANSI standards.
This product is capable of amputating hands and
feet andthrowing objects. Always follow allsafety
instructions to avoid serious injury or death.
The safety of the operator is one of our number
one concerns when designing a new piece of
equipment. Our designers have built in as many
safety features as possible. Even with these built
in safety features, many accidents occur which
could have been avoided by a few seconds of
thought and a more careful approach to handling
machinery. Accidents canbeavoidedby observing
all safety precautions. Read and understand all
precautionsfoundintheoperator’smanual before
operating the EverRide mower. This equipment
must only be operated by those who have been
trained in its safe use.
Inordertoprovideabetterview,certainphotographs
or illustrations in this manual may show an
assembly with a safety shield removed. However,
a machine should never be operated without the
safety shields installed. Keep all shields in place.
If shield removal becomes necessary for repairs,
replace shield prior to machine operation.
WARNING: DO NOT remove or obscure
DANGER, WARNING, CAUTION or
Instruction Decals. Replace any decals
that are not readable or are missing.
Replacement decals are availablefrom
your dealer. The actual location of
these Safety Decals is illustrated at the
end of this section.
GENERAL SAFETY RULES
This book must be made available to the operator
of the mower at all times.
Read this book carefully and learn how to use the
machine correctly. Become familiar with all ma-
chine controls and how to stop the machine and
the implements or attachments quickly.

SAFETY - 4
Beware of bystanders, particularly children!
Riders obstruct the operator’s view which results
in the machine being operated in a manner which
is unsafe.
DONOTcarry passengers anywhereon thepower
unitoronanyimplementorattachmentconnected
to, or installed on the power unit.
BEFORE OPERATION
Pay special attention to the warning, caution and
danger labels on the machine.
Donotusestartingfluid. Useof startingfluidcould
damage engine components.
Always look around to make sure that it is safe to
start the engine or move the power unit. This is
particularly important with higher noise levels as l
you may not hear people shouting.
KEEP PASSENGERS OFF
Only allow the operator on the machine. Do not
carrypassengers. Thismowerisdesignedforone
(1) person, the driver.
Riders on the machine could be struck byforeign
objects or thrown off the machine causing serious
injury.
Check the brakes and other mechanical parts for
correct adjustment and wear. Replace worn or
damaged parts promptly. Check the torque on all
hardwareregularly.
Do not wear headphones or listen to music while
operating the deck. Operating the machinery
safely requires your undivided attention.
Keep the power unit and attachments clean. Ac-
cumulation of dirt, grease, or grass can lead to
fires or personal injury.
Do not modify the power unit or any of its attach-
ments. Unauthorized modification of the machin-
ery may affect its functionality, which could lead
to personal injury.
Do not wear loose fitting clothing which could
get caught in moving parts. Do not operate this
machine while wearing shorts. Always be sure to
wear adequate protective clothing. Wearing safety
glasses and safety shoes is advisable.
r

5 - SAFETY
Operator hearing protection is recommended.
Extended exposure to loud noise could lead to
hearing loss.
A fire extinguisher and first aid box should be car-
riedwiththepowerunitorbekeptreadilyavailable
at all times.
Keep emergency numbers for immediate ac-
cess.
DURING OPERATION
Do not bypass the starting circuit by shorting
across the terminals of the starter motor to start
the engine. This may cause the power unit to
move suddenly.
If the starting system does not work, consult your
EverRide Dealer immediately.
Operate the mower only in daylight or when the
area to be mowed is lit well by artificial light.
Never remove the discharge shield from the mower
because the discharge shield directs material
down toward the turf. If the shield is damaged,
be sure to replace it immediately.
Nevertrytoclear the dischargearea orthemower
blades unless you have moved the motion control
arms to the park position, turned the mower PTO
switchtotheoffposition,themowerignitionswitch
is in the off position, the key is removed and the
negative battery cable has been removed.
Do not operate the power unit in a confined or
non-ventilated area. Carbon monoxide gas is
colorless, odorless, and can be fatal.
Do not turn sharply when driving at high speeds.
Park the mower on a firm level surface with the
motion control arms in the park position.
When backing, be sure to turn around and look
to the rear. Do not mow in reverse unless it is
absolutely necessary.
When working in groups, use caution and watch
out for others.
Always be aware of mower discharge direction.
Make sure it does not point at anyone.
Periodicallycheckthestartingcircuittomakesure
all system components operatecorrectly.

SAFETY - 6
Be sure the engine and rotating blades have
stopped before putting hands or feet near the
blade.
Disengage the blade drive when transporting the
machine across drives, sidewalks, etc. Never raise
the mower deck while the blades are turning.
Do not put hands or feet under or into the mower
when it is running.
Do not touch the engine or muffler when the en-
gine is running or immediately after the engine
has stopped. These areas may be hot enough to
cause serious burns.
Do not drive the machine on streets orhighways.
Watch for traffic when crossing streets or while
mowing close to roads.
Always inspectthemowerfor damage after striking
a foreign object. Always repair or replace dam-
aged parts before restarting the mower deck.
Do not operate the power unit without the mower
deck attached.
Make surethemachine and all attachmentscome
to a complete stop before dismounting.
Before dismounting, disengage the PTO, lower
all attachments, place the control levers in the
park position, turn off the engine, and remove the
key.
OPERATING ON SLOPES
Avoid starting or stopping when going up or down
a slope. Keep all movements on a slope gradual
and slow. Do not make sudden changes in speed
or direction.
If tires lose traction while on a slope, disengage
the mower blades and back slowly and gradually
down the slope.
Do not turn on slopes unless necessary, and then
turn slowly and gradually downhill if possible.
Use extra caution when mowing on slopes. If you
are unabletoback up onthe slope,or if you donot
feel comfortable on it, then do not mow it.
Mow across slopes, not up and down, to avoid
machine tip-over. Do not mow slopes or hills that
are too steep for safe operation.
Do not try to stabilize the machine by putting your
foot on the ground.
ROLL OVER PROTECTIVE STRUCTURE
(ROPS)
Do not weld, drill or alter the ROPS. Damaged
ROPS must not be straightened or used. If dam-
agedoesoccur, consultyourEverRideDealerand
replace all damaged parts.
IftheROPSisloweredorremovedfrom thepower
unit for any reason, it must be erected and/or
refitted immediately. Original bolts or equivalent
replacements must be used and tightened to the
correct torque.
Do not attachchain,ropes, or cablestothe ROPS
for pulling purposes as this will cause the mower
to tip backwards.
EverRide does not recommend the use of the
mower with the ROPS removed.

7 - SAFETY
IfyouhaveafoldableROPS,itcanbefoldeddown
formowerstorage. Itmust bepinnedin the upright
position prior to machine operation.
SEAT BELT USAGE
With the ROPS installed, it is imperative that the
seatbeltbeinstalled,used,andcorrectlyadjusted
at all times. Replace damaged seat belts imme-
diately.
Do not use a seat belt if operating with ROPS
folded down or removed.
MAINTENANCE
Only qualified, trained adults should service the
machine.
Before maintenance is performed, make surethe
mower is parked on a firm flat surface. Remove
the key to prevent an accidental start up.
Never attempt to disconnect any safety devices.
Frequently check for worn or deteriorating com-
ponents that could create a hazard.
Use only genuine EverRide replacement parts.
Substitute parts could cause product malfunction
or possible injury to the operator or bystanders.
Allow the EverRide mower time to cool before
touching the engine, the muffler, radiator, or any
other part which may be hot.
Always stop the power unit and PTO before re-
fueling.
Keeptheenginefreeofgrass,leaves,greaseand
other debris which could catch fire.
Keep all hardware tight toinsure the machine is in
a safe working condition. Check the blademount-
ing nuts often to make sure they are tight.
Perform only maintenance instructions described
inthis manual. Unauthorizedmaintenanceopera-
tions or machinemodifications mayresult inunsafe
operating conditions.
For enginemaintenance,followthe engine manu-
facturersrecommendationsasnotedintheengine
manual.
FUEL SYSTEM
Handle fuel with care. Diesel fuel is extremely
flammable and its vapors can be explosive. Use
an approved fuel container.
Never add fuel to the mower while the engine is
running or while it is hot. Allow the engine to cool
for several minutes before adding fuel.
Keep matches, cigarettes, cigars, pipes, open
flames, or sparks away from the fuel tank and
fuel container.
Always fillthefueltanksoutsideusingcaution. Fill
the tank until the fuel is about one inch from the
top of the tank. Use a funnel or spout to prevent
spilling. When refueling at a gas pump, always
insure the nozzle contacts the neck of the tank
while filling.
Replace themachine andcontainercaps and clean
up any spilled fuel before starting the engine.
Keep the mower and all fuel containers in a safe

SAFETY - 8
locked place tokeep children from tampering with
them.
Fuel system components rely upon clean fuel for
lubrication and optimum performance. Extreme
care must be taken to prevent ingress of dirt and
moisture to prevent damage.
Useonlyapprovednonmetalportablefuelcontain-
ers. If using a funnel, make sure it is plastic and
has no screen or filter.
When practical, donotfuel theequipmentontruck
beds or on trailers. Remove them and fuel on
the ground. If this is not possible, use a portable
nonmetal fuel container to fill the equipment.
HYDRAULIC SYSTEM
Make sure all hydraulic fluid, hoses, and lines
are in good condition and all lines and fittings are
tight before applying pressure to the hydraulic
system.
Checkhydraulicconnectionsfrequently. Theycan
leak as a result of damage, as a result of vibration
or because they have worked loose.
Relieve all pressures before disconnecting hoses
or lines. Escaping oil under pressure can cause
serious injury.
Escaping hydraulic fluid under pressure can have
sufficient forceto penetrate theskin, causing seri-
ous injury. Before applying pressure tothe system,
make sure allconnectionsaretightened,and lines,
pipesandhosesarenotdamaged. Fluidescaping
from pinholes may be invisible. Do not use your
handstosearchfor suspectedleaks. Instead,use
apieceofcardboardandwearprotectiveeyewear
such as safety goggles.
If injured by escaping fluid, see a medical doctor
at once. Serious infection or reaction will result
if proper medical treatment is not administered
immediately. This fluid can produce gangrene or
severe allergic reaction.
BATTERY MAINTENANCE
Use caution when charging the battery or per-
forming maintenance on the battery and electrical
system.
Donotuse anakedflametocheckbattery electro-
lyte level. Always use a voltmeter or hydrometer
to check the state of the charge.
Make sure the battery charger is unplugged be-
fore connecting or disconnecting the cables to
the battery.
Batteries contain sulfuric acid electrolyte. Always
wear protective clothing and eye protectionwhen
servicing.
Incaseof electrolytecontact, rinse area with plenty
of water and seek medical attention.
Make surethe batteryis charged in awell ventilat-
ed location so hydrogen gases that areproduced
while it is charging can dissipate. Make sure the
battery vents in the cap are open. Halt charging
if battery exceeds 52°C (125°F).
Keep sparks, flames, and smoking material away
from the battery at all times. To avoid sparks,
use care when removing battery cables from their
posts.

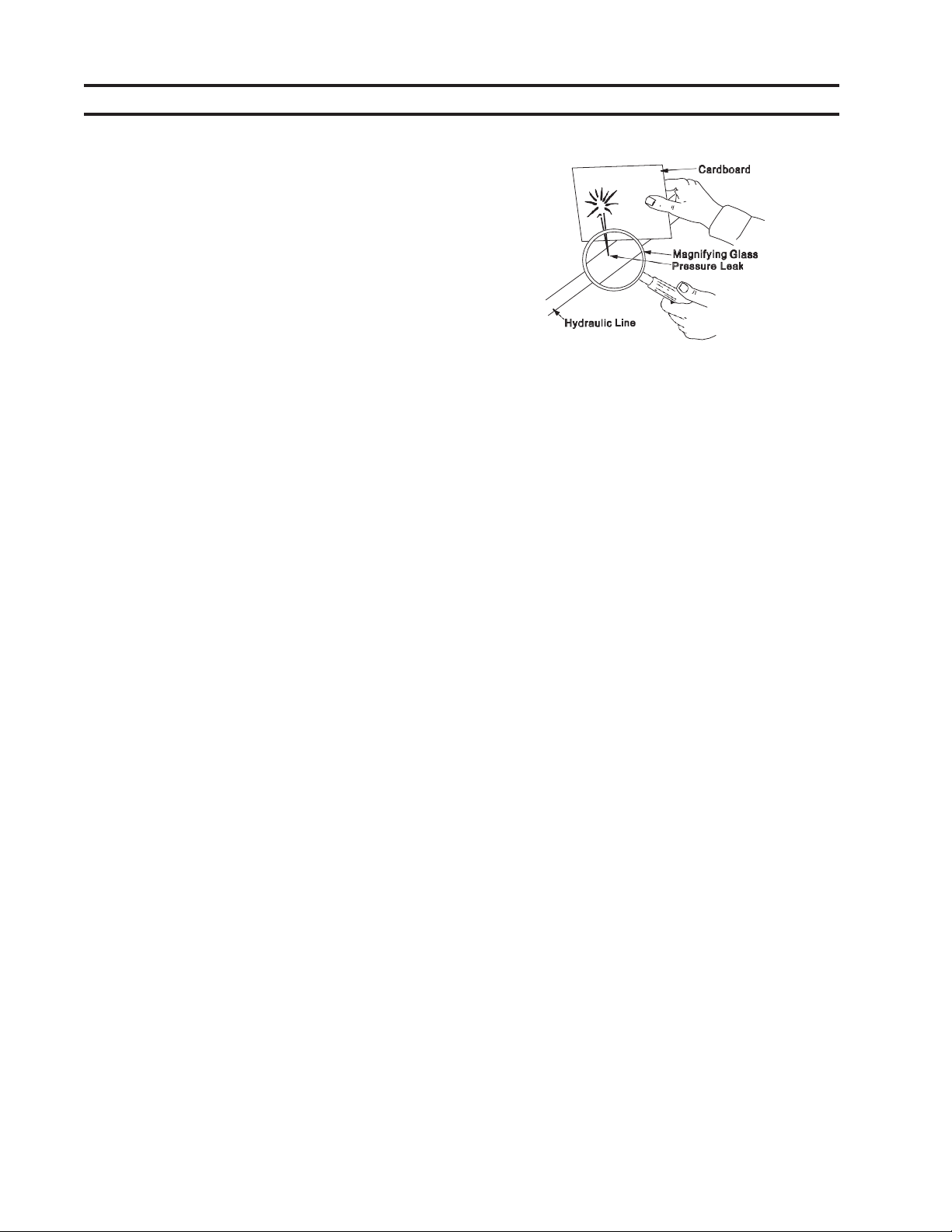

Cardboard
Magnifying Glass
Pressure Leak
Hydraulic Line

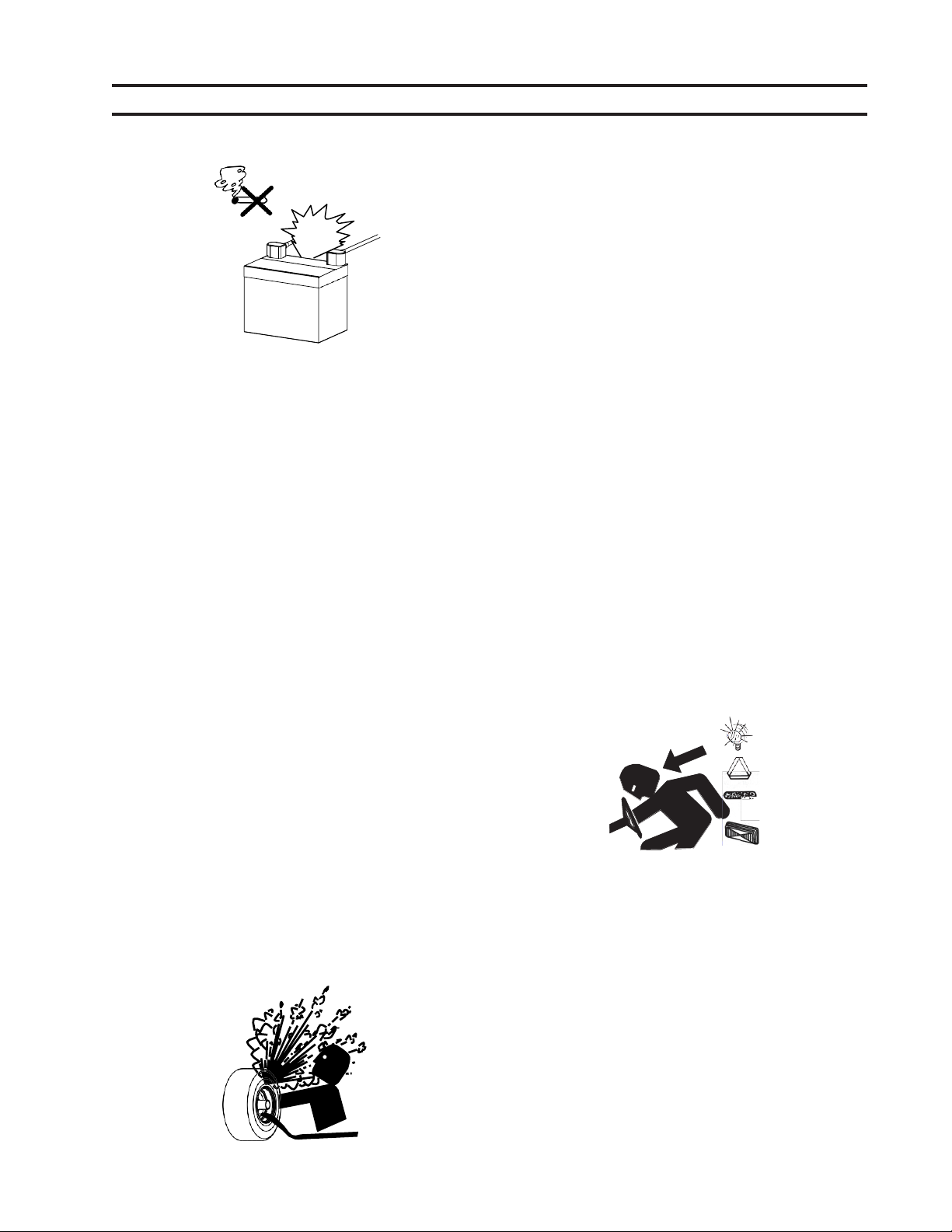

9 - SAFETY
When seating tire beads on the rims, never exceed
2.4 bar (35 p.s.i.) or the maximum inflation speci-
fied on your tires. Inflation beyond this maximum
pressuremaybreakthebead,oreventherim,with
dangerous explosive force.
REPLACEMENT PARTS
Do not use or charge the refillable type of battery
if the fluid level is below the lower limit level mark.
Otherwise the parts may prematurely deteriorate
which could shorten the battery’s service life or
cause an explosion.
Before “jump starting” a battery, read and under-
stand all instructions.
Disconnect thebattery’s groundcable before work-
ing on or near any electrical parts.
TIRE MAINTENANCE
Always insure the tires are inflated to the correct
pressure. Donotinflate thetiresabovetherecom-
mended pressure in the operator’s manual.
Make sure all hardware, especially the wheel
nuts and bolts have been tightened to thecorrect
torque.
When removing a tire from the power unit, it is
necessary to support it with blocks or stands, not
a hydraulic jack.
Donotattempt toserviceatireunlessyou havethe
proper equipment and experience to perform the
job. If you are not qualified to make the repairs,
take theunittoyour EverRide dealer or aqualified
repair service.
Where replacement parts are necessary for peri-
odicmaintenanceandservicing, genuineEverRide
replacementsmust be usedtorestore your equip-
ment to original specifications.
EverRide will not claim responsibility for installa-
tion of unapproved parts and/or accessories and
damages as a result of their use.
TRANSPORTING
Disengage the power to the attachments whenin
transport or not in use.
Do not tow this machine. Use a truck or trailer to
transport this machine on public roads.
It is recommended this machine not be used on
public roads.
Flashingwarninglights and aslowmoving vehicle
sign are recommended any time the mower is
driven on public roads.
Slow moving vehicles are difficult tosee on public
roads especially at night. Use extreme caution
when transporting at night.

SLOPE GUIDE - 10

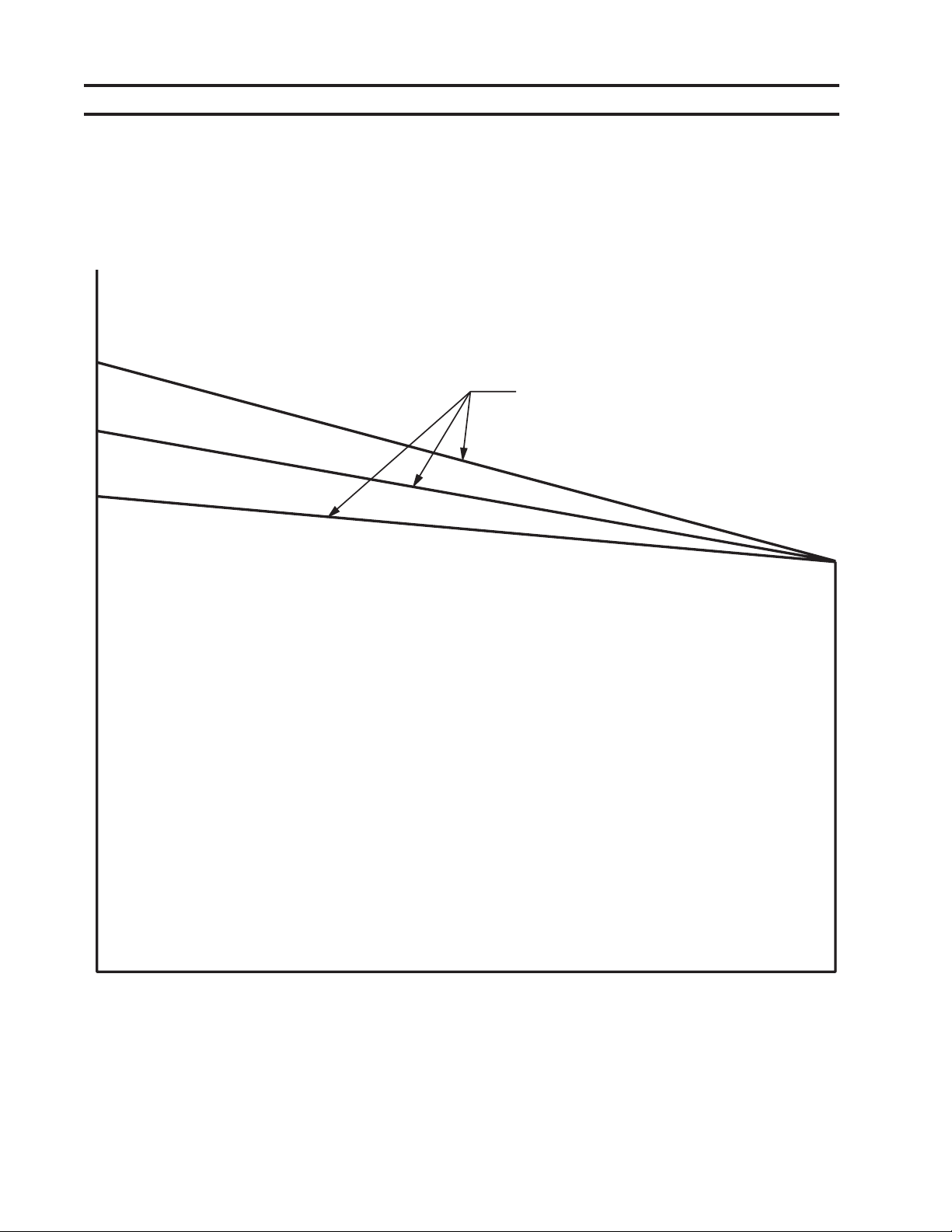

Use the diagram below to help you determine the slope of the terrain which is
to be mowed. Never attempt to mow a slope of 15 degrees or more.
1. Cut this page out of the manual.
2. Hold the piece of paper so that Line D is horizontal.
3. Align Line E with a pole, tree, house or other vertical structure.
4. Fold the paper along the slope guide lines to find the closest line to match the slope of the terrain.
��� ���
��� ���
�
�� ��
����� �����
���� �
� ���
�

11 - SLOPE GUIDE

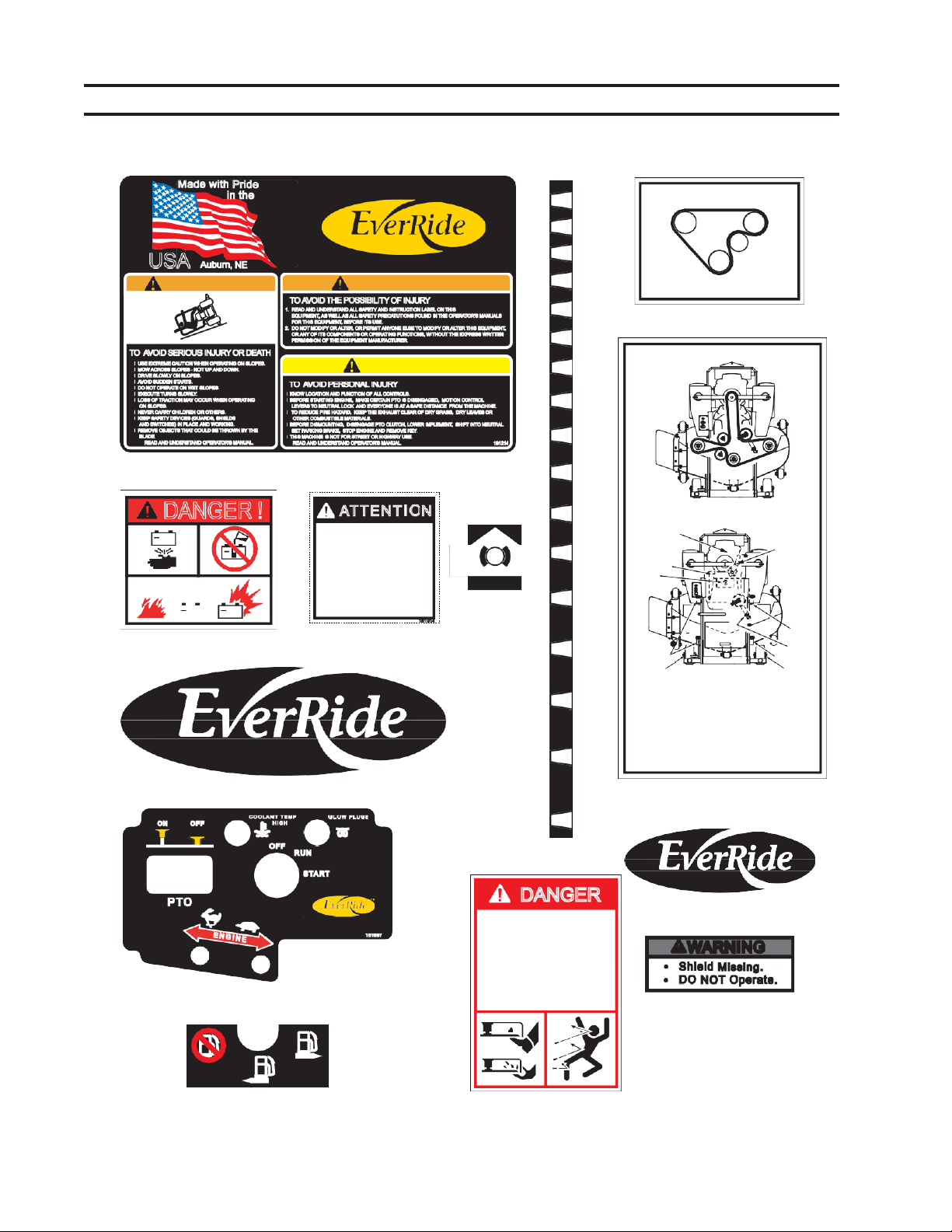

SAFETY & INSTRUCTION DECALS - 12
5.50
5.25
5.00
4.75
4.50
4.25
4.00
3.75
3.50
3.25
3.00
2.75
2.50
2.25
2.00
1.75
1.50
191208
ATTENTION
- Hydraulic Oil -
SAE 20W50SJ/CD
Fill Until Oil Covers
Top Of Baffle
Use Of Non-Recommended
Oils Could Cause Damage
181014
Made with Pride
in the
USA
Auburn, NE
WARNING
TO AVOID SERIOUS INJURY OR DEATH
l USEEXTREME CAUTIONWHENOPERATINGON SLOPES.
l MOW ACROSS SLOPES - NOT UP AND DOWN.
WARNING
TO AVOID THE POSSIBILITY OF INJURY
1. READANDUNDERSTANDALLSAFETYAND INSTRUCTIONLABELON THIS
EQUIPMENT,ASWELLAS ALLSAFETYPRECATUTIONSFOUNDIN THE OPERATOR'SMANUALS
FOR THIS EQUIPMENT,BEFOREITS USE.
2. DONOT MODIFY ORALTER,OR PERMITANYONE ELSE TO MODIFY OR ALTERTHIS EQUIPMENT,
OR ANYOF ITS COMPONENTS OR OPERATING FUNCTIONS, W ITHOU T THE EXPRESSWRITTEN
PERMISSIONOFTHE EQUIPMENTMANUFACTURER.
1. 180953 CAUTION
2. 180779
180779
l DRIVE SLOWLY ON SLOPES.
l AVOID SUDDEN STARTS.
l DO NOT OPERATE ON WET SLOPES.
l EXECUTE TURNS SLOWLY.
l LOSS OF TRACTION MAY OCCUR WHEN OPERATING
ON SLOPES.
l NEVER CARRY CHILDREN OR OTHERS.
l KEEP SAFETY DEVICES (GUARDS, SHIELDS
AND SWITCHES) IN PLACE AND WORKING.
l REMOVEOBJECTS THAT COULD BETHROWN BYTHE
BLADE.
READ AND UNDERSTAND OPERATOR'S MANUAL.
TO AVOID PERSONAL INJURY
l KNOW LOCATION AND FUNCTION OF ALL CONTROLS.
l BEFORE STARTING ENGINE, MAKE CERTAIN PTO IS DISENGAGED, MOTION CONTROL
LEVERS TO NEUTRAL LOCK AND EVERYONE IS ATA SAFE DISTANCE FROM THE MACHINE.
l TOREDUCE FIRE HAZARD, KEEP THE EXHAUSTCLEAR OF DRYGRASS, DRY LEAVES OR
OTHER COMBUSTIBLE MATERIALS.
l BEFORE DISMOUNTING, DISENGAGE PTO CLUTCH, LOWER IMPLEMENT, SHIFT INTO NEUTRAL
SET PARKING BRAKE, STOP ENGINE AND REMOVE KEY.
l THIS MACHINE IS NOT FOR STREET OR HIGHWAY USE.
READANDUNDERSTANDOPERATOR'SMANUAL. 191214
1. 191214
3. 180996
4. 181254
P
PARK BRAKE
U.S. PAT. NO. 6,434,917 B1
181003
5. 181003
®
ON O FF
6. 181000
C OO L A NT T E M P
HI G H
O F F
GLOW PLUG S
8. 191351
®
PTO
R U N
S TA R T
181697
7. 191208
DANGER
ROTATING BLADE
DO NOT PUT HANDS OR FEET UNDER OR
INTO MOWER WHEN ENGINE IS RUNNING
THROWN OBJECTS
BEFORE MOWING, CLEAR AREA OF PEOPLE
AND OBJECTS THAT MAY BE THROWN BY
BLADE
11. 180954
WARNING
9. 181697
DO NOT OPERATE MOWER
WITHOUT ENTIRE GRASSCATCHER IN
PLACE OR DISCHARGE CHUTE IN PLACE
AND IN LOWERED POSITION
FAILURE TO COMPLY WILL RESULT
IN DEATH OR SERIOUS INJURY
Shield Missing.
DO NOT Operate.
12. 160169
D D
D
13. 181695
181695
10. 181258
181258
6
6
180996
+
1
+
BELT ROUTING
DANGER!
ENGINE
IDLER
PUMP
PUMP
+
+
=
+
6
3
BELT ROUTING - PUMPS
4
5
2
7 7
LUBRICATION INTERVALS
REF
DESCRIPTION FREQUENCY
1 ENGINE OIL LEVEL DAILY
2 HYDRAULIC FLUID LEVEL DAILY
3 DECK BELT TENSIONER 25 HOURS
4 PUMP BELT IDLER 25 HOURS
5 PUSH LINK PIVOTS (2) 40 HOURS
6 LIFT LINK PIVOTS (4 ) 40 HOURS
7 FRONT WHEEL AXLES(2) 40 HOURS
191351
