Evotech E-Vac 1 HP User manual

1
1

1
2
INDEX
3 PRESENTATION
3 DEAR CUSTOMER
3 SUPPLIER / MANUFACTURER
3 HANDLING INSTRUCTIONS
3 PRODUCT IDENTIFICATION
4 PRODUCT COMPONENTS
5 EQUIPMENT DESCRIPTION
5 E - VAC PUMPS CHARACTERISTICS
7 TECHNICAL SPECIFICATIONS
7 GENERAL CHARACTERISTICS
9 DIMENSIONAL (mm)
9 SYMBOLOGIES
10 INSTALLATION
10 ELECTRICAL CONNECTIONS
12 HYDRAULIC INSTALLATION
13 WIRING / CIRCUIT BREAKER DIMENSIONING TABLE
13 SUCTION PIPE DIMENSIONING TABLE
14 SETTING THE WATER FLOW
15 PRECAUTIONS, RESTRICTIONS AND WARNINGS
15 SAFETY RECOMMENDATIONS FOR PROTECTION AGAINST ELECTRIC SHOCK
15 EQUIPMENT CONSERVATION RECOMMENDATIONS
15 TRANSPORT, STORAGE AND OPERATION CONDITIONS
15 SENSITIVITY TO PREDICTABLE ENVIRONMENTAL CONDITIONS UNDER NORMAL USE SITUATIONS
15 PRECAUTIONS AND WARNINGS DURING EQUIPMENT INSTALLATION
16 PRECAUTIONS AND WARNINGS WHILE USING THE EQUIPMENT
16 PRECAUTIONS AND WARNINGS AFTER USING THE EQUIPMENT
17 PRECAUTIONS AND WARNINGS DURING EQUIPMENT CLEANING AND DISINFECTION
17 PRECAUTIONS IN CASE OF CHANGE IN EQUIPMENT OPERATION
17 PRECAUTIONS TO BE TAKEN AGAINST THE FORESEEABLE OR UNUSUAL RISKS RELATED TO
THE DEACTIVATION AND ABANDONMENT OF THE EQUIPMENT
17 CORRECTIVE AND PREVENTIVE MAINTENANCE
17 GENERAL CLEANING
18 MAINTENANCE, CLEANING AND ASEPSIA
18 CLEANING THE SOLIDS AND WASTE COLECTOR FITER
18 CLEANING OF SINTERED FILTER AT THE WATER INLET
19 UNEXPECTED - TROUBLESHOOTING
19 FINAL CONSIDERATIONS
20 EQUIPMENT WARRANTY

1
3
PRESENTATION
DEAR CUSTOMER
SUPPLIER / MANUFACTURER
IMPORTANT
HANDLING INSTRUCTIONS
DEAR CUSTOMER,
Congratulations and welcome to the Evotech Family, we are proud of your preference for
choosing our product!
This manual provides a general presentation of the equipment. It describes important details
that can guide you for its correct use and preventive maintenance, as well as the necessary
care to extend its lifespan and aspects that may compromise the warranty.
We advise you to read and keep this manual in full for future reference.
Should you have any further questions, please contact our service center:
Phone: [phone]
Site: www.grupoevotech.com.br
E-mail: [email protected]
CNPJ: 34.623.259/0001-00 – I.E. 279.053.570.110
Dr. José Eduardo Vieira Palma, Street – Jardim Sumaré - Cravinhos – SP – CEP 14140-000
BRAZIL
All the information, illustrations and specications in this Manual are based on the existing
data at the time of its publication. We reserve the right to make changes at any time, both
to the product and to this Manual, without prior notice.
E-Vac Vacuum Pumps can be used in all dental procedures where aspiration is required. They
were designed to produce a high suction power, that is why they are indicated for aspiration,
in a consistent way, of residues such as: blood, spit and residues present in the operative eld,
eliminating them directly to the drain; In addition, bacterial aerosols are eectively reduced,
helping in the biosecurity of dental practices.
This equipment is exclusively for dental use, and must be used and handled by a trained
person (duly regulated professional, according to local legislation of the country) obeying the
instructions contained in this manual.
It is the user’s obligation to use the equipment only in perfect condition to protect the
operator, patients and third parties against possible dangers.
PRODUCT IDENTIFICATION
Technical name: Vacuum pump for dental oces
Commercial name: Vacuum pump
Models: E-Vac 1HP - E-Vac 1/2HP
Make: EVOTECH

1
4
PRODUCT COMPONENTS
01. Electric motor
02. Protection box for electrical components
03. Highly ecient noise muer
04. Drain outlet (3/4 ”connection)
05. Suction inlet (3/4 ”connection)
06. Turbine set
07. Vibraless leveling feet
08. Water inlet with standard connection
09. Electrical network connector
10. Suction drive connector
11. Quick lid opening and closing system
12. Water ow adjustment system
13. Filter at the water valve inlet
14. Electrical system installed in metallic chassis, isolated from the motor
15. Solids and debris collector lter
16. Water inlet hose
17. Sintered lter
18. Vacuum cleaner whip with Led
19. 3/4 ”(2m) vacuum air hose
20. 3/4 ”Adapters (pcs.)
21. Debris Collector Filter, Smart Kit
The contents of this page are informative, and the equipment may be presented dierently
from the illustration. Therefore, when purchasing the product, check the technical
compatibility between the equipment, the couplings and their accessories.
16
19
20
18
17
02
05
11
01 13
03
12
14
15
06
10
09
04
21
07
08

1
5
EQUIPMENT DESCRIPTION
E - VAC PUMPS CHARACTERISTICS
A great ally in the ght against cross infection, it was idealized to meet the new bio-safety
demands in the dental area, where the Vacuum pump has been applied aiming to reduce the
use of the cusp, reducing the time to perform the procedures. It provides greater comfort to
patients and provides the dental surgeon with a better visualization of the work eld, due to
its high suction power, reducing aerosols and eliminating blood, saliva and residues.
POWER SUPPLY VOLTAGE:
Bivolt feature leaves the factory set for operation in 220V, requiring only the repositioning
of the electric whips to change into 127V (this activity must only be carried out by an
authorized Evotech technician);
CONTROL VOLTAGE:
24 Vdc, supplied via Transformer.
MOTOR:
WEG, High performance electric motor, provided with a stainless steel shaft and intermittent
thermal protector.
TURBINE SET:
Formed with Flange, Rotor and Cover, manufactured in Brass alloy, guaranteeing high
performance and durability;
NOISE MUFFLER:
Incorporated into the product, it eectively reduces the noise generated by the pump’s air
displacement;
RESIDUES FILTER:
Installed at the suction inlet, it has a cup located in the lower part, which, when removed for
cleaning, avoids the splash of residues on the oor, further increasing the protection of the
professional and biosafety;
WASTE COLLECTOR FILTER SMART KIT:
It allows quickly change the set that is in operation, allowing immediate return to activity;
DISCHARGE:
Performed directly into the drain;
ELECTRICAL COMPONENTS BOX:
Manufactured with injected engineering plastic, providing greater mechanical resistance,
which is xed on a metallic chassis and distant from the engine; avoiding direct heat transfer
to components;
WATER ADJUSTMENT:
The regulator is located in the outer region of the Electrical Component Box, allowing easy
access; the product leaves the factory adjusted for the consumption of 0.4 l min;
WATER INLET:
Standard threaded connection, being able to be connected to 3/4 ”and 1/2” valves;
WATER FILTER SYSTEM:
There is a double lter at the water inlet, being a sintered lter mounted on the water inlet hose
and a lter located in the water inlet solenoid valve itself, preventing the entry of residues;

1
6
DAMPING SYSTEM:
Through four leveling feet equipped with vibraless system;
ELECTRICAL COMPONENTS PROTECTION:
The product has an electric whip with a fuse, but it is necessary to install a circuit breaker
that does not come with the product;
FINISH COVER (Optional):
Manufactured with steel plate with electrostatic painting;
BACKWASHING SYSTEM FOR SUCTION PIPES (Optional):
After inserting the aspirator into the support, the Vacuum pump will continue to operate for
a few seconds to clean the suction pipe;
COLLECTOR FILTER AUTOMATIC PRE-WASHING SYSTEM (Optional):
When removing the aspirator from the support, the lter remains washing and the disposal is
carried out directly to the drainage system.

1
7
MODEL
POWER SUPPLY VOLTAGE
NOMINAL CURRENT
FREQUENCY
NOMINAL POWER
RPM
SPIN DIRECTION
CONTROL VOLTAGE
THERMAL PROTECTOR
MOTOR POWER
CAPACITY
VACUUM MAX
SUCTION
WATER CONSUMPTION
DISTANCE BETWEEN THE PUMP
AND THE DENTAL OFFICE (S):
LIQUID WEIGHT
GROSS WEIGHT
HEIGHT (A)
WIDTH (B)
LENGTH (C)
E-Vac 1HP
110/220V and 127/220V
110V/50Hz = 14,1 A
220V/50Hz = 7,03 A
127V/60Hz = 12,6 A
220V/60Hz = 6,2 A
50/60 Hz
110V/50Hz = 1551 VA
220V/50Hz = 1546 VA
127V/60Hz = 1600 VA
220V/60Hz = 1364 VA
110/220V/50Hz = 2930
127V/60Hz = 3540
220V/60Hz = 3510
Clockwise
24 Vdc
At 130ºC, it stops the motor, avoiding overheating
1 Hp
Operate up to 4 dental oces simultaneously
600mm/Hg
400L/min
0,4L/min
Maximum of 12.5m for a single dental oce for 4 oces,
maximum of 5.5m referred to the more distant oce.
23 kg
25 kg
42 cm
33 cm
32 cm
GENERAL CHARACTERISTICS
TECHNICAL SPECIFICATIONS

1
8
MODEL
POWER SUPPLY VOLTAGE
NOMINAL CURRENT
FREQUENCY
NOMINAL POWER
RPM
SPIN DIRECTION
CONTROL VOLTAGE
THERMAL PROTECTOR
MOTOR POWER
CAPACITY
VACUUM MAX
SUCTION
WATER CONSUMPTION
DISTANCE BETWEEN THE PUMP
AND THE DENTAL OFFICE (S):
LIQUID WEIGHT
GROSS WEIGHT
HEIGHT (A)
WIDTH (B)
LENGTH (C)
E-Vac 1/2HP
110/220V and 127/220V
110V/50Hz = 9,16 A
220V/50Hz = 4,58 A
127V/60Hz = 8,58 A
220V/60Hz = 3,68 A
50/60 Hz
110V/220V / 50Hz = 1008 VA
127V/60Hz = 1090 VA
220V/60Hz = 810 VA
110/220V/50Hz = 2930
127V/60Hz = 3550
220V/60Hz = 3520
Clockwise
24 Vdc
At 130ºC, it stops the motor, avoiding overheating
1/2 Hp
Operate up to 2 dental oces simultaneously
500mm/Hg
220L/min
0,3L/min
Maximum of 6.5m for a single dental oce for 2 oces,
should be placed in a central position in relation to them.
21 kg
23 kg
42 cm
33 cm
32 cm
GENERAL CHARACTERISTICS

1
9
SYMBOLOGIES
RECYCLABLE FRAGILE
NOTE:
INDICATES USEFUL INFORMATION
FOR PRODUCT OPERATION
PROTECT FROM
SUNLIGHT
KEEP DRY
THIS SIDE UP
TEMPERATURE LIMITS
STORAGE / TRANSPORT
WARNING, CHECK THE
INSTRUCTIONS MANUAL
DANGEROUS VOLTAGE
MAXIMUM STACKED

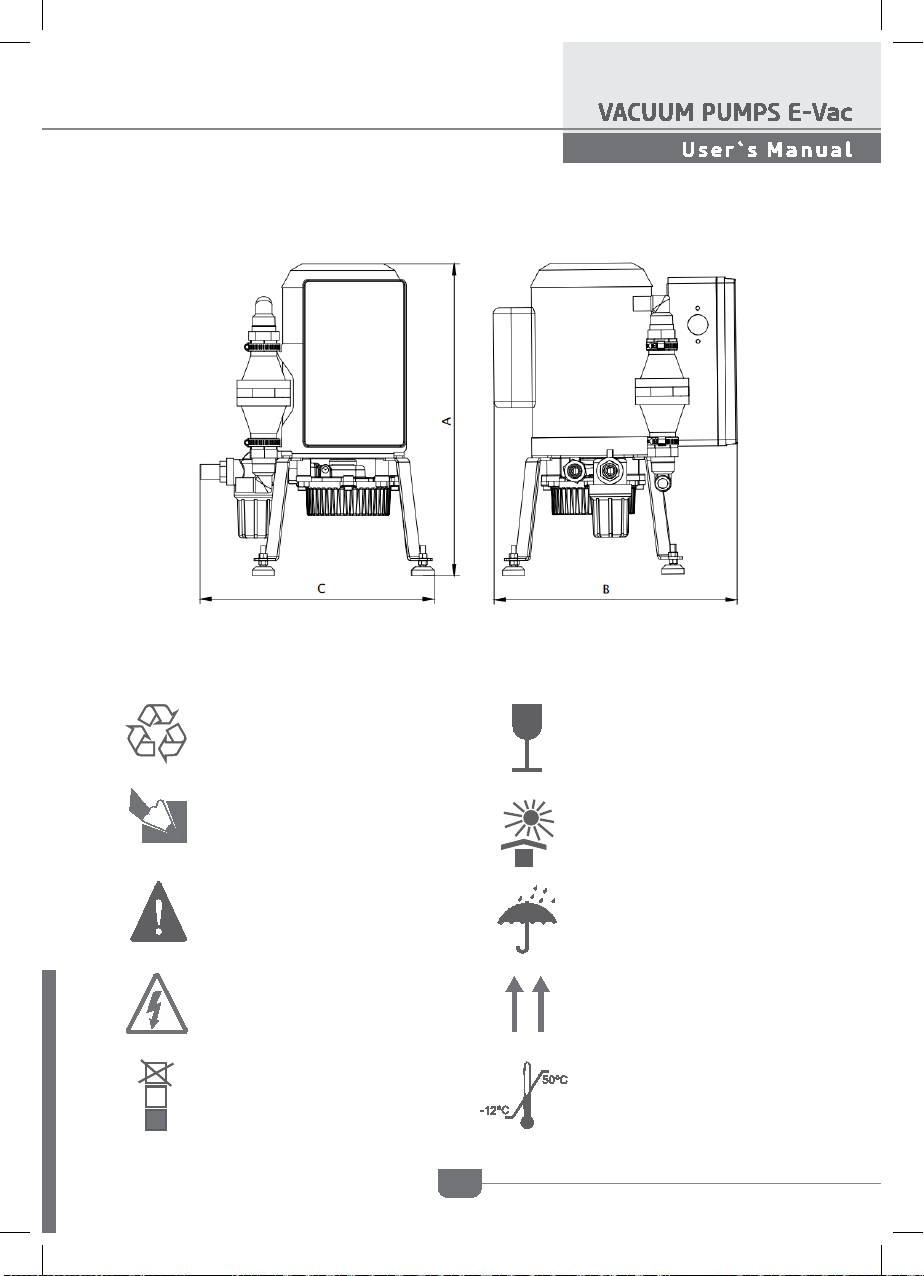

DIMENSIONS

1
10

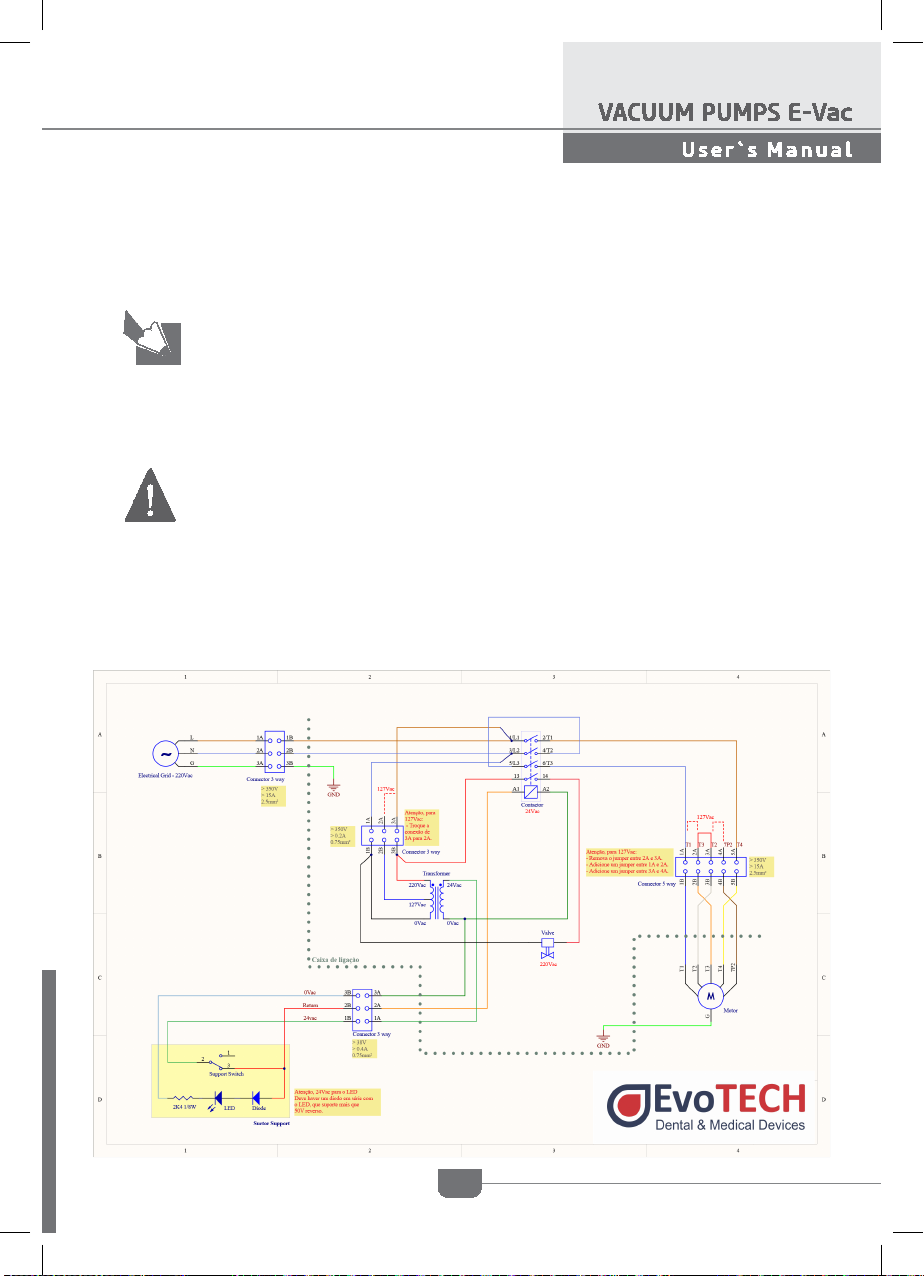

ELECTRICAL CONNECTION
INSTALLATION
Installation of this equipment requires specialized technical assistance from Evotech.
Request the presence of an Evotech representative technician at the resale or at the nearest
Authorized Technical Assistance position, or through the Evotech Customer Service:
Phone: [phone] / E-mail: [email protected]om.br
To install in 127V, make the connection of the cables located inside the Protection Box (2)
Page 4 as shown below:
NOTE
WARNING
For this model of equipment we recommend installation outside the consulting room,
in a neighboring room or in a machine room. It is important that the chosen place is
protected from humidity, sunlight and provided with good ventilation.
The equipment leaves the factory suitable for 220V ~, therefore make sure
that your network is compatible before connecting it, if it is 127V ~ inform the
authorized Evotech technician so that he can carry out the necessary alterations.
a) Model without suction pipe backwash system

1
11
In this model, an Electronic Board has been included to control the time that the pump remains
on, to clean the pipes:
b) Model with suction pipe wash system
When placing the aspirator on the support of the auxiliary unit, the
vacuum pump will continue to work for a few seconds in order to suck
up all the debris and clean the suction pipe. The vacuum pump leaves
the factory with the timer switched o. To turn on, change the position
of Jumper P4 as shown below:
Backwash System Operation

1
12

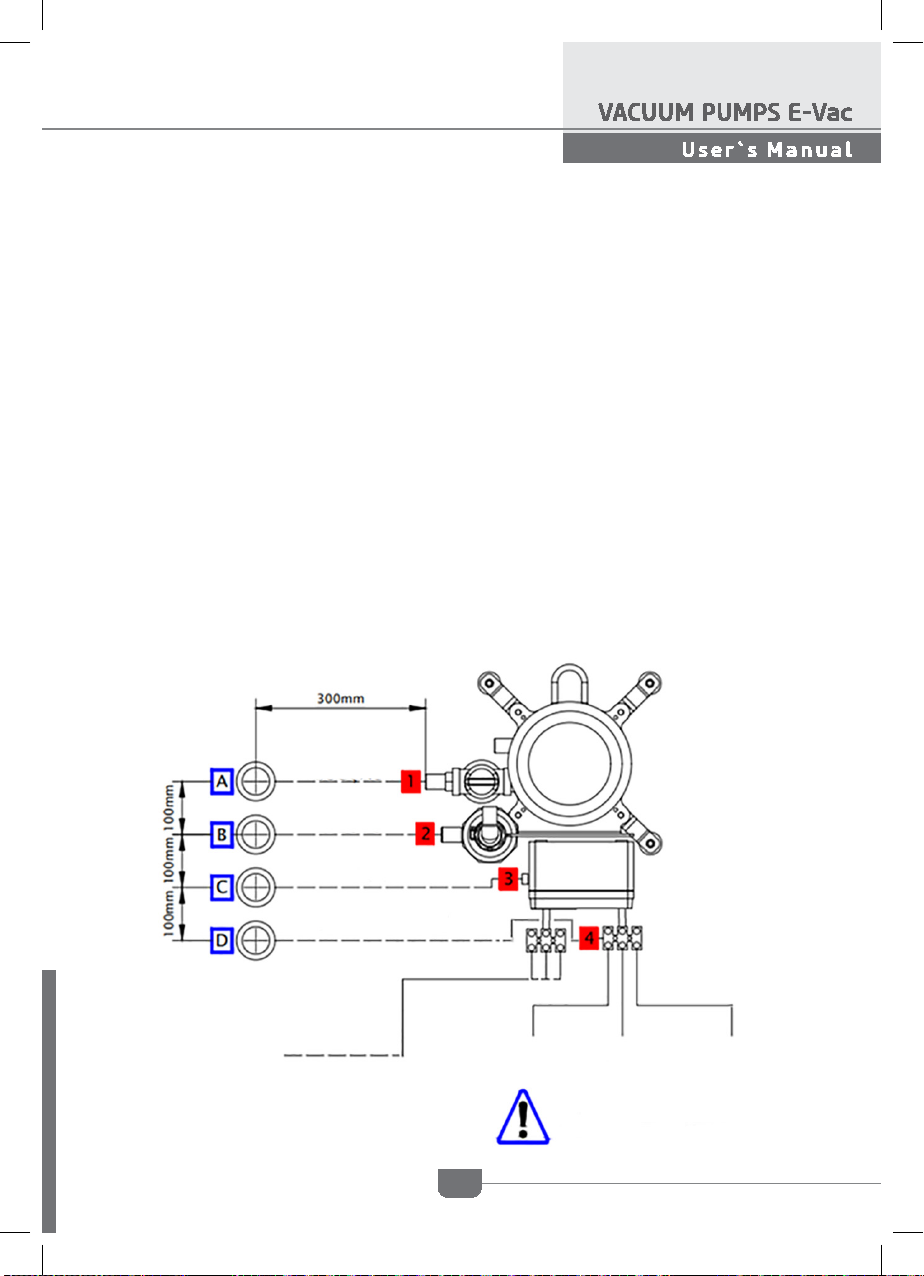

HYDRAULIC INSTALLATION
Activation of the suckers
Consult the manual of the dental oce or the vacuum pump kit to locate the drive wiring of
the micro switches and connect to the connector (Sindal type) of the vacuum pump (Fig. 10,
page 4).
Consider the following points for the installation of the vacuum pump:
A. SUCTION: Ø25mm weldable PVC tube, ending in a weldable connector and with a Ø25x3/4”
bronze bushing, ush with the ground, connected to the connection box.
B. DRAINAGE: Ø40mm weldable PVC pipe, ending with a weldable connector and a Ø25x3/4”
bronze bushing, ush with the ground, connected to the siphon box (minimum 2% slope).
C. WATER: Ø20mm weldable PVC tube, terminated in a weldable connector and with a Ø20X1/2”
bronze bushing, ush with the ground, connected to the water network.
D. VACUUM CLEANER COMMAND: Ø20mm corrugated exible duct, ending 50mm on the
oor, with 3x0.75mm2 cables (dierent colors), with 200mm on the duct - connected to the
connection box.
Electrical power supply - 3x2.5mm2 cables (network / ground).
Connection using a dedicated circuit breaker (not supplied) is mandatory.
ELECTRIC
POWER
ATTENTION:
GREEN
SUCTION
SEWER
WATER INLET
VACUUM COMMAND
GREEN AND YELLOW: DRIVE
RED: 24 VCC (LED)
YELLOW RED

1
13
WIRING / CIRCUIT BREAKER SIZING TABLE
WARNING
The performance of the Vacuum pump is directly related to the
number of consultants and the distance from the suction pipes.
Never install the vacuum pump in a superior level of the dental
oce.
ATTENTION
IMPORTANT
For best eciency, never use 90° connections. We recommend
that you use the smallest number of possible connections,
since these pieces harm the suction. Always use long radio
curves and unions for the pipes.
Evotech vacuum pumps are compatible with any dental oce
Brand.
SUCTION PIPING SIZING TABLE
E-Vac
E-Vac 1 HP
E-Vac 1/2 HP
1HP 16A 10A
E-Vac 1/2HP 10A 6A
4até 12,5
MODEL
MODEL NUBER OF DENTAL OFFICES MAX DISTANCE DIAMETER
POWER
(CV)
DCIRCUIT
BREAKER
(CURVE C)
WIRING: BETWEEN CIRCUIT BREAKER AND PUMP (mm2)
UP TO 15 m
UP TO 12,5 metros
UP TO 6,5 metros
between 15 and 30 m larger than 30 m
DO NOT USE USE

1
14
WATER FLOW SETTING
The E-Vac Vacuum Pumps leave the factory regulated for a water ow of 0.4 ± 0.05 l/min,
which is the ideal measure to achieve the maximum expected vacuum with minimum engine
eort; If it is necessary to change this setting due to oscillations of pressure or water
volume, it can be adjusted through the spigot of the Regulator valve, located laterally in the
Electrical Components Box, as shown in the gure below.
a) For larger ow, turn counterclockwise;
b) For lower ow, turn clockwise;
c) With a container provided with measurements in milliliters, check that the volume of
water expelled from the suction outlet reaches 400 ml in one (01) minute;
Water set up
ATTENTION
1) Setting the water ow rate higher than recommended:
The water ow is directly related to the motor current; for a greater ow, the current will be
larger, to provide a greater suction; However, this implies a greater demand on the engine,
which could aect its lifespan.
2) Setting the water ow rate lower than recommended:
For a smaller water ow, the suction capacity will be smaller and the internal temperature
of the turbine set will become larger , which can aect the lifespan of the sealing system.
(Mechanical seal).
3) Points 1 and 2 are not covered by Evotech Guarantee.

1
15
PRECAUTIONS, RESTRICTIONS AND WARNINGS
EQUIPMENT CONSERVATION RECOMMENDATIONS
TRANSPORT, STORAGE AND OPERATION CONDITIONS
SENSITIVITY TO PREDICTABE ENVIRONMENTAL CONDITIONS UNDER NORMAL
USE SITUATIONS
PRECAUTIONS AND WARNINGS DURING EQUIPMENT INSTALLATION
Your Evotech equipment was designed and upgraded within the standards of modern
technology. All equipment require special care, which is often overlooked for various reasons
and circumstances. Here are some important reminders for your day to day. Try to observe
these small rules that, incorporated in the work routine, will provide great savings of time
and avoid unnecessary expenses.
The equipment must be transported and stored following below listed remarks:
Be careful, to avoid falling and not receiving impacts.
With protection from moisture, do not expose it to the rain, water splashes or wet oor.
Keep it in a protected place from the rain and avoid direct sun and keep it in its original
packaging.
When transporting, do not move it on uneven surfaces and protect the package from the direct
rain and respect the maximum amount stacked boxes informed on the outside of the package.
Room temperature range (transport) -10°C to 55°C.
Room temperature range (operation) 10°C to 40°C.
Relative humidity range (transport) 20% to 85%.
Relative humidity range (operation) <75%.
Atmospheric pressure range from 700 hPa to 1060 hPa.
Operating height: <2000m.
The equipment was designed not to be sensitive to interference from magnetic elds, external
electrical inuences, electrostatic discharges, pressure or pressure variations, provided that the
equipment is installed, maintained, clean, conserved, transported and operated in accordance
with this Instruction Manual.
This equipment can only be unpacked and installed by an authorized Evotech technician,
under penalty of voiding the warranty, since only he has the information, the proper tools,
and the training necessary to perform this task.
Evotech is not responsible for damages or accidents caused by a bad installation performed
by a technician not authorized by Evotech.
Only after the equipment has been properly installed and tested by an authorized technician
SAFETY RECOMMENDATIONS FOR PROTECTION AGAINST ELECTRIC SHOCK
Before connecting the vacuum pump, check if the voltage and frequency data indicated on
the equipment are in accordance with the values of the local power supply network.
Before the connection, both the vacuum pump and the connection cables must be examined
to look for any damage. If there are damaged cables or connectors, they must be replaced
immediately.
During installation and before carrying out any maintenance work on the vacuum pump, it
must be disconnected from electrical power.

1
16
PRECAUTIONS AND WARNINGS WHILE USING THE EQUIPMENT
PRECAUTIONS AND WARNINGS AFTER USING THE EQUIPMENT
The equipment must be operated only by duly qualied and trained technicians.
(Dental Surgeons and Trained Professionals).
In the eventual need for a maintenance service, use only the services of the Evotech
Authorized Technical Assistance.
Although this equipment has been designed in accordance with electromagnetic compatibility
standards, it may, under very extreme conditions, cause interference with other equipment. Do
not use this equipment together with other devices that are very sensitive to interference or
with devices that generate strong electromagnetic disturbances.
The equipment must be properly grounded
Do not subject plastic parts to contact with chemicals used in routine dental treatment. Such
as: acids, mercury, acrylic liquids, amalgams, etc. Avoid spilling water or other liquids on the
equipment, which could cause a short circuit.
Before starting vacuum pump operation, make sure that the voltage input cable plug is
connected to the power supply and that the water supply valve is open.
At the end of the day, close the water valve that feeds the vacuum pump and open the
dedicated Circuit Breaker of the Vacuum pump.
Always keep the equipment clean for the next operation.
Do not modify any part of the equipment.
Do not disconnect the cable or other connections unnecessarily.
ATTENTION
Lack of water will damage the mechanical seal and the vacuum
pump will not suck. Burning the mechanical seal is not covered under
warranty. Never use detergent or any foamy product to internally
clean the suction pipe or vacuum pump.
from Evotech, you are ready to begin your work operations. Install the equipment in a place
where it will not be damaged by pressure, temperature, humidity, direct sunlight, dust, or
salts.
The equipment must not be subjected to inclination, excessive vibrations, or shocks
(including during transport and handling).
- This equipment was not designed for use in environments where there are vapors,
ammable anesthetic mixtures with air, or oxygen and where nitrous oxide can be detected.
Check the voltage of your equipment when doing the electrical installation. Check if the plug
where the equipment will be connected has a ground pin, essential for the perfect operation
and safety of the equipment, according to ABNT standard. The equipment must be properly
grounded.
Before the rst use and / or after prolonged work interruptions such as vacations, clean and
disinfect the equipment.

1
17
CORRECTIVE AND PREVENTIVE MAINTENANCE
GENERAL CLEANING
If the equipment shows any anomalies check if the problem is related to any item listed in
the UNEXPECTED - TROUBLESHOOTING topic. If the problem cannot be solved, turn o the
equipment, unplug the power cord and contact Evotech Customer Service.:
Phone: [phone] / E-mail: [email protected]om.br
PRECAUTIONS TO BE TAKEN AGAINST THE FORESEEABLE OR UNUSUAL RISKS
RELATED TO THE DEACTIVATION AND ABANDONMENT OF THE EQUIPMENT
To avoid environmental contamination or misuse of the Equipment and its accessories / parts
after it has been rendered useless, it must be disposed of in an appropriate place (in accordance
with the local legislation of the country).
Pay attention to the local legislation of the country regarding the installation and waste disposal
conditions.
To carry out external cleaning or any type of maintenance, make sure that the equipment is
disconnected from the electrical network.
ATTENTION
In order to eliminate safety risks or damage to the equipment, we
recommend that no liquid penetrates into the equipment during
cleaning.
The application of other solvent based cleaning chemicals or
sodium hypochlorite is not recommended since they may damage
the equipment
PRECAUTIONS AND WARNINGS DURING EQUIPMENT CLEANING AND
DISINFECTION
Before cleaning the equipment, disarm the dedicated Circuit breaker of the Vacuum pump.
Avoid spilling water or other liquids on the equipment, which could cause a short circuit.
Do not use micro-abrasive material or steel wool when cleaning, do not use organic solvents
or detergents that contain solvents such as ether, stain remover, etc. To avoid the risk of
infection, wear protective gloves when handling lters and drains. Eliminate waste and
contaminated products in biowaste.
PRECAUTIONS IN CASE OF CHANGE IN EQUIPMENT OPERATION

1
18
CLEANING THE SOLIDS AND WASTE COLECTOR FITER
Unscrew the bowl (01), remove the lter (02) and wash.
When replacing the lter (02) and the bowl (01), make sure
that the sealing ring (03) is in its place.
Afterwards, suck approximately 250 ml of water to
maintain the level of water in the bowl (01) to prevent the
incrustation of residues in the lter.
Unscrew the hose, remove the sintered lter (04) and wash it
with running water. This process must be carried out at least
once a month; replace the lter every 6 months.
MAINTENANCE, CLEANING AND ASEPSIA
The solids and residues lter is placed in the suction inlet of the vacuum pump and must be
cleaned daily. Before cleaning the lter, the enzymatic solution must be suctioned to clean the
suction tube and the pump block.
Daily suck 1 liter of water added to the enzymatic solution and later a specic disinfectant
solution for dental vacuum cleaners, these products are sold in the main dental oces in the
country. Such dilution must follow manufacturer’s instructions.
IMPORTANT
After every 200 ml, wait approximately 10 seconds.
3
03
02
01
CLEANING OF SINTERED FILTER AT THE WATER INLET
04
WARNING
IMPORTANT
Use protective gloves when handling lters
and drains. Eliminate the residues and products
contaminated in biological residues.
Never avoid placing the lter element in the collector lter. Small fragments are
enough to damage the internal components of the vacuum pump, which implies in
the loss of the guarantee.

1
19
UNEXPECTED – TROUBLESHOOTING
IMPORTANT
Should you nd any operational problem, follow the instructions below to check
and x the problem, and/or contact the Evotech Customer Service.
UNEXPECTED LIKELY CAUSES SOLUTIONS
- Low vacuum with
Insucient sucking.
- The solids and debris
collecting lter is clogged.
- The cover of the solids
and residues collecting
lter is not closed
correctly.
- Clean the lter.
- Position and reinstall the
lter cap correctly.
- When removing the
vacuum pipe from the
support it is not sucking.
- The solids and debris
collecting lter is clogged;
- The suction ow
adjustment lever is closed;
- The feed water supply
valve to the pump is
closed;
- Clean the lter.
- Set the water ow through
the handle.
- Open the pump water
supply valve.
- When removing the
vacuum pipe from the
support the Vacuum
pump doesn’t start.
- Circuit breaker disarmed;
- Cable disconnected from
the power distribution
network.
- Arm the circuit breaker.
- Connect the cable to the
network.
- The pump stops and
doesn’t start any more.
- The motor is overheated
and the thermal relay was
activated.
- Wait for the engine to cool
down.
- Check the voltage and the
conditions of the electrical
wiring.
FINAL CONSIDERATIONS
Among the precautions you should take with your equipment, the most important is related
to the replacement of parts.
To guarantee the lifespan of your device, replace it with genuine Evotech parts. They are
guaranteed to comply with the standards and technical specications required by the
representative of Evotech. We call your attention on our network of authorized resellers.
Only the Evotech Service will keep your equipment constantly new, and they count with
trained technical assistants and specic tools for the correct maintenance of your device.
Whenever necessary, request the presence of a technician representing Evotech in the
nearest dealership, request it through the Customer Service Evotech: + 55 (16) 3951-7542.

1
20
This equipment is covered by the warranty terms and standards contained in the Warranty
Certicate that accompanies the product.
EQUIPMENT WARRANTY
