Optical Switch 1
1 Introducing the Optical Switch
Main Features
The Optical Switch provides fiber-to-fiber positioning of optical signals for a
number of optical applications. This module, which exists in various
models depending on the number of optical ports and configuration
options it has, allows you to quickly switch light from one fiber to another.
Note: Actual ports may differ from the illustrations.
The Optical Switch enhances test performances by:
minimizing downtime
automating the testing process
reducing manual intervention in ribbon or multifiber testing
enabling remote testing on multiple fibers

Introducing the Optical Switch
2Optical Switch
Available Models
Available Models
The Optical Switch comes in different models.
Model Features
FTBx-9110 singlemode
available in single channel width (Simplex) for uplink
testing and double channel width (Duplex) for
simultaneous uplink and downlink testing
available in configurations of 12 or 18 ports for the
single-channel-width models and of 2 links of 12 ports
for the double-channel-width models
possible to disable/re-enable continuity on all models
supports local control only
FTBx-9150 singlemode or multimode
available in 1 x N and 2 x N configurations (up to 32
switch ports)
possible to disable/re-enable continuity on 1 x 4 to 1 x 32
models
supports local control, or remote control using SCPI or
REST commands
You can also use the IVI drivers you can find on the EXFO
website at www.exfo.com. The drivers have their own
specific documentation to help you use them with your
application.

Introducing the Optical Switch
Optical Switch 3
Available Models
FTBx-9160 singlemode
available in 1 x N configurations (up to 32 switch ports)
supports local control, or remote control using SCPI or
REST commands
You can also use the IVI drivers you can find on the EXFO
website at www.exfo.com. The drivers have their own
specific documentation to help you use them with your
application.
RTUe-9110 external
switch
singlemode
rack-mounted switch powered and controlled through a
USB port
available in single channel width (Simplex) for uplink
testing and double channel width (Duplex) for
simultaneous uplink and downlink testing
available in configurations of 26 or 52 ports for the
single-channel-width models and of 2 links of 26 ports
for the double-channel-width models
supports local control only
RTUe-9120 external
switch
singlemode
rack-mounted switch powered and controlled through a
USB port
available in configurations of 2, 4, 8, or 16 MPO ports
containing 16 fibers each (two rows of eight fibers)
supports local control only
Model Features

Introducing the Optical Switch
4Optical Switch
Available Models

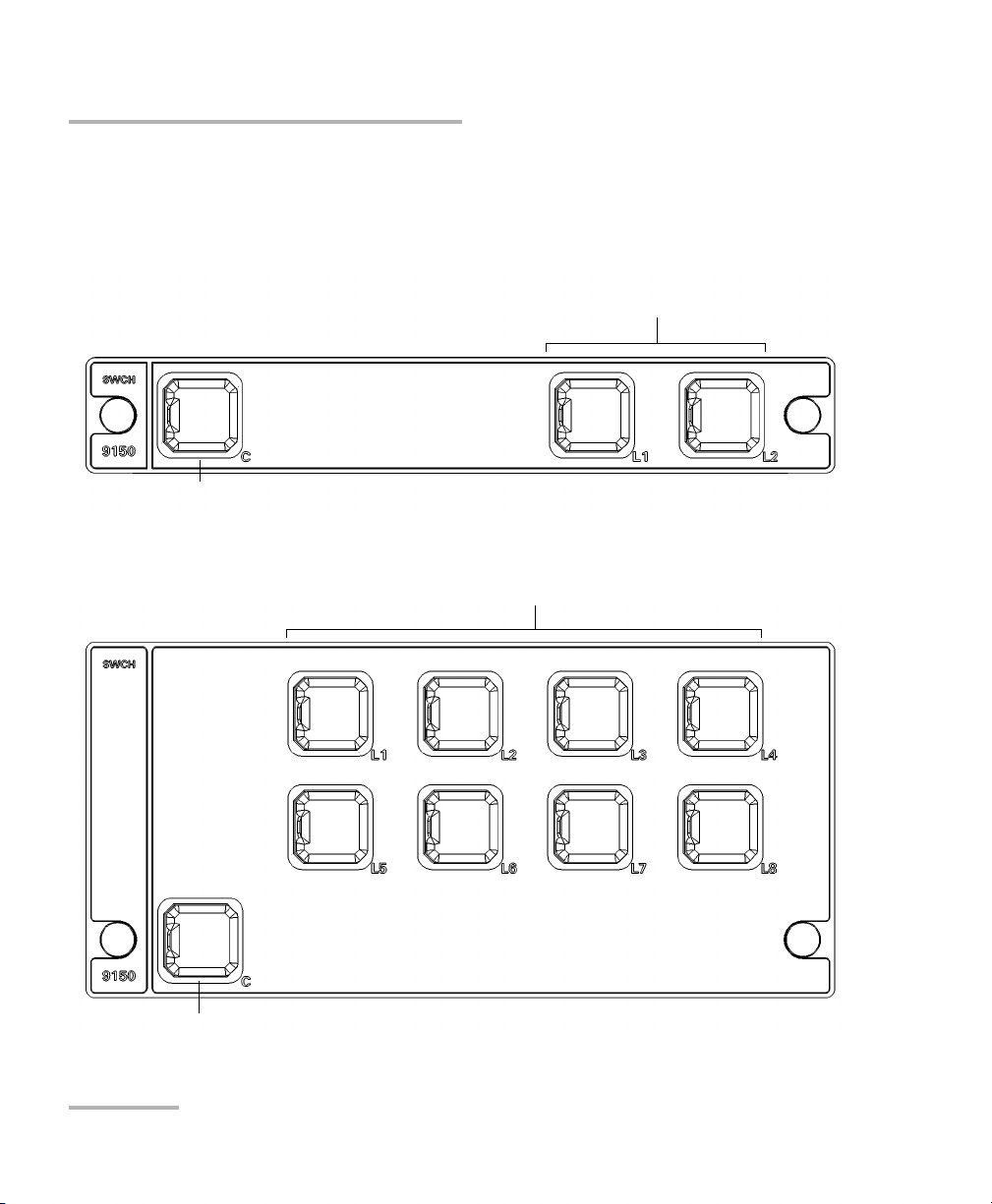

Below are a few examples of the available models:
Note: Actual connectors may differ from those depicted in the illustrations.
Common port
1 x 2 FTBx Optical Switch Module
Switch ports 1 and 2
Common port
1 x 8 FTBx Optical Switch Module
Switch ports 1 to 8

Introducing the Optical Switch
Optical Switch 5
Available Models
Common port (one per link)

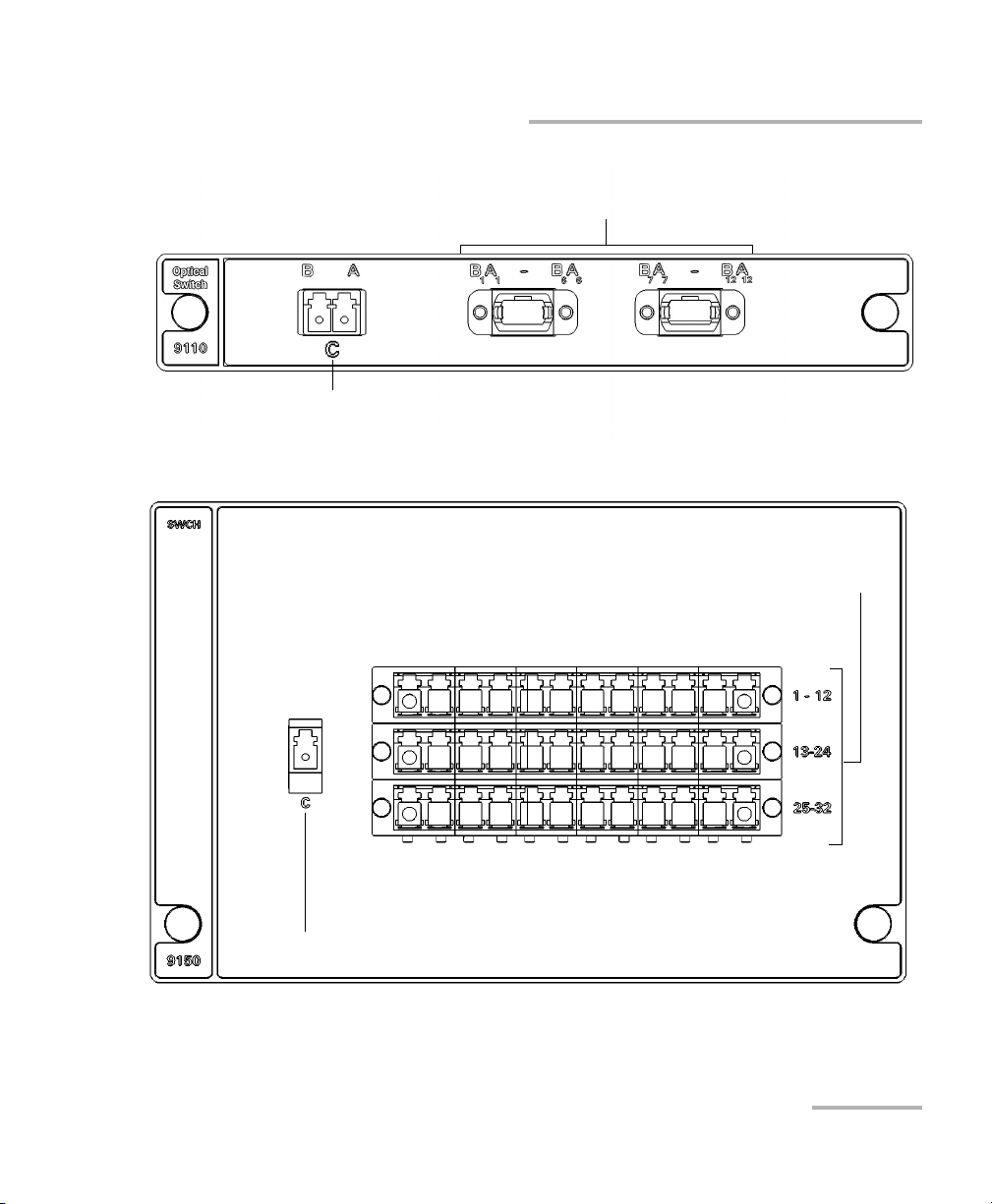

1 x 12 FTBx Duplex Optical Switch Module (FTBx-9110)
Switch ports 1 to 12
Switch
ports
1to32
Common port
1 x 32 FTBx Optical Switch Module

Introducing the Optical Switch
6Optical Switch
Available Models

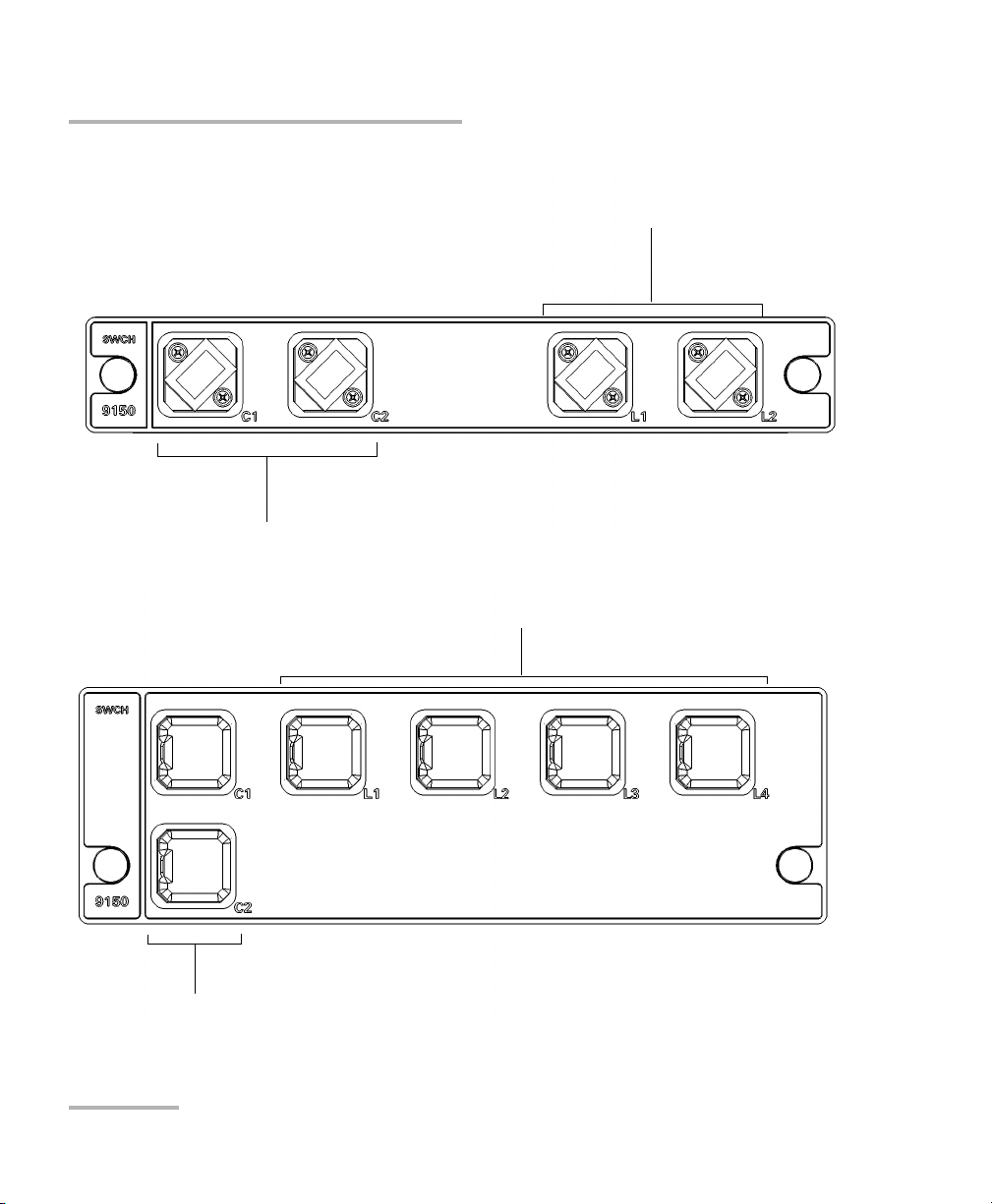

2 x 2 FTBx Optical Switch Module (FTBx-9150 only)
Switch ports 1 and 2
Common ports C1 and C2
2 x 4 FTBx Optical Switch Module (FTBx-9150 only)
Switch ports 1 to 4
Common ports C1 and C2

Introducing the Optical Switch
Optical Switch 7
Available Models
RTUe-9110 switch - Front - Single-channel-width model - 26 ports
LED Switch ports
Common port
Upgrade ports
RTUe-9110 switch - Front - Single-channel-width model - 52 ports
LED Switch ports
Common port
Upgrade ports

Introducing the Optical Switch
8Optical Switch
Available Models
Note: On all RTUe-9110 models shown above, you can use the upgrade ports to
cascade external switches, or use them as standard switch ports. The
upgrade ports have lower insertion loss (IL) than the other ports, which
makes them particularly well suited for switch cascading.
Note: On all RTUe-9110 models shown above, you can use the common port(s)
as a connection point with the primary switch when the switch is cascaded,
or to receive signal from a test module.
LED Switch ports
Common ports (one per link)
RTUe-9110 switch - Front - Double-channel-width model - 2 links of 26 ports
Upgrade ports
RTUe-9110 switch - Back - All models shown above
Grounding lug USB port (type B) to connect the switch to a
compatible EXFO platform

Introducing the Optical Switch
Optical Switch 9
Available Models
LED Switch ports
Common port
RTUe-9120 switch - Front 16 ports
Grounding lug
USB port (type B) to connect the switch to a compatible EXFO platform
RTUe-9120 switch - Back
Screw holes for grounding lug
(alternative grounding method)

Introducing the Optical Switch
10 Optical Switch
Correspondence Between Port Numbers and Fiber Numbers (RTUe-9120)
Correspondence Between Port Numbers and
Fiber Numbers (RTUe-9120)
The table below lists the fiber numbers associated with each port for easier
identification.
Note: The number of ports varies with the model of switch that you have
purchased.
Port Number Fiber Numbers
11to16
2 17 to 32
3 33 to 48
4 49 to 64
5 65 to 80
6 81 to 96
7 97 to 112
8 113 to 128
9 129 to 144
10 145 to 160
11 161 to 176
12 177 to 192
13 193 to 208
14 209 to 224
15 225 to 240
16 241 to 256

Introducing the Optical Switch
Optical Switch 11
RTUe-9110/RTUe-9120 LED Indicator Description
RTUe-9110/RTUe-9120 LED Indicator
Description
There is one LED indicator on the front panel of the RTUe-9110/RTUe-9120
switch showing its status.
The table below presents the possible statuses once the initial startup
sequence is complete.
LED Status Meaning
a
a. If more than one error is detected at the same time, the color of the LED will be set according to the most
severe error (red as the most severe, followed by yellow).
Green The switch is working properly and is ready.
Green, blinking The initialization of the switch is underway.
Yellow Non-critical hardware error detected.
The temperature of the room where the switch is
located could be slightly too low or too high, or
there could be a hardware malfunction.
Ensure that the temperature falls within the
specified operating temperature range of the RTU-2
unit.
If the problem persists, contact EXFO.
Red Critical hardware error detected.
The temperature of the room where the switch is
located is critically too low or too high, or there
could be a hardware malfunction.
Ensure that the temperature falls within the
specified operating temperature range of the RTU-2
unit.
If the problem persists, contact EXFO.
Off Switch is off or not connected to an RTU-2 unit.

Introducing the Optical Switch
12 Optical Switch
Basic Switching Principles
Basic Switching Principles
The switch ports of 1 x N optical switches are numbered on the front panel,
while the common port is identified with a "C."
These switches are bidirectional. This means that the optical signal can
either enter through the common port and be directed toward any switch
port, or enter through any switch port and then be directed toward the
common port.
1 x N Optical Switch Principle
Common port
Switch ports

Introducing the Optical Switch
Optical Switch 13
Basic Switching Principles
Duplex switches follow the same principles as 1 x N switches, but each
port have two fibers.
The FTBx-9150 (2 2 model) is also a bidirectional switch. The two
positions for this switch are known as inserted state and bypass state.
1 x N Duplex Optical Switch Principle
Common port A
Switch ports
Common port B
A1
B1
A2
B2
A6
B6
A3
A4
A5
B3
B4
B5
2 x 2 Optical Switch Principle
Inserted state Bypass state
C1
C2 L2
L1 C1
C2 L2
L1

Introducing the Optical Switch
14 Optical Switch
Basic Switching Principles
The FTBx-9150 (2 4 model) is also a bidirectional switch. As illustrated in
the following figure, it can be set to six positions. In three of these
positions, one or both input channels do not transmit light to output ports.
I1
I2
I1
I2
2 x 4 Optical Switch Principle
No continuity - Both ports No continuity - Port C1
No continuity - Port C2
C1
C2
L2
L1
L4
C2
L2
L3
C1
L3
L2
L1
C1
C2
L2
L1
C1
C2
L2
L1
C1
C2
L2
L1
C1
C2
L1
L3
L3
L3L3
L4
L4
L4
L4
L4
