Installation and Operating
Instruction Manual
INDOOR IR DOME CAMERA
ERN-R1247P
ERN-R1247N
Thank you for your purchase of this product.
Before attempting to connect or operate this product, please read these
instructions carefully.
Product specifications and its contents subject to change without any prior
notice.
The picture is for reference, the object as the standard.

Page 2
CONTENTS
1. General Information
- Safety Precaution
- Package contents
2. Installation of Camera
- Camera Connection
- Installation of Camera
- Tips for Camera Location
- Dimension
3. Operation Guide
- Menu structure
- Function Description
4. Technical Specification
5. Troubleshooting
6. Cleaning and Care
7. Maintenance and Support

Page 3
1. General Information
>Safety Precaution
1. Read these instructions carefully before commissioning the camera in order to avoid
damages caused by improper installation or use.
2. Do not harm the camera and avoid striking, shaking, etc. The camera could be
damaged by improper handling or storage.
3. Use a dry cloth to clean the camera dome cover when dirty. When the dirt is hard to
remove, use a mild detergent and wipe gently. Then wipe off the remaining detergent
with a dry cloth.
4. Do not aim the camera at bright objects. Whether the camera is in use or not, never
aim it at the sun or other extremely bright objects. Otherwise, blooming or smears
may be caused.
5. In case of outdoor use, you have to install the camera in a suitable weather protection
case incl. heating element.
6. Operate the camera with the designated voltage only.
7. Use the camera at temperatures within -10 C to +50 C and humidity below 90%.
>Package Contents
1. Indoor Color Dome Camera
2. Operating Instructions
3. Mounting Template Sticker
Caution
To Reduce the risk of electric shock, do not remove cover. No
user serviceable parts inside. Refer servicing to qualified
service personnel.

2. Installation of Camera
>Camera Connections

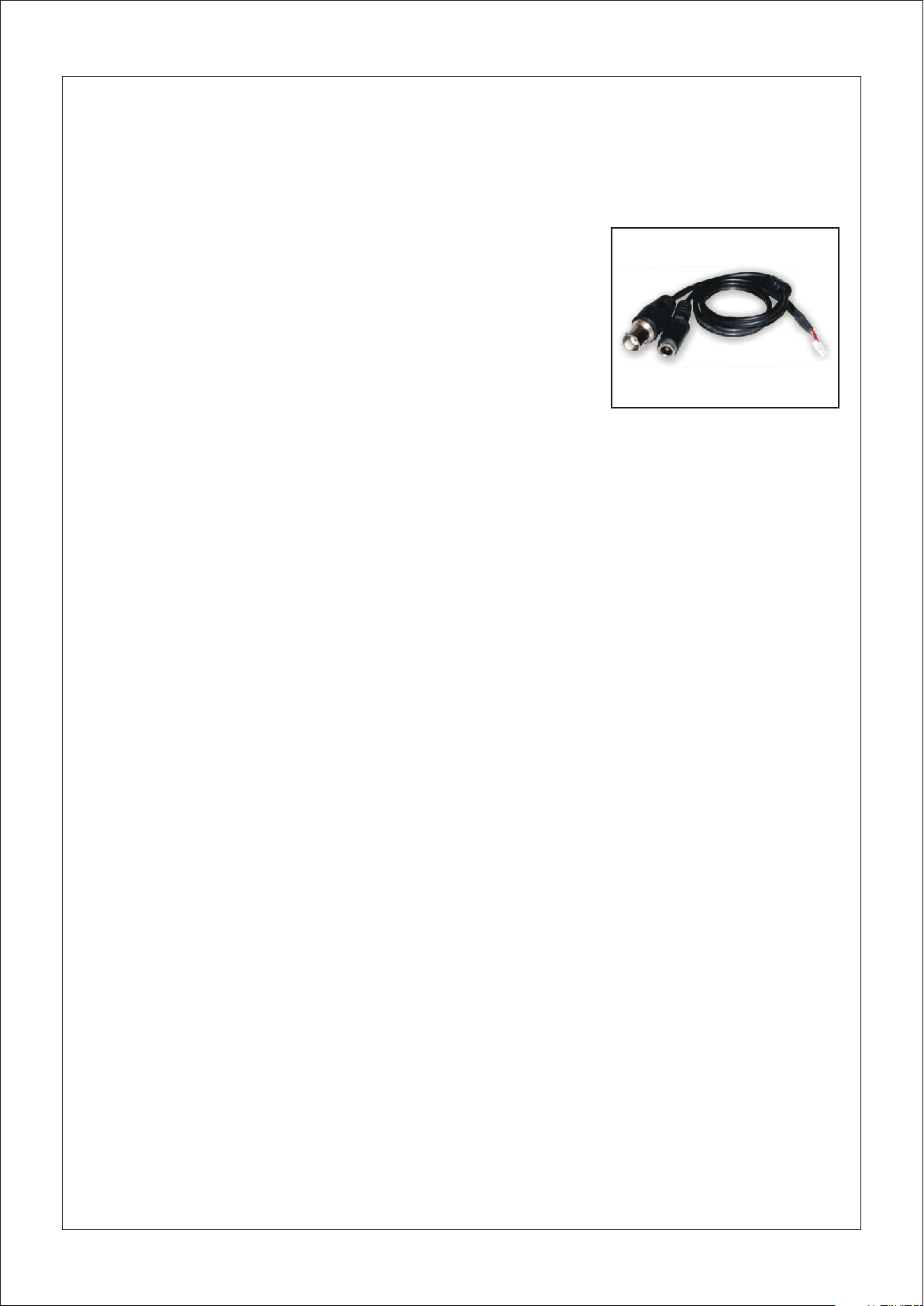

12V DC Power Supply
Use standard 12V DC output power supply with 2.1mm
standard DC power female pin. Before connect power
check power supply polarity (+ and -).
Video Output Connection
Use standard 75 Male BNC pin terminate with Co-axial
video cable then connect to camera video out BNC Female
pin.
>Installation of Camera
Mounting Template Sticker: The mentioned technical drawing is for reference only.
Actual size of Mounting Template Sticker is matched with Dome Base. Stick Mounting
Template Sticker supplied for drilling the mounting hole on the mounting surface.
>Tips for Camera Location
1.Never expose the camera to direct sunlight without additional camera housing. Keep
sufficient distance to direct heat sources.
2.Never install the camera at humid, oily or dusty locations without using an additional
housing. (Without additional housing the camera is not suitable for outdoor use)
3.Do not aim the camera towards indoor lighting, the windows, the sunlight or the sky.
(To get good pictures, camera and light should be aimed towards the object)
4.Avoid peak light as background (Also caused by reflection)
Ω
Page 4

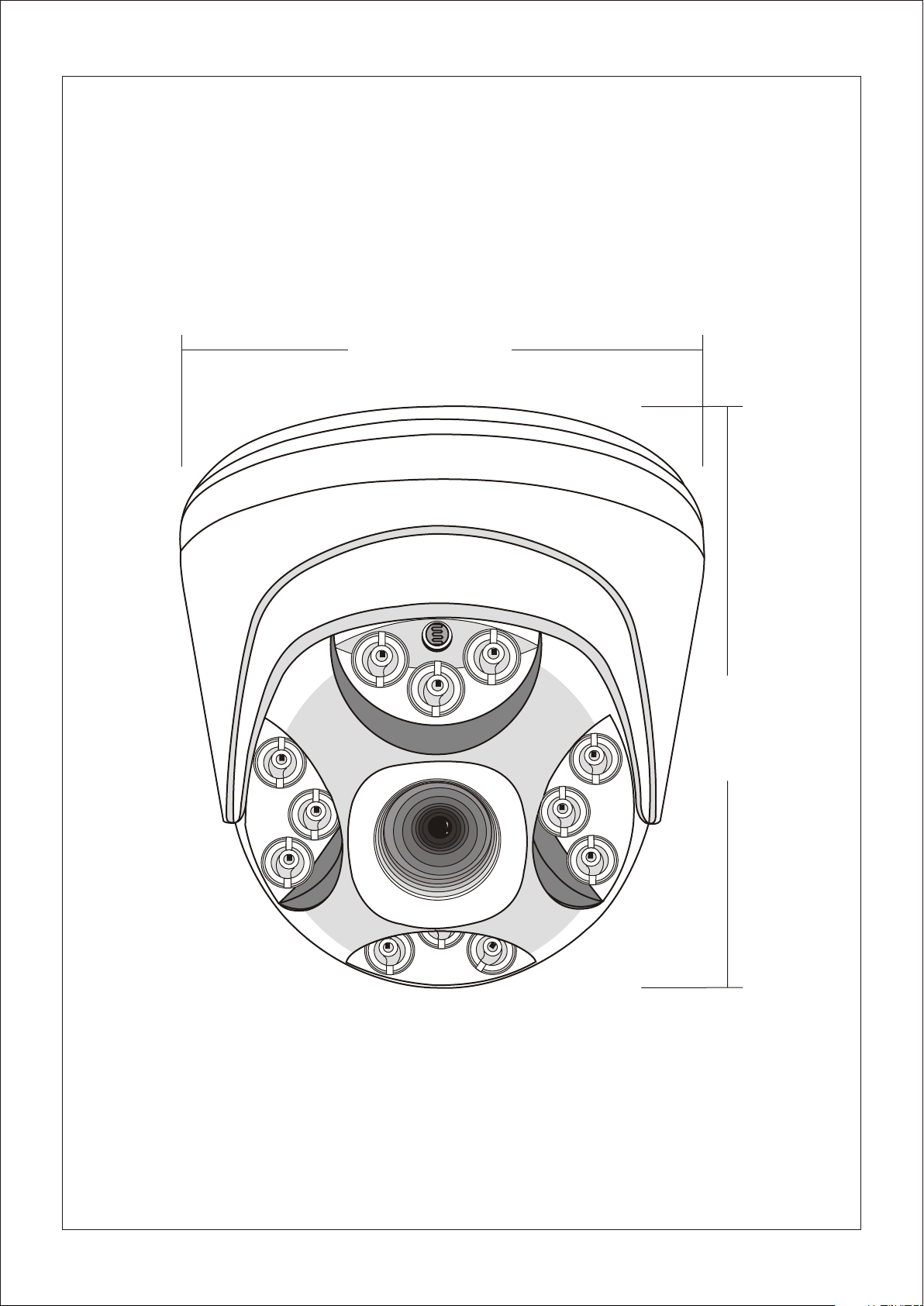

>Dimension
Page 5
100 mm
90 mm

Electrical
Night Vision
Current Consumption
IR Distance
Power Supply
IR LED
160mA
20 Meter
12V DC Standard ±10%
12 IR LED, 0.8mm Ø
Environmental
Operating Temperature -10°C ~ 50°C
3 Axis 4" Plastic Dome
180g
Dimensional
Humidity 95%
Dimension
Weight
Housing
Ǿ00 21 * H 9 mm
4. Technical Specification ERN-R1247N / ERN-R1247P
Video
ERN-R1247N
NTSC
ERN-R1247P
PAL
Model Number
CCD
Signal System
1/3" SONY Super HAD II CCD
Lens 3.6mm M12 lens
Effective Pixel
Horizontal Resolution Color 470 TVL
512 x 492
15.734KHz
59.94KHz
500 x 582
15.625KHz
50Hz
Min Illumination@ Night
Min Illumination@ Day
0 Lux At Night(IR LED On)
0.5 Lux at Day(Cut Off)
Gamma
Scanning Frequency (V)
Scanning Frequency (H)
0.45 Adjustable
S/N Ratio More than 48 db
Video Output 1V p-p, 75Ω
Operational
Sync System 2:1 Internal
Exposure Mode Auto
Auto
AGC
Day/Night Mode
BLC
Auto
Auto
Off
White Balance

6.Cleaning and Care
-Before you start to clean the camera body, disconnect the unit from power supply.
-For reasons of electrical safety never clean the camera with water or other liquid
matters and never put the camera under water.
-To clean use a soft dry cloth. Cleaning the camera inside is strictly forbidden and may
only be done by your authorized dealer.
-Since all camera functions are self adjusting and the camera does not contain any
parts or components that are subject to wear. We advice you not to open the camera
(except for the flap for settings), unless the camera appears to be defective.
Page 7
7. Maintenance and Support
1. How to request after-sale service?
When ever you want to send repairing material back to us kindly use
the same Channel where u purchased the material must with Return Material
Authorization (RMA) Form download from our website.
http://www.eyerisdigital.com/RMA%20Form.pdf
2. Following cases should be paid even within the warranty period.
A)When defects are caused by the careless handling of the user.
B)When improper or unauthorized repairs are done or when the inside is modified or
damaged.
C)Defects caused by natural disaster or power problem.
Technical Support: For any type of product operating, Function, Installation related
queries or want to know more about our product details specification or function,
contact our website or E-mail to us.
http://www.eyerisdigital.com/support.html
