EZG MIXER EZG7 User manual

EZG7 / EZGE7
MIXER®
7ft³(0.19m³)
Mixing Station
Owner’s Manual
Serial Number __________________
Before using this EZG Mixer®,
study and understand entire
Owner’s Manual.
EZG Manufacturing
405 Watertown Road
Waterford, Ohio 45786
[phone] or 1-800-417-9272
Fax [phone] www.ezgmfg.com
EZG MANUFACTURING
1-800-417-9272
EZG7 Mixer®

TABLE OF CONTENTS
INTRODUCTION...................................................................................................................................3
ABOUT THIS MANUAL.......................................................................................................................3
GENERAL INFORMATION..................................................................................................................3
SAFETY INFORMATION......................................................................................................................3
SAFETY PRECAUTIONS...................................................................................................................4-5
CALIFORNIA PROPOSITION 65 WARNING......................................................................................6
SETUP INSTRUCTIONS........................................................................................................................6
OPERATING INSTRUCTIONS..............................................................................................................7
DAILY MAINTENANCE........................................................................................................................7
OBTAINING SPARE PARTS..................................................................................................................8
CLEANUP................................................................................................................................................8
SERVICE RECORDS..............................................................................................................................8
WARNING LABELS AND LOCATIONS..............................................................................................9
FRAME ASSEMBLY.............................................................................................................................10

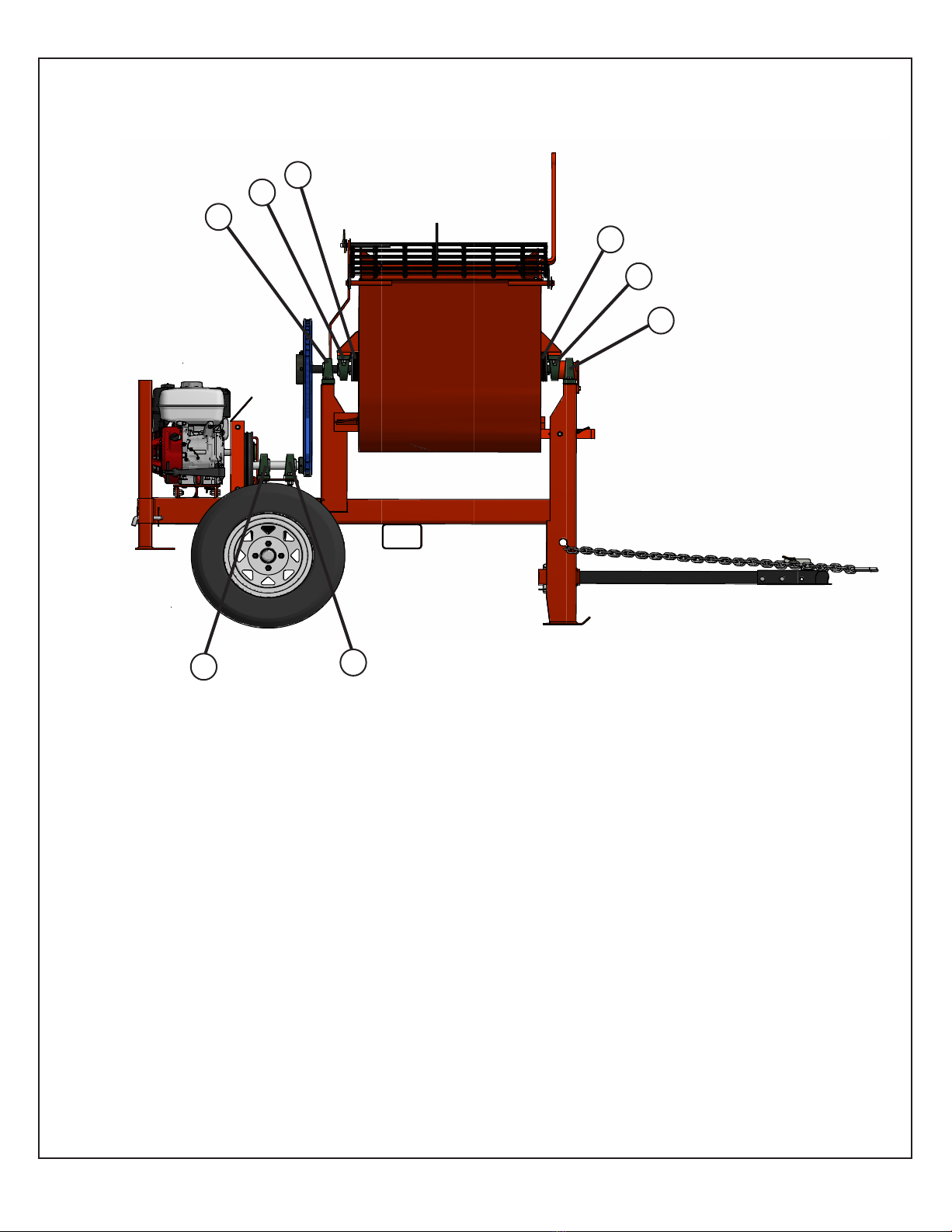

DRUM & PADDLE ASSEMBLY..........................................................................................................11
DRIVE ASSEMBLY..............................................................................................................................12
GREASE FITTING LOCATION...........................................................................................................13
AXLE & HUB ASSEMBLIES..............................................................................................................14
SHAFT ASSEMBLY..............................................................................................................................15
SEAL KIT..............................................................................................................................................16

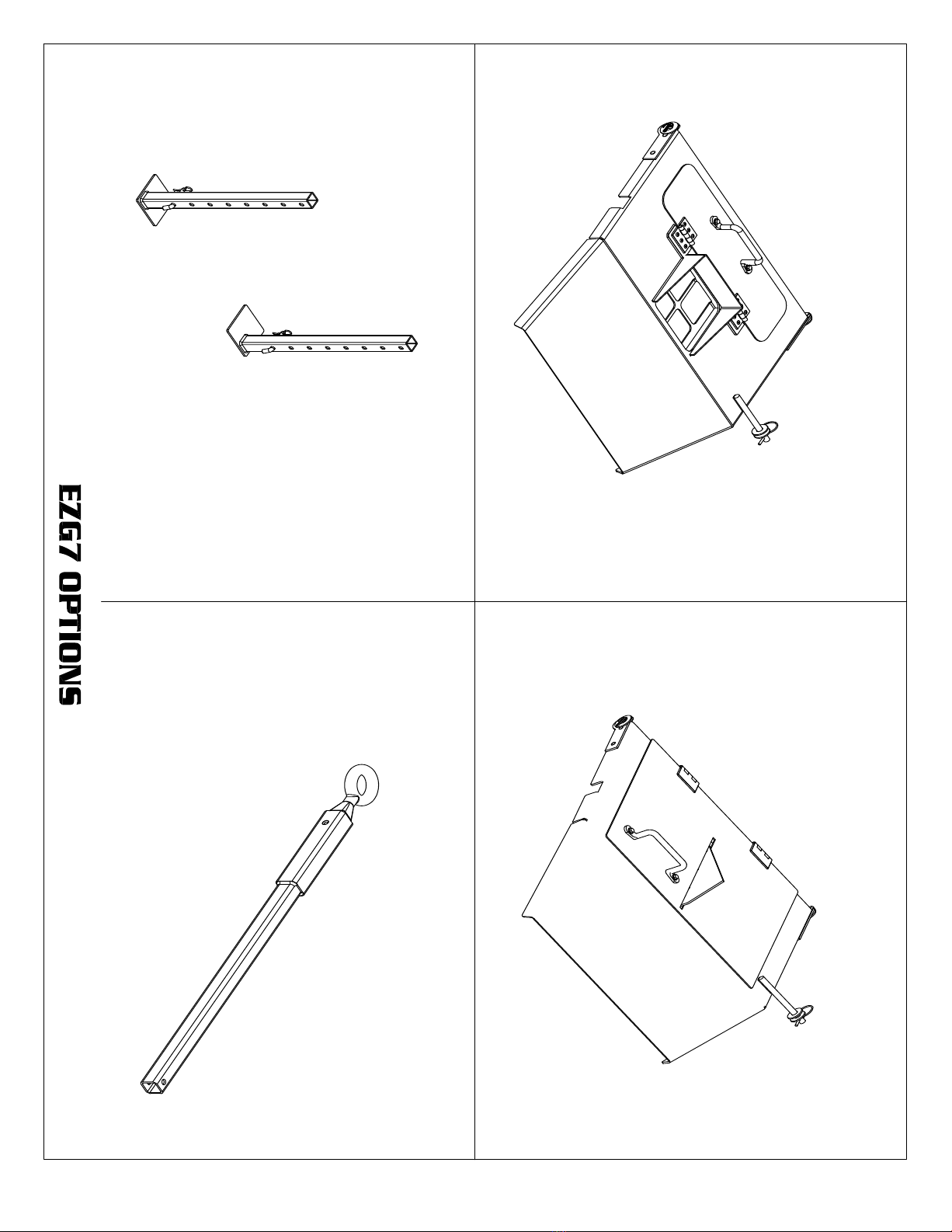

OPTIONS...............................................................................................................................................17
NOTES...................................................................................................................................................18
WARRANTY..........................................................................................................................................19
WARRANTY REGISTRATION............................................................................................................20
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 2

INTRODUCTION
Congratulations on purchasing one of the nest pieces of masonry equipment on the market today! If this is
your rst EZG Manufacturing product, you will not be disappointed. If you have previously owned an EZG
Manufacturing product you will nd the same high quality and dependability that you have come to expect
from EZG Manufacturing.
ABOUT THIS MANUAL
The purpose of this manual is to inform the owner/employer/and the operator, how to safely operate this
piece of equipment, and make them aware of any hazards. It also contains important information regarding
assembly, set up, operation, and maintenance. It is the Owner/Employers responsibility to make sure that
anyone who operates this machine understands all safety warnings. If you do not understand any items
in this manual, please contact the dealer where this product was purchased, or the manufacturer at the
number listed throughout this manual. If you have any suggestions about how to make this manual easier
to understand, contact the manufacturer. Keep this manual available for reference wherever this piece of
equipment is being used and make it available to any operators.
GENERAL INFORMATION
Illustrations in this manual may show details or components that may not be the same as your machine.
Continuing improvements to the design of this machine may have caused changes that are not included in
this manual. The information in this document is subject to change without notice.
SAFETY INFORMATION
The following safety symbols and signal words will be used throughout this manual and on the product, for
your safety and the safety of others, please become familiar with their meaning and heed their warnings.
This symbol, either used alone or with a signal word, is used to call
your attention to instructions involving your safety and/or the safety of
others. Failure to follow these instructions will likely result in personal
injury or death.
This signal word is used to identify a hazard which, if not avoided, will
result in death or serious injury.
This signal word is used to identify a hazard which, if not avoided,
could result in death or serious injury.
This signal word is used to identify a hazard which, if not avoided,
could result in minor or moderate injury.
This signal word is used to identify a hazard which, if not avoided,
could result in property or equipment damage. It also may be used for
special instructions related to performance, maintenance or general
items.
DANGER
WARNING
CAUTION
NOTICE
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 3

SAFETY PRECAUTIONS
WARNING
Failure to obey the following safety instructions could result in DEATH
or SERIOUS INJURY.
Read and understand entire manual before operating the EZG7 Mixer®
For your safety and the safety of others, replace any missing or damaged warning decals by
contacting the manufacturer at 1-800-417-9272.
Make sure anyone operating the EZG7 Mixer® is thoroughly familiar with its operation.
Keep all unauthorized and untrained personnel, especially children away from EZG7
Mixer®.
Never operate machine with safety grate, guards or safety devices removed or open. Do not
alter any safety guards.
Stay clear of mixing paddles while machine is running. Keep all body parts, clothing,
jewelry and solid objects away from all moving parts.
Never perform any work on the EZG7 Mixer® while it is running. Before working on or
cleaning the EZG7 Mixer®, shut off engine and disconnect spark plug wire.
Never operate the EZG7 Mixer® under the inuence of alcohol, drugs, or medications.
This EZG7 Mixer® has been designed and built as a material mixing station, and should
not be used for anything other than its intended purpose.
Model Empty Weight Max Gross Weight
EZG7 820 Lbs.(371.9 kg) 1870 lbs.(848.2 kg)
Do not exceed Maximum Gross Weight
Never stand under an elevated EZG7 Mixer®.
Stay clear of moving parts while machine is in operation.
When towing, refer to vehicle manufactures specs to insure load capacity is not exceeded.
Always check axle,tires, and safety chains before towing EZG7 Mixer®.
Always cross and connect safety chains before towing EZG7 Mixer®.
Never attempt to ride the EZG7 Mixer®.
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 4

SAFETY PRECAUTIONS
WARNINGS continued
Operate only in properly vented enviroments. The mixer requires a free ow of air and emits
carbon monoxide gas.
Avoid breathing dust produced while using the EZG7 Mixer®. Dust may contain crystalline
silica and may cause serious health problems.
Do not operate near combustible materials.
Do not smoke around EZG7 Mixer®.
Always know the location of nearest re extinguishers, rst aid kit, and emergency personnel
phone numbers in case of emergency.
CAUTION
Failure to obey the following safety instructions could result in MINOR
or MODERATE INJURY.
Inspect all fasteners, bolts and welds for nicks, cracks, cuts, damage, wear or loose-ness
before each use. Repair as needed.
Always wear approved PPE, including glasses, hearing protection, hard hats, and ventilation
masks when operating a EZG7 Mixer®.
Do not use the EZG7 Mixer® as a lifting device or with accessories or attachments not
recommended by EZG Manufacturing, as damage to equipment or operator might result.
Allow system to cool before performing any repairs or service, such as adding fuel or oil.
NOTICE
Use only factory authorized parts.
Used Lubricants such as engine and hydraulic oil, and hazardous waste must be taken to an
authorized disposal or recycling center.
Consult Honda® owners’s manual for engine maintenance and warnings.
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 5

California - Proposition 65 Warning
Engine exhaust and some of its constituents, and some dust created by power sanding,
sawing, grinding, drilling, and other construction activities contains chemicals known to
the State of California to cause cancer, birth defects and other reproductive harm. Some
examples of these chemicals are:
Lead from lead based paints - Crystalline silica from bricks -Cement and other masonry
products -Arsenic and chromium from chemically treated lumber
Your risk from these exposures varies, depending on how often you do this type of work.
To reduce your exposure to these chemicals: ALWAYS work in a well ventilated area, and
work with approved safety equipment, such as dust masks that are specially designed to
lter out microscopic particles.
SETUP INSTRUCTIONS
Before operating the EZG7 Mixer® it should be properly set up on the jobsite. The EZG7 Mixer® may be
lifted by using a forklift. The EZG7 weighs 820 lbs.(371.9 kg) empty and 1870 lbs.(848.2 kg) full. Check
forklift ratings before attempting to move the EZG7 Mixer®.
The EZG7 Mixer® is equipped with (2) wheels and a tow tongue.
1. Position the EZG7 Mixer® at point of operation.
2. Disconnect EZG7 Mixer® from towing vehicle.
3. Lower tongue until mixer is level.
4. Verify that the mixer foot is touching the ground and that the EZG7 Mixer® is level and cannot rock in
any direction.
5. Perform the daily maintenance as described in the “Daily Maintenance” section of this manual.
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 6

OPERATING INSTRUCTIONS
Warning! This equipment is to be operated by trained and qualied personnel over the
age of 18. Death or serious injury can result.
1. Slide forks under the EZG7 Mixer® and place in desired location.
2. Level unit and chock wheels.
3. Start engine.
See engine manuals for proper procedure.
4. Fill with material, add water and mix to desired consistency and dump.
Warning! NEVER put your hands inside mixer drum while equipment is running. Death
or serious injury can result.
Warning! Before performing any described maintenance items, make sure engine is
turned off and spark plug wire is disconnected. Death or serious injury can result.
1. Check engine oil daily.
2. For engine maintenance, refer to the engine manufacturer’s manual furnished with the EZG7 Mixer®.
3. Check and grease all grease ttings.
(Grease tting location can be found on the Grease Fitting Location drawing in this manual)
4. For maximum performance, thoroughly clean inside and out at mid-day or lunch break and again
at the end of each day’s use. Do not allow a buildup of material to form on the blades and seals.
6. Check equipment for leaks. Fix any leaks before operating the EZG7 Mixer®.
7. Check all welds and bolts. If a cracked weld is found, do not operate the EZG7 Mixer® until re-
paired by qualified personnel. Tighten any loose bolts.
8. Check Paddle Shaft Seal for excessive wear. If any mortar or concrete is leaking past the seal,
change the seals immediately.
9. Check paddle rubbers for wear. Adjust or replace as needed.
DAILY MAINTENANCE
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 7

1. Turn off engine and disconnect spark plug wire.
2. For maximum performance, thoroughly clean inside and out at mid-day or lunch break and again at the
end of each day’s use. Do not allow a buildup of materials to form on the blades and seals.
3. Hose out and brush down mixing drum, then spray and brush paddles until all excess material is removed.
4. Grease the ttings and brush the face of drum seals until clean.
CLEANUP
OBTAINING SPARE PARTS
Spare parts for your EZG7 Mixer® may be obtained by the following procedure:
1. Record the information from the serial number tag located on the frame.
2. Using the parts reference table in this manual, record the part number or component.
3. Contact your local EZG7 Mixer® dealer or EZG Manufacturing at 1-800-417-9272 with the information
recorded.
SERVICE RECORDS
SERVICE PERFORMED DATE INITIALS
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 8

ITEM PART NUMBER DESCRIPTION QTY
A 16-213 EZG7 Decal Kit 1
1 Never Open Grate Decal 1
2 Proposition 65 Decal 1
3 Small Pinch Point Decal 2
4 Hot Surface Decal 1
5 Grease Seals Daily Decal 2
6 Do Not Remove Decal 1
7 California Public Resources Decal 1
8 Fill with 1.1 Quart Decal 1
9 Read Owners Manual Decal 1
10 U.S. Flag Decal 1
11 DOT Cross Chains Decal 1
12 E-STOP Label 1
13 Serial Tag Location 1
14 EZG Mixer Decal 1
1
WARNING LABELS AND LOCATIONS
5
4
3
6
7
10
8
13
11
2
9
3
5
12
14
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 9

ITEM DESCRIPTION
1 BEARING
2 BEARING
3 SHAFT SEAL
4 BEARING
5 BEARING
6 SHAFT SEAL
7 BEARING
8 BEARING
GREASE FITTING LOCATIONS
NOTE: Check ALL grease ttings daily. Grease as needed.
Hood not shown
for clarity.
4
5
6
78
3
2
1
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 10

www.ezgmfg.comS/N 181-Present 6/14/2022 11EZG Manufacturing 1-800-417-9272Rev-006_P2
PARTS LIST
ITEM QTY PART
NUMBER DESCRIPTION
1 1 EZG7-A-1 EZG7 Frame Assembly 2 1 EZG7-A-2 EZG7 Hood Assembly 3 1 EZG-A-35 EZG Axle Assembly with Hubs (181+)
3a 1EZG-A-2 EZG Axle Assembly with Hubs (001-180)
4 1 EZG-A-7 EZG Axle Mount Assembly-Load Side 51EZG-A-8 EZG Axle Mount Assembly-Dump Side 6 2 EZG-102 EZG-Bolt On Leg Pocket 71EZG-103 EZG Motor Lock
28 1 EZG-2 EZG 2" Ball Receiver
9 1 EZG-4 EZG Pulley Guard
10 1EZG-7 Drum Lock Lever
33 11 1EZG-500 EZG Mixer Tongue Tube 32 12 2EZG-504 EZG Lock Spacer 7/8" x .109" Wall Tube 3 3/16" Long
13 13 220-139 9541K3 10-24 Rubber Bumper
19 16
823 14 120-126 Blank Metal Plates
15 620-105 Rivets for Name Plates
22 21 16 120-103 Hood Hold Down Strap
12 15 17 209-702 Carabiner Style Connector (EZG)
11 18 109-418 Hitch Pin Assembly
35 919 309-407
24 5/16" Latch Pin
20 1EZG-A-25 EZG Mixer Tow Safety Chain Assy w/ Clips
34 21 209-224 #10-24 Hex Nut
23 22 209-321 1/2"-13 x 3" GR5 Bolt
10
17 33 35 23 709-208 1/2"-13 Nylon Nut
24 109-323 1/2"-13 x 7 1/2" Bolt
20 34 25 209-380 5/8"-11 x 3 1/2" GR8 Bolt-Zinc
26 209-210 5/8"-11 Nylon Nut
20a 33 27 409-316 1/2"-13 x 1 1/4" GR5 Bolt
28 409-107 1/2" Flat Washer
30 29 29 809-373 3/8"-16 x 1 1/4" Carraige Bolts
30 809-105 5/16" Flat Washer 31 809-204 3/8"-16 Nylon Nut
18 632 209-341 5/16"-18 x 3/4" GR5 Bolt
133 909-202 5/16"-18 Nylon Nut
734 12 09-104 1/4" Flat Washer
15 35 709-342 5/16"-18 x 1" GR5 Bolt
34 33 35 36 207-136 175-80-R13 Deestone 6-ply 13" 4 Lug (EZG)
14 31
5
4
28 23 27 25
26
3a 336
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 11

PARTS LIST
ITEM QTY PART
NUMBER DESCRIPTION
1 1 EZG7-A-65 EZG7 Drum Assembly (Serial 117+)
1a 1EZG7-A-3 EZG7 Drum Assembly (Serial 1-116)
2 1 EZG7-A-84 EZG7Paddle Shaft w/10mm Key (155+)
2a 1EZG7-A-4 EZG7 Shaft Assembly (1-154)
3 1 EZG-8 EZG Drum Dump Handle
34 1 EZG-A-5 Shaft End Guard Assembly
51 EZG7-1 EZG7 Grate Opener 6 2 EZG-1 EZG Bearing Shim
71EZG-505 EZG Shaft Collar 8 4 15-109 UCP207-20 1 1/4" Pillow Block Bearing EZG 9 1 EZG-70 EZG Shaft Guard Plate Shim
10 1 EZG-A-17 EZG7 Paddle Shaft Seal Kit 11 1EZG7-A-67 EZG7 Grate Assembly (Serial 117+)
13 416 15 11a 1EZG7-A-6 EZG7 Grate Assembly (Serial 1-116)
12 409-310 3/8"-16 1 1/4" GR5 Bolt
713 309-105 5/16" Flat Washer
614 509-204 3/8"-16 Nylon Nut
15 409-320 1/2"-13 x 2 1/2" Bolt 16 409-325 1/2"-13 x 1 3/4" GR5 Bolt 17 16 09-107 1/2" Flat Washer 18 809-208 1/2"-13 Nylon Nut 19 209-111 3/4" Flat Washer
911 11a 20 209-337 3/16" x 1 1/2" Cotter Pin
12 21 209-109 5/8" Flat Washer
819 20 22 109-400 1/4" Linch Pins
14 24 23 109-307 3/8"-16 x 1" GR5 Bolt
17 24 1EZG7-A-15 EZG7 Paddle Kit, Everything But Shaft
18 18 10 22
22a 21
5
1
1a 23
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 12

PARTS LIST PARTS LIST
ITEM QTY PART DESCRIPTION ITEM QTY PART
NUMBER NUMBER DESCRIPTION
1 1 EZG-A-1 EZG E-Stop Wire Harness 11 1 15-1006
Sprocket EZG-Small with 8mm Keyway (181+)
2 1 EZG-A-3 EZG Honda Engine Mounting Plate 11a 1 15-110
Sprocket EZG-Small with 1/4" Keyway (1-180)
3 1 EZG-537 EZG Pulley Drive Shaft 10-1/2"L 8mm KW (181+) 12 2 15-109 UCP207-20 1 1/4" Pillow Block Bearing EZG
3a 1 EZG-518 EZG Pulley Drive Shaft 10-1/2"L 1/4" KW (1-180) 13 1 15-198 Key 10 x 8mm EZG Mixer Shaft Key (155+)
4 1 03-1038 E-Stop Button w/Bezel 13a 1 15-104 3/8" x 1 3/4" Machined Key (MH Shaft Key)(1-154) 5 1 20-158 97045K52 Grip Black (EZG) 14 1 14-108 GX240UT2HA2 Honda Engine 655110 6 1 20-120 Model # HON 1412 Drainzit 15 1 09-808 9654K226 Spring EZG 71 15-1007
11/4 Pulley 8mm Keyway(181+)
16 1 EZG-5 EZG Belt Tensioner (Long)
7a 1 15-128
2BK110-1 1/4" Pulley EZG-Large 1/4" Keyway(1-180)
17 1 EZG-6 EZG Belt Tensioner (Small)
10a 8 1 15-127 2BK32-1 Pulley (EZG)(Small) 18 4 09-325 1/2"-13 x 1 3/4" GR5 Bolt
10 9 2 15-1008 7mm x 8mm x 45mm Long Machine Key(EZG) (181+) 19 8 09-107 1/2" Flat Washer
9a 2 15-120 1/4" x 1/4" x 1 1/2" Machined Key 5-pkg (1-180) 20 6 09-208 1/2"-13 Nylon Nut
13a 29 10 1 15-197 Large Sprocket w/Key 10x8mm EZG9 (155+) 21 2 09-316 1/2"-13 x 1 1/4" GR5 Bolt
13 10a 1 15-111
EZG Large Shaft Sprocket-3/8"Keyway (1-154)
22 2 09-373 3/8"-16 x 1 1/4" Carraige Bolts
30 23 6 09-105 5/16" Flat Washer
24 6 09-204 3/8"-16 Nylon Nut
31 31a 25 4 09-360 3/8"-16 x 1 3/4" Carraige Bolts
26 1 09-358 M6 x 12 Hex Thread Cutting Screw 27 1 03-547 952X 3M Connector-50 per pkg
99a 28 2 15-112 B-46 V-Belt (EZG7)
29 1
EZG7-A-5 EZG7 Drive Chain 60"Long +Masterlink
18 7a 30 1 15-116 #80 Master Link EZG Mixers
31 2 09-3176
12 M8x1.25mm Thread x 60mm Long Screw 10.9 (155+)
731a 2 09-3025 5/16-18 x 2-14 Set Screw (1-154)
32 2 09-284 M8 x 1.25mm Thread Class 8 Nut (155+)
28 432a 2 09-203 5/16-18 Nut (1-154)
32 11
32a 11a 3
3a 19 1
16 8
24 26
17
22 6
21 27
23 2
25 20
15 14
5
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 13

PARTS LIST PARTS LIST
ITEM QTY PART
NUMBER DESCRIPTION ITEM QTY PART
NUMBER DESCRIPTION
1 1 20-158 97045K52 Grip Black (EZG) 18 1 EZGE7-A-1 EZGE7 Drive Chain 54"Long + Master Link
2 1 15-128 2BK110 1 1/4" Pulley (EZG)(Large) 19 1 15-116 #80 Master Link (EZG Mixers) 3 2 15-120 1/4" x 1/4" x 1 1/2" Machined Key 5-pkg 20 1 EZG-A-22 EZGE-Elect. Motor Mounting Plate Assembly
4a 4 1 15-197 EZG Large Sprocket - 10x8mm Key (155+) 21 1 EZGE-2 EZGE Electric Belt Guide
4a 1 15-111 80BS48 1 1/4" SQH Sprocket (EZG)(Large)(1-154) 22 2 EZGE-500 EZGE 2nd Idler Shaft
7a 440 40a 51 15-110 80BS10H 1 1/4" Sprocket (EZG)(Small) 23 4 03-510 1/2" Steel Locknut
6 2 15-109 UCP207-20, 1 1/4" Pillow Block Bearing EZG 24 240 03-524 12/3 SO Cord (EZGE7)
771 15-198 Key 10 x 8mm EZG Mixer Shaft Key (155+) 25 1 03-526 Plug (EZGE7)
41 41a 7a 1 15-104 3/8" x 1 3/4" Machined Key MH Shaft Key(1-154) 26 1 03-531 Nipple 1/2" Close Galvanized Nipple
18 8 1 EZG-6 EZG BElt Tensioner Small 27 1 03-532 WP Box W/3 1/2 Hubs (EZGE 7 & 9)
9 4 09-325 1/2"-13 x 1 3/4" GR5 Bolt 28 1 03-533 Swith and Cover for EZGE 7 & 9
10 8 09-107 1/2" Flat Washer 29 1 03-554 CG5050 1/2" Aluminum Cord Grip
19 11 6 09-208 1/2"-13 Nylon Nut 30 1 03-701 EZG7 1 1/2 HP 115V 1800RPM 1PH
12 2 09-316 1/2"-13 x 1 1/4" GR5 Bolt 31 12 09-104 1/4" Flat Washer
13 2 09-373 3/8"-16 x 1/4" Carraige Bolts 32 8 09-202 5/16-18 Nylon Nut 14 2 09-105 5/16" Flat Washer 33 4 09-332 5/16-18 x 1" Carraige Bolt 15 2 09-204 3/8"-16 Nylon Nut 34 1 15-130 GS40 Connecting Link (EZGE)
916 1 EZG-A-23 EZGE-2nd Idler Shaft Mount Assembly 35 1 EZGE-A-2 EZGE7/9 #40 2nd Idler Chain+Master Link
17 2 15-112 B-46 V-Belt 36 4 09-342 5/16"-18 x 1" GR5 Bolt
37 1 15-147 40BS30 x 1 1/4" Sprocket (EZGE)
638 1 15-148 2BK25 x 7/8" Sheave (EZGE7)
10 39 1 15-149 40BS15 x 1 1/4" Sprocket (EZGE)
340 2 09-3176 M8x1.25mm Thread x 60mm Long Screw 10.9 (155+)
39 40a 2 09-3025 5/16-18 x 2-14 Set Screw (1-154)
22 41 2 09-284 M8 x 1.25mm Thread Class 8 Nut (155+)
11 41a 2 09-203 5/16-18 Nut (1-154)
517
2
34
21
35
28
37 16 27
36 38 23
31
32 815 26
13
14 29
20 12
30 24
133 25
21
Electric Motor Kit
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 14

PARTS LIST
ITEM QTY PART
NUMBER DESCRIPTION
1 1
EZG7-A-84 EZG7Paddle Shaft w/10mm Key (155+)
1a 1 EZG7-A-4
EZG7 Shaft Assembly w/ 3/8" Key (1-154)
2 1 EZG-A-5 Shaft End Guard Assembly 3 2 EZG-1
EZG Bearing Shim
4 1 EZG-505 EZG Shaft Collar
5a 5115-197 Large Sprocket w/Key 10x8mm EZG9 (155+)
7a 5a 115-111
EZG Large Shaft Sprocket-3/8"Keyway (1-154)
56 4 15-109 UCP207-20 1 1/4" Pillow Block Bearing EZG
713 7115-198 Key 10 x 8mm EZG Mixer Shaft Key (155+)
7a 115-104 3/8"-x 1 3/4" Machined Key (MH Shaft Key)(1-154)
8 1 EZG-70 EZG Shaft Guard Plate Shim
15 9 1 EZG-A-17 EZG7 Paddle Shaft Seal Kit Includes (6) 13-166, (4) GH-17, (2) GH-18
10 209-310 3/8"-16 1 1/4" GR5 Bolt 11 209-105 5/16" Flat Washer 12 209-204 3/8"-16 Nylon Nut
913 409-320 1/2"-13 x 2 1/2" Bolt
14 409-325 1/2"-13 x 1 3/4" GR5 Bolt
25 15 16 09-107 1/2" Flat Washer
17 16 809-208 1/2"-13 Nylon Nut
1a *17 1 EZG7-A-15
EZG7 Paddle Kit (All But Shaft)
18 1 EZG7-A-13 EZG7 Paddle Rubber Kit w/Bolts (No Cover)
16 124 19 1 EZG7-A-14 EZG7 Paddle Cover Kit (No Rubber,Bolts)
27 28 ** 20 1 EZG9-A-16 Paddle Bolt Kit
21 1EZG7-A-9 EZG7 Drive End Outer Paddle Kit
26 22 1 EZG7-A-10 EZG7 Drive End Center Paddle Kit
18 23 1 EZG7-A-11 EZG7 Bearing End Center Paddle Kit
24 1EZG7-A-12 EZG7 Bearing End Outer Paddle Kit
19 25 613-116 Paddle Shaft Seals
26 4GH-17 Inner Seal Plate 27 2GH-18 Outer Seal Plate 28 4EZG-3-P Paddle Mounts
22
26
20 9*EZG7-A-15 Paddle Kit Includes:
(1) EZG7-A-9 (Item 21) (1) EZG7-A-10 (Item 22) (1) EZG7-A-11 (Item 23) (1) EZG7-A-12 (Item 24)
EZG9-A-16 Paddle Bolt Kit Includes: (16) 3/8-16 x 2-1/2” Grade 8 Bolt (16) 3/8-16 Nylon Nut
21 3
23 414
25 **
27
12 2
11
610
8
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 15

PARTS LIST
PARTS LIST
ITEM QTY PART NUMBER DESCRIPTION
$PNQMFUF)VC"TTFNCMZ $PNQMFUF"YMF"TTFNCMZ
1 1
007-197
Complete Hub Assembly (+)
ITEM QTY PART NUMBER DESCRIPTION
1a 1
007-127Complete Hub Assembly (001-)
1 1 EZG-A-35 Assembly, Complete Axle (+)
24
007-198
Lug Nut (+)
1a 1 EZG-A-2
Assembly, Complete Axle (001 - )
2a 4
007-134Lug Nut (001-)
Items 2 and 2a can be purchased seperately
1a 1
1a

1

2a 
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 16

PARTS LIST
ITEM QTY PART DESCRIPTION
1NUMBER
1 8 09-202 5/16"-18 Nylon Nut 2 8 09-326 5/16"-18 x 2 Carriage Bolt 3 6 13-116 Grout Hog Urethane Shaft Seals 4 4 GH-17 GH-Rear Seal Intermediate Plate,Spacer
452GH-18 GH-Rear Seal Outer Seal Plate
6 2 09-600 1/8" 90 DEG Grease Fitting
6
5
2
2
3
3
5
41
6
EZG-A-17 (EZG7 & 9 Paddle Shaft Seal Kit)
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 17

EZG7 - Solid Grate - Bag Ripper (1-116)
EZG7- Solid Grate - Silo (1-116)
EZG - 7/9/12 Leg Kit w/ Pins EZG-A-9 EZG - Pintle Tongue Assembly
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 18

Limited Warranty
The manufacturer warrants that products manufactured shall be free from defects in material and
workmanship that develop under normal use for a period of one year on all products from the date
of shipment. The foregoing shall be the exclusive remedy of the buyer and the exclusive liabili-
ty of the manufacturer. Our warranty excludes normal replaceable wear items, i.e. gaskets, wear
parts, seals, O-rings, belts, drive chains, clutches, etc. Any equipment, part or product which is
furnished by the manufacturer but manufactured by another, bears only the warranty given by such
other manufacturer. (Manufacturer agrees to furnish free of charge a written description of problem
or cause.) Warranty is voided by product abuse, alterations, use of equipment in applications for
which it was not intended, use of non-manufacturer parts, or failure to follow documented service
instructions. The foregoing warranty is exclusive of all other warranties whether written or oral,
expressed or implied. No warranty of merchantability or tness for a particular purpose shall apply.
The agents, dealers, and employees of Manufacturer are not authorized to make modications to
this warranty, or additional warranties binding on the Manufacturer. Therefore, additional state-
ments, whether oral or written, do not constitute warranty and should not be relied upon.
The Manufacturer’s sole responsibility for any breach of the foregoing warranty provisions, with
respect to any product or part not conforming to the Warranty or the description herein contained,
is at its option (a) to repair, replace, or refund such product or parts upon the prepaid return there of
to location designated specically by the Manufacturer. Product returns not shipped prepaid will be
refused (b) as an alternative to the foregoing modes of settlement-
the Manufacturer’s dealer may repair defective units with reimbursement for expenses. A written
description of problem or cause must accompany all warranty claims.
Except as set forth here in above and without limitation of the above, there are no warranties or
other afrmation which extend beyond the description of the products on the fact here of, or as to
operational efciency, product reliability, or maintainability or compatibility with products fur-
nished by others. In no event, whether as a result of breach of contract or warranty or alleged
negligence, shall the Manufacturer, be liable for special or consequential damages including but not
limited to: Loss of prots or revenue, loss of use of the product or any associated product, cost of
capital, cost of substitute products, facilities or services or claims of customers. Manufacturer does
not assume responsibility for any accident due to equipment modication.
No claim will be allowed for products lost or damaged in transit. Such claims should be led with
the carrier within fteen days.
Effective July 20, 2005
WARRANTY
EZG Manufacturing is the exclusive manufacturer of the patented Grout Hog® Grout Delivery
System the Mud Hog® Hydraulic Mixing Station, the Hog Trough® mud pan, the Hog Cart™, the
Hog Slopper™, the Booger Hog® Wall Scrubber, the Hog Leg® Wall Brace System, and the Hog
Crusher™ Material Recycling System.
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 19

CONTACT:___________________________________________________________________________
COMPANY:__________________________________________________________________________
ADDRESS:___________________________________________________________________________
CITY: _______________________________________________ STATE:_________ ZIP:____________
TEL: (_____) ______- _________ FAX: (_____) ______- __________ CELL: (_____) ______- _________
EMAIL:_____________________________________________________________________________
PURCHASED FROM:  Direct  Distributor:___________________________________________
PURCHASE DATE:_____________________ SERIAL NO.______________________________________
Please take a minute to fill out the survey below so that we can better serve our customers.
1. WHERE DID YOU FIRST HEAR ABOUT EZG MANUFACTURING? (CHECK ONE)
Masonry Magazine Website Newsletter Referral  Masonry Construction
Other: ________________________________________________________________
2. WHAT INFLUENCED YOU TO BUY?  QUALITY  PRICE  EASY TO USE  OTHER
3. WHO IS YOUR SALES REPRESENTATIVE? ___________________________________
4. ARE YOU SATISFIED WITH THE CUSTOMER SERVICE YOU RECEIVED?  YES  NO
Explain:______________________________________________________________
____________________________________________________________________
5. WHAT OTHER EZG MANUFACTURING PRODUCTS DO YOU OWN?
_________________________________________________
_________________________________________________
6. WOULD YOU LIKE TO BE FEATURED IN OUR NEWSLETTER?  YES  NO
If yes, where can we reach you and what is the best time?
_____________________________________________________________________
Comments:____________________________________________________________
_____________________________________________________________________
_____________________________________________________________________
WARRANTY REGISTRATION
PLEASE COMPLETE THIS WARRANTY CARD, AND RETURN VIA MAIL, FAX, OR E-MAIL,
WITHIN 30 DAYS OF PURCHASE TO VALIDATE YOUR MANUFACTURER’S WARRANTY
FOR ALL EZG MANUFACTURING PRODUCTS.
WARRANTY PROVISIONS OF THIS MACHINE ARE HANDLED DIRECTLY THROUGH
THE MANUFACTURER.
EZG MANUFACTURING * 1833 North Riverview Road, Malta, OH 43758 *
PHONE [phone] * Email: [email protected] * FAX [phone]
EZ Survey
Fax Warranty Registration form to 740-962-2037 or
submit online at www.ezgmfg.com by clicking on
“Resources” then “Warranty, lastly you can click on
the orange "Click Here to Register" button.
EZG Manufacturing 1-800-417-9272
www.ezgmfg.com Rev-006
S/N 181-Present 6/23/2022 20
