FARMINGTON EF200SL-52A User manual

Item #171-348
Model #32764
UL Model #EF200S(L)-52(A)
USE AND CARE GUIDE
FARMINGTON 52-INCH CEILING FAN
Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 7 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m. Saturday
1-877-527-0313
HOMEDEPOT.COM
THANK YOU
We appreciate the trust and condence you have placed in Home Depot through the purchase of this ceiling fan. We strive to continually create
quality products designed to enhance your home. Visit us online to see our full line of products available for your home improvement needs.
Thank you for choosing Home Depot!
To view an instructional video on how to install this product:
1. Go to www.homedepot.com and enter either the Item or Model number, found in the top
right corner of the cover of this instruction manual, in the search eld.
2. Click on your product from the list of search results and click on the video link in the
“Product Overview” section.

2
Table of Contents ................................................................2
Safety Information...............................................................2
Warranty ............................................................................... 3
Pre-Installation ....................................................................3
Installation............................................................................6
Assembly..............................................................................7
Operation ...........................................................................13
Care and Cleaning.............................................................14
Troubleshooting.................................................................14
1. All wiring must be in accordance with the National Electrical
Code ANSI/NFPA 70 and local electrical codes. Electrical
installation should be performed by a qualied licensed
electrician.
2. The outlet box and support structure must be securely mounted
and capable of reliably supporting 35 pounds (15.9 kg). Use
only UL Listed outlet boxes marked “Acceptable for Fan
Support of 35 pounds (15.9 kg) or less.”
3. The fan must be mounted with a minimum of 7 ft (2.1 m)
clearance from the trailing edge of the blades to the oor.
4. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
5. Do not place objects in the path of the blades.
6. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
7. All setscrews must be checked and retightened where
necessary before installation.
WARNING: To reduce the risk of personal injury,
do not bend the blade brackets (also referred to as
anges) during assembly or after installation. Do not
insert objects in the path of the blades.
WARNING: To reduce the risk of re or electric
shock, do not use this fan with any solid-state speed
control device.
WARNING: Remove the rubber motor stops on
the bottom of the fan before installing the blades or
testing the motor.
WARNING: To avoid possible electrical shock,
turn the electricity off at the main fuse box before
wiring. If you feel you do not have enough electrical
wiring knowledge or experience, contact a licensed
electrician.
Safety Information
Table of Contents
CAUTION: To reduce the risk of personal injury,
use only the screws provided with the outlet box.
CAUTION: To avoid personal injury or damage to the fan
and other items, use caution when working around or
cleaning the fan.
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“acceptable for fan support of 35 lbs. (15.9 kg) or
less” and use screws provided with the outlet box.
READ AND SAVE THESE INSTRUCTIONS.

3HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Pre-Installation
Warranty
The supplier warrants the fan motor to be free from defects in workmanship and material present at time of shipment from the factory for a life-
time after the date of purchase by the original purchaser. The supplier also warrants that all other fan parts, excluding any glass or acrylic blades,
to be free from defects in workmanship and material at the time of shipment from the factory for a period of two years after the date of purchase
by the original purchaser. We agree to correct such defects without charge or at our option replace with a comparable or superior model if the
product is returned. To obtain warranty service, you must present a copy of the receipt as proof of purchase. All costs of removing and reinstalling
the product are your responsibility. Damage to any part such as by accident or misuse or improper installation or by afxing any accessories, is
not covered by this warranty. Because of varying climatic conditions this warranty does not cover any changes in brass nish, including rusting,
pitting, corroding, tarnishing, or peeling. Brass nishes of this type give their longest useful life when protected from varying weather condi-
tions. A certain amount of “wobble” is normal and should not be considered a defect. Servicing performed by unauthorized persons shall render
the warranty invalid. There is no other express warranty. Home Depot hereby disclaims any and all warranties, including but not limited to those
of merchantability and tness for a particular purpose to the extent permitted by law. The duration of any implied warranty which cannot be
disclaimed is limited to the time period as specied in the express warranty. Some states do not allow a limitation on how long an implied war-
ranty lasts, so the above limitation may not apply to you. The retailer shall not be liable for incidental, consequential, or special damages arising
out of or in connection with product use or performance except as may otherwise be accorded by law. Some states do not allow the exclusion of
incidental or consequential damages, so the above exclusion or limitation may not apply to you. This warranty gives specic legal rights, and you
may also have other rights which vary from state to state. This warranty supersedes all prior warranties. Shipping costs for any return of product
as part of a claim on the warranty must be paid by the customer.
Contact the Customer Service Team at 1-877-527-0313 or visit www.HOMEDEPOT.com.
SPECIFICATIONS
TOOLS REQUIRED
NOTE: These are approximate measures. They do not
include the Amps and Wattage used by the light kit.
Phillips
screwdriver
Flat blade
screwdriver
Adjustable
wrench
Electrical
tape
Wire
cutter
Step ladder
Size Speed Volts Amps Watts RPM CFM Net
Weight
Gross
Weight Cube Feet
52 in.
Low
Medium
High
120
0.23
0.39
0.54
10
30
64
60
108
148
1683
3143
4525
13.67 lb
(6.2 kg)
15.40 lb
(7.0 kg)
1.50 ft³
(0.04 m³)

4
Part Description Quantity
AA Rubber gasket 1
BB Pull chain 1
CC Plastic wire connectors 3
DD Hanger pin 1
Part Description Quantity
EE Locking pin 1
FF Blade attachment screws 15
Pre-Installation (continued)
HARDWARE INCLUDED
NOTE: Hardware not shown to actual size.
AA
BB
CC
DD EE FF

5HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Part Description Quantity
ASlide-on mounting bracket
(inside canopy) 1
B Ball/downrod assembly 1
C Canopy 1
D Canopy ring 1
Part Description Quantity
E Fan-motor assembly 1
F Blade 5
G Blade bracket 5
IMPORTANT: This product and/or components are
governed by one or more of the following U.S. Patents:
5,947,436; 5,988,580; 6,010,110; 6,046,416, 6,210,117
and other patents pending.
Pre-Installation (continued)
PACKAGE CONTENTS
A
C
D
EG
F
B

6
Installation
MOUNTING OPTIONS
WARNING: To reduce the risk of re, electric shock
or personal injury, mount to outlet box marked
“Acceptable for fan support of 35 lbs. (15.9 Kg) or
less”, and use screws provided with the outlet box. An
outlet box commonly used for the support of lighting
xtures may not be acceptable for fan support and may
need to be replaced. If in doubt, consult a qualied
electrician.
If your ceiling fan does not have an existing UL-listed mounting
box, then install one using the following instructions:
□Disconnect the power by removing the fuses or turning off
the circuit breakers.
□Secure the outlet box directly to the building structure. Use
the appropriate fasteners and materials. The outlet box and
its bracing must be able to fully support the weight of the
moving fan (at least 35 lbs.). Do not use a plastic outlet box.
The illustrations below show three different ways to mount the
outlet box.
If the canopy touches the downrod, then remove the canopy bottom
cover, and turn the canopy 180° before attaching the canopy to the
mounting plate.
To hang your fan where there is an existing xture but no ceiling joist,
you may need an installation hanger bar as shown above
(available at any Home Depot store).
NOTE: You may need a longer downrod to maintain
proper blade clearance when installing on a steep, sloped
ceiling. The maximum angle allowable is 30° away from
horizontal.
Outlet Box
Outlet Box
Recessed
Outlet
Box
Provide Strong
Support
Ceiling
Mounting
Plate
Outlet Box
Hanger Bar

7HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Assembly - Standard Ceiling Mount

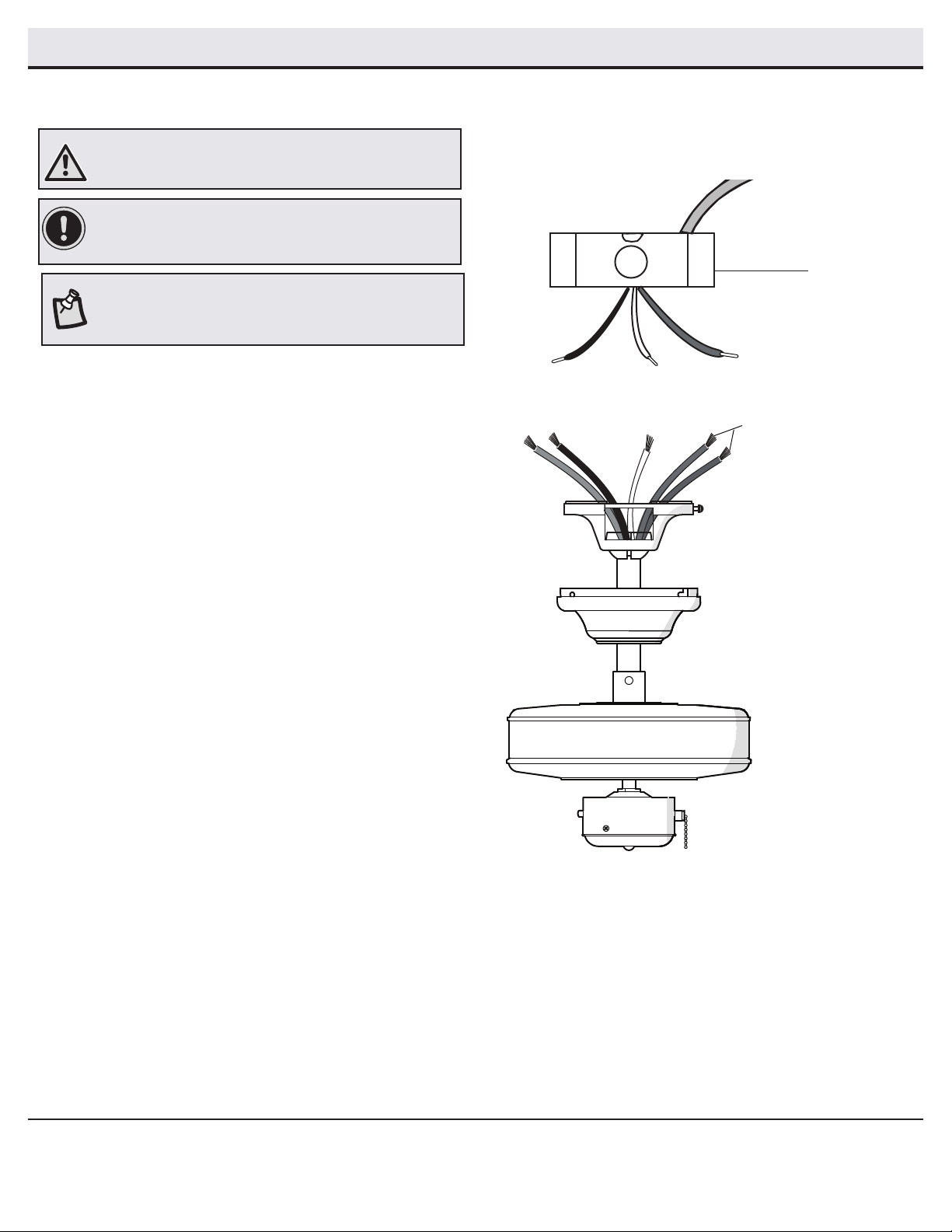

Routing the wires
Assembling the fan
Preparing for mounting
□Loosen, but do not remove, the two (2) setscrews (JJ) on
the collar on top of the motor housing (E).
□Align the holes at the bottom of the downrod (B) with the
holes in the collar on top of the motor housing (E).
□Carefully insert the hanger pin (DD) through the holes in the
collar and downrod (B). Be careful not to jam the hanger pin
(DD) against the wiring inside the downrod (B).
□Insert the locking pin (EE) through the hole near the end of
the hanger pin (DD) until it snaps into its locked position.
□Re-tighten the two (2) setscrews (JJ) on the collar on top
of the motor housing (E).
□Remove the canopy ring (D) from the canopy (C) by turning
the ring counterclockwise until it unlocks.
□Remove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (HH) located in the “L
shaped” slots.
□Remove and save the two canopy screws (HH) and lock-
washers (GG) in the round holes. This will enable you to
remove the mounting bracket (A).
□Route the wires exiting the top of the fan motor (E),
through the canopy ring (D).
□Make sure the slot openings are on top and route the
wires through the canopy (C) and then through the
ball/downrod assembly (B).
2
3
1
A
GG
HH
C
D
C
B
D
E
C
EE
D
B
JJ DD
E
WARNING: Failure to properly install the locking pin could
result in the fan becoming loose and possibly falling.

8
Assembly - Close-To-Ceiling Mount

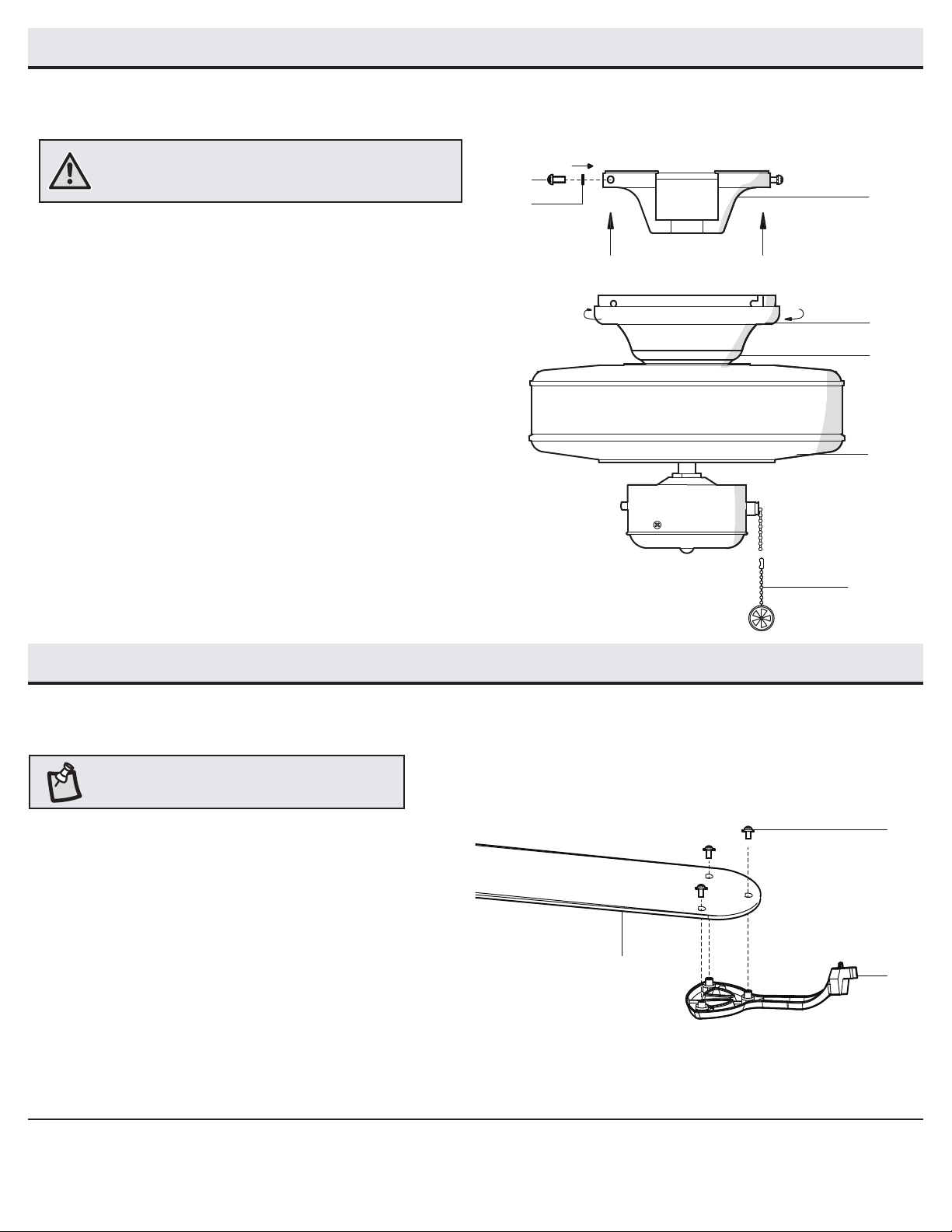

Assembly - Hanging the Fan
Attaching the fan to the electrical
box
□Pass the 120-Volt supply wires through the center hole in the
mounting bracket (A).
□Install the ceiling mounting bracket on the outlet box by sliding
the mounting bracket (A) over the two screws (II) provided with
the outlet box. If necessary, use leveling washers (not included)
between the mounting bracket (A) and the outlet box. Note that
the at side of the mounting bracket (A) is toward the outlet box.
When using close-to-ceiling mounting, it is important that the
mounting bracket be level.
□Securely tighten the two mounting screws (II).
1
WARNING: To reduce the risk of re, electric shock or personal
injury, mount to outlet box marked “Acceptable for fan support
of 35lbs. (15.9 Kg) or less”, and use screws provided with the
outlet box.
A
IIII
Close-to-Ceiling Mounting Routing the wires
1 2
□Remove canopy ring (D) from the canopy (C) by turning the
ring counterclockwise until it unlocks.
□Remove the mounting bracket (A) from the canopy (C) by
loosening the two canopy screws (HH) located in the “L
shaped” slots.
□Remove and save the two canopy screws (HH) and lock-
washers (GG) in the round holes. This will enable you to
remove the mounting bracket (A).
□Remove the decorative canopy bottom cover (N) from the
canopy (C) by pressing the three studs located inside the
bottom of the canopy.
□Remove three of the six screws (KK) and lock washers (LL)
(every other one) securing the motor collar to the top of the
fan motor housing (E).
□Place the rubber gasket (AA) over the remaining three screws,
route the wires exiting the top of the fan motor (E) through
the canopy ring (D). Make sure the slot opening is on top, then
proceed to place the ceiling canopy (C) over the collar at the
top of the motor (E).
□Align the mounting holes with the holes in the motor (E) and
fasten, using the three screws (KK) and lock washers (LL)
removed previously. Tighten the mounting screws securely.
C
KK
LL
AA
D
E
A
GG
HH
C
D
N

9HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Assembly - Hanging the Fan (continued)
Hanging the fan
2
XX
D
A
B
E
A
C
Close to ceiling mount.
Standard mount.
C
D
E
□Carefully lift the fan-motor assembly (E) up to the slide-on
mounting bracket (A).
□Insert the ball portion of the ball/downrod assembly into
the socket of the slide-on mounting bracket.
□Turn the ball/downrod assembly clockwise until it is seated
with the tab of the slide-on mounting bracket aligned with
the slot in the ball.
□If using close-to-ceiling mounting, hang the fan on the
hook provided by utilizing one of the holes at the outer rim
of the ceiling canopy (C).
WARNING: The hook (XX) is only to balance the fan while
making the electrical connections. Failure to hang as shown
may result in the hook (XX) breaking, causing the fan to fall.
The hook must pass from the inside to the outside of the
canopy.
WARNING: When hanging the fan on the hook (XX) it is
critical that you use one of the non-slotted (round) holes in
the canopy (C).

10
Assembly - Hanging the Fan (continued)
Making the electrical connection
3
□The fan comes with 54 in. lead wires for use with an extended
ball/downrod assembly. If using the 4.5 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your
desired length (no shorter than 12 in.) This will make extra
room in the canopy (C), if you do not wish to cut the wires,
you will need to neatly wrap them.
□Connect the ground conductor of the 120-Volt supply (this
may be a bare wire or a wire with green colored insulation)
to the green ground lead(s) of the fan. When using standard
ceiling mounting, there are two green grounding leads; one
from the ceiling mounting bracket and one from the ball/
downrod assembly. When using close to ceiling mounting,
there is only one green grounding lead from the ceiling
mounting bracket since the ball/downrod assembly is not
used.
□Connect the fan motor white wire to the household white wire
using a wire connecting nut (CC).
□Connect the fan motor black and blue wires to the household
black wire using a wire connecting nut (CC).
□Secure each wire connecting nut using electrical tape.
□Turn the wire connecting nut (CC) upward and push the wiring
into the outlet box (NN).
IMPORTANT: Use the wire connecting nuts (CC) supplied with your
fan. Secure the connectors with electrical tape and ensure there
are no loose strands or connections.
NOTE: The fan comes with 54 in. lead wires for use with an
extended ball/downrod assembly. If using the 4.5 in. ball/downrod
assembly (B) provided, you can cut the lead wires to your desired
length (no shorter than 12 in.).
WARNING: Remove the rubber motor stops on the bottom of the
fan before installing the blades or testing the motor.
Outlet box
in the ceiling
NN
Green or Bare
Green
Black White
Blue & Black White

11 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
A
D
C
E
BB
Assembly - Hanging the Fan (continued)
5
Wrapping the extra wire
□Gently wrap the excess wire around the mounting bracket.
□Secure with electrical tape.
4
NOTE: Follow this step ONLY if you did not cut the extra length off
from the wires coming from the ceiling fan.
Mounting the fan-motor assembly
(standard mount)
□Align the locking slots of the ceiling canopy (C) with the two
screws (HH) in the mounting bracket (A). Push up to engage
the slots and turn clockwise to lock in place.
□Immediately tighten the two mounting screws rmly.
□Install the two mounting screws (HH) (saved from Assembly
Step 1 “Prepairing for mounting”) into the holes in the
canopy (C) and tighten rmly.
□Install the decorative canopy ring (D) by aligning the ring’s
slots with the screws in the canopy (C). Rotate the ring
clockwise to lock in place.
□Install the pull chain extension (BB).
WARNING: When using the standard ball/downrod mounting, the
tab in the ring at the bottom of the mounting bracket must rest in
the groove of the hanger ball. Failure to properly seat the tab in
the groove could cause damage to the wiring.
WARNING: The locking slots of ceiling canopy are provided only
as an aid to mounting. Do not leave the fan assembly unattended
until all four canopy screws are engaged and rmly tightened.

12
Assembly - Attaching the Fan Blades
Attaching the fan blades
7
□Attach blade (F) to blade bracket (G) using the screws (FF)
provided. Please note that the rubber washers are pre-
attached to the blade bracket (G). Insert a screw into the
blade bracket (G). Repeat for the two remaining screws (FF).
□Tighten each screw securely.
□Repeat for the remaining blades.
F
FF
G
Close-to-Ceiling mounting
6
A
D
C
E
GG
HH
BB
Assembly - Hanging the Fan (continued)
NOTE: Your fan blades are reversible. Select the blade
side nish which best accentuates you decor.
WARNING: The locking slots of the ceiling canopy are provided only
as an aid to mounting. Do not leave the fan assembly unattended
until all four canopy screws are engaged and rmly tightened.
□Carefully unhook the fan from the mounting bracket (A) and
align the locking slots of the ceiling canopy (C) with the two
screws in the mounting bracket (A). Push up to engage the
slots and turn clockwise to lock the canopy (C) in place.
□Immediately tighten the two mounting screws rmly.
□Install the two mounting screws (HH) and lock-washers
(GG) (saved from Assembly Step 1 “Prepairing for mount-
ing”) into the holes in the canopy (C) and tighten rmly.
□Install the canopy ring (D) by aligning the ring’s slots with
screws in the canopy (C). Rotate the ring clockwise to lock in
place.
□Install the pull chain extension (BB).

13 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Assembly - Attaching the blade brackets
Attaching the blade brackets
8□Fasten the blade bracket (G) to the motor (E) by inserting the
alignment post into the slot on the bottom of the fan-motor
assembly (E) and tightening the motor screws that are pre-
assembled to the blade bracket (G).
□Repeat for the remaining four blade brackets (G).
E
G
F

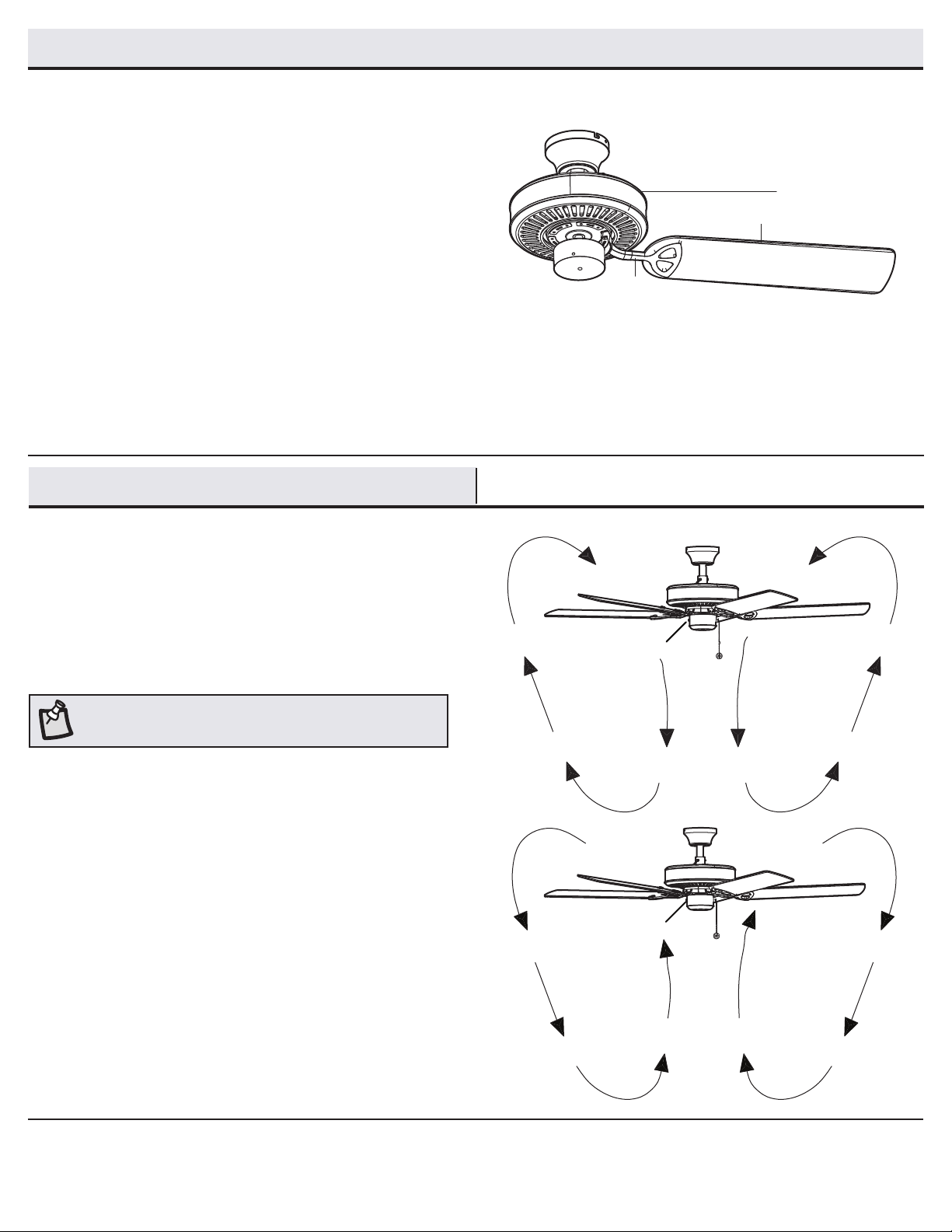

Operation
Turn on the power and check the operation of the fan. The pull
chain controls the fan speeds as follows:
1 pull - High, 2 pulls - Medium, 3 pulls - Low, 4 pulls - off
The appropriate speed settings for warm or cool weather depends
on factors such as the room size, ceiling height, and number of
fans.
The slide switch (YY) controls the direction of the blades: forward
(switch down) or reverse (switch up)
Warm weather - (Forward) A downward airow creates a cooling ef-
fect. This allows you to set your air conditioner on a warmer setting
without affecting your comfort.
Cool weather - (Reverse) An upward airow moves warm air off of
the ceiling. This allows you to set your heating unit on a cooler set-
ting without affecting your comfort.
NOTE: Wait for the fan to stop before reversing the direction of
blade rotation.
YY
YY

14
Troubleshooting
Problem Solution
The fan will not start. □Check the main and branch circuit fuses or breakers.
□Check the line wire connections to the fan and switch wire connections in the switch housing.
The fan is noisy. □Ensure all motor housing screws are snug.
□Ensure the screws that attach the fan blade bracket to the motor hub are tight.
□Ensure the wire nut connections are not rattling against each other or the interior wall of the switch housing.
□Allow a 24-hour “breaking in” period. Most noises associated with a new fan disappear during this time.
□If you are using the Ceiling Fan light kit, ensure the screws securing the glassware are tight. Check that the light
bulbs are also secure.
□Ensure the canopy is a short distance from the ceiling. It should not touch the ceiling.
□Ensure your outlet box is secure and rubber isolator pads were used between the mounting plate and outlet box.
The fan wobbles. □Check that all blade and blade arm screws are secure.
□Most fan wobble problems are caused when blade levels are unequal. Check this level by selecting a point on
the ceiling above the tip of one of the blades. Measure from a point on the center of the blade to the point on the
ceiling. Rotate the fan until the next blade is positioned for measurement, and measure from the same point on
each blade to the ceiling. Repeat for each blade. Any measurement deviation should be within 1/8 in. Run the fan
for ten minutes. If the fan continues to wobble please contact Home Depot Customer Service and a balacing kit
will be sent to you at no charge.
□Because of the fan’s natural movement, some connections may become loose. Check the support connections, brackets, and blade
attachments twice a year. Make sure they are secure. It is not necessary to remove the fan from the ceiling.
□Clean your fan periodically to help maintain its new appearance over the years. Do not use water when cleaning, as this could damage
the motor, or the wood, or possibly cause an electrical shock. Use only a soft brush or lint-free cloth to avoid scratching the nish. The
plating is sealed with a lacquer to minimize discoloration or tarnishing.
□You can apply a light coat of furniture polish to the wood for additional protection and enhanced beauty. Cover small scratches with a
light application of shoe polish.
□You do not need to oil your fan. The motor has permanently-lubricated sealed ball bearings.
WARNING: Make sure the power is off before cleaning
your fan.
Care and Cleaning

15 HOMEDEPOT.COM
Please contact 1-877-527-0313 for further assistance.
Questions, problems, missing parts? Before returning to the store,
call Home Depot Customer Service
8 a.m. - 6 p.m., EST, Monday-Friday, 9 a.m. - 6 p.m. EST, Saturday
1-877-527-0313
HOMEDEPOT.COM
Retain this manual for future use.

Artículo Núm. 171-348
Modelo Núm. 32764
Modelo Núm. EF200S(L)-52(A) Aprobado por UL
GUÍA DE USO Y MANTENIMIENTO
VENTILADOR DE TECHO FARMINGTON DE 52 PLG
¿Preguntas, problemas o piezas faltantes? Antes de regresar a la tienda,
llama al servicio al cliente de Home Depot
de lunes a viernes, de 8:00 a.m. a 7:00 p.m. (hora estándar del Este),
y los sábados de 9:00 a.m. a 6:00 p.m. (hora estándar del Este)
1-877-527-0313
HOMEDEPOT.COM
GRACIAS
Apreciamos la conanza que has depositado en Home Depot al comprar este ventilador de techo. Nos esforzamos para crear constantemente productos de
calidad diseñados para tu hogar. Visítanos por Internet para ver nuestra línea completa de productos disponibles para las necesidades de mejoras de tu hogar.
¡Gracias por elegir Home Depot!
Para ver un video instructivo sobre cómo instalar este producto:
1. Ir a www.homedepot.com e introduzca el artículo o el número de modelo, que se
encuentra en la part superior esquina derecha de la portada de este manual de
instrucciones, en el campo de búsqueda.
2. Haga clic en su producto de la lista de resultados de búsqueda y hacer clic en el enlace
del video en el la sección "Descripción del producto".

2
Tabla de contenido .............................................................. 2
Información de seguridad...................................................2
Garantía................................................................................3
Preinstalación ......................................................................3
Instalación............................................................................6
Ensamblaje........................................................................... 7
Funcionamiento.................................................................13
Mantenimiento y limpieza.................................................14
Solución de problemas ..................................................... 14
1. Todo el cableado debe cumplir con el Código Nacional de
Electricidad ANSI/NFPA 70 y con los códigos locales de
electricidad. La instalación eléctrica debe ser realizada por un
profesional calicado y con licencia.
2. La caja eléctrica y estructura de soporte deben montarse de
forma segura y tener capacidad para sostener de manera
conable 35 lb (15.9 kg). Usa solamente cajas eléctricas
aprobadas por UL marcadas como “apropiada para sostener
ventiladores de 35 lb (15.9 kg) o menos”.
3. El ventilador debe ir montado con un mínimo de 2.1 m de
separación entre el borde trasero de las aspas y el piso.
4. Do not operate the reversing switch while the fan blades are in
motion. You must turn the fan off and stop the blades before
you reverse the blade direction.
5. Do not place objects in the path of the blades.
6. After making electrical connections, spliced conductors should
be turned upward and pushed carefully up into the outlet box.
The wires should be spread apart with the grounded conductor
and the equipment-grounding conductor on one side of the
outlet box.
7. All setscrews must be checked and retightened where
necessary before installation.
ADVERTENCIA: Para reducir el riesgo de lesiones
personales, no dobles los soportes de las aspas
(también llamados “bridas”) durante o después de la
instalación. No coloques objetos en la trayectoria de
las aspas.
ADVERTENCIA: Para reducir el riesgo de incendio o
descarga eléctrica, no utilices este ventilador con ningún
dispositivo de control de velocidad de estado sólido.
ADVERTENCIA: Quita los tapones de goma del motor
en la parte inferior del ventilador antes de instalar
las aspas o de vericar el motor.
ADVERTENCIA: Para evitar una posible descarga
eléctrica, apaga la electricidad en la caja principal
de fusibles antes de instalar el cableado. Si crees
que no tienes suciente conocimiento o experiencia
sobre cableado eléctrico, contacta a un electricista
certicado.
Información de seguridad
Tabla de contenido
PRECAUCIÓN: Para reducir el riesgo de lesiones, usa
sólo los tornillos incluidos con la caja eléctrica.
PRECAUCIÓN: Para evitar lesiones personales o daños
al ventilador y otros artículos, ten cuidado al limpiar o
trabajar cerca del ventilador.
ADVERTENCIA: Para reducir el riesgo de incendio,
descarga eléctrica u otras lesiones, instala sólo en
una caja eléctrica clasicada como “apropiada para
sostener ventiladores de 35 lb (15.9 kg) o menos” y
usa sólo los tornillos incluidos con la caja eléctrica.
LEE Y GUARDA ESTAS INSTRUCCIONES.

3HOMEDEPOT.COM
Para obtener asistencia, llama al 1-877-527-0313.
Preinstalación
Garantía
El proveedor garantiza de por vida, a partir de la fecha en que el comprador original lo adquiere, que el motor del ventilador no presenta defectos de
fabricación ni de materiales al momento en que es enviado desde la fábrica. El proveedor también garantiza por un período de dos años, a partir de la
fecha de compra por el comprador original, que ninguna de las demás piezas del ventilador, sin incluir las aspas de vidrio o acrílico, presenta defectos de
fabricación o de material en el momento de su salida de la fábrica. Acordamos reparar todos los defectos del tipo antes mencionado sin cargo alguno o,
a nuestra discreción, reemplazar el producto por un modelo de igual calidad o superior si el producto es devuelto. Para obtener servicio de garantía, debe
presentar una copia del recibo como comprobante de compra. Todos los costos de retiro y reinstalación del producto están a su cargo. No están cubiertos
bajo esta garantía daños a ninguna de las piezas como resultado de accidentes, instalación o uso incorrectos o debido a la instalación de cualquier
accesorio. Debido a que las condiciones climáticas pueden variar, esta garantía no cubre ningún cambio en el acabado en bronce, incluyendo óxido,
perforación, corrosión, manchas o descascaramiento. Los acabados en bronce de este tipo tienen una vida útil más prolongada cuando se los protege
de las condiciones climáticas cambiantes. Es normal cierta “oscilación” y no se considerará un defecto. Cualquier servicio realizado por personal no
autorizado invalidará la garantía. No existe ninguna otra garantía expresa. Mediante la presente, Home Depot se exime de cualquier garantía, incluyendo,
entre otras, aquellas de comercialización e idoneidad para un n particular, de acuerdo con lo contemplado por la ley. La duración de cualquier garantía
implícita que no se pueda eximir está limitada al período de tiempo especicado en la garantía explícita. Algunos estados no permiten una limitación
en la duración de la garantía; por consiguiente, la limitación anterior puede no aplicarse a su caso. El minorista no será responsable por daños directos,
indirectos o especiales que resulten o deriven del uso o rendimiento del producto, excepto en casos en que lo estipule la ley. Algunos estados no permiten
la exclusión o limitación de daños directos o indirectos, por lo que la limitación o exclusión anterior podría no aplicarse a su caso. Esta garantía le otorga
derechos legales especícos y es posible que también tenga otros derechos que varían de un estado a otro. Esta garantía sustituye todas las garantías
anteriores. Los costos de envío de cualquier devolución de productos hecha como parte de una reclamación de garantía están a cargo del cliente.
Comuníquese con el equipo de servicio al cliente al 1-877-527-0313 o visite www.HOMEDEPOT.com.
ESPECIFICACIONES
HERRAMIENTAS NECESARIAS
NOTA:Estas medidas son aproximadas. No incluyen ni
el amperaje ni el vataje consumido por el kit de luces.
Destornillador
Phillips
Destornillador
plano
Llave
ajustable
Cinta de
electricista Cortacables
Escalera de tijera
Tamaño Velocidad Voltios Amperes Watts RPM CFM Peso
neto Peso bruto Pies cúbicos
52 plg
Baja
Media
Alta
120
0.23
0.39
0.54
10
30
64
60
108
148
1683
3143
4525
13.67 lb
(6.2 kg)
15.40 lb
(7.0 kg)
1.50 ft³
(0.04 m³)

4
Pieza Descripción Cantidad
AA Junta de goma 1
BB Interruptor de cadena 1
CC Conectores plásticos para cables 3
DD Pasador de soporte 1
Pieza Descripción Cantidad
EE Pasador de cierre 1
FF Tornillos para montaje de aspas 15
Preinstalación (continuación)
HERRAJES INCLUIDOS
NOTA: No se muestra el tamaño real de los
herrajes.
AA
BB
CC
DD EE FF

5HOMEDEPOT.COM
Para obtener asistencia, llama al 1-877-527-0313.
Pieza Descripción Cantidad
ASoporte de montaje deslizante
(dentro de la cubierta) 1
B Ensamblaje de tubo bajante/bola 1
C Cubierta 1
D Anillo de la cubierta 1
Pieza Descripción Cantidad
E Ensamblaje del motor del ventilador 1
F Aspa 5
G Soporte de aspa 5
IMPORTANTE: Este producto o sus componentes están
protegidos por una o más de las siguientes patentes de
los EE. UU.: 5,947,436; 5,988,580; 6,010,110; 6,046,416,
6,210,117 y otras patentes pendientes.
Preinstalación (continuación)
CONTENIDO DEL PAQUETE
A
C
D
EG
F
B
