Installation and Operating Instructions
WaterQuick Tankless - Hot Water Circulation Pump
Step 1. Choose the appropriate place to install the pump and Flow Monitor:
WaterQuick Tankless can be installed in several different configurations. The circulation
pump and Flow Monitor can be mounted in either the cold water supply line to the water heater
or in the hot water line going out of the water heater into the house.
Note: It is important that you take into consideration how the pump will be supported and where
there is access to an electrical outlet.
Cold Water Line:
If you install the circulation pump and Flow Monitor in the cold-water line it must be located on
the pipe that is the sole supply of water for the tankless heater. If it supplies water to any other
fixture it will lead to false activation of the pumping system.
Hot Water Line:
The pump and Flow Monitor can be installed in the hot water line that comes out of the water
heater and goes into the house. It does not need to be located next to the water heater, but it
needs to be located before the first hot water lateral.
WaterQuick Tankless
with built-in Pump Manager

[phone]
The volute of the pump (silver part) can be installed in either a vertical or
horizontal orientation. However, the can (green part) must be installed in
a horizontal orientation.
The orientation of the pump can be changed by unscrewing the 4 hex head
bolts (circled in picture below) that hold the can and volute together and
rotating the can as necessary. The black electrical box with the 3 speed
toggle switch does not need to be on top.
Step 2. Turn off water heater:
Turn off the water heater.
Step 3. Turn off water:
Turn off the cold water supply line to the water heater.
Step 4. Drain the hot water lines:
Remove the caps on the water drain valves and turn the valves to allow water to drain from the
water heater.
Note: If water continues to flow, check to make sure that the water has been completely turned
off. If the valve does not shut off the water flow completely turn off the valve supplying water to
the house or at the water meter.
Step 5. Cut the appropriate cold or hot water line and install pump and Flow Monitor:
Install pump and Flow Monitor into the water line using the appropriate fittings. We suggest
using at least one union for ease of assembly.
Note: Make sure the arrows on the pump and Flow Monitor are pointed in the direction of
water flow.
Pump Orientation

[phone]
Step 6. Turn on water:
Once all of your connections are complete, replace caps on water drain valves and turn water
back on. Check for leaks. Repair as necessary.
Step 7. Connect the pump and the Flow Monitor:

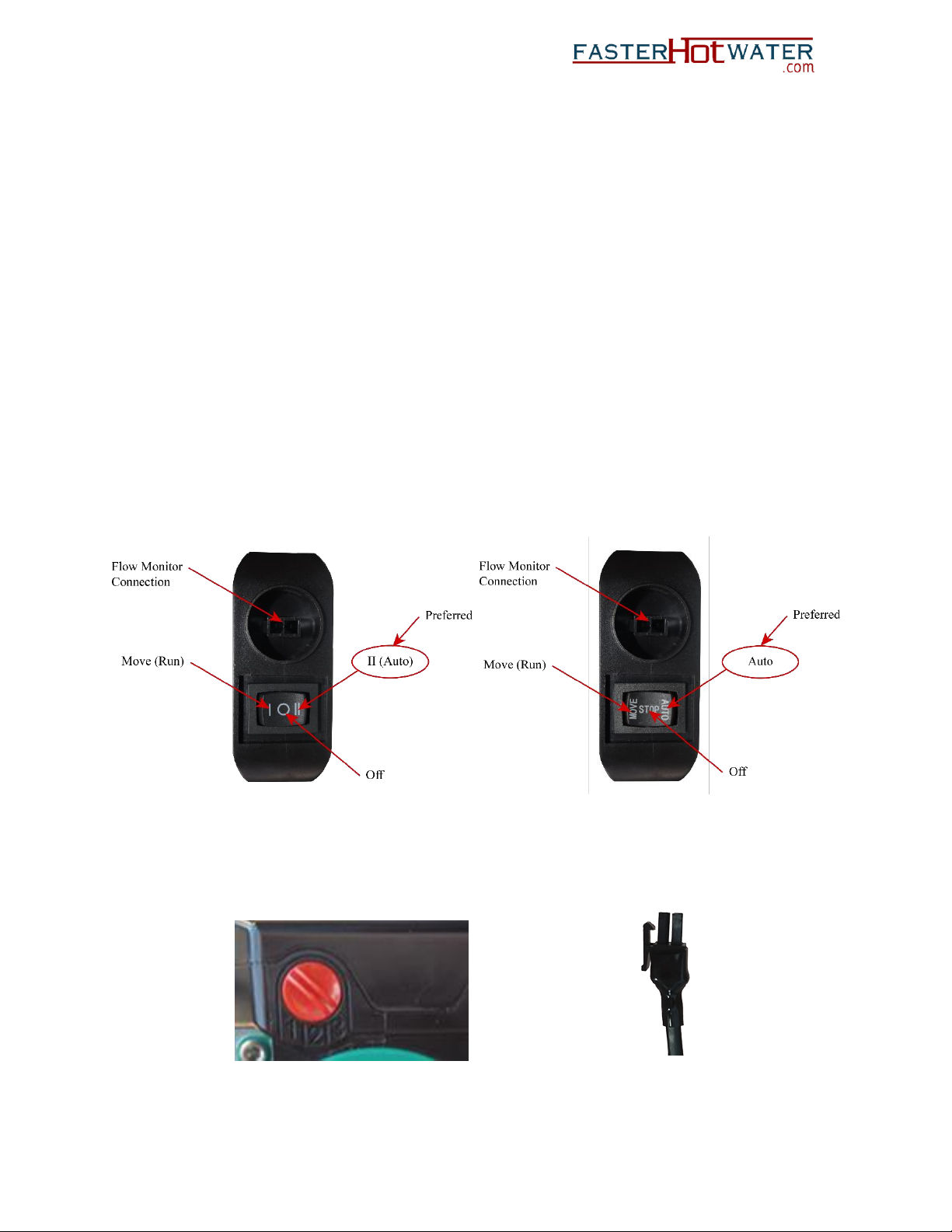

There are 2 switches that control the speed of the pump and how it works. The first switch is a
rocker switch located in the pump power cord and contains the connection box that the Flow
Monitor wire connects into. There are 2 different styles as shown below:
•Move, Off and Auto (“Auto” is the correct position) or
•I Bar, O and II bars (“II bars” is the correct position)
Connect the wire from the Flow Monitor to the connector in the electrical wire from the pump.
Snap the switch into the Auto or II bars position.
The second switch is the red switch on the pump. It controls the speed of the pump and has 3
settings –1 (low), 2 (medium) and 3 (high). Set pump to run on 3 (high).
Connector

[phone]
Step 7. Plug the pump in:
Set pump toggle switch to the 3setting for the highest speed.
Step 8. Plug the pump in:
Plug the pump into a properly grounded 110 vAC outlet.
Step 9. Test pump operation:
Turn on any hot water faucet in the house to start the pump. Turn off the faucet to stop the pump
(assuming that the Bridge Valve has not been installed yet).
Note: If the Bridge Valve has been installed the pump will continue to run until 95°F water
reaches the sink where the Bridge Valve is installed. The temperature sensor in the Bridge
Valve will shut off and the water will stop flowing (unless a hot water faucet is open).
Bridge Valve Installation
Location:
The Advanced Bridge Valve should be installed under the kitchen or bathroom sink that is the
farthest fixture from the water heater. Branched plumbing systems will need an Advanced
Bridge Valve at the end of each line. Additional Advanced Bridge Valves are available at
www.FasterHotWater.com.
Installation:
1. Turn off water to the house and drain the water from the pipes.
2. Turn off both the hot and cold angle stops (valves) below the sink.
3. Disconnect existing hot and cold water supply lines from the angle stops and replace
angle stops with custom angle stops (see below).
4. Attach new stainless steel advanced 1/2" x 1/2" supply lines to angle stops.
Note: Do not use Teflon tape or pipe dope on Advanced Bridge Valve connections.
5. Attach other end of advanced supply lines to the appropriate "Cold Water In" and "Hot
Water In" ports of the Advanced Bridge Valve. Tighten finger tight plus a quarter turn
with a wrench.

[phone]
Do not over tighten.
6. Attach existing faucet supply lines to the appropriate "Cold Water Out" and "Hot Water
Out" ports of the Advanced Bridge Valve (if the existing supply lines are 3/8”, use the
1/2" x 3/8” adapters). Tighten finger tight plus a quarter turn with a wrench.
Do not over tighten.
7. Attach other end of standard supply lines to the faucet. Tighten finger tight plus a quarter
turn with a wrench.
Do not over tighten.
8. Leave angle stops in the off position and turn the house water back on and check for
leaks.
9. Open both the hot water and cold water angle stops and check for leaks.
10. Turn on water: Make sure that a hot water faucet is turned on in the house and then
slowly turn the water back on to the water heater. Check for leaks and repair as
necessary. Leave the water running until all of the air has been purged from the water
pipes. Turn off the faucet.

[phone]
Bridge Valve Operation
The following steps will determine if the Bridge Valve is operating correctly.
1. Close the cold water angle stop (valve) below the sink where the Bridge Valve is located.
2. Open the cold water faucet.
3. Water should flow from the faucet until warm water (95°F) reaches the Bridge Valve.
The flow should gradually decrease until no water is coming from the faucet at which
time the Bridge Valve has closed.
Safety Warning
Warning: Risk of electrical shock. This pump is supplied with a grounding
conductor. To reduce the risk of electrical shock, be certain that it is connected only to
a properly grounded grounding type receptacle. The safe operation of this pump
requires that I be grounded in accordance with the national Electrical Code and local
government regulations.
Operating Instructions
To activate the WaterQuick Tankless –Red Pump, simply turn on any hot water faucet in the
house and quickly turn it off.
This will start the pump and within a few seconds you will have hot water everywhere in your
home. The amount of time that you wait varies from home to home and is dependent on how far
the sink is from the water heater, the size of your water pipes and how many turns there are in the
water pipes.

[phone]
