Felix Storch Summit CR2B223G User manual

ELECTRIC COOKTOP
OWNER'S MANUAL
Model Nos.: CR2B223G / CR2B224S
BEFORE USE, PLEASE READ AND FOLLOW ALL SAFETY RULES AND OPERATING INSTRUCTIONS.
Felix Storch, Inc.
An ISO 9001:2008 registered company
770 Garrison Avenue
Bronx, NY 10474
www.summitappliance.com
Write Model & Serial Nos. (on bottom of unit) here:
Model No.: ______________________________
Serial No.: ______________________________

1
TABLE OF CONTENTS
Appliance Safety
2
Important Safeguards
2-3
Location of Parts
5
Installation Instructions
6-9
Before Using Your Appliance
6
Installation of Your Appliance
6-7
Electrical Connection
8-9
Operating Your Appliance
9-10
Operating Your Cooktop
9
Operating Indicators
9
Residual Heat Indicator
9
Cookware Selection
9-10
Care and Maintenance
11-12
Cleaning Your Appliance
11
Cleaning Surface Units and Reflector Bowls (only for
Model CR2B224S)
11-12
Troubleshooting
13
Limited Warranty
15

2
APPLIANCE SAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read
and obey all safety messages.
This is the Safety Alert Symbol. The symbol alerts you to potential hazards that
can kill or injure you and others. All safety messages will follow the Safety
Alert Symbol and either the words DANGER or WARNING.
DANGER means that failure to heed this safety
statement may result in severe personal injury or
death.
WARNING means that failure to heed this safety
statement may result in extensive product
damage, serious personal injury, or death.
All safety messages will alert you about the potential hazard, tell you how to reduce the chance of injury,
and let you know what can happen if the instructions are not followed.
IMPORTANT SAFEGUARDS
Before the appliance is used, it must be properly positioned and installed as
described in this manual, so read the manual carefully. To reduce the risk of fire,
electrical shock or injury when using the appliance, follow basic precautions,
including the following:
It is recommended that a separate circuit serving only your appliance be provided. Use receptacles
that cannot be turned off by a switch or pull chain.
Never clean appliance parts with flammable fluids. These fumes can create a fire hazard or explosion.
And do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any
other appliance. The fumes can create a fire hazard or explosion.
Before proceeding with cleaning and maintenance operations, make sure the power line of the unit is
disconnected.
Unplug the appliance or disconnect power before cleaning or servicing. Failure to do so can result in
electrical shock or death.
User Servicing - Do not attempt to repair or replace any part of your appliance unless it is specifically
recommended in this manual. All other servicing should be referred to a qualified technician.

3
FOLLOW WARNING CALLOUTS BELOW ONLY WHEN APPLICABLE TO YOUR MODEL
This appliance is only intended for residential cooking. The manufacturer cannot be held responsible
for damage or injury caused by improper use or for uses other than those for which this appliance is
intended.
Do not touch hot surfaces. Use handles or knobs.
To protect against electrical shock do not immerse cord or body of unit in water or other liquid.
Close supervision is necessary when any appliance is used by or near children.
Do not operate any appliance with a damaged cord or after the appliance malfunctions or has been
damaged in any manner. Return appliance to the nearest authorized service facility for examination,
repair, or adjustment.
The use of accessory attachments not recommended by the appliance manufacturer may cause
injuries.
Do not use outdoors.
Do not let cord hang over edge of table or counter, or touch hot surfaces.
Extreme caution must be used when moving an appliance containing hot oil or other hot liquids.
To disconnect power, turn any control to "OFF”.
CAUTION - Do not store items of interest to children in cabinets above a range or on the backguard
of a range –children climbing on the range to reach items could be seriously injured.
Do Not Cook on Broken Cooktop - If cooktop should break, cleaning solutions and spillovers may
penetrate the broken cooktop and create a risk of electric shock.
Clean Cooktop with Caution - If a wet sponge or cloth is used to wipe spills on a hot cooking area, be
careful to avoid steam burn. Some cleaners can produce noxious fumes if applied to a hot surface.
The appliance must be installed with all electrical, water and drain connections in accordance with
state and local codes. A standard electrical supply (240 V AC only, 60 Hz), properly grounded in
accordance with the National Electrical Code and local codes and ordinances, is required.
Electrical Grounding Instructions - The appliance must be installed and grounded by a qualified
technician in accordance with the National Electrical Code ANSI/NFPA No. 70 (Latest Edition) and
local electrical code requirements.
Do not kink or pinch the power supply cord of the appliance.
The size of the fuse (or circuit breaker) should be 20 amperes.
Proper Installation - Be sure your appliance is properly installed, per the manufacturer instructions.
Never use your appliance for warming or heating the room.
Do Not Leave Children Alone - Children should not be left alone or unattended in area where the
appliance is in use. They should never be allowed to sit or stand on any part of the appliance.
Use Proper Pan Size - This appliance is equipped with one or more surface units of different size.
Select utensils having flat bottoms large enough to cover the surface unit heating element. The use
of undersized utensils will expose a portion of the heating element to direct contact and may result in
ignition of clothing. Proper relationship of utensil to burner will also improve efficiency.
Never Leave Surface Units Unattended at High Heat Settings –Boil-over causes smoking and greasy
spillovers that may ignite and can create a Fire Hazard.
Do Not Touch Heating Elements or Areas Near Heating Elements - Heating elements may be hot
even though they are dark in color. Areas near heating elements may become hot enough to cause
burns. During and after use, do not touch or let clothing or other flammable materials contact heating
elements or areas near heating elements until they have had sufficient time to cool. Among these
areas are the cooktop and surfaces facing the cooktop.
Wear Proper Apparel –Loose-fitting or hanging garments should never be worn while using the
appliance.
Storage in or on Appliance –Flammable materials should not be stored in an oven or near surface
units.
Do Not Use Water on Grease Fires –Smother fire or flame or use dry chemical or foam-type

4
extinguisher.
Use Only Dry Potholders –Moist or damp potholders on hot surfaces may result in burns from steam.
Do not let potholder touch hot heating elements. Do not use a towel or other bulky cloth.
Make Sure Reflector Pans or Drip Bowls Are in Place –Absence of these pans or bowls during
cooking may subject wiring or components underneath to damage.
Protective Liners –Do not use aluminum foil to line surface unit drip bowls or oven bottoms, except
as suggested in the manual. Improper installation of these liners may result in a risk of electric shock,
or fire.
Glazed Cooking Utensils –Only certain types of glass, glass/ceramic, ceramic, earthenware, or other
glazed utensils are suitable for range-top service without breaking due to the sudden change in
temperature.
Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent Surface Units –To reduce
the risk of burns, ignition of flammable materials, and spillage due to unintentional contact with the
utensil, the handle of a utensil should be positioned so that it is turned inward, and does not extend
over adjacent surface units.
Do Not Soak Removable Heating Elements –Heating elements should never be immersed in water.
Use this appliance only for its intended purpose as described in this Owner’s Manual.
- SAVE THESE INSTRUCTIONS -

5
LOCATION OF PARTS
MODEL CR2B223G
BURNER(1200W/5 ")
BURNER(1800W/7")
RESIDUAL HEAT INDICATOR
OPERATING INDICATOR
CONTROL KNOB
4
3
MODEL CR2B224S
OPERATING INDICATOR
BURNER(1800W/8")
CONTROL KNOB
BURNER(1200W/6")

6
INSTALLATION INSTRUCTIONS
BEFORE USING YOUR APPLIANCE
Remove the exterior packing.
Check if there is any damage to the unit.
Clean the unit. A thorough cleaning with a recommended cooktop cleaner will provide a clean, shiny
coating on the cooktop surface.
INSTALLATION OF YOUR APPLIANCE
Follow these directions to prepare the countertop cutout and install your ceramic cooktop:

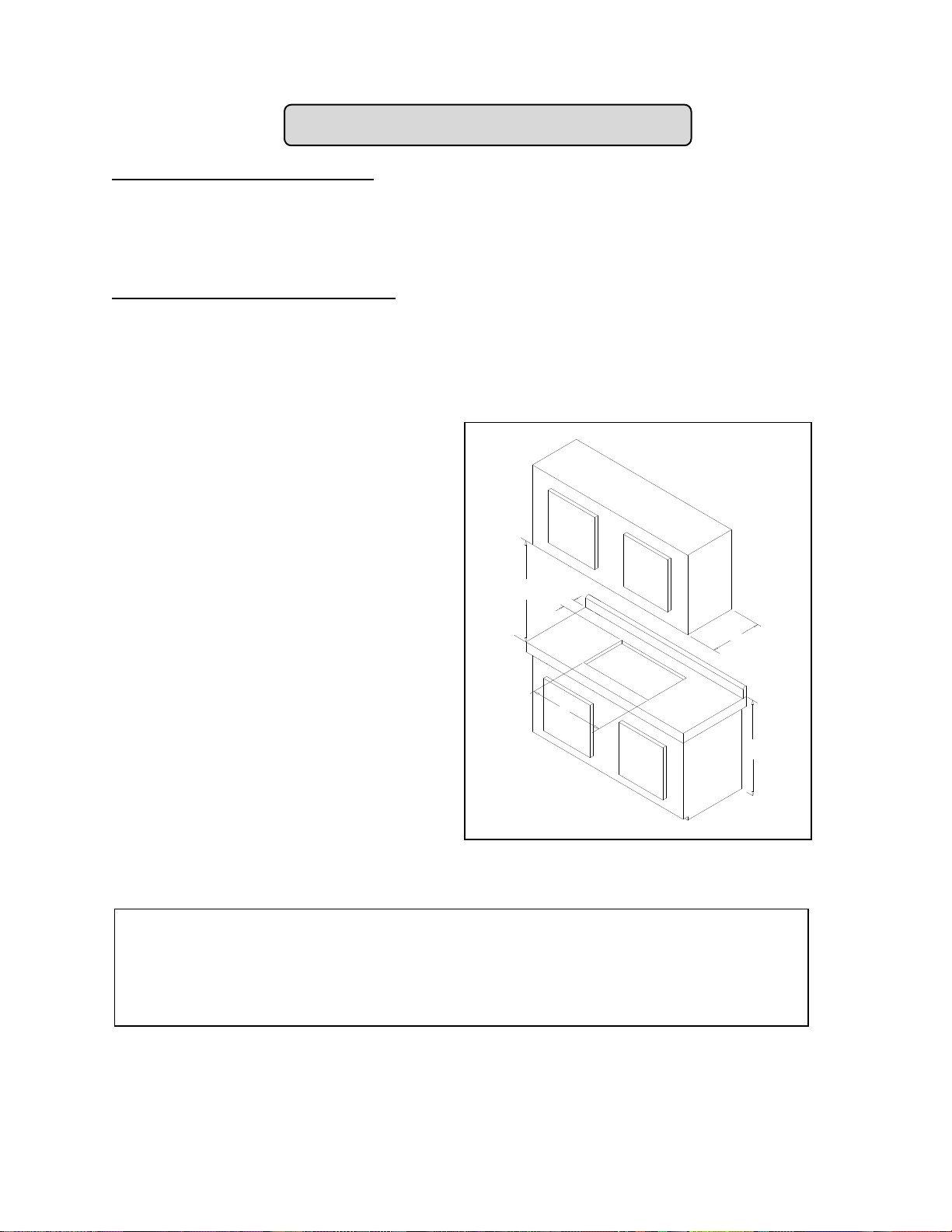

1. Countertop Preparation
NOTE: Please read this section prior to making cutout for cooktop. It is important to plan ahead for
installation of the cooktop, keeping the following dimensions in mind.
A —13 inches maximum depth of overhead
cabinets
B —36 inches is minimum height of countertop
above floor
C —The minimum flat countertop surface that
the cooktop will rest upon must be equal to or
greater than the overall cooktop dimensions
(refer to the following page for overall cooktop
dimensions).
D —30 inches minimum clearance between the
top of the cooking surface and the bottom of
an unprotected wood or metal cabinet or 24
inches minimum clearance when the bottom of
wood or metal cabinet is protected by not less
than 1/4 - inch thick flame retardant millboard
covered with not less than No. 28 MSG sheet
steel, 0.015-inch-thick stainless steel, 0.024-
inch-thick aluminum or 0.020-inch-thick copper.
E —1-inch minimum from backsplash of
countertop to edge of glass (refer to the
following page for overall cooktop
dimensions).
NOTE: Do not install closer than 1/2 inch (12 mm) from any adjacent surface.
Before making the countertop cutout, check for clearance. Check to see if the cooktop will clear the front
and side walls of the base cabinet. It is also important to provide enough ventilation.
Adequate ventilation of the space below the countertop must be provided to ensure proper operation of
WARNING
To eliminate the risk of burns by reaching over heated surface units, avoid having cabinet storage
space located above surface units. If cabinet storage is to be provided, the risk can be reduced
by installing a range hood that projects horizontally a minimum of 5" beyond the bottom of the
cabinets.
A
DE
B
C
A
DE
B
C

7
the cooktop. Heat transferred from the cooktop bottom pan during operation will overheat an improperly
ventilated area.
Allow a 2" minimum clearance between the bottom of the metal pan of the cooktop and any combustible
surface located below, i.e.: the upper edge of a drawer installed below the cooktop. Failure to provide
proper clearances and ventilation may result in a fire hazard. If the cooktop is installed above an oven,
keep the cooktop’s power cord from contacting the oven.

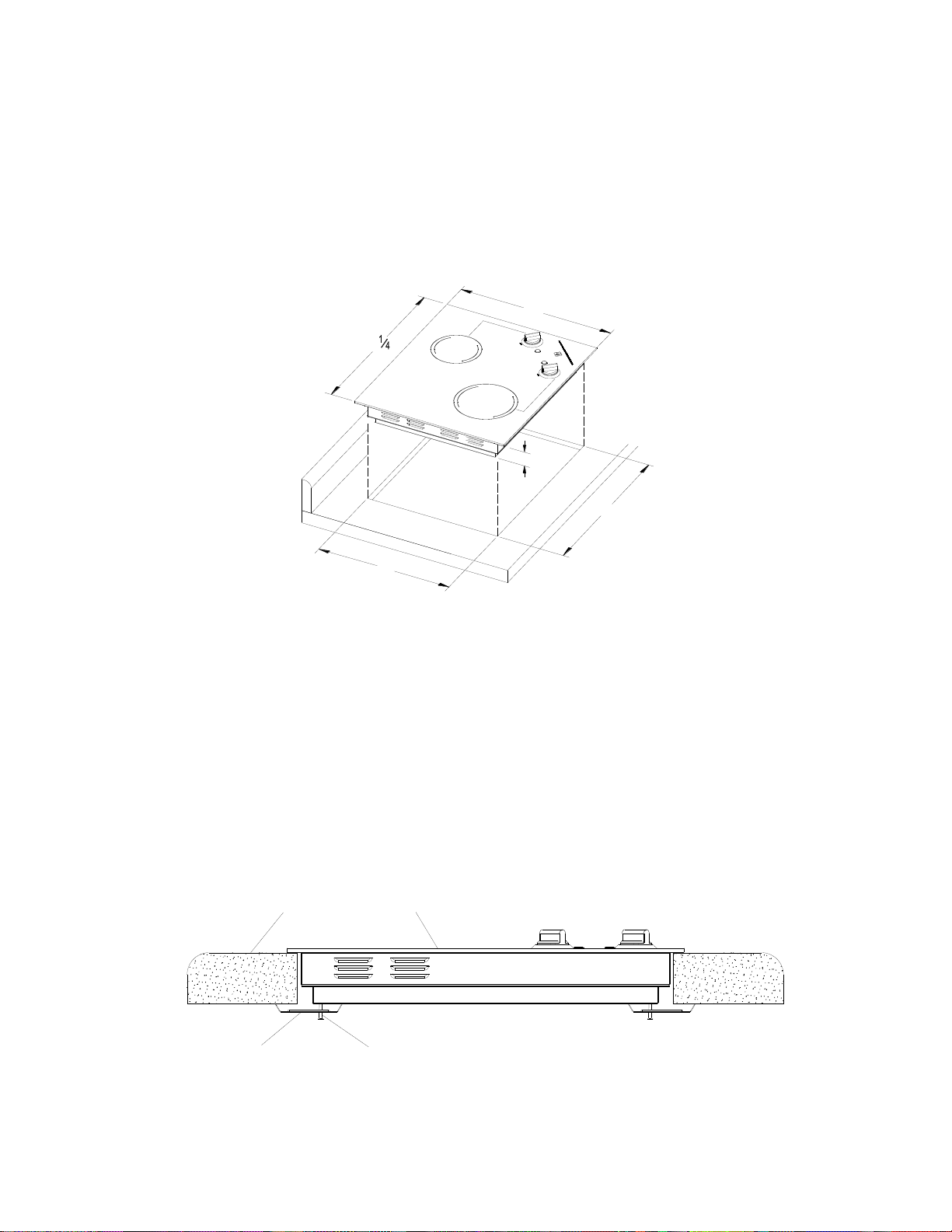

Cooktop dimensions and countertop cutout dimensions are shown below:
20"
16"
18"
21 "
3"
NOTE: When making the countertop, radius the corners of the cutout (1/4" radius is typical). This will
prevent cracking of the countertop. Follow the countertop manufacturer's instructions regarding the
minimum corner radius and reinforcement of corners.
2. Installing the Cooktop
There are four mounting brackets supplied with the glass ceramic cooktop. These brackets are designed
to hold the cooktop firmly in place. The cooktop should be bedded to the countertop using a soft bedding
compound that will prevent damage if later removal for service is necessary. We recommend a very small
bead of silicone sealant.
Position the cooktop in the cutout opening and press firmly on all sides to seal the frame into the bedding
compound. Secure the mounting brackets to the cooktop from underneath with the screws that are
supplied as shown below.
COUNTER TOP COOK TOP
MOUNTING BRACKET SCREW

8
ELECTRICAL CONNECTION
The appliance must be properly installed and grounded by a qualified technician in accordance with
the National Electrical Code ANSI/NFPA No. 70 (Latest Edition) and local electrical code
requirements. Installation should be made by a licensed electrician.
The unit may be connected by means of permanent “Hard Wiring” or “Power Supply Cord Kit”. Power
supply cord is not supplied, but is available through your local electric supply house.
Use only 3-conductor or 4-conductor UL listed cord rated at 20 amps with 250V minimum voltage
range. These cords may be provided with strain relief or conduit connector.
The unit must be connected to the proper electrical voltage and frequency as specified on the rating
label.
The unit should be connected directly to the junction box through flexible, armored or nonmetallic
sheathed, copper cable. The flexible, armored cable extending from the fuse box or circuit breaker
box should be connected directly to the junction box. Locate the junction box to allow as much slack
as possible between the junction box and the unit so that the unit can be moved if servicing becomes
necessary in the future.
Do not cut the conduit. Use the length of conduit provided.
For personal safety, the appliance must be properly grounded.
Remove house fuse or open circuit breaker before beginning installation.
Do not attempt to repair or replace any part of the appliance unless it is specifically recommended in
this manual. All other servicing should be referred to a qualified technician.
To minimize the possibility of electric shock, disconnect this appliance from the A/C power supply
before attempting any maintenance.
NOTE: Turning the appliance off does not disconnect the appliance from the power supply. We
recommend having a qualified technician service your appliance.
1. 3-Wire Power Cord Installation
IMPORTANT: Use the 3-wire cable from power supply where local codes permit connecting the frame-
ground conductor to the neutral (white) junction box wire.
1. Disconnect power
2. Remove junction box cover, if present.

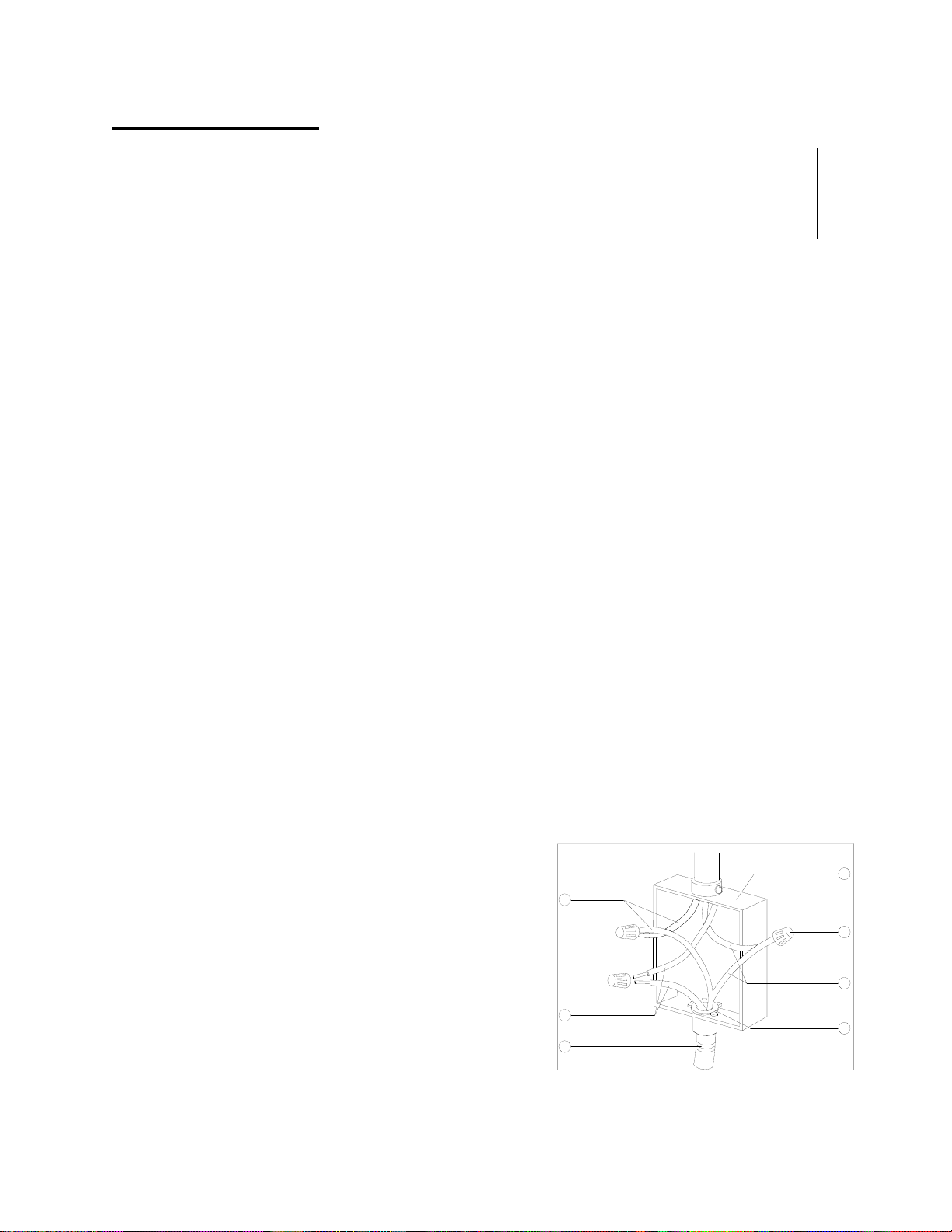

3. Connect the flexible cable conduit (3) from the
cooktop to the junction box (4) using a UL listed or
CSA approved conduit connector (7).
4. Tighten screws on conduit connector if present.
5. Connect the two black wires (1) together using the
UL listed wire nut (5).
6. Connect the two red wires (2) together using the UL
listed wire nut.
7. Connect the green wire (6) to the white (neutral)
wire (6) in the junction box using the UL listed wire
nut.
8. Install junction box cover.
9. Reconnect power.
WARNING
Improper connection of the equipment-grounding can result in the risk of electrical shock. If the
power cord of the unit is damaged, have it replaced by an authorized service center.
1
2
3
4
5
6
7

9
2. 4-Wire Power Cord Installation
IMPORTANT: Use the 4-wire cable from power supply where local codes do not permit connecting the
frame-ground conductor to the neutral (white) junction box wire.
1. Disconnect power
2. Remove junction box cover if present.
3. Connect the flexible cable conduit (3) from the
cooktop to the junction box (4) using a UL listed
or CSA approved conduit connector (7).
4. Tighten screws on conduit connector, if present.
5. Connect the two black wires (1) together using
the UL listed wire nut (5).
6. Connect the two red wires (2) together using
the UL listed wire nut.
7. Connect the green wire (6) from the cooktop
cable to the green wire (6) (in the junction box)
using the UL listed wire nut.
8. Put a UL listed wire nut on the end of the white wire (8).
NOTE: Do not connect the bare ground wire to the neutral (white) wire in the junction box.
9. Install junction box cover.
10. Reconnect power.
OPERATING YOUR APPLIANCE
OPERATING YOUR COOKTOP
Any burner can be turned on by pushing the control knob down and turning it clockwise or counter-
clockwise to the desired setting. To adjust the setting, turn the knob without pressing down. The burner is
turned off by turning the control knob clockwise or counter-clockwise to "0FF".
OPERATING INDICATORS
When a burner is turned on, the corresponding operating indicator will light up regardless of the setting.
RESIDUAL HEAT INDICATOR
The residual heat indicator will light up when some part of the glass ceramic cooktop is too hot to touch or
place articles upon. Do not place articles other than cookware on the cooking surface while this light is
glowing.
COOKWARE SELECTION
The cooking surface
Your ceramic cooktop is made of an extremely hard and durable material. The surface is scratch resistant,
not scratch proof. Avoid using cookware with ridged bottoms. Ridged pots with dirty or chipped enamel
bottoms may scratch the cooktop if they are pulled across the ceramic surface.
Make sure the cooktop and pot bottoms are clean before cooking. Certain items, particularly sugar grains
or crystallized liquids such as molasses or syrups are actually harder than ceramic and can scratch the
WARNING
Do not touch or lay any heat sensitive objects on the cooktop while the operating/residual
heat indicator is still on. Danger of burns and fire hazard!
1
2
3
4
5
6
7
8

10
surface if they are not cleaned off immediately. However, small or light scratches will not affect the safety
or performance of the cooktop.
Pots and pans
Special cookware is not required, but as is true with all types of cooking appliances, the better the
cookware, the better the performance.
Following these tips will allow you to make the most of your ceramic cooktop.
For the most even and energy efficient cooking, the diameter of the pots should match the diameter
of the burners as closely as possible.
Use cookware with thick, flat, smooth bottoms. Slightly concave bottoms will also work adequately.
Pans with convex bottoms will not cook well.
Using a lid while cooking will minimize the loss of heat and decrease the cooking time.
Copper bottom and aluminum pans may leave a residue on the cooktop in the form of metallic lines.
This is normal. These lines can be removed using a non-abrasive ceramic cooktop cleaner or a
shielded scraper blade.
Cast iron, glass or stoneware should not be used because they have poor heat transfer and may
scratch the surface.
CAUTION: Be sure to clean the cooktop after each use. Each time the residue is allowed to melt it
becomes harder to remove and may mar the appearance of the cooktop. Let the cooktop cool before
cleaning.

11
CARE AND MAINTENANCE
CLEANING YOUR APPLIANCE
Do not use a steam cleaner to clean this appliance. Steam could penetrate electrical components and
cause a short circuit. Pressurized steam could cause permanent damage to the surface and to
components for which the manufacturer can not accept responsibility.
Do not use any sharp pointed objects which could damage the seal between the ceramic surface, the
surrounding frame and the countertop.
Never use abrasive or caustic (oven) cleaners, dishwasher detergent, scouring pads, steel wool or
hard brushes. They will damage the surface.
The ceramic surface can be cleaned using a cleaner for ceramic surfaces. Follow the manufacturer’s
instructions.
Make sure that no cleaner residue remains on the ceramic surface by carefully wiping the cooktop
with a damp cloth. The residue could damage the cooktop or produce toxic fumes when heated.
Be sure that pot and pan bases are clean and dry. After cleaning, dry the ceramic surface with a soft
cloth to prevent a buildup of lime scale deposits.
Clean any spills immediately before they become difficult to remove.
Clean the appliance regularly, preferably after each use. Allow the appliance to cool before cleaning.
Wipe off any soiling using a damp cloth. Stubborn soiling is best removed with a shielded scraper
blade.
Apply a ceramic cleaner using a soft cloth or paper towel. To remove any lime scale deposits or
metallic residue apply a ceramic cleaner using a soft cloth and a shielded scraper blade if necessary.
After cleaning, wipe the ceramic surface with a damp cloth and dry.
A cleaner with a special additive to prevent water marks and smears on the ceramic surface may be
used.
Any melted solids like sugar, plastic or aluminum foil should be removed as soon as possible, while
the burner is still warm. If they are allowed to harden the cooktop may become pitted.
CLEANING SURFACE UNITS AND REFLECTOR BOWLS (ONLY FOR CR2B224S)
Disconnect the A/C from the main power box or
designated circuit breaker and turn off the range to
make sure that burners are off and cool before
removing burners and reflector bowls.
Remove the burners and reflector bowls as
follows:
1. Lift the edge of the unit opposite the receptacle,
just enough to clear the reflector bowl.
2. Pull the surface unit gently out of the mounting
receptacle.
3. After the unit has been removed, the reflector
bowl can be lifted out of its mounting.
Clean the burners and reflector bowls with mild detergent and warm water. Wring excess water out of
the sponge or cloth when cleaning them.
Replace the burners and reflector bowls as follows:

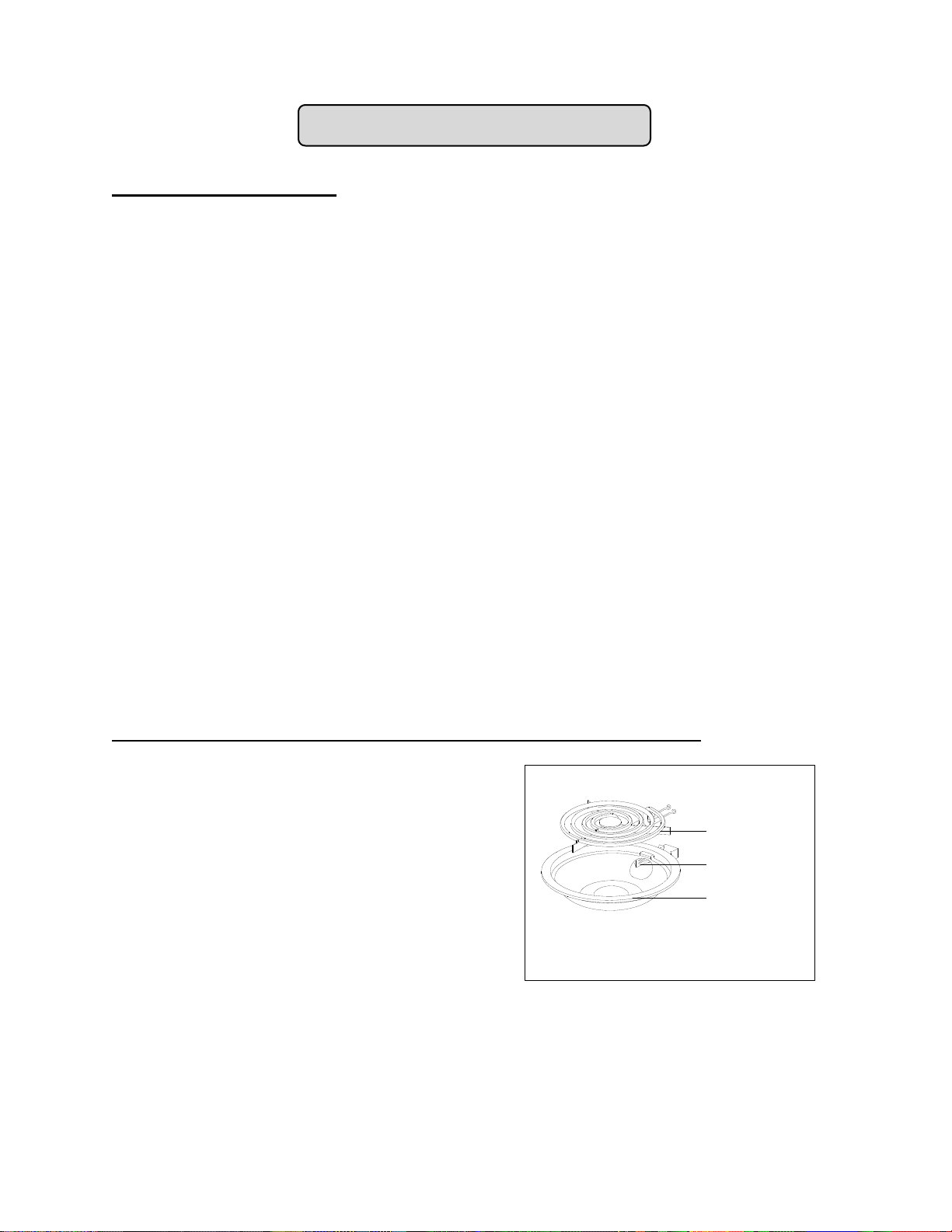

1. Line up the opening of the reflector bowl with the burner’s receptacle, hold the surface unit as level
as possible with the terminal just positioned into the receptacle, then push the surface unit’s
Surface Unit
Receptacle
Reflector Bowl

12
terminal into the receptacle.
2. When the terminal is pushed into the receptacle as far as it will go, push down the edge of the
surface unit opposite the receptacle.
NOTE: Do not immerse burners in water or any other liquids.

13
TROUBLESHOOTING
You can solve many common problems easily, saving you the cost of a possible service call. Try the
suggestions below to see if you can solve the problem before calling a service technician.
Troubleshooting Guide
PROBLEM
POSSIBLE CAUSE
The appliance does not operate.
Not connected to power supply.
Circuit breaker has tripped or fuse is blown.
The heating element cycles on and off frequently.
The power setting is too low.
Burners will not maintain a rolling boil or frying
rate is not fast enough.
You must use pans that are absolutely flat.
Pan bottom should closely match the diameter of
the burner selected.
Foods cook slowly
Improper cookware being used.
Burners' control knobs will not turn.
You are not pushing in before turning.

14
NOTES

15
LIMITED WARRANTY
ONE-YEAR LIMITED WARRANTY
Within the 48 contiguous United States, for one year from the date of purchase, when this appliance is
operated and maintained according to instructions attached to or furnished with the product, warrantor will
pay for factory-specified parts and repair labor to correct defects in materials or workmanship. Service
must be provided by a designated service company. Outside the 48 states, all parts are warranted for
one year from manufacturing defects. Plastic parts, shelves and cabinets are warranted to be
manufactured to commercially acceptable standards, and are not covered from damage during handling
or breakage.
ITEMS WARRANTOR WILL NOT PAY FOR:
1. Service calls to correct the installation of your appliance, to instruct you how to use your appliance, to
replace or repair fuses or to correct wiring or plumbing.
2. Service calls to repair or replace appliance light bulbs or broken shelves. Consumable parts (such as
filters) are excluded from warranty coverage.
3. Damage resulting from accident, alteration, misuse, abuse, fire, flood, acts of God, improper
installation, installation not in accordance with electrical or plumbing codes, or use of products not
approved by warrantor.
4. Replacement parts or repair labor costs for units operated outside the United States.
5. Repairs to parts or systems resulting from unauthorized modifications made to the appliance.
6. The removal and reinstallation of your appliance if it is installed in an inaccessible location or is not
installed in accordance with published installation instructions.
DISCLAIMER OF IMPLIED WARRANTIES;
LIMITATION OF REMEDIES
CUSTOMER'S SOLE AND EXCLUSIVE REMEDY UNDER THIS LIMITED WARRANTY SHALL BE
PRODUCT REPAIR AS PROVIDED HEREIN. IMPLIED WARRANTIES, INCLUDING WARRANTIES OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR.
WARRANTOR SHALL NOT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. SOME
STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL
DAMAGES, OR LIMITATIONS ON THE DURATION OF IMPLIED WARRANTIES OF
MERCHANTABILITY OR FITNESS, SO THESE EXCLUSIONS OR LIMITATIONS MAY NOT APPLY TO
YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE.
Printed in China
Revised February 2017
FELIX STORCH, INC.
770 Garrison Avenue
Bronx, NY 10474
Phone: [phone]
Fax: [phone]
www.summitappliance.com
For parts and accessory ordering,
troubleshooting and helpful hints, visit:
www.summitappliance.com/support
WARNING! This product may contain chemicals known to the state of California to
cause cancer or birth defects or other reproductive harm. For more information,
visit: www.summitappliance.com/prop65
Chemicals known by the manufacturer to be present in this product in
concentrations higher than threshold limits: NONE.
