Ferrari 575M Superamerica User manual

Owner’s Manual

INTRODUCTION
3
Service
The information contained in this manual
will help the driver to use the vehicle
properly and to ensure it is kept in good
working order.
Carefully following the instructions
contained herein will help you get the best
results and satisfaction from your vehicle.
We also recommend you have all the
maintenance and checks carried out at
our Agencies or at our Authorised Service
Centres, as they have skilled staff and
suitable equipment.
See the “Sales and Service Organisation”
manual for the location of the Dealers
and Service Centres of the Ferrari Service
Network
Ferrari’s Technical Service Dept. is at your
complete disposal for any information
and suggestions.
Consulting the Manual
This manual refers to vehicles with two
types of transmission:
•mechanical gearbox
•“F1” electronically-controlled gearbox
therefore, some information may vary
depending on the gearbox installed.
To facilitate reading and fast
consultation, the topics have been
divided into sections and chapters. The
important parts requiring particular
attention are easily identifiable in the
sections and chapters.
Extreme caution required:
CAUTION
Failure to comply with the instructions
could cause hazardous situations
involving personal and vehicle safety!
Important note:
Warning aimed at preventing any
damage to the vehicle and consequently
hazards involving personal safety.
CAUTION
Due to the high power generated by
the engine, we recommend that the
vehicle is not used by inexperienced
drivers.

INTRODUCTION
4
Abbreviations
Some descriptions and terms with
particular meanings are to be found in
this manual in an abbreviated form:
A.C. - AIR CONDITIONING
ABS - ANTI BLOCKIER SYSTEM - anti-
lock braking system for the wheels
during braking
ASR- ANTRIEBS SCHLUPF REGELUNG
- Anti-skid regulation during
acceleration
EBD- ELECTRONIC BRAKE-FORCE
DISTRIBUTION - Electronically-
controlled distributor of braking
force
ECU- ELECTRONIC CONTROL UNIT
“F1”- FORMULA 1 - Electronically-
controlled gearbox, designed with
the same technology as used in
the racing sector.
Updating
The high quality of your vehicle is ensured
by constant improvements and there may
hence be differences between this manual
and your vehicle.
All specifications and illustrations
contained in this manual refer to those
resulting as of the printing date.
Spare parts
We recommend you use original Ferrari
spare parts, which can only be obtained
from the Ferrari Service Network only.
The Ferrari warranty is voided if original
Ferrari spare parts are not used for
repairs.
Warranty booklet
Each new vehicle is supplied with a
“WARRANTY AND MAINTENANCE
SCHEDULE” booklet.
This contains the vehicle’s warranty terms
and conditions.
The warranty booklet also contains
the periodic services to be performed
according to the “MAINTENANCE
SCHEDULE”.
“F1” gearbox
The vehicle may be equipped with an
electronically-controlled gearbox system,
controlled by means of the levers on the
steering wheel.
Even though the system can be used
in “AUTO”, mode it should not be
considered an automatic gearbox.
Hence, for proper use always follow the
instructions given in this manual on page
109.

1
2
3
4
5
6
7
8
GENERAL
SAFETY
ABOUT YOUR VEHICLE
ROOF
DRIVING YOUR VEHICLE
IN AN EMERGENCY
CHECKS AND MAINTENANCE
TABLE OF CONTENTS

1GENERAL
SAFETY
ABOUT YOUR VEHICLE
ROOF
DRIVING YOUR VEHICLE
IN AN EMERGENCY
CHECKS AND MAINTENANCE
TABLE OF CONTENTS

1
GENERAL
Vehicle keys ..........................................................................................................8
Alarm system ....................................................................................................... 8
Identication plates ...........................................................................................10
Labels ............................................................................................................... 12
Dimensions and weights ..................................................................................... 14
Main engine specications ................................................................................. 15
Performance....................................................................................................... 15
Fuel consumption............................................................................................... 15
CO2 emissions ................................................................................................... 15
Transmission ratios ............................................................................................ 16
Rims and tyres.................................................................................................... 16
Electrical system ................................................................................................. 17
Recommended lubricants and uids ................................................................... 17

8
1
GENERAL
ALARM SYSTEM
The vehicle is equipped with an engine
immobiliser system against theft
attempts.
Three radio controls are provided (1
red “master” and 2 black “slaves”) to
activate/deactivate the system.
VEHICLE KEYS
The vehicle is delivered with two identical
keys that can be used for:
- locking the doors (central locking
system);
- starting the vehicle;
- deactivating the alarm system;
- locking the glove compartment;
- deactivating the passenger airbag
(where provided).
CAUTION
The radio control system may
sometimes fail to operate due to
interferences from nearby radio
antennas/transmitters which disturb
the transmission frequencies.
For the system to resume operation,
move the vehicle several tens of
metres.
Note: Should you lose one or more radio
controls, follow the instructions given in
the alarm system manual and contact the
Ferrari Service Network.
Should you lose a key, you can request
a duplicate from Ferrari quoting the
number shown on the plastic label on
the key.
CAUTION
Make sure you record the number in
the space provided in the “Warranty
booklet”.

9
1
GENERAL
“PIN code”
A secret “PIN code” (Personal
Identification Number) is assigned
to each system. The “PIN code” is
confidential, and is given to the owner
when the vehicle is delivered.
The owner is responsible for safekeeping
this code.
The “PIN code” can be used to deactivate
the immobiliser system with the ignition
key, without using the radio control.
CAUTION
Carefully read the instruction manual
provided with the vehicle for proper
use of the system.
Should you lose the “PIN code”, you
shall order a new radio control kit from
the Ferrari Service Network (1 master +
2 slaves) together with the card showing
the new “PIN code”.

10
1
1
5432
GENERAL

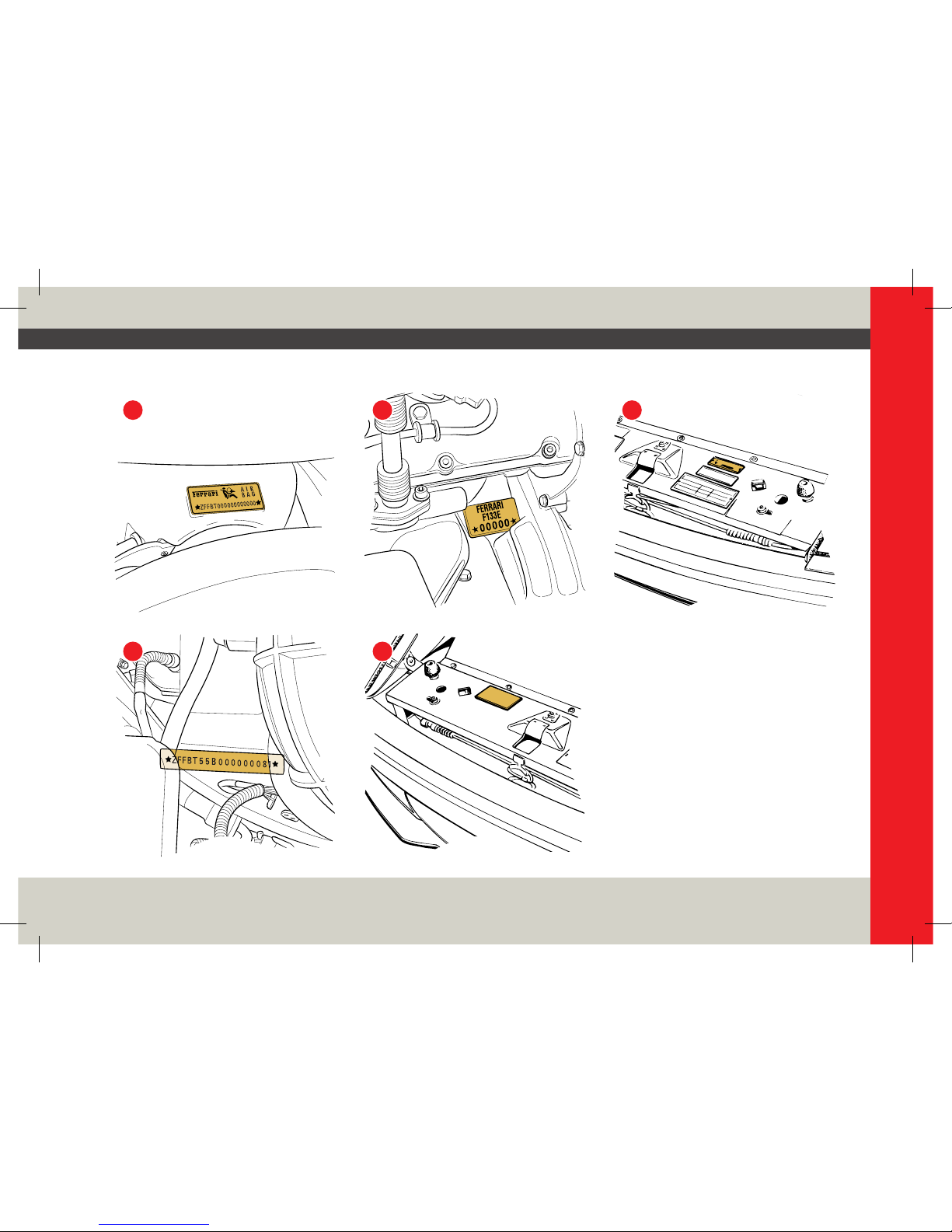

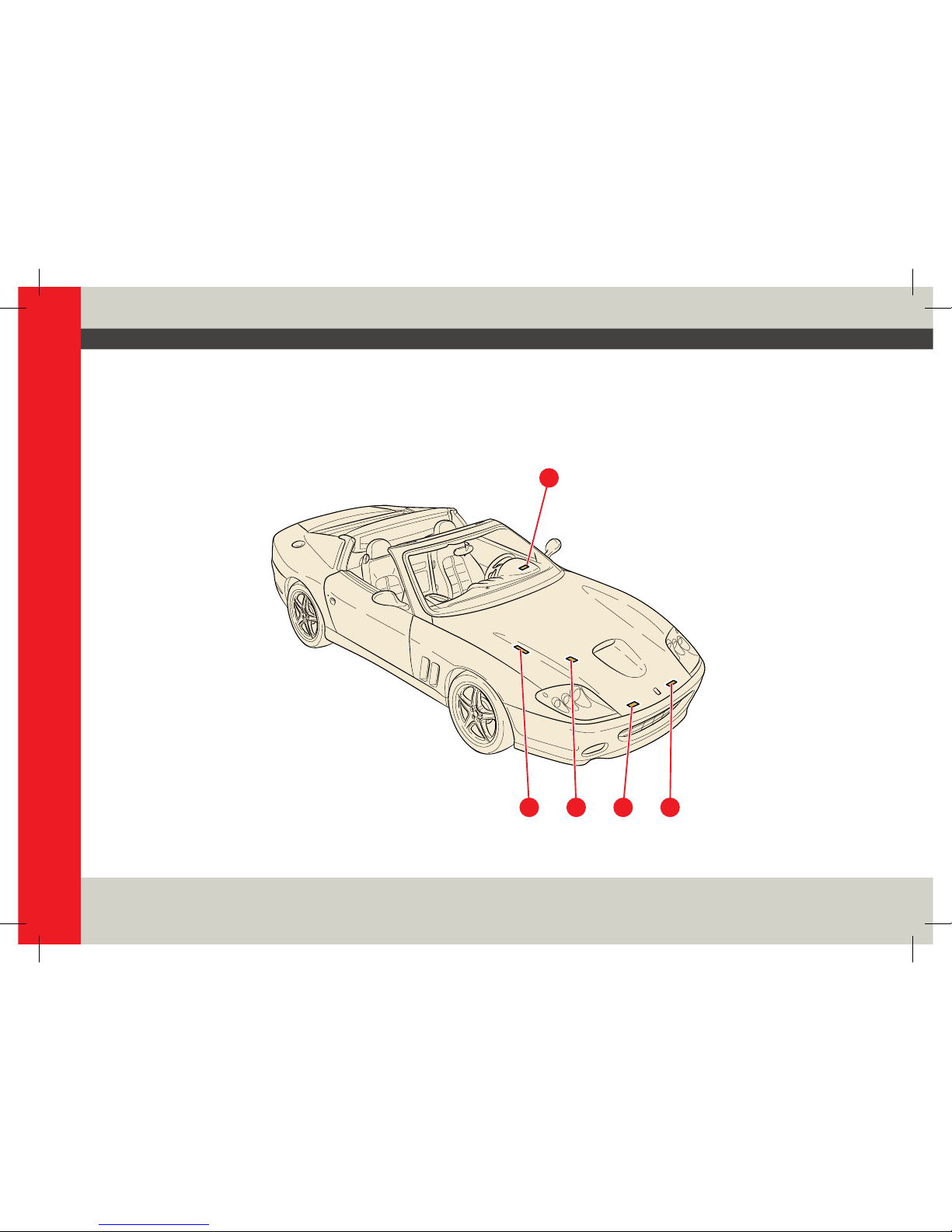

IDENTIFICATION PLATES 1 - Steering column plate.
2 - Chassis type and number.
3 - Engine type and number.
4 - Vehicle identification plate.
5 - Assembly number plate.

11
1
1
2
3
4
5
GENERAL

12
1
A B C
D
E
GENERAL

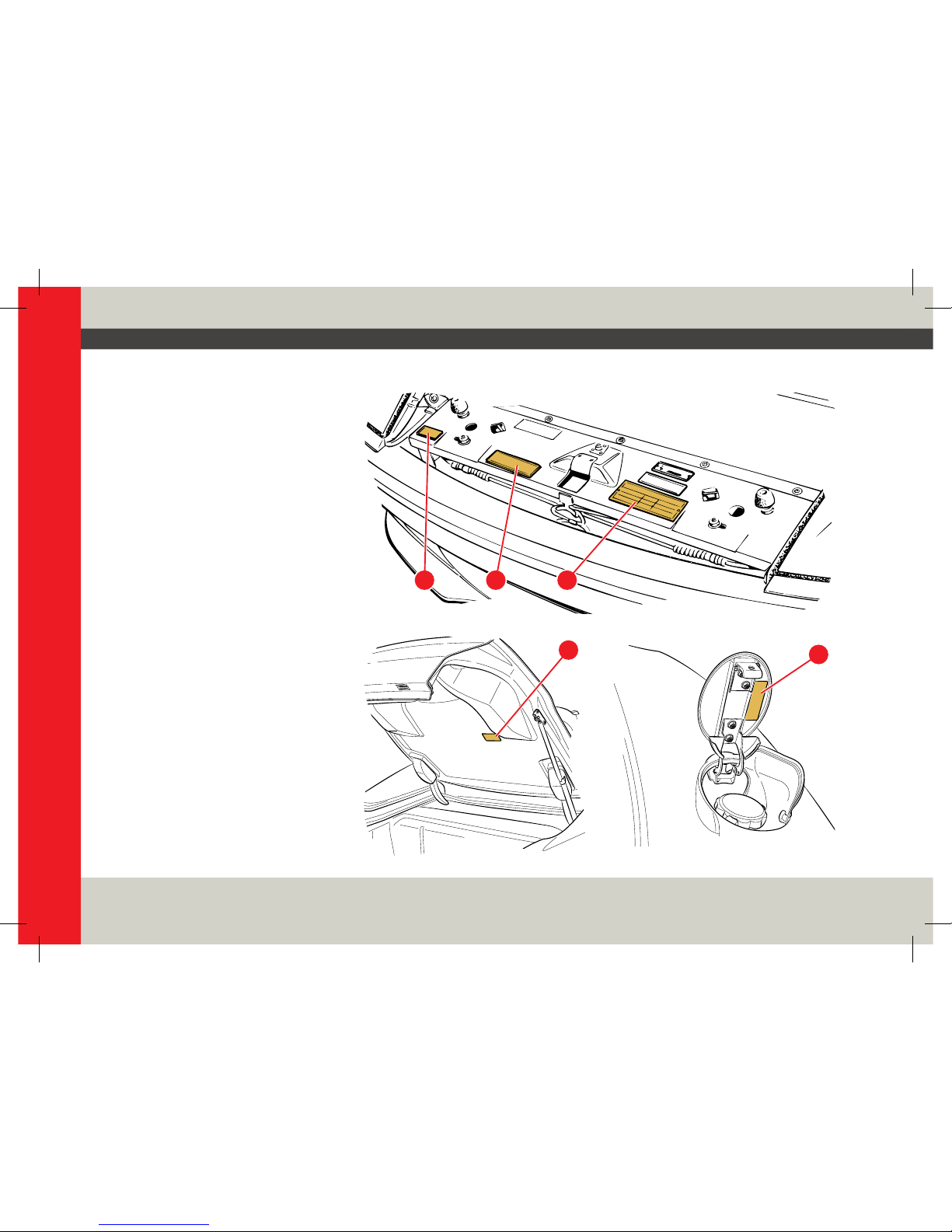

LABELS
A - Low beams homologation label.
B - ECE homologation label.
C - Lubricants label.
D - Paint code label.
E - “Unleaded fuel” label.

13
1
F G H
I
L
M
GENERAL
F - “High voltage” label.
G - Anti-freeze label.
H - Battery master switch label.
I - Tyre pressure label.
L - Tyre pressure monitoring system
label.
M- Oil level inspection label.

14
1
1080 2500
4550
970
1277
1632 1586
1935
GENERAL
DIMENSIONS AND WEIGHTS
Wheel base 2500 mm
Max. length 4550 mm
Max. width 1935 mm
Max. height 1277 mm
Front track 1632 mm
Rear track 1586 mm
Kerb weight 1820 Kg
Luggage compartment capacity 230 l

15
1
GENERAL
MAIN ENGINE SPECIFICATIONS
Type F 133 G
Number of cylinders 12 - V 65°
Cylinder bore mm 89
Piston stroke mm 77
Piston displacement: cm3 479
Total displacement cm3 5748
Compression ratio 11,2 : 1
Maximum engine speed RPM 7,500
Max power (Dir. 1999/99/CE) kW (HP) 397 (540)
Corresponding r.p.m. RPM 7,250
Max. torque (Dir. 1999/99/CE) Nm 588.6
Corresponding r.p.m. RPM 5,250
PERFORMANCE
Gearbox type 0 - 100 km/h 0 - 400 m 0 - 1000 m 0 - 200 km/h
- mechanical 4.25 sec. 12.3 sec. 22 sec. 12.8 sec.
- F1 4.2 sec. 12.25 sec. 21.9 sec. 12.75 sec.
Max. speed 320 km/h
FUEL CONSUMPTION (*)
litres per 100 km
City cycle 34.5
Motorway 14.3
Average fuel consumption 21.8
(*) Directive: 1999/100/CE
CO2 EMISSIONS (*)
g/km
City cycle 790
Motorway 329
Average fuel consumption 499
(*) Directive: 1999/100/CE

16
1
GENERAL
TRANSMISSION RATIOS
Gear ratios Differential bevel gear pair ratio Total transmission ratio (engine/wheel revolutions)
1 13 / 41 = 3.153 3.909 (11 / 43) 1 12.325
2 17 / 37 = 2.176 2 8.506
3 23 / 36 = 1.565 3 6.117
4 27 / 32 = 1.185 4 4.632
5 31 / 29 = 0.935 5 3.655
6 33 / 25 = 0.757 6 2.959
R 14 / 41 = 2.928 R 11.445
RIMS AND TYRES
Rims Tyres Inflation pressure (cold)
Front Rear Front Rear Front Rear
8” 1/2 J X 19” 10” 1/2 J X 19” Bridgestone Bridgestone
RE 050 RE 050 2.2 bar 2.0 bar
255/35 ZR19 305/30 ZR19
Snow tyres Pirelli Winter 210 Pirelli Winter 210 2.2 bar 2.2 bar
Performance 210 Performance 210
(Max Speed 210 km/h - 130,5 mph) 255/35 ZR19 305/30 ZR19
Spare wheel T 115/70 R19 PIRELLI 4.2 Bar
(Speed limit: 80 km/h - 50 mph max.) Temporary Use Only

17
1
GENERAL
ELECTRICAL SYSTEM
Power supply voltage Battery Alternator Starter motor
12 V FIAMM 12V 75-80 Ah 450A NIPPONDENSO 140 A NIPPONDENSO
RECOMMENDED LUBRICANTS AND FLUIDS
Parts to be refilled Quantity Fill with: Ref. Page
ENGINE
Total system capacity 10 l
Oil level between “Min” and “Max” 2 l HELIX ULTRA 151
SAE 5W-40
Oil consumption 1 ÷ 2 l / 1,000 km
(depending on conditions of use)
GEARBOX AND DIFFERENTIAL 5 l TRANSAXLE OIL 151
(including lines) SAE 75W-90
F1 GEARBOX SYSTEM 1 l FIAT TUTELA CS SPEED 151
BRAKE AND CLUTCH SYSTEM 1.3 l DONAX UB 152
BRAKE FLUID DOT4 Ultra
“F1” BRAKING SYSTEM 1.3 l DONAX UB 152
BRAKE FLUID DOT4 Ultra
COOLING CIRCUIT 19 l GLYCOSHELL 151
(Mixture of water and coolant at 50%)
HYDRAULIC STEERING SYSTEM 1.8 l DONAX TX 152
Steering box 100 g RETINAX CS00

18
1
GENERAL
Parts to be refilled Quantity Fill with: Ref. Page
FUEL TANK 105 l Unleaded fuel 95 N.O.
Reserve 20 l
AIR CONDITIONING AND HEATING SYSTEM
Compressor 265 cc HARRISON - DIAVIA
“OLIO ISO 135 RL 150”
Coolant 760 ± 30 g “R 134 A”
WINDSCREEN WASHER AND
HEADLIGHT WASHER FLUID TANK 7.5 l Mixture of water and glass cleaner 153
Note: for cleaning the windscreen, use one phial
of glass cleaner in summer and two in winter.
