fidek FPA-801U User manual

F P A - 8 0 1 U
FPA-1501U
FPA-2501U
FPA-3501U
FPA-12001U
FPA-12001UFPA-12001UFPA-12001U
Co n s t an t V o l ta g e A m pl i f ie r
CH 5CH 4CH 3CH 2CH 1
POWER PROTECT -40dB -20dB -10dB 0dB CLIP
BASSTREBLE
AUX 1-VOL AUX 2-VOL
MIC 1 MIC 2 MIC 3
MIC 1 INPUT MIC 2 INPUT MIC 3 INPUT
+100 +100 +10-10 +10-10
+100 +100 +100
USER'S MANUAL
PUBLIC ADDRESS CONSTANT
VOLTAGE AMPLIFIER
ON
OFF
POWER
POWER
POWER
POWER
ON
OFF
ON
OFF
ON
OFF

CONTENTS
FEATURES......................................................................................................2
PACKAGE CONTENTS................................................................................... 2
SAFETY INSTRUCTIONS............................................................................3-4
FUNCTION DESCRIPTION ......................................................................... 5-9
FRONT PANEL......................................................................................5-7
AMPLIFIER DESCRIPTION.....................................................................7
REAR PANEL........................................................................................ 8-9
TROUBLESHOOTING...................................................................................10
OPERATION................................................................................................. 11
SPECIFICATIONS ................................................................................................................12

FEATURES
◆ Both AUX 1 and AUX2 are using RCA plug, they can respectively connect with CD,
TUNER, TAPE and so on, they also can control the volume separately.
◆ Three microphone inputs, Microphone1 with priority function, other broadcasts
can be interrupted by Microphone1 in an emergency.All microphones with independent
volume control and has high and low bass adjustment control.
◆ Level display amplifier with 2pcs red LED indicator, if the POWER light on means
the power has been turned on. PROTECT light on means in standby or protective
mode. The 4pcs green LED indicator light on means the signal. 1pc of orange LED
light on means signal overload, should turn down the volume appropriately.
◆ With 40Hz high pass filtering function,if the bass signal under 400Hz will be
attenuated moderately.
◆ 70V and 100V constant voltage output with one monitor output.
◆ The fan have two speed ranges: fast and slow, automatic detection radiator according
the temperature to contral the speed of the fan.when the temperature is high the fan
will speed up automatic to lower the surface temperature.
PACKAGE CONTENTS
Please open the box to check whether the following accessories are included.If there
is any omission,please contact the dealer or manufacture.
Power line User's manual Warranty card
Due to the different production batches,the appearance of the attachment may
be slightly different from the figure above.

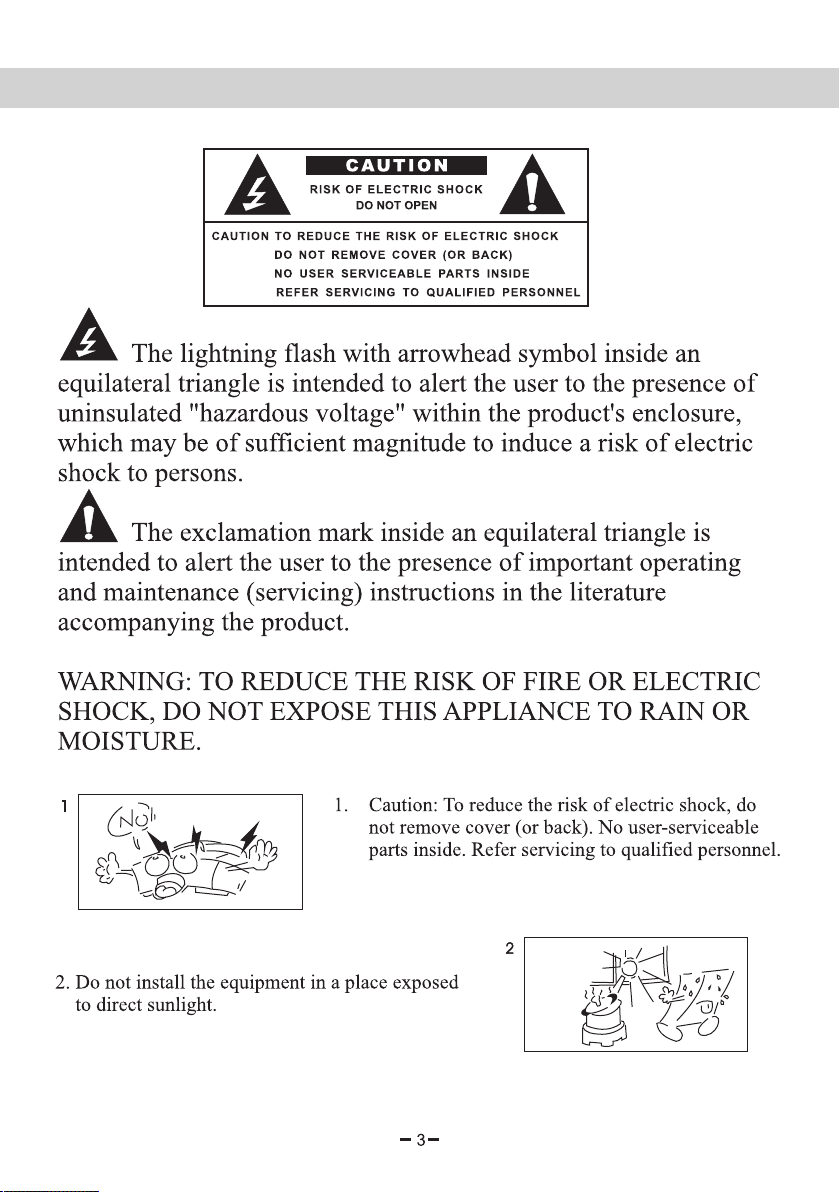

SAFETY INSTRUCTIONS

SAFETY INSTRUCTIONS
4

17
FPA-12001UFPA-12001UFPA-12001U
Constant V o l t a g e A m p l i f i e r
CH 5CH 4CH 3CH 2CH 1
POWER PROTECT -40dB -20dB -10dB 0dB CLIP
BASS
TREBLE
AUX 1-VOL AUX 2-VOL
MIC 1 MIC 2 MIC 3
MIC 1 INPUT MIC 2 INPUT MIC 3 INPUT
+100 +100 +10-10 +10-10
+100 +100 +100
16 18
19
POWER
ON
OFF
ON
OFF
POWER
POWER
ON
OFF
FPA-801U/1501U FRONT PANEL
FPA-2501U/3501U FRONT PANEL
FPA-12001U FRONT PANEL
FUNCTION DESCRIPTION

FUNCTION DESCRIPTION
1. Power Switch Button
Control AC power supplier, the power indicator lights up when “on”, indicating that
the power supply is connected ; the power indicator is switched off when“off ”,
indicating that the power supply is disconnected.
2. Auxiliary 1 Voice Control Knob
Control the volume of AUX1 input channel and increase the volume of sound as
rotates clockwise. When turned counterclockwise , attenuates the volume.
3. Auxiliary 2 Voice Control Knob
Control the volume of AUX2 and MP3, and raise the volume as it rotates clockwise.
When turned counterclockwise, attenuates the volume.
4. Tweeter Tone Adjustment Knob
Adjustable microphone and AUX1、A UX2、MP3 the treble part, When the needle
rotates, the treble is raised, and when the needle rotates counterclockwise, the treble
is attenuated.
5. Bass Tone Control Knob
Adjustable microphone and AUX1、 A UX2、 MP3 the bass part, when clockwise
rotating , lift the bass, and when rotating counterclockwise, attenuate the bass.
6. Microphone 1 Input Hole
Microphone 1 has the priority kinetic energy, when playing the music with the
microphone 1 call, the music will automatically attenuate the small, to achieve
microphone broadcast priority.
7. Microphone2 Input Hole
8. Microphone3 Input Hole
9. Power-driven Display Lamp
The power supply is on and off. When the light is on, the power is turned on.
10. Protect Power Standby Lights
On boot, the light indicates that the machine is in standby mode, about 3 seconds
after lights out. Extinguish: if it is lit for a long time, it means that the machine is
out of order and should be turned off at once Power, find qualified maintenance
personnel to find out the cause.
11/12/13/14. Level Indicator
Display the music level, the light indicates the strength of the music signal.

15. Overload Lamps
The light indicates that the input signal of the machine is too large. The signal should
be tuned properly to avoid distortion of the sound.
16. Microphone 1 Volume Control Knob
When rotated clockwise, increase its volume; when rotated counterclockwise,
decrease its volume.
17. Microphone 2 Volume Control Knob
When rotating clockwise, increase its volume; when counter-rotation, decrease
its volume.
18. Microphone 3 Volume Control Knob
When turning clockwise, increase its volume; when turning counterclockwise,
decrease the volume.
19. MP3 Broadcast Storm(More Details in Player Description)
20. Broadcast Partition Selection
CH1, CH2, CH3, CH4, CH5 channel constant voltage 100V can be selected to meet
the requirements of different partition broadcasting.
FUNCTION DESCRIPTION
Note: The panel structure and function of FPA-801U/1501U two-sensitivity product
amplifier are the same. The panel structure and function of FPA-2501U/3501U
teaching product amplifier are the same, like FPA-801U/1501U/2501U/3501U,
the FPA-12001U has a different structure and model for the amplifier panel.
1. SD/MMC card jack
2. Power Indicator
3. Previous Song and Volume
Reduction Button
4. Play /pause button
5. Next Song with Volume Plus Button
6. Mode selection (no function)
7. USB device input jack
Amplifier Description

O U T
(100V)
CH1
COM
(0V)
COM
(0V)
COM
(0V)
COM
(0V)
COM
(0V) (100V)
CH2 (100V) CH3 (100V) CH4 (100V) CH5
COM
(0V)
COM
(0V)
COM
(0V)
COM
(0V)
COM
(0V)
COM
(0V)
COM
(0V) 8-16Ω 70V (4Ω) 100V (8Ω)
    所 接喇叭 瓦 数＜ 1 0瓦 时，所 接 喇 叭 个数为 -5    所 接喇叭 瓦 数＜ 1 0瓦 时，所 接 喇 叭 个数为 -5::    所 接喇叭 瓦 数＜ 1 0瓦 时，所 接 喇 叭 个数为 -5: 1200W
喇叭瓦数
220V~50Hz 2200W
T12.5AL 250V
OU T PUT
AU X 1
AU X 2
Cons t a n t V o l t age A m p l i f i e r
OUTPUT
COM 4-16Ω
(20Ω)
70V (40Ω) 100V
I NP U T O UT
A UX 1 A U X 2
R EC
L
R
0V 100V 100V 100V 100V 100V
COM CH 1 C H 2 C H 3 C H 4 C H 5

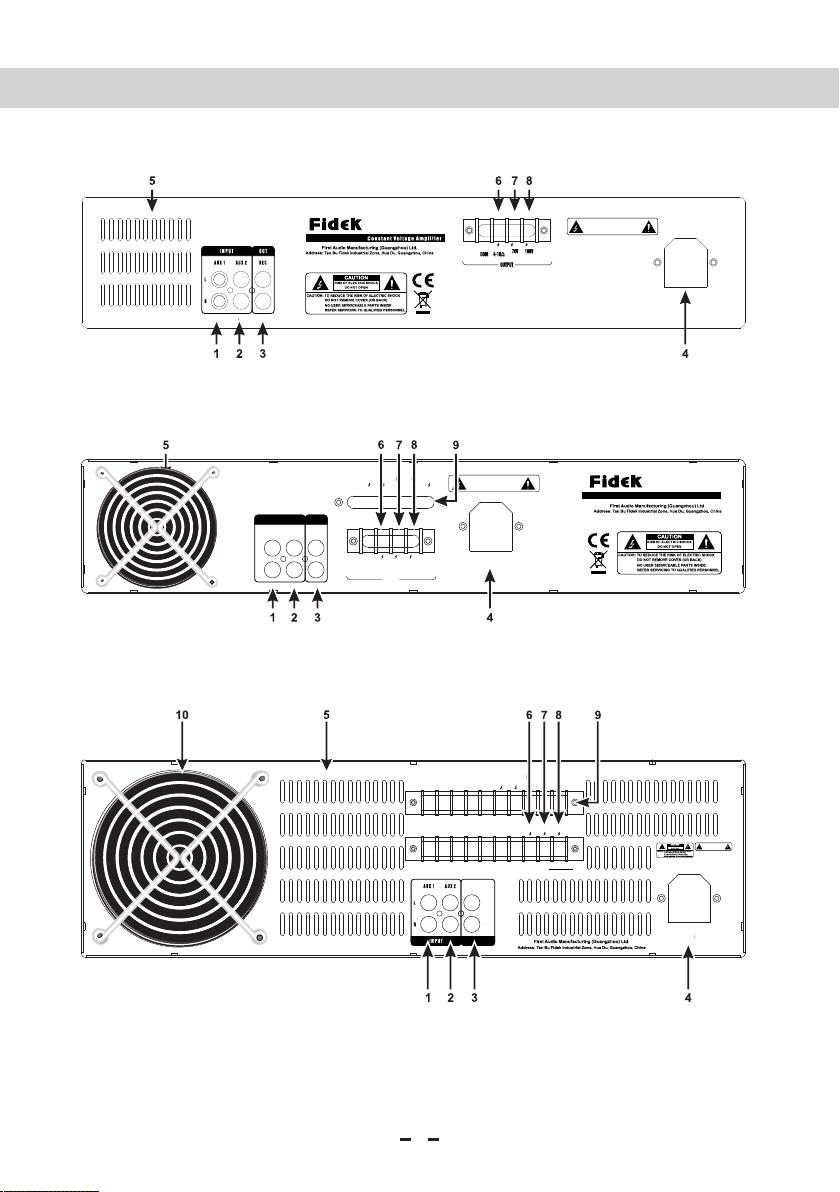

FPA-801U/1501U REAR PANEL
FPA-2501U/3501U REAR PANEL
FPA-12001U REAR PANEL
FUNCTION DESCRIPTION
8
Liv e termi nal
Pay a ttent ion to el ectri c shock !
Liv e termi nal
Pay a ttent ion to el ectri c shock !
Live terminal
Pay attention to electric shock !

9
FUNCTION DESCRIPTION
1. AUX1 socket, Input sensitivity 400mv
2. AUX2 socket, Input sensitivity 600mv
3. Audio output
4. AC power socket
5. Hot air outlet of the fan
The speed of the fan is controlled by the temperature,when the temperature exceeds
50 degrees it will speed up.
6. Power amplifier output binding post
Can be directly connected to the 4-16Ω ordinary speaker.
7. 70V output binding post
Connected with special 70V speaker
8. 100V output
When the panel selects a different channel,the corresponding 100V channel will
have output.
9. 100V partition output
When the panel selects a different channel, the corresponding 100V channel will
have output.
10. Fan
Note: The rear plate structure and function of FPA-801U/1501U are the same, but the
output attact rate is different. The plate structure and function of FPA-2501U/
3501U are the same, but the output attact rate is different. The function of
FPA-12001U is the same with FPA-801U/1501U/2501U/3501U,but the rear
plate structure and output attact rate is different.

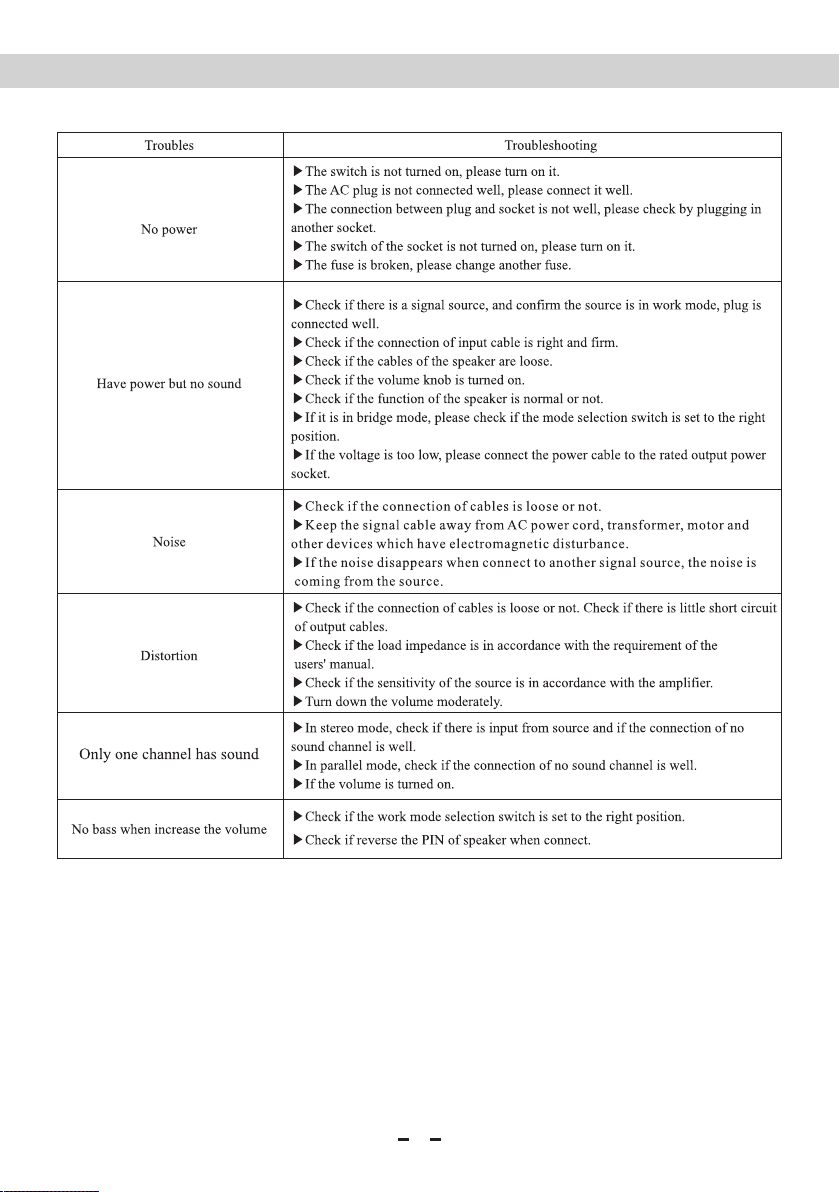

TROUBLESHOOTING
10

11
OPERATION
1. Check that all connections are correct and the backplate voltage is the same as the
mains voltage.
2. Check that the audio output voltage is equal to the speaker input voltage.
3. Check whether the total impedance of the system is greater than or equal to the
norminal impedance of the amplifier.
4. Make sure all connections are correct and that the voltage on the back plate is the
same as the mains voltage. Plug in the power plug.
5. Turn on the signal source,and adjust the sensitivity selecion switch to make the
sensitivity is accordance with the signal source.
6. Put the gain control to the minimum,turn on the amplifier.The power light turns on,
the protect LED dies after 3 seconds,then turn the gain control to the appropriate
position,the signal light turns on.The amplifier comes into work mode.
7. Adjust the gain control to suitable position, which make clip indicator LED twinkle
but not light for long time.
8. Please turn off amplifier first and then shut off the signal source.
Overload and short circuit protection:
FPA series has short circuit protection of automatic recovery;the amplifier starts to
work again automatically after solving the trouble. The fan of this series speed varies
automatically to maintain safe internal temperature.
Overheat protection:
If the inner temperature surpasses 100℃, the overheat protection circuit works,
disconnecting the load from that channel. When the temperature cools under 100℃,
the unit starts to work again.

FPA-12001U
1150W 8
SPECIFICATIONS
80W 150W 250W 350W
Model
Item
THD
Frequency response
Voltage
S/N
220V
Rated Power
Output(8Ω)
12
