Finicare FC-IR101 User manual

User manual

1
Operating Manual
Infrared thermometer
Model: FC-IR101

CONTENTS........................................................................................................................................................2
1. Introduction.........................................................................................................................................3
1.1 Indications for Use.............................................................................................................................3
1.2 Safety Information.............................................................................................................................3
2. Principle...............................................................................................................................................4
3. Product features..................................................................................................................................4
4. Technical parameters..........................................................................................................................4
5. Shape structure................................................................................................................................... 5
6. Display icon definition.........................................................................................................................5
7. Function keys.......................................................................................................................................6
8. Settings................................................................................................................................................ 7
9. Measuring method..............................................................................................................................7
9.1 Forehead temperature measurement..............................................................................................7
9.2 Ear temperature measurement........................................................................................................ 7
9.3 To be connected with your smart phone..........................................................................................8
10. Replacement of batteries..................................................................................................................8
11. Cleaning and Maintenance................................................................................................................8
12.Trouble shooting.............................................................................................................................. 10
13. EMC Information.............................................................................................................................11
14. Commitment to quality and after-sales service............................................................................. 14
15. Manufacturer information..............................................................................................................14

1. Introduction
FC-IR101 measures the body temperature through receiving the infrared energy radiation
from the object of objects. It is with forehead temperature mode, and ear temperature
mode. The measurement result directly shows on the LED screen.
The device is widely used for home healthcare, medical institutes and many other
occasions.
The product is mainly composed with infrared temperature sensors, signal receiving
processor, buttons, buzzer, LED display, battery, etc.
1.1 Indications for Use
The infrared thermometer is intended for the measurement and monitoring of human body
temperature by doctor or customers in the hospital or home.
1.2 Safety Information
Warnings：
■Read the instruction manual before using this device.
■The measurement results cannot replace the physician diagnosis.
■The thermometer is placed in the position not touched by children.
■Never point the device at ones’ eyes when measuring.
■Do not try to change the product factory settings.
■Use the thermometer in a stable temperature environment. I
f
the environment
temperature changes too much, for example from outdoor to indoor, please put the
thermometer and wait for about half an hour minutes before measuring.
■After measuring extremely high or low temperature, don’t measure body
temperatures immediately, you should measure 10 minutes later.
■Prohibit the thermometer into any liquid.
■Don’t use in high or low temperature environment for a long time.
■No collision, falling and sharp objects mix, it is forbidden to disassemble the
thermometer.
■Don’t use in strong electromagnetic interference environment.
■Avoid using the thermometer when drying the hair, drenching water, sweating, and
putting on skin cosmetics.
■Don’t measure the temperature after doing sports, washing and 30 minutes before
dinner.
■Portable RF communications equipment (including peripherals such as antenna
cables and external antennas) should be used no closer than 30 cm (12 inches) to
any part of the thermometer, including cables specified by the manufacturer.
Otherwise, degradation of the performance of this equipment could result.
■No special maintenance is needed to the use process. Please contact the vendor or
manufacturer for fault.
2. Principle
Any object in which temperature is higher than absolute zero degree will transmit some
infrared radiation energy according to its own temperature. The radiation energy and its

distribution per wavelength are closely associated with its object temperature. Based on
the principle, it is possible to measure the forehead object temperature and then adjust the
offset between forehead temperature and actual body temperature, which will result in
the correct display of body temperature.
3. Product features
●Contact-type infrared measurement；
●Forehead, ear temperature, dual modes of measurement；
●High definition LED backlight, clearly and softly display;
●Fever alarm function;
●Capacity of storing 35 sets measurements；
●Switching between °C and °F
●Auto shut-down and power-saving;
●Switching between mute and un-mute mode
●Can be connected with smart phone via Bluetooth 4.0.
4. Technical parameters
Table 1
Measurement
method
Contact-Type
Measurement Mode Body Mode 32.0°C～42.9°C（89.6°F~109.2°F)
object Mode 0°C～100°C(32°F~212F)
Measurement
accuracy
Body Mode ±0.2°C/0.4°F
object Mode ±1.0°C/1.8°F
Display resolution 0.1°C/°F
Operating
environment
15° C ~ 35 ° C (59° F to 95 ° F) ≦85% moisture condensation
Storage condition
-25°~55°C-(-13°Fto131°F)
≦90% moisture condensation
Power supply DC1.5V×2
Power consumption
When off ≦10 uw
power-off
When measuring≦30 mw
In 30 seconds

Weight About 70 g (without battery)
Dimensions 160mm *39 mm *27.3mm(length x width x height)
Product accessories 2x AAA batteries and 1x User Manual

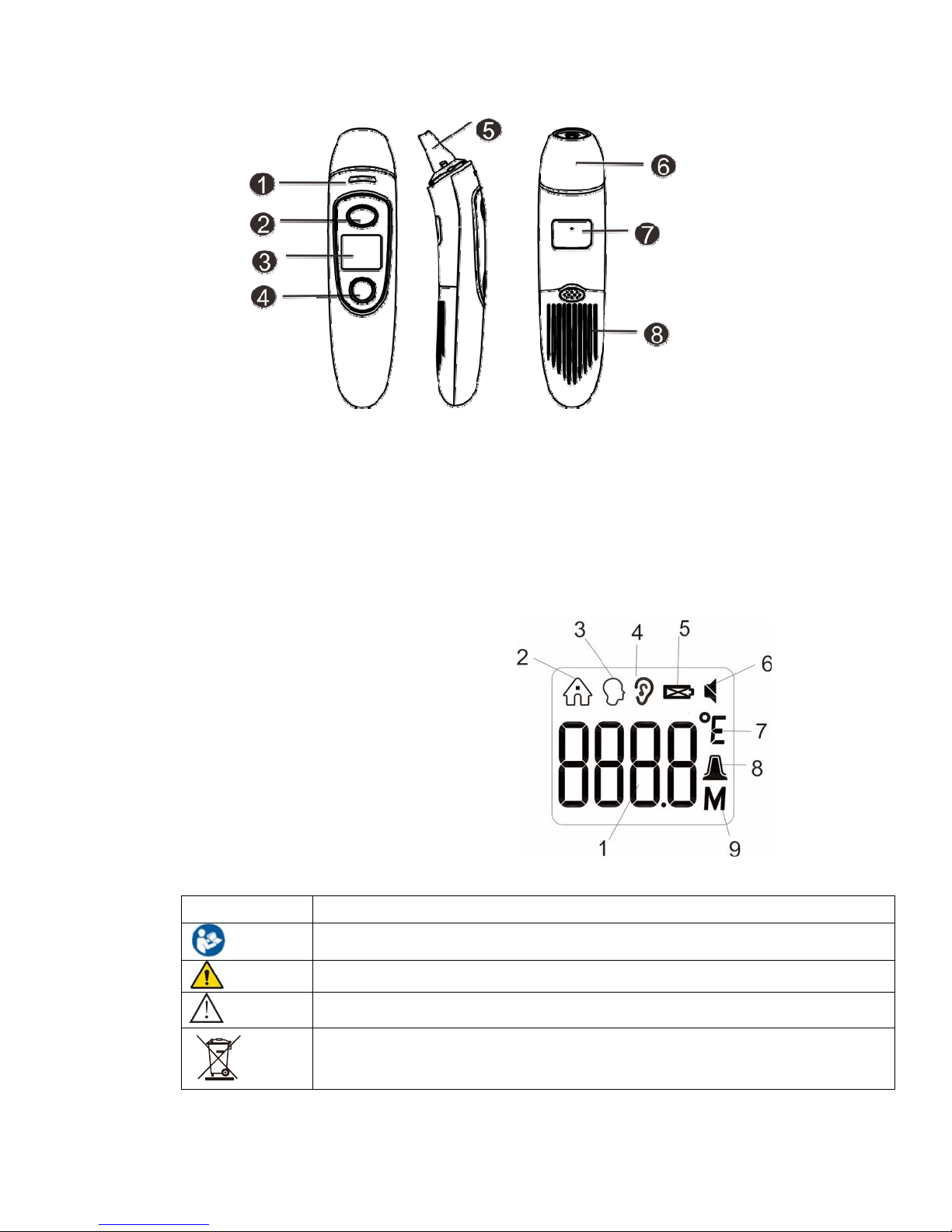

5. Shape structure
○1Temperature light ○2Measure button
○3LCD display screen ○4Memory/Mute-unmute button
○5Probe ○6Probecover(takeitoffwhenmeasuringeartemperature)
○7 Rating label ○8 Battery cover
6. Display icon definition
1. Temperature value
2. Object temperature mode
3. Forehead temperature mode
4. Ear temperature mode
5. Battery level
6. Mute /Un-mute
7. Fahrenheit / Celsius degrees
8. Bluetooth icon
9. Memory recall
Table 2 Icon Definition Description
Icon Definition
Follow instructions for use
General warning
Caution
Don’t dispose with household waste after use

Flammable and explosive
Manufacturer
BF type application device
Keep dry
Upward
Fragile, handle with care
IP22 2 Protected against solid foreign objects of 12,5 mm Ø and greater；
2 If keep the thermometer in 15 degree angle, it still can prevent the
water drop.
7. Function keys
Table 3
Function key functional description
Measure button Press to measure
Memory button Press to get the latest 35 sets memories temp.
Shutdown button Keep pressing the button for 5-7 seconds, device will power off
Mute and un-mute
button
Keep pressing the button for 2-3 seconds to switch from un-mute
to mute.
Conversion button Keep pressing for 5-7 seconds to switch from °F to °C
Measure button, shutdown button
Memory button, Mute-unmute button,
Conversion button

8. Settings
A: Memory mode：
When power on or power off, press the Memory/Mute-unmute button to check the latest
35 sets measurement value.
Note:
a. The record order is 1, 2, 3...35 and so on.
b. The record will be deleted when uninstall the battery.
B: Temperature unit setting：
Keep pressing Memory/Mute-unmute button for 5-7 seconds to switch from °F to °C.
C: Switching between mute and un-mute：
When the thermometer is turned on, keep pressing the Memory/Mute-unmute button for
2-3 seconds, to switch from un-mute to mute.
D: To turn off
The unit will shut down automatically after 30 seconds of no use. Or you can keep pressing
the Measure button for 5-7 seconds.
9. Measuring method
9.1 Forehead temperature measurement.
Press the Measure button to power on.
Position the thermometer on the forehead, just above the middle of the eyebrow. Press
and release the Measure button in 1 second, the beep is heard, you can now read the
value.
If the eyebrow area is covered with hair, sweat or dirt, please clean the area beforehand
to improve the reading accuracy.
9.2 Ear temperature measurement
Press the Measure button to power on.
Take off the probe cover, fit the probe snuggly into the ear canal. Press and release the
Measure button in 1 second, the beep is heard (in un-mute mode), you can now read the
value.
Please make sure that the ear is clean, with no earwax or obstructions.
The right ear reading may differ from the reading taken at the left ear. Therefore,
always take the temperature in the same ear.
Children under 1 year: Pull the ear straight back.

Children aged 1 year to adult: Pull the ear up and back.
Do not force the thermometer into the ear canal. Otherwise, the ear canal may get
injured.
Be careful when taking temperature on a child, whose ear canal is small.
●Keep the battery beyond the child's reach and prevent it from being swallowed. If the
battery is swallowed, please contact the doctor immediately.
●The measurement results from thermometer is only for reference and cannot replace the
clinical diagnosis result. If feeling abnormal, please consult the doctor in time.
Caution
1. All memory records will loss when uninstall or reinstall the battery.
2. All settings will come to default when uninstall the battery. If need adjust the settings,
please power on and make the new settings.
3. The thermometer will power off automatically after 30s without any operation.
4. When the measurement vale is between 37.5-37.9℃, it is considered low fever, it is
suggested to consult the doctor.

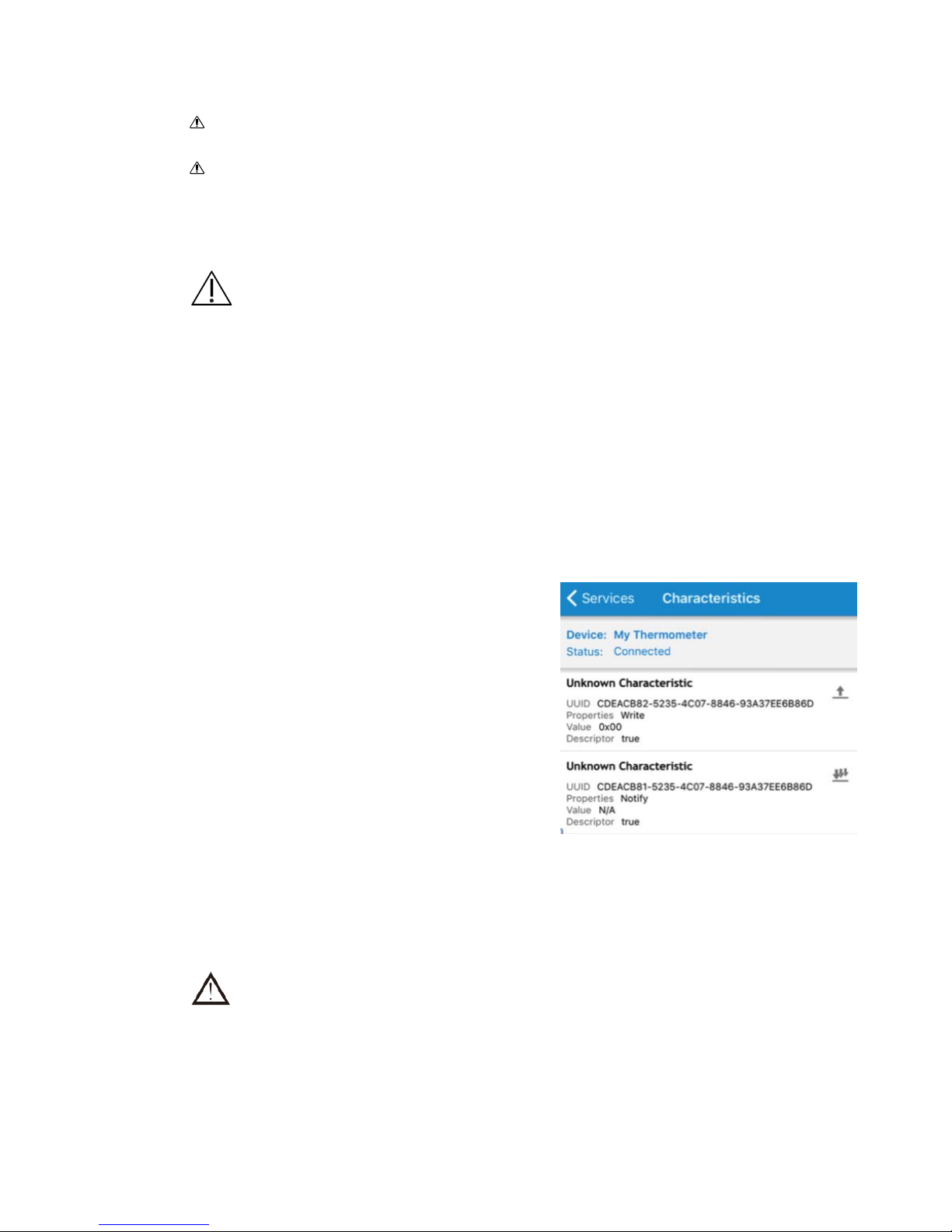

9.3 To be connected with your smart phone
1. By searching “nRF Connect” from Android
Market or App Store and download the
software.
2. Open the Bluetooth o
f
your smart phone.
3. Turn on your thermometer.
4. SearchBluetoothinSCANNERo
f
the
software “nRF Connect”
5. Click “CONNECT” in the right side when it
shows “My Thermometer”.
6. Click ”Unknown Service”, and then click
“Unknown Characteristic”, see the 3 down
arrows, clickswipe right to check the data.
10. Replacement of batteries
●The battery life is approx. 3000 readings one year and 90 minutes when in constant use.
●Open the battery cover, and remove the old battery.
●Put in new battery, and take care of the direction of the electrodes.
Caution
1. When not used for 1 month, please take out the battery to prevent leakage. It is
forbidden to put waste battery in the fire.
2. According to local regulations, properly handle the waste batteries to avoid pollution.
11. Cleaning and maintenance

Use only the Finicare-approved substances and methods listed in this chapter to clean or
disinfect your equipment. Warranty does not cover damage caused by using unapproved
substances or methods.
Finicare has validated the cleaning and disinfection instructions included in this User
Manual. It is the responsibility of the healthcare professional to ensure that the instructions
are followed so as to ensure adequate cleaning and disinfection.
11.1 General Points
Keep your thermometer free of dust and dirt. To prevent the device from damage, please
follow the procedure:
Use only recommended cleaning substances and disinfectants listed in this manual.
Others may cause damage (not covered by warranty), reduce product lifetime or cause
safety hazards.
Always dilute according to the manufacturer’s instructions.
Unless otherwise specified, do not immerse any part of the device in liquid.
Do not pour liquid onto the system.
Do not allow liquid to enter the case.
Never use abrasive material (such as steel wool or silver polish).
Inspect the device after they are cleaned and disinfected.
Warning
1. I
f
you spill liquid on the probe sensor, LCD or they are accidentally immersed in liquid,
contact your service personnel or service engineer.
2. Before cleaning or disinfection make sure that the device is switched off and
disconnected from the power line.
3. After cleaning with isopropyl alcohol, allow the thermometer to air dry. Use a soft, dry
cloth to clean the thermometer body and LCD display.
4. Do not use abrasive cleaners. Never submerge this thermometer in water or any other
liquid.
5. Please keep the inner cavity o
f
the sensors and probes clean, otherwise it will affect
the measuring accuracy.
11.2 Cleaning
If the point(s) has been in contact with the patient without the replaceable ear cover
co-packaged, e.g. surface of infrared probe and protective cover, then cleaning and
disinfection is required after every use to avoid contamination. If there has been no patient
contact and there is no visible contamination, including the handle, battery cover and
compartment, LCD, keys and inside surface of the protective cover, or when the probe is
used with the replaceable ear cover, daily cleaning and disinfection is appropriate, and the
suggestion is do it weekly.
The validated cleaning agents for cleaning the monitor and reusable accessories are:
Isopropanol (70%)
Cleaning agents should be applied and removed using a clean, soft, non-abrasive cloth or
paper towel.
To do surface-cleaning to the thermometer, please follow these steps:

1. Switch of
f
the monitor and disconnect it from the power line.
2. Wipe the entire exterior surface, including the handle, battery cover and compartment,
LCD, keys and inside surface of the protective cover, of the equipment using a soft cloth
dampened with the cleaning solution thoroughly until no visible contaminants remain.
3. Wipe of
f
the cleaning solution with a fresh cloth or towel, dampened with tap water
after cleaning until no visible cleaning agent remains.
4. Dry the monitor in a ventilated and cool place.
11.3 Disinfection
If the point(s) has been in contact with the patient without the replaceable ear cover
co-packaged, e.g. surface of infrared probe and protective cover, then cleaning and
disinfection is required after every use to avoid patient cross infection. If there has been no
patient contact and there is no visible contamination, including the handle, battery cover
and compartment, LCD, keys and inside surface of the protective cover, or when the probe
is used with the replaceable ear cover, daily cleaning and disinfection is appropriate, and
the suggestion is do it weekly.
For the whole unit, low level disinfection is appropriate since it is a complete surface
contacting device. Clean the device before disinfection. The validated disinfectant for
cleaning the device is:
Isopropanol (70%)
Since Isopropanol is used for both cleaning and disinfecting, a new cloth is required to be
used for the disinfection step.
To disinfect the monitor, follow these steps:
1. Switch off the monitor and disconnect it from the power line.
2. Wipe the display screen using a soft, clean cloth dampened with the disinfectant
solution.
3. Wipe the exterior surface o
f
the equipment using a soft cloth dampened with the
disinfectant solution.
4. Wipe of
f
the disinfectant solution with a dry cloth after disinfection i
f
necessary
5. Dry the monitor for at least 30 minutes in a ventilated and cool place.
12. Troubleshooting
Table 4
Diagnosis Solution
The screen shows " Hi " or
"Lo”
1. Check the measurement object. It is unable to ensure
the measurement of the forehead hair, water,
sweating, and applying cosmetics case.
2. Check the operation environment. Environment
changes will greatly influence the measurement.
3. Temperature change is too big or the thermometer
tests target of low temperature immediately after
being switched from a high temperature measuring.
It's better to use after 5 minutes to achieve a new
heat balance.

4. The measured body temperature is higher than 42.9°
C or lower than 32.0 ° C。
5. The measured object is not correct.
The screen shows "Er1” 1. The environment temperature is exceed the normal
working arrange which is 15° C ~ 35 ° C (59° F to 95 ° F)
Buttons have no response
2. Load and unload the battery
3. Check if the setting is in the progress
No display or display
abnormal
Unload the battery and load again
Power off when open Check the battery, load and unload the battery again
13. EMC information
Table 5
Guidance and manufacturer ’s declaration-electromagnetic emissions
The FC-IR101 is intended for using in the electromagnetic environment specified below. The customer or the user
oftheFC-IR101shouldassurethatitisusedinsuchanenvironment.
Emissions test Compliance Electromagnetic environment-guidance
RF emissions
CISPR 11 Group 1
TheFC-IR101usesRFenergyonlyforitsinternalfunction.Therefore
,
its RF emissions are very low and are not likely to cause an
d
interference in nearby electronic equipment.
RF emissions
CISPR 11 Class B
The FC-IR101 is suitable for use in all establishments other tha
n
domestic and those directly connected to the public low-voltag
e
power supply network that supplies buildings used for domesti
c
purposes.
Harmonic emissions
IEC 61000-3-2 N/A
Voltage fluctuations /flicke
r
emissions
IEC 61000-3-3
N/A
Table 6
Guidance and manufacturer ’s declaration-electromagnetic immunity
The FC-IR101 is intended for use in the electromagnetic environment specified below. The customer or the user o
f
the FC-IR101 should assure that it is used in such an environment.
Immunity test IEC60601 test level Complia
nce level
Electromagnetic
environment -guidance

Table 7
Guidance and manufacturer ’s declaration-electromagnetic immunity
The FC-IR101 is intended for use in the electromagnetic environment specified below. The customer or the user of
theFC-IR101shouldassurethatitisusedinsuchanenvironment.
Electrostatic
discharge
(ESD)
IEC 61000-4-2
±2,±4, ±6kV for
Contact discharge
±2,±4,±8kV
air
discharge
±2,±4, ±6
kV for
Contact
discharge
±2,±4,±
8kV
air
discharge
Floors should be wood, concrete or ceramic tile.
If floors are covered with synthetic material, the
relative humidity should be at least 30%
Electrical fast
transient/burst
IEC 61000-4-4
±2 kV for a.c. power lines
±1 kV for d.c. power lines N/A Mains power quality should be that of a
typical commercial or hospital environment.
Surge
IEC 61000-4-5
±1 kV line(s) to line(s)
±2 kV line(s) to earth
N/A Mains power quality should be that of a
typicalcommercialorhospitalenvironment.
Voltage dips,
short
interruptions
and voltage
variations in
power supply
input lines
IEC 61000-4-11
<5%UT
(>95 dip inUT)for0.5cycle
40%UT
(60% dip inUT)for5cycles
70% UT
(30% dip in UT)for25
cycles
<5%UT(>95% dip inUTfor 5 s
N/A
Mains power quality should be that of a
typical commercial or hospital environment. If the user
of the FC-IR101 requires continued operation during
power mains interruptions, it is recommended
that the FC-IR101 be powered from an
uninterrupted power supply or a battery
Power
frequency
(50/60Hz)
magnetic field
IEC 61000-4-8
3A/m
3A/m
Power frequency magnetic fields should be at
levels characteristic of a typical location in a
typical commercial or hospital environment
NOTEUTis the a.c. mains voltage prior to application of the test level.

Immunity test IEC 60601 test level Compliance
level Electromagnetic environment-guidance
Conducted RF
IEC 61000-4-6
3Vrms
150kHz to 80MHz N/A
Portable and mobile RF communications equipmen
t
should be used no closer to any part of the
FC-IR101 including cables, than the
recommended separation distance calculated from th
e
equation applicable to the frequency of the transmitter.
Recommended separation distance
d=1.2 P
Radiated RF
IEC 61000-4-3
3V/m
80kHz to 2.5GHz 3V/m
d=1.2 P80MHz to 800MHz
d=2.3 P800MHz to 2.5MHz
Here Pis the maximum output power rating of th
e
transmitter in watts (W) according to the transmitte
r
manufacturer and dis the recommended separation
distance in meters (m). Field strengths form fixed R
F
transmitters,
as determined by an electromagnetic site survey, should b
e
less than the compliance b level in each frequency range
.
Interference may occur in the vicinity of equipment
marked with the following symbol:
NOTE 1 At 90MHz and 800MHz, the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption
and reflection from structures, objects and people.
a
Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radio
s
amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess th
e
electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered. If the
measured field strength in the location in which the FC-IR101is used exceeds the applicable RF compliance level above, th
e
FC-IR101 should be observed to verify normal operation. If abnormal performance is observed, additional measures may
be necessary, such as reorienting or relocating the FC-IR101
b
Over the frequency range 150kHz to 80MHz, field strengths should be less than 3V/m.
Table 8
Recommended separation distances between portable and mobile RF communications equipment and the FC-IR101

The FC-IR101 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled.
The customer or the user of the FC-IR101 can help prevent electromagnetic interference by maintaining a minimum
distance between portable and mobile RF communications equipment (transmitters) and the FC-IR101 as
recommended below, according to the maximum output power of the communications equipment.
Rated maximum output power of
transmitter
W
Separation distance according to frequency of transmitter
m
Rated
maximum
out
p
ut
p
ower
150kHz to 80MHz
d=1.2 P
80MHz to 800MHz
d=1.2 P
800MHz to 2.5GHz
d=2.3 P
0.01 0.01 0.12 0.23
0.1 0.1 0.38 0.73
1 1 1.2 2.3
10 10 3.8 7.3
100 100 12 23
For transmitters rated at a maximum output power not listed above, the recommended separation distance din meter
s
(m) can be estimated using the equation applicable to the frequency of the transmitter, where Pis the maximum outpu
t
power rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE 1 At 80MHz and 800MHz, the separation distance for the higher frequency range applies.
NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption an
d
reflection from structures, objects and people.
14. Commitment to quality and after-sales service
This product provides 1 year free maintenance service.
Note: The free service does not include the failure and damage due to user’s personal
reasons or unauthorized disassembling.
Caution
Please keep the purchase vouchers to facilitate future maintenance.
15. Manufacturer information
Shenzhen Finicare Co., Ltd
Address: Room 201, A Building, NO.1 Qianwan Road, Shengang Cooperative Zone, Qianhai,
Shenzhen, China
Tel: [phone] Fax: [phone]
Version: 1.0
Issue date: 02/01/2018

Federal Communications Commission (FCC) Statement
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
Note: This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.
●Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.
●Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications made to this device not expressly approved by Shenzhen
Finicare Co., Ltd may void the FCC authorization to operate this device.
Note: The manufacturer is not responsible for any radio or TV interference caused by unauthorized
modifications to this equipment. Such modifications could void the user’s authority to operate the
equipment.
