Viproud FC-IR109 User manual

Infrared Thermometer
User Manual
Manual Version 1.0
Issuing Date: 19/07/2023

Introduction
Package Contents
No. Name Quan�ty
1 Infrared Thermometer 1
2
1User Manual
2
3
1Pouch4
20 (supplied)
+1 (installed)
Disposable Hygiene Cap5
Lifetime
Unlimited
Warranty
365 Days
Money-Back
Guarantee
No Reason
Return for
Replacement
Lifetime
Customer
Support
Email Us
Customer Service
Thank you for purchasing the ear infrared thermometer. In order to use it
correctly, please read this instruction carefully before using the product,
and operate and use it in accordance with the requirements of the manual.
Be sure to read and follow the "Warnings and Precautions" before using
this product.
Please keep the manual with the product so that can refer to it at any time.
Battery (AA, optional)

CONTENTS
1. Warnings and Precautions
2. Product Description
3. Product Features
4. Product Structure
5. Display Description
6. How to Use Your Thermometer
Wear Disposable Hygiene Cap Correctly
Age Mode Convertion
Time Setting
Measure the Temperature of Your Ears
Take Room/Object Temperature
After the Measurement
Read Your Temperature
Switching between Mute and Un-mute
Check 30 Sets of Memory Data
°F/°C Conversion
To Turn Off
7. Temperature Taking Tips
8. Care and Cleaning
9. Error and Troubleshooting
10. Specifications
11. Symbols
12. EMC Information
13. Warranty and After-Sale Service
01
02
02
03
03
04
04
04
04
05
05
05
06
06
06
06
07
07
09
08
10
10
14
11
01
02
03
04
05
06
07
08
09
10
11
Replace the Battery
06
12

1. Warnings and Precautions
-01-
• Please consult your physician if you see symptoms such as unexplained
irritability, vomiting, diarrhea, dehydration, changes in appetite or activity,
seizure, muscle pain, shivering, stiff neck, pain when urinating, etc. in spite
of any colour of the background light or absence of fever.
The operating ambient temperature range for this thermometer is 50°F(10°C )
-104°F(40°C). Do not expose the thermometer to temperature extremes
(below -4°F(-20°C) / or over 131°F(55°C )) or excessive humidity (>95% RH).
01
• Please consult your physician if the thermometer shows elevated
temperature (yellow or red background lights).
02
This thermometer must only be used with Disposable Hygiene Caps. To avoid
inaccurate measurements always use this thermometer with a new, clean
Hygiene cap attached.
03 If the thermometer is accidentally used without a Hygiene cap attached, clean
the lens (see “Care and cleaning” section). Keep Hygiene caps out of reach of
children.
04 This thermometer is intended for household use only. This product is not
intended to diagnose any disease, but is a useful screening tool for temperature.
Use of this thermometer is not intended as a substitute for consultation with
your doctor.
05 Do not modify this equipment without authorization of the manufacturer.
06 Parents/guardians should call the pediatrician upon noticing any unusual sign(s)
or symptom(s). For example, a child who exhibits irritability, vomiting, diarrhea,
dehydration, seizure, changes in appetite or activity, even in the absence of fever,
or who exhibits a low temperature, may still need to receive medical attention.
07 Children who are on antibiotics, analgesics, or antipyretics should not be assess-
ed solely on temperature readings to determine the severity of their illness.
08 Temperature elevation as indicated by Age Precision may signal a serious illness,
especially in adults who are old, frail, have a weakened immune system, or
neonates and infants. Please seek professional advice immediately when there is
a temperature elevation and if you are taking temperature on:
• neonates and infants under 3 months (consult your doctor immediately if the
temperature exceeds 99.4 °F or 37.4 °C)
• patients over 60 years of age

This ear thermometer is intended to be used by home users for intermittent
measurement of the body temperature of patients having ages ranging from
normal weight (full term) new-born to geriatric adult.
• This thermometer is not intended for clinical use in a professional environment
and are for home usage only.
• The Age Precision feature is not intended for pre-term babies or small-for-
gestational age babies.
• This thermometer is not intended to interpret hypothermic temperatures.
• Do not allow children under 12 to take their temperatures unattended.
2. Product Description
-02-
• patients having diabetes mellitus or a weakened immune system (e.g. HIV
positive, cancer chemotherapy, chronic steroid treatment, splenectomy)
• patients who are bedridden (e.g. nursing home patient, stroke, chronic illness,
recovering from surgery)
• a transplant patient (e.g. liver, heart, lung, kidney)Fever may be blunted or
even absent in elderly patients.
09 This thermometer contains small parts that can be swallowed or produce a
choking hazard to children. Always keep the thermometer out of children’s
reach.
• Three ages mode(Neonate/Baby/Adult modes)
• 30 groups of measurement data memory function
• Mute/Un-mute function
• Hygiene cap ejector
• Display Time
• Fever warning function
• Fahrenheit/Celsius unit conversion
• With 21 Disposable Hygiene Cap
• Recognize the hygiene cap status automatically
• Automatic shutdown function, low power consumption
3. Product Features

-03-
1
6
5
7
8
9
10
2
3
4
1. Hygiene Cap Ejector
2. LCD Display Screen
3. Measure Button
4. Age Mode/Mute Mode
5. Memory Button
6. Headcap
7. Disposable Hygiene Cap
8. Probe
9. Rating Label
10. Battery Cover
4. Product Structure
1
2 3 4 5
67891011
1. Temperature Value
2. Time Display
5. Fahrenheit/Celsius Degrees
6. Memory Mode
7. Mute/Un-mute Icon
8. Battery Icon
9. Adult Mode (36 Months-adult)
10. Baby Mode (3-36 Months)
11. Neonate Mode ( 0-3 Months)
3. Ear Temperature Mode
4. Hygiene Cap Icon
5. Display Description

-04-
6. How to Use Your Thermometer
Wear Disposable Hygiene Cap Correctly
01
First remove the head cover, put on the hygiene cap tightly, then press the
" " button to turn on the thermometer.
Note:
If you don't wear the hygiene cap tightly, the Hygiene cap indicator will blink
to signal one is needed, or you can't measure the temperature.
When using the thermometer for the first time, please insert the batteries.
Age Mode Convertion
02
When turned on, press “AGE” button to toggle through each age group.
a. Neonate Mode (0-3 months baby)
When the screen shows “ ”, it turns to neonate mode;
b. Baby Mode (3-36 months baby)
When the screen shows “ ”, it turns to baby mode;
c. Adult Mode (over 36 months age)
When the screen shows “ ” , it turns to adult mode.
Note: You must select an age in order to take a measurement.
The default mode is Adult Mode.
Time Setting
03
When turn on the thermometer, press the “MEM” button
for 3 seconds, release the button when the minute digit is
flashing.
Press the “MEM” button to switch H/M digit when
it's flashing; Press the “AGE” button to set the hour time;
The time setting will be finished when press the Measure
button or without any operation for 6 seconds.

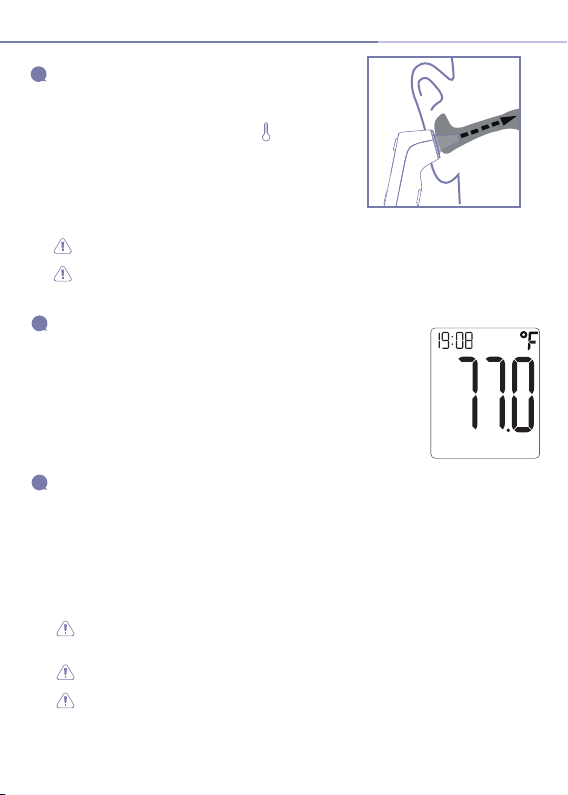

Measure the Temperature of Your Ears
04
Fit the probe snuggly into the ear canal and
direct towards opposite temple. Then push
and release the Measure button “ ”.
NOTE:
Please be aware of the factors that influence the
accuracy as described in the section
“Temperature Taking Tips” and “Warnings and Precautions”.
-05-
Always clean the lens before use.
Always make sure the user and the thermometer are in the same room
for at least 30 minutes before the measurement.
Take Room/Object Temperature
05
1. When power off, press the MEM button for 3 seconds.
The screen will display °F/°C, then release the button, you
will hear a beep, and the screen will be into a full display,
then it will complete a temperature test after 1 second.
2. It will be the same as the right picture showed. When
the °F/°C is flashing, then it's ready for testing.
3. Press the measure button, test the temperature.
After the Measurement
06
Once the reading has been completed, remove the thermometer away from
the ear and observe temperature.
After each measurement, you can enter the recall mode and query earlier
temperature readings.
Do not hold the thermometer for a long time, because it is sensitive to the
ambient temperature.
After each measurement, clean the temperature probe with a soft cloth,
and put the thermometer in a dry and well-ventilated place.
You should wait at least 10 seconds between each measurement.
It is dangerous to make a self-diagnosis or self-treatment based on
the obtained measurement results. For such purposes, please consult
a doctor.

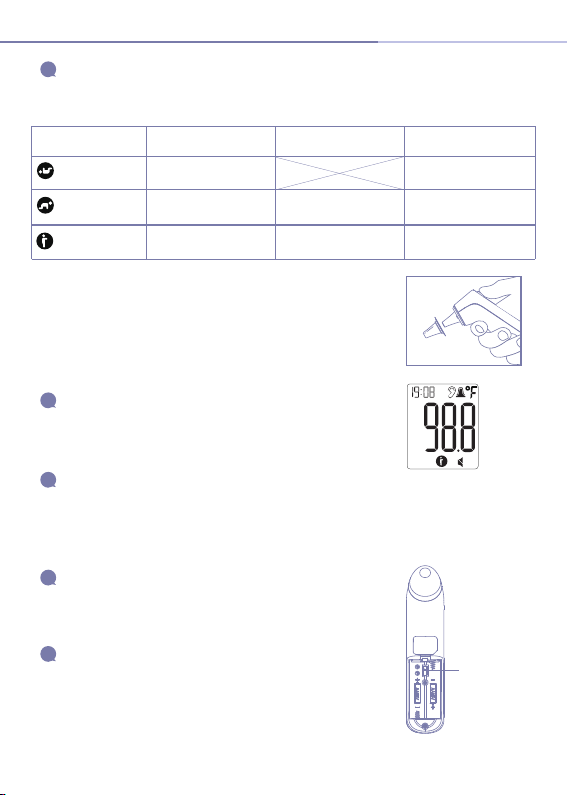

Age range Green Light
Normal Temperature
89.6°F≦T≦99.4°F
(32.0°C≦T≦37.4°C)
89.6°F≦T≦99.6°F
(32.0°C≦T≦37.6°C)
89.6°F≦T≦99.9°F
(32.0°C≦T≦37.7°C)
99.7°F≦T≦101.3°F
(37.7°C≦T≦38.5°C)
100°F≦T≦103.0°F
(37.8°C≦T≦39.4°C)
99.5°F≦T≦109.2°F
(37.5°C≦T≦42.9°C)
101.4°F≦T≦109.2°F
(38.6°C≦T≦42.9°C)
103.1°F≦T≦109.2°F
(39.5°C≦T≦42.9°C)
Orange Light
Fever
Red Light
High Fever
0-3 Months
3-36 Months
36 Months
+
Toggle Switch
°F/°C Conversion
10
Open the battery cover, use the toggle switch to
change the °F/°C.
To Turn Off
11
The unit will shut down automatically after “30±1
seconds” without using. Keep pressing the Measure
button for more than 6 seconds, it will shut down.
Read Your Temperature
07
-06-
“T”indicates a temperatrue reading.
Press this bu�on
Switching between Mute and Un-mute
08
When the thermometer is turned on, press the “AGE”
button for 3 seconds to turn the sound on or off.
Check 30 Sets of Memory Data
09
When the thermometer is turned on,short press the “Mem” button to
go to the memory mode, and press “Mem” button again to check the 30
sets of memories one by one. If no value, it will display “---M”.
NOTE:
For the next measurement, press the button to remove
and discard used hygiene cap, and then put on a new
hygiene cap.

1. All memory records will loss when uninstall or reinstall the batteries.
2. All settings will come to default when uninstall the batteries. If need
adjust the settings, please turn on and make the new settings.
-07-
7. Temperature Taking Tips
01 It is important to know each individual’s normal temperature when they are
well. This is the only way to accurately diagnose a fever. Record readings twice
a day (early morning and late afternoon). Take the average of the two
temperatures to calculate normal equivalent temperature.
Replace the Battery
12
Press the battery button on the back bottom of thermometer to open the
battery compartment. Put two AA batteries correctly into the compartment.
For environmental reasons, do not dispose of the device in the household waste
at the end of its useful life. Dispose of the unit at a suitable local collection or
recycling point.
● Please dispose of the device in accordance with EC Directive - WEEE (Waste
Electrical and Electronic Equipment). If you have any questions, please
contact the local authorities responsible for waste disposal.
● Batteries must not be disposed of with household waste. As a consumer, you
are required by law to recycle used batteries. You can recycle your old
batteries at public collection points in your community or wherever batteries
of the relevant type are sold.
● The codes below are printed on batteries containing harmful substances:
Pb = Battery contains lead, Cd = Battery contains cadmium,
Hg = Battery contains mercury.
The batteries in this device do not contain any pollutants.
Disposal
Observe the local regulations for material disposal.
Remove the batteries, if the thermometer will not be used for more
than two months.
Caution

-08-
02
03
Holding the thermometer for too long in the hand before taking a
measurement can cause the device to warm up. This means the
measurement could be incorrect.
04
Patients and the thermometer should stay in steady-state room condition
for at least 30 minutes.
In the following situations it is recommended that 3-5 temperatures in the
same location be taken and the highest one taken as the reading:
- Newborn infants in the first 100 days.
- Children under three years of age with a compromised immune system
and for whom the presence or absence of fever is critical.
- When the user is learning how to use the thermometer for the first time
until he/she has familiarized himself/herself with the instrument and
obtains consistent readings.
8. Care and Cleaning
1) Cleaning and user maintenance must not be performed
by children unless supervised.
3) After the alcohol has completely dried out, you can take a new measurement
(minimum of 10 minutes).
4) Ensure that no water enters the device. If this happens, only use the device
again once it has fully dried out.
5) Never use abrasive cleaning agents, thinners or benzene for cleaning and
never immerse the instrument in water or other cleaning liquids.
6) Take care not to scratch the surface of the LCD screen.
7) Remove the batteries from the device before cleaning.
8) Clean the device after use with a soft, slightly damp cloth. If they are very
dirty, you can also moisten the cloth with a mild soapy solution.
2) Cleaning the device use an alcohol swab or cotton swab
moistened with 75% alcohol to clean the thermometer
case and the measuring probe.

-09-
9. Error and Troubleshooting
Symptom
Failed to
power on
The reading
is too low
The battery level is too low. Replace with a new battery.
Polarities of the batteries
are reversed.
Ensure the batteries are in the right
position.
The thermometer is damaged.
The lens of the probe is dirty. Clean the lens with a cotton swab.
You have just come from a
cold environment.
Stay in a warmer room for at least
30 minutes before taking a reading.
Contact dealer.
Possible Cause Description & Solution
Memory Error
In ear mode,
T > 109.2°F (42.9°C)
3 short beeps and red indicator
light for 3 seconds. Contact dealer.
3 short beeps and red indicator
light for 3 seconds.
The ambient temperature is
below 50.0°F(10°C ) or above
104°F (40°C).
The reading
is too high
You have just come from a
hot environment.
Stay in an adequately cool room
for at least 30 minutes before
taking a reading.
3 short beeps and red indicator
light 3 seconds. Take a
measurement under an ambient
temperature between 50.0°F(10°C )
and 104°F (40°C).
"---" means the Disposable Hygiene Cap is not putting on tightly.
Do not use the ear mode to measure room/object
temperature, and must wait until the beep stops completely
before checking the temperature value.
If not solved, please contact the dealer.
*
In ear mode,
T <89.6°F (32°C)
Red indicator light.Just set it up
and start measuring.
Switch age groups or
set the time
3 short beeps and red indicator
light for 3 seconds.
*

Product Name Infrared Thermometer
Power Supply DC1.5V×2
Displayed Temperature Range
Accuracy (Laboratory)
Display Resolution
Automatic Shutdown
Memory
Battery
Weight & Dimension
Service Life 5 Years
Operating Conditions
Storage
Operating environment: 50°F-104°F (10°C-40°C),
≤85%RH
Relative Humidity: ≤85% moisture condensation
Atmospheric pressure: 70- 106kPa
Temperature: -4°F~131°F (-20°C~55°C)
Relative Humidity: ≤95% moisture condensation
Atmospheric pressure: 70- 106kPa
89.6-109.2°F (32-42.9°C)
Maximum Laboratory Error ±0.4°F (±0.2°C)
0.1°F/0.1°C
30s±1s
30 groups of measured temperature.
2*AA, can be used for more than 3000 times
76.5g (without battery), 35*156*67mm
-10-

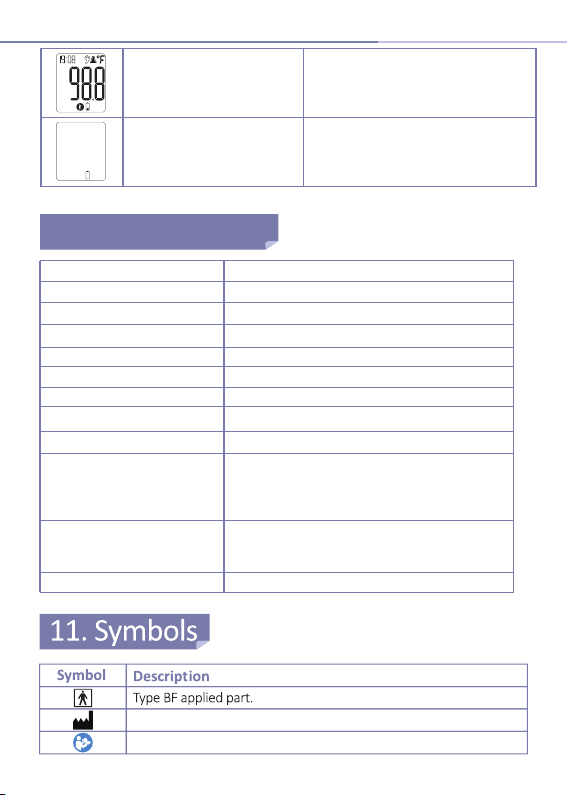

10. Specifications
2.6V±3%<power voltage
≦2.7V±3%
The battery level is low, it suggests
you to replace the battery, but you
can continue to use it.
The power voltage≦
2.5V±3%.
It will turn off automatically after 30
seconds. Please replace with a new
battery
Refer to instruction manual/booklet
MANUFACTURER

-11-
Indicates a potentially hazardous situation which, if not avoided,
could result in death or serious injury.
Transport package shall be kept away from rain.
AUTHORISED REPRESENTATIVE IN THE EUROPEAN COMMUNITY
Date of manufacture
Unique device identifier
Keep away from sunlight
Fragile, handle with care
SERIAL NUMBER
The marking of electrical and electronics devices according to
Directive 2002/96/EC.
The device accessories and the packaging have to be disposed
of waste correctly at the end of the usage.
Please follow Local Ordinances or Regulations for disposal.
Made in China
Model number
Medical device
CE mark
Importer
EC REP

Lifetime
Unlimited
Warranty
365 Days
Money-Back
Guarantee
No Reason
Return for
Replacement
Lifetime
Customer
Support
Email Us
Customer Service

Model: FC-IR109
INFRARED THERMOMETER
After-SaleService: support@viproud.net
Shenzhen Finicare Co.,Ltd.
201, No.50, the 3rd Industrial Park, HoutingCommunity
ShajingStreet, Bao’an District, Shenzhen 518104 China
U.S.Agent:
CTIU.S.Inc.
Suite 230, 1455 Cti U.S.Inc.
Lincoln Parkway, Atlanta, Ga, 30346
RIOMAVIX S.L.
Calle de Almansa 55, 1D, Madrid, 28039 Spain
Viproud
Table of contents
