Finlux Flora fn-ac1s09wh User manual

Instruction manual

Split Type Inverter Air Conditioner

Flora

FN-AC1S09WH / FN-AC1S09GR

FN-AC1S12WH / FN-AC1S12GR

FN-AC1S18WH / FN-AC1S18GR

FN-AC1S24WH / FN-AC1S24GR

3

Dear Customer,

Congratulations for choosing a nature and technology friendly FINLUX

product.

Aspiring to present products above and beyond your expectations, FIN-

LUX brings which has been manufactured and quality-controlled metic-

ulously at modern plants, into your use. This operating manual will guide

you through the use of your air conditioner. You will see that your air

conditioner is equipped with the most advanced technological solutions

and quite easy to use.

The life of your air conditioner will prolong if you perform necessary care

and maintenance procedures.

We hope you enjoy using your air conditioner.

Important Information on Safety

The operating manual includes important information about the initial

use, safety, intended use, cleaning and maintenance of your air condi-

tioner.

Always keep this operating manual with your air conditioner. When you

transfer your air conditioner make sure to transfer its manual too.

Read the operating manual carefully before using your air conditioner to

prevent burns, electric shocks, ﬁre or injury risk. Strictly follow the operat-

ing, troubleshooting and cleaning instructions for your air conditioner.

The air conditioner must be mounted by FINLUX Authorised Service.

The air conditioner must be grounded.

WARNING: Denotes death or severe injury risk.

CAUTION: Denotes injury or property damage risk.

4

Contents

Safety Warnings 6

Safety Information on Installation of the Air Conditioner ��6

Safety Information on Use of the Air Conditioner��7

Safety Information to be Considered when Performing Cleaning

and Maintenance Procedures��11

Safety Information to Take into Consideration During Handling

and Transportation��11

Installation..............................................................................11

Choosing the Mounting Position ��12

Indoor Unit��12

Outdoor Unit ��12

Cooling Circuit��13

Heating Circuit��13

Power Connections of Indoor and Outdoor Units �� 15

Batteries......................................................................................... 16

Liability Limitation ........................................................................ 16

Technical Values............................................................................. 17

Important Information About R32 Gas......................................... 18

FN-AC1S09WH �� 19

FN-AC1S12WH / FN-AC1S12GR��20

FN-AC1S18WH ��21

FN-AC1S24WH��22

General View .................................................................................23

Indoor Unit��23

Indoor Unit Display��23

Outdoor Unit ��23

Installing and Replacing Remote Control Batteries��24

Points to Take into Consideration While Using the Remote

Control��24

Operating Your Air Conditioner without Remote Control ��24

Displays & Buttons ........................................................................25

Displays & Indicators.....................................................................28

First use..........................................................................................30

5

Operating ......................................................................................30

Cooling Function��31

Heating Function ��31

Energy Eency (ECO) Function��31

Dehumidiﬁcation Function��32

Fan Function�� 32

Turbo Function�� 33

Automatic Mode�� 33

Horizontal Louver Function�� 33

Sleep Mode ��34

On/O Timer Setting Function ��34

Automatic Shut Down Function��35

Favorite Function��35

Self Cleanning Function��36

I Feel Function��36

Reset Function ��36

Display Light Button��36

Signal Sound Cancellation Function ��36

Wiﬁ Function�� 37

Practical and Useful Information ..................................................37

Cleaning and Maintenance ...........................................................38

Suggestions for Operation............................................................39

Troubleshooting............................................................................ 40

Error and Protection Messages.....................................................42

Product Information Sheets .........................................................43

FN-AC1S09WH ��43

FN-AC1S12WH / FN-AC1S12GR��43

FN-AC1S18WH ��45

FN-AC1S24WH��46

Disposal of the Appliance in an Environment Friendly Manner ..47

Package Information .....................................................................47

Recommendations on Energy Saving ...........................................47

6

Safety Warnings

Safety Information on In-

stallation of the Air Condi-

tioner

WARNING: The air condition-

er must deﬁnitely be grounded.

Insucientgroundingmaycause

electric shocks. Do not connect

the grounding wire to gas pipes,

water pipes, lightning conduc-

tors or telephone grounding

wire. After mounting, the appli-

ance should be powered up in

order to determine grounding

leak check. If you neglect, it may

cause electric shocks and dam-

ages in the product.

WARNING: The appliance

should be mounted in accor-

dance with "Mounting Instruc-

tions" by FINLUX Authorised

Service. Persons other than

the authorised service provid-

ers must not install the product.

Otherwise, damages and inju-

ries will occur.

WARNING: Wiring should be

done by an expert electrician ac-

cording to national regulations

on electrical wiring.

WARNING: In the event that

your air conditioner is connect-

ed permanently to a ﬁxed har-

ness system and has a leakage

current that may exceed 10 mA,

a leakage preventer relay with an

operating current not more than

30 mA should be installed on

the ﬁxed cable.

WARNING: Your air condi-

tioner should be wired up to the

mains at appropriate current

with a lagged V-switch.

WARNING: Do not install the

air conditioner near inﬂammable

gases or liquids to avoid situa-

tions such as the risk of ﬁre.

WARNING: In order to avoid

extraordinary noise and vibra-

tion, request from the autho-

rised service personnel a proper

ﬁxation of the air conditioner.

WARNING: Request from the

authorised service personnel the

mounting of the air conditioner

to somewhere that would not

disturb your neighbours.

WARNING: After the mount-

ing, electrical switch/fuse should

be easily accessible.

• The air conditioner should

be connected and operated

only according to the infor-

mation on the product label.

Before using the air condi-

7

tioner, check that the voltage

rating of your mains is com-

patible with the value speci-

ﬁed on the product label.

WARNING: Connect and op-

erate your air conditioner neces-

sarily to a grounded energy line

via a fuse.

WARNING:Manufacturer

company shall not be held re-

sponsible for the damages re-

sulting from operating without

grounding.

• Installation and repairs

should always be done by

the Authorised Service.

• The manufacturing compa-

ny shall not be held respon-

sible for any damage due to

operations conducted by un-

authorised persons.

• Your indoor unit should be

mounted at write that at least

15 cm from the ceiling.

Safety Information on Use

of the Air Conditioner

WARNING: Do not put your

ﬁngers or any other object in the

air inlet or outlet on the indoor

and outdoor units.

WARNING: Do not put any

obstacles in front of the outdoor

unit and do not cover.

WARNING: Do not insert any-

thing between the louver of air

ﬂow router. The indoor unit fan

may get damaged and cause in-

juries.

WARNING: In order to prevent

the air conditioner getting dam-

aged during power cuts or thun-

der and lightning storms, power

o the appliance by switching

the fuse/power switch o. Ne-

glecting to do so may cause ﬁre

or electric shocks.

WARNING: Contains ﬂuori-

nated greenhouse gases speci-

ﬁed within the scope of the Kyo-

to Protocol.

CAUTION: Do not expose

your body directly to the air ﬂow

for a long time. Do not expose

humans, pets or plants directly

to the hot or cool airﬂow of the

air conditioner in any way. Set

the direction of the airﬂow in

such a way that it does not blow

directly onto humans.

Do not expose yourself to the

cool air for a long time. This may

lead to health problems.

CAUTION: Close the doors

and windows; otherwise cool-

ing or heating performance may

8

decrease and the product may

have some problems.

• Do not use the air condition-

er for a long time in spaces

that is not ventilated at all.

Ventilate the environment

occasionally while operating

the air conditioner with de-

vices such as stove etc. at the

same time.

• If the humidity is very high

or the doors or windows are

open, do not leave the air

conditioner running for a

long time.

• Do not leave the air condi-

tioner under open air condi-

tions (sun, rain etc.) except

the outdoor unit.

• The air conditioner is de-

signed for household appli-

cations and indoors. Do not

use the air conditioner for

purposes (e.g. for the protec-

tion of sensitive equipment,

foods, pets, plants etc.) other

than cooling and heating the

space you are in.

WARNING: Operating the air

conditioner for purposes other

than its intended purpose may

cause dangerous situations and

renders the warranty void. Dam-

ages occurred due to these con-

ditions are compensated by the

user. Use your air conditioner

only according to the intended

use deﬁned.

• In order to prevent overload-

ing of the electrical circuit,

do not operate any other

high-power appliance on the

same circuit. Do not con-

nect with extension cables or

multi plugs. Ignoring this in-

struction may result in elec-

tric shock, damages, etc.

• Children at age 8 and above,

those persons with limited

physical and/or mental ca-

pabilities and those who lack

information must follow the

relevant safety instructions

and be supervised when us-

ing the product.

• Children should not be al-

lowed to play with the air

conditioner. Cleaning and

user maintenance operations

should not be made by chil-

dren unless supervised by an

adult.

• Children playing with the air

conditioner, or performing

cleaning and maintenance

procedures without supervi-

9

sion may cause dangerous

situations.

• Packaging materials may

lead to a choking. Keep them

away from the children.

• Before use, check the func-

tions of your air conditioner

accurately.

• The air conditioner should

be used only if there is no

damage on its body and on

the power cable.

• Check the power cable for

damages regularly. Do not

strain the power cable of the

air conditioner. Do not put

any objects on the power

cable.

• If the power cable is dam-

aged, it should be replaced

by the authorised service

recommended by the pro-

ducer only in order to avoid

any danger.

Never use your air conditioner

under the following conditions:

• If the air conditioner or the

power cable is damaged,

• If the air conditioner is not

running properly,

• If the electrical parts of the

air conditioner are visibly

damaged,

• If the air conditioner is wet,

has dropped into water or

any other liquid, exposed to

water ﬂooding incident, its

electrical components have

come into contact with wa-

ter,

• If strange noises, smoke or

smells emanate from the air

conditioner.

If any of the cases mentioned

above is detected, shut down

your air conditioner immediate-

ly, disconnect the power supply

connection and contact with the

authorised service.

• A damaged air conditioner

or damaged parts of the air

conditioner may cause se-

vere injuries and ﬁre.

• In case of any malfunction,

do not attempt to repair or

disassemble the air condi-

tioner yourself.

• If it is re-mounted wrongly,

it may cause electric shocks

during use. There is no part

within your air conditioner

which can be repaired by the

user.

• Use of accessories not rec-

ommended by the manufac-

turer may cause injuries and

10

damages to the air condi-

tioner.

• Do not damage the air con-

ditioner's cooling system in

which refrigerating gas cir-

culates with sharp objects. If

the refrigeration gas blows

out due to puncturing in heat

exchanger gas ducts and up-

per surface platings of pipe

joints, it may cause skin irrita-

tions and eye injuries.

• Do not cover or put any ob-

ject in front of the air inlets

and outlets of the air con-

ditioner or the outdoor unit

while running.

• Do not spray ﬂammable and

refrigerant gases onto the air

conditioner.

• When there is a refrigerant

gas leakage in the air condi-

tioner, open the windows to

ventilate the area and call the

Authorised Service.

• Do not put heating devices

near the air conditioner and

the power cable. Excess heat

that might be radiated from

these devices may melt the

plastic parts of the air condi-

tioner.

• Do not touch or run the air

conditioner with wet or moist

hands.

• If the air conditioner will not

be used for a long time, dis-

connect the power supply

from the fuse.

• When the power is restored

after a blackout, your air con-

ditioner will restart running

again at the last mode it is

set.

• If you will leave your home

before the power is restored,

turn the switch of your air

conditioner o.

• Do not throw or insert any

object inside the holes.

Make sure that the air condition-

er is turned o and the power is

cut from the fuse/power switch

under the following conditions:

– Before installation,

– Before cleaning and

maintenance,

– Before repairs,

• Do not drink the water

drained o from the air con-

ditioner. Otherwise, severe

health problems may occur.

• Do not leave the indoor unit

under the rain or at a location

where it can get wet.

11

may cause breakdowns.

Safety Information to Take

into Consideration During

Handling and Transporta-

tion

• During handling and trans-

portation of your air condi-

tioner, watch out the AR-

ROW sign while handling

the indoor unit.

• Carry the outdoor unit verti-

cally and keep it vertically at

the place it is stored.

• Do not step on and do not

put heavy objects on the in-

door and outdoor unit boxes.

• For the re-mounting of the

air conditioner at a new loca-

tion, contact the authorised

service.

Installation

WARNING: The air condition-

er must be installed according to

national plumbing directive.

WARNING: The air condi-

tioner should be installed by

FINLUX Authorised Service ac-

cording to "Installation Instruc-

tions".

WARNING: The appliance

• If the air conditioner will be

displaced and re-mounted at

a new location, contact the

authorised service.

Safety Information to be

Considered when Perform-

ing Cleaning and Mainte-

nance Procedures

• To prevent the risk of electric

shock, turn o the air condi-

tioner, shut down its fuse or

switch gear before cleaning.

• Do not use liquid or abrasive

detergents to clean the air

conditioner. Do not splash

with water or other liquids;

otherwise plastic parts may

get damaged and even elec-

tric shocks may occur.

• In order to prevent short

circuits and ﬁres, keep the

indoor unit dry. Clean and

maintain your air conditioner

as described in the "Clean-

ing and Maintenance" sec-

tion.

• Do not use or approximate

chemicals to your air condi-

tioner. Do not use substanc-

es such as gasoline or thinner.

• Insert the air ﬁlter after it gets

dry completely. Operating

the appliance without ﬁlters

12

should not be mounted on the

stairs, exits or hallways of the

building.

The stable pressure by which the

air conditioner is experienced is

100 Kpa.

The fuse that should be used in

the electrical connection of the

air conditioner is type C 16 A for

9,000 and 12,000 btu and type

C 20 A for 18,000 and 24,000

btu.

Care should be given to the

wire diameter cross-section in

the electrical wiring of the place

where the air condition will be

installed.

Only the outdoor unit of your

air conditioner is proper for use

outside the building.

Choosing the Mounting

Position

Indoor Unit

• There should not be any va-

pour or heat source near the

air conditioner.

• There should not be any ob-

stacle preventing air circula-

tion at the mounting posi-

tion.

• Air circulation should be suf-

ﬁcient.

• Discharge should be easily

executable.

• It should not be close to the

door entrance.

• There should be enough dis-

tance between the air con-

ditioner and the wall, ceiling,

decorations and other ob-

stacles.

• The mounting position

should be about 30 centime-

tres below the ceiling.

Outdoor Unit

• If there is an awning protect-

ing the outdoor unit from

sunlight or rain, make sure

that it does not prevent con-

denser from distributing the

heat.

• There should be enough dis-

tance between the air con-

ditioner and the wall, ceiling,

decorations and other ob-

stacles.

13

Cooling Circuit

Heating Circuit

OUTDOOR

UNIT

COMPRESSOR

EXPANSION

VALVE

INDOOR UNIT

OUTDOOR

UNIT

COMPRESSOR

INDOOR UNIT

EXPANSION

VALVE

14

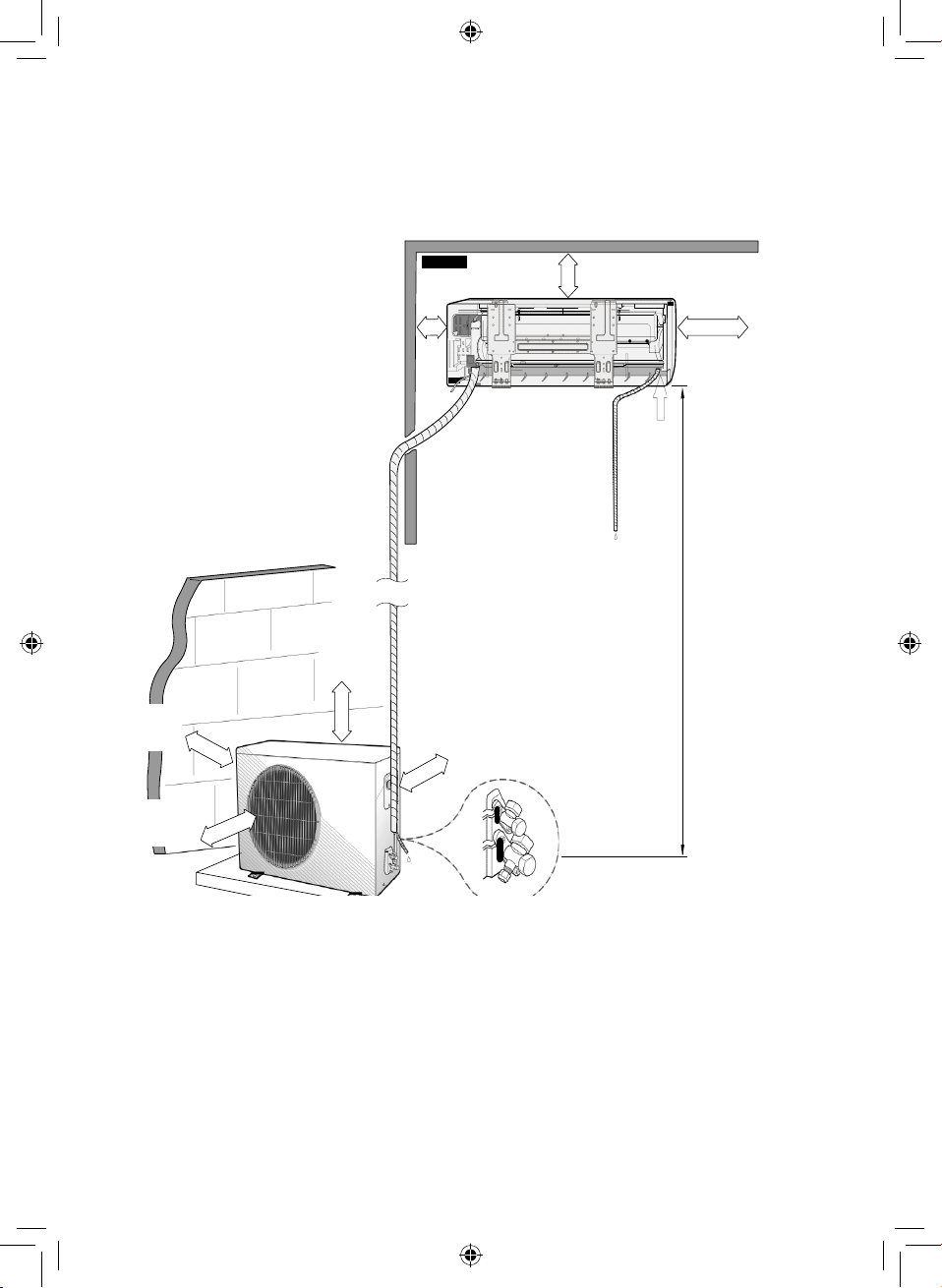

The distances stated in the chart below should be applied in the installation of

indoor and outdoor units.

Minimum 150 millimetres

Minimum 150

millimetres

Minimum 500

millimetres

Minimum 300

millimetres

Minimum 2000

millimetres

Minimum 500

millimetres

Minimum 150

millimetres

15

Power Connections of Indoor and Outdoor Units

1

2

3

4

5

L

N

S

Neutral

Earth

Neutral

Earth

Power Supply

16

Batteries

• Do not expose the batteries

directly to sunlight, ﬁre, ex-

cessive heat and etc.

• Do not use used batteries

together with new batteries.

Replace the used batter-

ies with the batteries whose

shapes and types are the

same as deﬁned in the bat-

tery installation section. Do

not use rechargeable batter-

ies.

• Do not use the remote con-

trol if the batteries have

leaked. Do not touch the liq-

uid leaking from the batter-

ies. In case of contact, wash

out with water.

Liability Limitation

All of the technical informa-

tion, instructions in this manual

includes the latest information

on your air conditioner, its op-

erating and maintaining. The

manufacturing ﬁrm shall not

bear any responsibility for any

possible damages and injuries

due to non-compliance with

the instructions in this operating

manual, misuse of the appliance,

unauthorised reparations, mak-

ing unauthorised modiﬁcations

on the appliance and use of

spare parts unapproved by the

manufacturing ﬁrm.

Make sure that the supply volt-

ageattheinstallationsitematch-

es properly with the operation

voltage range speciﬁed in the

technical speciﬁcations of your

air conditioner and that neces-

sary measures are taken. The

user is responsible for assuring

the compliance of the electrical

wiring at the site where the air

conditioner will be installed.

17

Technical Values

• Nominal values are determined according to T1 climate conditions

of TS EN 14511 standards. In case that indoor and outdoor tempera-

tures are dierent from the temperature values on which the stan-

dard is based; cooling and heating capacities would change.

• Seasonal eciency values are determined according to EN 14825

Standard.

• The values indicated in the product label or other documents re-

lated to the product, are obtained in the laboratory environment ac-

cording to respective standards and they may change depending on

the use of the product and indoor/outdoor environment conditions.

• Technical speciﬁcations and the manual are subject to change with-

out prior notiﬁcation.

18

Important Information About R32 Gas

This product contains ﬂuorinated greenhouse gases� Refrigerant must not be

released to the atmosphere�

Refrigerant: R32

GWP (Global Warming Potential: 675

Periodic checks may be required for gas leakage. Contact your dealer or authorised

service for more information.

Note: CO2 equivalent (tCO2eq): Greenhouse gas emissions of the total refrig-

erant charge in the product is used to specify the maintenance intervals. Refer to the

relevant regulations for detailed information.

WARNING: Refrigerant used in product is ﬂammable. Normally refrigerant leak-

age will not occur. Fire may arise or harmful gases may be released if the refrigerant

comes into contact with the ﬂame on heaters, cookers, etc. in the environment in

case of a gas leakage.

Observe the following measures in case of a refrigerant leakage:

- Switch of all heaters, cookers and etc.

- Ventilate the room.

- Inform the dealer or authorised service from whom you have purchased the prod-

uct.

- NEVER operate the product until the authorised service conﬁrms that the prob-

lem related with the gas release is remedied.

Greenhouse gas

emission value =Refrigerant GWP value x Total refrigerant amount

1000

19

FN-AC1S09WH

Nominal Capacity Cooling Btu/h

Heating Btu/h

Nominal Capacity Cooling (kW)

Heating (kW)

Capacity Interval Cooling Btu/h

Heating Btu/h

Input Power (Nomi-

nal) Cooling W

Heating W

Operating Current

(Nominal) Cooling A

Heating A

Design Load Cooling (kW)

Heating (kW)

Seasonal Energy Ef-

ﬁciency (SEER) Cooling

(SCOP) Heating

Seasonal Energy

Class Cooling/Heating

Refrigerant

Power source

Outdoor Unit Mea-

sures WxHxD mm

Indoor Unit Measures WxHxD mm

Interconnection Pipes Liquid line inch

Gas Line inch

Noise level Indoor Unit dbA

Outdoor unit dbA

Outdoor Operating

Temperature Heating (Minimum)

Cooling (Maximum)

20

FN-AC1S12WH / FN-AC1S12GR

Nominal Capacity Cooling Btu/h

Heating Btu/h

Nominal Capacity Cooling (kW)

Heating (kW)

Capacity Interval Cooling Btu/h

Heating Btu/h

Input Power (Nomi-

nal) Cooling W

Heating W

Operating Current

(Nominal) Cooling A

Heating A

Design Load Cooling (kW)

Heating (kW)

Seasonal Energy Ef-

ﬁciency (SEER) Cooling

(SCOP) Heating

Seasonal Energy

Class Cooling/Heating

Refrigerant

Power source

Outdoor Unit Mea-

sures WxHxD mm

Indoor Unit Measures WxHxD mm

Interconnection Pipes Liquid line inch

Gas Line inch

Noise level Indoor Unit dbA

Outdoor unit dbA

Outdoor Operating

Temperature Heating (Minimum)

Cooling (Maximum)

Finlux Flora FN-AC1S09WH User manual

Popular Air Conditioner manuals by other brands
