FirmTek dLite User manual

1
Store and Share your Digital Creations
dLite ™
2.5” External, Bus Powered, High-Performance,
Ultra-light, USB 3.0 Enclosure
User Manual

2
FirmTek, LLC
www.firmtek.com
Copyright
Copyright © 1999-2014 FirmTek, LLC. All rights reserved. No part of this manual may be
reproduced, translated by any means, photocopied, or transmitted in any form without the prior
written permission of FirmTek.
Trademarks
FirmTek, miniSwap, UltraTek, AV-Tek, SeriTek names and logotypes are trademarks of FirmTek,
LLC. Apple, Macintosh, OS X, and the Mac logo are registered trademarks of Apple Computer,
Incorporated. The "Built for OS X" graphic is a registered trademark of Apple Computer,
Incorporated, and used under license. Windows, Windows 98/98SE, Windows 2000, Windows XP,
and Windows 7 are registered trademarks of Microsoft Corporation in the United States and other
countries. All other manufacturer product names mentioned in this manual are for identification
purposes only and are trademarks or registered trademarks of their respective owners.
Changes
FirmTek reserves the right to make any changes to product design, specifications, or details
without notice. Actual product photos or screenshots may look different from those provided.
Notice
The material content of this manual is for informational purposes only. It is possible the content of
this manual may contain technical inaccuracies, typographical, or other errors. FirmTek assumes
no liability for any errors, omissions, or from the use of this manual that may result from such
errors, including, but not limited to loss of data or profits.
Before installing the dLite or any other hardware or software, you are responsible for backing up
data contained on any storage devices. After the hardware or software installation, you are
responsible for backing up data on any storage devices at frequent intervals. FirmTek, LLC is not
liable for any loss of data or damage to equipment resulting from the use of FirmTek products.
External Shielded USB 3.0 Cable
Please use the USB 3.0 cable provided with the dLite to ensure integrity during data transfers. Use
caution and handle the cable with care. When inserting and removing the USB 3.0 cable, hold the
connector at the ends (not the cable) when inserting and removing the cable from the computer
and the external USB 3.0 enclosure.
Note: The dLite cable and connectors are specifically design to provide secure connections with
the dLite. The USB 3.0 cable included can be used with either USB 2.0 or USB 3.0 ports.

3
TABLE OF CONTENTS
I. Introduction ................................................................................................ 4
II. Preparing the dLite .................................................................................... 8
Drive Installation .......................................................................................... 9
Power Operation ..................................................................................... 10
III. Hot-Swapping Hard Drives ..................................................................... 10
General Hot-Swap Guidelines ................................................................ 10
IV. Sleeping & Wake-Up Procedures:.......................................................... 11
V. Troubleshooting....................................................................................... 12
VI. Product Support....................................................................................... 12
VII. Product Warranty and Disclaimers ......................................................... 13
VIII. Regulatory Compliance Statements....................................................... 13

4
I. Introduction
Welcome
Congratulations and thank you for purchasing the dLite 2.5”, external, high-performance, USB 3.0
enclosure. This product is yet another innovative solution from FirmTek.
About This User Manual
The user manual will introduce you to the dLite enclosure. Please read it carefully, so that you may
become familiar with the proper operation of this product.
About USB 3.0 Technology
An evolutionary replacement for the USB 2.0 interface, the USB 3.0 (Universal Serial Bus)
standard provides enhanced performance, simple upgrades and easy configuration. USB 3.0 is
fully compliant with the USB 2.0 protocol while offering up to 5 Gbit/s performances compared to a
maximum of 480Mbit/sec for USB 2.0. USB 3.0 devices can be hot-swapped (with most operating
systems), support cable lengths up to 9.8 feet and its electrical design is closer to PCIe Gen2 than
USB 2.0. USB 3.0 utilizes single unidirectional data paths for increased bandwidth up to 10x faster
than USB 2.0. For faster data performance, dLite implements USB Attached SCSI Protocol
(UASP) which enables command queuing for USB storage devices while eliminating software
overhead for SCSI command phases.
About the dLite
The dLite is a high quality, aluminum, external, USB 3.0 enclosure. It supports 2.5” Solid State
Drives (SSD) and 2.5” SATA hard disks (HDD). The silver aluminum case is crafted for maximum
durability and heat dissipation. Built from the ground-up as an ultra-light true 6G Serial ATA
solution with a USB 3.0 interface, the dLite is designed to provide the ultimate in performance with
external SSD and 2.5” SATA hard disks.

5
Package Contents
Part number USB3-dLite includes:
External
USB 3.0 chassis
One ext. shielded USB 3.0
data cable with Type A to
Mini connectors
dLite Highlights
♦Attractive, durable, ultra-portable, high-speed enclosure supports one 2.5” SATA SSD or HDD
♦Easy to set up: install drives in seconds
♦Easy to operate: plug and play USB 3.0 technology (no driver required)
♦Supports 7mm and 9.5mm drive heights
♦High performance design –Integrated SATA to USB 3.0 backplane; no internal cabling
♦High bandwidth design –Supports USB 3.0, 5Gbit/s peak transfer rates
♦Supports SATA 1.5G, 3G or 6G HDD or SSD 2.5” form factor with any capacity
♦Bus Powered with Power and Activity LED
♦Aluminum case for maximum durability and heat dissipation
♦Ultra quiet, fan free, aluminum heat dissipation design
♦High performance to handle multiple projects simultaneously
♦Perfect for both storage-hungry and speed-sensitive applications
♦Cross-platform, PC and Macintosh compatible, operating system independent
♦Expand storage without increasing heat inside the computer
♦Works with Macintosh or PC with shielded USB 2.0 or 3.0 ports running Mac OS X, Windows or Linux
dLite Applications
♦Graphic arts
♦Digital photography
♦Computer animation
♦Offsite backup
♦Bulk data transport
♦High-performance workstations
♦File sharing over high-speed networks
♦Digital audio/music composition, recording, editing, storage and playback
♦Personal and professional high-definition digital video creation and editing
♦Supported Video Formats: 10-bit uncompressed HD; 1080/60i, 8-bit; uncompressed SD; DVCPro 25/50;
HDV, DV, DVCA

6
dLite Specifications
General System
Hardware
Requirements
Compatible with Macintosh or PC with an available USB 2.0 or
USB 3.0 port
Operating
Systems
Supported
•System independent
•Cross-platform, PC and Macintosh compatible
Enclosure
Capacity
•One 2.5” drive of any capacity
External
Connector
•Shielded USB 3.0 Mini Connector
Hard Drive Types
Supported
•2.5” Serial ATA hard drive (HDD) or solid state drive (SSD)
•Must support 5V operation
•Supports 7mm and 9.5mm drive heights
•Any capacity
Data Transfer
Rates
•Up to 5 Gbit/second burst data
Advanced Data
Features
•Fully compliant with SATA 1.5, 3 and 6.0Gbps Devices
Warranty
•One year limited parts & labor
Enclosure
Dimensions
•120.7 mm (L) x 12.8 mm (H) x 73 mm (W)
Enclosure Weight
•Enclosure Only: 2 oz: (without drive)
Color
•Silver Aluminum
Status LED
•USB Power Detected –LED is Blue
•Drive Activity –Blue LED Blinks
Power
•Operates via USB Bus Power
•Supports 5V devices
Environmental
•Operation Temperature: +41°F to +131°F ( +5°C to +55°C)
RoHS
•Compliant
EMC Compliance
•EN55022/1998, EN55024/1998
(European Community)
•FCC Part 15 Class B (US)

7
dLite System Requirements
Hardware Requirements
•Compatible with external USB 3.0 and 2.0 ports. USB 3.0 ports can be found on the 2012
or later Apple MacBook Pro, MacBook Air, Mac mini, iMac and Windows PC notebooks
and desktops
•7mm or 9.5mm 2.5” SATA 1.5G, 3G, 6G hard drive or SSD, any capacity
•Bus power support for most 5v energy efficient 2.5” SSD/HDD

8
II. Preparing the dLite
Caution:
Please verify your data is backed up before attempting to use the dLite external enclosure.
The dLite enclosure, hard drive/SSD and computer contain sensitive components that can be
permanently damaged by Static Electric Discharge. Be sure you’re working in an area free of
static electricity to prevent damage. Use a wrist grounding strap if you have one or regularly
touch a metal part of the computer chassis such as the power supply case or a port access
cover to discharge any built-up static electricity from your body. Make sure to handle the hard
drives around the edges to avoid damage by static electricity.
Getting Started
This section describes the proper method of preparing the dLite for use. Please review this
section and familiarize yourself with the dLite enclosure before installing hard drives and
connecting it to your computer.
Front view of dLite enclosure:
Inside view of dLite enclosure:

9
Drive Installation
Follow the steps below to install a hard drive or SSD and attach the dLite to the computer.
1. Remove the top and bottom covers
Push the front middle tab on the dLite enclosure. This will allow you to remove the
aluminum top and bottom covers.
2. Insert the HDD or SSD
Insert the hard drive with the label facing up and the SATA pins in the rear. Hold the
SSD/HDD at a slight angle while pushing its SATA pins into the SATA backplane of the
dLite. Verify the connection is tight. Next, push the front of the drive completely into the
tray using your thumbs.
3. Screw the Drive to the Tray
For extra stability, attach the drive to the tray using four screws. Do not over-tighten as this
may strip the screws. If the drive is already secure, this step may be skipped.
4. Re-install Bottom and Top Cover
Hold the bottom cover at a slight angle while latching the tabs found on the rounded
corners of the cover to the indentations on the rear of the tray. Once the cover is latched to
the rear edges, push the cover down flush with the tray. Now follow this same procedure to
snap the top cover in place. Do not use excessive force when snapping the covers in
place.
WARNING - POTENTIAL DAMAGE
The SATA pins must be in the correct orientation to avoid damage. DO NOT
insert a PATA device into the dLite as this will cause damage not covered by
warranty.
♦To remove a disk, remove the top and bottom aluminum covers as described above.
Next, remove any screws securing the drive to the tray. Now from the bottom front of
the tray gently push the drive up so the top portion of the drive is no longer inside the
tray. With the drive at a slight angle, pull the drive out of the backplane with a very
slight, slow wiggle motion. Remove the drive. Do not use excessive force when
inserting or removing the drive. Excessive force can cause damage to the enclosure.
5. Attach the USB 3.0 cable
Install the USB 3.0 data cable on the rear of the dLite enclosure. Do NOT force the USB
connector. The USB 3.0 Mini connector can only fit in one direction. The orientation
must be correct to properly insert the USB connector into the rear of the dLite.
USB 3.0 Mini Connector
Attach the USB A male connector found on the other end of the USB 3.0 cable to the
computer. The blue area inside the connector must be down for the connector to properly
slide into place.

10

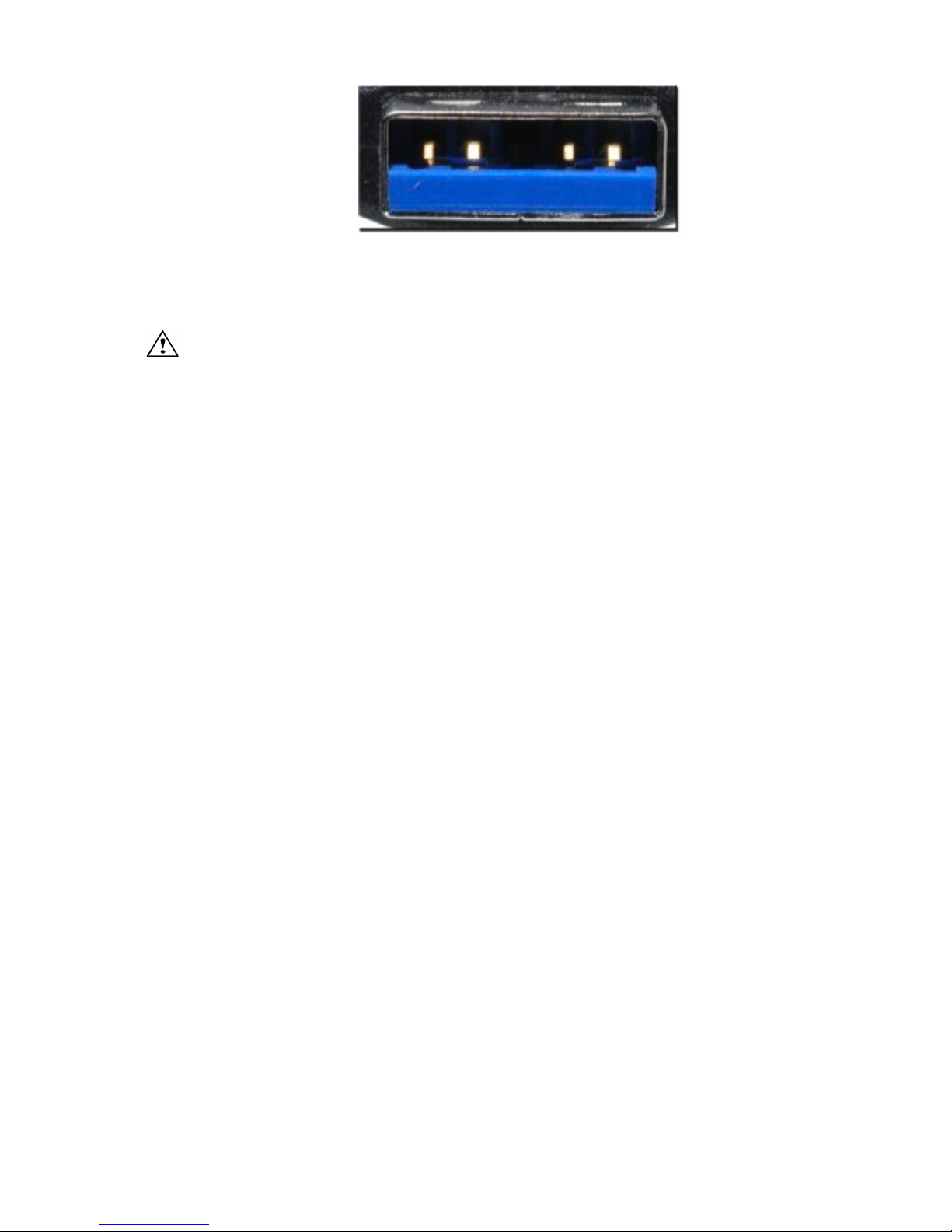

USB 3.0 A Connector
Making the USB 3.0 Connection:
Caution: Be sure to connect the cable using the proper orientation to your computer and
external enclosure. It should easily snap into place. Please do not force the USB
connector into the computer USB port or the dLite. Use of excessive force may damage the
computer or the dLite and is not covered by warranty service.
Power Operation
Once the USB cable is connected and the computer is running, the power LED will glow and the
drive mounted in the dLite can be accessed by the computer. The dLite will operate on bus power
provided the USB power limits of the computer are not saturated. USB 2.0 computer connections
offer up to 500mA of power while USB 3.0 ports provide up to 900mA. The dLite does not support a
power adapter.
Power/Activity LED Light
On the rear of the dLite enclosure is a Blue combination power/activity LED light. The light is
located to the right of the USB port. The light will shine blue when an active USB port is connected
to the enclosure. When the drive is being accessed the blue LED will blink.
III. Hot-Swapping Hard Drives
Introduction
The dLite external USB enclosure extends Serial ATA’s and SSD storage capabilities outside
the computer chassis. Serial ATA drives can be swapped while the computer is still running.
General Hot-Swap Guidelines
♦Do not disconnect or remove hard drives while transferring data.
♦Save your work and close associated applications before removing the external hard
drive (applications need to be closed since they may keep temporary working files
open on the external hard drive).
♦Always unmount the volumes (eject, disable, or drag the volumes to trash) associated
with an external hard drive before removing it.
♦Do not remove a disk that is being used as the Startup Disk.
Connecting External Hard Drive(s)
If your computer is not turned on, connect the USB cable and then power on the computer. If
the computer is already running, power on the enclosure by connecting the USB cable to the
computer.

11
Removing External Hard Drive(s)
Caution: To prevent loss of data, save your work and close associated applications before
disconnecting an external hard drive (applications need to be closed since they may keep
temporary working files open on the external hard drive). Always unmount the volumes (eject
or drag the volumes to trash) associated with an external hard drive before removing it. Eject or
drag all of the volumes associated with the hard drive(s) before disconnecting or removing
them.
Windows Hot-Swap Procedure
Hard drives may be hot-swapped under Windows 2000, Windows XP, and Windows 2007.
Note: Hot-swap functionality is not available for Windows 98/98SE/ME; please shut down the
system before adding or removing hard drives when using these operating systems.
Caution: To prevent loss of data, save your work and close associated applications and
directory folders before disconnecting the external USB hard drive (applications need to be
closed since they may keep temporary working files open on the external hard drive).
Hot-Swap Procedure
♦Bring up the Windows Device Manager: Right-click on My Computer, click Manage,
and then click Device Manager.
♦Go to Disk Drives and find the disk you want to remove.
♦Right click on the desired disk drive and select Remove/Disable.
♦After performing this operation, you can remove the hard drive without risk of losing
any data that is currently stored in cache memory.
♦To reconnect the external hard drive, reconnect it and Windows will automatically
detect it.
♦If you are re-attaching a hard drive after the remove/disable operation as explained
above, you must make sure that the hard drive is power cycled before reconnecting it .
IV. Sleeping & Wake-Up Procedures:
When you wish to sleep or shutdown the system and the dLite:
1. Dismount the volume: On a Mac dragging the volume to the trash causes the trash icon to
change; dropping the volume there dismounts the volume.
2. Put the system into Sleep mode, or shutdown normally.
When you wish to Wake-Up or Turn-On the Computer System:
1. Verify your dLite enclosure is connected to the computer via the USB cable.
2. Wake-Up or Turn-On your System normally.
At this point your system should automatically load, then discover, and mount the volumes.

12
V. Troubleshooting
•My hard drive isn’t recognized
Check cables and connections. Ensure USB 3.0 cable is properly oriented to the connector
on the computer and the external enclosure. Ensure enclosure is powered. If several USB
devices are connected to the computer, remove all of them and just try connecting the dLite.
USB 3.0 ports provide up to 900mA of power. USB 2.0 ports provide up to 500mA of power.
12v hard drives are not compatible and will not power up. Verify hard drive has been
initialized for use with the OS you have selected. Disk Utility completes this task with Mac
OS X. Disk Manager provides this service in Windows.
•Does the dLite work with all PPC and Intel based Macintosh computers?
Yes, the dLite works with all computers with at least one available USB 3.0 or USB 2.0 port.
For support of devices over 2TB Mac OS X 10.5.x or higher is required
VI. Product Support
Technical Support
For additional information on how to use dLite, download the latest updates, or for technical
assistance, please visit us at www.firmtek.com, or email us at [email protected].
Please provide the following information when contacting us:
•Product model and serial number
•Computer model
•Computer OS type and version (example: Mac OS X, version 10.6; Windows 7
•Hardware and software installed on your system
•Contact information including daytime telephone number and email address
•A detailed description of the question or problem
Return Merchandise Authorization
To obtain limited warranty service, you must first obtain a Return Materials Authorization (RMA)
and ship-to address by contacting FirmTek at http://www.firmtek.com/support. Please, request the
RMA by filling out the form at the bottom of the page.
NO RETURNS WILL BE ACCEPTED WITHOUT AN RMA NUMBER.
If FirmTek technical support determines the product needs to be repaired or replaced, a Return
Merchandise Authorization (RMA) number and shipping address will be provided. Please pack the
product in the original shipping container and include all of the original packaging -including the
static bag, all hardware, software, cables, and other accessories that came with the original
product. You are responsible for shipping and insurance costs, and any damage incurred due to
improper packaging or transport. You should remove all personal information from the product
prior to its return. For your protection insure the package and ship via a traceable method such as
UPS or FedEx. FirmTek is not responsible for lost or damaged packages.
FirmTek reserves the right to determine whether the product is to be repaired or replaced with
refurbished parts, or with a new or refurbished product. Data Recovery is not covered under this
warranty and is not part of the warranty returns process. Standard United States return shipping
charges are paid by FirmTek, Foreign and other shipping methods such as express shipping are
available for an additional charge.
Write down the RMA number on the outside of the shipping container, and include the following
information with the shipment:
•A description of the problem
•A copy of the original purchase invoice
•Return shipping address
•Contact information including daytime telephone number and email address
FirmTek, LLC reserves the right to refuse shipments missing a valid RMA number.

13
VII. Product Warranty and Disclaimers
FirmTek warrants to the original buyer only that this product shall be free from defects in material
and workmanship for a period of one year from the original date of purchase. This warranty is valid
only when the original purchase invoice is provided. This warranty shall not apply to any defects
resulting from improper handling, misuse, misapplication, abuse, or unauthorized modification(s),
which are performed by the end user.
FirmTek, LLC reserves the right to make changes to any products described in this manual at any
time without notice. FirmTek, LLC assumes no responsibility for the use or reliability of hardware
or software that is not supplied by FirmTek, LLC or its affiliated companies. FirmTek, LLC does not
assume any responsibility or liability arising out of the application or use of any product described
in this document, except as expressly agreed to in writing by FirmTek, LLC; nor does the purchase
or use of a product from FirmTek, LLC convey a license under any patent rights, copyrights,
trademark rights, or any other intellectual property rights of FirmTek, LLC or third parties.
For FirmTek products 1TB or greater: "One gigabyte (GB) is equal to one billion bytes and one
terabyte (TB) equals 1,000 GB (one trillion bytes). Accessible capacity will vary from the stated
capacity due to formatting and partitioning of the hard drive, the computer's operating system, and
other factors". For FirmTek products less than 1TB: "One gigabyte (GB) is equal to one billion
bytes when referring to hard drive capacity. Accessible capacity will vary depending on the
operating environment and formatting."
VIII. Regulatory Compliance Statements
RoHS compliant
Federal Communications Commission Radio Frequency Interference Statement
WARNING: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy, and if not installed and used in accordance with the instruction manual, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a
particular installation. However, if this equipment does cause interference to radio or television equipment
reception, which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between equipment and receiver.
•Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
•Consult the dealer or an experienced radio/television technician for help.
•Use a shielded and properly grounded I/O cable and power cable to ensure compliance of this unit to the
specified limits of the rules.
This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1)
this device may not cause harmful interference and (2) this device must accept any interference received,
including interference that may cause undesired operation.
CE European Union Compliance Statement
EMC compliance:
Emissions: EN55022: 1998, Class B
Immunity: EN55024: 1998
EN61000-4-2: 1995+A1: 1998
EN61000-4-3: 1995+A1: 1998
EN61000-4-4: 1995
EN61000-4-6: 1996
EN61000-4-8: 1993
dLiteTSLKC2NN0723
