Fisher & Paykel HBD600I User manual

INSTALLATION GUIDE / USER GUIDE
GUIDE D’INSTALLATION / GUIDE D’UTILISATION
US CA
TELESCOPIC DOWNDRAFT VENT SYSTEM
HD0 and HD6 Vent models
HBD600I and HBD1200E Blower models
SYSTÈME DE VENTILATION TÉLESCOPIQUE
À ASPIRATION DESCENDANTE
Modèles de systèmes de ventilation HD0 et HD6
Modèles de ventilateurs HBD600I et HBD1200E

English Page 1 – 34
Français Page 37 – 70

1
CONTENTS
IMPORTANT!
SAVE THESE INSTRUCTIONS
The models shown in this user guide may
not be available in all markets and are
subject to change at any time. For current
details about model and specification
availability in your country, please go to our
website www.fisherpaykel.com or contact
your local Fisher & Paykel dealer.
Registration
Register your product with us so we can
provide you with the best service possible.
To register your product visit our website:
www.fisherpaykel.com
EN
Introduction 3
Safety and warnings 4
Venting requirements 6
Electrical requirements 7
Installation instructions 8
Operating instructions 25
Cleaning and maintenance 26
Troubleshooting 27
Parts and accessories 29
Wiring diagram 30
Limited Warranty 32

3
INTRODUCTION
Thank you for purchasing a Fisher & Paykel product. This Installation and Use and Care
Guide contains valuable information on how to properly install, operate and maintain
your new Downdraft Vent System for years of safe and enjoyable service.
To serve you better, please fill out and submit your Product Registration by visiting our
website at www.fisherpaykel.com and selecting ‘Customer Care’ on the home page and
then select ‘Product Registration’. In addition, keep this manual handy, as it will help
answer questions that may arise as you use your new appliance.
For your convenience, product questions can be answered by a Fisher & Paykel Customer
Care Representative by phone: [phone], or email: [e-mail]
Note: write the Model, Code and Serial Numbers on this page for references.
Vent Model Number________________ Code_________ Serial Number_______________
Blower Model Number______________ Code_________ Serial Number_______________
Note: inspect the product to verify that there is no shipping damage. If any damage is
detected, call the shipper and initiate a damage claim. Fisher & Paykel is not responsible
for shipping damage where Fisher & Paykel is not the shipper.
DO NOT discard any packing material (box, pallet, straps) until the unit has been
inspected.
EN

5
SAFETY AND WARNINGS
– Sufficient air is needed for proper combustion and exhausting of gases
through the flue (chimney) of fuel burning equipment to prevent back drafting.
Follow the heating equipment manufacturer’s guideline and safety standards
such as those published by the National Fire Protection Association (NFPA),
and the American Society for Heating, Refrigeration and Air Conditioning
Engineers (ASHRAE), and the local code authorities.
– When cutting or drilling into wall or ceiling, do not damage electrical wiring
and other hidden utilities.
– Ducted fans must always be vented to the outdoors.
– This appliance must be grounded
●CAUTION: To reduce risk of fire and to properly exhaust air, be sure to duct air
outside – Do not vent exhaust air into spaces within walls or ceilings or into attics,
crawl spaces, or garages.
●WARNING: To reduce the risk of fire, use only metal ductwork.
●NOTE: Suitable for use with solid state speed controls.
●CAUTION: To reduce the risk of fire and electric shock, install this appliance only
withremote blower models rated maximum 2.8A, and are suitable for use with solid
state speed controls.
●WARNING: To reduce the risk of a range top grease fire:
– Never leave surface units unattended at high settings. Boilovers cause smoking
and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
– Always turn hood ON when cooking at high heat or when flambéing food
(ie Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
– Clean ventilating fans frequently. Grease should not be allowed to accumulate
onfan or filter.
– Use proper pan size. Always use cookware appropriate for the size of the
surfaceelement.
●WARNING: To reduce the risk of injury to persons in the event of a range top grease
fire, observe the following*:
– SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then
turn off the burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go
out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
– NEVER PICK UP A FLAMING PAN – You may be burned.
– DO NOT USE WATER, including wet dishcloths or towels – a violent steam
explosion will result.
– Use an extinguisher ONLY if:
– You know you have a Class ABC extinguisher, and you already know how
to operate it.
– The fire is small and contained in the area where it started.
– The fire department is being called.
– You can fight the fire with your back to an exit.
●WARNING: Unplug or disconnect the appliance from the power supply before
servicing or cleaning.
●WARNING: All wall and floor openings where the vent hood is installed must be sealed.
READ AND SAVE THESE INSTRUCTIONS
*Based on “Kitchen Firesafety Tips” published by NFPA.
EN

8
INSTALLATION INSTRUCTIONS

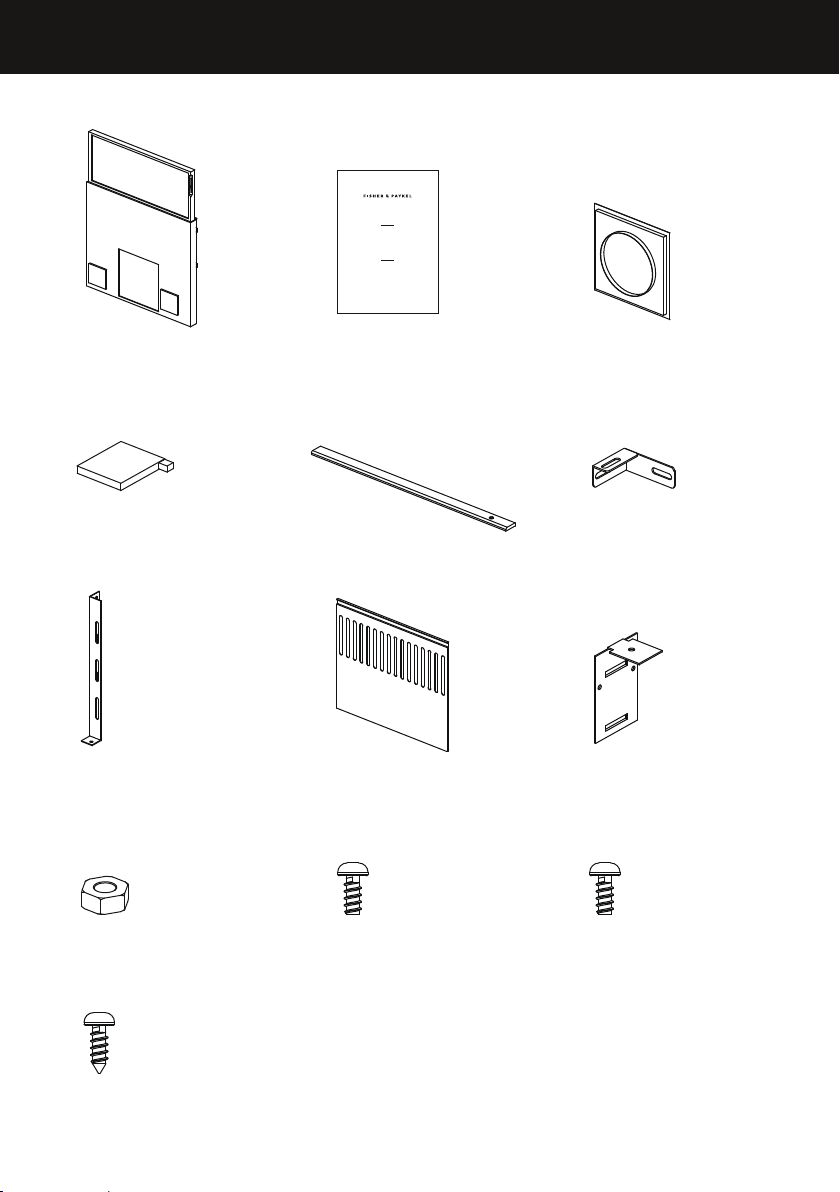

Downdraft unit contents of packaging
Installation instructions
User guide manual
(1)
Support leg
mounting bracket
(2)
Downdraft unit
(1)
End cap
(2)
Over counter
mounting bracket
(2)
⁄” (7mm) nut
(2)
10” (254mm) remote
blower connection plate
(1)
Grease filter
(2)
Under counter
mounting bracket
(2)
⁄” (5mm) screw
(2)
⁄” (8mm) screw
(6)
⁄” (15mm)
Self tapping screw
(6)
Top trim
(1)
NSTA LAT ON GUI E / USER GU DE
GUIDE D NSTA LAT ON / GU DE D’ TI I AT ON
US CA
TELESCOP C DOWNDRAFT VENT SYSTEM
HD 0 and D36 V nt m de s
HBD 00 and H D 200E l we mod ls
SYSTÈME DE VENTILATION TÉLESCOP QUE
À ASP RATION DESCENDANTE
M dè s de ys èm s de e t a i n HD30 t HD 6
od l s de en l t u s HB 600 et BD 20 E

9
INSTALLATION INSTRUCTIONS
Internal blower (HBD600I) contents of packaging
Internal blower box
(1)
6” (152mm) diameter
back draft damper
(1)
Remote blower (HBD1200E) contents of packaging
Remote blower
(1)
Duct collar plate
(1)
EN

12
INSTALLATION INSTRUCTIONS
WARNING!
To reduce the risk of fire, use only metal ductwork. Do not use flexible plastic ducting.
CAUTION!
To reduce risk of fire and to properly exhaust air, be sure to duct air outside – Do not vent
exhaust air into spaces within walls or ceilings or into attics, crawl spaces, or garages.
Compatible blowers with the downdraft vent system
●Internal blower model HBD600I.
●Remote blower model HBD1200E or Remote Blower Models max 2.8 A.
●This downdraft unit may only be used in connection with the above Fisher & Paykel
internal or remote blowers.
Compatible cooktops with the downdraft vent system
The Downdraft Vent System is meant to be installed with residential use cooktops,
cooktops/oven combinations, freestanding ranges WITHOUT backguards and range
tops. This product is not recommended for use with ranges which may require
additional space behind the range for oven venting OR with freestanding ranges WITH
backguards. Always consult all product installation instructions for correct dimensions
and clearances.
IMPORTANT!
Make certain any cooktop installed is appropriate for use with a downdraft vent system.

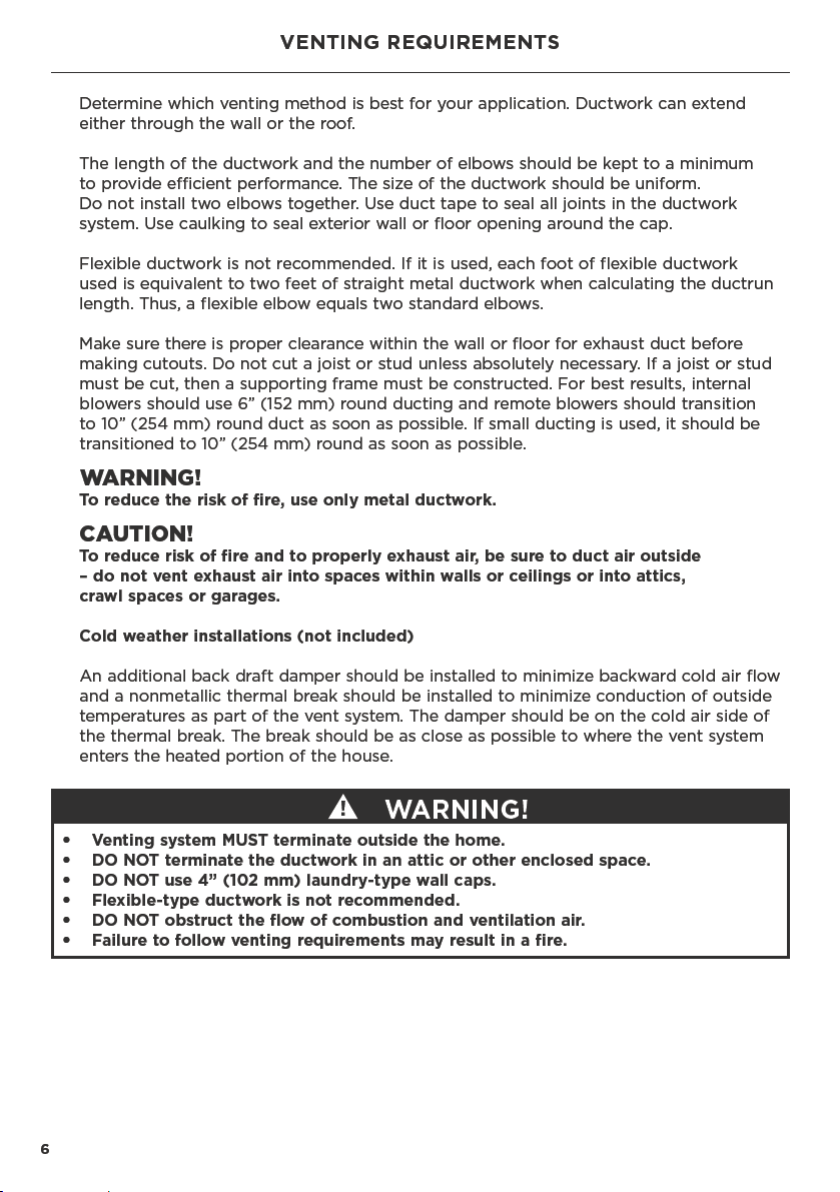

Venting requirements
Attention should be given to ensure that any applicable regulations concerning the
discharge of exhaust air are fulfilled.
For optimal efficiency use the shortest and straightest duct route possible and use
rigid or semi-rigid ducting for reduced noise and increased airflow. For best results,
internal blowers should use 6” (152 mm) round ducting and remote blowers should
use 10”(254mm) round ducting. Flexible metal ducting should only be used as a last
resort (ie in difficult installations) and if used ensure that it is straight and smooth and
extended as much as possible.
Make sure there is proper clearance within the wall or floor for exhaust duct before
making cutouts. Do not cut a joist or stud unless absolutely necessary. If a joist or stud
must be cut, then a supporting frame must be constructed.
CAUTION!
To reduce the risk of fire and electric shock, install this appliance only withremote
blower models rated maximum 2.8A, and are suitable for use with solid state speed
controls.

13
INSTALLATION INSTRUCTIONS
Plan the ductwork

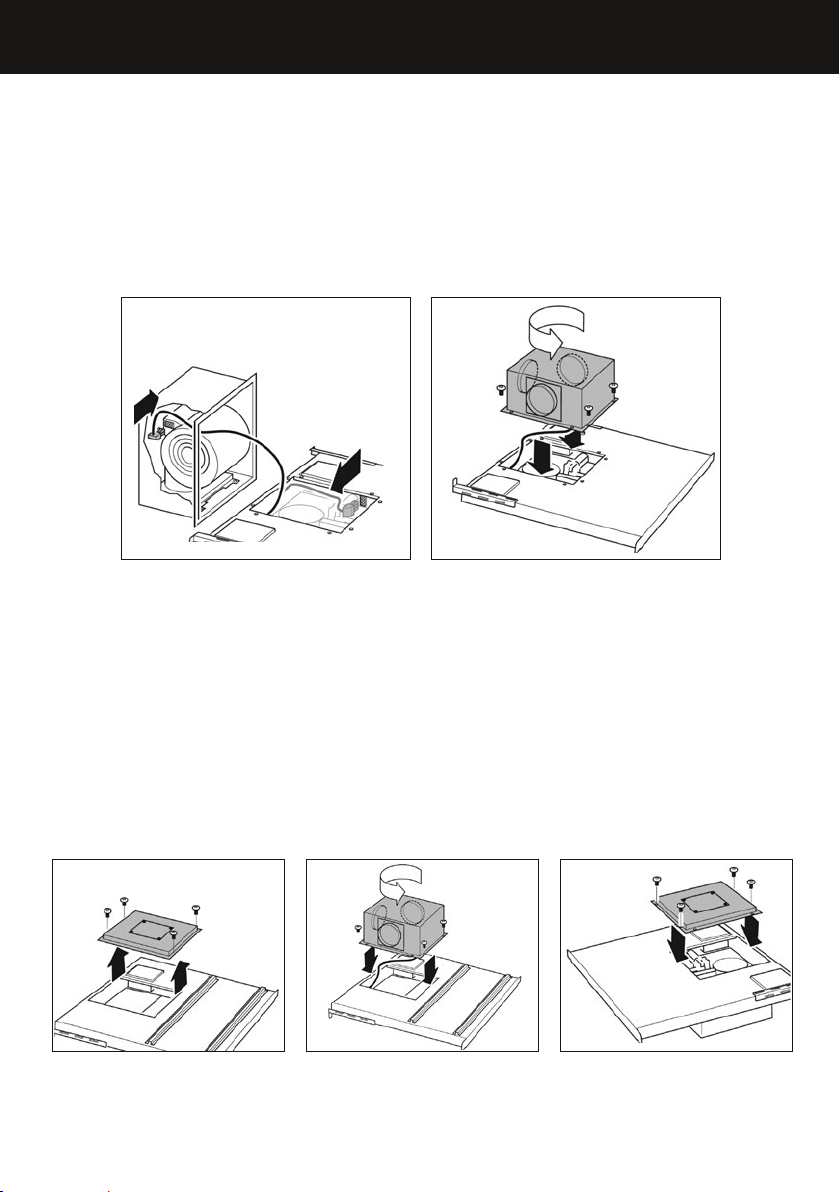

The internal blower can be mounted to the front or back of the downdraft unit and be
ducted in multiple directions: left, right, down, forward or backwards. The remote blower
can be ducted downwards from the front or back of the downdraft unit.
In the event of installations where the blower is located on the back of the downdraft unit,
it is advised to leave an access door or opening to reach the bottom of the downdraft
unit, as well as where the wiring box and blower is located should service be needed.
Calculate the duct run length
The ductwork length should not exceed 55 equivalent feet (16.7 m) for 6” (152 mm)
round duct, or 75equivalent feet (22.9m) for 10” (254mm) round duct. Calculate the
length of the ductwork by adding the equivalent feet listed in the table below for each
piece of duct in the complete system. If flexible metal ductwork is used, each foot
(312mm) of flexible metal ductwork is equivalent to two feet (617mm) of straight metal
ductwork when calculating the duct run length.
For best results the size of the ductwork should be uniform and use no more than
three 90°elbows. Make sure that there is a minimum of 24” (607mm) of straight
duct between elbows if more than one is used. Round duct is recommended instead
of rectangular duct especially if elbows are needed. Rectangular duct should be
transitioned to minimum 6” (152mm) round for internal blowers and 10” (254 mm)
round for remote blowers as soon as possible.
EQUIVALENT LENGTH EXAMPLE CALCULATION
45°elbow 5 feet (1.5m) 9 feet straight duct 9 feet (2.8m)
90°elbow 7 feet (2.1m) 2 x 90°elbows 14 feet (4.3m)
90°flat elbow 12 feet (3.7m) Wall cap 0 feet (0.0m)
Wall cap 0 feet (0.0m) Complete system 23 feet (7.0m)
EN

14
INSTALLATION INSTRUCTIONS
WARNING!
●This appliance is heavy and requires two persons for unpacking and installation.
●Installation work and electrical wiring must be done by qualified person(s) in
accordance with all applicable codes and standards.
IMPORTANT!
●Wear gloves to protect against sharp edges.
●When planning the cutout for the downdraft unit:
– Draw both the cooktop and downdraft unit cutouts on the countertop before
making any cuts.
– Check that there is enough room in the cabinet for both the cooktop and
the downdraft unit. Failure to follow these warnings could result in damage
to the countertop.
●To avoid damage to motor bearings and impellers, keep drywall spray, construction
dust, etc. away from the blower.
The manufacturer is not liable for any damage caused by not following these instructions.
1Preparing for installation
Before installing your downdraft vent system:
●Please read the instructions carefully.
●Unpack the downdraft unit and place on a flat protected surface.
●Ensure the voltage (V) and the frequency (Hz) indicated on the serial plate match
the voltage and frequency of the installation site.
●Check that the area around the installation area is clear of any electrical cables and
pipesetc.
●Be aware of kitchen cabinets and splash backs in the area of the downdraft vent
system and the cooktop. Ensure that the area where the downdraft unit rises is
free of obstacles. Also be aware performance may be reduced by strong drafts
from windows or doors etc.
●The downdraft unit surfaces can be damaged during installation if grazed or
knocked by tools. Please take care to protect the surfaces during installation.
●Temporarily mark the center of the cooktop according to the information given
in the ‘Installation instructions – Cabinet cutout dimensions’ section.
●The downdraft unit is installed directly behind the cooktop. For easiest installation,
install the downdraft vent system first, then the cooktop.
●Remove any cardboard packaging from within the blower impeller.

15
INSTALLATION INSTRUCTIONS
2Prepare the downdraft unit for the intended blower
Internal blower
●Remove the 10” (254 mm) blower connection plate from the front of the downdraft
unit Fig.1.
●Attach the over counter mounting brackets in place with the two ⁄” (5mm) screws
provided Fig.2.
●Screw the support leg mounting brackets to the side of the downdraft unit using two
⁄” (8mm) screws each, do not fully tighten the screws. The brackets are different
for the right and the left side. Attach them with mounting clip (A) pointing up.
Remote blower
●The downdraft unit comes ready for installation with the 10” (254 mm) remote blower
connection plate installed on the front of downdraft unit and the cover plate installed
onto the back.
●To connect the remote blower to the back of the downdraft unit swap the plates over
(see Fig. 3 and 4).
●Attach the over counter mounting brackets in place with the two ⁄” (5mm) screws
provided Fig.2.
●Screw the support leg mounting brackets to the side of the downdraft unit using two
⁄” (8mm) screws each, do not fully tighten the screws. The brackets are different
for the right and the left side. Attach them with mounting clip (A) pointing up.
FRONT
Fig.1
Fig.3 Fig.4
FRONT
2 x 4 x
A
Fig.2
EN

16
INSTALLATION INSTRUCTIONS
3Temporarily insert the downdraft into the cabinet
●With the assistance of another person, lift the downdraft unit into the prepared cutout
in the cabinet. The over counter mounting brackets should rest on the countertop.
●Secure the downdraft unit to the countertop with two ⁄” (15mm) screws.
●Install the under counter mounting brackets underneath the countertop for additional
support. First, loosely screw the brackets into the sliding nuts in the downdraft
unit using ⁄” (5mm) screws and push them up under the countertop. Pre-drill
the mounting holes into the countertop from underneath. Check that the mounting
screws are the proper length and will not extend through the countertop surface
when tightened. Failure to follow these instructions could result in damage to the
countertop surface Fig.5.
●Level and align the downdraft unit in the cabinet. Push the support leg mounting
bracket on each side down against the cabinet floor. Mark the top edge of the
mounting bracket on the downdraft unit and the mounting holes on the cabinet
floorFig.6.
4Remove the downdraft from the cabinet
●Remove the screws from the countertop and lift the downdraft unit back out of
thecabinet.
●Pre-drill the marked mounting holes in the cabinet floor.
●Tighten the support leg mounting brackets on the unit at the pre-marked positions
●Place the downdraft unit on a flat protected surface to prevent damage in order to
install the blower.
5Install the internal or remote blower
●For internal blower installation refer to page 17.
●For remote blower installation refer to page 18.
Note: this downdraft unit may only be used in connection with Fisher & Paykel
internal or remoteblowers.
2 x
2 x
Fig.5 Fig.6

17
INSTALLATION INSTRUCTIONS
Internal blower installation in one of the following three options:
Option 1: Internal blower, front installation for venting left, right or down
●Disconnect the cable from inside the downdraft unit. Plug in that same cable
from the downdraft unit into the internal blower Fig.7.
●Turn the venting collar on the internal blower box to the desired direction – left,
right ordown.
●Mount the internal blower box to the housing using four screws Fig.8.
●Continue to the ‘Prepare for electrical connection’ section on page 20.
Option 2: Internal blower, back installation for venting left, right or down
●The internal blower box can also be installed on the back of the downdraft unit
to accommodate the installation of a cooking range, range top or wall oven /
cooktop in front of the downdraft unit.
●Remove the large cover on the back of the downdraft unit Fig.9.
●Turn the venting collar on the blower box to the desired direction – left, right or
down. Disconnect the cable from inside the downdraft unit. Plug in that same
cable from the downdraft unit into the internal blower and mount the blower box
to the housing using four screws Fig.10.
●When finished, mount the previously removed cover onto the front of the
downdraft unit Fig.11.
●Continue to the ‘Prepare for electrical connection’ section on page 20.
BACK
Fig.9
BACK
Fig.10
FRONT
Fig.11
FRONT
Fig.8Fig.7
EN
