Fisher PC-13R20 User manual

CONTENTS
Important Safety Tips . . . . . . . . . . . . . . . . . . . . 2
Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

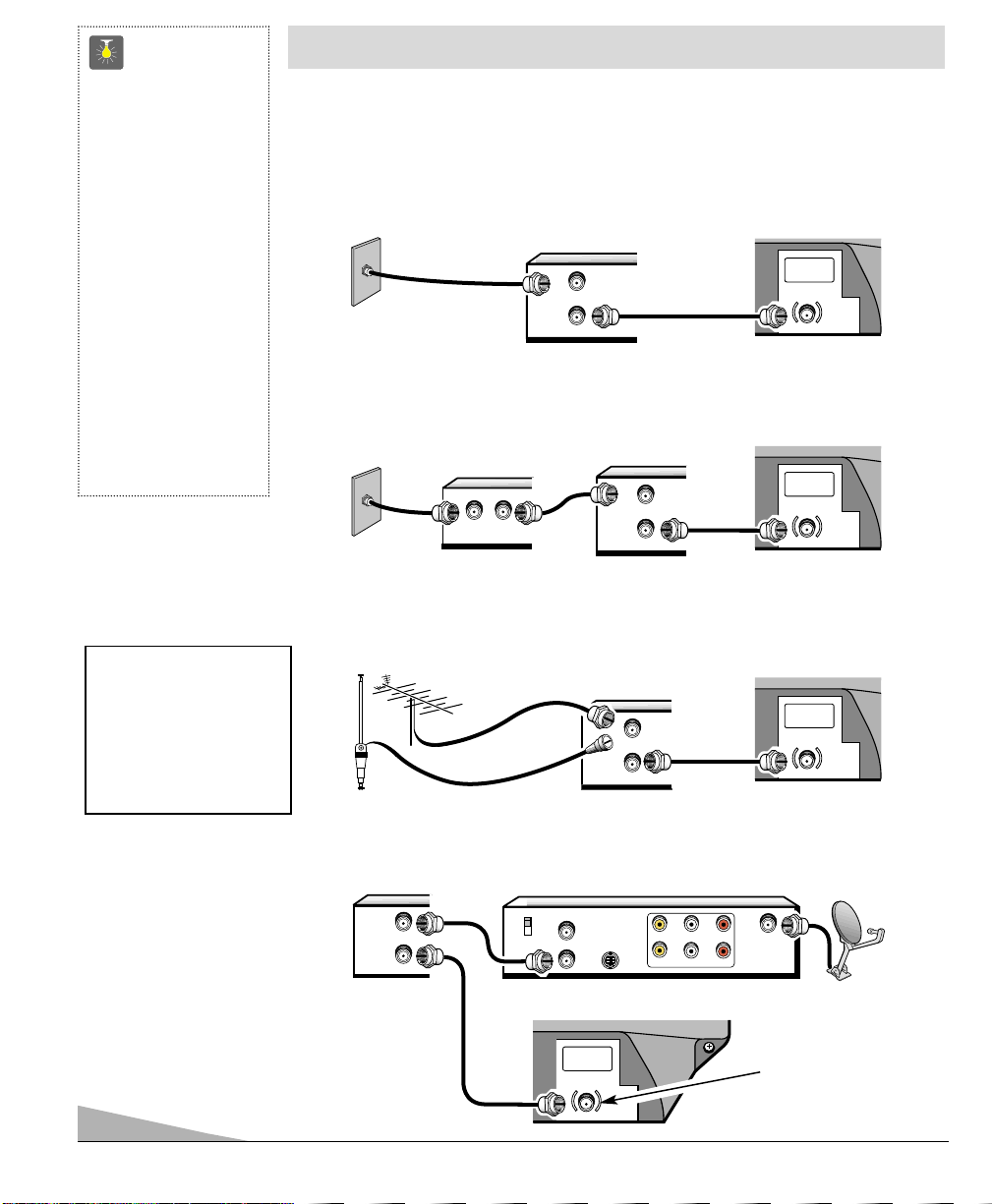

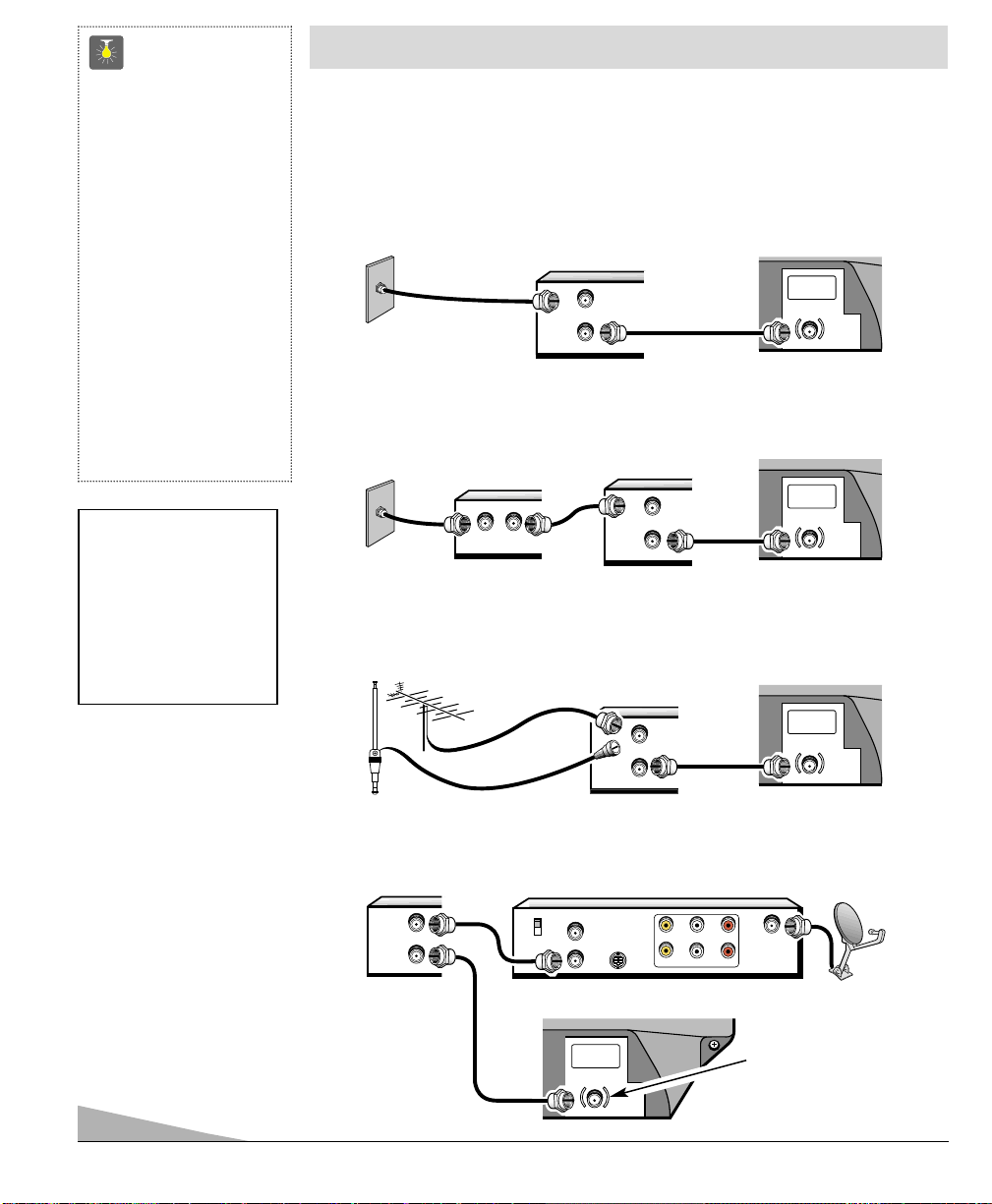

Basic Hookup Methods . . . . . . . . . . . . . . . . . . . 4

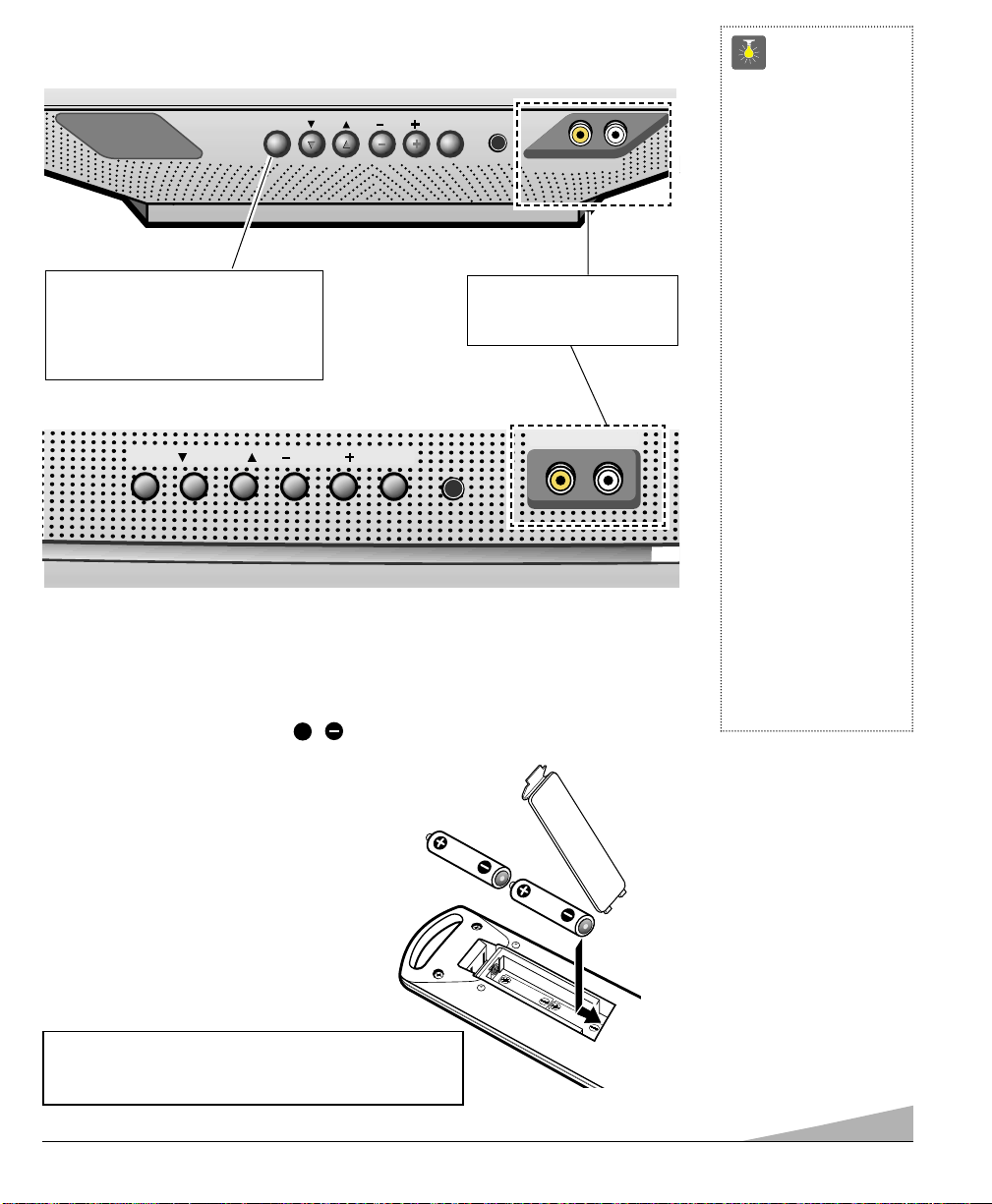

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

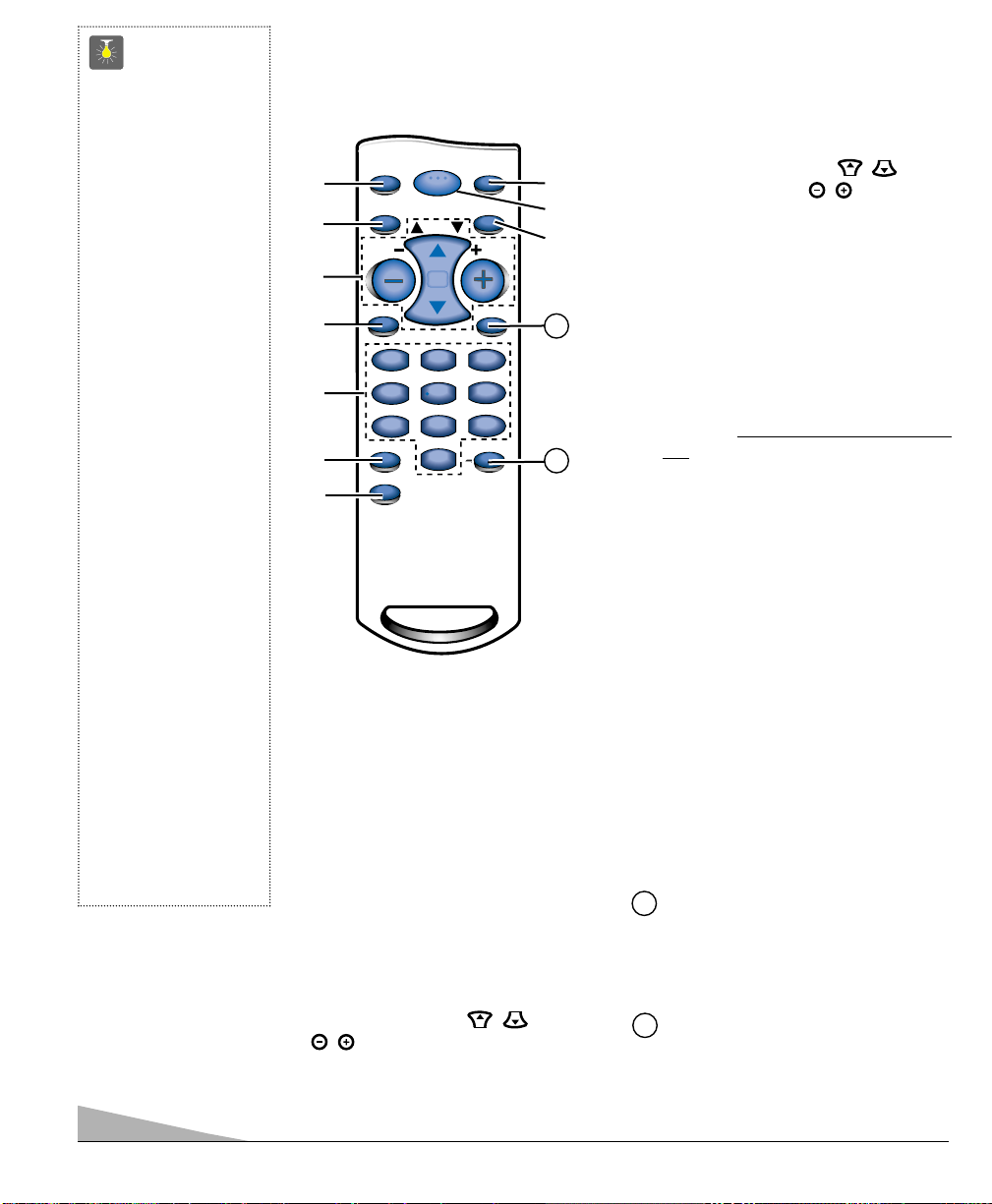

Remote Control . . . . . . . . . . . . . . . . . . . . . . 5 ~ 6
TV Adjustment and Setup . . . . . . . . . . . . . 7 ~ 8
Resetting the TV . . . . . . . . . . . . . . . . . . . . . . . . 8
Using the Front Audio/Video Input Jacks . . . . 9

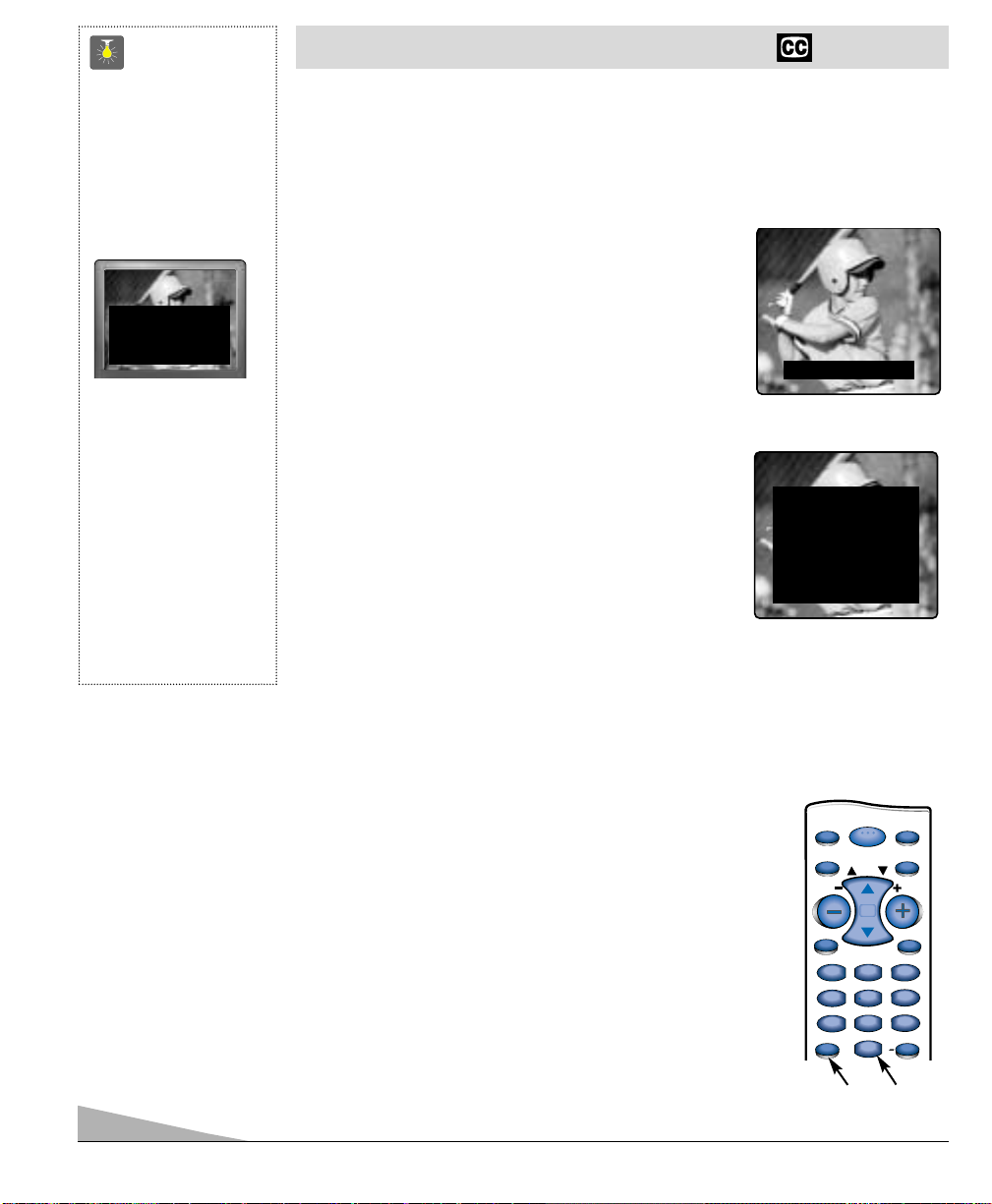

Closed-Captioning . . . . . . . . . . . . . . . . . . . . . .10
V-Guide Information . . . . . . . . . . . . . . . . . . . . 11
V-Guide Operation (Parental Control) . . 12 ~ 13

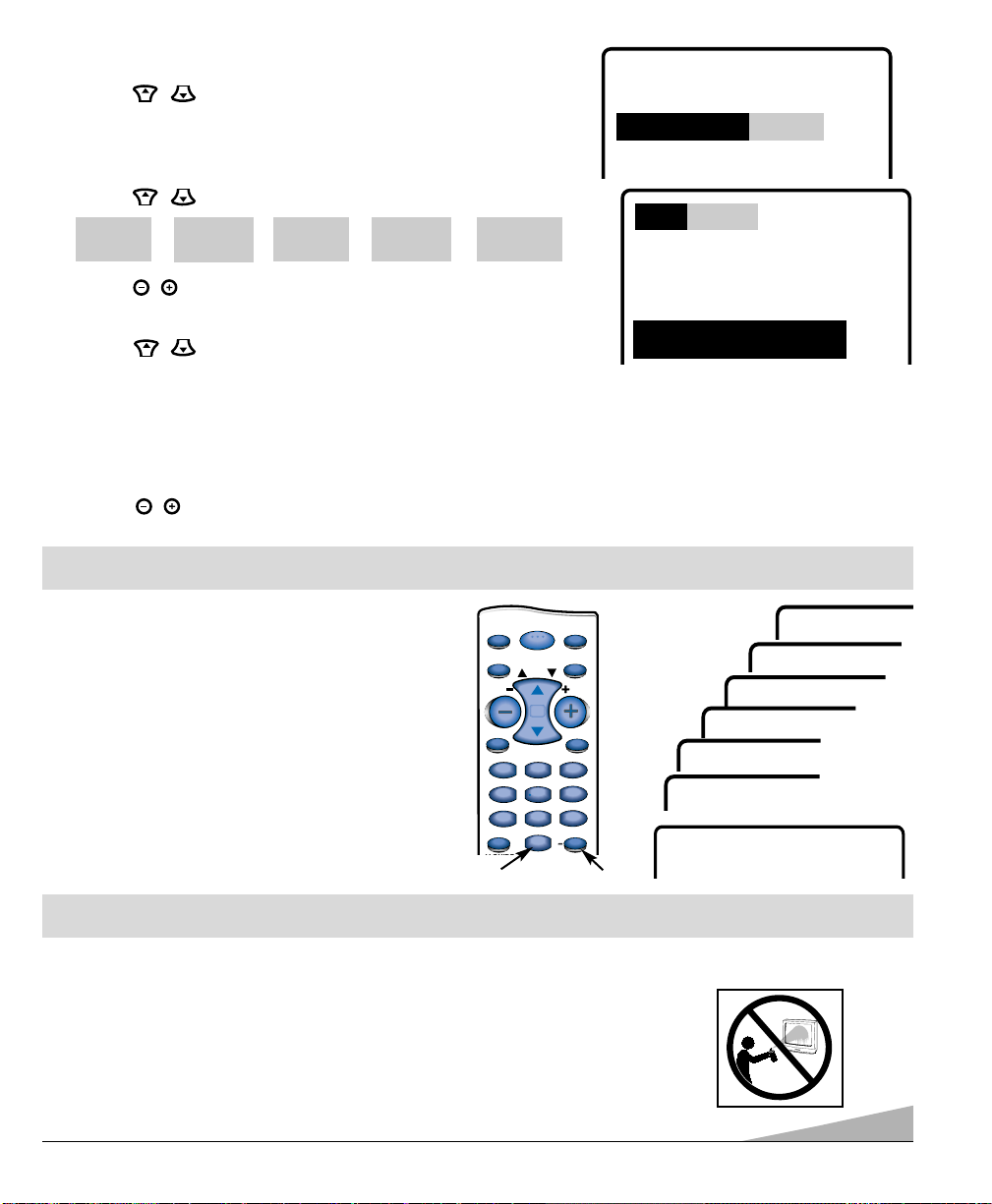

Setting the Sleep Timer . . . . . . . . . . . . . . . . . 13
Care and Cleaning . . . . . . . . . . . . . . . . . . . . . 13
Helpful Hints–Problems/Solutions . . . . . 14 ~ 15
Warranty and Service . . . . . . . . . . . . . . . . . . . 16
Child Safety Matters . . . . . . . . . . . . . Back Cover
ESPAÑOL . . . . . . . . . . . . . . . . . . . . . . . . 17 ~ 34
Contenido . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Printed in U.S.A. SMC, September 2002 /
Impreso en U.S.A. SMC, Septiembre 2002
Part No. / No. de Parte : 1JC6P1P0116––
Service Code / Código de Servicio : 610 303 6670
To the Owner:
Thank you for purchasing a Fisher Color Television. You
made an excellent choice for Performance, Styling,
Reliability, and Value. The TV is designed with easy
on-screen set-up instructions and operating features.
To meet the growing needs of our customers, this
television has a V-Chip” for parental controlled viewing.
Read this manual before assembling (or using) this
product.” Need assistance? Visit our Web site at
www.fisherav.com.
PC-13R20
PC-25R20
FGH
Color TV Owner’s Manual
Color TV Manual
Del Propietario
FGH
PC-13R20 (Pictured / Ilustró)
®

2

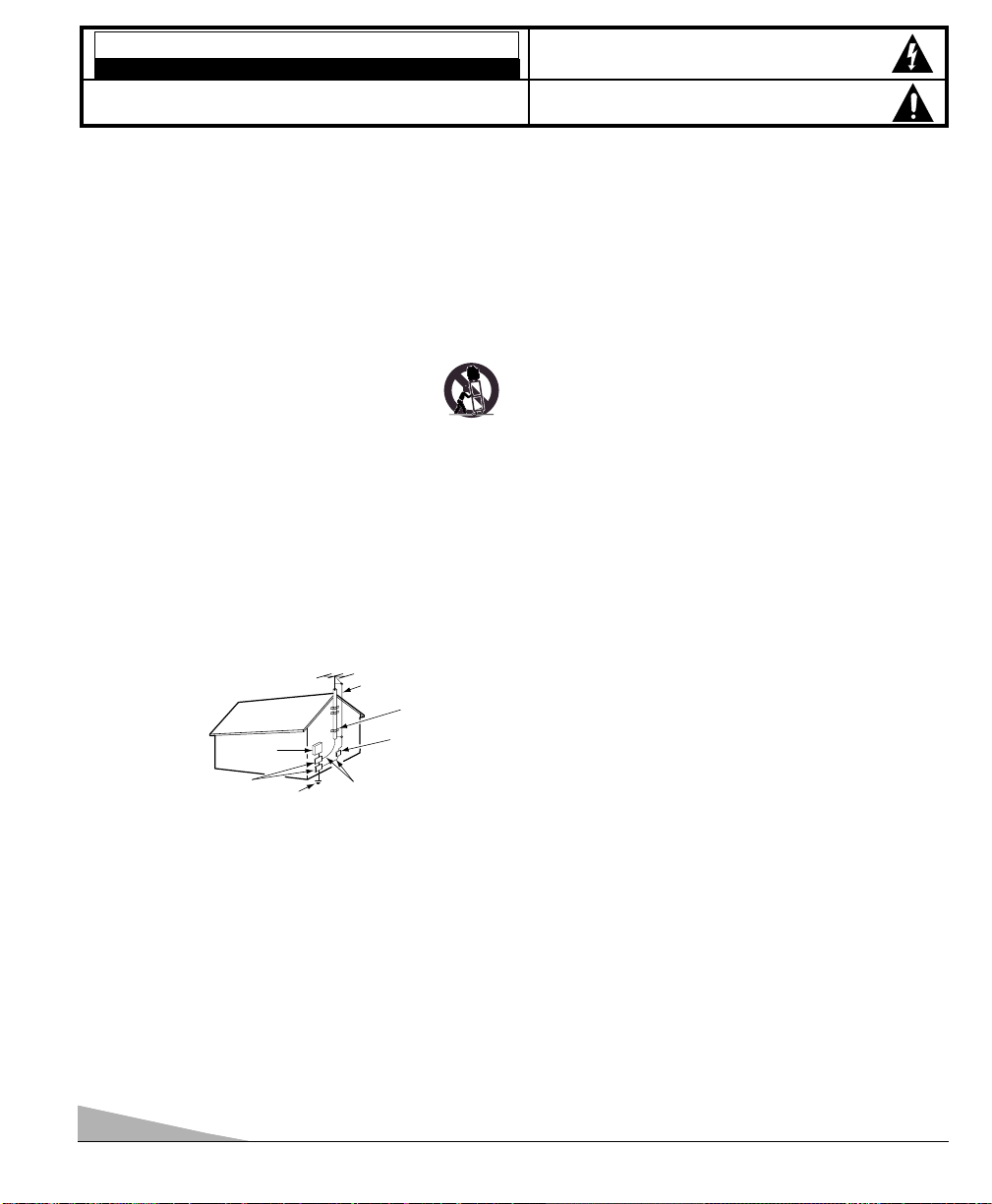

Positioning the appliance
1. Do not place your appliance on an unstable cart, stand, shelf or table.
Serious injury to an individual, and damage to the appliance, may result
if it should fall. Your salesperson can recommend approved carts and
stands or shelf and wall mounting instructions. An appli-
ance and cart combination should be moved with care.
Quick stops, excessive force, and uneven surfaces may
cause the appliance and cart combination to overturn.
2. Slots and openings in the cabinet and in the back or bottom are
provided for ventilation. To ensure reliable operation of the appliance and
to protect it from overheating, these openings must not be blocked or
covered. The openings should never be covered with a cloth or other
material, and the bottom openings should not be blocked by placing the
unit on a bed, sofa, rug, or other similar surface. This appliance should
never be placed near or over a radiator or heat register. This appliance
should not be placed in a built-in installation such as a bookcase unless
proper ventilation is provided.
3. Do not expose the appliance to rain or use near water . . . for example,
near a bathtub, swimming pool, kitchen sink, in a wet basement, etc.
Hooking Up Outdoor Antenna
LIGHTNING PROTECTION FOR YOUR ANTENNA AND SET AS PER
NATIONAL ELECTRICAL CODE INSTRUCTIONS.
4. If an outside antenna is connected to the receiver, be sure the antenna
system is grounded so as to provide some protection against voltage
surges and built up static charges. Article 810 of the National Electrical
Code, ANSI/NFPA 70, provides information with respect to proper
grounding of the mast and supporting structure, grounding of the lead in
wire to an antenna discharge unit, size of grounding conductors,
location of antenna discharge unit, connection to grounding electrodes,
and requirements for the grounding electrode.
An outside antenna system should not be located in the vicinity of over-
head power lines or other electric light or power circuits, or where it can
fall into such power lines or circuits. When installing an outside antenna
system extreme care should be taken to keep from touching such power
lines or circuits as contact with them might be fatal.
Plug in the power cord
5. This product should be operated only from the type of power source indi-
cated on the marking label. If you are not sure of the type of power
supply to your home, consult your product dealer or local power
company. This product is equipped with a polarized alternating current
line plug (a plug having one blade wider than the other). This plug will fit
into the power outlet only one way. This is a safety feature. If you are
unable to insert the plug fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to replace your
obsolete outlet. Do not defeat the safety purpose of this polarized plug.
Do not overload wall outlets, extension cords, or integral convenience
receptacles as this can result in a risk of fire or electric shock.
6. Power-supply cords should be routed so that they are not likely to be
walked on or pinched by items placed upon or against them, paying
particular attention to cords at plugs, convenience receptacles, and the
point where they exit from the product.
Cleaning
7. Before cleaning,unplug theunit fromthe walloutlet. Donot applyliquid clean-
ers or aerosol cleaners directly to the unit. Use a dry cloth for cleaning.
Service & Repair
8. Unplug the appliance from the wall outlet and refer servicing to
qualified service personnel under the following conditions:
A. If the power cord or plug is damaged or frayed.
B. If liquid has been spilled into the appliance.
C. If the appliance has been exposed to rain or water.
D. If the appliance has been dropped or the cabinet has been damaged.
E. If the appliance exhibits a distinct change in performance.
F. If the appliance does not operate normally by following the operating
instructions, adjust only those controls that are covered in the
operating instructions. Improper adjustment of other controls may
result in damage and will often require extensive work by a qualified
technician to restore the appliance to normal operation.
9. Upon completion of any service or repair, request the service techni-
cian’s assurance that only Factory Authorized Replacement Parts that
have the same characteristics as the original parts were used, and that
routine safety checks have been performed to determine that the
appliance is in safe operating condition. Unauthorized substitutions may
result in fire, electrical shock, or other hazards.
10. Never add accessories that have not been specifically designed for use
with this appliance as they may cause hazards.
11. For added protection during a lightning storm, or when the set is left
unattended and unused for long periods of time, unplug it from the wall
outlet and disconnect the antenna. This will prevent damage to the set
due to lightning or power line surges.
12. Never push objects of any kind into this product through openings as
they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind on the
product.

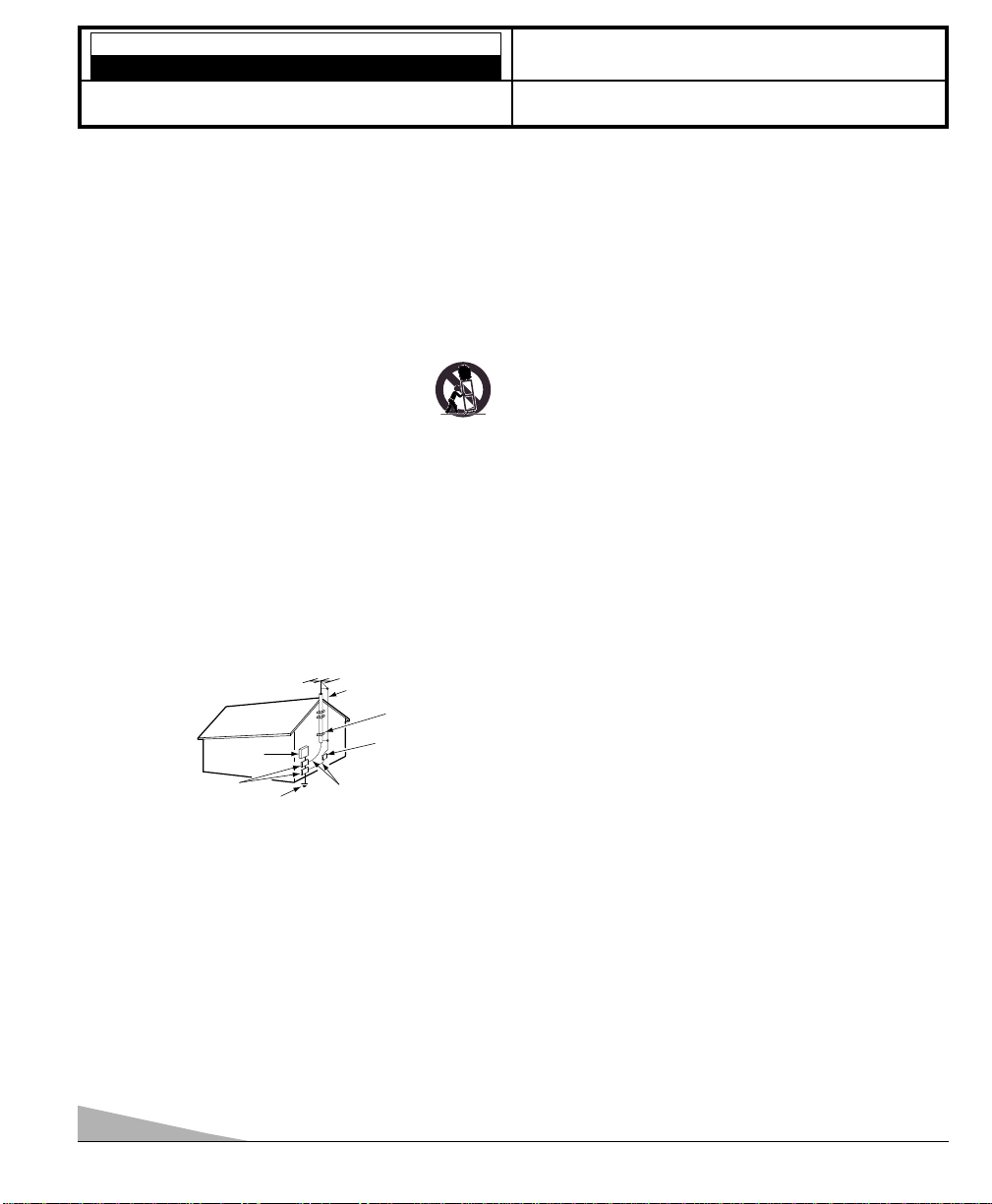

EXAMPLE OF ANTENNA GROUNDING ACCORDING TO NATIONAL
ELECTRICAL CODE, ANSI/NFPA 70
CAUTION
RISK OF ELECTRIC SHOCK DO NOT OPEN
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED
SERVICE PERSONNEL.
THIS SYMBOL INDICATES THAT DANGEROUS VOLTAGE CONSTITUTING
A RISK OF ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT.
THIS SYMBOL INDICATES THAT THERE ARE IMPORTANT OPERATING
AND MAINTENANCE INSTRUCTIONS IN THE LITERATURE ACCOMPANY-
ING THIS UNIT.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT SAFETY INSTRUCTIONS
CAUTION: PLEASE ADHERE TO ALL WARNINGS ON THE PRODUCT AND IN THE OPERATING INSTRUCTIONS. BEFORE
OPERATING THE PRODUCT, PLEASE READ ALL OF THE SAFETY AND OPERATING INSTRUCTIONS. RETAIN THIS
LITERATURE FOR REFERENCE. Follow all instructions...
“Note to CATV syste installer:
This re inder is provided to call the CATV syste installer’s attention to Article 820-40
of the NEC that provides guidelines for proper grounding and, in particular, specifies that
the cable ground shall be connected to the grounding syste of the building, as close to
the point of cable entry as practical.”
NEC - NATIONAL ELECTRICAL CODE
ANTENNA
LEAD IN
WIRE
GROUNDING CONDUCTORS
(NEC SECTION 10-21)
GROUND CLAMPS
ANTENNA
DISCHARGE UNIT
(NEC SECTION 10-20)
GROUND
CLAMP
ELECTRIC
SERVICE
EQUIPMENT
POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

3
QuickTips
■ Do not position the TV
in a confined area.
Allow normal air
circulation for
electronic parts.
■ Front panel eys
wor li e the remote
control eys.
■ The TV will automati-
cally select the correct
Antenna mode for the
type of signal you
connect.
SPECIFICATIONS
PICTURE TUBE SIZE (Measured Diagonally)
PC-13R20 . . . . . . . . . . . . . . 13-inch screen
PC-25R20 . . . . . . . . . . . . . . 25-inch screen
PICTURE RESOLUTION . . . . . . . . . . . . . . 260 Lines
PC-13R20 . . . . . . . . . . . . . . Video Input: 350 Lines
PC-25R20 . . . . . . . . . . . . . . Video Input: 400 Lines
ANTENNA INPUT . . . . . . . . . . . . . . . . . . . UHF/VHF/CATV 75Ω
POWER REQUIREMENT . . . . . . . . . . . . . . 120VAC 60Hz
POWER PC-13R20 . . . . . . . . . . . . . . 53 watts
PC-25R20 . . . . . . . . . . . . . . 88 watts
HORIZONTAL DIM. (Width)
PC-13R20 . . . . . . . . . . . . . . 14.6 in. (372mm)
PC-25R20 . . . . . . . . . . . . . . 24.4 in. (619mm)
VERTICAL DIM. (Height)
PC-13R20 . . . . . . . . . . . . . . 13.2 in. (335mm)
PC-25R20 . . . . . . . . . . . . . . 22.4 in. (570mm)
DEPTH DIM. (Thickness)
PC-13R20 . . . . . . . . . . . . . . 14.7 in. (373mm)
PC-25R20 . . . . . . . . . . . . . . 20.4 in. (517mm)
WEIGHT (LB.) (Approx.)
PC-13R20 . . . . . . . . . . . . . . 19.2 lbs. (8.7 Kg.)
PC-25R20 . . . . . . . . . . . . . . 59.5 lbs. (27.0 Kg.)
SOUND . . . . . . . . . . . . . . . . . . . . . . . . . . 1 Speaker, Size: 8 cm
AMPLIFIER . . . . . . . . . . . . . . . . . . . . . . . Built-in with 1W
FRONT A/V INPUT JACKS . . . . . . . . . . . . Video/Audio Input
◆Trilingual On-Screen Menu
◆Automatic Channel Search
◆Auto Shut Off
◆Closed-Captioning/QuikCap
◆Auto Flesh Tones
◆Digital picture controls with
on-screen display
◆Automatic picture
adjustments
◆Front Audio/Video Input
Jacks
◆Game Mode
◆V-Guide (Parental Control)
◆Sleep Timer (3 hours)
◆TV Reset
Automatic Fine Tuning
VHF and Cable Channels
181 Channel Tuning System
VHF Channels 2-13
UHF Channels 14-69
Cable TV (CATV) 1, 14-125
Remote Control
Numbered Channel
Selection
Channel Scanning
Volume Mute
Power Recall
Display Sleep
Caption Reset
Menu V-Guide
Game (Input) (PC-13R20)
Input (PC-25R20)
FEATURES
Because it’s products are subject to continuous improvement,
Fisher reserves the right to modify product design and specifica-
tions without notice and without incurring any obligation.
CAUTION: FCC Regulations state that improper modifications or
unauthorized changes to this unit may void the user’s
authority to operate the unit.

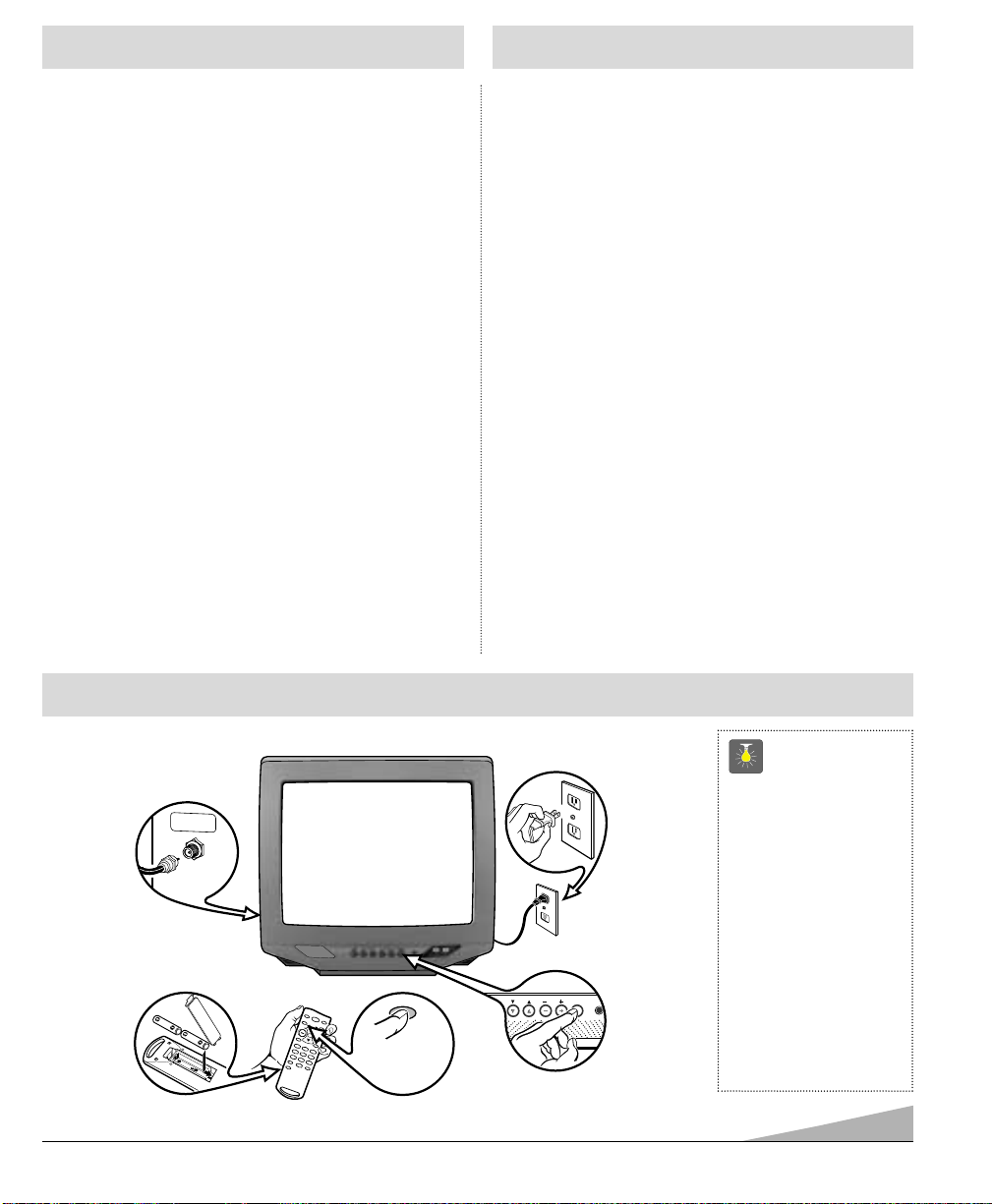

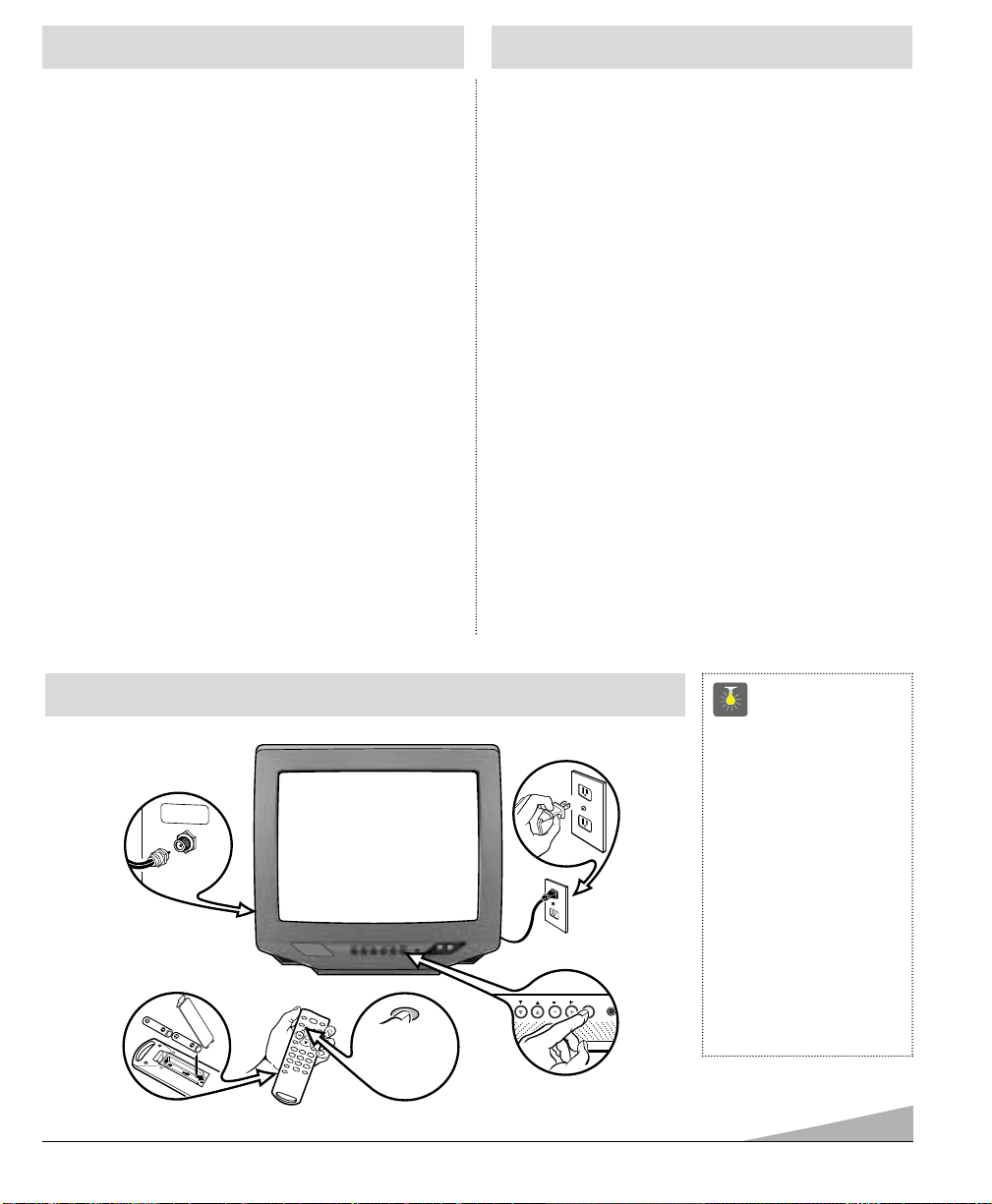

BASIC SETUP
PC-13R20
First
Please connect
cable syste or
an antenna
to the ter inal
Then press
the MENU key
UHF/VHF/CATV
75Ω
GAME
(INPUT)
MENU
MUTE
SLEEP
V-GUIDE
DISPLAY
CAPTION
RECALL
RESET
CH
POWER
VOL VOL
123
456
7 9
0
Please wait
TV is searching
for your channels
MENU
POWERVOLCH
FGH
❷❸
❹
(See Hookup page 4.)
❺
➊
(Install batteries, see page 5.) (Switch on Power.)

4
BASIC HOOKUP METHODS
Use one of these methods to connect a signal to your TV. Select 1a—if you have cable
service and a VCR, 1b—if you have a cable box and a VCR, 1c—if you have an outdoor or
indoor antenna and a VCR, or 1d—if you have a satellite dish and a VCR. Connect your
cable or antenna directly to the TV if you don’t have any optional accessories.
UHF/VHF/CATV
75Ω
FROM ANT.
OUT TO TV.
IN
OUT
FROM ANT.
OUT TO TV.
IN
OUT
IN OUT
FROM ANT.
OUT TO TV.
IN
OUT
FROM ANT.
OUT TO TV.
IN
OUT
UHF/VHF/CATV
75Ω
UHF/VHF/CATV
75Ω
UHF/VHF/CATV
75Ω
IN FROM
SAT.
CATV IN
OUT TO TV S-VIDEO
CH3
CH4 L- -RAUDIOVIDEO
L- -RAUDIOVIDEO
RECEIVER
VCR
CABLE BOX
TV BACK
❸
CATV FRANCHISE NOTE: Cable
companies, like public utilities,
are franchised by local govern-
ment authorities. To receive cable
programs, even with equipment
which is capable of receiving
cable channels, the consumer
must subscribe to the cable
company’s service.
❷
QuickTips
■
The TV will automati-
cally select the
correct Antenna mode
for the type of signal
you connect.
■ TV will switch off
automatically after 15
minutes if there is no
signal reception
(cable out or station
not broadcasting).
Exception—When the
Video mode is selected,
the TV will not automat-
ically switch off when
signal reception has
stopped for 15 minutes.
➊
d
➊
b
➊
a
75 OHM Terminal
Use the 75 ohm terminal to
connect a VCR, cable,
cable box, outdoor/indoor
antenna or satellite receiver
directly to the TV.
Cable with VCR and TV
Cable with Cable Box, VCR, and TV
Satellite Dish with Receiver, VCR, and TV
➊
cOutdoor or Indoor Antenna with VCR and TV
❷
❷
VCR
VCR
VCR
❷
TV BACK
❸
TV BACK
TV BACK

5
FRONT PANEL
GAME POWER
VIDEO IN AUDIO IN
VOLCH
FGH
Audio/Video Input Jacks
Connect external video
equipment here (see page 9).
QuickTips
■
Front panel eys wor
li e the remote control
eys.
■
Ma e sure all cable
connectors are fully
seated on jac s.
See page 9 before
connecting external
video equipment.
■
A solid Blue screen
with the word Game
or Video displayed
means that the
Game/Video mode is
selected, but no signal
is being detected at
the Video jac .
■
Be sure the batteries
are installed correctly.
■
Point the remote
control toward the TV.
Objects between the
remote control and the
TV may cause mis-
operation of the
remote control
function.
REMOTE CONTROL
INSTALLING BATTERIES (2 AAA, not included)
1. Remove the battery cover by pressing the tab and tilting the cover upward. Insert
batteries. Make sure you match / signs on the batteries with marks inside the
remote control.
2. Replace battery cover. The remote control
is ready!
Notes:
– Do not mix old batteries with new ones or
mix different types of batteries together.
– Remove the batteries if the remote control
will not be used for a month or more.
Weak batteries may leak and cause
damage. (Normal battery life is roughly
six months.)
+
IMPORTANT NOTE: Spent or discharged batteries must be recycled or
disposed of properly in compliance with all applicable laws. For
detailed information, contact your local County Solid Waste Authority.
ame Key (PC-13R20)
Use this key to automatically select the
front AV jacks. The TV will automati-
cally change the screen and sound to
factory preset game settings.
PC-13R20
POWERVOLUMECHANNEL
MENU VIDEO IN AUDIO IN
PC-25R20

6
➀ame Key (PC-13R20)
Press to select the program source to be
displayed on the screen: TV signal or
signal from the equipment you have
connected to the A/V jacks. The TV will
automatically change the screen and
sound to factory preset game settings.
Input Key (PC-25R20)
Press to select the program source to be
displayed on the screen: TV signal or
signal from the equipment you have
connected to the A/V jacks.
➁Menu Key
Use this key with the /and
/keys to navigate and adjust
features of the on-screen menu system
(see pages 7 and 8).
➂Channel Scanning (CH /)
and Volume (VOL /) Keys
Press to scan through the channels in
memory and to adjust the volume.
➃Mute Key
Press once to lower the volume. Press
again to restore.
➄Number Keys
Two keys must be pressed to select a
channel. Example: Press 0then 6to select
channel 6. For cable channels 100 through
125, press and hold the 1key until C1––
appears. Then press the other two numbers.
➅Caption Key (See page 10.)
➆V- uide Key (See pages 11 ~ 13.)
➇Reset Key
Press this key twice to restore factory
settings. The TV will automatically start
Channel Search and clear all
customized settings (see page 8).
➈Power Key
Press to turn TV on or off.
➉Recall Key
Select a channel then select another
using the number keys. Press RECALL
to switch between the channels.
Display Key
Press once to display the Channel
number. Press twice to display the
channel number continuously. Press
again to remove the display.
Sleep Key
Use this key with the 0” key to set the
Sleep Timer (see page 13).
REMOTE CONTROL KEYS
➠
Point towards TV
11
12
QuickTips
■ Point the remote
control toward the
TV. Objects between
the remote control
and the TV may
cause misoperation
of remote control
function.
■ Be sure batteries are
installed correctly.
■ Cannot select channel
with number eys.
Press “0” in front of
numbers 1 ~ 9.
Example: Channel 05.
■ The “C” in front of
the number on your
screen indicates a
cable channel.
■ Adjusting the volume
level: Right flash-
ing arrow indicates
volume is increasing
andleft flashing
arrow indicates
volume is decreasing.
■ Channel number
will not display
continuously when
captioning is on.
■ Using V-Guide
TV Parental Guide-
lines settings can be
changed only by using
the Remote Control.
(See pages 12 and 13.)
GAME
(INPUT)
MENU
MUTE
SLEEP
V-GUIDE
DISPLAY
CAPTION
RECALL
RESET
CH
POWER
VOL VOL
123
456
7 9
0
456
7 9
0
123
➀
➁
➂
➃
➄
➈
➉
➆
➅
➇
11
12

7
TV ADJUSTMENT AND SETUP
The on-screen menu provides the viewer with easy access to adjustments and settings. Just
use the keys on the remote control and follow the instructions.
HOW TO MAKE ADJUSTMENTS
1. Press MENU key.
2. Use the / keys to highlight
the desired feature.
3. Use the /keys to choose desired
option.
Items with submenus requires additional
steps.
ADJUSTING PICTURE
For automatic picture adjustment:
Highlight Auto option.
To manually adjust the picture:
1. Highlight Manual option.
2. Press the MENU key to select picture options:
Color, Tint, Contrast, Bright,and Sharpness
3. Use the /keys to adjust.
4. Use the / keys to select another option
or press the MENU key to exit.
RESETTING THE ANTENNA/CABLE MODE AND CHANNEL SEARCH
Resetting the Antenna/Cable Mode or CH. (Channel) Search is required only if additional
channels become available, such as, moving to another city or having a cable service
installed.
1. Highlight CH. Search option.
2. Press key to start channel search.
QuickTips
■
Always follow on-
screen instructions.
■
The menu will display
on the screen for
approximately 20
seconds. Press MENU
again to redisplay.
■
All TV adjustments
are controlled through
the menu.
■
Press the RESET ey
twice to clear all set-
tings. The TV will
automatically start
Channel Search and
clear all customized
settings.
■
Use the CHANNEL
/ey and the
VOLUME /eys
to navigate through
the menus and to
ma e selections from
the menus.
■
When setting the
Antenna mode, choose
Cable if your TV is
connected to a cable
system, otherwise
choose VHF/UHF.
CH. Scan Memory +
ENGL FRAN ESPA
CH. Search +
Auto Manual Game
Cable VHF/UHF
CH. Search +
CH. Scan Memory +
ENGL FRAN ESPA
Use –+, ▲▼ keys
>
>
>
>
>
>
AA
AAuu uutt ttoo ooManual Game
>
>
➥
CC
CCoo ooll lloo oorr rr
Auto MMAANNUUAALLGame
>
>
Searching C34
Use –+, ▲▼ keys
❙❙
❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙❙❙ ❙❙-- ---- ---- ---- ---- ---- --

8
QuickTips
■
Channels deleted
from scan memory
can be selected with
the Number eys.
■
Restoring deleted
channels, use the
on-screen menu to
manually add chan-
nels or start CH.
(Channel) Search
from the menu.
SELECTING THE DISPLAY LANGUAGE
1. Choose language options: ENGL
(English), FRAN (Français), or ESPA
(Español).
2. Press the MENU key to exit.
Use –+, ▲▼ keys
EE
EENN NNGG GGLL LLFRAN ESPA
>
>
ADDING OR DELETING CHANNELS
1. Press MENU key.
2. Use the / keys to highlight CH. Scan Memory.
3. Press the key to highlight the channel number entry area.
4. Enter the channel number you want to add or delete (example): C34.
For cable channels above 99, press and hold the 1key until C1– – appears.
Then enter the other two numbers.
5. Press the key to change the present
setting. Example: Added will change to
Deleted.
6. Use the 0~9 or ▲▼ keys to delete
other channels or press the MENU key
to exit.
ENGL FRAN ESPA
CH. Scan Memory +
RESETTING THE TV
Press the RESET key to automatically reset the television to factory settings. These features will automatically reset:
•Picture Adjustment: Color, Sharpness, Bright, Contrast, and Tint
•Channel Memory
•Caption to OFF
•V-Guide to OFF
•Language to English
•Sleep Timer (if previously set)
•Game/Video to TV (if previously selected)
If desired, personal settings can be
made again using the menu options.
Press RESET key
again to return
factory preset and
begin channel search
UU
UUss ssee ee ▲▲ ▲▲▼▼ ▼▼,, ,, 00 00~~ ~~99 99,, ,, ++ ++ kk kkee eeyy yyss ss
Deleted C34

9
USING THE FRONT AUDIO/VIDEO INPUT JACKS
CONNECTING A VIDEO GAME
Switch off TV and video game before connecting cables.
1. Connect game Audio Output to the TV Audio Input. Then connect game Video Out to the
TV Video In ❶.
2. Press POWER key ❷to turn on the TV. Turn on external equipment.
3. PC-13R20—Press the GAME key ❸to select program source: TV signal or signal from
the equipment connected to the A/V jacks. The TV will automatically change the screen
and sound to factory preset game settings.
PC-25R20—Press the INPUT key ❹to select program source: TV signal or signal from
the equipment connected to the A/V jacks. Press the MENU key ❺and select Game from
the on-screen menu.
GAME POWER
VIDEO IN AUDIO IN
VOLCH
VIDEO IN AUDIO IN
FGH
❶
VIDEO GAME
GAME KEY
(PC-13R20)
GAME
(INPUT)
MENU RECALL
RESET
CH
POWER
VOL VOL
❹❷
❸REMOTE CONTROL
TV A/V INPUT
JACKS
CONNECTING A VCR OR OTHER EXTERNAL EQUIPMENT
Switch off TV and external equipment before connecting cables.
1. Connect VCR Audio Out and Video Out ❶to the TV Audio Input and
Video Input ❷.
2. Press POWER to turn on the TV. Turn on external equipment.
3. Press the GAME or INPUT key to select program source: TV signal or
signal from the equipment you have connected to the A/V jacks.
See page 6 for remote control operation.
CH3 CH4
IN
OUT
A/V JACKS
RF
CHANNEL L- -R
AUDIOVIDEO
L- -R
AUDIO
VIDEO
POWER
VIDEO IN AUDIO IN
VOL
❶
BACK VIEW OF VCR
❷
CAMCORDER
TV A/V INPUT JACKS
QuickTips
■
Ma e sure all cable
connectors are fully
seated on jac s.
■
A solid Blue screen
with the word Game
or Video displayed
means that the
Game/Video mode is
selected, but no
signal is being
detected at the
Video jac .
❺

10
CLOSED-CAPTIONING
Captioning is textual information transmitted along with the picture and sound so it can be
displayed on the TV screen. Because different types of captions can be transmitted with the
TV signal, separate captioning modes are provided. The captioning modes recognized by this
model are: C1 (Caption1), C2 (Caption2), T1 (Text1), and T2 (Text2). Local broadcasters
decide which captions signals to transmit. They may not choose to provide captions or may
provide captions in one or all of the available modes.
C1: This is the main mode used for program captioning (words
match the program you are watching). Almost all broadcasters
will use Caption1 to transmit program captions. These cap-
tions are generally one or two lines.
C2: This is an alternative mode for program
captioning. Caption2 may be used by the broadcaster to
provide captions in another language, such as, Spanish or
French.
T1: This mode is used to display large amounts of text. This
text will appear within a black box that may be nearly as
large as the TV screen. Text displayed in this manner does
not generally relate to the program. These captions may be
used by broadcasters to provide weather reports, community
bulletins, stock quotes, etc.
T2: This is an alternative mode used to display large
amounts of text. The same types of information displayed
in Text1 can be displayed in Text2.
QuikCap: QuikCap allows captions to toggle on and off with the Mute function. For
example, the phone rings; you press the MUTE key on the remote control to block the TV
sound; the captions display automatically. When you finish your conversation and press the
MUTE key again to restore the sound, the captions will disappear.
QuikCap displays program captions in the C1 (Caption1) mode.
SETTING CAPTIONS
1. Press the CAPTION key on the remote control.
2. Use the 0key to select OFF, C1 (Caption1), C2 (Caption2),
T1 (Text1), T2 (Text2), or QuikCap.
QuickTips
■
If Caption Text mode is
selected and no
captioned text is broad-
casted, a blac box
may appear and
remain on the TV
screen.
To remove this blac
box, set captioning to
any mode other than
T1 (Text1) or T2
(Text2) or press the
RESET ey to cancel
captioning and cus-
tomized settings.
■
Channel number con-
tinuous display mode is
not available when
captioning is on.
TWO OUTS AND TWO STRIKES
C1 / C2
T1 / T2
TONIGHT: BECOMING MOSTLY
CLOUDY WITH A 40 PERCENT
CHANCE OF RAIN. COLD WITH
A LOW IN THE UPPER 30's WEST
WIND AROUND 20 MPH, SHIFT-
ING TO NORTHWEST AROUND
MIDNIGHT. FRIDAY: MOSTLY
CLOUDY AND COLDER WITH
A 50 PERCENT CHANCE OF
RAIN. HIGH IN THE MID 50's.
GAME
(INPUT)
MENU
MUTE
SLEEP
DISPLAY
CAPTION
RECALL
RESET
CH
POWER
VOL VOL
123
456
7 9
0
456
7 9
0
123
❷
❶

11
V-GUIDE INFORMATION
NOTE: THIS FEATURE IS DESIGNED TO COMPLY WITH THE UNITED STATES OF
AMERICA’S FCC V-CHIP REGULATIONS. THEREFORE, IT MAY NOT FUNC-
TION WITH BROADCASTS THAT ORIGINATE IN OTHER COUNTRIES.
This Fisher television is equipped with an electronic V-Chip to interpret MPAA
and TV Parental Guidelines rating codes. When these codes are detected, the
TV will automatically display or block the program, depending upon choices
you make when setting up the V-Guide system.
ABOUT MPAA AND TV PARENTAL GUIDELINES
MPAA and TV Parental Guidelines are rating systems that provide advance cautionary
information to parents about the content of movie and television programming.
MPAA is a voluntary rating system used by the movie industry. TV Parental Guidelines are
modeled after the MPAA ratings and were designed to be simple to use, easy to understand,
and easy to find.
TV Parental Guidelines contain both age-based and content-based information. This gives
parents discretionary ways of choosing appropriate material for their children to view.
Content ratings are represented by the initials D (Suggestive Dialog), L (Adult Language),
S (Sexual Situations), V (Violence), and FV (Fantasy Violence). When programming
contains any or all of these conditions, these letters become part of the icon that is displayed
on the TV screen.
A rating icon will generally appear on the TV screen for about fifteen seconds at the beginning
of a program and should be repeated at the beginning of the second hour of a long program. It
may also appear when returning from commercials. There may be other instances when these
icons will be displayed as well. Parents are encouraged to become familiar with these icons
and their meanings.
WHERE CAN I FIND ADVANCE NOTICE OF PROGRAM RATING
Publishers of programming guides have been asked to include these ratings along with other
information they publish. You can expect to find this information in newspapers, magazines,
and on-screen listings and guides.
TYPES OF PROGRAMS TO RECEIVE RATING
The TV Parental Guidelines will apply to various types of TV programming, including: specials,
mini-series, and movies. Sports and news shows do not currently carry guidelines.
MENU
MUTE
SLEEP
V-GUIDE
DISPLAY
CAPTION
RECALL
RESET
CH
POWER
VOL VOL
123
456
79
0
V
v
QuickTips
■
Use the CHANNEL
/ey and the
VOLUME /eys
to navigate through
the menus and to
ma e selections from
the menus.
■
V-Guide feature is
accessible only from
the remote control.
■
The TV guidelines
rating icon will
generally appear in
the upper left hand
corner of your TV
screen.
■
The V-Guide display
remains on screen for
approximately 20
seconds. If it
disappears, press
the V-GUIDE ey.
C 34
TVPG-V

12
V-GUIDE OPERATION
Use this feature to supervise television viewing for young children. This television can be
setup to automatically block programs with content you deem as inappropriate for your
children to view, including: suggestive dialog, adult language, sexual situations, violence,
and fantasy violence.
The ability of the television to block the reception of specific programming content
depends upon several conditions: 1) The program must be rated, 2) Networks must broad-
cast the rating code data, 3) Cable companies must transmit the rating code signal, and
4) The TV must be properly setup to decode the signal.
SETTING MPAA RATINGS:
1. Press the V-GUIDE key on the remote
control to display menu.
2. Press the key to switch V-Guide ON.
3. Use the / keys to select MPAA
Rating, if necessary.
4. Press the key to select rating options:
X,NC17,R,PG13,PG or G.
5. Press the MENU key to Block (B) or
Unblock (U) selected rating. For example,
X U.
SETTING TV RATINGS:
6Use the / keys to highlight TV
Ratings.
7. Press the key to select rating options:
TVMA,TV14,TVPG,TV-G,TVY7,
TV-Y, or Contents
8. Press the MENU key to Block (B) or
Unblock (U) selected rating. For example,
TVMA U.
QuickTips
■
The TV will automati-
cally bloc (B) ratings
above or unbloc (U)
ratings below selec-
tion. For example, if
you bloc rating R,
NC17 and X will be
bloc ed as well.
■
Bloc ing TVY7
does not bloc higher
ratings.
■
You can bloc a
content rating such
as TVPG-V and
still be able to watch
TVPG programs with
ratings of S-L-D
provided TVPG is
unbloc ed (U).
■
To view Bloc ed (B)
programs, set
V-GUIDE to OFF, or
press the RESET ey
twice to clear all
Bloc ed (B) ratings
and customized
settings.
■
When in the V-Guide
menu system, the
/and /
eys allows you to
navigate between the
ratings and the
options menu.
MPAA Ratings :
TV Ratings :
Use – +, ▲▼ keys
MENU key to Block
X U
OFF OO OONN NN
>
>
OFF OO OONN NN
>
>
MPAA Ratings :
TV Ratings : X B
MPAA Ratings :
TV Ratings :
Use – +, ▲▼ keys
MENU key to Block
TVMA U
OFF OO OONN NN
>
>
MPAA Ratings :
TV Ratings : TVMA B
OFF OO OONN NN
>
>

13
Setting TV Ratings Contents:
9. Use the / keys to select Contents.
10. Press the MENU key to display the Contents options: D,L,S,V, or
FV. (D-Suggestive Dialog, L-Adult Language, S-Sexual Situation,
V-Violence, FV-Fantasy Violence)
11. Use the / key to select desired option:
12. Use the /keys to set rating. For example, D : TV14 U.
13. Press the MENU key to Block (B) selected rating.
14. Use the / key to highlight another content rating.
Repeat steps 11 and 13 to block or unblock rating.
15. Press the V-GUIDE key to exit.
TURNING OFF THE V-GUIDE
1. Press the V-GUIDE key.
2. Use the /keys to select OFF.
SETTING THE SLEEP TIMER
The Sleep Timer will switch off the TV automatically.
1. Press the SLEEP key.
2. Use the 0 key to select the desired time
(from 30 minutes up to 3 hours).
Note: The Sleep Timer cancels when
the TV is turned off or if a power
failure occurs.
Sleep : 0:30
Use 0 key
Sleep : 1:00
Sleep : 1:30
➧
Sleep : 2:00
Sleep : 2:30
Sleep : 3:00
GAME
(INPUT)
MENU
MUTE
SLEEP
V GUIDE
DISPLAY
CAPTION
RECALL
RESET
CH
POWER
VOL VOL
123
456
7 9
0
456
7 9
0
123
❷
Sleep : 0:00
❶
Note: Networks and local stations may or may
not include the content ratings portion of
the TV Parental Guidelines.
CARE AND CLEANING
The surface of the cabinet can be damaged if not properly maintained. Many common household aerosol sprays, cleaning
agents, solvents and polishes will cause permanent damage to the fine surface.
1. Unplug the power cord before cleaning the television.
2. Clean the screen and cabinet with a soft dry cloth.
Note: Never spray liquids on the screen because they can run down and drip onto the chassis.
This may cause component failure not covered under Warranty.
MPAA Ratings :
TV Ratings : Contents
OFF OO OONN NN
>
>
L:
S:
V:
FV :
D:TV14 B
Use – +, ▲▼ keys
MENU key to Block
FV : TVY7
Press MENU key
D :TV14
TVPG S :TVMA
TV14
TVPG
L : TVMA
TV14
TVPG
V :TVMA
TV14
TVPG
→→→ →

14
No Picture or Poor Picture
Is picture ok?
Yes. Problem is with signal (station, cable, or satellite reception).
No. Turn off household/shop appliances such as, vacuum, blender, drill, etc.
Did picture improve?
Yes. Problem was interference from an appliance.
No. Adjust antenna direction/alignment. / Press the RESET key twice
(personalized settings will be reset to factory defaults).
Change Channels.
Is color better?
Yes. Problem is with program or signal (station, cable, or satellite reception).
No. Adjust antenna direction/alignment.
Did color improve?
Yes. Antenna was not adjusted properly for the channel you’re watching.
No. Press the RESET key twice (personalized settings will be reset to
factory defaults).
Was the connector loose or disconnected?
Yes. Problem could be auto shutdown due to loss of signal. (See page 4.)
No. Press the POWER key.
Did the TV come on?
Yes. Sleep Timer may have been set.
No. Unplug the TV for a few seconds. Reconnect and press POWER.
TV Turns off by itself
Check antenna
connection.
TROUBLESHOOTING
Before calling for assistance, please look for the condition that most closely resembles your problem
in the following charts, then follow the instructions for that condition.
Poor color or no color
Change Channels.
Do you recognize the menu words now?
Yes. A language other than English was selected.
I don’t recognize words in the on-screen menu
Press the RESET
key twice
(personalized
settings will be
reset to factory
defaults).
Did the Blue Screen disappear?
Yes. The TV was in the Video mode. (A Blue Screen will appear when the Video or
Game mode is selected and there is no video signal being detected.) Your AV
equipment may be turned off or unplugged.
My TV screen is solid blue
Press the GAME
or INPUT key.

15
Did the problem go away?
Yes. It may have been the channel scan memory or V-Guide settings.
Do you hear any sound now?
Yes. Mute function was activated or Volume was turned down.
No. Change Channels.
Do you hear any sound now?
Yes. Problem is with program or signal (station, cable, or satellite reception).
No. Adjust antenna direction/alignment.
No sound
Press and hold
the Volume
key.
The cabinet makes a popping sound
This is a normal condition during the warm-up and cool down of the plastic cabinet parts.
Does the remote control work now?
Yes. There may have been an object between the Remote and TV.
No. Replace the batteries or confirm that the batteries are properly installed.
My remote control will not operate my Tele ision
Be sure to point
the remote control
at the TV.
Cannot select or scan some channels
Press the RESET key twice
(personalized settings will
be reset to factory defaults).
Did the black box disappear or disappear briefly then reappear?
Yes. TV station is broadcasting a Caption text signal without any textual data.
Press the RESET key twice (customized settings will be reset to factory defaults).
To retain customized settings, just turn captioning off (see page 10).
A Black box appears on the screen
Change Channels.
Yes. Set captioning on. Press the Caption key then press the 0 key to display C1.
No. Tune to a channel that is broadcasting a closed-captioned program.
No Captioning
Is the program
you are watching
closed-captioned?

16
SANYO FISHER COMPANY
21605 Plummer Street
Chatsworth, CA 91311
FISHER Television Limited Warranty
OBLIGATIONS
To obtain Warranty service, television between the size of 13" ~ 27" (measured diagonally) must be delivered to and picked up from an authorized FISHER Service
Center at the user’s expense unless specifically stated otherwise in this warranty.
For 32" and above (measured diagonally), in-home service is available.
THIS WARRANTY IS VALID ONLY ON FISHER PRODUCTS PURCHASED AND USED IN THE UNITED STATES OF AMERICA, EXCLUDING ALL U.S. TERRITORIES
AND PROTECTORATES. THIS WARRANTY APPLIES ONLY TO THE ORIGINAL RETAIL USER, AND DOES NOT APPLY TO PRODUCTS USED FOR ANY INDUS-
TRIAL, PROFESSIONAL OR COMMERCIAL PURPOSE. THE ORIGINAL DATED BILL OF SALE OR SALES SLIP MUST BE SUBMITTED TO THE AUTHORIZED FISHER
SERVICE CENTER AT THE TIME WARRANTY SERVICE IS REQUESTED.
The name and addresses of Authorized Fisher Service Centers may be obtained by calling the toll free number listed below.
Subject to the OBLIGATIONS set up above and the EXCLUSION AND CONDITIONS set out below, SANYO FISHER COMPANY (SFC) warrants
this FISHER product against defects in materials and workmanship for the periods of LABOR and PARTS specified below. SFC will repair or
replace (at its option) within a reasonable time the product and any of its parts which fail to conform to this warranty. Repair or replacement
of the product or its parts shall be the exclusive remedies available to user. The user is responsible for all other costs. Such costs may include,
but are not limited to all necessary or incidental costs incurred to install the repaired product. The warranty period commences on the date
the product was first purchased at retail.
EXCLUSIONS AND CONDITIONS
This warranty does not cover (A) the adjustment of customer-operated controls as explained in the appropriate model’s instruction manual, or (B) the repair of
any product whose serial number has been altered, defaced or removed.
This warranty shall not apply to the cabinet or cosmetic parts, antenna, knobs, batteries or image burns to projection or picture tubes caused by electronic devices
or games.
This warranty does not apply to uncrating, setup, installation, removal of the product for repair, or reinstallation of the product after repair.
This warranty does not apply to repairs or replacements necessitated by any cause beyond the control of SFC including, but not limited to, any malfunction, defect
or failure caused by or resulting from unauthorized service or parts, improper maintenance, operation contrary to furnished instructions, shipping or transit accidents,
modification or repair by the user, abuse, misuse, neglect, accident, incorrect line voltage, fire, flood or other Acts of God, or normal wear and tear.
The foregoing is in lieu of all other expressed warranties with respect to the television or installation, operation, repair or replacement of the television. SFC shall not
be responsible for the loss of use of the unit, inconvenience, loss or damage to personal property, whether direct or indirect and whether arising in tort or contract.
THE DURATION OF ANY WARRANTIES WHICH MAY BE IMPLIED BY LAW (INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS) IS LIMITED
TO THE TERM OF THIS WARRANTY. IN NO EVENT SHALL SFC BE LIABLE FOR SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES ARISING FROM
OWNERSHIP OR USE OF THIS PRODUCT, OR FOR ANY DELAY IN THE PERFORMANCE OF ITS OBLIGATIONS UNDER THIS WARRANTY DUE TO CAUSES
BEYOND ITS CONTROL. SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN IMPLIED WARRANTY LASTS AND/OR DO NOT ALLOW THE
EXCLUSION OR LIMITATION OF CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATIONS AND EXCLUSIONS MAY NOT APPLY TO YOU.
THIS WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS, WHICH VARY FROM STATE TO STATE.
For your protection in the event of theft or loss of this product, please fill in the information requested below and KEEP in a safe place for your own personal
records.
Model No. ________________________________________________ Serial No. ____________________________________________
(Located on back of unit.)
Date of Purchase___________________________________________ Purchase Price ________________________________________
Where Purchased ___________________________________________________________________________________________________
CUSTOMER INFORMATION PARTS ORDER INFORMATION
(Product operation, authorized service center (Accessories and/or parts not available
referral, service assistance or problem resolution) from an authorized dealer)
1-800-421-5013 1-800-726-9662
Weekdays 8:30 A.M. ~ 5:00 P.M. Pacific Time Weekdays 8:30 A.M. ~ 5:00 P.M. Pacific Time
LABOR PARTS PICTURE TUBE
90 DAYS 1 YEAR 2 YEARS

17
ESPAÑOL
Manual de Instrucciónes
Importantes Medidas de Seguridad . . . . . . . . 18
Características . . . . . . . . . . . . . . . . . . . . . . . . . 19
Especificaciones . . . . . . . . . . . . . . . . . . . . . . . 19
Ajustes Básicos . . . . . . . . . . . . . . . . . . . . . . . . 19
Métodos Básicos de Conexión . . . . . . . . . . . . 20
Panel Frontal . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Control Remoto . . . . . . . . . . . . . . . . . . . . 21 ~ 22
Ajustes del TV . . . . . . . . . . . . . . . . . . . . . 23 ~ 24
Reajustando La TV . . . . . . . . . . . . . . . . . . . . . 24
Usando Las Entradas Frontales
de Audio/Video . . . . . . . . . . . . . . . . . . . . . . 25
Transmisión Captada . . . . . . . . . . . . . . . . . . . 26
Informacíon de Guía-V . . . . . . . . . . . . . . . . . . 27
Operación de Guía-V
(Control Paternal) . . . . . . . . . . . . . . . . 28 ~ 29
Ajustando el Cronómetro para Dormir . . . . . . 29
Solución de Problemas . . . . . . . . . . . . . 30 ~ 32
Cuidado y Limpieza . . . . . . . . . . . . . . . . . . . . . 33
Garantía y Servicio . . . . . . . . . . . . . . . . . . . . . 34
CONTENIDO
A EL PROPIETARIO:
Gracías por comprar un Televisor a Color Fisher. Usted hizo una excelente selección por Funcionamiento,
Confiabilidad, yPrecio. El TV esta diseñado con instrucciones de fácil ajuste y operación en pantalla. Para
reunir las necesidades de nuestros clientes, el TV tiene el V-chip electrónico de control paternal, para tener un
control de los programas vistos por menores. ¿ Necesita ayuda? Visite nuestro sitio en internet en
www.fisherav.com.

1
18
PRECAUCION
RIESGO DE TOQUE ELECTRICO NO ABRIR!
PRECAUCION: PARA REDUCIR EL RIESGO DE TOQUE ELECTRICO, NO QUITE LA CUBIERTA (O
LA TAPA TRASERA). NO HAY PARTES ADENTRO QUE LAS PUEDA REPARAR EL USUARIO.
REFIERASE A PERSONAL CALIFICADO PARA REPARAR EL APARATO.
ESTE SIMBOLO INDICA QUE VOLTAJES PELIGROSOS QUE CONSTI-
TUYEN UN RIESGO DE TOQUE ELECTRICO ESTAN PRESENTES DENTRO
DE ESTA UNIDAD.
ESTE SIMBOLO INDICA QUE HAY INSTRUCCIONES IMPORTANTES DE
OPERACION Y MANTENIMIENTO EN LA LITERATURA QUE SE ANEXA A
ESTA UNIDAD.
ADVERTENCIA : PARA REDUCIR EL RIESGO DE FUEGO O TOQUE ELECTRICO, NO EXPONGA ESTE
APARATO A LLUVIA O HUMEDAD.
IMPORTANTES MEDIDAS DE SEGURIDAD
PRECAUCION : POR FAVOR SIGA TODAS LAS ADVERTENCIAS EN EL PRODUCTO Y EN LAS INSTRUCCIONES DE OPERA-
CION. ANTES DE OPERAR EL PRODUCTO, POR FAVOR LEA TODAS LAS INSTRUCCIONES DE OPERACION Y SEGURIDAD.
GUARDE ESTA LITERATURA PARA SU REFERENCIA. Siga todas las instrucciones. . .
Colocando el aparato
1. No coloque su aparato en carrito, pedestal, anaquel o mesa que sean in-
estables. Heridas serias a un individuo, y avería al aparato, pueden resultar
si este cae. Su vendedor puede recomendar carritos y pedestales o anaque-
les e instrucciones para montaje en la pared. Una combinación
de aparato y carrito deberá de ser movida con cuidado. Paradas
rápidas, fuerza excesiva, y superficies irregulares pueda causar
que la combinación de aparato y carrito se volteen y caigan.
2. Las ranuras y aperturas en el gabinete y en la parte trasera e inferior fueron
provistas para ventilación del aparato. Para asegurar una operación confiable
del aparato y protejerlo de sobrecalentamiento, estas aperturas no deberán de
ser tapadas o cubiertas. Las aperturas nunca deberán de ser cubiertas con un
trapo u otro material, y las aperturas de la parte inferior no deberán de ser
tapadas poniendo la unidad en una cama, sofá, alfombra, u otra superficie
similar. Este aparato nunca deberá de ser puesto cerca o sobre radiadores de
calor. Este aparato nunca deberá de ser puesto en instalaciones tales como
libreros a no ser que haya una adequada ventilación en tales instalaciones.
3. No exponga el aparato a lluvia o a uso cerca de agua . . . por ejemplo, cerca
a una bañera, una alberca, un lavabo, en un sótano húmedo, etc.
Conectando la Antena Externa
PROTECCION EN CONTRA DE RAYOS ELECTRICOS PARA SU ANTENA Y APARATO DE
ACUERDO A LAS INSTRUCCIONES DEL CODIGO NACIONAL ELECTRICO (EUA).
4. Si una antena exterior es conectada al receptor, asegúrese que el sistema de
antenaesté aterrizado paraproveeralguna protecciónencontra de impulsosde
voltaje y la acumulación de cargas estáticas. El articulo 810 del código nacional
eléctrico de los Estados Unidos de América (National Electrical Code,
ANSI/NFPA70),provee informaciónconrespecto al aterrizamientocorrecto del
mástil y la estructura de soporte, el aterrizamiento del alambre a la antena en
una unidad de descarga, el tamaño de los conductores de aterrizamiento, la
localización de la unidad de descarga, conexión a los electrodos de aterriza-
miento, y requerimientos para los electrodos de aterrizamiento.
Una antena exterior no deberá de ser localizada en la vecindad de líneas de
potencia que pasen por encima de otros circuitos de luz eléctrica o de poten-
cia, o en donde pueda caer sobre tales líneas de potencia o circuitos. Cuando
se instale un sistema de antena externa, se debe de tener cuidado extremo en
no tocar tales líneas de potencia o circuitos ya que contacto con ellos puede
llegar a ser fatal.
Conectando el cordon de potencia
5. Este producto debe ser operado solamente con el tipo de cordón de potencia
indicado en la etiqueta. Si usted no esta seguro del tipo de alimentación en su
casa, consulte a su distribuidor de este producto, o a la compañía de
suministro eléctrico. Este producto esta equipado con cordón de potencia
polarizado (una de las navajas de la clavija es más ancha, que la otra). Esta
clavija debe de ajustar en el toma corriente de una manera solamente. Esta
característicaesuna medida deseguridad.Si usted nopuedeinsertar la clavija
totalmente en el toma corriente, trate invirtiendo la clavija.Si la clavija continua
floja en el toma corriente, llame a su electricista, para reemplazar su toma
corriente obsoleto. No deshabilite el propósito de seguridad de la esta clavija
polarizada. No sobre cargue los toma corrientes de pared, extensiones
eléctricas, o receptáculos integrales, ya que esta condición puede resultaren
un riesgo de fuego o descarga eléctrica.
6. Los cordones de potencia deben ser direccionados de tal manera que no
puedan ser pisados o dañados con enseres colocados a un lado arriba del
cordón de potencia. ponga una particular atención a los cordones de potencia
y clavijas, receptáculos de toma corrientes, y el punto donde ellos salen del
producto.
Limpieza
7. Antes de limpiar, desconecte la unidad del rectángulo de la pared. No
aplique limpiadores líquidos o en aerosol directamente a la unidad. Utilice
un trapo seco para limpiar.
Servicio y Reparación
8. Desconecte el aparato del receptáculo de pared y refiera servicio a personal
de servicio eléctrico calificado bajo las siguientes condiciones:
A Si el cordón de potencia o el conector están averiados o raídos.
B. Si líquido ha sido derramado en el aparato.
C. Si el aparato ha sido expuesto a lluvia o agua.
D. Si el aparato ha sido tirado o el gabinete a sido averiado.
E. Si el aparato exhibe un cambio perceptible en funcionamiento.
F. Si el aparato no opera normalmente siguiendo las instrucciones de
operación, ajuste solamente aquellos controles que han sido cubiertos en
las instrucciones de operación. Ajuste impropio de otros controles puede
resultar en avería al aparato y posiblemente requiera de trabajo extensivo
por un técnico calificado para restaurar el aparato a su operación normal.
9. Cuando se termine cualquier servicio o reparación, requiera del técnico de ser-
vicio confirmación de que solo Partes Autorizadas de Remplazo de Fabrica que
tengan las mismas características que las partes originales hayan sido usadas,
y que verificaciones de seguridad rutinarias hayan sido llevadas a cabo para
determinar que el aparato se encuentra en condiciones seguras de operación.
Substituciones no autorizadas pueden resultar en fuego, toque eléctrico u
otros peligros.
10. Nunca adicione accesorios que no han sido especificamente diseñados
para uso con este aparato.
11. Para protecciónadicionaldurante unatormentaeléctrica, ocuandoel aparato
es dejado sin atención ni uso durante largos periódos de tiempo,
desconéctelo del receptáculo de la pared y desconecte la antena. Esto evitará
daños al aparato debido a rayos o a cambios bruscos en el voltaje de línea.
12. Nunca introduzca ningún tipo de objetos a través de las ranuras, ya que el
contacto con componentes de alto voltaje pueden poner corto dichas com-
ponentes que pueden resultar en incendios o descargas eléctricas, Nunca
derrame líquidos o cualquier tipo de productos.
EJEMPLO DE ATERRIZAMIENTO DE ANTENA DE ACUUERDO AL CODIGO
NACIONAL ELECTRICO (National Electrical Code, ANSI/NFPA 70)
CABLE DE ANTENA
GRAPA DE TIERRA
CODIGO NACIONAL ELECTRICO
CONDUCTORES DE TIERRA
(NEC SECCION 10-21)
UNIDAD DE
DESCARGA DE ANTENA
(NEC SECCION 10-20)
EQUIPO DE
SERVICIO
ELECTRICO
GRAPA DE TIERRA
TIERRA DE SERVICIO DE POTENCIA
ELECTRODO DEL SISTEMA
(NEC ART 250, PARTE H)
“Nota al instalador del sistema de cable CATV :
Este recordatorio es dado para llamar la atención del instalador del sistema de cale CATV
al Articulo 820-40 del NEC que provee guias para el aterrizamiento adecuado y, en particu-
lar, especifica que la tierra del cable debéra de estar conectada al sistema la tierra del
edificio, tan cercano al punto de entrada del cable como sea practico.”

19
First
Please connect
cable syste or
an antenna
to the ter inal
Then press
the MENU key
UHF/VHF/CATV
75 Ω
GAME
(INPUT)
MENU
MUTE
SLEEP
V-GUIDE
DISPLAY
CAPTION
RECALL
RESET
CH
POWER
VOL VOL
123
456
7 9
0
Please wait
TV is searching
for your channels
MENU
POWERVOLCH
FGH
◆Menú en Pantalla Trilingüe
◆Búsqueda Automática de
Canales
◆Apagado Automático
◆Transmisión Captada /
Quikcap
◆Tonos de piel por ajuste
Automático
◆Controles digitales de
Imagen desplegados
en Pantalla
◆Ajustes de Fabrica para
Imagen
◆V-Guide (Control Paternal)
◆Modo de Juego
◆Entradas de Audio/Video,
Frontal
◆Cronómetro para Dormir
(3 horas)
◆Reajuste de TV
Sintonía Fina Automática
VHF y Canales de Cable
Sistema de sintonía de
181 canales
VHF Canales 2~13
UHF Canales 14-69
Cable TV (CATV) 1, 14~125
Control Remoto
Teclas de operaciones
básicas grandes que se
iluminan en la Oscuridad
Selección de Canales
Numerados
Búsqueda de Canales
Volume Mute
Power Recall
Display Sleep
Caption Reset
V-Guide Menu
Game/Input (PC-13R20)
Input (PC-25R20)
CARACTERÍSTICAS
TAMAÑO DEL TUBO DE IMAGEN
(Medido Diagonalmente) . . . . . . 13-pulgadas
. . . . . . . . . . . . . . . . . . . . . 25-pulgadas
RESOLUCIÓN DE IMAGEN. . . . . . . . 260 Líneas
PC-13R20. . . . . . . . . . . . . . Entrada de Video 350 Líneas
PC-25R20. . . . . . . . . . . . . . Entrada de Video 400 Líneas
ENTRADA . . . . . . . . . . . . . . . . . . . . . . . . UHF/VHF/CATV 75Ω
FRECUENCIA DE OPERACION . . . . 60 Hz.
TENSION DE ALIMENTACION . . . . . 120 V~
CONSUMO DE CORRIENTE
PC-13R20. . . . . . . . . . . . . . 45 watts
PC-25R20. . . . . . . . . . . . . . 88 watts
DIMENSIÓN HORIZONTAL (Ancho)
PC-13R20. . . . . . . . . . . . . . 14.6 in. (372mm)
PC-25R20. . . . . . . . . . . . . . 24.4 in. (619mm)
DIMENSIÓN VERTICAL (Alto)
PC-13R20. . . . . . . . . . . . . . 13.2 in. (335mm)
PC-25R20. . . . . . . . . . . . . . 22.4 in. (570mm)
DIMENSIÓN EN PROFUNDIDAD (Grosor)
PC-13R20. . . . . . . . . . . . . . 14.7 in. (373mm)
PC-25R20. . . . . . . . . . . . . . 20.4 in. (517mm)
PESO (APROX.
PC-13R20. . . . . . . . . . . . . . 19.2 lbs. (8.7 Kg.)
PC-25R20. . . . . . . . . . . . . . 59.5 lbs. (27.0 Kg.)
SONIDO (1 Bocina). . . . . . . . . . . . . Tamaño 8 cm
AMPLIFICADOR. . . . . . . . . . . . . . . . Interon 1W/canal
ENTRADAS DE A/V FRONTAL . . . . . Entrada de Video/Audio
ESPECIFICACIONES
AJUSTES BÁSICOS
❷❸
❹
(Ver conexión en
la página 20.)
❺
➊
Consejos Rápidos
■
No se coloque el TV en
áreas confinadas.
Permita una circulación
normal de aire para las
partes eléctricas.
■
Las teclas del panel
frontal, funcionan igual
que las teclas del control
remoto.
■
El TV seleccionará el
modo correcto de
Antena, de acuerdo al
tipo de señal que Ud.
conecto.
PRECAUCION : Las Regulaciones de FCC declaran, que las modifica-
ciones no apropiadas o cambios no autorizados a esta
unidad, pueden anular la autoridad del usuario para
operar la unidad.
(Instalación de Baterías, vea página 21.)
(Interruptor activado
para encender.)
Por favor espere
TV esta
automáticamente
el búscando sus
canales.
PC-13R20
Debido a que sus productos están subjetos a continuas mejoras, Fisher
se reserva el derecho de modificar el diseño y especificaciones sin previo
aviso o sin incurrir en ninguna obligación.

20
UHF/VHF/CATV
75Ω
FROM ANT.
OUT TO TV.
IN
OUT
FROM ANT.
OUT TO TV.
IN
OUT
IN OUT
FROM ANT.
OUT TO TV.
IN
OUT
FROM ANT.
OUT TO TV.
IN
OUT
UHF/VHF/CATV
75Ω
UHF/VHF/CATV
75Ω
UHF/VHF/CATV
75Ω
IN FROM
SAT.
CATV IN
OUT TO TV S-VIDEO
CH3
CH4 L- -RAUDIOVIDEO
L- -RAUDIOVIDEO
Consejos Rápidos
■
El TV seleccionará el
modo correcto de Antena,
de acuerdo al tipo de
señal que Ud. conecto.
■
El TV se apagará
automáticamente despuès
de 15 minutos, si no hay
recepción de señal (si la
estación de cable o la
estación de TV no esta
transmitiendo).
Excepciones—Cuando el
modo de Video este selec-
cionado, el TV no se
apagará automáticamente
cuando la señal de recep-
ción ha sido detenida por
15 minutos.
VCR
DECODIFICADOR DE CABLE
❷
❷
NOTA CONCESIÓN DE CATV :
Compañás de cable, como
servicios públicos, son conce-
sionados por las autoridades de
los gobiernos locales. Para
recibir programas de cable, cada
equipo debe de ser capaz de
recibir canales de cable, para
recibir este servicio, el consumi-
dor debe de suscribirse a una
compañía de cable.
RECEPTOR
❷
❷
VCR
VCR
VCR
❸
TV
TV
TV
❸
MÉTODOS BÁSICOS DE CONEXIÓN
Use uno de los siguientes métodos para conectar una señal a su TV. 1a— Si Ud. tiene
servicio de cable y una VCR. 1b—Si Ud. tiene un decodificador de cable y una VCR,
1c—Si Ud. tiene una antena externa o interna y una VCR, 1d— Si Ud. tiene un receptor
de satélite y una VCR. Conecte su sistema de cable o antena directamente a la TV, si Ud.
no tiene accesorios opcionales.
➊Sistema de Cable con VCR y TV
a
➊Antena Exterior o Interior a VCR a TV
c
➊Receptor de Satélite, VCR y TV
d
➊Sistema de Cable con Decodificador de Cable, VCR y TV
b
Conector de 75 OHMS
Use un conector de 75 ohms
para conectar una VCR,
sistema de cable, antena
externa/interna, o, receptor
satélite directamente a la TV.
TV
