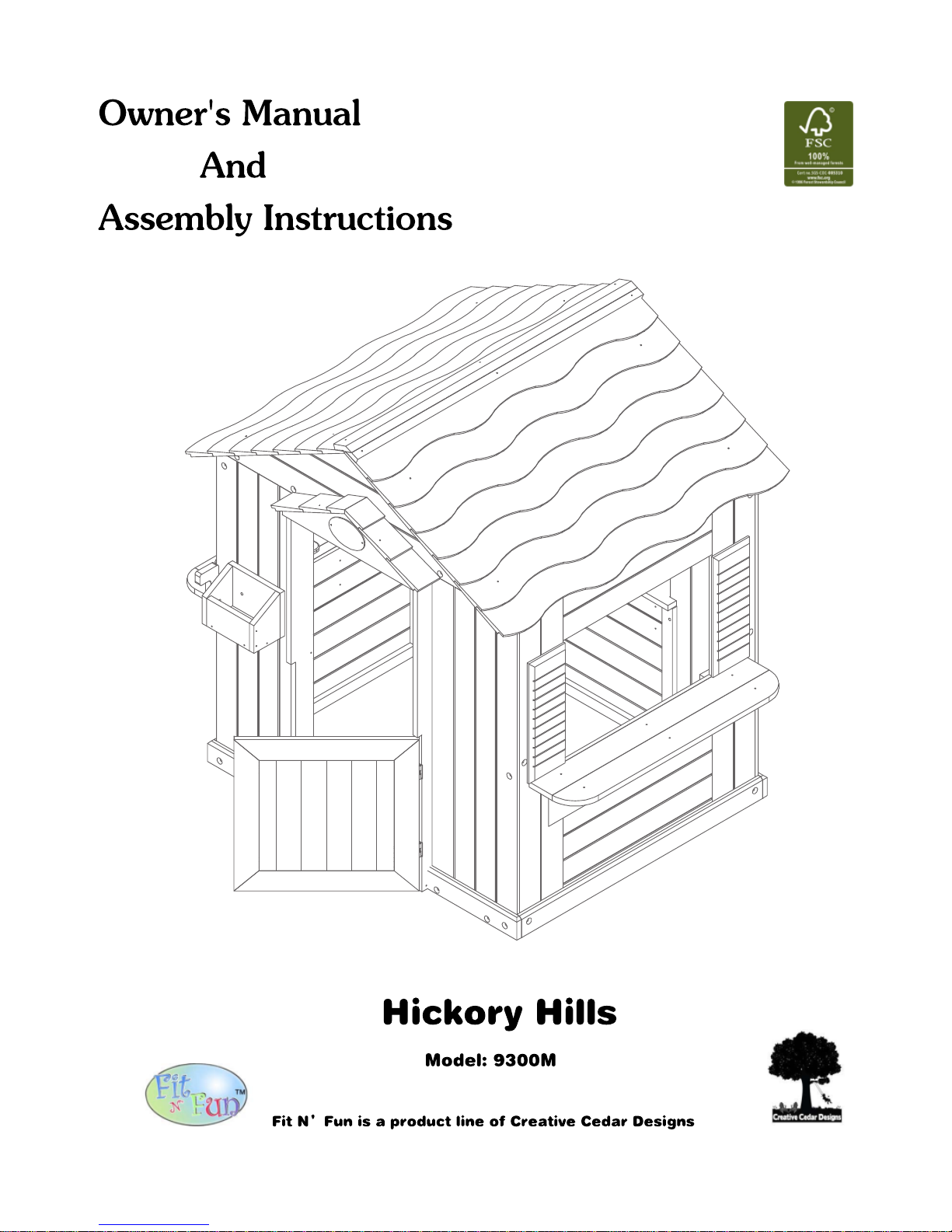

Fit N'Fun 9300M Hickory Hills Assembly instructions

Hickory Hills
Assembly Instructions
CAUTION: Adult Assembly Required.
Hardware contains small pieces with
sharp points. Keep parts out of the
reach of children until assembled.
Parts of this product can present
dangers if improperly assembled.
WARNING: CHOKING HAZARD
Unassembled parts may be a choking
hazard to children 3 years and
younger
CAUTION: The plastic bags that contain
the hardware may present a choking
hazard to small children. Please keep
these bags and all plastic bags out of
the reach of children. Do not allow
children to play with them and dispose
of them immediately when empty.
9

Basic Setup Dimensions Place the set on level ground, not less than 6ft [2 M]from any structure or
obstruction such as a fence, garage, house, overhanging branches,
laundry lines or electrical wires.
HEIGHT = 4'-6" [1363mm]
10
5'-5" [1654mm]
4' [1221mm]
INSIDE DIMENSIONS
3' [905mm] WIDTH x 3'-9" [1133mm] LENGTH x 4'-5" [1337mm] INSIDE PEAK HT.

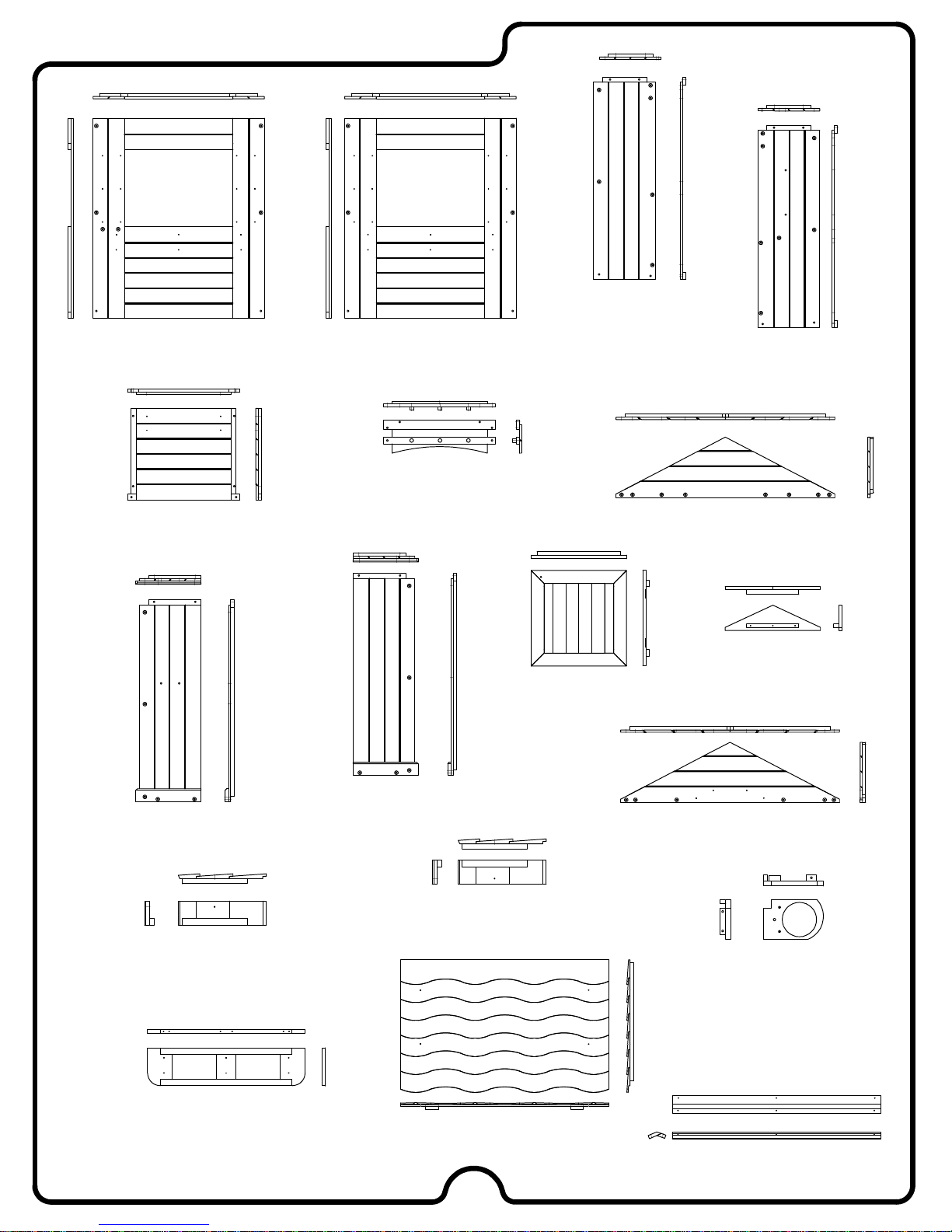

Parts Identification
11
2A015-10 LEFT WALL
(1 REQ.) 2A016-10 RIGHT WALL
(1 REQ.)
2A017-10 BACK LEFT WALL
(1 REQ.)
2A018-10 BACK RIGHT WALL
(1 REQ.)
2A019-10 BACK WALL LOWER SECTION
(1 REQ.)
2A020-10 BACK WALL UPPER SECTION
(1 REQ.)
2A021-10 BACK GABLE WALL
(1 REQ.)
2A022-10 FRONT LEFT WALL
(1 REQ.)
2A023-10 FRONT RIGHT WALL
(1 REQ.)
2A024-10 DOOR
(1 REQ.)
2A025-10 FRONT GABLE WALL
(1 REQ.)
2A026-10 DOOR ENTRY GABLE
(1 REQ.)
2A027-10 DOOR GABLE ROOF SECTION-RIGHT
(1 REQ.)
2A028-10 DOOR GABLE ROOF SECTION-LEFT
(1 REQ.)
2A029-10 LEFT WALL TUB SHELF
(1 REQ.)
2A030-10 SINK VANITY
(1 REQ.)
2A031-10 ROOF SECTION
(2 REQ.)
2A032-10 ROOF RIDGE CAP
(1 REQ.)

Parts Identification
12
WC3074-10 SIDE WALL BOTTOM TRIM
(2 REQ.)
36 9/16 [929mm]
2 11/16 [68mm]
11/16 [17mm]
WC3075-10 BACK WALL BOTTOM TRIM
(1 REQ.)
46 15/16 [1191mm]
2 11/16 [68mm]
11/16 [17mm]
WD3078-10 SHELF BOARD
(1 REQ.)
21 5/8 [550mm]
11/16 [17mm]
3 1/2 [89mm]
WD3080-10 SHELF BOARD
(1 REQ.)
32 7/8 [835mm]
11/16 [17mm]
3 1/2 [89mm]
WD3081-10 SHELF BOARD
(1 REQ.)
32 7/8 [835mm] 11/16 [17mm]
3 1/2 [89mm]
WD3082-10 MAILBOX FRONT BRD.
(1 REQ.)
6 1/2 [165mm]
11/16 [17mm]
3 5/8 [92mm]
3 15/16 [100mm]
11/16 [17mm]
5 7/8 [150mm]
WD3083-10 MAILBOX FLAG SIDE
(1 REQ.)
3 15/16 [100mm]
11/16 [17mm]
5 7/8 [150mm]
WD3084-10 MAILBOX RIGHT SIDE
(1 REQ.)
6 1/2 [165mm]
11/16 [17mm]
3 1/4 [83mm]
WD3086-10 MAILBOX BOTTOM
(1 REQ.)
WD3088-10 DOOR JAM-LEFT
(1 REQ.)
40 1/4 [1023mm] 11/16 [17mm]
3 3/8 [86mm]
WD3089-10 DOOR JAM-RIGHT
(1 REQ.)
40 1/4 [1023mm]
11/16 [17mm]
3 3/8 [86mm]
WD3090-10 DOOR HEADER
(1 REQ.)
19 13/16 [504mm]
3 3/8 [86mm]
11/16 [17mm]
WF3073-10 SHUTTER
(4 REQ.)
15 3/4 [400mm]
11/16 [17mm]
5 1/2 [140mm]
WF3079-10 SHELF BOARD
(1 REQ.)
21 5/8 [550mm]
11/16 [17mm]
5 1/8 [130mm]
WF3085-10 MAILBOX BACK
(1 REQ.)
7 7/8 [200mm]
11/16 [17mm]
5 7/8 [150mm]
WH3091-10 DOOR WALL BRACE
(1 REQ.)
41 3/4 [1061mm] 1 [25mm]
1 [25mm]
42 5/8 [1083mm]
1 3/8 [35mm]
1 3/8 [35mm]
WH3092-10 CORNER UPRIGHT-LEFT
(2 REQ.)
WH3093-10 CORNER UPRIGHT-RIGHT
(2 REQ.)
42 5/8 [1083mm]
1 3/8 [35mm]
1 3/8 [35mm]
WJ3087-10 DOOR THRESHOLD
(1 REQ.)
18 7/16 [469mm]
2 [51mm]
1 [25mm]
6 5/8 [168mm] 1 [25mm]
6 5/8 [168mm]
WL3076-10 SHELF GUSSET
(5 REQ.)
WL3077-10 SHELF GUSSET
(3 REQ.)
5 7/8 [150mm] 1 [25mm]
7 11/16 [195mm]
WD3097-10 ROOF BOARD
(2 REQ.)
3 1/2 [89mm]
43 5/16 [1100mm]

Parts Identification
(P-MBXF) MAILBOX FLAG
(1 REQ.) (P-SB) SINK BOWL
(1 REQ.) (P-TUB-G) GREEN TUB
(1 REQ.) (P-TUB-B) BLUE TUB
(1 REQ.)
(P-SPOUT) SINK SPOUT
(1 REQ.) (P-FAUCET-R) RED FAUCET KNOB
(1 REQ.) (P-FAUCET-B) BLUE FAUCET KNOB
(1 REQ.)
(P-RANGE) KITCHEN RANGE
(1 REQ.)
(CHLKBRD) MENU BOARD
(1 REQ.)
KITCHEN UTENSILS
POT LID SPATULA WHISK LADLE
13
2 - Plastic Stakes - P004
Fit
N' Fun
DOOR HINGE
(2 REQ.)
(IN HARDWARE BAG) PLACARD (1 REQ.)
(DRKNOB) DOOR KNOB
(1 REQ.)

Hardware Identification
0
1/4"
1/2"
3/4"
1"
2"
3"
4"
5"
14
0
5mm
10
15
25
20
30
40
50
60
70
80
90
100
110
120
130
140
Imperial Metric
CS1/4 Cup Washer
FW1/4 Flat Washer
WS1/8 X 3/4" Wood Screws
LN1/4 Lock Nut
PH3/16X3/4" Pan Head Screw
FW3/16 Flat Washer
SH1/4X1 5/8 Socket Head Bolts
23
2
1
3
8
2
57
SH1/4X1 Socket Head Bolts
23
SH1/4X2 1/4 Socket Head Bolts
8
SH1/4X1 7/8 Socket Head Bolts
4
WS1/8 X 1 1/8" Wood Screws
16
WS1/8 X 1 1/2" Wood Screws
36
ALLEN WRENCH 1/4"
LW1/4 Lock Washer
57
WS3/16 X 5/8" Wood Screws
12
PH3/16X1 1/8" Pan Head Screw
1
LW3/16 Lock Washer
3
WS1/8 X 1" Wood Screws
30
WS5/32 X 2" Wood Screws
34
WS5/32 X 1 3/4" Wood Screws
2

1) Do not include bolt head when measuring length of bolt.
Measuring hardware
NOTES:
2) Include full length of deck screw when measuring.
It is very important that you get the right hardware in the correct place when assembling the
unit. You can use the ruler below to measure your hardware or you can compare the
hardware to the hardware identification page.
0
1/4"
1/2"
3/4"
1"
2" 3"
4"
5"
0
5mm
1015
25
20
30
40
50
60
70
80
90
100 110 120 130 140
15

Left Wall Prep.
Phase
1
SH1/4X1 5/8 Socket Head Bolts
44
CS1/4 CUP WASHER
Phase Hardware
Phase Parts
NOTE: DO NOT TIGHTEN
HARDWARE UNTIL ASSEMBLY IS
COMPLETE.
2A015-10
WH3092-10
WH3093-10
INSIDEVIEW
NOTE:
INSERT NUTS ARE
ORIENTATED
TOWARD INSIDE
SH1/4X1 5/8
LOCK WASHER
& CUP WASHER
NOTE: DO NOT TIGHTEN
HARDWARE UNTIL ASSEMBLY IS
COMPLETE.
Note!
Important
16
LW1/4 Lock Washer
4
2A015-10 LEFT WALL
(1 REQ.)
WH3092-10 CORNER UPRIGHT-LEFT
(1 REQ.)
WH3093-10 CORNER UPRIGHT-RIGHT
(1 REQ.)
IDENTIFY
THESES HOLES
FOR LEFT WALL

Phase
2
NOTE: DO NOT TIGHTEN
HARDWARE UNTIL ASSEMBLY IS
COMPLETE.
SH1/4X1 5/8 Socket Head Bolts
44
CS1/4 CUP WASHER
Phase Hardware
Right Wall Prep.
Phase Parts
WH3093-10
WH3092-10
2A016-10
NOTE:
INSERT NUTS
ARE ORIENTATED
TOWARD INSIDE
INSIDEVIEW
NOTE: DO NOT TIGHTEN
HARDWARE UNTIL ASSEMBLY IS
COMPLETE.
Note!
Important
17
LW1/4 Lock Washer
4
2A016-10 RIGHT WALL
(1 REQ.)
WH3092-10 CORNER UPRIGHT-LEFT
(1 REQ.)
WH3093-10 CORNER UPRIGHT-RIGHT
(1 REQ.)

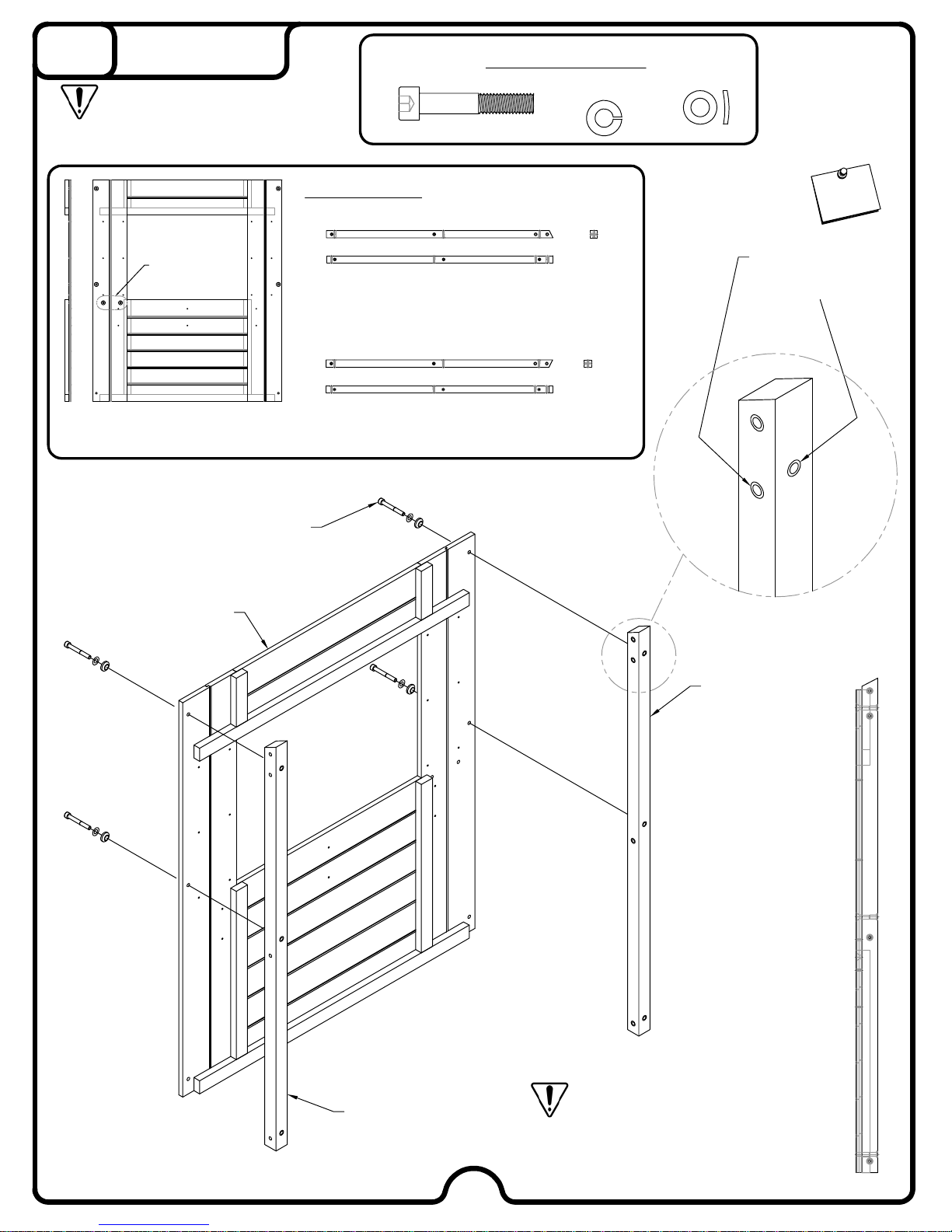

Back Wall Prep.
Phase
3
SH1/4X1 Socket Head Bolts
88
CS1/4 CUP WASHER
Phase Hardware
NOTE: DO NOT TIGHTEN
HARDWARE UNTIL ASSEMBLY IS
COMPLETE.
Phase Parts
2A020-10
2A017-10
2A018-10
2A019-10
NOTE: DO NOT TIGHTEN
HARDWARE UNTIL ASSEMBLY IS
COMPLETE.
18
LW1/4 Lock Washer
8
2A017-10 BACK LEFT WALL
(1 REQ.) 2A018-10 BACK RIGHT WALL
(1 REQ.)
2A019-10 BACK WALL LOWER SECTION
(1 REQ.)
2A020-10 BACK WALL UPPER SECTION
(1 REQ.)
INSIDEVIEW
