FITNESS AUDIO AMX-350 User manual

OPERATING MANUAL
FITNESS AUDIO
2.1-Channel Multimedia Mixer Amplifier
AMX-350

Multimedia Mixer Amplifier Operating Manual
2
Congratulations on your purchase of the latest Fitness Audio multimedia mixer amplifier.
Please read this operating manual thoroughly in order to familiarise yourself with the
controls before using.
Basic content
1. AMX-350 multimedia mixer amplifier
2. 100-240V AC switching power supply
3. Operation manual
4. Various cables
The AMX-350 can accept multiple audio inputs from the following sources:
1. Wired and / or wireless microphone.
2. Digital player with USB / SD card MP3
3. Conference system
4. Digital video player audio input
5. Smartphone / iPOD / computer
Parts and functions of AMX-350

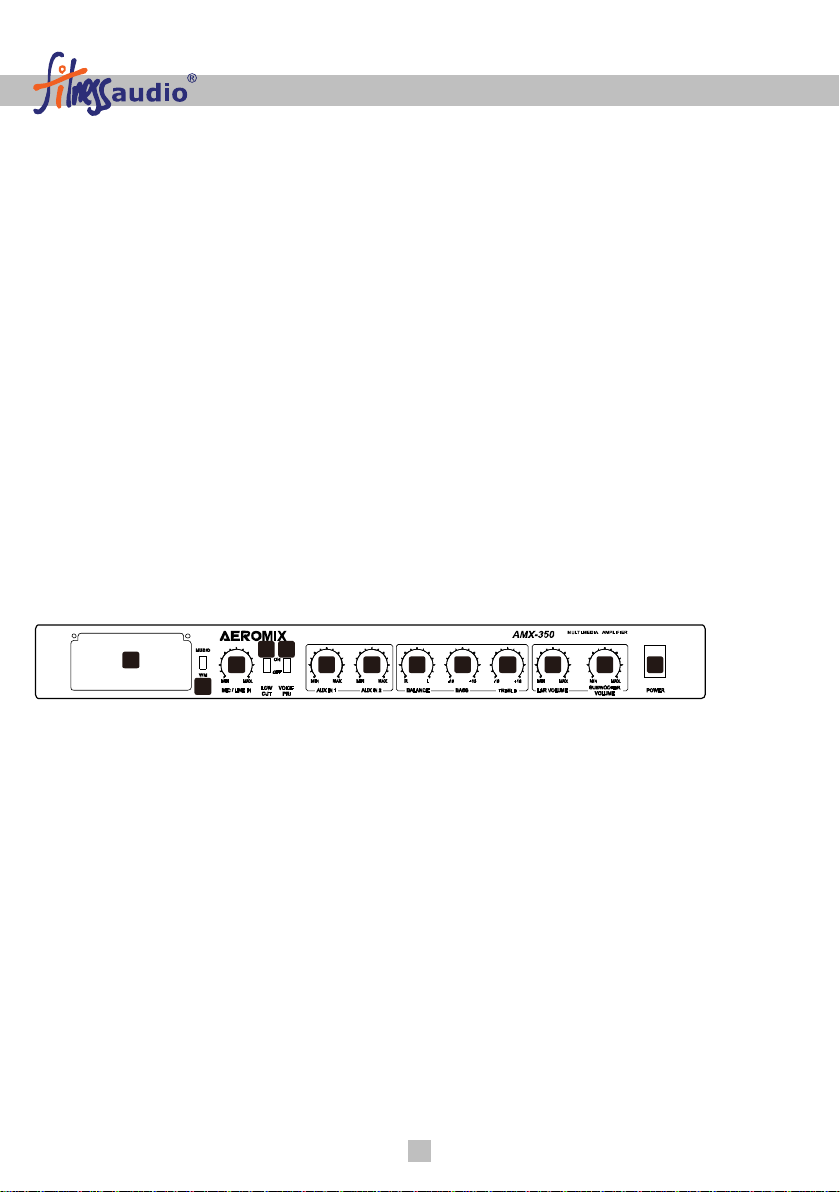

Front panel
13
2
4 5 6 7 8 9 10 11 12 13
1. Slot for receiver/MP3 module (optional)
2. MUSIC-WR switch
3. LINE / Microphone volume control
4. SPEECH / MUSIC mode switch
5. VOICE PRIORITY on/off
6. AUX IN volume control
7. AUX IN volume control
8. Stereo Balance control
9. Bass control
10. Treble control
11. Stereo speaker volume control
12. Subwoofer volume control
13. Power on/off

Multimedia Mixer Amplifier Operating Manual
3
Rear panel
14 15 16 17 18 19 20 21 22 23 24 25
26 27 28 29 30 31 32
14. Antenna A socket (TNC)
15. DC input (20V)
16. DC output (12V)
17. USB 2.0 charging port (for 5V device)
18. SUBWOOFER Phase switch
19. SUBWOOFER (crossover) tone control
20. SUBWOOFER output (Ø6.3mm)
21. SUBWOOFER output (R/L)
22. SPEAKER output (R, Ø6.3mm)
23. SPEAKER output (R/L)
24. SPEAKER output (L, Ø6.3mm)
25. ALD (assistive listening device) output (Ø3.5mm)
26. ALD (assistive listening device) volume control
27. AUX output (RCA R/L)
28. AUX input (Ø3.5mm)
29. AUX input (RCA R/L)
30. LINE microphone input (Ø6.3mm)
31. Wired microphone input (balanced, XLR)
32. Antenna B socket (TNC)
As there is only one open slot available for module, so only one of the following CHIAYO
modules can be used at any one time:
1. wireless receiver module
2. digital recorder player module
When a wireless receiver module is plugged in slot , two receiving antennas must be
installed at antenna sockets ○
14 and
1. Connect the wired microphone to the MIC IN jack (XLR
○
32 for a drop-out-free reception.
AMX-350 is a 2.1 channel multimedia mixer amplifier, its digital class-D amplifier can drive a
stereo L / R speakers plus a subwoofer!
Operating the WIRED MICROPHONE
○
31
2. Set the LINE / microphone’s volume level to minimum before turning on the amplifier.
) on the rear panel.
3. After the unit is ON, adjust the microphone’s volume to a desired level.

Multimedia Mixer Amplifier Operating Manual
4
Connecting to EXTERNAL AUDIO INPUTS
This amplifier’s compatible unbalanced audio inputs include a Ø3.5mm phone jack ○
28 , an
RCA R/L jacks ○
29 and a Ø6.3mm phone jack ○ 30 . Their volume controls are , and .A
black 3.5mm mini jack to mini jack lead is provided for connection from a headphone socket
of a portable device. Also provided is our white iJax cable that would use the 6.3mm Line
Input socket should a mono output signal be required for a background music system for
example.
SUBWOOFER OUTPUTS ○
20 ○ 21
This amplifier’s compatible subwoofer outputs include a Ø6.3mm phone jack ○
20 and a
phoenix or Euro connector ○
21 . The volume control for subwoofer is ○ 12 .
The output could deliver 100W power to a 2Ω Subwoofer speaker.
The Subwoofer Crossover tone control ○
19 has an adjustable range from 60Hz to 200Hz.
When a phase swift difference is detected, please use the phase switch ○
18 to correct it.
L / R SPEAKER OUTPUTS ○
22 ○ 23 ○ 24
This amplifier’s compatible speaker outputs include a Ø6.3mm phone jack (R/L) ○
22 ○ 24 and a
Phoenix connector ○
23 . The volume control for L/R speakers is ○ 11 while are the
balance, bass and treble controls.
DC OUTPUT ○
16
This amplifier can provide 12V power supply to an external device - a standard 30cm long DC
Cable is provided.
USB charging ○
17
This amplifier can provide a 5V power supply to power or charge an external device such as
Smartphone and Tablet computer, including Apple© products.
Operating the VOICE PRIORITY 
Besides wired microphone, the device can also detect the audio signal from the plug-in
module. When using the wireless microphone, position the MUSIC-WR switch to WR
(Wireless Receiver). When using other module like MP3 or Bluetooth, position the switch to
MUSIC to prevent VOICE PRIORITY from mistaking the music as microphone audio.
When the VOICE PRIORITY switch is ON, the ducking function will be activated. While the
music is playing, a voice input from either a Wired or Wireless Microphone will temporarily
override and lower the volume of the background music and voice could be heard more
clearly. When no microphone signal is detected, the music volume will automatically return
to its previous level.

Multimedia Mixer Amplifier Operating Manual
5
ALD (Assistive Listening Device) OUTPUT ○
25
For the benefit of hearing impaired audiences, AMX-350 has an additional Ø3.5mm ALD
output ○
25 which can be connected to an ALD amplifier or transmitter to send the mixed
audio signal to whoever is wearing an ALD headphone.
An ALD output volume control ○
26 is for the setting of the ALD volume to an appropriate level
to be transmitted.

Multimedia Mixer Amplifier Operating Manual
6
SDR-5116M receiver module
1. Channel indicator
2. Diversity A/B indicator
3. Audio signal indicator
4. Channel Selector
5. Squelch control
6. Power switch/volume control
First turn on the Power of the main unit. Then turn on the individual power of the receiver
module. Select a channel that corresponds to the transmitter. When transmitter is turned on,
either A or B diversity indicator will flash to indicate that signal has been received.
SQUELCH (SQ) setting
When a channel is in use and interference signal is received, turn the SQ in clockwise
direction to make the receiver less sensitive and thus less susceptible to interference. If this
still does not solve the problem, it means this frequency is not applicable at current position.
Please switch over to the next channel.
DP-500M MP3 module
1. LCD display
2. Press to return to previous track, press and hold to fast reverse.
3. Press to play/pause
4. Press to go to next track, press and hold to fast forward.
5. Press to return to previous folder.
6. Press to change play modes, press and hold to switch repeat modes.
7. Press to go to next folder.
8. IR sensor area
9. USB input
10. USB/SD indicator: The LED flashes during play and extinguishes when stop.
11. SD card input
12. Power switch/volume control
To use the USB/SD digital player, simply plug your USB/SD card into the port after the player
is turned on. To prevent any possible damage to the USB/SD card, always detach it after the
player has been shut off.
▲remote control

Multimedia Mixer Amplifier Operating Manual
7
Operating functions on the panel and the remote
※Remarks:
1. Changes of tracks, EQ and play modes will only be saved 5 seconds after the setting.
2. If the SD or USB are not detected, please try by inserting it again.
3. The player reboots to read whichever is last inserted.
4. This player can read MP3 files only. Other formats such as WMA and WAV aren't supported.
The USB and SD card must be FAT/FAT32 formatted.
Operating function On the panel On the remote
Play/pause Press II
Skip forward Press

Press

I
Fast forward Press and hold

Press and hold

I
Skip backward Press

Press I

Fast backward Press and hold

Press and hold I

Next folder Press

-
Previous folder Press

-
Track select (button #0-9) - input track number, then press

II
Repeat mode switch
(ALL/RANDOM/SINGLE/FOLDER) Press and hold MODE Press MODE
EQ mode switch
(POP/ROCK/JAZZ/CLASSIC/COUNT
RY/NORMAL)
Press MODE Press EQ

Multimedia Mixer Amplifier Operating Manual
9
The Fitness Audio AMX-350 multimedia mixer amplifier is covered by a minimum 12 month
parts and labour warranty against manufacturer’s defects from the date of purchase by the
first owner.
Warranty Information
(Please retain for your records)
This product was purchased by:
(Your Business)………………………………………………………………….
on (date).../... /... from (Company)………………………………………………
of (address) ……………………………………………………………………..
Model Number(s) ……………………………………………………………….
Serial Number(s) ……………………………………………………………..….
Fitness Audio
Distributed in Europe by Knud Danielsen A/S Denmark www.fitnessaudio.dk
in the Americas by Fitness Audio, LLC Santa Cruz, Ca. www.fitaud.com
and the rest of the world by Fitness Audio Distributors, Sydney, Australia
www.fitnessaudio.net.au
Email: [e-mail] Website: www.fitnessaudio.com.au
Manufactured for Fitness Audio Network P/L
PO Box 321 Alexandria, NSW 1435 Australia
Manufactured by
CHIAYO Electronics, 30 Lane 27 Sec.4. Jen-Ai Taipei, Taiwan
12I2271
