USER’S MANUAL
C O A X I A L S P E A K E R
SC-420, SC-520,
SC-652, SC-692
amp
eel
basket
High
Sound
Quality
louder
output
MORE
eicient
High
dB

СO N T E N T
Introduction
Precautions
Installation
Connection
Accessory List
Specifications
4
5
6
7
8
9

Congratulations on your purchase of FIVE speaker system! FIVE has been engineered,
designed and manufactured so you can enjoy quality sound for a long time. For installation
of this product we recommend contacting professional installers of car audio. Please read
the user's manual carefully and throughout before the installation and the first operation
of the product. It is recommended to keep this manual in a safe place for further reference.
I N T R O D U C T I O N
4

5
P R E C A U T I O N S
• Do not operate any function that takes your attention away from safely driving your vehicle.
Any function that requires your prolonged attention should only be performed after coming to a
complete stop. Always stop the vehicle in a safe location before performing these functions. Failure
to do so may result in an accident.
• Keep the volume at a level where you can still hear outside noises while driving.
Excessive volume levels that obscure sounds such as emergency vehicle sirens or road warning
signals (train crossings, etc.) can be dangerous and may result in an accident. Listening at loud
volume levels in a car may also cause hearing damage.
• Do not disassemble or alter.
Doing so may result in an accident, fire or electric shock,
•Do not damage pipe or wiring when drilling holes.
When drilling holes in the chassis for installation, take precautions so as not to contact, damage or
obstruct pipes, fuel lines, tanks or electrical wiring. Failure to take such precautions may result in fire,
• Do not use bolts or nuts in the brake or steering systems to make ground connections.
Bolts or nuts used for the brake or steering systems (or any other safety-related system), or tanks
should NEVER
be used for installations or ground connections. Using such parts could disable control of the vehicle
and cause fire etc.
• Keep small objects such as bolls or screws out of the reach of children.
Swallowing them may result in serious injury. If swallowed, consult a physician immediately,
W A R N I N G !

6
I N S T A L L A T I O N

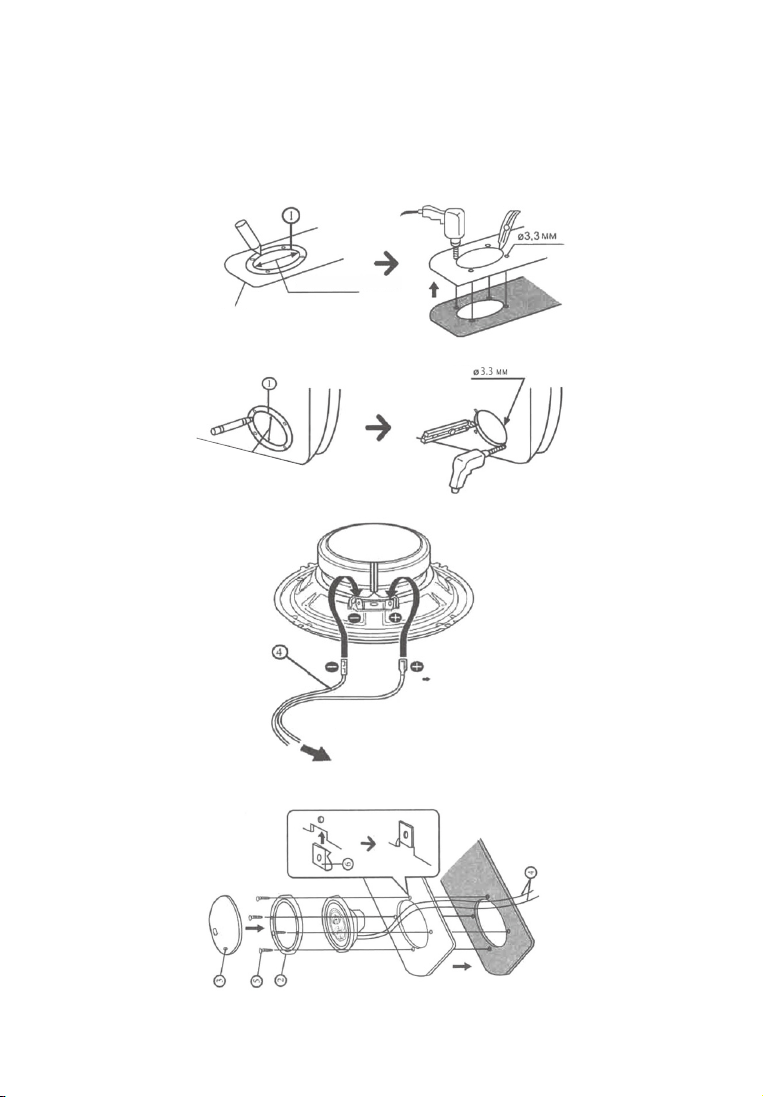

Mounting
l. Mark the four bolts and drill holes diameter 3.3 mm (on a Fig.1)
RearRear parcel shelf
Front/
Rear Door
To a car amplifier
1.
2.
3.
SC-420: 95 мм
SC-520: 117 мм
SC-652: 140 мм
SC-692: 217*148 мм

7

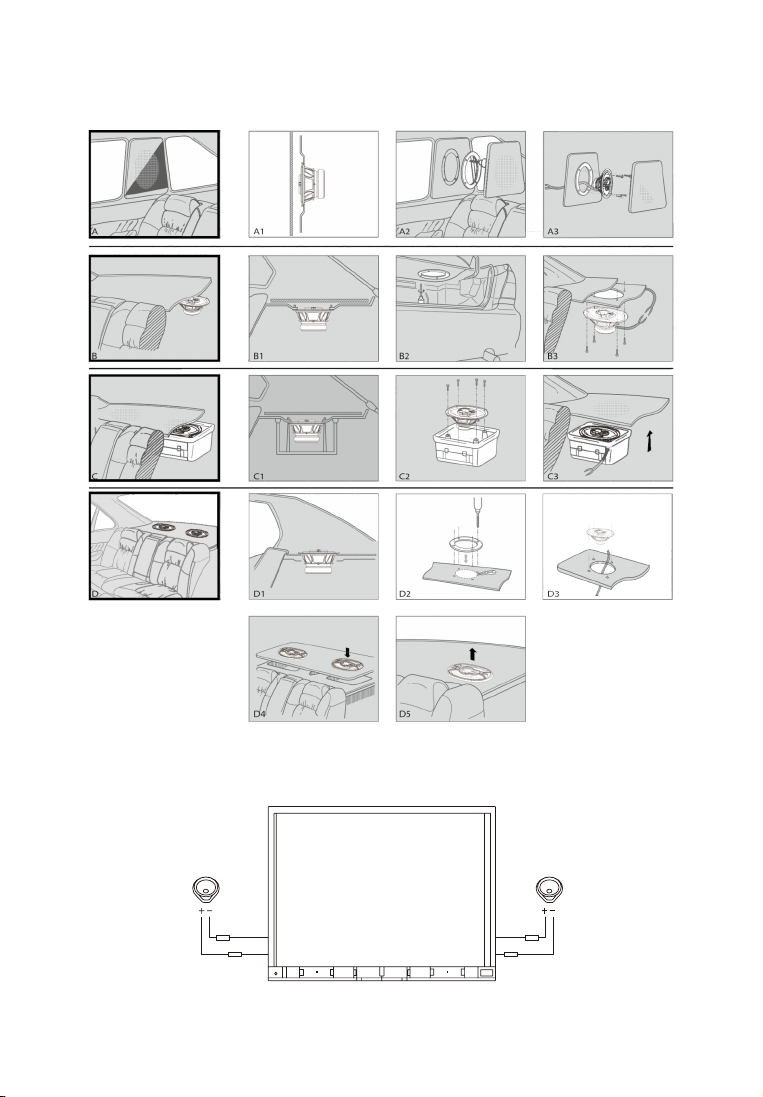

C O N N E C T I O N
Le Speaker Right Speaker
Source Unit
Wire connection of the coaxial speaker syem. The source unit Is sold separately.

8
1. Speaker 1 pair
2. User’s manual 1 pc
3. Speaker Cable 1 pair
4. Screws 1 set
A C C E S S O R Y L I S T

9
4-inch (10.1cm) 2-way coaxial speaker
Paper cone with butyl rubber edge
Stamped steel basket
30mm Mylar tweeter
Frequency response: 80Hz ~20 kHz
Sensitivity: 89dB/W/m
Magnet: Φ60 x 10mm (3.8 oz)
Voice coil: Φ25mm KSV
Nominal Impedance: 4 ohms
Rated power (RMS): 30 W
Peak power (PMPO): 100 W
Mounting depth: 43mm (1.7”)
Diameter installation hole: 95mm (3.74”)
S P E C I F I C A T I O N S
5,25-inch (13.3cm) 2-way coaxial speaker
Paper cone with butyl rubber edge,
Stamped steel basket,
30mm Mylar tweeter,
Frequency response: 75Hz ~ 20 kHz,
Sensitivity: 88dB/W/m
Magnet: Ф70 x 10mm (5.4 oz)
Voice coil: 25mm KSV,
Nominal Impedance: 4 ohms
Rated power (RMS): 50 W
Peak power (PMPO): 150 W
Mounting depth: 44mm (1.73”)
Diameter installation hole: 117mm (4.6”)
SC-420
SC-520

10
6.5-inch (16.5cm) 2-way coaxial speaker
Paper cone with butyl rubber edge,
Stamped steel basket,
30mm Mylar tweeter,
Frequency response: 70Hz ~ 20 kHz,
Sensitivity: 88dB/W/m
Magnet: Φ80 x 12mm (8 oz)
Voice coil: Φ25mm KSV,
Nominal Impedance: 4 ohms
Rated power (RMS): 80 W
Peak power (PMPO): 240 W
Mounting depth: 54mm (2.1”)
Diameter installation hole: 140mm (5.51”)
6 x 9 (15.2*22.8cm) inches 2-way coaxial
speaker
Paper cone with butyl rubber edge,
Stamped steel basket,
58mm Mylar cone midrange,
Frequency response: 65Hz ~ 20 kHz,
Sensitivity: 88dB/W/m
Magnet: Ø100 x 18mm (18 oz)
Voice coil: Ø25mm KSV
Nominal Impedance: 4 ohms
Rated power (RMS): 100 W
Peak power (P.M.P.O): 300 W
Insallation depth: 76mm (3”)
Diameter installation hole: 217*148mm
(8.54*5.82”)
SC-652
SC-692
S P E C I F I C A T I O N S

11
Safe disposal
Your device is designed and made of high quality materials and components that can be
recycled and reused. If the product has a crossed-out wheeled bin symbol, this means that the
product complies with European Directive 2002/96 / EC. Check out the local separate collection
system for electrical and electronic products. Observe local regulations. Dispose of old devices
separately from household waste. Proper disposal of your product will help prevent potential
negative consequences for the environment and human health.
