FLAMMA FV01 User manual
Vocal Pitch Correction Pedal
Ownerʹs Manual
www.flammainnovation.com Shenzhen Flamma Innovation Co., Ltd
Precautions----------------------------------------------------------------------------------------------------------- 01
---------------------------------------------------------------------------- -------------------------------------- 02
Features
Lay out----------------------------------------------------------------------------------------------------------------- 03-04
Instructions---------------------------------------------------------------------------------------------------------- 05-06
Effect List------------------------------------------------------------------------------------------------------------------ 07
Specifications----------------------------------------------------------------------------------------------------------- 08
www.flammainnovation.com Shenzhen Flamma Innovation Co., Ltd
Content
Missing safety instructions--------------------------------------------------------------------------------- 09
01
Precautions
Power Supply
Please connect the designated adapter to an AC outlet of the correct voltage, Please be sure
the adapter supplies DC 9v 500mA ,center negative . Unplug the adapter when not in use or
during electrical storms
Important Safety Instructions
1.
Read these instructions
2.
Keep these instructions
Heed all warnings3.
4.
Follow all instructions
Do not use this apparatus near water 5.
6.
Clean only with a dry cloth
Do not install near any ventilation openings. Install in accordance with the manufacturerʹs 7.
instructions
Do not install near any heat sources such as radiators, heat registers, stoves or other 8.
apparati (including amplifiers)that produce heat
Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug 9.
has two blades with one wider than the other. A grounding type plug has two blades and a
third grounding prong. The wide blade of the third prong are provided for your safety. If the
provided plug does not fit into your outlet consult an electrician for replacement of the
obsolete outlet
Protect the power cord from being walked on or pinched particularly at plugs, convenience 10.
receptacles, and the point
FCC certification
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions:
● This device may not cause harmful interference
●This device must accept any interference received, including interference that may cause
undesired operation
Please read carefully before proceeding
www.flammainnovation.com Shenzhen Flamma Innovation Co., Ltd
Main Feature
1. Precise pitch correction effect for a clean, even tone
2. High-quality delay and reverb specifically designed for vocal performance
3. Built-in TAP TEMPO feature to set timing of delay effects
4. Three unique vocal tone settings to choose from
5. Guitar in/out with individual guitar reverb effect
6. Optional 48V phantom power
7. Can be used as a microphone amplifier or a traditional stompbox
8. Two different output modes for mixed signal or individual signal from guitar and microphone
02
www.flammainnovation.com Shenzhen Flamma Innovation Co., Ltd
03
www.flammainnovation.com Shenzhen Flamma Innovation Co., Ltd
GUITAR OUT
GTR IN
TONE
REVERB
PL
HL
RM
DELAY CORRECTION
0 100
GUITAR IN
OFF
SL
DG
TP
OFF
50
XLR OUTMIC
48V
LIFT
DC IN
9V 1.5A
GND
GAINLINE IN
01
02 03
05
04 06
07
08 09
10
11 12
13
14

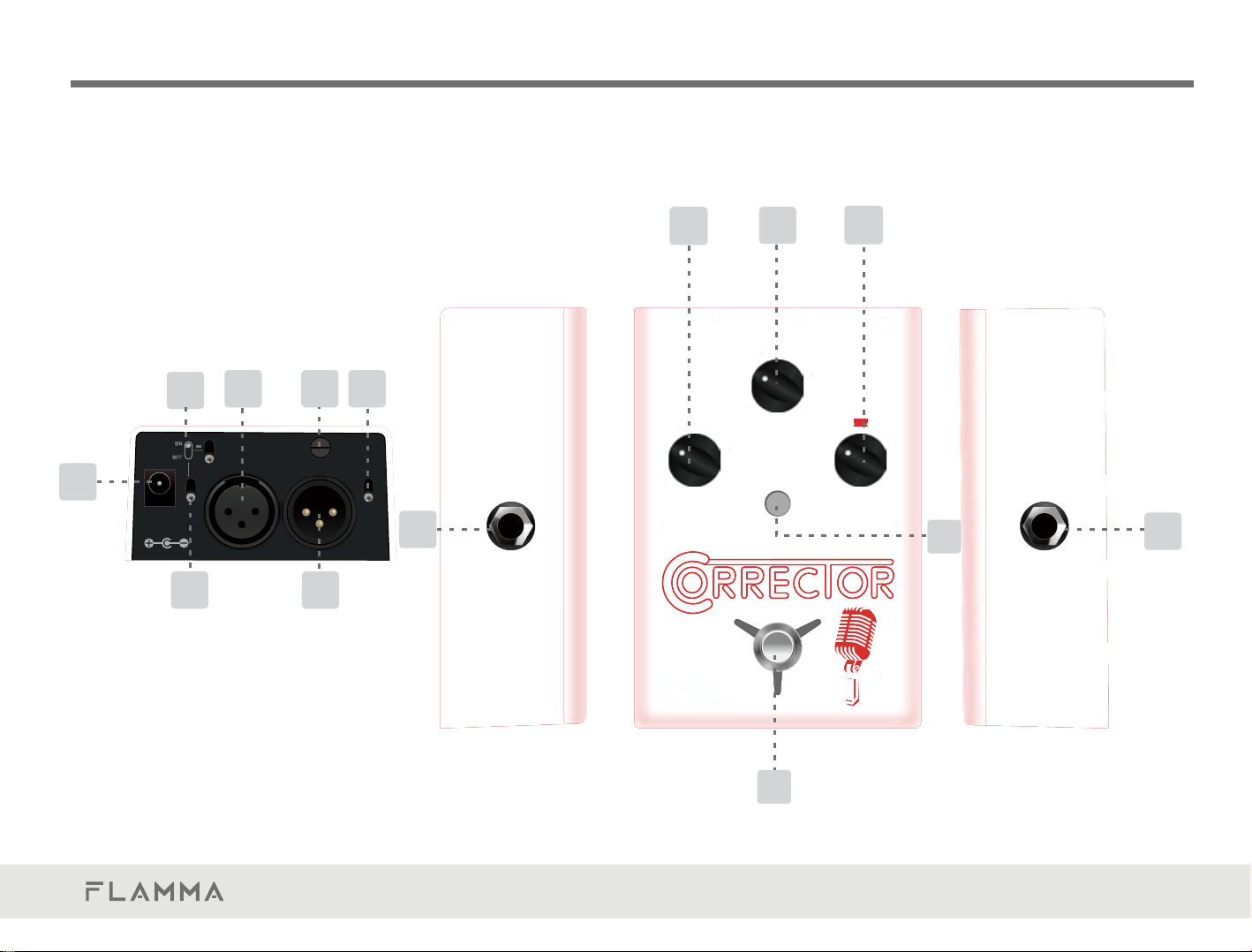

Lay out
REVRB:Reverb effect
DELAY:Delay effect
CORRECTION:Correcting level
TONE: LED button. Switch between different microphone tone mode
Footswitch:Toggle on/off, function contro
GUITAR IN:Instrument input jack
GUITAR OUT: Instrument output jack
MIC: Microphone input
GAIN: Gain level adjustment
LINE IN: Line signal on/off
48V: On/off of 48V phantom power
XLR OUT: Balanced output
LIFT/GND: Grounding switch
DC IN: Connect to power supply
04
01
04
02
03
05
07
08
09
10
11
12
13
14
06
Lay out
www.flammainnovation.com Shenzhen Flamma Innovation Co., Ltd
1. Reverb
●FV01 has three different classic reverb effects. The volume level of each reverb effect can be
adjusted by rotating the REVERB knob.
(Reverb type: RM for Room reverb, HL for Hall reverb, and PL for Plate reverb.)
The Hidden Mode can be accessed by press and hold the footswitch. Reverb of GUITAR can be
adjusted in the hidden menu.
2. Delay
3. Vocal TONE mode
4. Footswitch
Press to turn on Vocal TONE Mode Correction, Reverb, Delay effect. The footswitch LED will
stay green. Press again to turn off the Correction. The footswitch LED will turn red.
If you want to turn off the Vocal TONE Mode Correction, Delay, or Reverb effects, please press
the footswitch twice quickly when effects are on. The footswitch will turn off to indicate all the
effects are off.
The FV01 has three different delay effects. The volume level of the selected delay can be
adjusted by rotating the DELAY knob. The Hidden Mode can be accessed by press and hold the
footswitch. In the Hidden Mode, The delay time can be controlled using the tap tempo
function. Tap several times at your desired tempo to set the correct timing of the effect. the
Feedback of delay can be adjusted by the CORRECTION knob.
(Delay Type: TP for tape delay, DG for digital delay, and SL for slap delay.)
Press TONE button to switch between three different vocal modes. The color of the LED button
indicates the currently selected mode.
Mode: LED off indicates normal mode, Red LED for WARM mode, and Blue LED for BRIGHT
mode.
●
●
●
●
●
Instructions
05
www.flammainnovation.com Shenzhen Flamma Innovation Co., Ltd
●
5. Line in
Press to turn the line in function on/off. When line in is ON, FV01 can be used as a microphone
amplifier for the microphone in MIC IN. Alternatively, it can also be used as a traditional
stompbox.
●
6.Outputmode
The FV01 supports two different output modes.
Individual mode: The guitar signal will only go from GUITAR OUT and the microphone signal
will only go from XLR OUT.
Mixed mode: The guitar and microphone signal will be mixed and the mixed signal will go out
from both the GUITAR OUT and XLR OUT.
Change output mode: Power off the FV01. Press and hold the footswitch while powering on the
FV01. The color of the footswitch LED will indicate the current mode. Blinking Blue light
denotes individual mode while a blinking RED light indicates mixed mode.
●
●
Instructions
06
www.flammainnovation.com Shenzhen Flamma Innovation Co., Ltd
Press and hold the footswitch when the effect is on to enter Hidden menu. Press and hold the
footswitch again to quit hidden menu.
●
&珟FDU
/BNF
%FTDSJQUJPO
3FWFSC
3. 3PPNSFWFSCXJUIMPXEFDBZ
)- )VHFIBMMSFWFSC
1- $MBTTJDQMBUFSFWFSC
%FMBZ
51 8BSNUBQFEFMBZ
%( %JHJUBMNPEFSOEFMBZXJUIEJTUJODUSFQMBZ
4- $MBTTJDTMBQEFMBZ
&GGFDU-JTU
XXX珡BNNBJOOPWBUJPODPN4IFO[IFO'MBNNB*OOPWBUJPO$P-UE
GUITAR IN: 1/4'' mono audio jack (impedance value: 1M ohms)
GUITAR OUT: 1/4'' mono audio jack (impedance value: 100 ohms)
Mic: XLR balanced input jack (impedance value: 2.14k ohms)
XLR OUTPUT: XLR balanced output jack (impedance value: 300 ohms)
Power requirements: AC adapter 9V DC
Current Draw: 1.5A
Dimension: 86.6x125x60mm
Weight: 0.371kg
Freq: 20 Hz-20K Hz
Accessories: Safety Instruction & Warranty Card，Sticker，quick guide
Specifications
08
www.flammainnovation.com Shenzhen Flamma Innovation Co., Ltd
Missing safety instructions
09
www.flammainnovation.com Shenzhen Flamma Innovation Co., Ltd
● Choking hazard due to swallowing of small parts, especially for children + Note on
proper disposal of plastic covers and packaging to prevent choking hazard.
● Definition of intended use and notice that any other use, as well as use under other
operating conditions, is considered improper use
● Disposal notice for packaging (recycling of packaging by sighting the correct method of
disposal) and Waste Electrical Equipment notice which prescribes that the regulations
in force in the customer's country must be observed with regard to the disposal of waste
electrical equipment.
● Fire hazard due to incorrect polarity
● External power supply (does the voltage specification on the device match your power
supply network, is there an earth leakage circuit breaker, disconnect the device from
the network when not in use)
● Definition of operating conditions (indoor use, maintenance by specialized personnel)
● Possible damage from leaking batteries
● We need the manual in the language German, English, Spanish and French.
Made in China
