UNDERGROUND
INSTRUCTION &
INSTALLATION MANUAL
MODEL: FU5C, FU6C
component
speakers

INTRODUCTION
This instruction manual is for your safety and must be adhered to at all times. Please read and
ensure that you fully understand the installation and set up procedures as explained. If you are
unclear on the installation or set up of your FLI UNDERGROUND speakers please contact your
nearest authorised FLI UNDERGROUND dealer.
Thank you for purchasing these FLI UNDERGROUND component speakers.
They will provide you with years of trouble free usage providing you follow a few
simple guidelines.
2
WARNING
DO NOT EXPOSE THIS PRODUCT TO DAMP OR MOISTURE - doing so may result in fire,
shock or damage to the product.
BEFORE WIRING DISCONNECT THE CABLE FROM THE POSITIVE BATTERY TERMINAL
- failure to do so may result in electric shock or injury.
ENSURE GOOD AND CORRECT CONNECTIONS - failure to make the correct connections
may result in fire or damage to the product.
KEEP THE VOLUME AT A LEVEL SO YOU CAN STILL HEAR OUTSIDE NOISE - failure to do
this may result in an accident. FLI UNDERGROUND equipment is capable of producing sound
levels that can permanently damage your hearing. FLI UNDERGROUND recommends caution
when listening at high volume. For safe and enjoyable listening the sound should be comfortable
and clear without distortion.
CAUTION
• Never connect any speaker lead to the car chassis. This can cause severe damage to your
speaker / car radio / amplifier.
• Before drilling or cutting any holes, investigate the layout of your vehicle thoroughly.
• Use caution when working near the fuel / hydraulic lines and electrical wiring.
• Observe the correct polarity when wiring, improper phasing may cause a loss of bass
response.
• Ensure that no moving parts catch on the speaker or grill (e.g. window or door handles, or
window glass inside the door)
INSTALLATION
• The quality of the installation will affect the system performance and reliability.
• Contact your nearest authorised FLI dealer if you are unsure about the installation of this
product.
• Please mount this unit away from any potential hazards.
• Minimising the length of wires will provide higher audio output from the system.
• The speaker should be securely fastened to the mounting position using the screws
provided.
• Pre drill your mounting holes using a drill and position with the template provided.
• Be sure to investigate your mounting area thoroughly for electrical wires, brake or fuel lines or
fuel tank to prevent causing any damage.
BLE F
ock or injur
ONNECTIONS
-
roduct.
L SO YOU CAN STILL HE
LI UNDERGROUND equipme
amage your hearing. FLI UNDER
e. For safe and enjoyable listening th
speaker lead to the car chassis. This can cause
o / amplifi
cutting any holes, investigate the layout of your vehicle
hen working near the fuel / hydraulic lines and electrical wirin
correct polarity when wiring, improper phasing may cause
at no moving parts catch on the speaker or grill (e.g. window or do
glass ins
TALLA
e quality
ontact your nearest authorised FLI dealer if you are unsure about the installation o
product.
Please mount this unit away from any potential hazards.
the system
aler if
RGROUND
r hearing.
d enjoyabl
car chas
tigate th
/ hydrau
ing, im

3

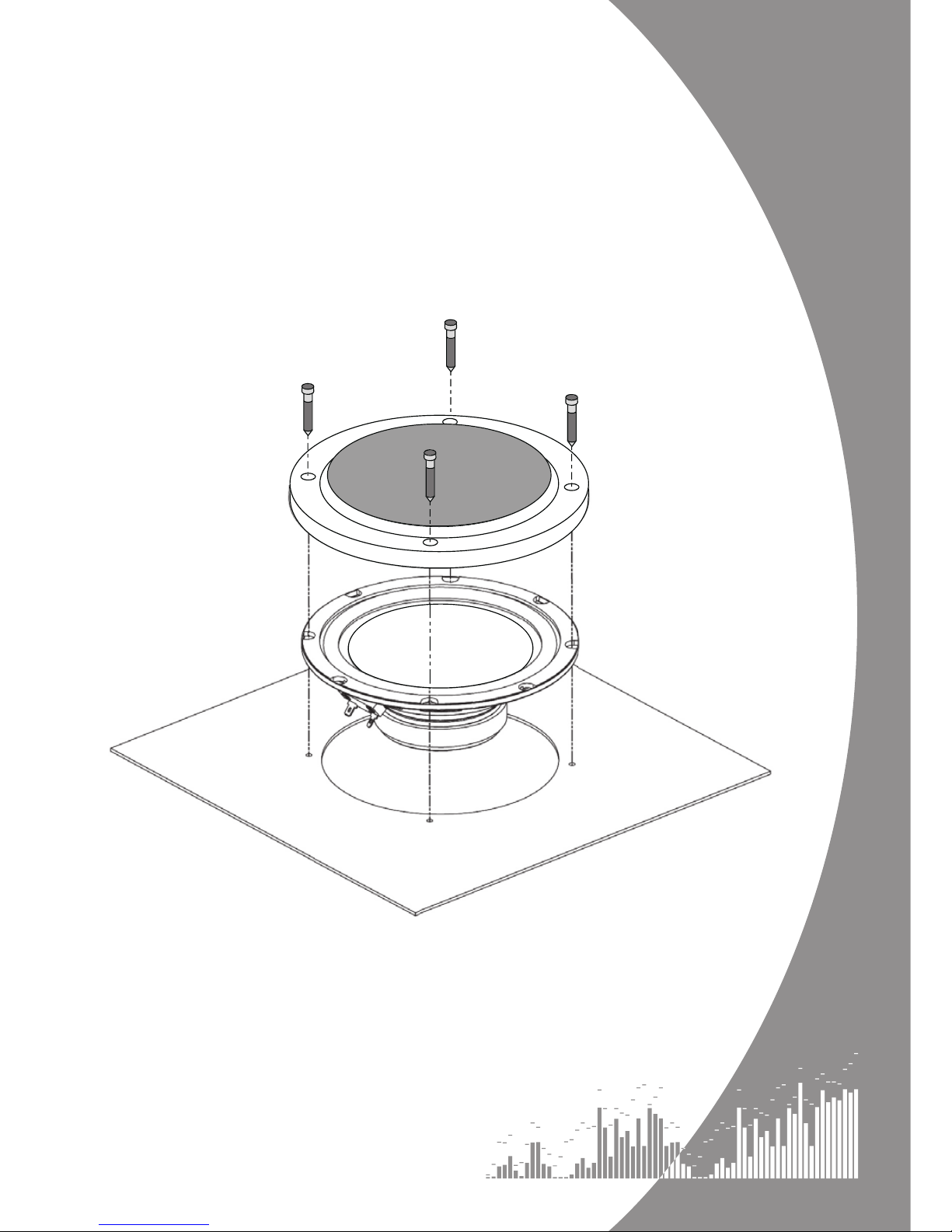

SPEAKER INSTALLATION
Firstly, make sure that the speakers will fit in your chosen location. This may involve
the removal of the standard vehicle speakers. Please use the mounting depth and hole
cut dimensions as detailed in this manual for guidance.
• If necessary cut any material away to allow the speaker to sit correctly.
• Cut out the mounting hole and pre-drill any other fixing holes.
• If required, the protective grill can be removed from the gasket and omitted from the speaker
fitting.
• If the grill is to be fitted, screw through both gasket and speaker using the screw provided until
the speaker is securely fastened.

4
Tweeter Installation
The tweeter can either be fitted flush mount or surface mount. Try and take into
account the following when locating a suitable position. For optimum staging try and
locate a position that is higher than the woofer but within twelve inches (maximum) of it.
It is vital that the tweeter is adjusted so that it is focused towards the listener.
surface mount tweeter installation
• After finding a suitable position for the tweeters place the base of the tweeter casing in the
correct position.
• Using this base mark the two mounting holes and the hole for the wire to pass through.
• Cut out these holes using a 2mm drill for the fixing screws and at least an 8mm hole for the cable,
ensuring that the hole cut for the cable is big enough and will not cause the cable to become chaffed
in any way.
• Pass the
tweeter cable
through the
bottom of the
case and through
the previously
drilled hole.
• Secure the bass of
the tweeter housing
with the screws
provided.
• Finally, angle the
tweeter so that it is
focused towards the
listener.
Wiring diagram
+-
+ -
+
-

5

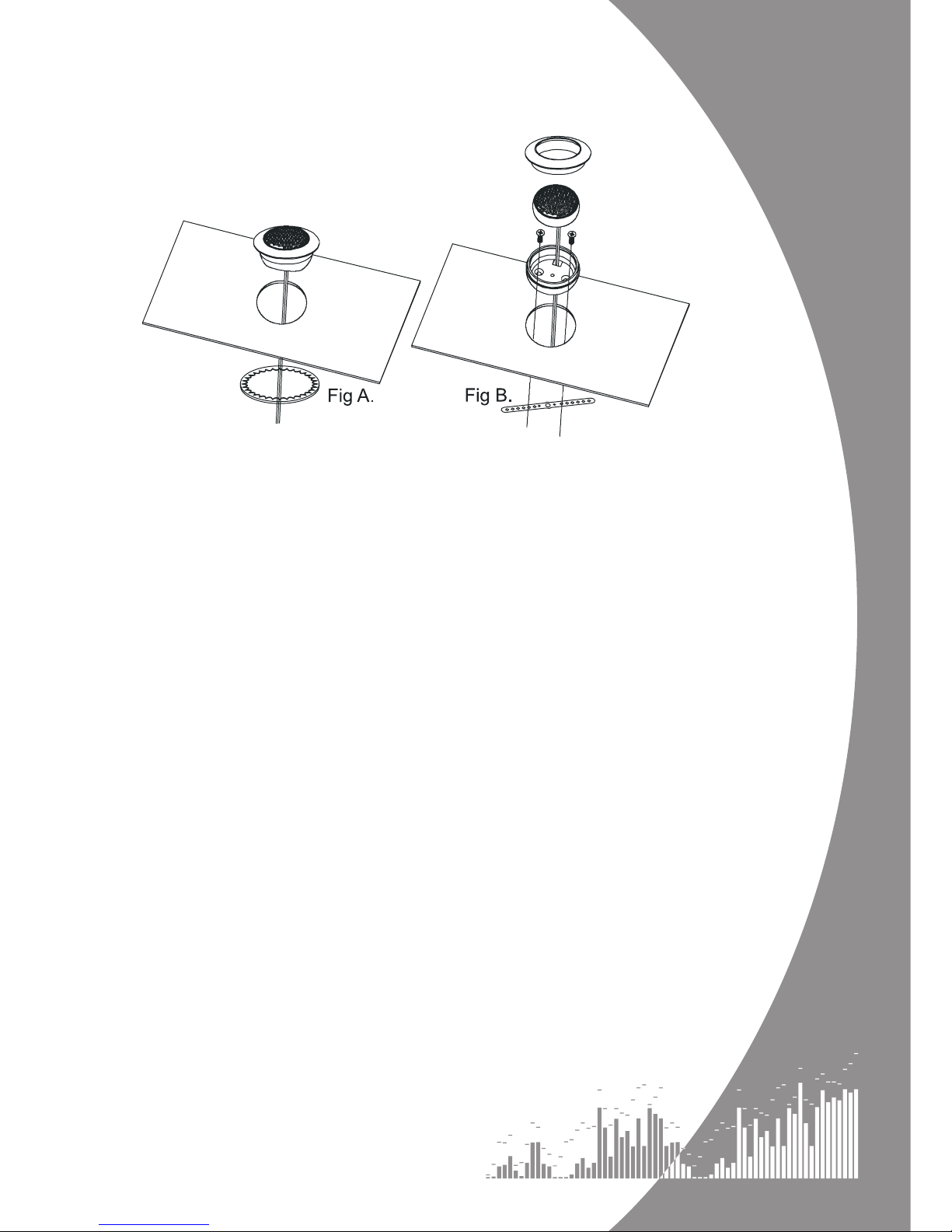

Flush mount tweeter installation
For ease of installation there are two ways of fixing the tweeters in place.
The first requires the use of the metal ring provided. (See Figure A)
• After finding a suitable position for the tweeters place the cut out template for the tweeter in position and
mark around it.
• Before cutting the holes double check that no brake, fuel lines or wiring harnesses are likely to get
damaged.
• Ensure that the tweeter when fitted will not catch on any moving parts such as door / window handles.
• If mounting in a door check that the window can still be fully lowered before installing.
• Cut out the hole carefully.
• Place the entire tweeter into the cut out hole.
• From the back push the metal ring over the rear of the casing until it is tight into the hole.
The second requires the use of the metal strip provided. (See Figure B)
• After finding a suitable position for the tweeters place the cut out template for the tweeter in position and
mark around it.
• Before cutting the holes double check that no brake, fuel lines or wiring harnesses are likely to get
damaged.
• Ensure that the tweeter when fitted will not catch on any moving parts such as door / window handles.
• If mounting in a door check that the window can still be fully lowered before installing.
• Cut out the hole carefully.
• Position the metal strip fixing strip centrally, behind the cut out hole.
• Using the fixing screws attach the base of the tweeter case to the metal strip.
• Pass the tweeter cable through the hole in the centre in the bottom of the case and the metal fixing
strip.
• Pull the cable tight until the tweeter sits in the base.
• Screw the top of the tweeter casing to the base.
• Caution do not over tighten.
Crossover
The crossover units come with wires with crimped ends on already attached to them to ease the
installation process. The wiring diagram (left) should be used as a guide to wire the crossovers into
your system Once the crossover has been wired correctly use the two sticky pads to fix it to a
secure, dry location.
● Screw the top of the tweeter casing to the base.
● Caution do not over tighten.

6
specifications
KEEP IT SAFE
Staple your receipt here:
MODEL NUMBER:
SERIAL NUMBER:
PURCHASED FROM:
DATE OF PURCHASE:
In order to protect your purchase and aid your warranty please fill
in the following form and keep it safe for your future reference.
For more information and to register your warranty online, visit:
www.fliaudio.com/warranty
-
OUNTING$IAMETER
-
A
G
NET$IAMETER
-
OUNTING$EPTH
Model
Type
Configuration
Speaker size
RMS power
Peak power
Minimum input
Sensitivity
Frequency response
Mounting diameter
Mounting depth
Recommended
amplifier
FU6 Comp
Component
2 way
6.5” (165mm)
70 watts
210 watts
35 watts RMS
85dB
65Hz- 20kHz
FU360.2/FU720.4
FU1000.5
FU5 Comp
Component
2 way
5.25” (130mm)
60 watts
180 watts
30 watts RMS
83dB
80Hz- 20kHz
FU360.2/FU720.4
FU1000.5
4.5” (115mm)
1.8” (45mm)
5.6” (142mm)
2.1” (53mm)
Magnet diameter 2.4” (60mm) 3” (76mm)

LIMITED WARRANTY
All FLI goods are covered by a full 12 months manufacturers warranty. Valid
from the date of the original receipt and proof of purchase. In order to validate
this warranty, the warranty card should be returned to FLI within seven days
of the original purchase date. The original receipt and packaging should also
be kept for this 12 month period.
If at any stage during the warranty period you have a problem with the product
then it should be returned to the point of purchase in its original packaging,
complete and with no items missing. If the store is unable to fix the product it
may have to be returned to FLI this process takes around 7 working days.
A full description of FLI’s warranty information can be found on our website:
www.fliaudio.co.uk/warranty
A written version can also be obtained from:
FLI warranty department
PO Box 11000
B75 7WG
UK
COPYRIGHT
All content included in this manual such as text, graphics, logos, icons, images data, the selection
and arrangement thereof, are the property of FLI Audio (herein referred to as “FLI”, “us” or “we”)
and its affiliate or their content and technology providers, and are protected by United Kingdom
and International copyright laws. All rights reserved.
TRADEMARKS
FLI UNDERGROUND™, FU™, UNDERGROUND™ and all stylised representations of product
names, or the abbreviations of product names, as logos are all trademarks of FLI. Graphics and
logos are trademarks or trade dress of FLI Audio or its subsidiaries. FLI’s trademarks and trade
dress may not be used in connection with any product or service that is not FLI’s, in any manner
that is likely to cause confusion among customers or in any manner that disparages or discredits
FLI. All other trademarks not owned by FLI or its subsidiaries that appear in this manual are the
property of their respective owners, who may or may not be affiliated with, connected to, or
sponsored by FLI or its subsidiaries.
We reserve the right to make needed changes or improvements to the product
and this manual, without informing the customer about this in advance.
