Fnatic Gear Clutch G1 User manual
Product Manual
CLUTCH
CLUTCH OPTICAL MOUSE PRODUCT MANUAL
SOFTWARE INSTALLATION Download Software Installer
From: http://download.fnatic.com
Run the Installer
Accept Pop’ups
If you are prompted by any pop’ups during the installation,
please accept (it is a requirement for the software to run properly).
Reboot Your Computer
When the installation is complete, please reboot your computer
1
4
3
2
,
CLUTCH OPTICAL MOUSE PRODUCT MANUAL
1
FEATURES
Made with the sole purpose to give the esports gamer an edge over his opponents,
the Fnatic Gear CLUTCH has been designed with performance driven components
and interesting features. The curvature of the body is ergonomic yet uncomplicated.
It is a result of countless hours spent studying different hand positions and shapes,
then carving our ideas as clay models, and having the best one approved by the Fnatic
teams. Additionally, the Fnatic Gear CLUTCH features seven programmable buttons,
a scroll wheel, three user profiles, a macro recorder, and a customizable LED-lighting
system, making it completely customizable to your personal preferences.
Pixart 3310 Sensor
This optical LED sensor is the latest on the market and focuses on
performance in terms of optimal tracking speed and acceleration, setting it
apart from other sensors that push for more CPI (Counts Per Inch). It is the
best performing sensor on the market and the first choice of sensor for any
member of the Fnatic teams.
Omron switches
Omron switches with a MTBF of 10M clicks are chosen for the Left and
Right click, ensuring that the CLUTCH’s quality will not fade during its
lifetime.
Drag Reduction Cord
The exit of the cord support has been angled upward at a 30 degree angle.
This prevents the cord from touching the surface in front of the mouse,
reducing the drag of the cord.
Color System
An RGB LED lights up the CLUTCH’s scroll wheel. The RGB LED can be
configured in any color preferred by the end-user and offers various
brightness modes.
Onboard Memory
Onboard memory stores up to three profiles with three CPI steps each, as
well as macros and light configurations. This gives the end-user the ability
to smoothly switch between systems without any hassle.
LEFT CLICK
RIGHT CLICK
SCROLL / MIDDLE CLICK
PROFILE -
PROFILE +
FORWARD
BACK
CLUTCH OPTICAL MOUSE PRODUCT MANUAL
2
FEATURE DESCRIPTION
Examples
LED’s lit while either Profile, CPI or both modes
are active.
If the user only has assigned a CPI changing
function to the mouse, the number of orange
LED’s represents the CPI levels.
If both CPI and Profile functions are assigned,
Orange is the primary color which shows the
CPI level. If the user decides to change their
profile the LED’s change to white while the user
is using a Profile changing function.
If only a Profile changing function is assigned,
white is the primary color which shows the
current Profile level. CPI level is not shown
since there is not a way to change it.
If neither a Profile or CPI changing function is
assigned, none of the LED’s are lit.
Scroll Wheel LED
Personalize your mouse by customizing the RGB
LED in the scroll wheel to any color you desire.
Pro tip - A unique color can be set for each user profile
Profile Level/CPI Indicator
Pressing the Profile cycle button cycles through
three user defined Profile levels. The number of
lit LEDs in white corresponds to which Profile
level is active.
White light indicates the current Profile level
Orange light indicates the current CPI level
Pro tip - You can assign a button via the software to switch
between CPI. The number of lit LEDs in orange corresponds to
which CPI level is active.
1
2
3
4
CLUTCH OPTICAL MOUSE PRODUCT MANUAL
3
FUNCTIONS
The graphical interface contains three buttons at the top which indicate which
Profile is currently selected. On the right you will find the Backup/Restore
functions which allow you to backup the currently selected profile.
Beneath the Profiles you find the feature tabs where you can switch between
Basic Settings, Button Assignment, and Color Settings. To the right you have the
Macro recorder. In the far down left corner the Restore Default button is located.
This restores the mouse to its default settings. A more detailed explanation of
each of the features can be found in separate sections of the manual.
In the main header of the software window you find the FW (Firmware) and SW
(Software) versions.
Pro tip: Profiles can also be saved to an external device, such as a USB stick. This allows you take your
settings with you when you are not playing using your own system and/or mouse, or wish to share your
favorite settings with a friend.
Pro tip: Do not forget to backup your profiles to a local storage device before restoring the mouse to its
default settings.
Pro tip: It is not necessary to run the settings software in order to change profiles; the software is only
needed to setup and customize profiles. Once set, profiles are stored in the internal memory and will
remain saved until the mouse is restored to its default settings.
CLUTCH OPTICAL MOUSE PRODUCT MANUAL
4

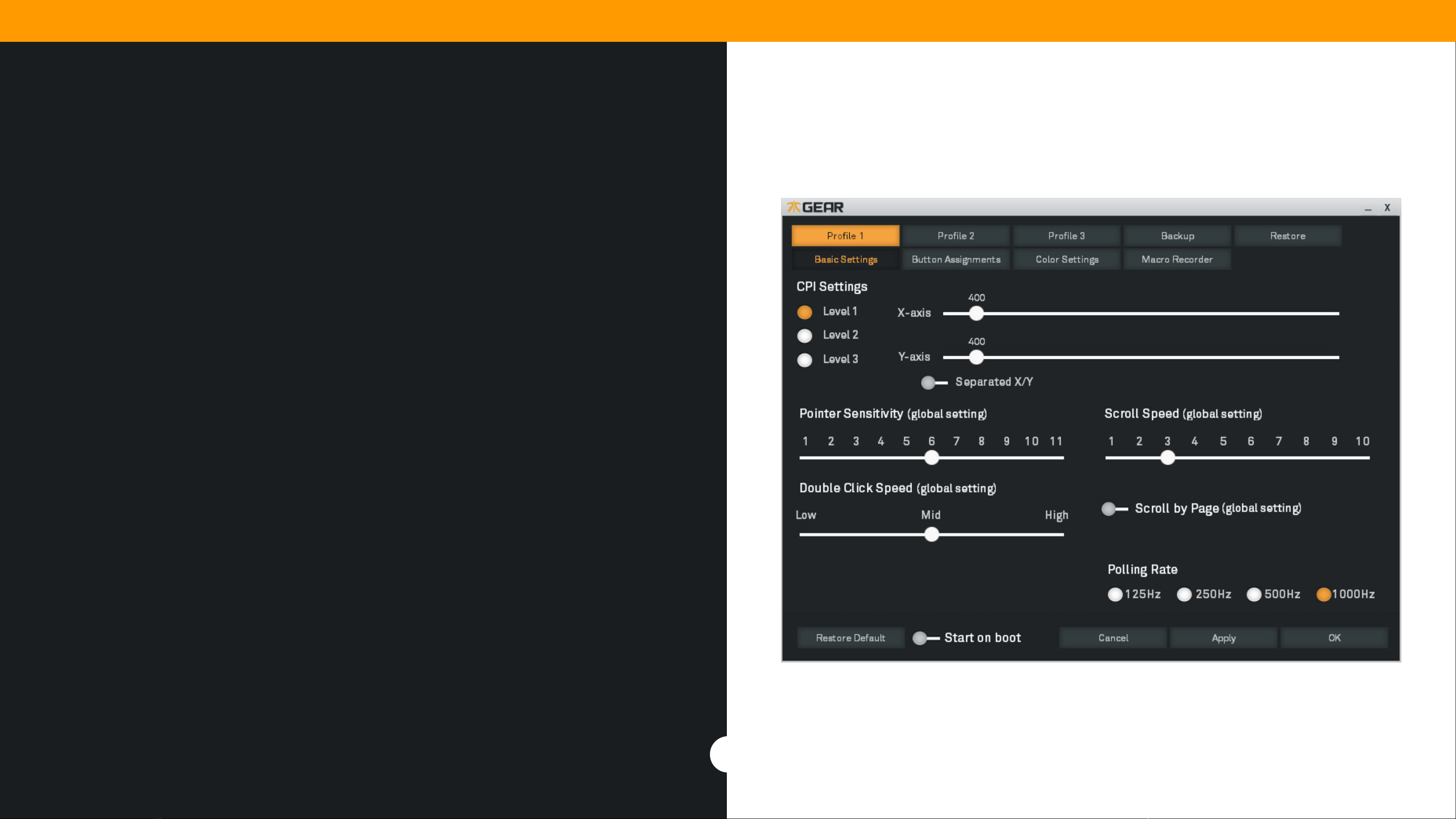

BASIC SETTINGS
CPI Settings
CPI (Counts Per Inch) is a unit of measurement that indicates how many counts
will be reported by the mouse when it is moved one inch. A higher CPI indicates a
higher mouse cursor velocity.
The horizontal and vertical CPI axes can be separated from each other resulting in
a higher or lower speed in one axis.
Each profile contains three levels which corresponds to the CPI level indicator that
is located on the mouse.
Pointer Sensitivity
The Pointer Sensitivity is a operating system setting which controls the speed of
the mouse cursor. (This function is global and used across all profiles)
Pro tip - We strongly encourage leaving this at six (6). Six is the direct translation of data from the mouse to
the OS – anything below or above 6 gets resampled by the OS, which could affect mouse functionality.
Double Click Speed
The Double Click Speed is a operating system setting which controls how fast you
would need to double click the left mouse button to execute a double click action.
(This function is global and used across all profiles)
Scroll Speed
Scroll Speed determines the amount of incremental row movement per scroll step.
Scroll by page indicates that instead of scrolling across rows you scroll one page at
a time. (This function is global and used across all profiles)
Polling rate
The polling rate represents how often the mouse communicates with the computer.
Pro tip - E-Sports professionals use 1000Hz
A
B
CLUTCH OPTICAL MOUSE PRODUCT MANUAL
5

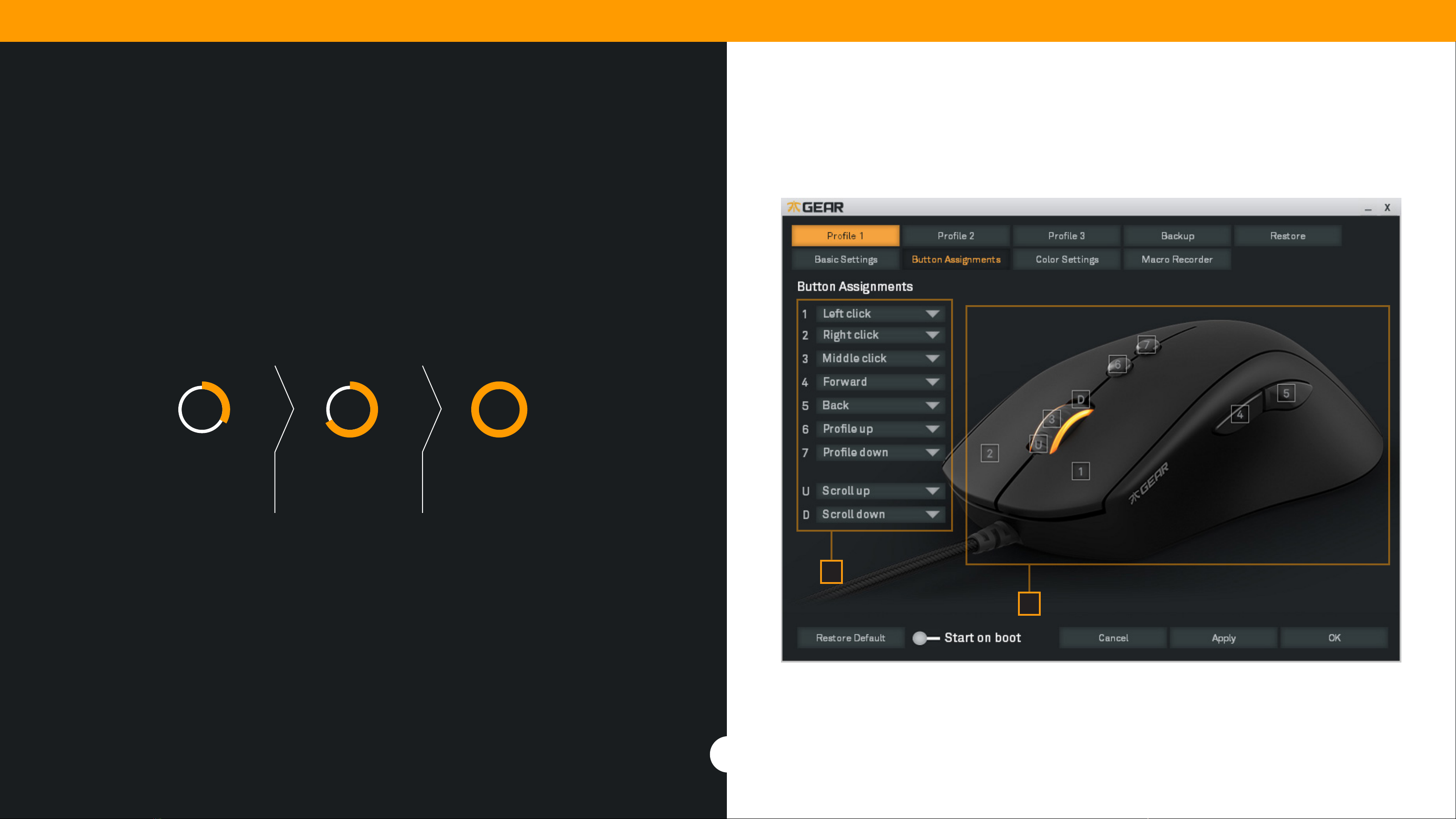

BUTTON ASSIGNMENT
Every button on the CLUTCH is fully customizable.
To reconfigure a button, click on its respective dropdown. A menu will display all the
available commands. Buttons can be also be disabled to avoid miss-clicks when not
being used.
When you are happy with your changes, press the Apply button, and the new
commands are saved.
How to Assign a Function
Pro tip: As a safety precaution, the software will not allow you save to without having “Left click” or “Right
click” functionality assigned.
Pro tip: As a safety precaution, the software will not allow you save to without having “Left click” or “Right
click” functionality assigned.
3
21
Identify a button that
you want to assign a
function to [A].
Locate the corre-
sponding dropdown
for that button [B].
Select the preferred
function
2
1
2
1
B
C
D
E
F
A
G H
CLUTCH OPTICAL MOUSE PRODUCT MANUAL
6

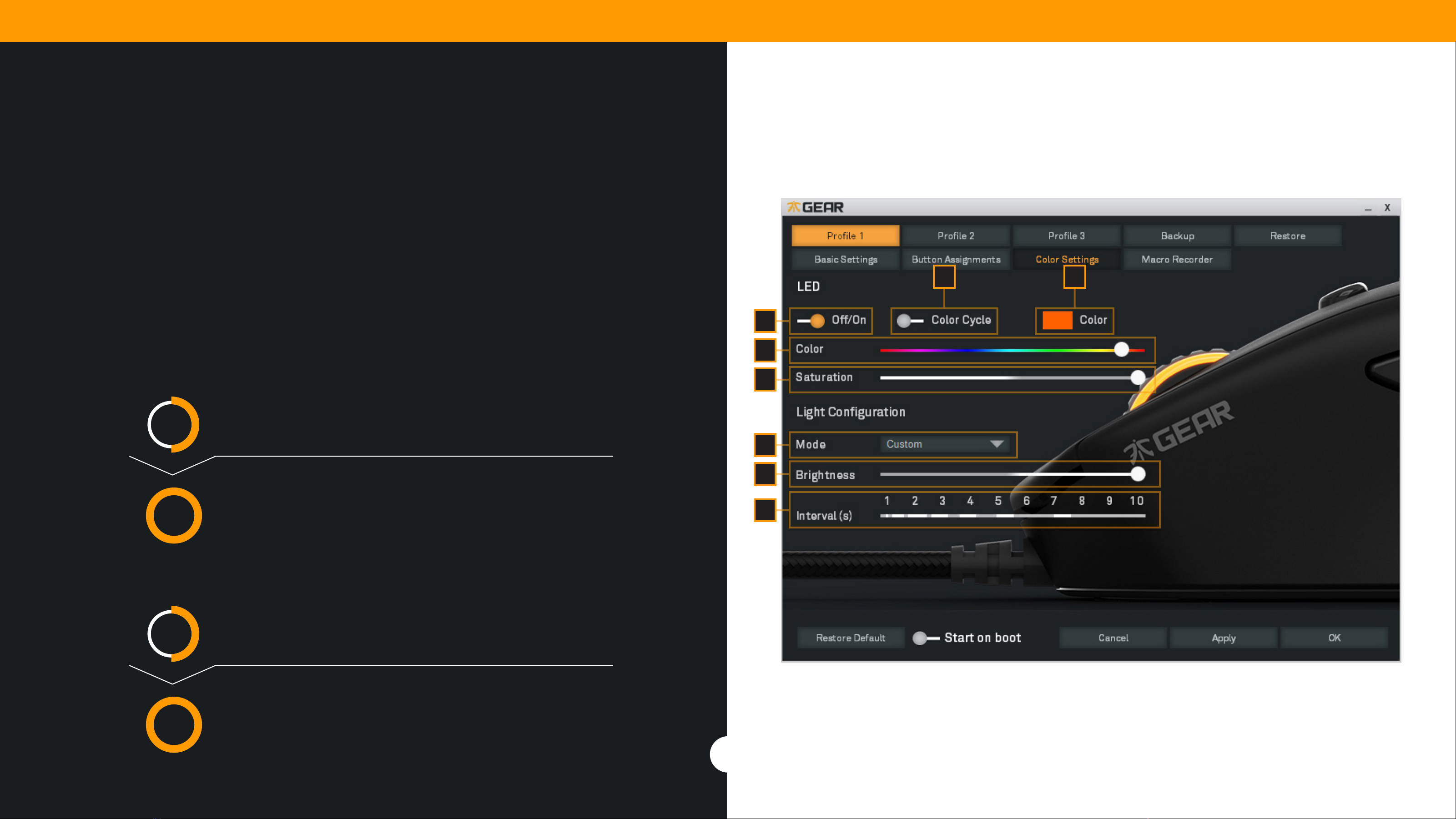

COLOR SETTINGS
The scroll wheel of the CLUTCH Gaming Mouse has an LED that is customizable
in 16 million different colors. The LED can even be configured in various
brightness modes, a rainbow effect, or no light at all.
The color settings are divided into two different areas; Color selection and Light
configuration.
Turn on the LED by clicking the Off/On button [A].
The currently mixed color [H].
How to Pick a Color
Color. OR
Select the Saturation [C] of the selected color.
(equals the amount of white is mixed into the color)
How to Modify the Light Configuration
Select one different brightness modes [D] that is available.
(brightness configurations cannot be selected while Color cycle is enabled)
Mode. OR
Turn on Color cycle [G].
(Color Cyle alternates between
all colors available)
Select a color with
the Color slider [B].
If any of the other modes are
chosen, you can set the Interval
[F], in seconds, of that mode.
(the interval slider does also
control the Color cycle.)
If the mode CUSTOM
was chosen you can
specify the brightness
[E] of the LED.
A ED
B
F
CLUTCH OPTICAL MOUSE PRODUCT MANUAL
7

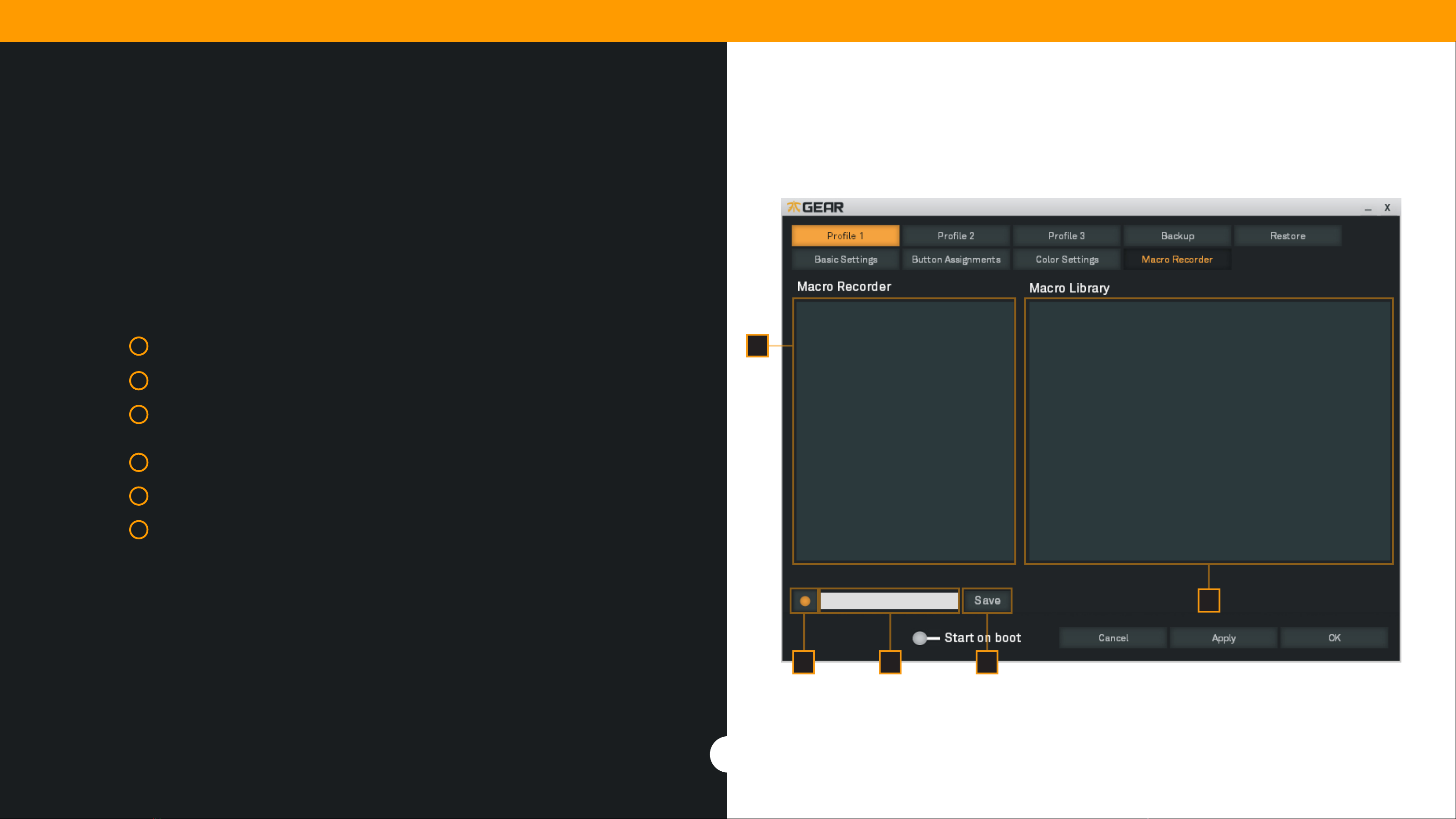

MACRO RECORDER
The macro recorder can record up to 254 actions where one key press is two actions.
Means that you can record a 128 character long macro.
While a macro is executed it is played with a 1ms delay between each of the actions.
A macro that is eight characters long will execute in 16ms.
How to record a macro
Press the record button [A].
Type the macro.
The recorded keyboard and mouse clicks will be
displayed in the Macro Recorder area [B].
Press the record button a second time [A].
Type a name in the name field [C].
Press Save [E].
Macro Library
Recorded macros will be shown in the Macro Library [F] area, where the macros can
also be deleted
1
2
3
4
5
6
CLUTCH OPTICAL MOUSE PRODUCT MANUAL
8
PRO TIPS
Maintenance
Over countless hours of gaming, the CLUTCH will get dirty due to various reasons.
To clean your CLUTCH please disconnect it from the computer and clean it with a
damp piece of cloth. Do this every month or so depending on how much you use it.
Trouble-shooting and Support
If you are in need of technical support, go to the Fnatic Gear support section at
www.fnaticgear.com.
To speed up the process, please provide your product serial number.

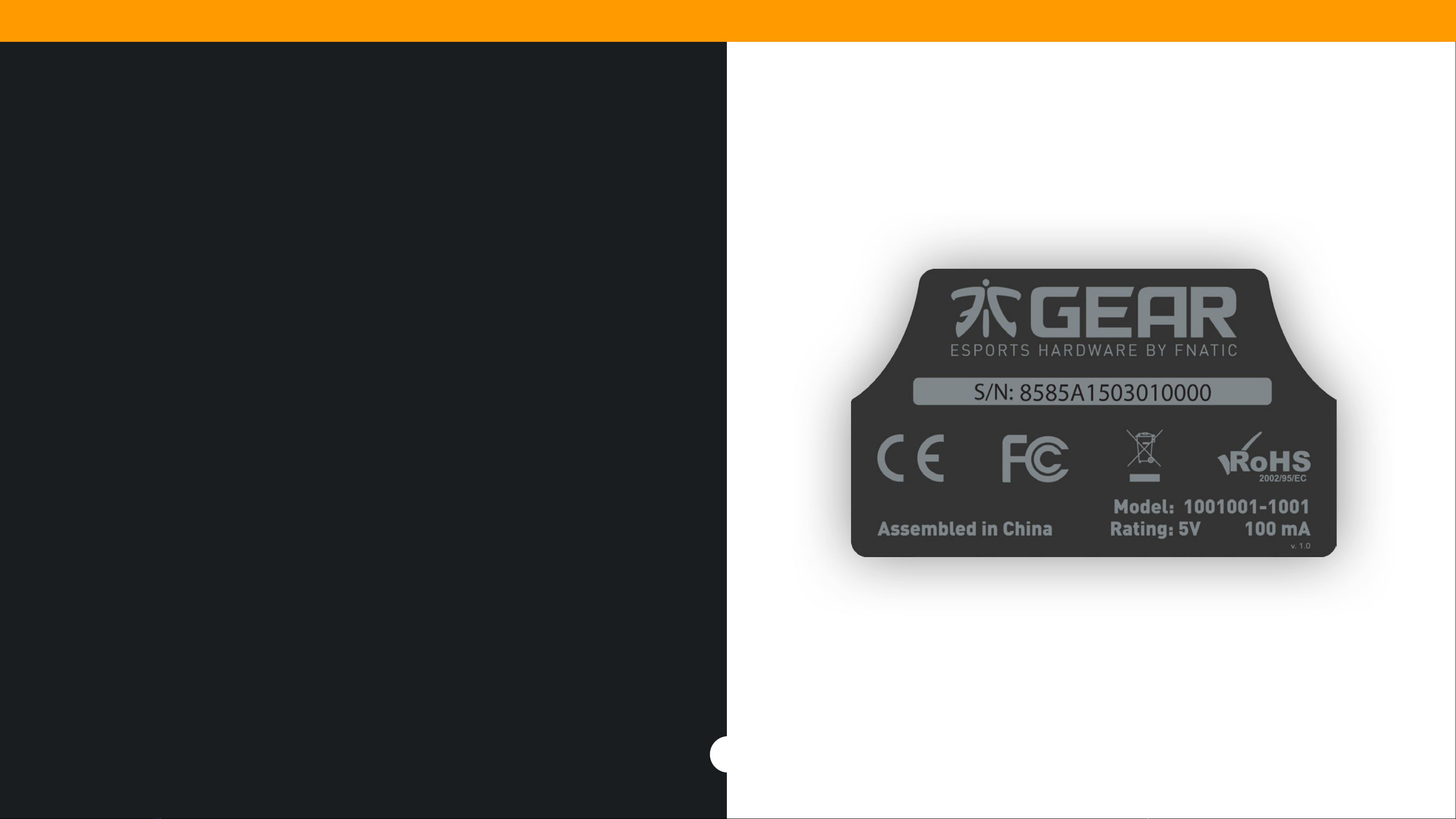

Identify Your Serial
The product serial can be found on bottom of the product, and contains of 15
characters whereas one is a letter.
Example: S/N: 1234A1234567890
CLUTCH OPTICAL MOUSE PRODUCT MANUAL
9
WARRANTY TERMS
Fnatic Gear products have a 2-year warranty from the date of purchase.
Proof of purchase, with date of purchase are required for warranty
claims. The extra warranty is not valid for refurbished or second-hand
purchases.
Obtaining Warranty Support
Before submitting a warranty claim, visit the support section at www.
fnaticgear.com for technical assistance. Valid warranty claims are
generally processed through the point of purchase during the first
thirty (30) days following purchase; however, this period of time may
vary depending on where you purchased your product – please check
with FNATIC GEAR or the retailer where you purchased your product for
details.
Warranty claims that cannot be processed through the point of
purchase and any other product related questions should be addressed
directly to FNATIC GEAR. The addresses and customer service contact
information for FNATIC GEAR can be found in the documentation
accompanying your product and on the web at www.fnaticgear.com.
Fnatic Limited Hardware Warranty
FNATIC GEAR warrants to the original purchaser that FNATIC GEAR
hardware product is free from defects in material and workmanship for
the length of time from the date of purchase – specified on the product
package and/or contained in the user documentation.
Except where prohibited by applicable law, this warranty is
nontransferable and is limited to the original purchaser. This warranty
grants specific legal rights;other rights may apply under other variable
local laws.
FNATIC GEAR provides its products through a network of distributors
and resellers; FNATIC GEAR products cannot be ordered directly from
the manufacturer. As products cannot be purchased directly from the
manufacturer, FNATIC GEAR is unable to offer warranty services for
said products.The reseller shall be responsible for providing warranty
services for FNATIC GEAR products and therefor the customer will
need to make warranty claims with the reseller. If the reseller is no
longer in business or otherwise unable to fulfill warranty obligations,
responsibility for warranty services shall default to – and the customer
shall file the warranty claim with -- the distributor.
In the United States, the retailer/reseller will handle warranty
replacement for the first 30 days after the date of purchase. FNATIC
GEAR will then cover warranty replacement for the remainder of the
warranty period.. In the event a FNATIC GEAR product is sold from a
company located within the United States to a party or parties outside
of the United States, the product warranty is no longer valid and
considered void.
Remedies
FNATIC GEAR’s entire liability and exclusive remedy for any breach of
warranty shall be at FNATIC GEAR’s discretion: (1) to repair or replace
the hardware, or (2) to refund the price paid, provided that the hardware
is returned to the point of purchase or such other place as FNATIC
GEAR may direct with a copy of the sales receipt or dated itemized
receipt. Shipping and handling charges may apply except where
prohibited by applicable law. FNATIC GEAR may, at its option, use new
or refurbished or used parts in good working condition to repair or
replace any hardware product. Any replacement hardware product will
be warranted for the remainder of the original warranty period or thirty
(30) days, whichever is longer or for any additional period of time that
may be applicable in your jurisdiction.
This warranty does not cover problems or damage resulting from:
(1) accident, abuse, misapplication, or any unauthorized repair,
modification or disassembly; (2) improper operation or maintenance,
usage not in accordance with product instructions or connection
to improper voltage supply; or (3) use of consumables, such as
replacement batteries, not supplied by FNATIC GEAR except where such
restriction is prohibited by applicable law.
Limitation of Liability
FNATIC GEAR SHALL NOT BE LIABLE FOR ANY SPECIAL, INDIRECT,
INCIDENTAL OR CONSEQUENTIAL DAMAGES WHATSOEVER, INCLUDING
BUT NOT LIMITED TO LOSS OF PROFITS, REVENUE OR DATA (WHETHER
DIRECT OR INDIRECT) OR COMMERCIAL LOSS FOR BREACH OF ANY
EXPRESS OR IMPLIED WARRANTY ON YOUR PRODUCT EVEN IF FNATIC
GEAR HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
Some jurisdictions do not allow the exclusion or limitation of special,
indirect, incidental or consequential damages, so the above limitation
or exclusion may not apply.
Duration of Implied Warranties
EXCEPT TO THE EXTENT PROHIBITED BY APPLICABLE LAW, ANY
IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE ON THIS HARDWARE PRODUCT IS
LIMITED IN DURATION TO THE DURATION OF THE APPLICABLE LIMITED
WARRANTY PERIOD FOR YOUR PRODUCT. Some jurisdictions do not
allow limitations on implied warranty length, so the above limitation
may not apply.
National Statutory Rights
Consumers have legal rights under applicable national legislation
governing the sale of consumer goods. Such rights are not affected by
the warranties in this Limited Warranty.
No Other Warranties
No FNATIC GEAR dealer, agent, or employee is authorized to make any
modification, extension, or addition to this warranty.
Warranty Periods
In the European Union, all warranty period less than two years shall be
increased to two years.
Company Info
Address:
Fnatic Gear LTD
Crafters House flat 5
76 East Road, LONDON N16AB
Contact: support@fnatic.com
10
CLUTCH OPTICAL MOUSE PRODUCT MANUAL
PRODUCT SPECS
Technical Specification
MCU/Processor: Holtek HT68FB560
Main switches: Omron
Sensor: ADNS 3310
Memory: 256 kB
Resolution: 5000 CPI
Frames per second: 6500
Tracking speed: 130 IPS
Max acceleration: 30 G
Report rate: Adjustable, up to 1000Hz
Max acceleration: USB 2.0, Gold plated
(2 m braided cord)
Product Dimensions & Weight
126x68x40 mm
Net weight: 90 g / 0.19 lbs
Retail Package Dimensions
56x160x218 mm
Package weight: 322 g / 0.70 lbs
System Requirements
Windows® compatible
Available USB port
10 MB free space on hard drive
Retail Package Contents
Fnatic Gear CLUTCH
Quick Guide
Fnatic stickers
Country of Origin
China
Compliance
CE, FCC, RCM, RoHS
Warranty Terms
2 Year Warranty from purchase date
Table of contents
